New design! 1500w laser welding equipment welding table soldering station portable handheld mig tig spot welder steel aluminium
New design! 1500w laser welding equipment welding table soldering station portable handheld mig tig spot welder steel aluminium
New design! 1500w laser welding equipment welding table soldering station portable handheld mig tig spot welder steel aluminium
New design! 1500w laser welding equipment welding table soldering station portable handheld mig tig spot welder steel aluminium
New design! 1500w laser welding equipment welding table soldering station portable handheld mig tig spot welder steel aluminium
New design! 1500w laser welding equipment welding table soldering station portable handheld mig tig spot welder steel aluminium

New design! 1500w laser welding equipment welding table soldering station portable handheld mig tig spot welder steel aluminium

Share on (1601294961602):


Price:$2,399.00-2,499.00

Quantity:


Product Overview

Description





Function Parameters


Model

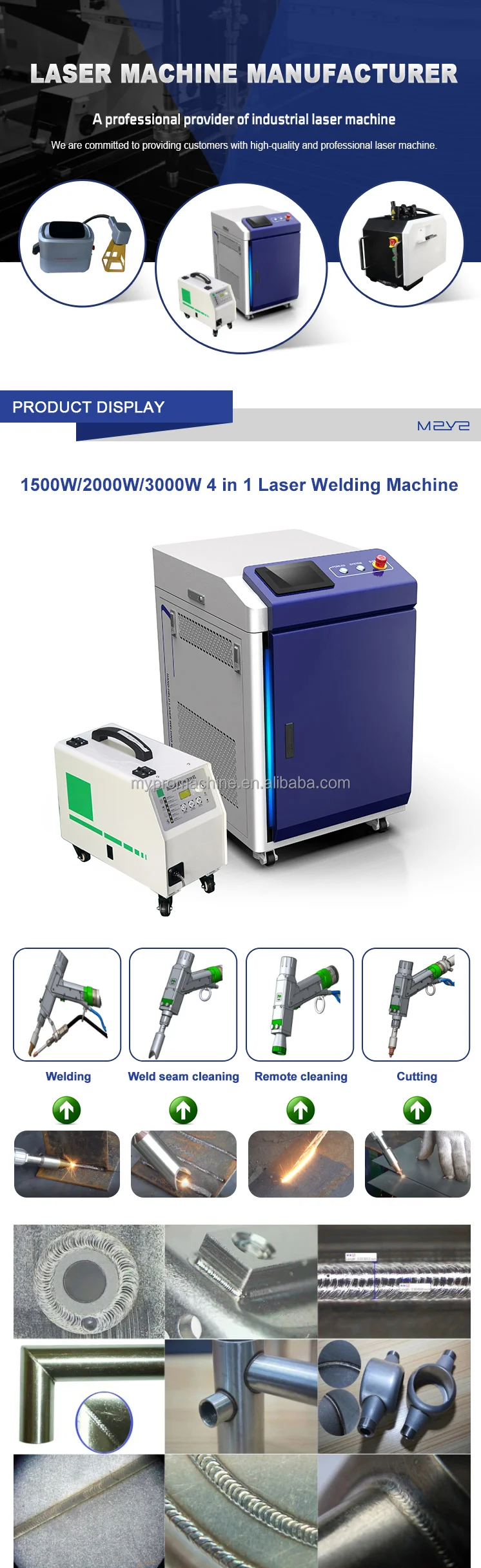

MYLW-I 4 in 1 Laser Welding/Cutting/ Cleaning Machine
Laser Type
Fiber Laser
Fiber Laser Power
1000w, 1500w, 2000w, 3000w
Welding Width
0.2-5mm
Head Type
Light weight handheld
Cooling Type
Water Cooled
Laser Source Brand
Max, Raycus, Reci, etc.
Control Panel
Touch Screen
Shell Material
Metal


Technical parameters


Spot adjustment range
0-5mm
Effective light aperture
16mm
Laser processing head weight
0.71KG
Optical fiber interface
QBH
Wavelength range
1070±20nm
Intelligent protection function
Protective lens intelligent temperature control device
Collimating focal length
50mm
Focal length
150mm
Core diameter of supported wire
3.0mm
Maximum wire feed speed
80mm/s
Auto Wire Feeder Net Weight
16.2KG
Auto Wire Feeder Dimension
560*240*472mm
Machine Package Dimension
1150*880*1400mm
Machine Package Weight
250KG
