Automated Component Counter Pcb Tht Machine Guangdong Wave Soldering Machine Wave Soldering Machine Pcb Dip Manufacturer
Product Description
Introduction:

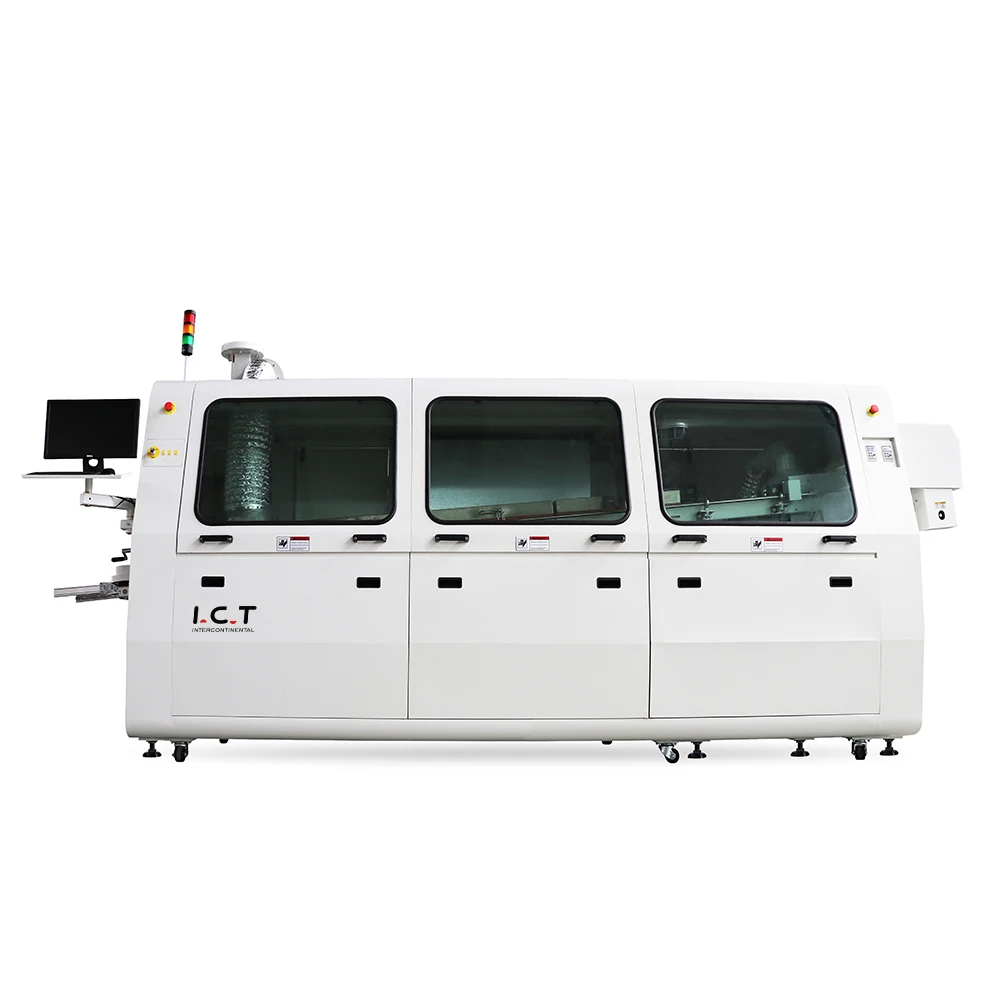

I.C.T Acrab lead-free wave soldering machine has long-term positive feedback from customers. Its unparalleled heating performance and temperature control system meet the requirements of various welding processes, especially energy saving design has been a leading-edge product advantage, maximum reducing the using cost for customers.
Features:
■ I.C.T Wave Soldering Machine Pneumatic components: Japan SMC pneumatic components and other import brands,ensuring gas supply accurate and steady.
■ Spray control: computer control or manually adjust switch.
■ Cleaning device: automatic cleaning, modular design, easy maintenance.
■ Temperature Protection:ETA using third-party over-temperature protection, multiple protection layers to ensure safe operation.
■ I.C.T Wave Soldering Machine comply with CE, CCC, UL and other standards and specifications.
■ User-friendly design: fault detection (such as heaters abnormal alarm, etc.), regular maintenance reminders and tool-free maintenance, reduce equipment failure rates.
■ Heating module: horizontal reflow design makes each heating zones not influenced by adjacent zones to ensure accurate temperature curve.
■ Moving parts: Computer adjustment, stepper motor control, accuracy and stability, to ensure accurate spray.
■ Temperature control: PLC + PID independent temperature control, real-time monitoring preheat temperature.
■ Core components: using imported components to ensure long-term stability of equipment operation, reduced maintenance costs.
■ Customers can choose different configurations of flux processing system according to their own production characteristics, to ensure the furnace hall clean.
Conveyor System
Roller type double hook finger, force point increases roller sleeve,effectively reduce friction and wear.
Increase guide bracket and guide wheel, prevent chain knotting and clamping, and ensure transport stability.
Titanium finger no wetting and no deformation.
Full load > 60 kg.
Increase guide bracket and guide wheel, prevent chain knotting and clamping, and ensure transport stability.
Titanium finger no wetting and no deformation.
Full load > 60 kg.
Supporting System
Heat-resistant and high-density aluminium support, no deformation. Transportation angle can be adjusted to ensure different welding processes. Japanese transport motor, frequency conversion control, high accuracy of transport speed.
Central support is optional. Titanium finger are optional.
Spray System
316 stainless steel material, corrosion resistance.
Sealing structure design to prevent flux pollution.
Tool-free plug-in filter with self-contained air extraction system.
Tool-free plug-in filter with self-contained air extraction system.
Cover is opened manually,conducive to maintenance.
Selective spray optional.
Selective spray optional.
Preheating System
Efficient and stable heat conduction.
Design structure for maximizing preheating area.
All round high temperature cotton design to ensure temperature stability. Heat-generating and heat-conducting parts and motors adopt top brands. Addressing the technological challenges of different Products.
Soldering System
Steady solder flow channel design. Wave peak stationarity less than 0.5mm. Easy maintenance design structure.
Minimum oxidation of tin slag. Wave peak Inverter Control.
Minimum oxidation of tin slag. Wave peak Inverter Control.
Control System
Humanized Operating Interface.
Standard circuit design, safe and reasonable.
Standard circuit design, safe and reasonable.
Top brand for core parts
Specifications | W4 | W3 | W2 | |||
Dimension:(mm) | 4200X1250X1500 | 3600X1250X1500 | 2900X1160X1500 | |||
Weight(kg) | Approx.1500kg | Approx.1200kg | Approx.790kg | |||
Power Supply | 3P5W,380/220V 50Hz | |||||
Control System | Touch Screen + PLC | |||||
Spray System | ||||||
Transmission Methed | Step motor | |||||
Flux flow | 10--100ml/min | |||||
Exhaust Diameter | Φ200mm | |||||
Exhaust Capacity | 25m3 /min | |||||
Preheating System | ||||||
Preheating Zone | 4 | 3 | 2 | |||
Preheating Length | 1800mm | 1400mm | 900mm | |||
Warm-up Time(min) | Approx.15min (setting 150℃) | |||||
Conveyor System | ||||||
PCB Width | 60~350mm | |||||
Conveyor Speed | 0-2000(mm/min) | |||||
Conveyor Height | 750+/-20 (mm) | |||||
Conveyor Angle | 4~7degree | |||||
Soldering System | ||||||
Solder Pot style | Mechanical Motor drive | |||||
Solder Pot Material | Full Titanium (Standard FT) | |||||
solder pot temperature | 300℃ | |||||
solder pot capacity | Lead-free 350kg | Lead-free 300kg | Lead-free 250kg | |||
Nitrogen System（Option） | ||||||
Certifications
Packing & Delivery
※ Standard Wooden Case with Vacuum Package
Shipping Way:
※ By air, for sample and small package, international express like DHL, UPS, EMS...
※ By sea, for large package and quantity;
※ Other ways as customer requested.
Delivery Time:
※ Within 35 Days.
※ By air, for sample and small package, international express like DHL, UPS, EMS...
※ By sea, for large package and quantity;
※ Other ways as customer requested.
Delivery Time:
※ Within 35 Days.
