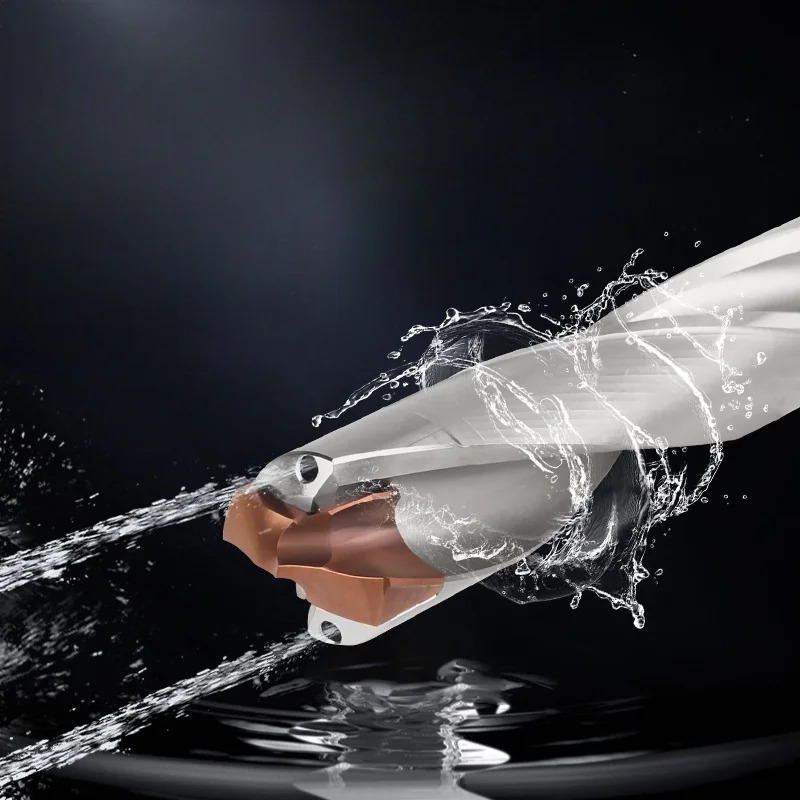

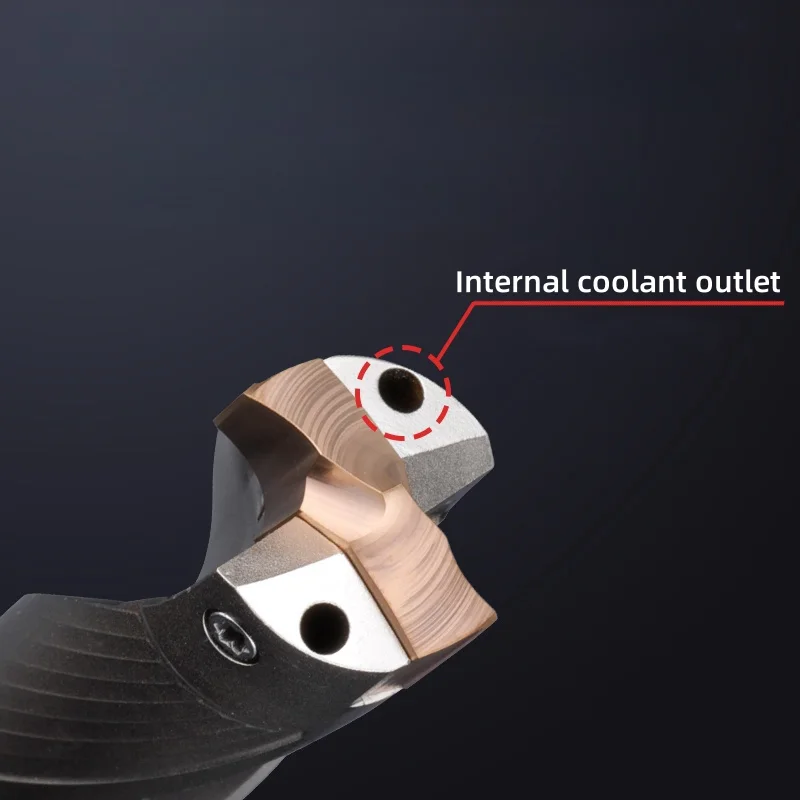

5D Dual Gun Drills 12.5mm 52mm Crown Drill Rod Replaceable Insert Drill Tip
- Category: >>>
- Supplier: Guangdong Tianyu Mechanical Equipment Co. Ltd.Guangdong Ltd.
Share on (1601295148200):
Product Overview
Description
Product Description
Specification
Code No | Drill Tip Diameter Range | Size | Holder Model | ||||||||||||
L | L1 | L2 | L3 | LS | D | ||||||||||
KS1250/1300-5D-C20 | 12.50 | 13.00 | 152.5 | 102.5 | 65 | 2.0 | 50 | 20 | C | ||||||
KS1301/1350-5D-C20 | 13.01 | 13.50 | 156.0 | 106.0 | 68 | 2.1 | 50 | 20 | C | ||||||
KS1351/1400-5D-C20 | 13.51 | 14.00 | 159.5 | 109.5 | 70 | 2.2 | 50 | 20 | B | ||||||
KS1401/1450-5D-C20 | 14.01 | 14.50 | 163.0 | 113.0 | 73 | 2.2 | 50 | 20 | B | ||||||
KS1451/1499-5D-C20 | 14.51 | 14.99 | 165.5 | 15.5 | 75 | 2.3 | 50 | 20 | A | ||||||
KS1500/1549-5D-C20 | 15.00 | 15.49 | 169.0 | 119.0 | 78 | 2.4 | 50 | 20 | A | ||||||
KS1550/1599-5D-C20 | 15.50 | 15.99 | 172.5 | 122.5 | 80 | 2.5 | 50 | 20 | A | ||||||
KS1600/1649-5D-C20 | 16.00 | 16.49 | 175.0 | 25.0 | 83 | 2.5 | 50 | 20 | 1 | ||||||
KS1650/1699-5D-C20 | 16.50 | 16.99 | 178.5 | 128.5 | 85 | 2.6 | 50 | 20 | 1 | ||||||
KS1700/1749-5D-C20 | 17.00 | 17.49 | 182.0 | 132.0 | 88 | 2.7 | 50 | 20 | 1 | ||||||
KS1750/1800-5D-C20 | 17.50 | 18.00 | 185.0 | 135.0 | 90 | 2.8 | 50 | 20 | 1 | ||||||
KS1801/1849-5D-C25 | 18.01 | 18.49 | 195.0 | 139.0 | 93 | 2.9 | 56 | 25 | 2 | ||||||
KS1850/1899-5D-C25 | 18.50 | 18.99 | 198.5 | 142.5 | 95 | 2.9 | 56 | 25 | 2 | ||||||
KS1900/1949-5D-C25 | 19.00 | 19.49 | 202.0 | 146.0 | 98 | 3.0 | 56 | 25 | 2 | ||||||
KS1950/1999-5D-C25 | 19.50 | 19.99 | 204.5 | 148.5 | 100 | 3.1 | 56 | 25 | 2 | ||||||
KS2000/2049-5D-C25 | 20.00 | 20.49 | 208.0 | 152.0 | 103 | 3.2 | 56 | 25 | 3 | ||||||
KS2050/2099-5D-C25 | 20.50 | 20.99 | 211.5 | 155.5 | 105 | 3.3 | 56 | 25 | 3 | ||||||
KS2100/2149-5D-C25 | 21.00 | 21.49 | 214.0 | 158.0 | 108 | 3.3 | 56 | 25 | 3 | ||||||
KS2150/2200-5D-C25 | 21.50 | 22.00 | 217.5 | 161.5 | 110 | 3.4 | 56 | 25 | 3 | ||||||
KS2201/2249-5D-C25 | 22.01 | 22.49 | 221.0 | 165.0 | 113 | 3.5 | 56 | 25 | 4 | ||||||
KS2250/2299-5D-C25 | 22.50 | 22.99 | 224.0 | 168.0 | 115 | 3.6 | 56 | 25 | 4 | ||||||
KS2300/2349-5D-C25 | 23.00 | 23.49 | 227.0 | 171.0 | 118 | 3.7 | 56 | 25 | 4 | ||||||
KS2350/2400-5D-C25 | 23.50 | 24.00 | 230.5 | 174.5 | 120 | 3.7 | 56 | 25 | 4 | ||||||
KS2401/2449-5D-C32 | 24.01 | 24.49 | 244.0 | 184.0 | 123 | 3.8 | 60 | 32 | 5 | ||||||
KS2450/2499-5D-C32 | 24.50 | 24.99 | 246.5 | 86.5 | 125 | 3.9 | 60 | 32 | 5 | ||||||
KS2500/2549-5D-C32 | 25.00 | 25.49 | 250.0 | 90.0 | 128 | 3.8 | 60 | 32 | 5 | ||||||
KS2550/2600-5D-C32 | 25.50 | 26.00 | 253.5 | 193.5 | 130 | 3.9 | 60 | 32 | 5 | ||||||
KS2601/2649-5D-C32 | 26.01 | 26.49 | 256.0 | 96.0 | 133 | 4.0 | 60 | 32 | 6 | ||||||
KS2650/2699-5D-C32 | 26.50 | 26.99 | 259.5 | 199.5 | 135 | 4.1 | 60 | 32 | 6 | ||||||
KS2700/2749-5D-C32 | 27.00 | 27.49 | 263.0 | 203.0 | 138 | 4.2 | 60 | 32 | 6 | ||||||
KS2750/2800-5D-C32 | 27.50 | 28.00 | 2660 | 206.0 | 140 | 4.2 | 60 | 32 | 6 | ||||||
KS2801/2849-5D-C32 | 28.01 | 28.49 | 269.0 | 209.0 | 143 | 4.3 | 60 | 32 | 7 | ||||||
KS2850/2899-5D-C32 | 28.50 | 28.99 | 272.5 | 212.5 | 145 | 4.4 | 60 | 32 | 7 | ||||||
KS2900/2949-5D-C32 | 29.00 | 29.49 | 276.0 | 216.0 | 148 | 4.5 | 60 | 32 | 7 | ||||||
KS2950/3000-5D-C32 | 29.50 | 30.00 | 278.5 | 218.5 | 150 | 4.5 | 60 | 32 | 7 | ||||||
KS3001/3049-5D-C32 | 30.01 | 30.49 | 280.0 | 220.0 | 153 | 4.6 | 60 | 32 | 8 | ||||||
KS3050/3099-5D-C32 | 30.50 | 30.99 | 282.5 | 222.5 | 155 | 4.7 | 60 | 32 | 8 | ||||||
KS3100/3149-5D-C32 | 31.00 | 31.49 | 285.0 | 225.0 | 158 | 4.8 | 60 | 32 | 8 | ||||||
KS3150/3200-5D-C32 | 31.50 | 32.00 | 287.5 | 227.5 | 160 | 4.8 | 60 | 32 | 8 | ||||||
KS3201/3299-5D-C40 | 32.01 | 32.99 | 302.0 | 232.0 | 165 | 4.9 | 70 | 40 | 9 | ||||||
KS3300/3399-5D-C40 | 33.00 | 33.99 | 307.0 | 237.0 | 170 | 5.1 | 70 | 40 | 9 | ||||||
KS3400/3499-5D-C40 | 34.00 | 34.99 | 312.0 | 242.0 | 175 | 5.2 | 70 | 40 | 9 | ||||||
KS3500/3600-5D-C40 | 35.00 | 36.00 | 317.0 | 247.0 | 180 | 5.4 | 70 | 40 | 9 | ||||||
KS3601/3699-5D-C40 | 36.01 | 36.99 | 322.0 | 252.0 | 185 | 5.5 | 70 | 40 | 10 | ||||||
KS3700/3799-5D-C40 | 37.00 | 37.99 | 327.0 | 257.0 | 190 | 5.7 | 70 | 40 | 10 | ||||||
KS3800/3899-5D-C40 | 38.00 | 38.99 | 332.0 | 262.0 | 195 | 5.8 | 70 | 40 | 10 | ||||||
KS3900/4000-5D-C40 | 39.00 | 40.00 | 337.0 | 267.0 | 200 | 6.0 | 70 | 40 | 10 | ||||||
KS4001/4099-5D-C40 | 40.01 | 40.99 | 353.0 | 283.0 | 205 | 6.0 | 70 | 40 | 11 | ||||||
KS4100/4199-5D-C40 | 41.00 | 41.99 | 358.0 | 288.0 | 210 | 6.0 | 70 | 40 | 11 | ||||||
KS4200/4299-5D-C40 | 42.00 | 42.99 | 363.0 | 293.0 | 215 | 6.0 | 70 | 40 | 11 | ||||||
KS4300/4399-5D-C40 | 43.00 | 43.99 | 368.0 | 298.0 | 220 | 6.0 | 70 | 40 | 11 | ||||||
KS4400/4500-5D-C40 | 44.00 | 45.00 | 373.0 | 303.0 | 225 | 6.0 | 70 | 40 | 11 | ||||||
KS4501/4599-5D-C50 | 45.01 | 45.99 | 378.0 | 308.0 | 230 | 6.0 | 70 | 50 | 12 | ||||||
KS4600/4699-5D-C50 | 46.00 | 46.g9 | 383.0 | 313.0 | 235 | 6.0 | 70 | 50 | 12 | ||||||
KS4700/4799-5D-C50 | 47.00 | 47.99 | 388.0 | 318.0 | 240 | 6.0 | 70 | 50 | 12 | ||||||
KS4800/4899-5D-C50 | 48.00 | 48.99 | 393.0 | 323.0 | 245 | 6.0 | 70 | 50 | 12 | ||||||
KS4900/4999-5D-C50 | 49.00 | 49.99 | 398.0 | 328.0 | 250 | 6.0 | 70 | 50 | 12 | ||||||
KS5000/5099-5D-C50 | 50.00 | 50.99 | 403.0 | 333.0 | 255 | 6.0 | 70 | 50 | 12 | ||||||
KS5100/5200-5D-C50 | 51.00 | 52.00 | 408.0 | 338.0 | 260 | 6.0 | 70 | 50 | 12 | ||||||

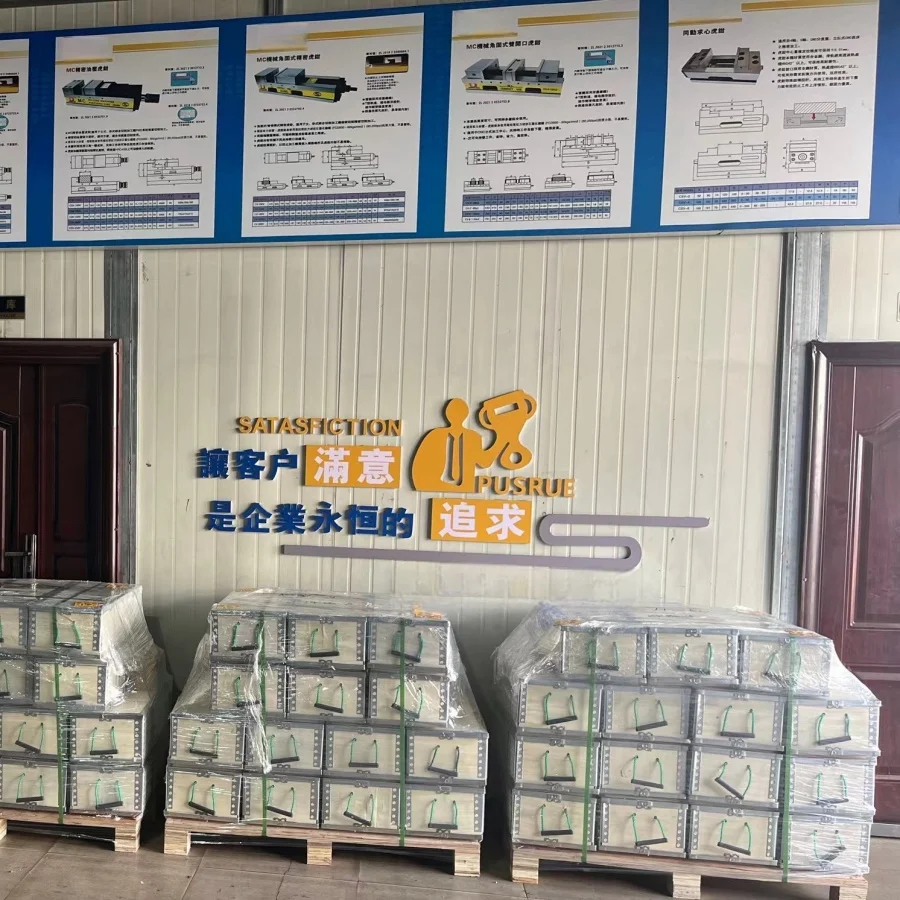

Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

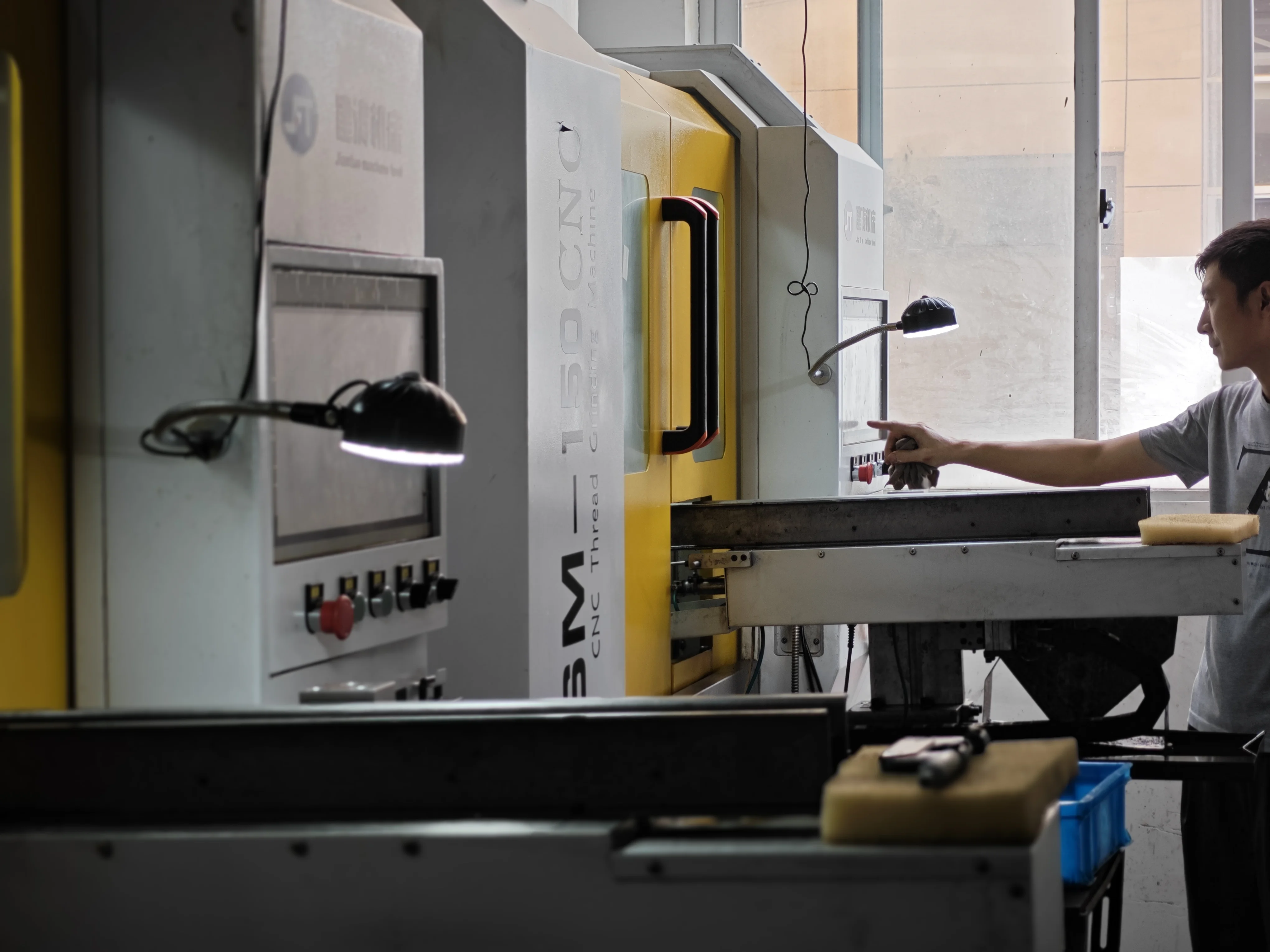

Company Profile
FAQ
1) When can I get the price?
We usually quote within 12 hours after we get your inquiry.If you are very urgent to get the price, please call us or tell us in
your email so that we will regard your inquiry priority.
2) How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality. If you just need a blank sample to check the design
and paper quality, we will provide you sample for free, as long as you afford the express freight.
3) How long can I expect to get the sample?
After you pay the sample charge and send us confirmed files, the samples will be ready for delivery in 3 days. The samples will be
sent to you via express and arrive in 3-5 workdays. You can use your own express account or prepay us if you do not have an
account.
4) How long does the whole procedure being worked out?
After you place a order,the production handling time is about 15-30 days. We need 7-15 days to prepare all the stuff then 15 days
for manufacturing.
5) What about the transportation and delivery date?
Normally we use shipment to transprot the goods.It is about 25-40 days.It also denpends on which coutry and port you are.It could
be shorter if you need to send the goods like Asian. If there are some emergencies we can send the goods via air express, as long
as you afford the traffic expense.
6) Are you trading company or manufaturer?
We are a professional integrated business of industry and trade. We not only owns our tool factory, but also have cemented carbide
factory and a complete supply chain system.We have rich experience in production experience, high-volume production orders.
7) Where is your factory located?
We are located in No. 20 Jiangnan West Street, Chang'an Town, Dongguan City, Guangdong Province.

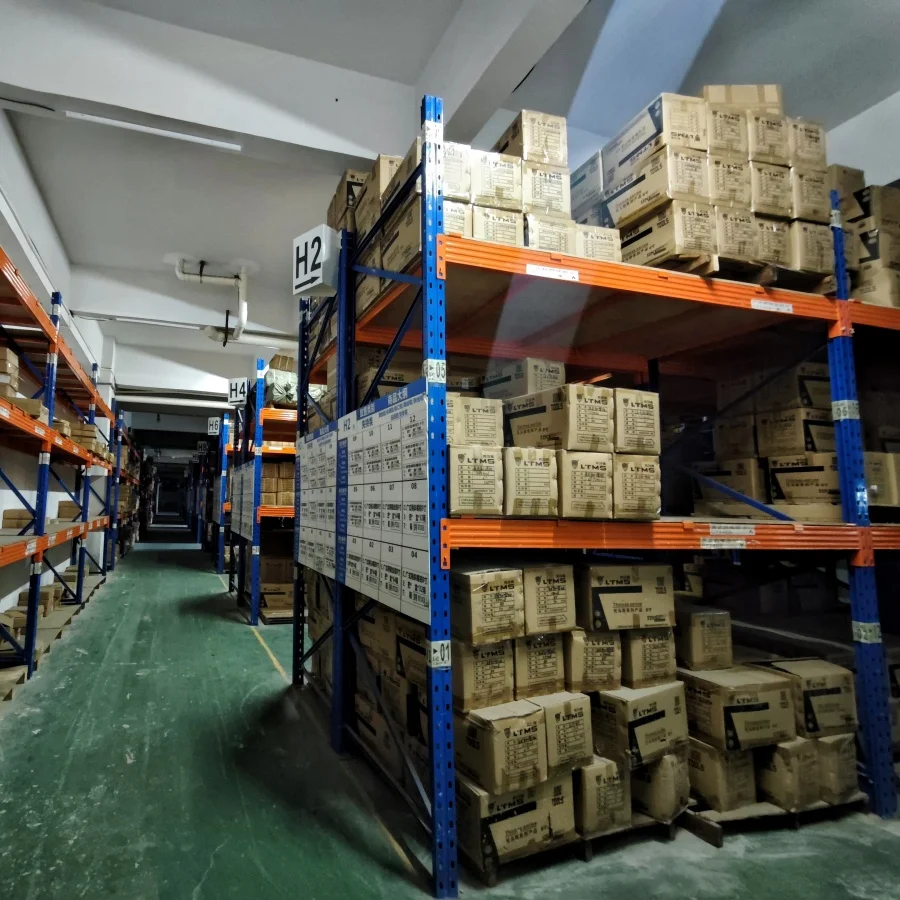

8) How about your stock?
We have a large inventory of products, with regular models and sizes in stock. All items that can be paid directly are in stock.
If you are unsure, please contact us.
9) Is free shipping possible?
We do not offer free delivery services. If you purchase a large quantity of products, we can pay for the shipping cost.
We usually quote within 12 hours after we get your inquiry.If you are very urgent to get the price, please call us or tell us in
your email so that we will regard your inquiry priority.
2) How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality. If you just need a blank sample to check the design
and paper quality, we will provide you sample for free, as long as you afford the express freight.
3) How long can I expect to get the sample?
After you pay the sample charge and send us confirmed files, the samples will be ready for delivery in 3 days. The samples will be
sent to you via express and arrive in 3-5 workdays. You can use your own express account or prepay us if you do not have an
account.
4) How long does the whole procedure being worked out?
After you place a order,the production handling time is about 15-30 days. We need 7-15 days to prepare all the stuff then 15 days
for manufacturing.
5) What about the transportation and delivery date?
Normally we use shipment to transprot the goods.It is about 25-40 days.It also denpends on which coutry and port you are.It could
be shorter if you need to send the goods like Asian. If there are some emergencies we can send the goods via air express, as long
as you afford the traffic expense.
6) Are you trading company or manufaturer?
We are a professional integrated business of industry and trade. We not only owns our tool factory, but also have cemented carbide
factory and a complete supply chain system.We have rich experience in production experience, high-volume production orders.
7) Where is your factory located?
We are located in No. 20 Jiangnan West Street, Chang'an Town, Dongguan City, Guangdong Province.
8) How about your stock?
We have a large inventory of products, with regular models and sizes in stock. All items that can be paid directly are in stock.
If you are unsure, please contact us.
9) Is free shipping possible?
We do not offer free delivery services. If you purchase a large quantity of products, we can pay for the shipping cost.
