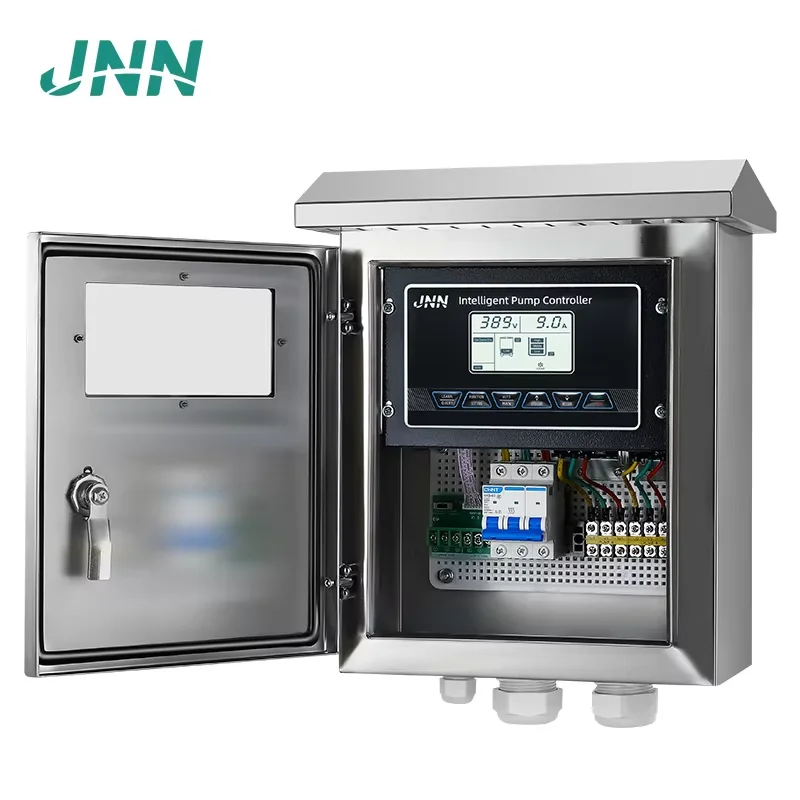

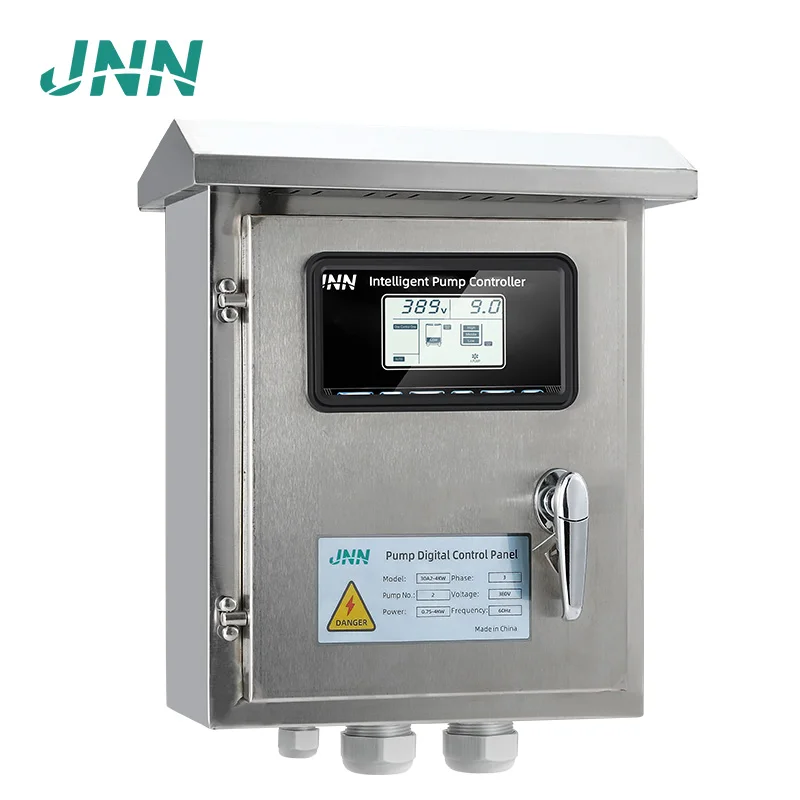

JNN HAIYIN stainless steel outdoor dedicated intelligent pump controller suitable for various water pumps
- Category: >>>
- Supplier: Yueqing Haiyin Electric Co. Ltd.Yueqing Ltd.
Share on (1601295165628):
Product Overview
Description
PRODUCT DESCRIPTION
30A series
With built-in circuit breaker and AC contactor, it can be directly connected to pump or motor. With three-phase unbalance
protection, running total time enquiry

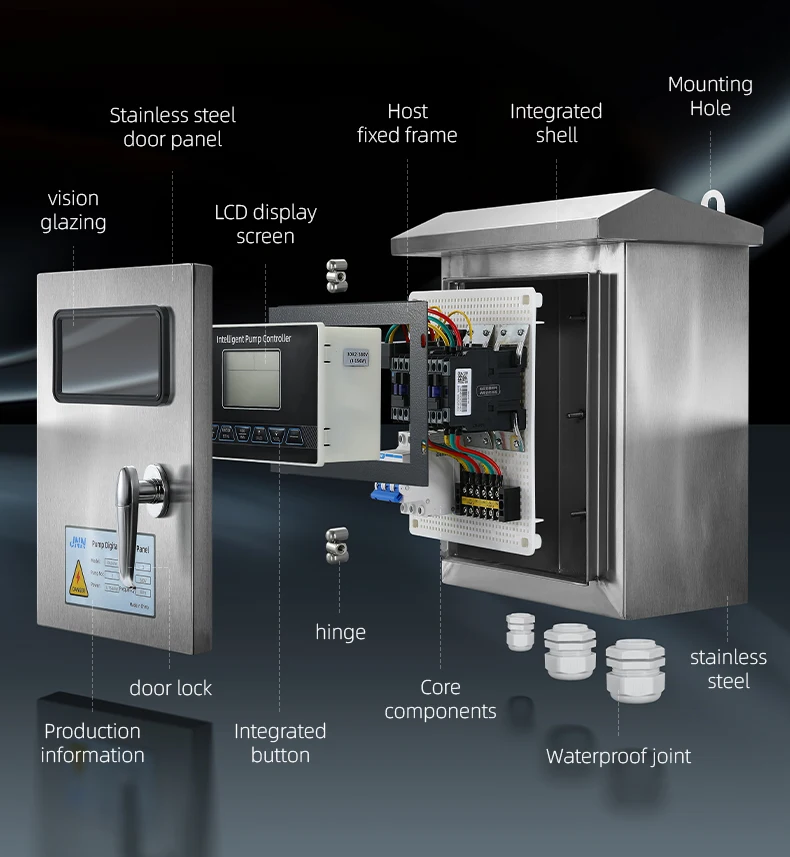

Details Images
Circuit Boards,
Triple Anti Varnish Coating Process
Use of high-quality air switches for high safety
Applications
supports a variety of signal control. Float, liquid level probe, pressure gauge, pressure sensor, etc.

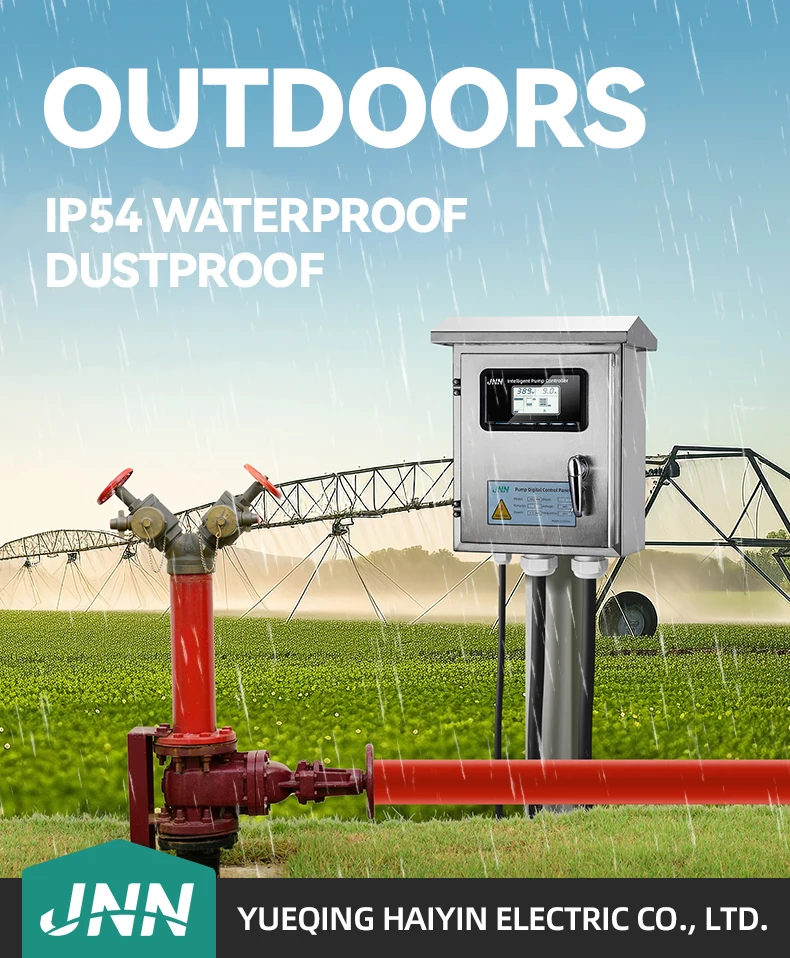

Applications in water boosting, farm irrigation, sewage pumping, fountains, storage tanks, swimming pools, industrial buildings,
mining pump systems, and other water treatment-related industries
mining pump systems, and other water treatment-related industries
Intelligent Pump Controllers can control a wide range of pumps, such as subermersible pump, centrifugal pump, multistage
pump,deep-well pump, sewage pump, booster pump, pipeline pump, ground pump.etc.
pump,deep-well pump, sewage pump, booster pump, pipeline pump, ground pump.etc.
Specifications
Product Name | Intelligent Water Pump Controller | ||||||||||||
Type | 30A1 | ||||||||||||
Power | 4KW-30KW | 30A1-7.5KW | 30A1-11KW | 30A1-15KW | 30A1-18.5KW | A1-22KW | A1-30KW | ||||||

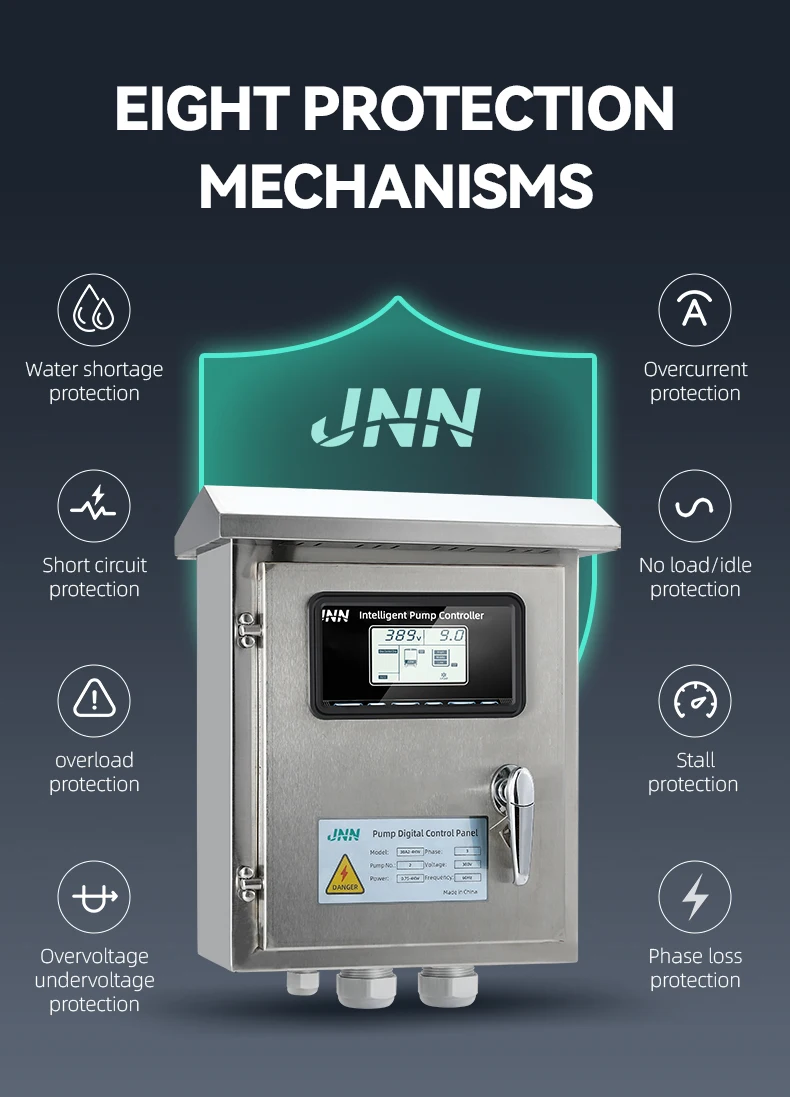

Protection | Dry run alarm and protection Overload alarm and protection No load alarm and protection Water shortage alarm and protection Over-voltage alarm and protection Under-voltage alarm and protection Pump stalled alarm and protection Anti-seizing protection Short circuit alarm and protection Phase loss alarm and protection Phase unbalance alarm and protection Phase reversal alarm andprotection | ||||||||||||
Main Function | 1,Operation mode: automatic/manual 2,Timed start/stop 3,Anti-rust protection, long-term non-use of the pump,15 days to start once for 3 seconds. 4,Setting protection current for motor overload/no-load,no-load 5,Automatic restart when voltage comes to normal rating 6,Automatically restarts when power is restored. 7,Automatic re-starting pump from dry running 8,Fault indication:failure record, latest 10 pump failure reasons display, audio/light alarms. 9,Automatic learning of overload and no-load currents. 10.Overflow alarm duration time setting 11.Adjustable phase unbalance 12.Rated power setting in Amperes 13.Accumulative pump run time check | ||||||||||||
Advantages | 1,Multiple Protection 2,Waterproof and Damp-proof 3,Save energy 4,Robustness 5,Supports multiple signal sources: floats, level sensors, pressure switches, electric contact pressure gauges. | ||||||||||||
Application Fields | 1,Residential water supply system 2,Industrial water supply 3,Sewage treatment 4,Building fire protection 5,Secondary water supply pressure 6,Irrigation for garden&farm 7,Agricultural irrigation 8,Swimming pool circulating water | ||||||||||||

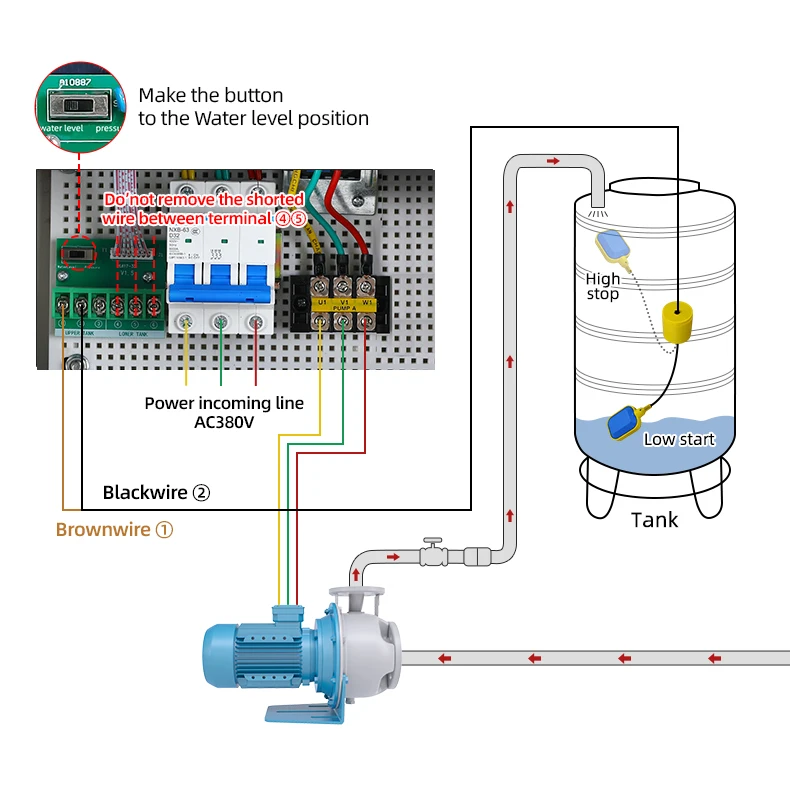

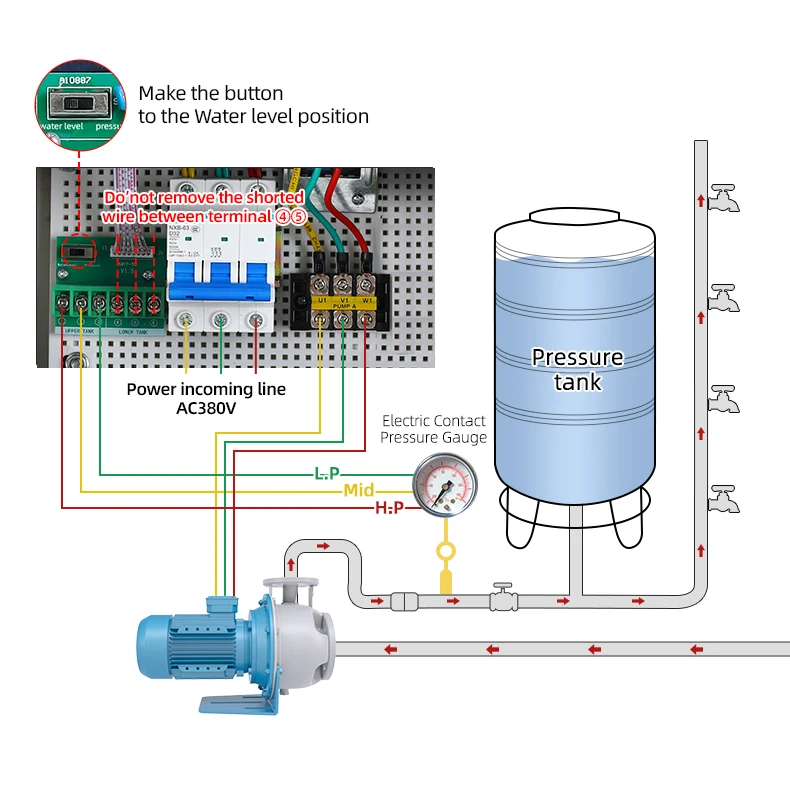

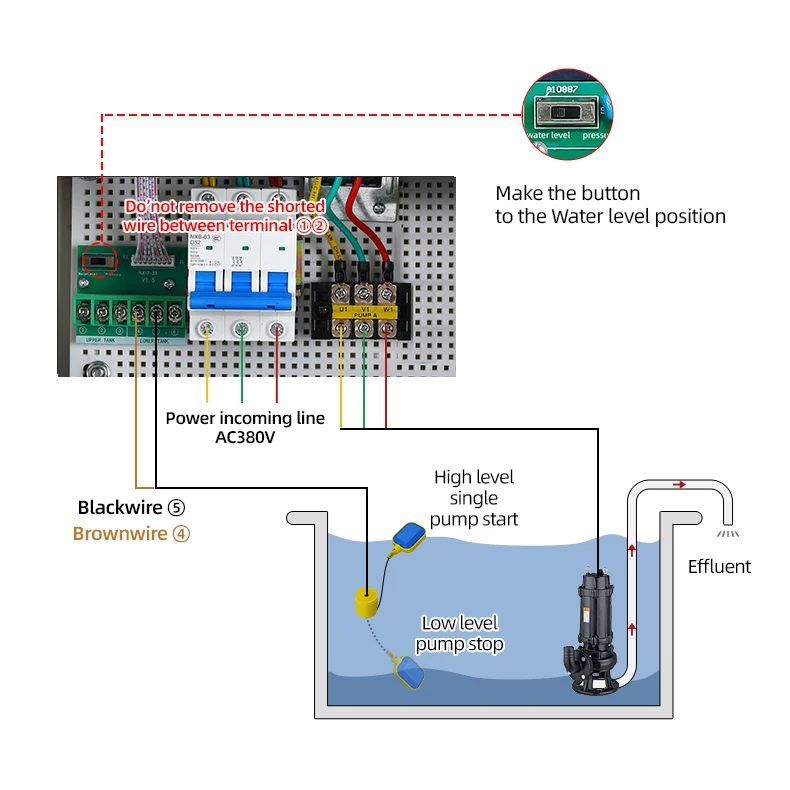

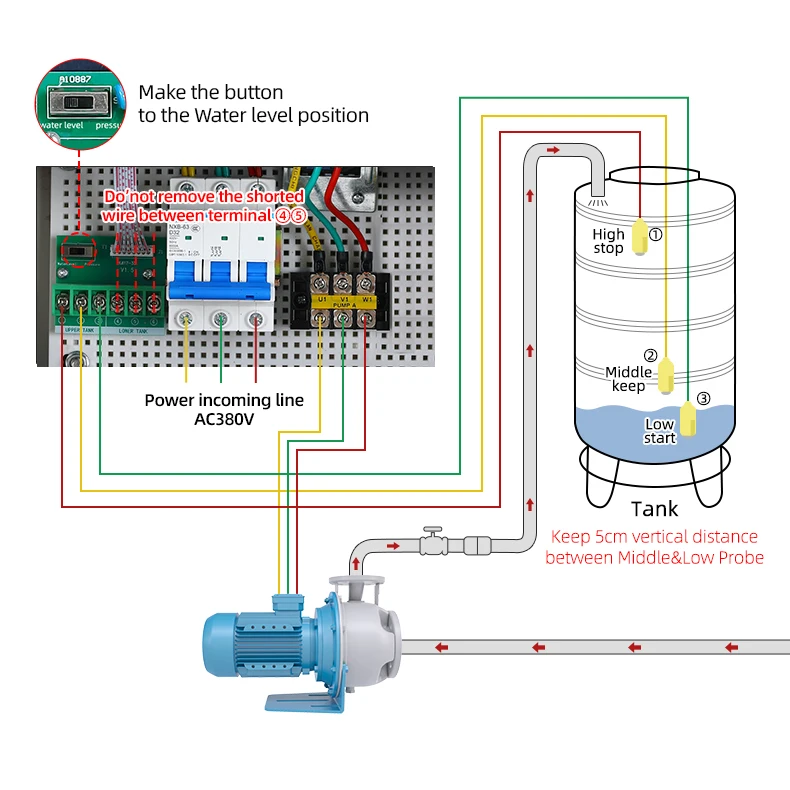

Installation Instructions
No.1 seller in China Independent R&D
High production capacity Fast delivery
FAQ
Q: How about Warranty Time?
A: TWO year
Q: How you do the quality control in your factory?
A: We have professional QC team and equipment to do Incoming inspection Inprocess checking and 100% online testing.
Q: Is sample order available? And can I make trial order?
A: Yes, the sample available, and you can make trial order to check the details first.
Q:Can you provide OEM or ODM ?
A:Yes,we can make the orders according to your detailed request.
Q:what is your delivery time?
A:It takes 3-5 days for sample orders,and 15-20 days for orders.Depends on the quantity
A: TWO year
Q: How you do the quality control in your factory?
A: We have professional QC team and equipment to do Incoming inspection Inprocess checking and 100% online testing.
Q: Is sample order available? And can I make trial order?
A: Yes, the sample available, and you can make trial order to check the details first.
Q:Can you provide OEM or ODM ?
A:Yes,we can make the orders according to your detailed request.
Q:what is your delivery time?
A:It takes 3-5 days for sample orders,and 15-20 days for orders.Depends on the quantity
