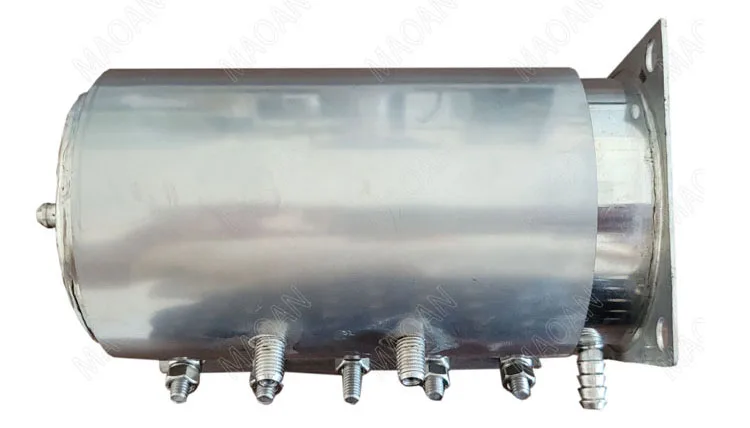

Electrolytic Cell  with water electrolysis alkaline technology.


          H2 output flow 0--300ml/min and 0--500ml/min


          Produce Pure H2 and O2 Two Separate Gases


              .jpg





                              Factory Directly Supply Competitive Price



Product Introduction





      Water Electrolysis technology with alkaline electrolysis cell, uses high quality Aerospace diaphragm membrane and 316 grade stainless steel etc. only use little electricity and pure water and 10%--15% concentration potassium hydroxide solution(KOH liquid ) to produce pure hydrogen gas. Daily use only need to add water.


      We mainly produce HA-300 cell with H2 flow 0--300ml/min and HA-500 cell: H2 flow 0--500ml/min. Years of production experience, our cells lifetime is more than 20000 hours. Can be used for many years without problem. It is economic technology to produce pure hydrogen gas. Widely been used in alkaline technology hydrogen generators.








Product Parameters










































































Model



HA-300



HA-500



H2 Flow Rate(ml/min)



0--300



0--500



Technology



Traditional water electrolysis with potassium hydroxide solution



Outside Tank (Negative Electrode)



316 level stainless steel (1mm thickness)



Inside Tank (Positive Electrode )



316 Level stainless steel (2mm thickness)



H2 Output Pressure



Atmospheric pressure from cell



H2 Output Purity



Pure hydrogen gas with water(30% water)



Water Requirement



 Distilled pure water


Water is recycle used. No need pump



Cell Outside Size



Diameter: 8cm


Height: 15cm



Diameter: 9.5cm


Height: 17cm



Cell working pressure



0--0.4MPa (4bar), could not higher than 0.5MPa



Input Current



0--40A



0--72A



Input Voltage



4V



3.5V



Single Membrane Voltage



<DC 2.3V



N.W



1kgs/pcs



2kgs/pcs

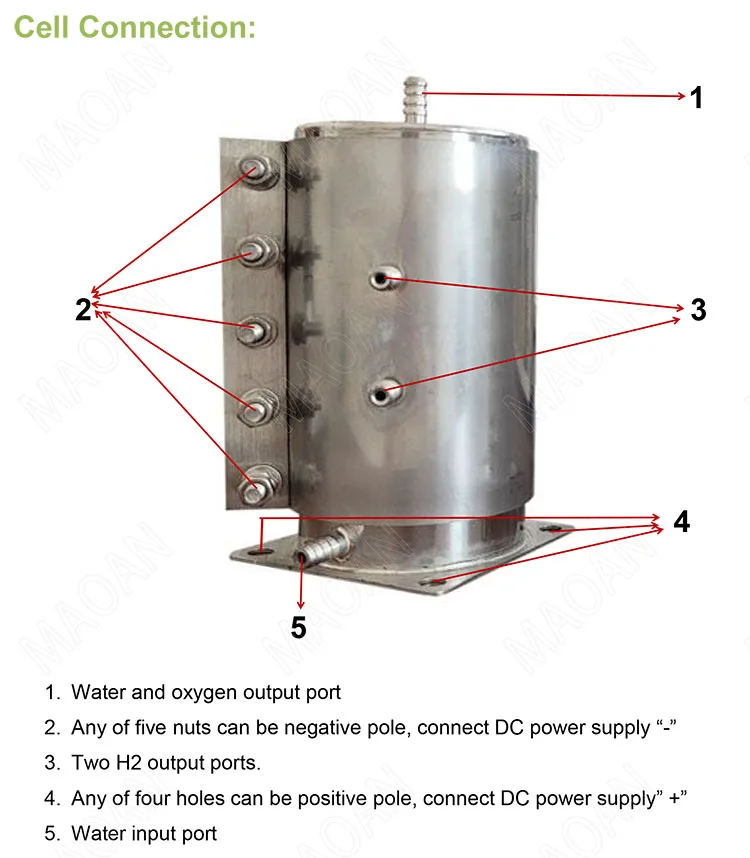

 If want to know more technical data and cell connection, pls contact us !

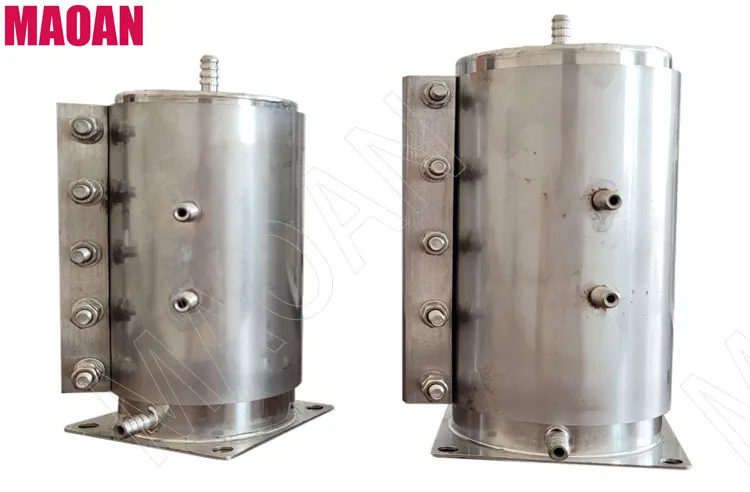

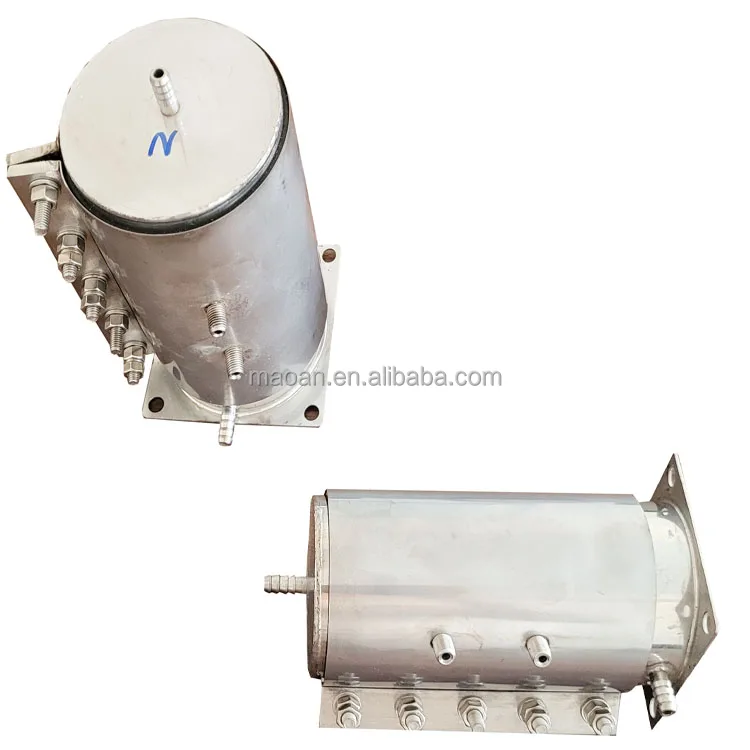

Product Pictures

 9





10

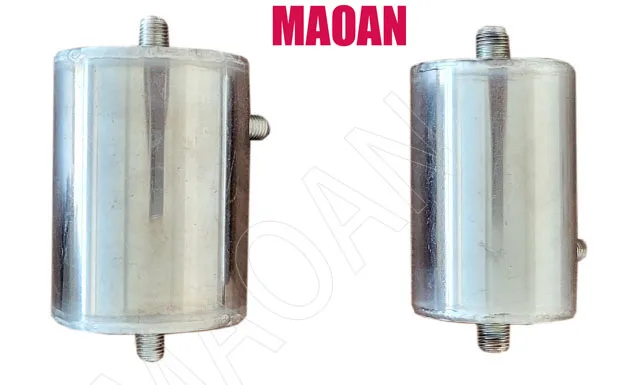

 Workable gas/water separator
