Sylon Black Panel R32Gas Refrigerant Mini Split Conditioner Air Inverter Ac With WIfi Control Ductless Air Conditioning For home
- Category: >>>
- Supplier: Foshan Sylon Electrical Appliances Co. Ltd.Foshan Ltd.
Share on (1601295466677):
Product Overview
Description

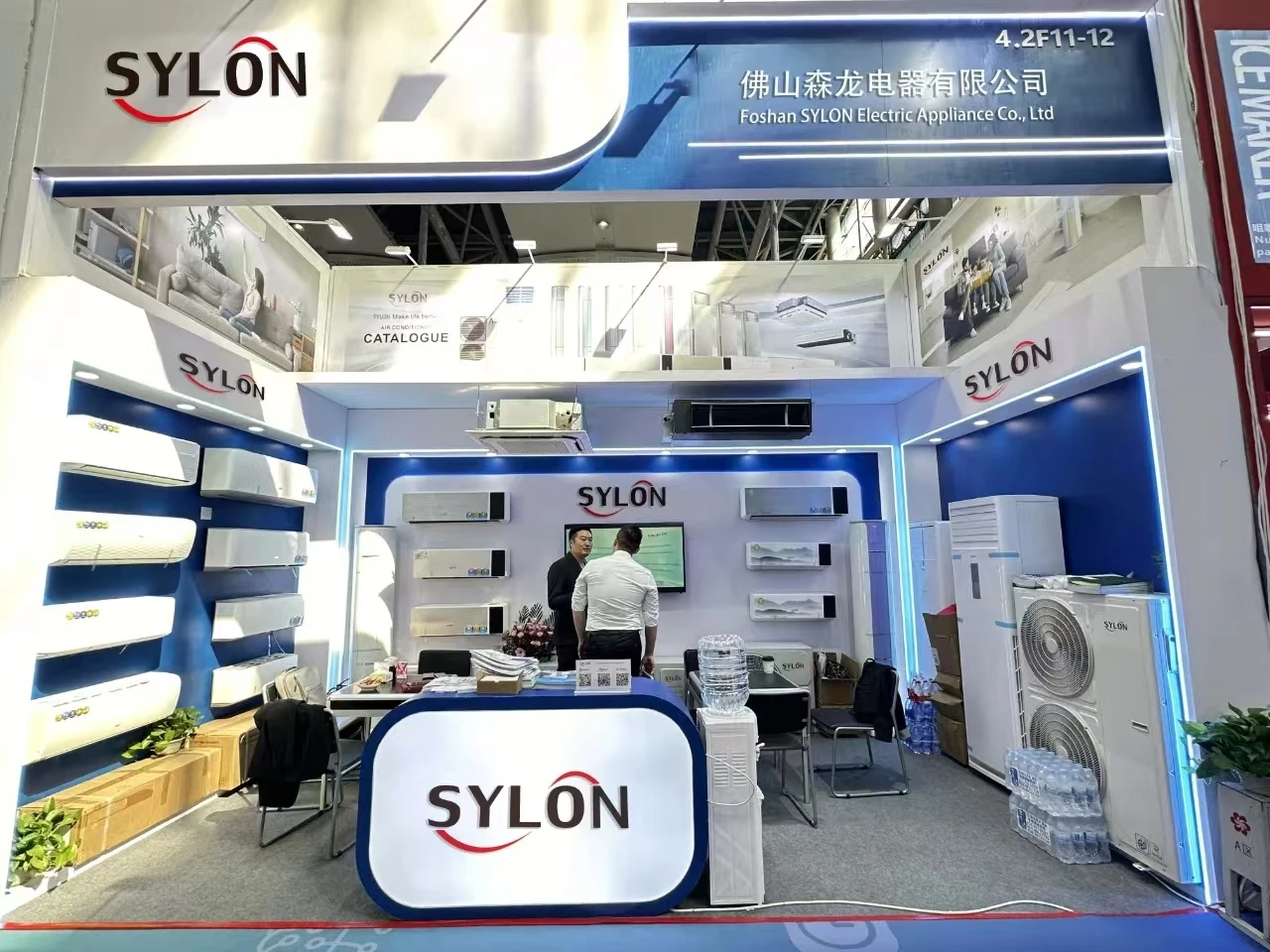

In October 2024, the 136th China Import and Export Fair was held in Guangzhou, China. Sylon Air Conditioner and its subsidiary
YINLI Super Air Conditioner production base participated in the exhibition in Zone A to have friendly business communication with
global merchants.

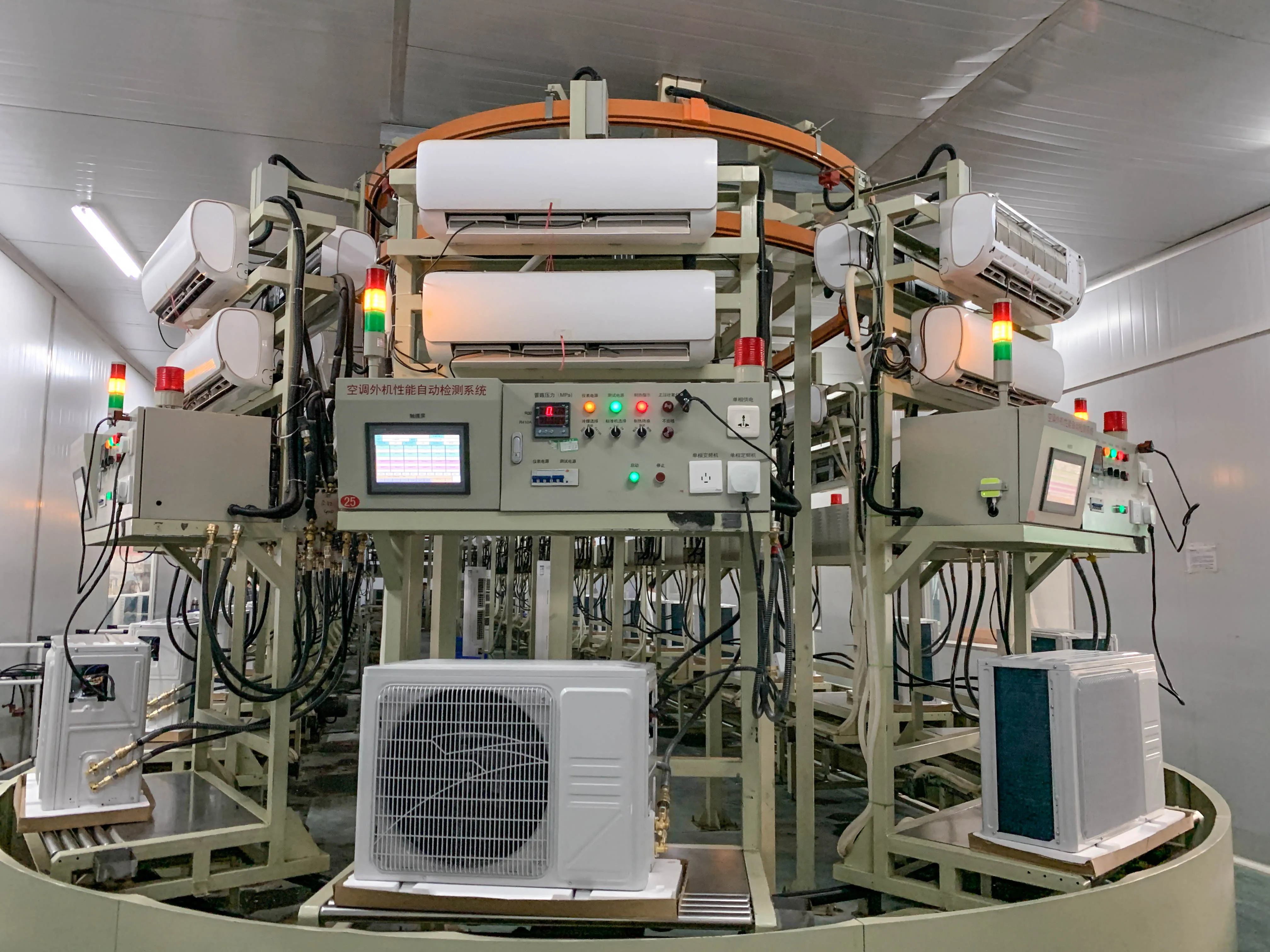

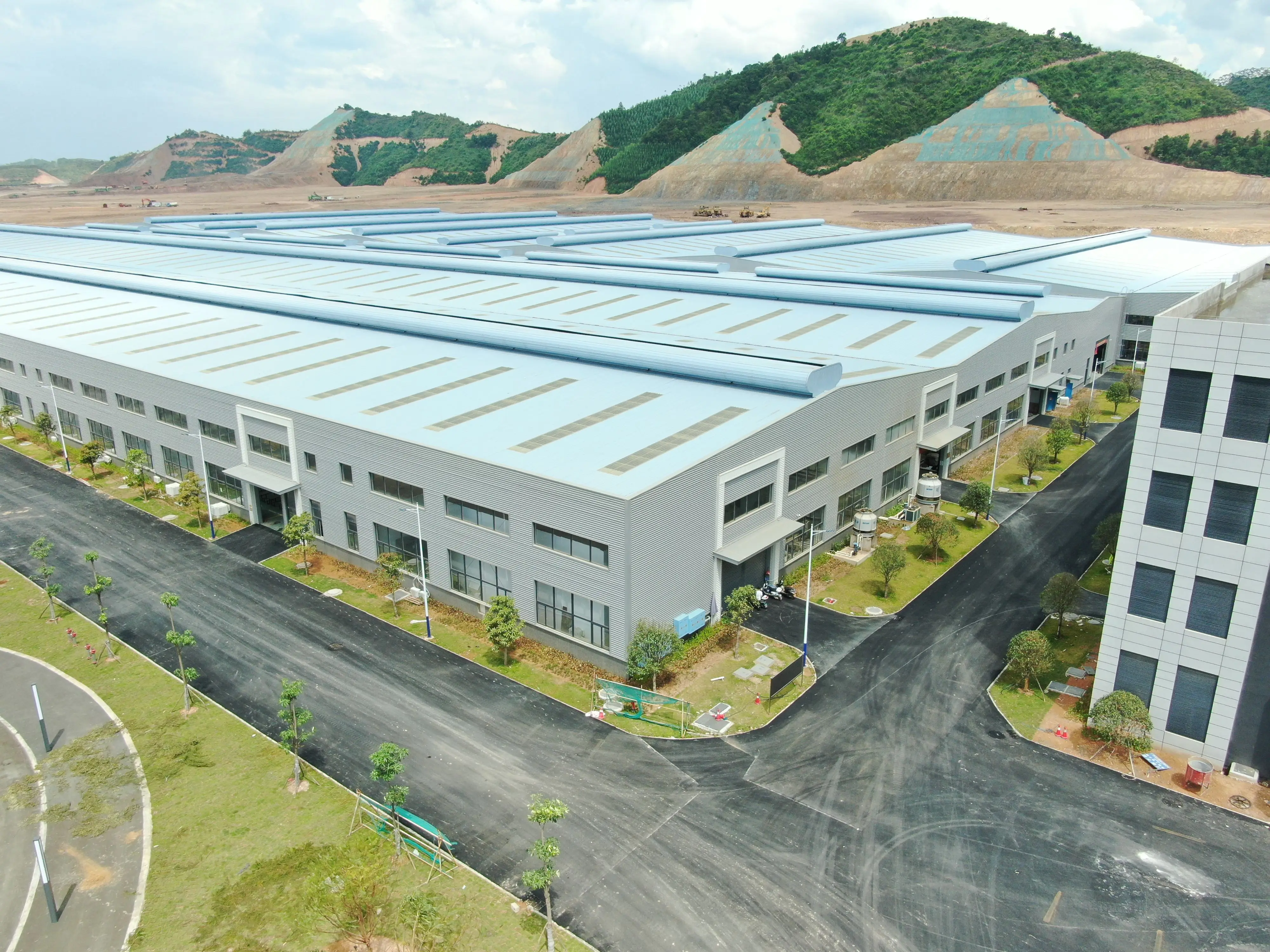

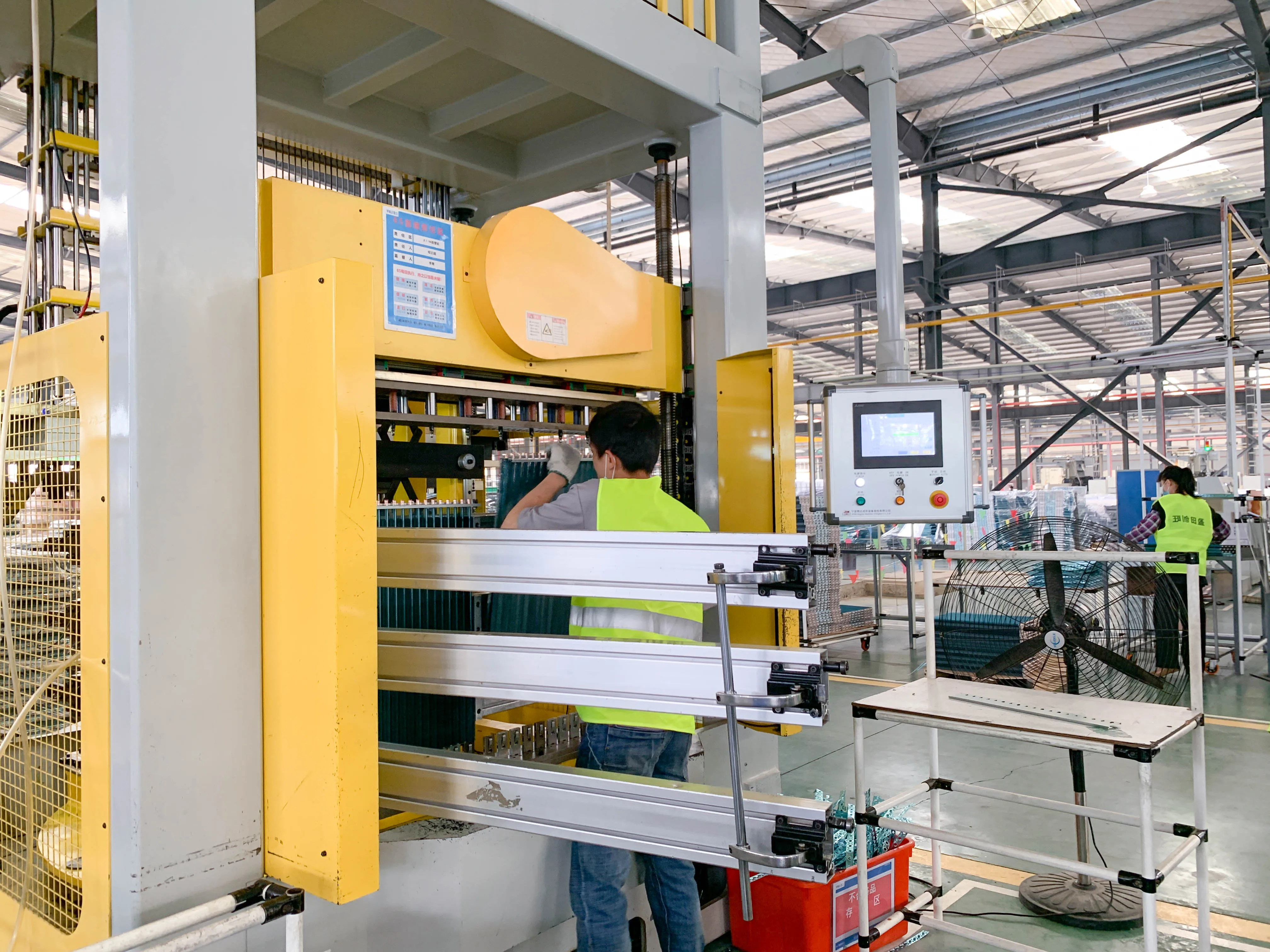

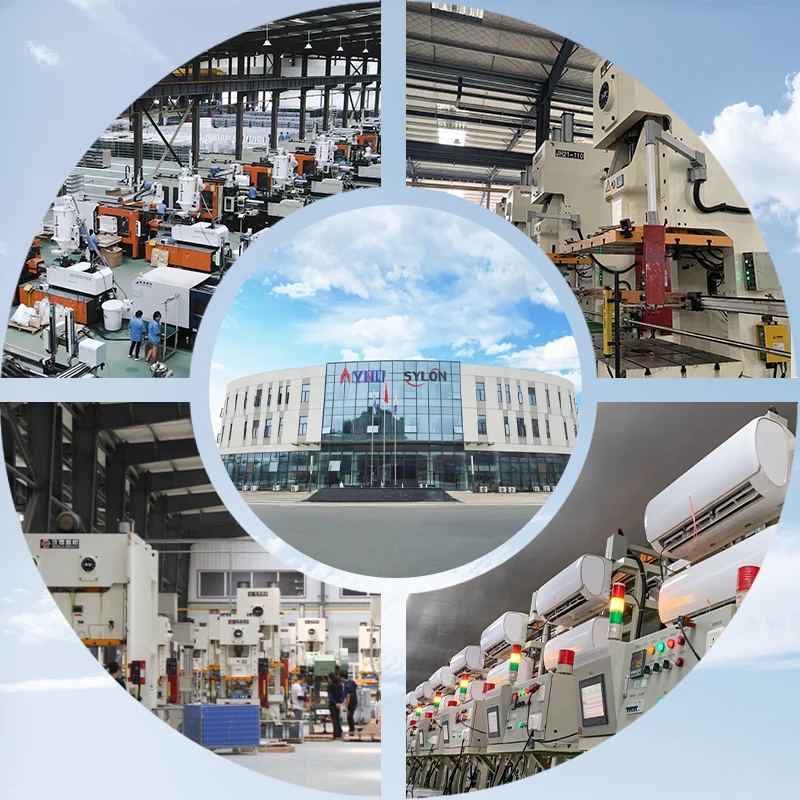

Our Factory and Production Process
Split Wall Mounted Air Conditioning Function
Standard Functions:
1.Mildew Froof 2.24 Hr Timer 3.High Density Filter 4.Emergent Using 5.180° Shine Wave 6.Louver Position Memory 7.Turbo Mode
8.Fast Cooling&Heating 9.Independent Dehumidification 10.Wide Foltage Range 11.Dust Removal Reminder 12.-20°Ultra-Low Tem Start
13.Self-diagnosisand Auto-protection 14.Error Alarm 15.Sleep Mode 16.Smart Deforsting 17.Anti-Cold Air 18.Heating Compensation
19.Brand Compressor 20.Auto Restart 21.Dew Prevention 22.Auto Mode 23.Anti-rust Design 24.Hidden Led Design
25.Thoughtful Packaging
Optional Functions:
1.UVC Sterilization 2.ECO Mode 3.Self-Clean 4.0.5W Standly 5.580℃ Self-clean 6.Cold Plasma 7.Anti Wirus Filter 8.3 in 1 Filter
9.Full DC Inverter 10.Twin-rotary Compressor 11.5 Grades Indoor Fan Speeds 12.I Feel 13.3D Air Flow 14.Quiet Mode 15.USB Wifi
16.Wifi Control 17.Offline Voice Control 18.Child Lock 19.2-way Drainage 20.Chass is Heating Belt 21.Fire-Proof Electric Control Box
22.Auxiliary Electric Heater 23.Anti-rust Grille

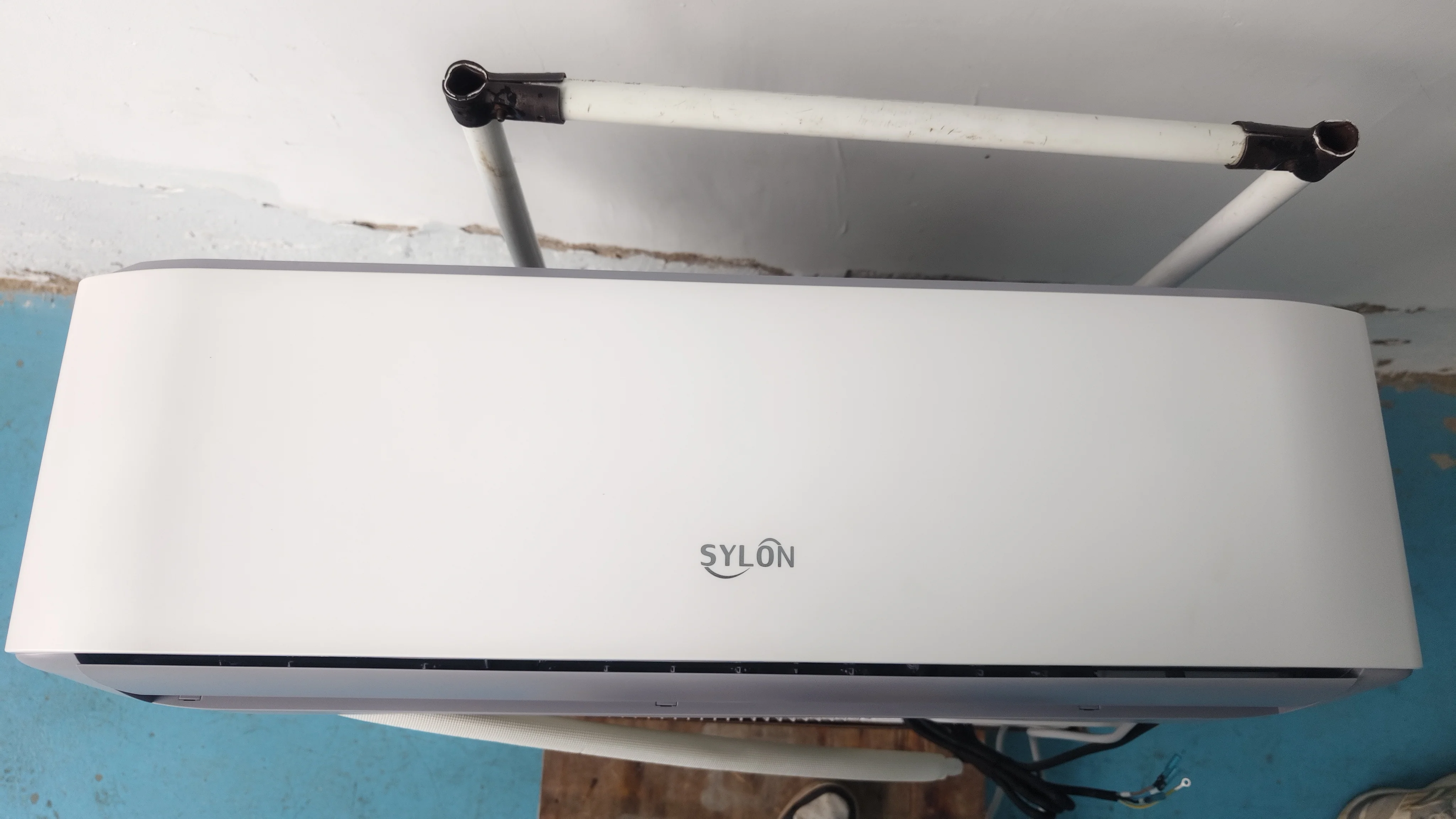

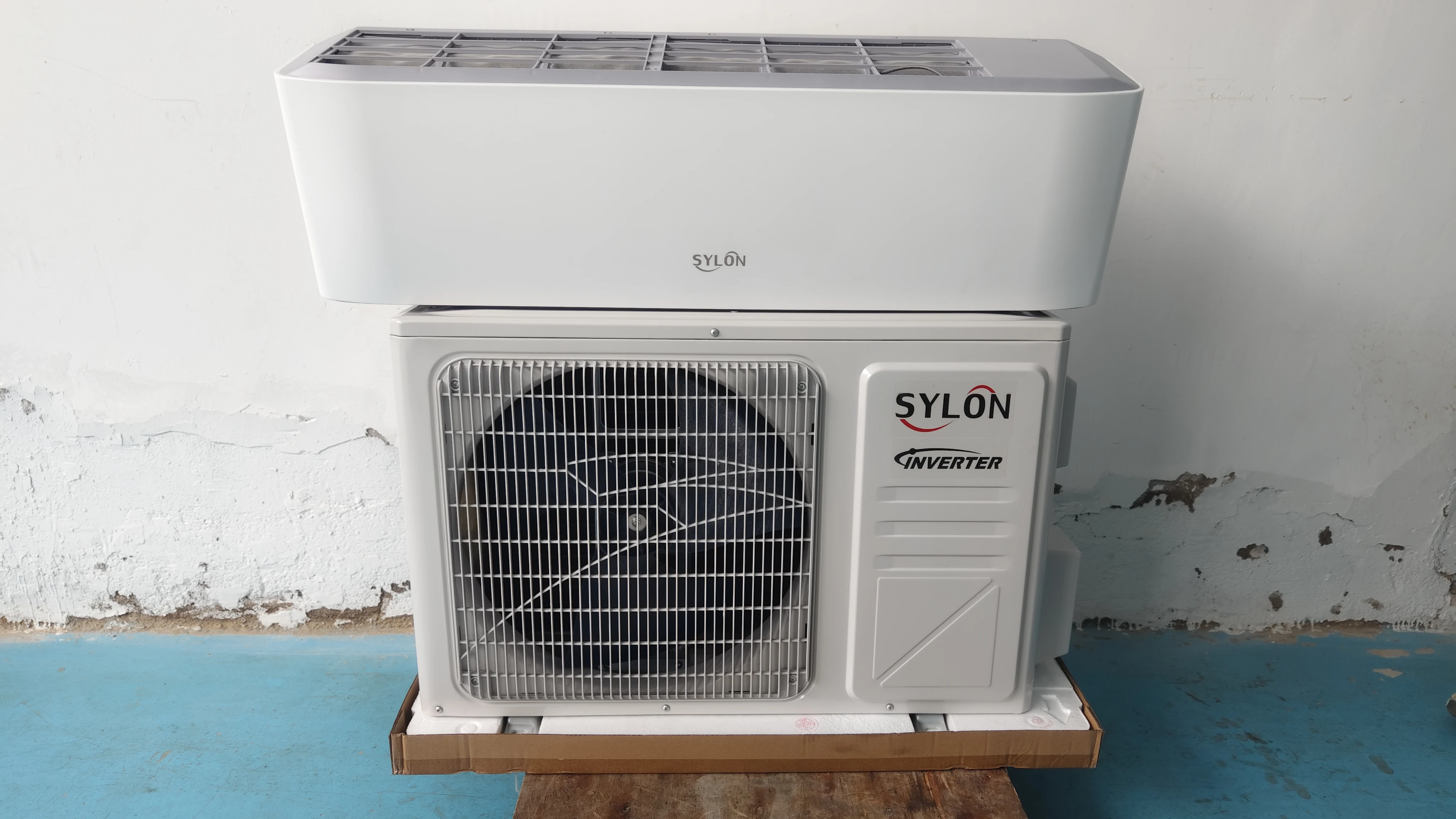

Wall Mounted Mini Split
Sylon mini split air conditioners offer ductless solutions for single zones. The new models are stylishly designed with a sleek mattefnish, giving you energy eficiency, as well as funcionality. With a high SEER2 rating, this wall mounted mini split system will help you save moneyall year round.
Sylon mini split air conditioners offer ductless solutions for single zones. The new models are stylishly designed with a sleek mattefnish, giving you energy eficiency, as well as funcionality. With a high SEER2 rating, this wall mounted mini split system will help you save moneyall year round.
Title goes here.

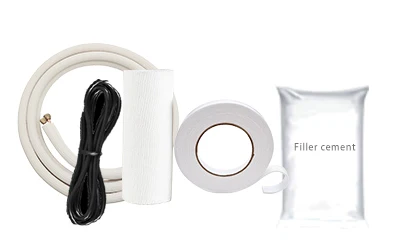

Installation Kit including Pre.Flared and insulated Copper Line Set,Communication Wires, smallAccessories and DrainageExtension.
Title goes here.

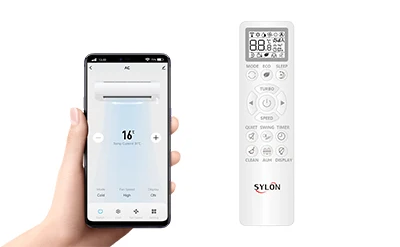

With the App, you can control your unit from anywhere.
The exclusive remote controller for morespecific temperature control.
The exclusive remote controller for morespecific temperature control.
Title goes here.

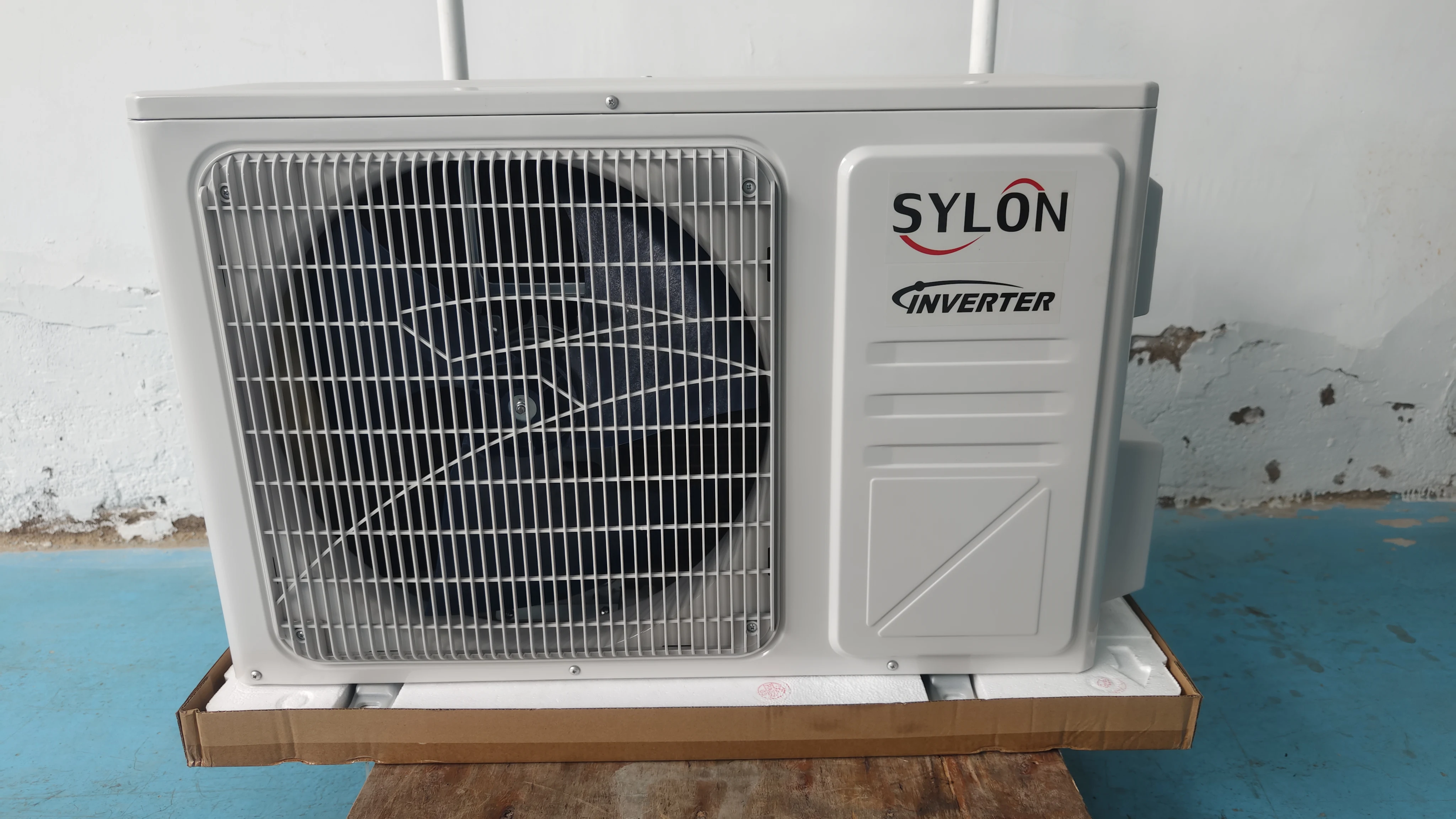

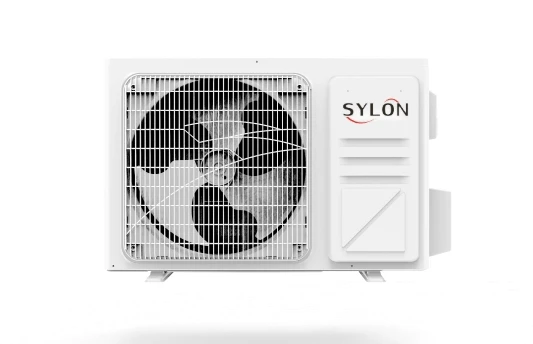

Sylon Air Conditioner compressor units with lnverter Technology will save youenergy compared to traditional compressors.
Model | SSDH-9DH | SSDH-12DH | SSDH-18DH | SSDH-24DH | ||||
Power supply | Ph-V-Hz | 220V/50Hz | 220V/50Hz | 220V/50Hz | 220V/50Hz | |||
Cooling | Capacity | Btu/h | 2900 | 3068 | 3409 | 5763 | ||
Input | W | 1123 | 1197 | 1291 | 1908 | |||
Rated current | A | 5.15 | 5.48 | 5.94 | 8.9 | |||
EER | W/W | 2.6 | 2.56 | 2.64 | 3.02 | |||
Max. input power | W | 560 | 798 | 838 | 2480 | |||
Max. current | A | 5 | 3.65 | 3.96 | 11.57 | |||
Heating | Capacity | Btu/h | 3200 | 3061 | 3885 | 6633 | ||
Input | W | 1100 | 936 | 1145 | 2069 | |||
Rated current | A | 5 | 4.29 | 5.28 | 9.7 | |||
EER | W/W | 3.03 | 3.27 | 3.39 | 3.21 | |||
Max. input power | W | 960 | 624 | 763 | 2689 | |||
Max. current | A | 6 | 2.86 | 3.52 | 12.61 | |||
Compressor | Model | KSK75D43UEZA | KSK75D43UEZA | KSK89D33UEZD3 | KSN140D33UFZ3 | |||
Type | Rotary | Rotary | Rotary | Rotary | ||||
Brand | GMCC | GMCC | GMCC | GMCC | ||||
Indoor coil | a.Number of rows | 530-10-ⅡK7-1.3(QS) | 530-10-ⅡK7-1.3(QS) | 605-12-ⅡK7-1.3(QS) | 716-12-ⅡK7-1.4(QS) | |||
Indoor air flow (Hi/Mi/Lo) | m3/h | 469 | 481 | 593 | 1081 | |||
Indoor noise level | dB(A) | 48 | 48 | 48 | 48 | |||
Indoor Fan motor | Type | cross flow | cross flow | cross flow | cross flow | |||
output | W | 13 | 13 | 18 | 30 | |||
Indoor Fan Speed | Cooling | rpm | 1150 | 1150 | 1150 | 1150 | ||
Heating | rpm | 1050 | 1050 | 1050 | 1050 | |||
Dry | rpm | 950 | 950 | 950 | 950 | |||
Sleep | rpm | 850 | 850 | 850 | 850 | |||
Indoor unit | Dimension(W*H*D) | mm | 750*260*196 | 750*260*196 | 840*290*202 | 950*315*222 | ||
Packing (W*H*D) | mm | 825*335*255 | 825*335*255 | 920*345*255 | 1048*390*305 | |||
Net/Gross weight | Kg | 8/9 | 8/9 | 10.5/12.5 | 14/16 | |||
Outdoor fan motor | Type | axial fan | axial fan | axial fan | axial fan | |||
Speed | r/min | 860 | 860 | 860 | 860 | |||
output | W | 25 | 25 | 25 | 50 | |||
Outdoor coil | a.Number of rows | 427-9-ⅠK7.94-1.4(QS) | 500-8-ⅠK7.94-1.4-8(QS) | 500-10-ⅠK7.94-1.4(QS) | 800-680-20-ⅡB7.94-1.4(QS) | |||
Outdoor noise level | dB(A) | 50 | 50 | 50 | 50 | |||
Outdoor unit | Dimension(W*H*D) | mm | 630*500*236 | 730*550*280 | 730*280*550 | 830*550*295 | ||
Packing (W*H*D) | mm | 750*332*528 | 845*371*590 | 845*371*590 | 905*373*599 | |||
Net/Gross weight | Kg | 20.3/22.4 | 22/24 | 28/32 | 32/35 | |||
Refrigerant type/Refrigerant charge | g | R32/460g | R32/450g | R32/630g | R32/1000g | |||
Refrigerant piping | Liquid side/ Gas side | mm(inch) | Φ9Φ6 | Φ9Φ6 | Φ12/Φ6 | Φ12Φ6 | ||
Max. refrigerant pipe length | m | 15 | 15 | 15 | 15 | |||
Max. difference in level | m | 5 | 5 | 5 | 5 | |||
power cord/Connecting line | Electric wire | Core number x Size x Length | 16A 1.5mm2×3 1.5m | 16A 1.5mm2×3 1.5m | 13A 1.5mm2×3 1.5m | 16A 1.5mm2×3 1.5m | ||
I&O connection cable | Core number x Size x Length | 4×1.5mm2x (3.8m） | 4×1.5mm2x (3.8m） | 4×1.5mm2x (3.8m） | 4×1.5mm2x (3.8m） | |||
Operation temperature range | ℃ | 16~31 | 16~31 | 16~31 | 16~31 | |||
Room temperature | Indoor(cooling/ heating) | ℃ | 43 | 43 | 43 | 43 | ||
Outdoor(cooling/heating) | ℃ | -7 | -7 | -7 | -7 | |||
Application area (Cooling Standard) | m² | 10~15 | 16~26 | 15~30 | 20~37 | |||
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
FAQ
Q1:Are you a manufacturer or trading company? How can I trust your company?
A:We are one of the best professional HVAC solutions manufacturers and suppliers in China with more than 10 years of experience,
and are also the authorized agents of some well-known brands, such as Dunham-Bush (American brand with 126 years of history) and
TICA Climate (Carrier Holdings, Inc.), you can verify us in any way, and if needed we can also provide business references in your
area as proof of credibility. Our products have obtained AHRI, RTCA, ENERGY STAR, CE and other certifications.
Q2:Can you provide drawing design services?
A:Yes, we have a professional HVAC engineering team to design your project and optimize the solution, and we can also provide
professional HVAC drawings.
Q3:Do you have technical support?
A:We have a professional technical team available 7*24 hours to answer technical questions.
After the goods arrive, we can also guide installation and debugging via online video or phone call.
If required, we can also dispatch a project engineer to your country at a reasonable cost.
Q4:Can you help me calculate the best logistics and transportation price in my country?
A:Yes, our professional logistics team will help you arrange cost-effective shipping services, allowing you to ship quickly and at
a lower cost. Normally we recommend shipping 20GP, 40GP, 40HQ in full container.
Q5:What is your delivery time?
A:About 35-40 days for standard units. The specific time depends on your needs.
Q6:Can you provide mounting accessories with the equipment?
A:Yes of course. This is one of our standard services and we can calculate and quote the installation kit you require.
Note: Most of our customers prefer to ship the equipment and installation materials together, we specialize in doing this with
good packaging methods.
Q7:How about the packaging?
A:Carton packaging, different logos can be customized according to customer requirements.
Q8: What payment methods are supported?
A: Usually payment is by T/T L/C payment method.
