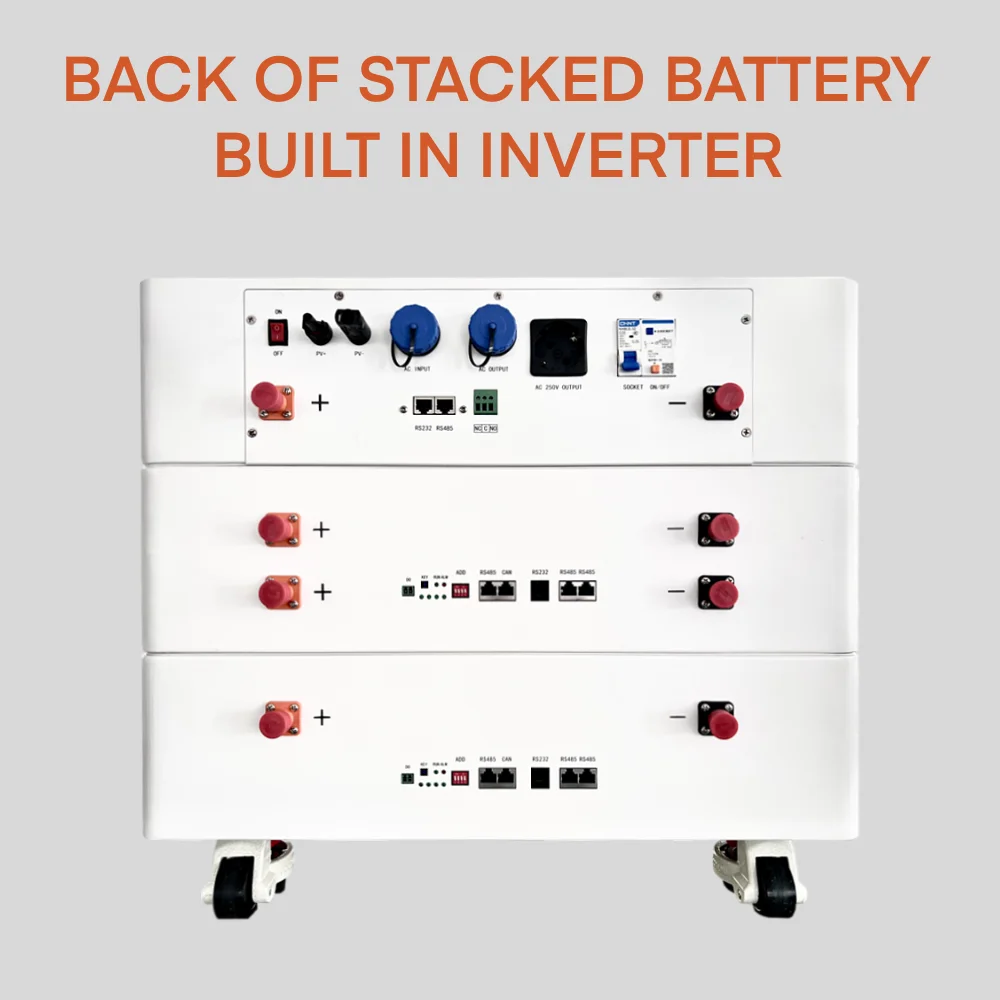

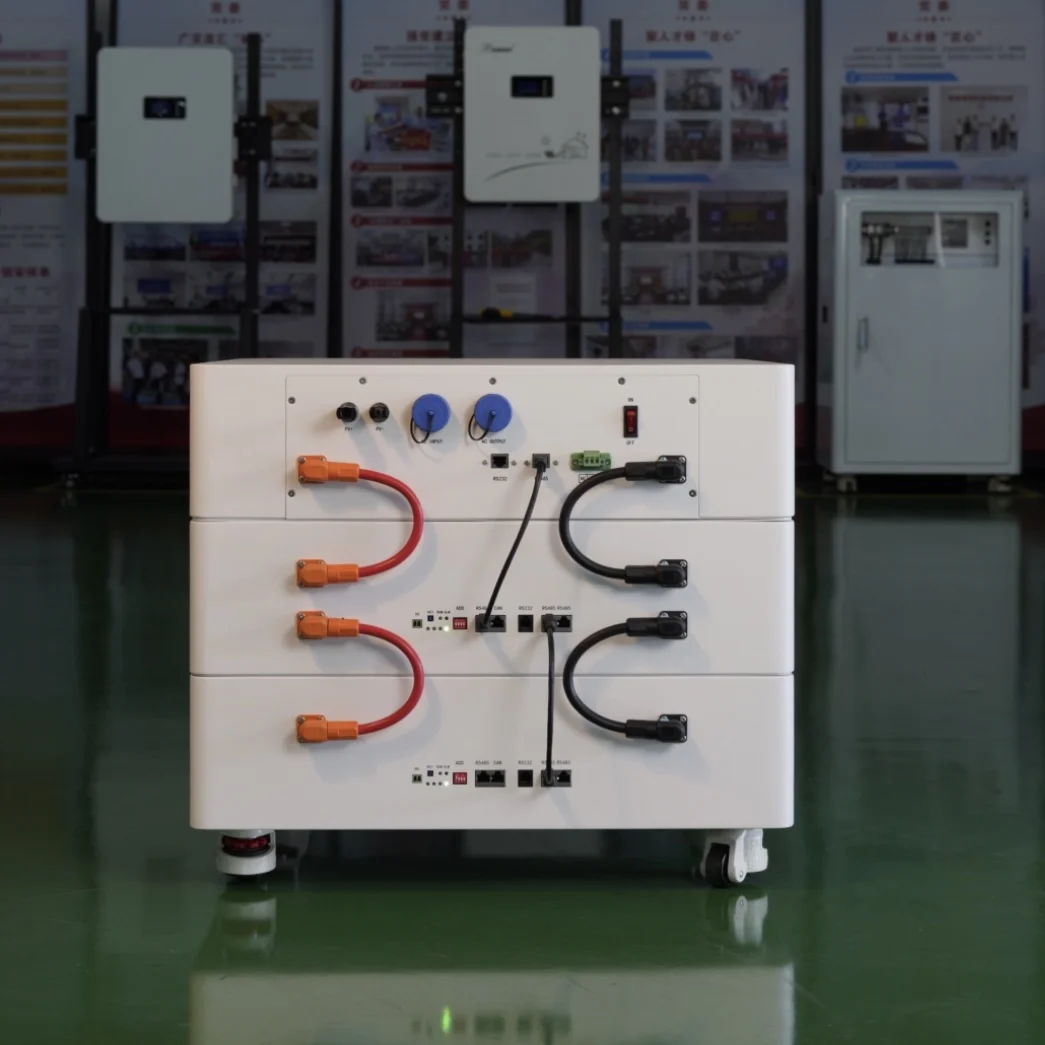

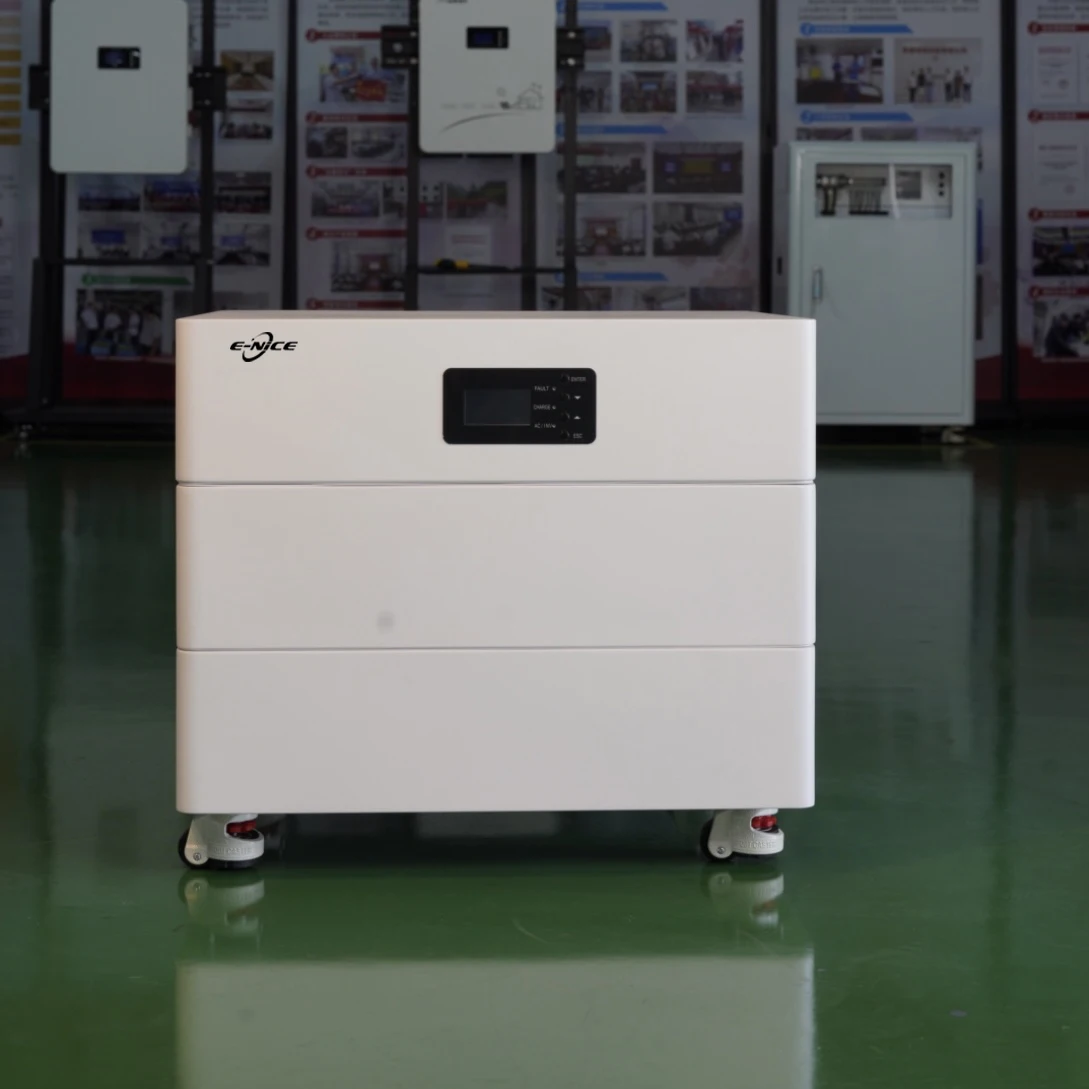

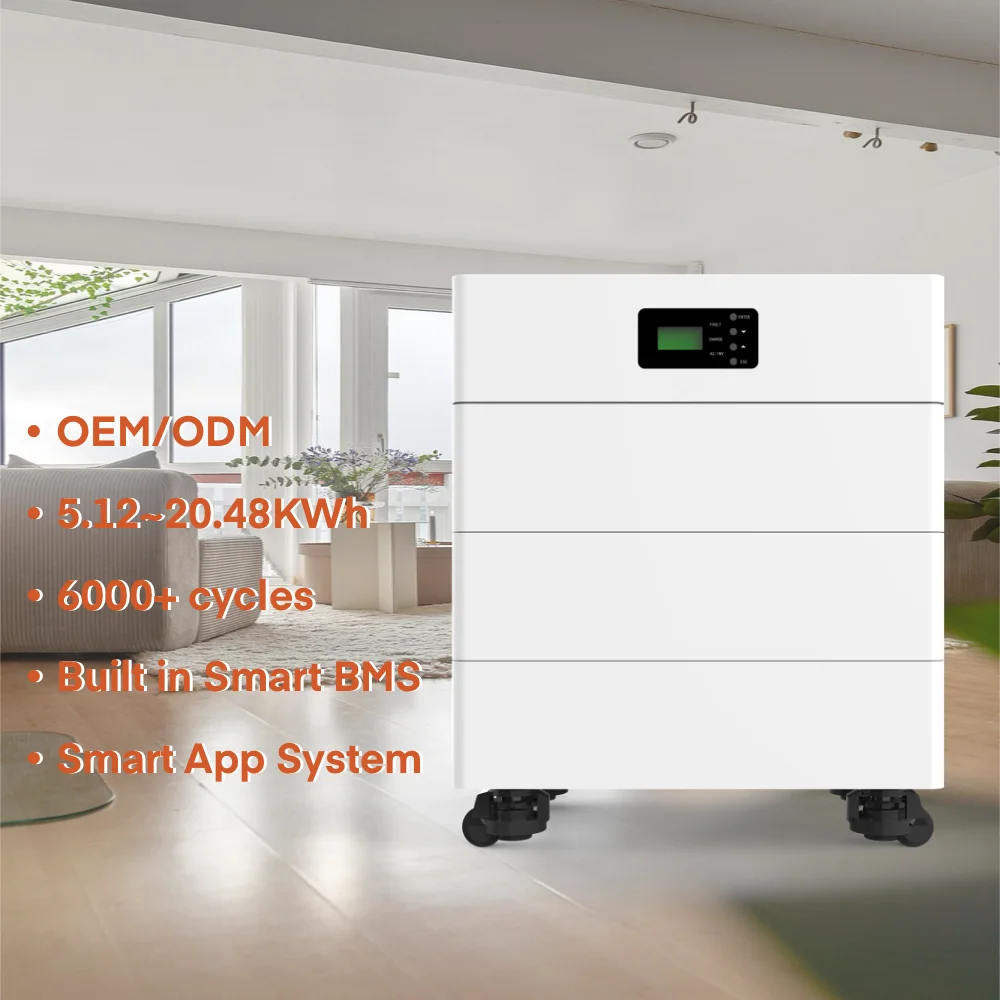

5KWH 10KWH 15KWH 20KWH Stacked Module Lifepo4 Batteries All in one lithium batteries and inverter for home
5KWH 10KWH 15KWH 20KWH Stacked Module Lifepo4 Batteries All in one lithium batteries and inverter for home
5KWH 10KWH 15KWH 20KWH Stacked Module Lifepo4 Batteries All in one lithium batteries and inverter for home
5KWH 10KWH 15KWH 20KWH Stacked Module Lifepo4 Batteries All in one lithium batteries and inverter for home
5KWH 10KWH 15KWH 20KWH Stacked Module Lifepo4 Batteries All in one lithium batteries and inverter for home
5KWH 10KWH 15KWH 20KWH Stacked Module Lifepo4 Batteries All in one lithium batteries and inverter for home
5KWH 10KWH 15KWH 20KWH Stacked Module Lifepo4 Batteries All in one lithium batteries and inverter for home

5KWH 10KWH 15KWH 20KWH Stacked Module Lifepo4 Batteries All in one lithium batteries and inverter for home

Share on (1601295563226):


Price:$999.00-1,499.00

Quantity:


Product Overview

Description



Products Description


Features
1. Grade A LiFePO4 Cells**: Provide a longer cycle life and enhanced safety.
2. Over 6,000 Cycles**: Achieves performance at 80% depth of discharge (DOD).
3. Smart BMS**: Effectively monitors battery performance.
4. Communication Protocols**: Supports RS232, RS485, and CAN for connectivity.
5. Thermal Shock Resistance**: Can withstand thermal shock and punctures without risk of fire or explosion.
6. Inverter Compatibility**: Works seamlessly with leading global inverter brands.
7. Real-Time Monitoring**: Features an LCD screen for live battery status updates.
8. Remote Control via App**: Allows connection for monitoring and control through a mobile app.



Product Parameters

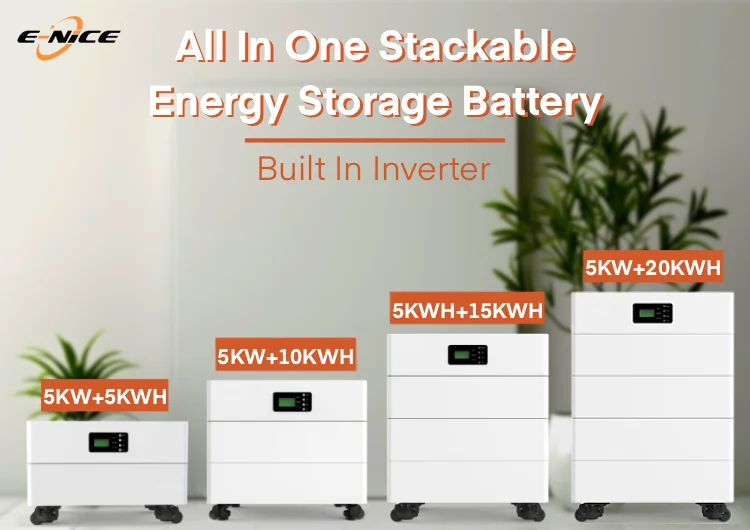

MODEL
AKES-05H05A
AKES-10H05A
AKES-15H05A
AKES-20H05A
General
Battery Type
LiFePO4
Battery Capacity
100Ah
200Ah
300Ah
400Ah
Nominal Voltage(V)
51.2V
Power capacity
5.12KWH
10.24KWH
15.36KWH
20.48KWH
Cycle Life
6000 times
Discharge Voltage
43.2V-45.2V
Charge Voltage
56V-58.4V
Charging Current
100A(Default)
Solar Input
MPPT Voltage
120-500V
MPPT Input Power
5500W
PV Input Current
<=100A
AC Input
AC Charging Current
<=60A
AC Input Voltage
220/230/240VAC
Input Voltage Range
185-264VAC±3V(UPS Mode) 154-264VAC±3V（Normal Mode）
Frequency
50/60Hz±0.1%
AC Charging Efficiency
＞95%
Switch Time(Bypass and Inverter)
10ms(Typical Value)
Max Bypass Overload Current
40A
AC Output
Output Voltage Waveform
Pure Sine Wave
Rated Voltage
208/220/230/240VAC±5%
Rated Power
5000VA
Peak Power
11000VA
Output Frequency
50/60Hz ±0.1%
Peak Effciency
94%
Physical Parameters
Dimension(mm)
580*430*380
580*430*530
580*430*680
580*430*830
Package Size（mm）
2*633*514*287
3*633*514*287
4*633*514*287
5*633*514*287
Net Weight （kg）
62.5
107
151.5
196
Gross Weight
64
108.5
153
197.5
Communication
RS485;RS232;WiFi Optional
Noise
＜ 45d b
Working Temperature
-15℃ to 55℃
Storage Temperature
-20℃ to 45℃




Applications

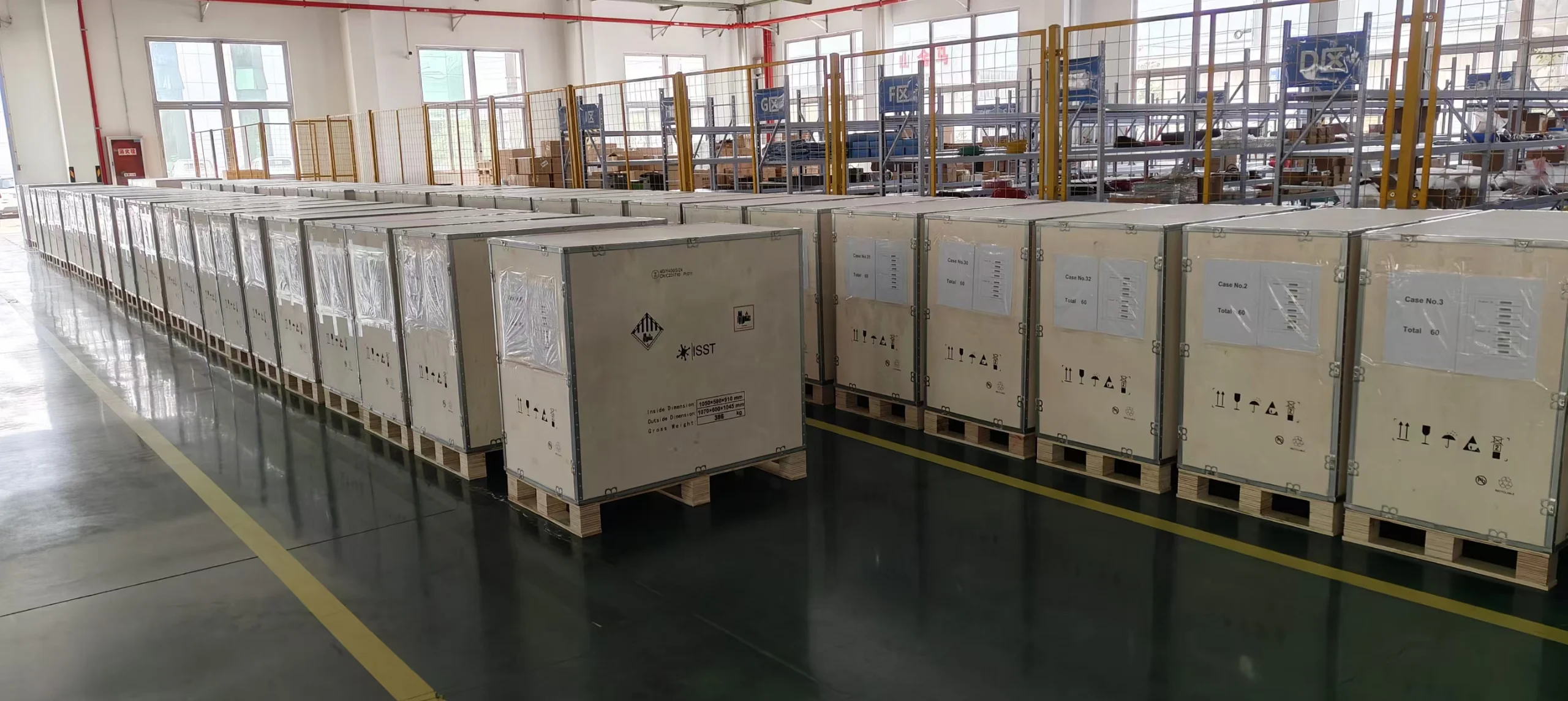

Packing & Delivery






Exhibition

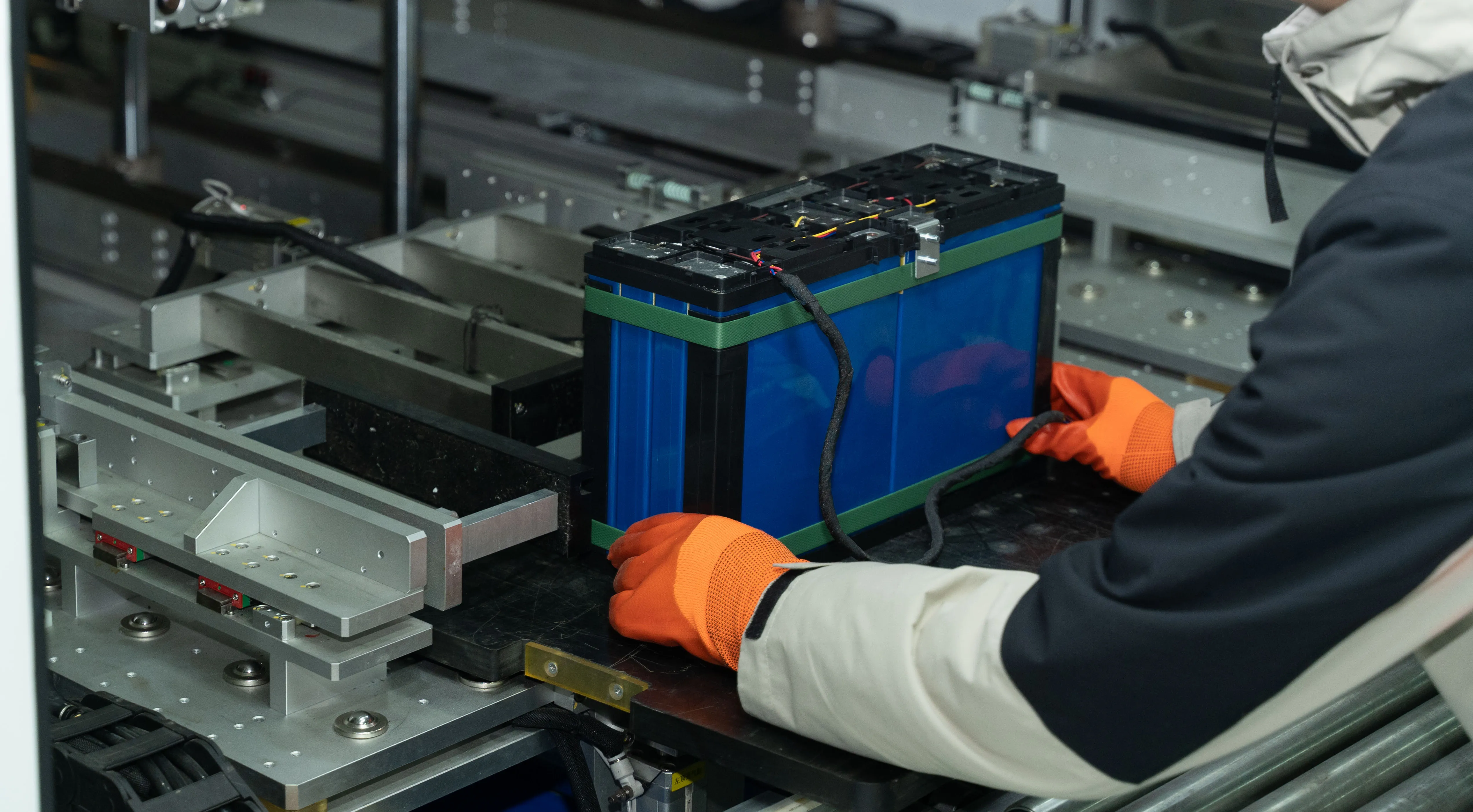

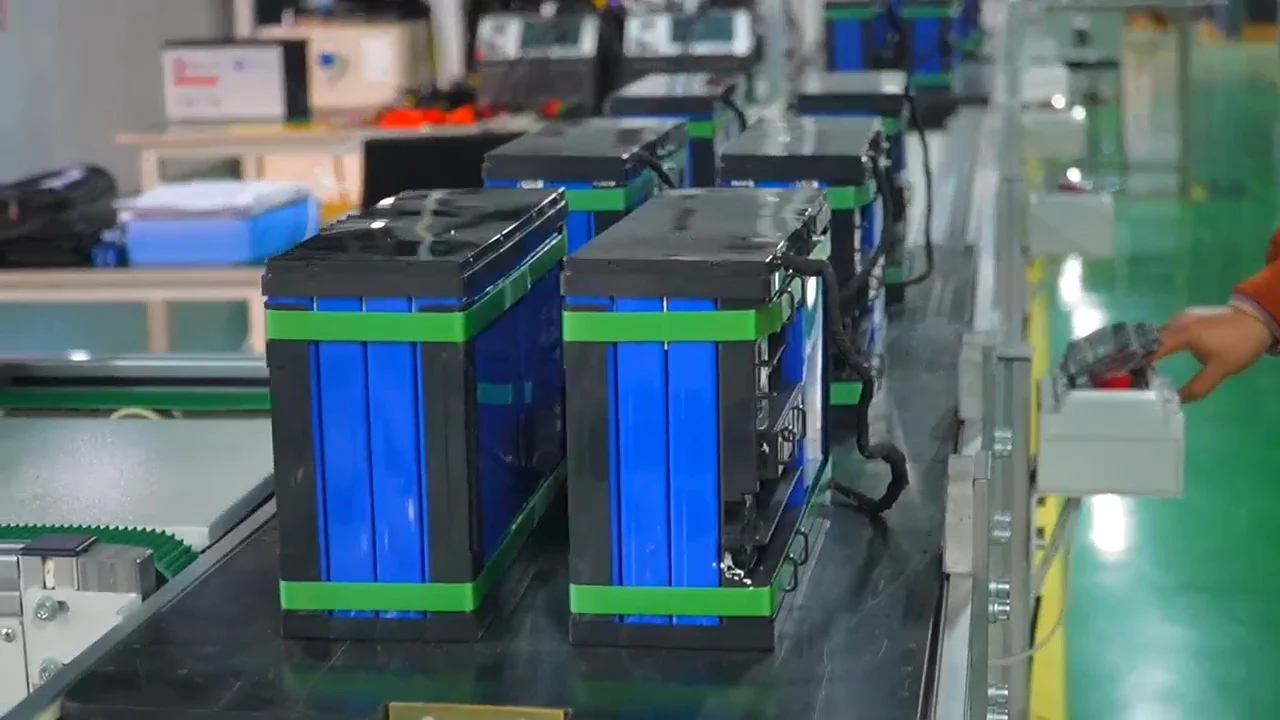

Company Profile




Company information

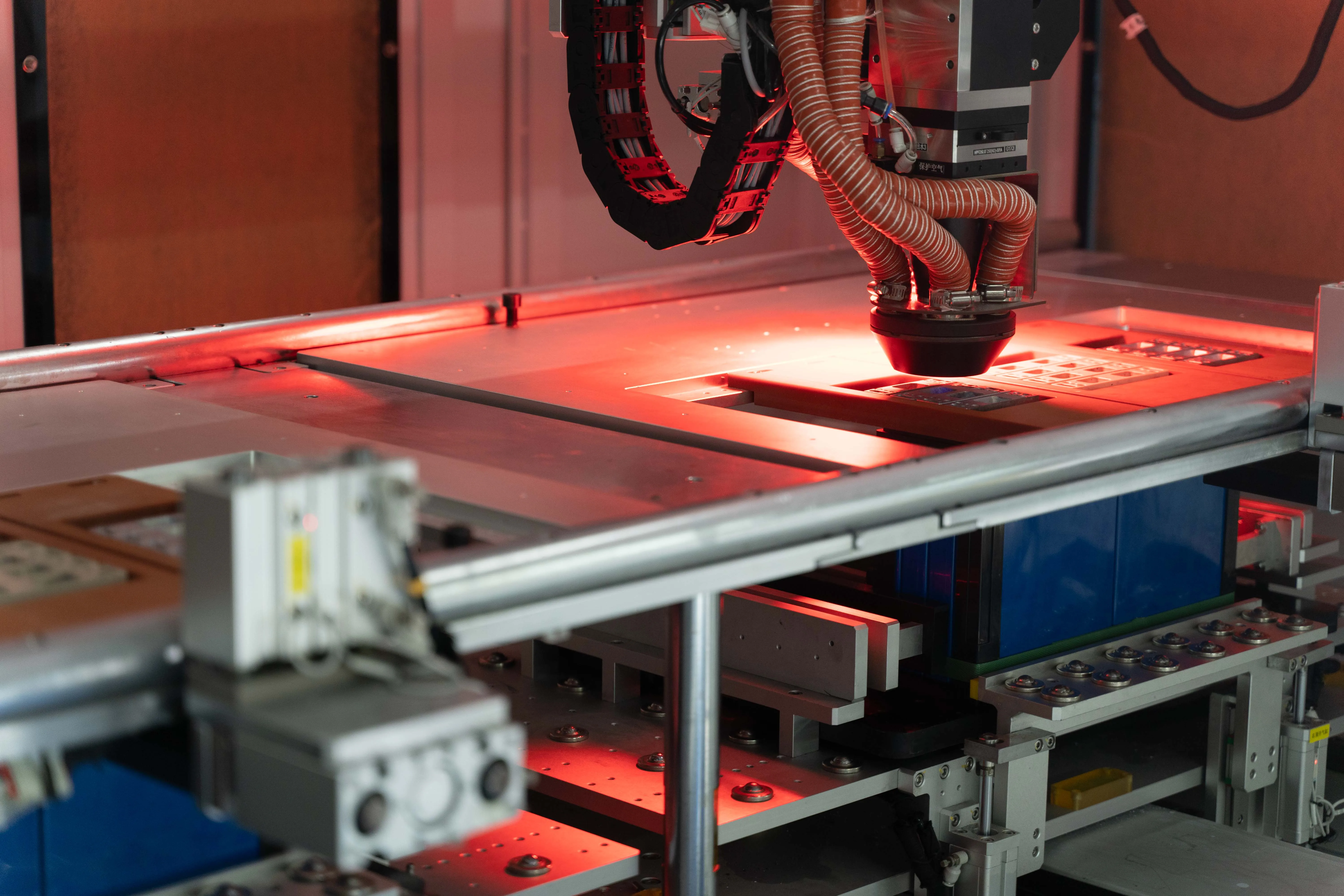

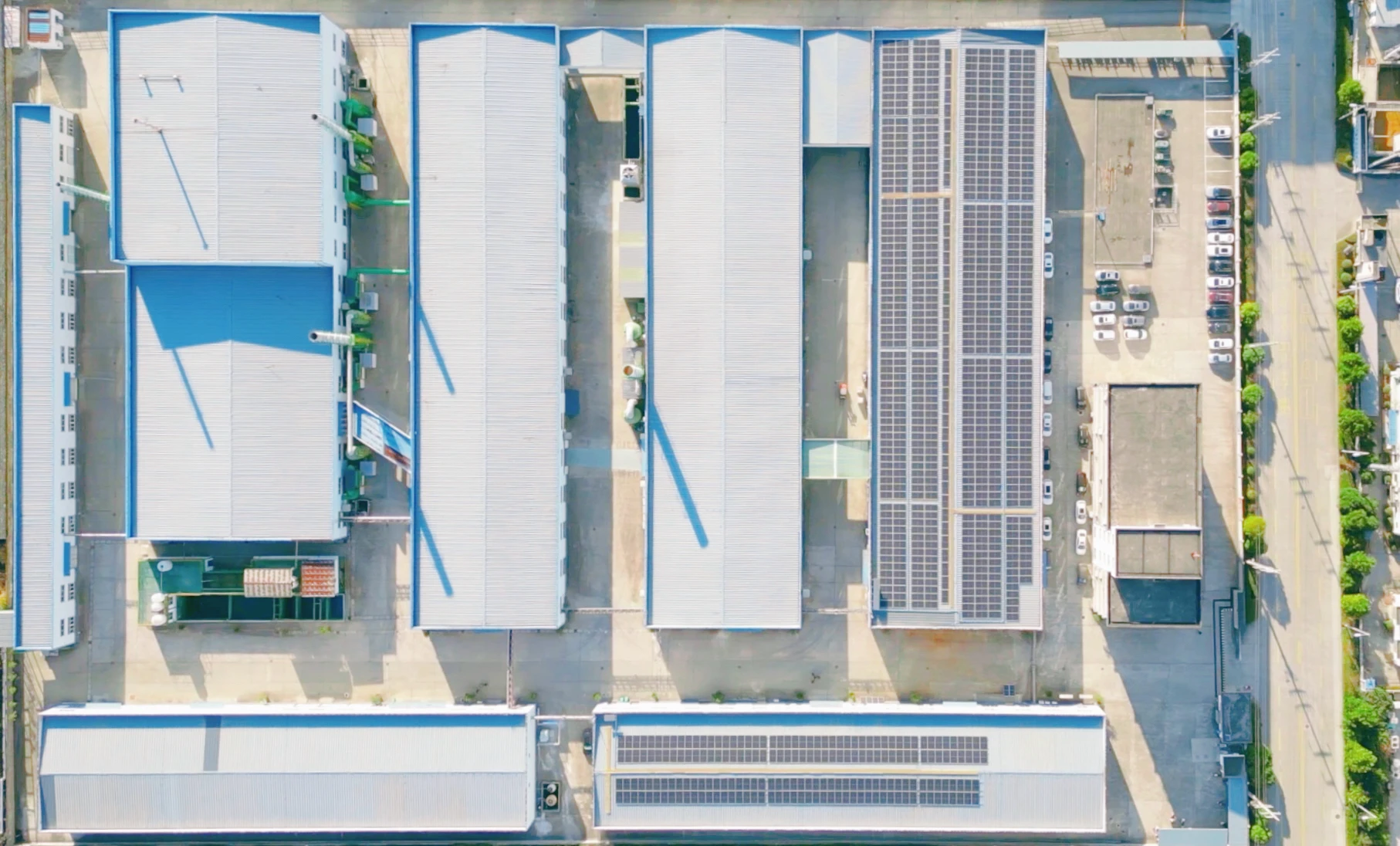

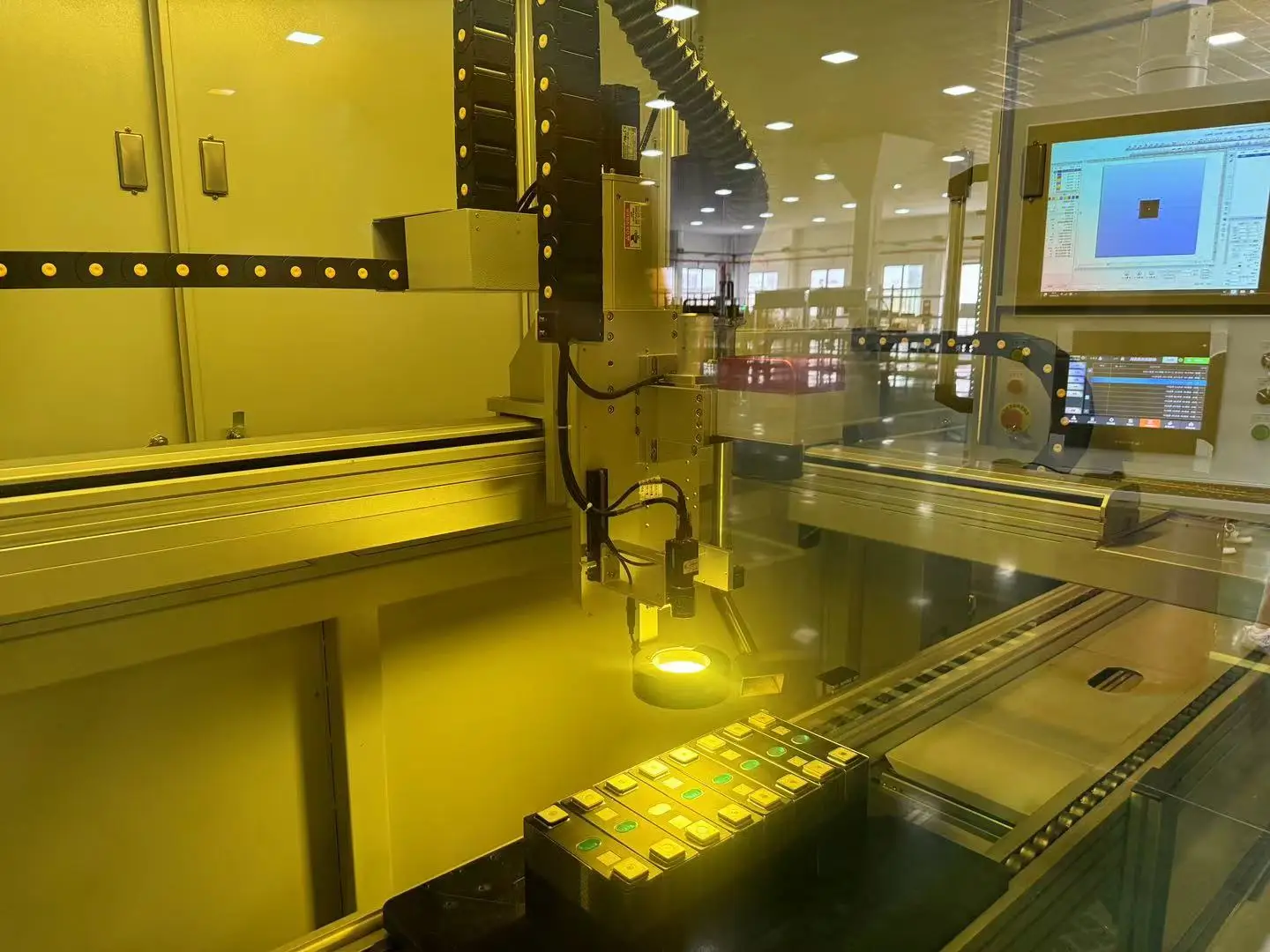

E-nice Power Company, founded in 2015 in Hefei, specializes in new energy sales and customer service. Our 66,000-square-meter factory in Mount Huangshan focuses on producing lead-acid batteries, lithium batteries, UPS, inverters, and photovoltaic modules.



In addition, we have obtained CE,Rohs, Msds certificates. Selling well in all cities and provinces around China, our products are also exported to clients in such countries and regions as central Asia, Middle East, Africa, Europe and other continents. We also welcome orders. Whether selecting a current product from our catalog or seeking engineering assistance for your application, you can talk to our customer service center about your sourcing requirements.






Certifications




FAQ


1. Are you a factory or a trading company?
We are a factory with over 30 years of experience in energy storage battery production and rich solutions for photovoltaic systems. Welcome to visit our factory.

2. What is the main product?
We have a range of solar energy storage products. The main products are energy storage lithium batteries, lead-acid battery, solar energy solutions, solar modules, and inverters.

3. Can I have a sample order?
Yes, welcome sample order to test and check quality.

4. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

5. Can I provide customized services?
Yes, we provide OEM, ODM customization service.
