PRODUCTS DESCRIPTION
L Type Mobile Workshop 10 Ton Gantry Crane with hook Price

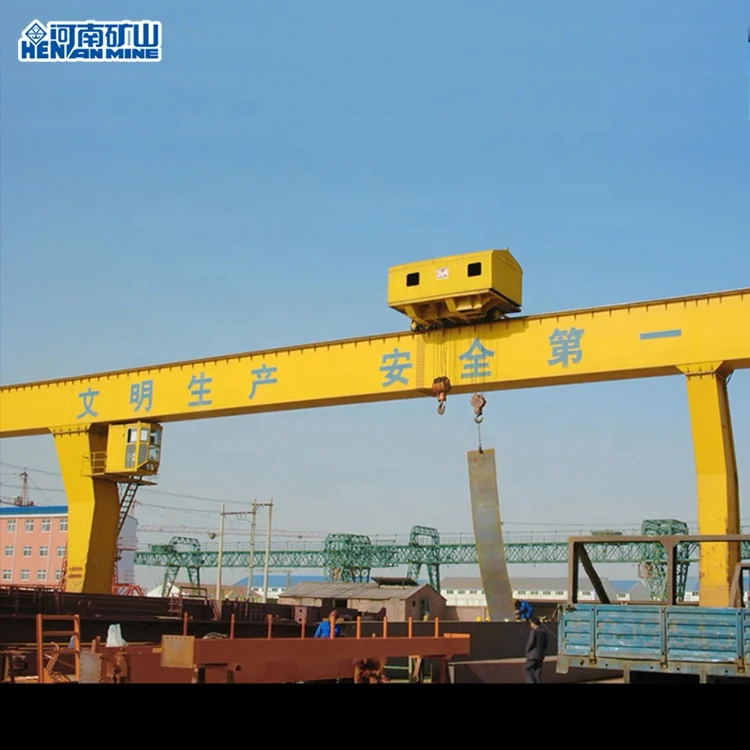

1. L single main beam hook hoist gantry/door crane is mainly composed of gantry, crane crab, and trolley traveling mechanism, cab and electric control system.
2. The gantry is of a box-shape structure. The crab adopts vertical reaction wheel when the lifting load is below 20t, and horizontal reaction wheel when above 20t to run at the girder side.3. The girder is of single-girder bias track and the leg is L-shaped, so that the lifting space is large and the spanning ability is strong, making it easy to covey articles from the span to under the jib.
4.The closed cab is employed for operation, where there are adjustable seat, insulating mat on the floor, toughened glass for the window, fire extinguisher, electric fan and auxiliary equipment such as air conditioner, acoustic alarm and inter phone which can be furnished as required by users.
A Gantry Crane May Save You Money
Because gantry cranes ride on the ground rather than on overhead runways, they don't require a runway structure. Nor do they usually require concrete foundations. Their installation is fast and simple. Depending on the environment and application, gantry cranes can sometimes provide the same material handling capabilities as a comparable bridge crane system, but with a significant cost savings.
4.The closed cab is employed for operation, where there are adjustable seat, insulating mat on the floor, toughened glass for the window, fire extinguisher, electric fan and auxiliary equipment such as air conditioner, acoustic alarm and inter phone which can be furnished as required by users.
A Gantry Crane May Save You Money
Because gantry cranes ride on the ground rather than on overhead runways, they don't require a runway structure. Nor do they usually require concrete foundations. Their installation is fast and simple. Depending on the environment and application, gantry cranes can sometimes provide the same material handling capabilities as a comparable bridge crane system, but with a significant cost savings.
\\uD83D\\uDC49\\uD83D\\uDC49\\uD83D\\uDC49Interested? Please, contact us.\\uD83D\\uDC48\\uD83D\\uDC48\\uD83D\\uDC48

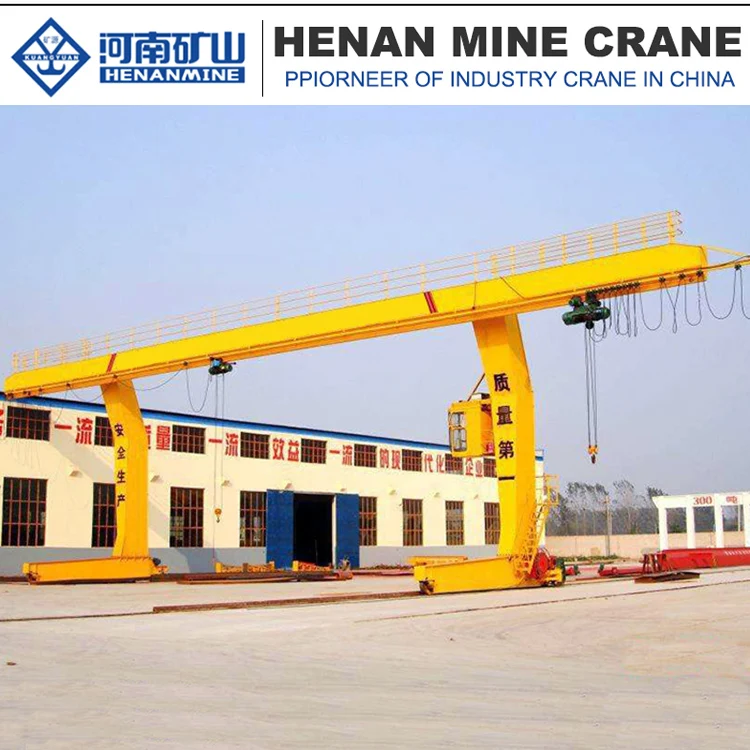

L-Shaped Legs Single Girder Gantry Crane with Winch
* Capacity: 5t-50t
* Span: 8-35m
* Lifting height: 6-9m
* Lifting speed: 5.9-9.2m/min or according to customers' demand
* Widely used in: Workshop, warehouse, store yard, etc.
* Span: 8-35m
* Lifting height: 6-9m
* Lifting speed: 5.9-9.2m/min or according to customers' demand
* Widely used in: Workshop, warehouse, store yard, etc.

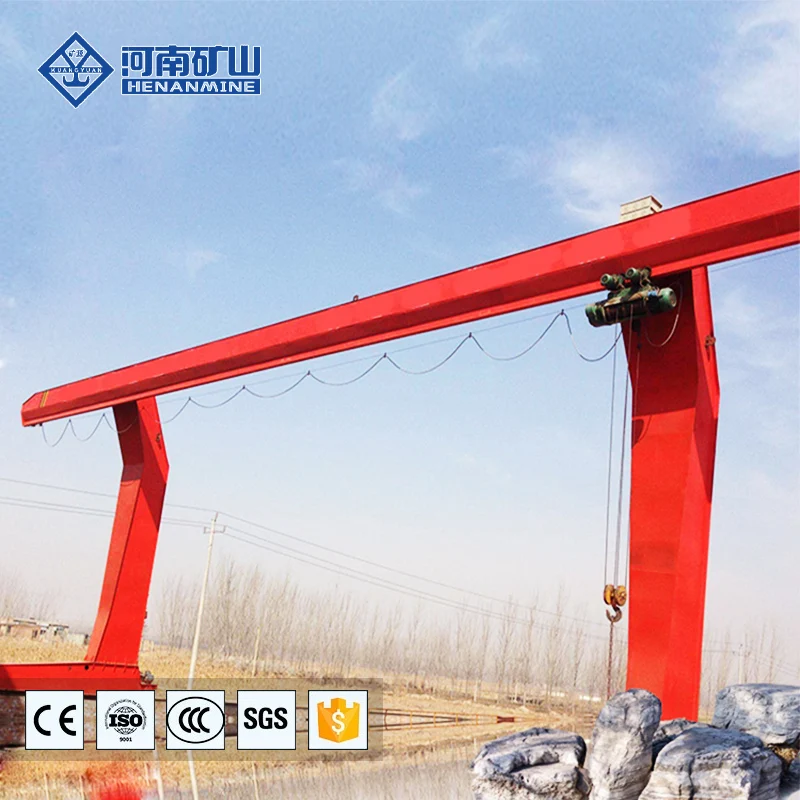

L-Shaped Legs Single Girder Gantry Crane with Hoist
* Capacity: 3t, 5t, 10t, 16t
* Span: 12m-35m
* Lifting height: 6-9m
* Widely used in: Workshop, warehouse, store yard, etc.
* Span: 12m-35m
* Lifting height: 6-9m
* Widely used in: Workshop, warehouse, store yard, etc.
FEATURES AT A GLANCE
1. High technique and quality assurance.
2. Crane can work on itself. No need steel structure.
3. Stable working load.
4. Long service life (Long Life Span: 20+ years)
5.Easy handling of long materials like steel pipe. Great Versatility: Grab, Hook, Clamp, etc.
6. Efficient use of space under the crane.
7. Safety First: Equipped with all moving limit switch, loading limit and other standard safety devices, to promise crane work safe.
PRODUCT CONFIGURATION
Main Girder
Structure: Welding structure of steel plate and I-steel
Technology: One-off forming U shaped groove.
Electric Motor
Brand: JIangsu brnad, SIEMENS, Schneider
Lifting Speed: Single/Double Speed
Usage: Workshop, mines, habour etc.
Lifting Speed: Single/Double Speed
Usage: Workshop, mines, habour etc.
End Girder
The end girder is connected with the main girder by dolts and nuts for easy transportation and installtion.
Hook
Capacity: 1-450t Type: Single hook, double hook
Material: forging
Usage: Lifting various objects
Usage: Lifting various objects
Wireless Remote Control
Model: F21 F23 F24
Speed: Single speed, double speed. VFD control
Usage: For overhead crane, gantry crane, electric hoist etc.
PRODUCT SPECIFICATIONS
1. Both side of all the steel plate of crane are pre-treatment by production line: Sand blasting-- Primer spray--Primer drying. Eliminate the inner stress of steel plate, increase the adhesive force of the steel structure. Ensure the appearance and anti-corrosion quality.
2. Steel plate cutting adapt whole sets Messer CNC plasma cutting machine from Germany, very fast cutting speed, little deformation, High precision, Deviation could be controlled within 1mm, it insure the raw material at high quality standard and can reach top level in the industry.
3. The welding of main beam adapt high efficiency and intelligent welding robot, Henan Mine Crane CO., LTD are No.1 enterprise who adapt this high technology machine. The welding joint inside of the main beam adapt advanced MAG welding, adapt Ar+CO2 mixed protective gas, The 4 welding joint outside of the main beam adapt automatic submerged-arc fillet welding machine.
4. The welding of main beam adapt radio graphic inspection and ultrasonic flaw detection for the welding joint and fillet weld position.
5. The welding of end beam adapt double gun gantry submerged arc welding, highly welding quality ensure the stable quality of the crane effectively.
6. Adapt the steel plate rolling drum and wireless steel tube, Henan Mine Crane CO., LTD has a set of steel plate rolling drum producing and processing line which is industry-leading level. From pre-bending by 1250t press machine, to Edge rolling by three-roller plate roll, at last the longitudinal joint and circumferential joint of drum are welded by automatic welding center and drum processed by heavy duty CNC horizontal machine tool.
2. Steel plate cutting adapt whole sets Messer CNC plasma cutting machine from Germany, very fast cutting speed, little deformation, High precision, Deviation could be controlled within 1mm, it insure the raw material at high quality standard and can reach top level in the industry.
3. The welding of main beam adapt high efficiency and intelligent welding robot, Henan Mine Crane CO., LTD are No.1 enterprise who adapt this high technology machine. The welding joint inside of the main beam adapt advanced MAG welding, adapt Ar+CO2 mixed protective gas, The 4 welding joint outside of the main beam adapt automatic submerged-arc fillet welding machine.
4. The welding of main beam adapt radio graphic inspection and ultrasonic flaw detection for the welding joint and fillet weld position.
5. The welding of end beam adapt double gun gantry submerged arc welding, highly welding quality ensure the stable quality of the crane effectively.
6. Adapt the steel plate rolling drum and wireless steel tube, Henan Mine Crane CO., LTD has a set of steel plate rolling drum producing and processing line which is industry-leading level. From pre-bending by 1250t press machine, to Edge rolling by three-roller plate roll, at last the longitudinal joint and circumferential joint of drum are welded by automatic welding center and drum processed by heavy duty CNC horizontal machine tool.
Lifting capacity | T | 3 | 5 | 10 | 16 | ||||
Operation type | Handle/remote control/cab | ||||||||
Speed | Hoist lifting | m/min | 8 ,8/0.8 | 7,7/0.7 | 3.5 | ||||
Hoist travelling | m/min | 20 | |||||||
Crane travelling | Type /kw | 20 | |||||||
30,40 | |||||||||
Motor | Hoist lifting | ZD41-4/4.5 | ZD141-4/7.5 ZDS10.8/4.5 | ZD151-4/13 ZDS11.5/4.5 | ZD151-4/13 | ||||
Hoist travelling | ZDY12-4/0.4 | ZDY121-4/0.8 | ZDY21-4/0.8×2 | ZDY121-4/0.8×2 | |||||
Trolley travelling | ZDY21-4/0.8×2 | YZR132M1-6/2.2×2 | YZR160M1-6/6.3×2 | YZR160M1-6/6.3×2 | |||||
ZDY21-4/1.5×2 | YZR132M2-6/3.7×2 | YZR160M2-6/8.5×2 | |||||||
ZDR22-4/1.5×2 | YZR132M2-6/3.7×2 | YZR160M1-6/6.3×2 | YZR160M2-6/8.5×2 | ||||||
ZDR24-4/2.2×2 | YZR160M1-6/5.5×2 | YZR160L2-6/11×2 | |||||||
Electric hoist | Type | CD1/MD1 | CD1/MD1 | CD1/MD1 | HC/HM | ||||
Lifting height | m | 6, 9, 12 | |||||||
Work classifications | A3, A4 | ||||||||
Power | 380V 50HZ 3phase AC or according to customers' demand | ||||||||
