20TPH 750mm Drum Dia Screw Sand Washing Machine Lsx920 for Sale
- Category: >>>
- Supplier: Ganzhou Eastman Technology Co. LtdGanzhou Ltd
Share on (1601295917828):
Product Overview
Description
Product Introduction
Product Introduction
Spiral washing machine is widely used for washing all kinds of easy-washing and difficult-to-wash ore. If the ore contains more than 20% mud, it will block the crusher and the chute. The spiral washing machine can make the ore with more than 20% mud be stirred and scrubbed in the washing machine to achieve the purpose of separating the ore from the mud. The washed ore is discharged from the discharge port, and the muddy water is discharged from the tailing end. The equipment is matched with the trommel scrubber washing machine, and it is currently a relatively effective washing equipment for processing difficult-to-wash ore.
Structure
The spiral washing machine is mainly composed of transmission device, spiral, tank body, lower support, overflow trough, etc. It Includes:

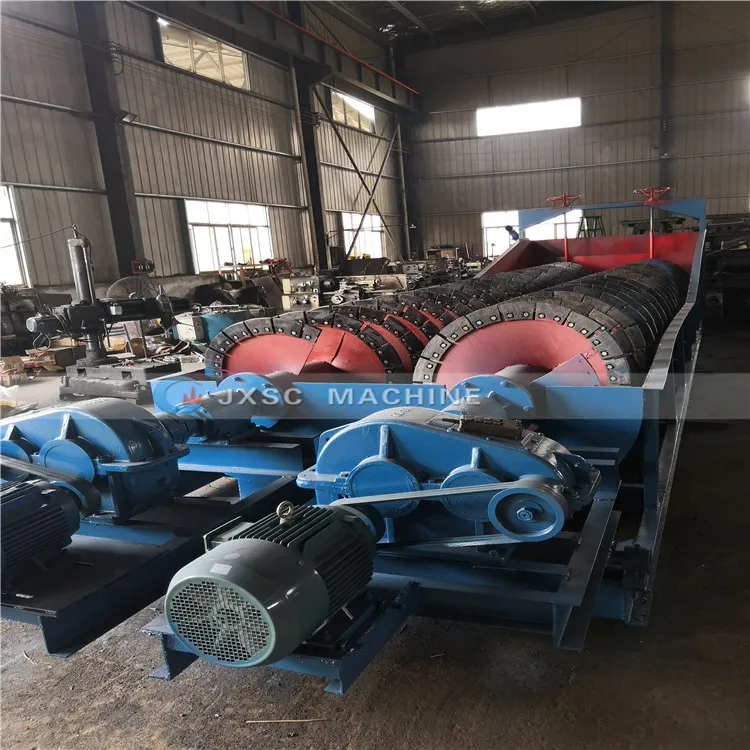

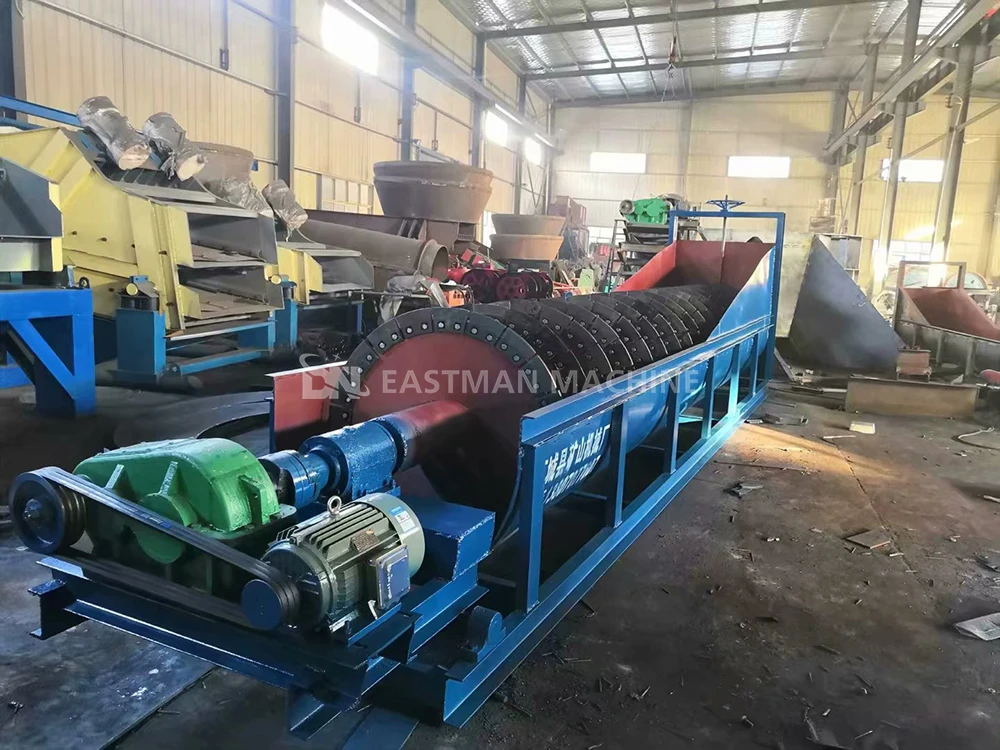

1. Transmission Device: It is the power of the spiral work. The spiral rotation is driven by the motor through the
V-belt, reducer and gear.
V-belt, reducer and gear.

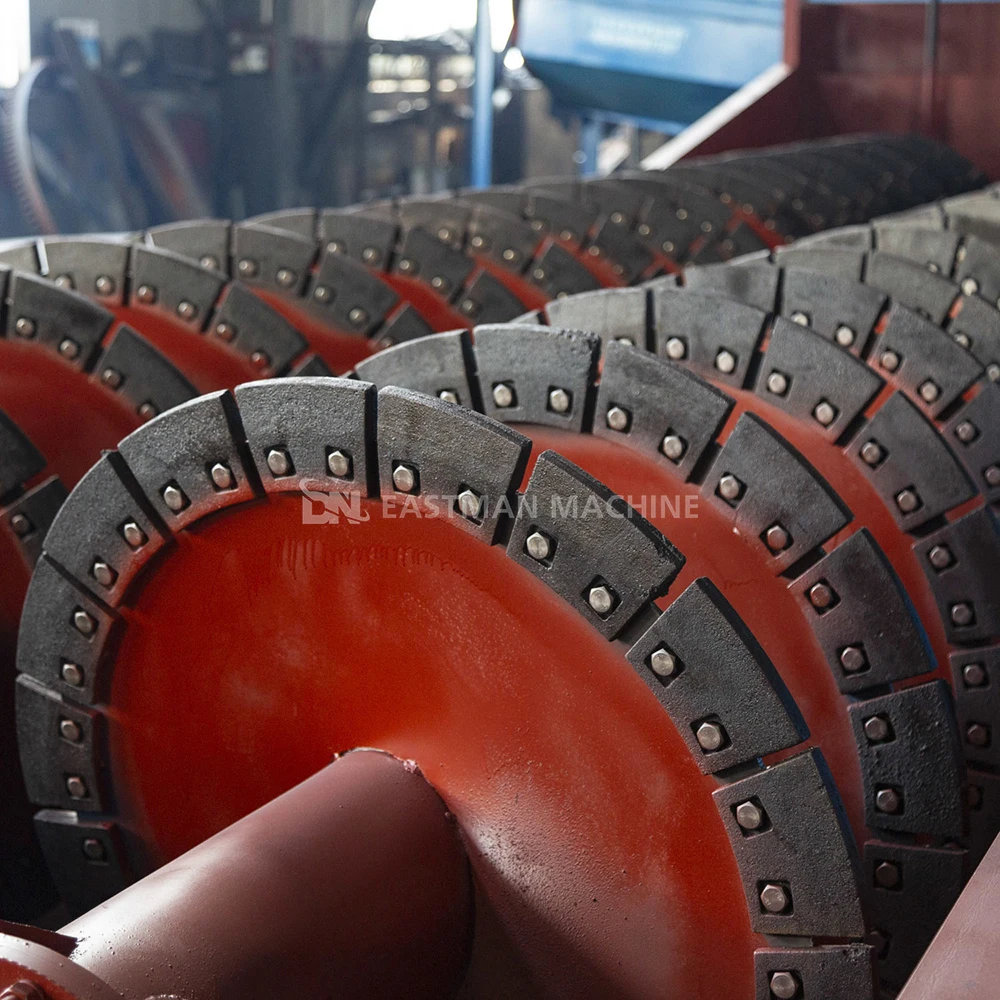

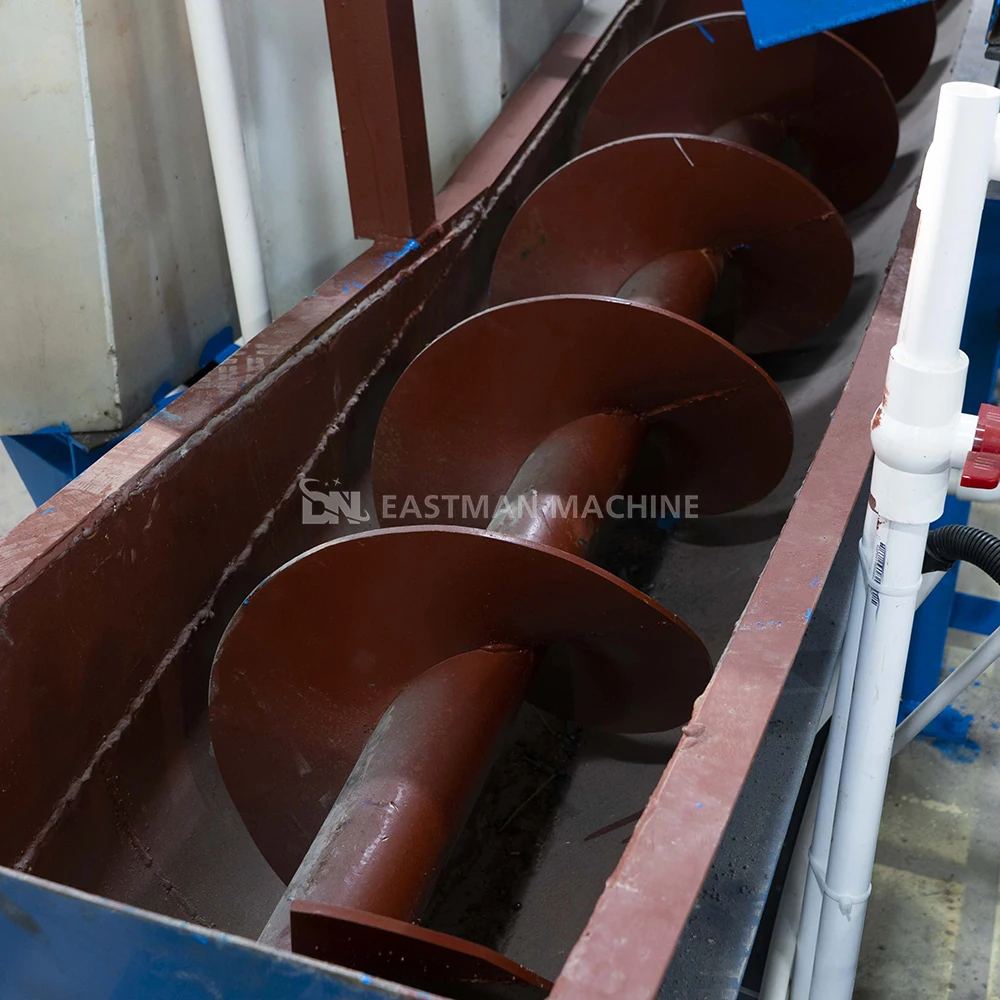

2. Spiral: The main working part of the machine, which plays the role of stirring the minerals. The main shaft is a square shaft welded by channel steel. The upper end is installed on the frame of the transmission device, and the lower end is installed on the lower support. The spiral blade is welded by spring steel plate.
3. Tank Body: It is the body of the machine, which is welded by various section steels and steel plates.
4. Lower Support: Its role is to support the screw shaft.
5. Overflow Trough: Discharge muddy water and debris.

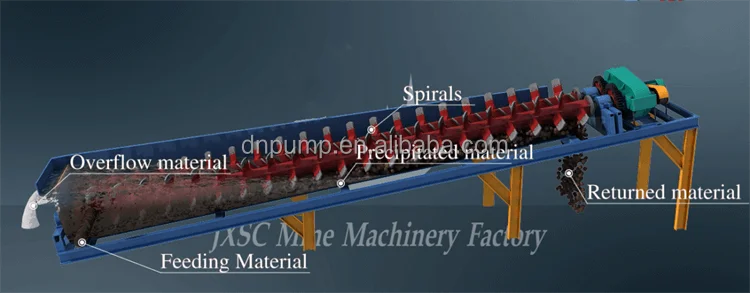

Working Principle
Spiral washing machine removes clays and other deleterious materials by material-on-material inter-particle scrubbing, as well as the interaction with the paddle shafts and water. For clay contaminated hard rock and ore, it needs more aggressive washing action than any other type of ore available. The left and right spiral shafts complete ore scrubbing and lifting, also convey the material over the machine length to the discharge.
The installation angle of the equipment is 10°~14°. When it works, the two screw shafts in the tank rotate in opposite directions. The material is fed into the middle of the two screw shafts from the lower part of the tank body from the overflow end about 1/3. And the coarse ore is in the tank through the repeated copy washing of the blades, it is transported to the front end to be discharged, and then sprayed to wash to reach the qualified ore when discharged. The mud and sand washed from the ore flow out through the overflow weir at the back of the tank and become tailings. It is better to muddy the fed ore through a water gun first to achieve a better washing effect.
Application Field
Sand Washing, Aggregate Field, Concrete Mixing Plant, Dry Mortar Plant Desulfurization, Quartz Sand etc. spiral washing machine is suitable for the pre-cleaning of silt in iron, manganese, limestone, tin ore and other ore with a large amount of mud.

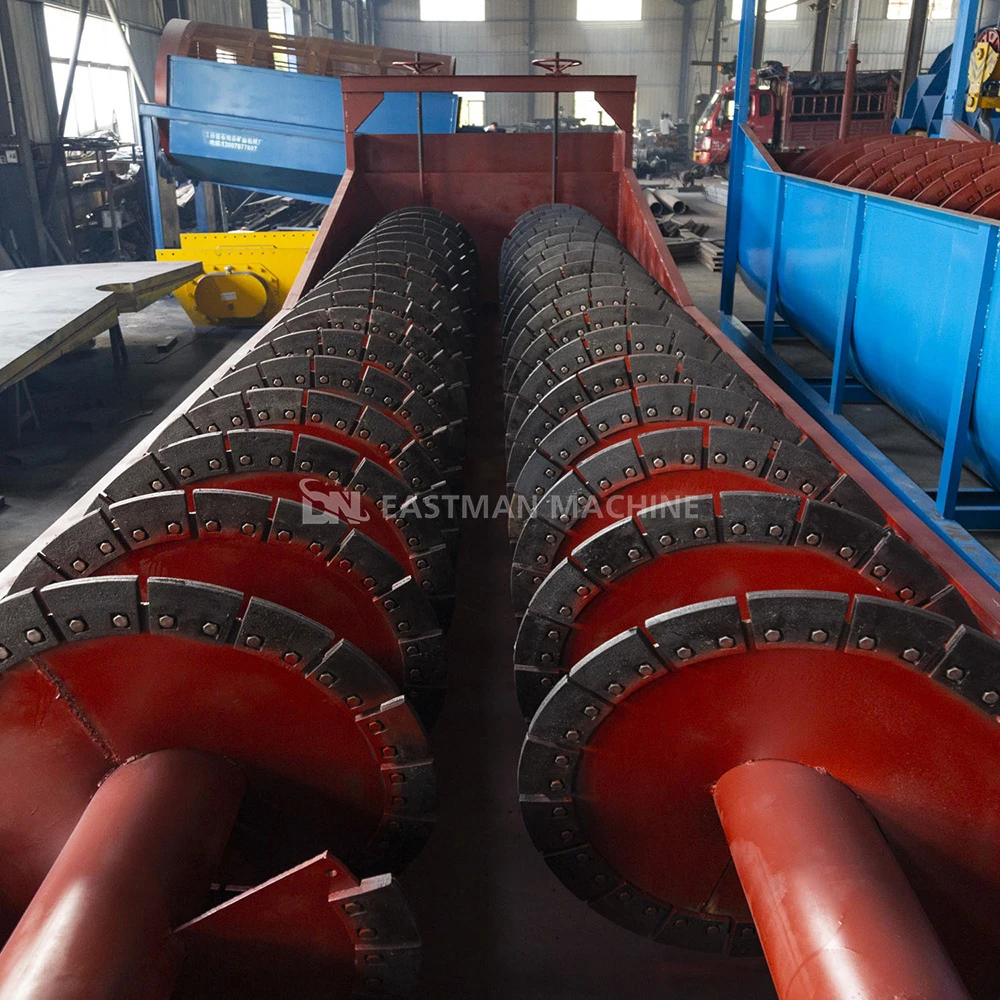

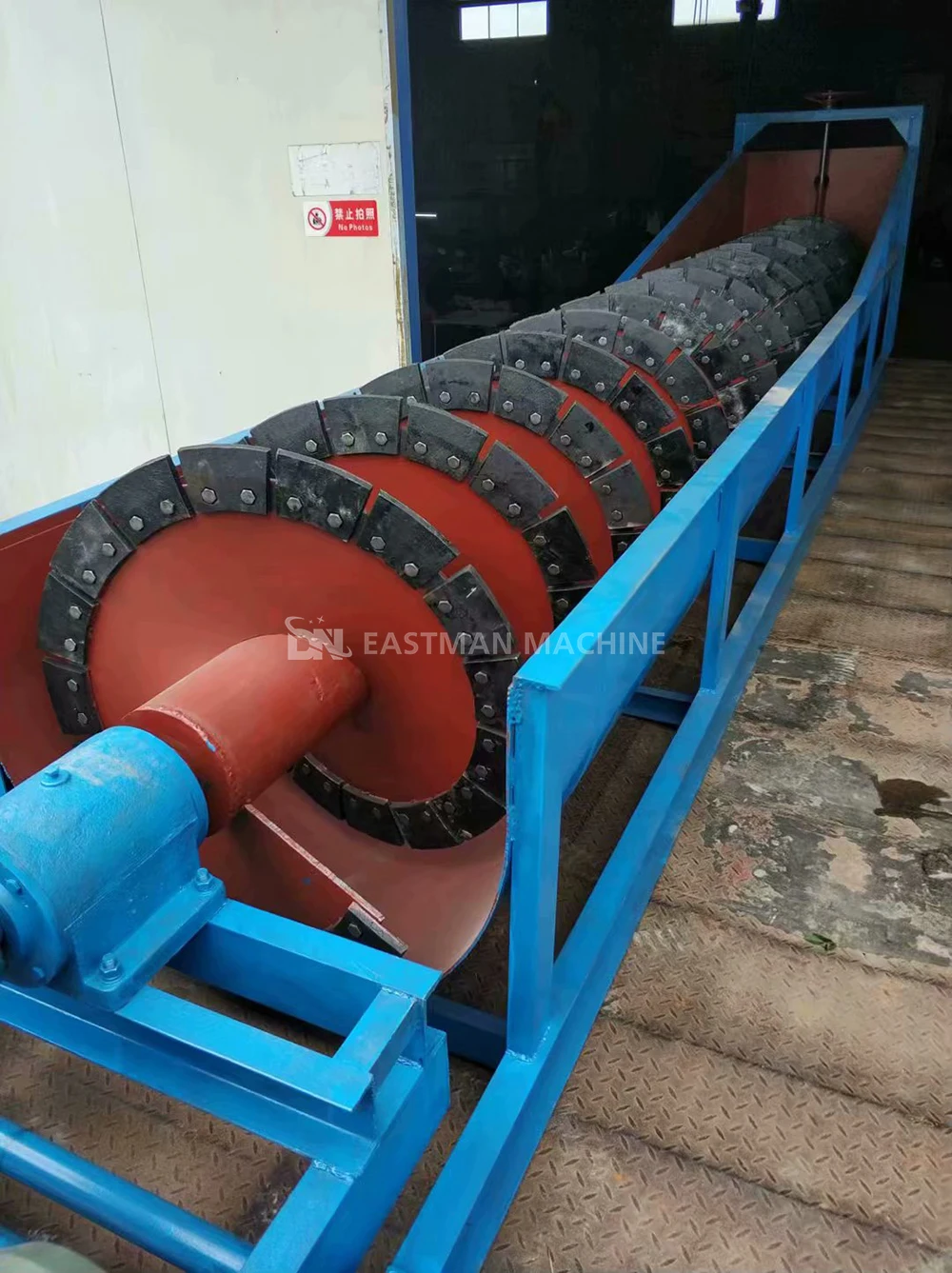

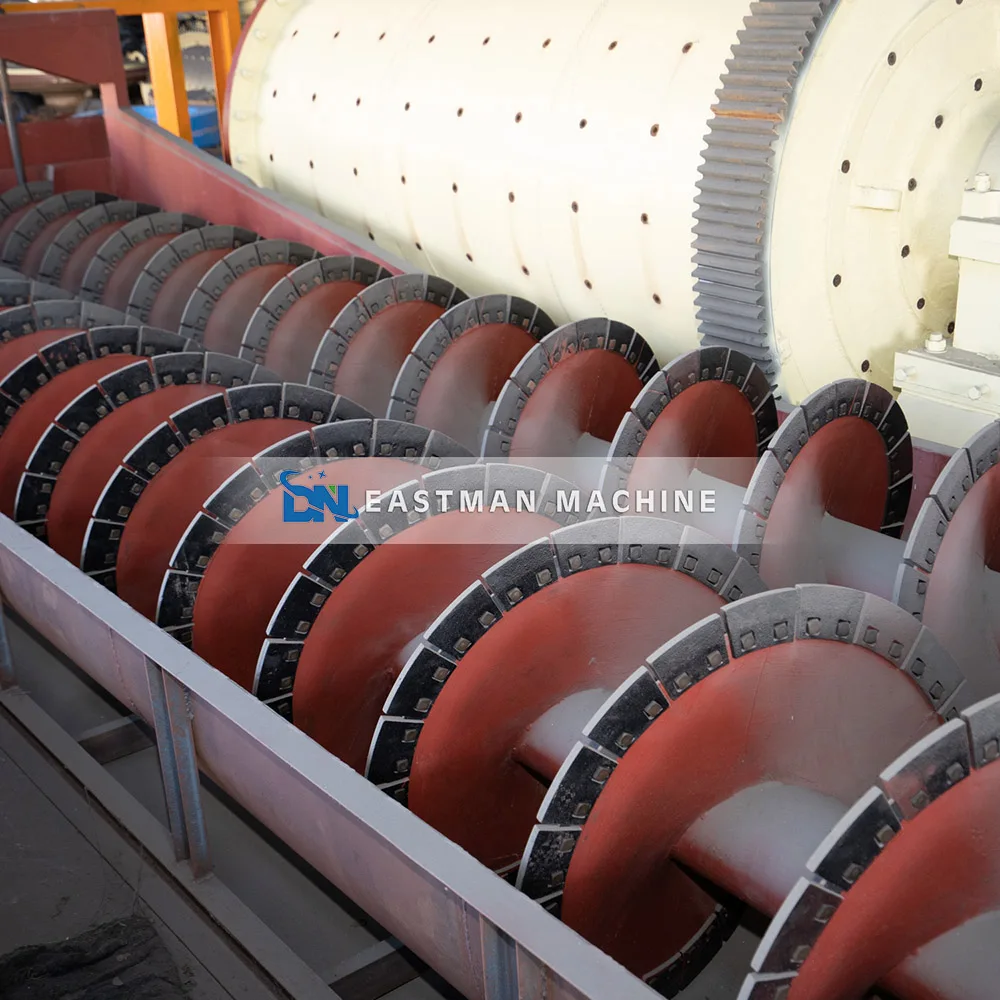

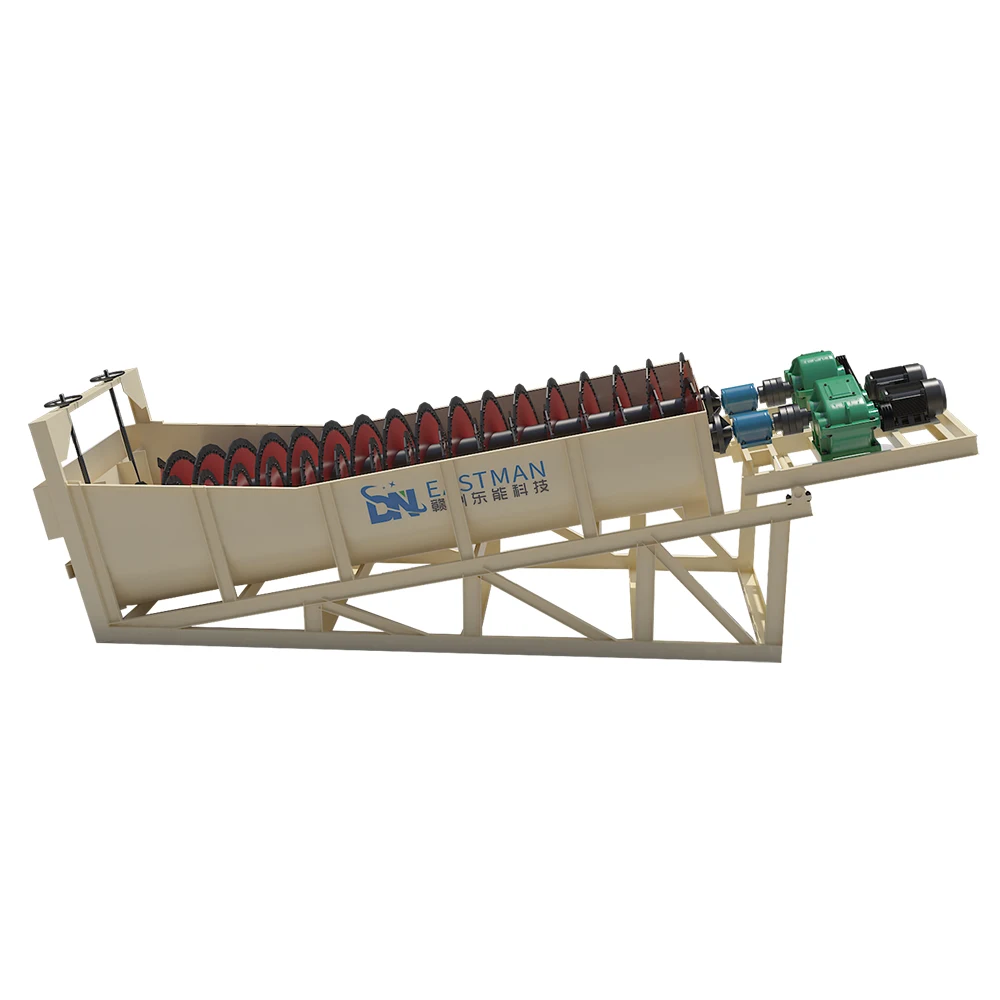

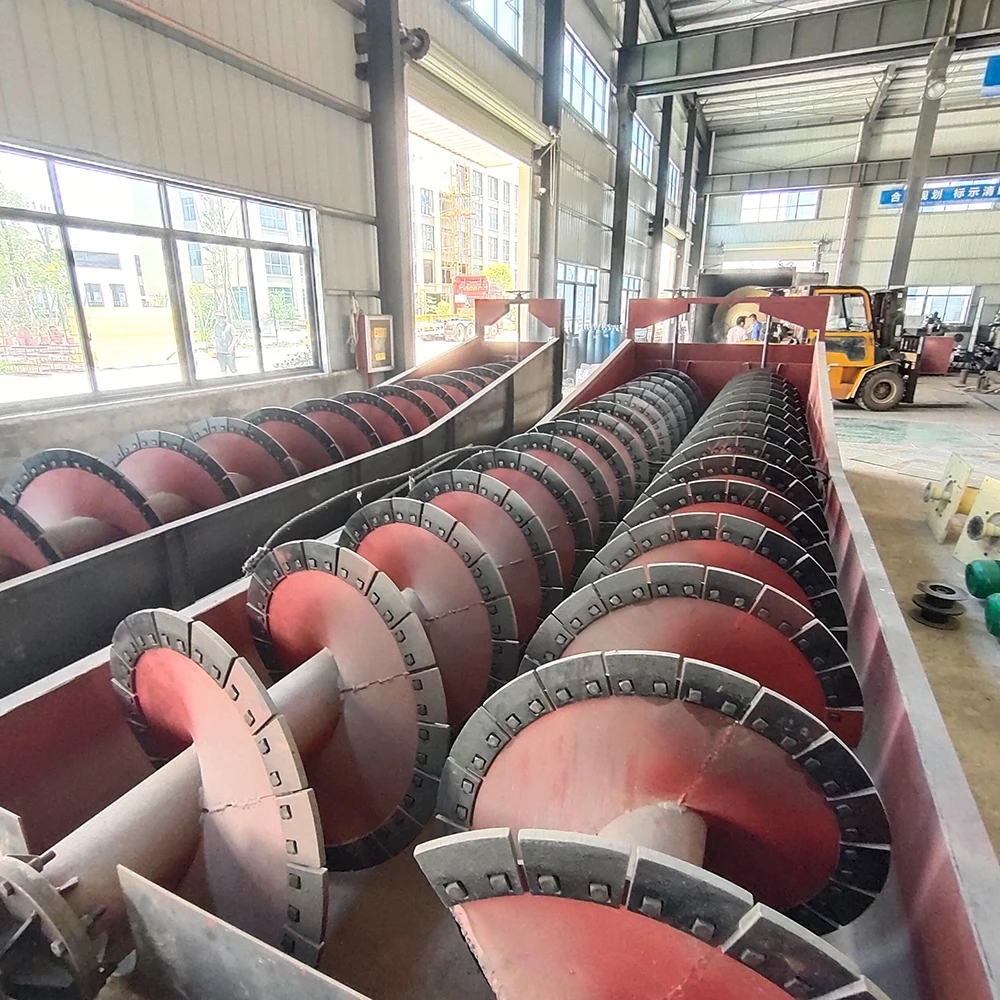

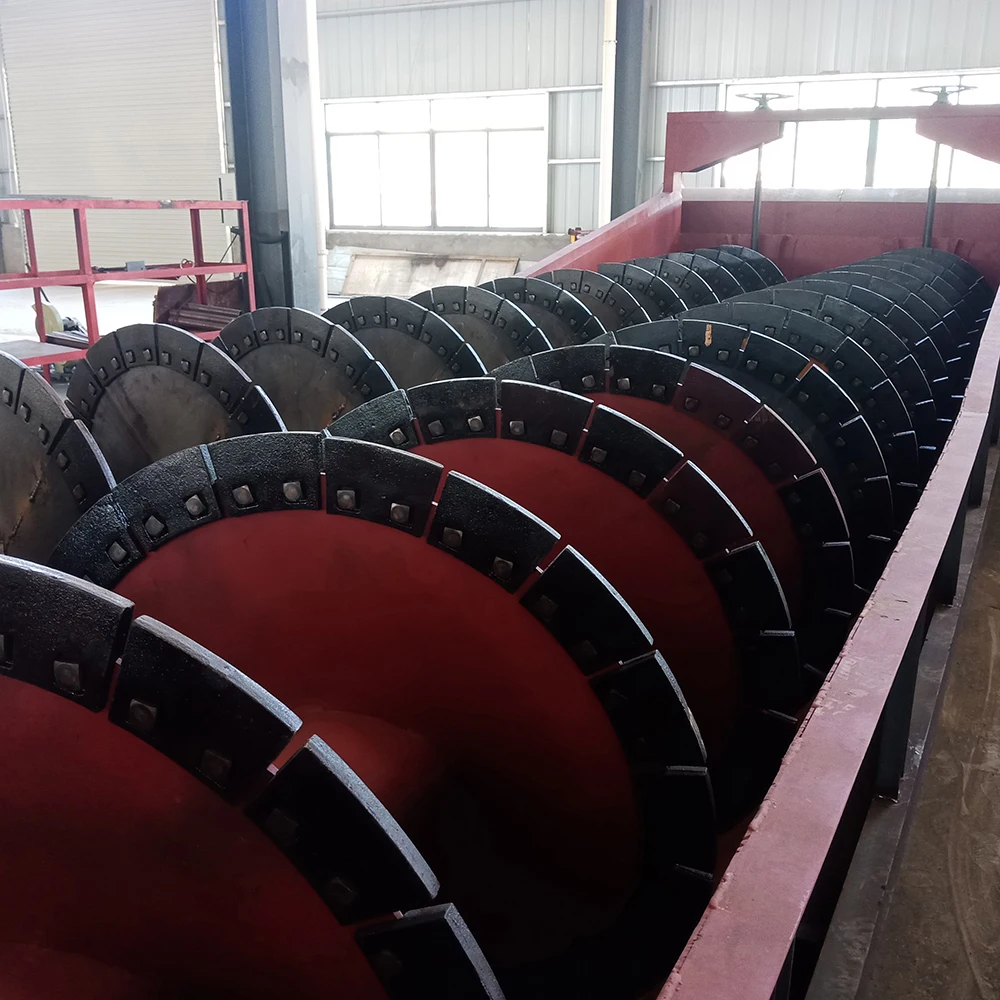

Product display
Advantages and Features
1.Simple structure and the operation is stable.
2. The bearing is separated from water and materials to avoid damage caused by premature contamination and rusting of the machine.
3. Applicable to various working environments.
4. There is less loss of washed materials and high selective washing efficiency, which can fully meet the requirements of high-grade materials.
5. The service life is relatively long, and there are almost no wearing parts.
6. It is ideal for scrubbing difficult materials such as tough insoluble clays, conglomerates, soft stone and cemented aggregate.
Technical Data
Model | Screw Dia.(mm) | Screw Number | Feeding Size(mm) | Capacity(t/h) | Water Consumption(m3/h） | Motor Power(kw) | Overall Dimensions(mm) |
2XL-762 | 762 | 2 | ＜10 | 140 | 18-120 | 2*11 | 9070×3250×1530 |
2XL-915 | 915 | 2 | ＜10 | 200 | 20-140 | 2*15 | 9070×3510×1638 |
2XL-1115 | 1115 | 2 | ＜10 | 350 | 40-280 | 2*22 | 9070×3890×1900 |
XL-750 | 750 | 1 | ＜10 | 20-40 | 9-60 | 7.5 | 7000×950×1330 |
2XL-750 | 750 | 2 | ＜10 | 50-70 | 18-120 | 2*7.5 | 7000×1750×1330 |
XL-1000 | 1000 | 1 | ＜10 | 50-80 | 10-70 | 11 | 8070×1200×1638 |
2XL-1000 | 1000 | 2 | ＜10 | 100-150 | 20-140 | 2*11 | 8070×2250×1638 |
XL-1200 | 1200 | 1 | ＜20 | 100-120 | 20-140 | 18.5 | 9070×1430×1900 |
2XL-1200 | 1200 | 2 | ＜20 | 150-180 | 40-280 | 2*18.5 | 9070×2700×1900 |
XL-1500 | 1500 | 1 | ＜20 | 150-200 | 60-300 | 22 | 10800×1720×1900 |
2XL-1500 | 1500 | 2 | ＜20 | 200-300 | 120-450 | 2*22 | 10800×3300×1900 |
More Model Please Contact Us,the Model Also Can Be Customized！

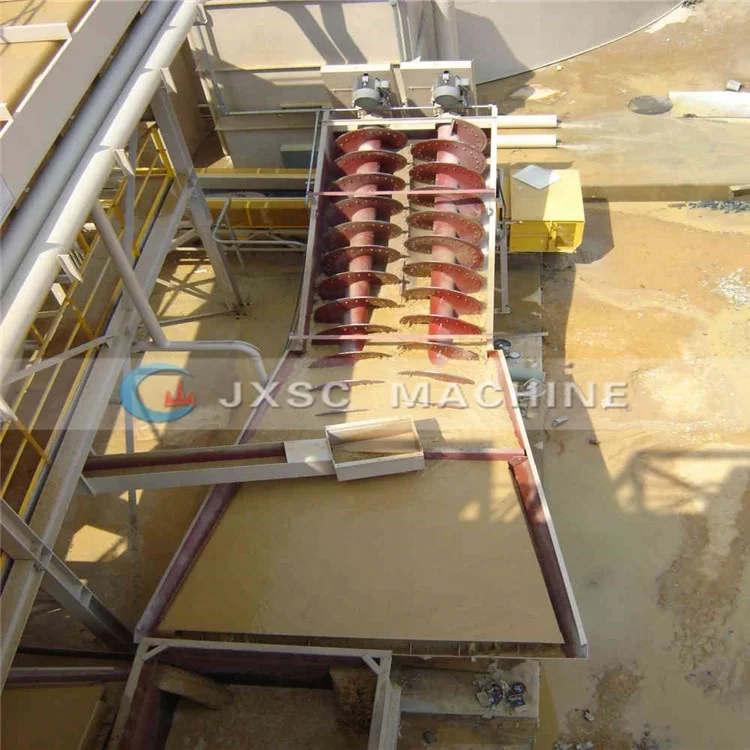

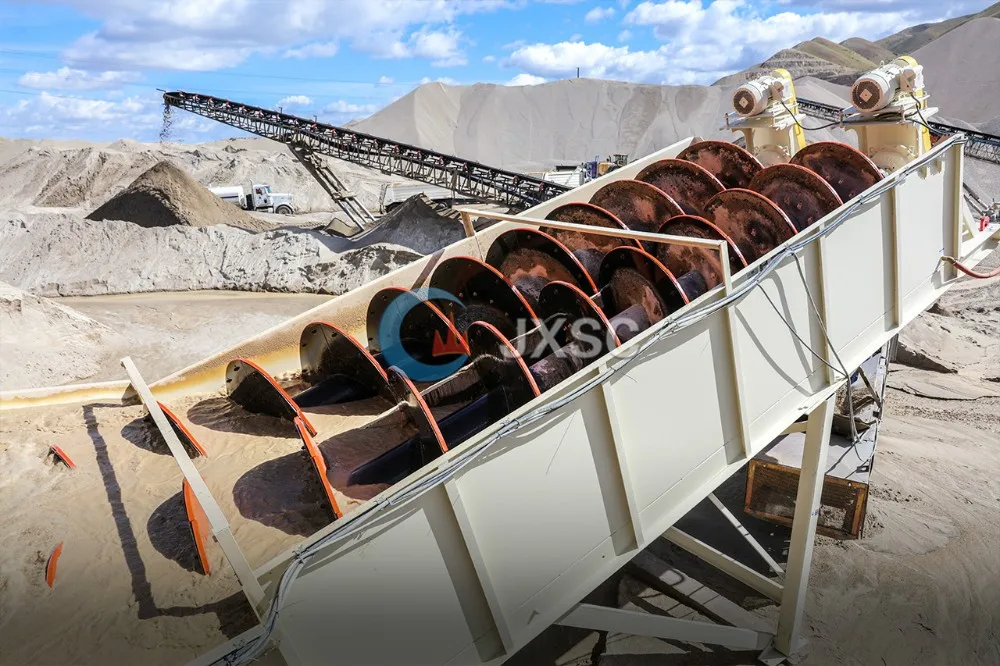

Successful Cases
We have more than 35 years of experience in mining equipment production and can provide a full range of mining equipment from crushing to beneficiation. We have professional engineers who can design the process for you and can provide field guidance for installation services. Here are some of our success stories. Welcome to inquire!

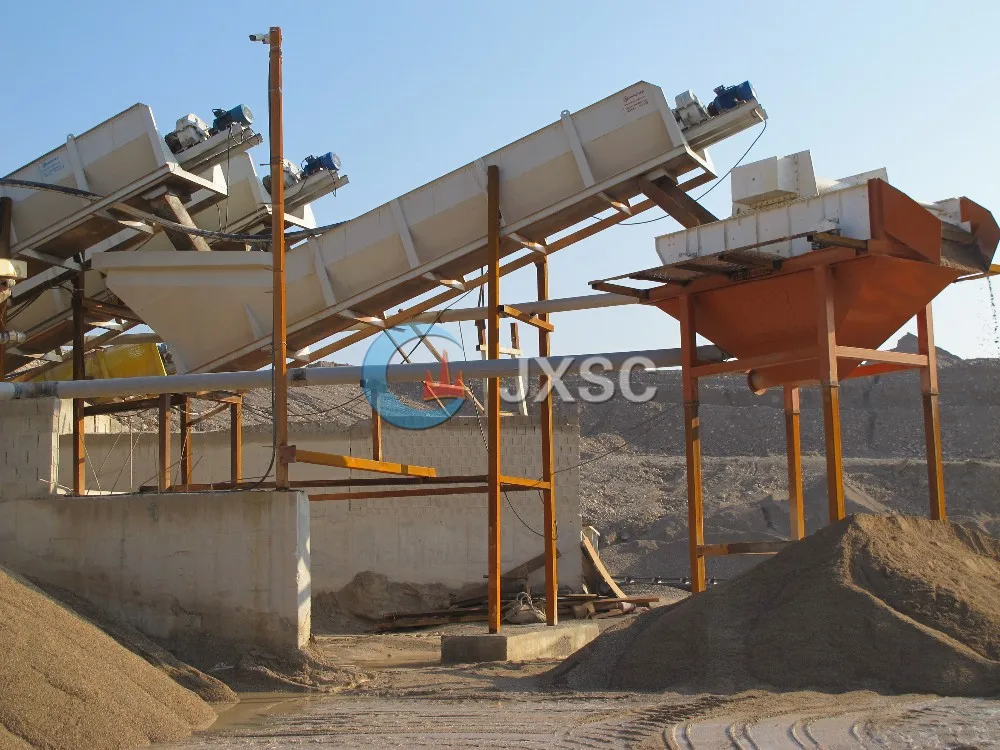

The sand washing plant is composed of jaw crusher, sand making machine, sand washing machine, and belt conveyor. Its technology is that the stone materials are uniformly sent to jaw crusher by vibrating feeder for crushing. Then the primary crushing material sent to the sand crusher machine by belt conveyors for further crushing. The finely crushed material is sent to the vibrating screen for screening. The material meets the requirements of the finished product size is sent to the sand machine for cleaning. The finished product is exported by the conveyor belt. The materials that do not meet the requirements of the finished product size are returned from the vibrating screen to the sand machine for re-processing, forming a closed circuit for many times. If you have sand making project that wants an engineer to help you. our engineers are a pleasure to help you. Click here to contact us.
Product packaging
●Ways Of Packing
1.Small parts packed in the wooden cases.
2.Big parts packed by plastic membrane.

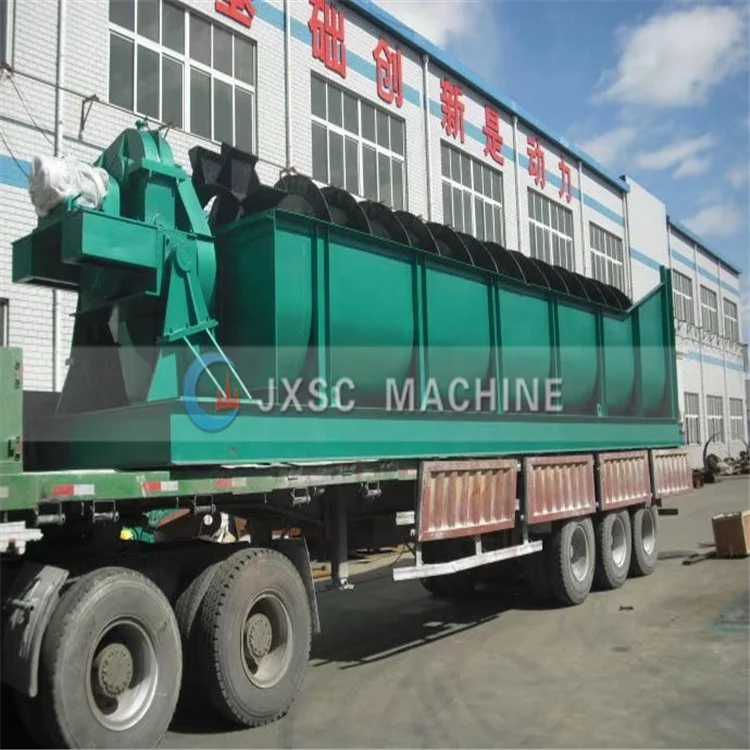

3.The whole big machine is loaded in the container.
● Shiping by sea/air freight
or any way the customer requires.
Our Company
7*24 hours online consulting service, we provide you with the prophase plan, process flow design and manufacturer equipment according to your special demand.
Send technicians to the job site guiding the installation and adjustment, training operators and finishing the check and accept together with you.
FAQ
●Pre-sales service: We provide you with the prophase plan, process flow design and manufacturer equipment according to your special demand.
●Sales service: Send technicians to the site to guide the installation and commissioning, train the operators, and complete the acceptance with you.
●After-sales service: To establish long term friendship, we will regularly pay return visit to customers. Supplying technique,
building design, instruction, installation and debugging for free.
●Lifelong service: One year warranty to make sure your machine runs constantly.Always offer lifelong service and provide spare parts for a long term.
●How is the quality of your products?
Answer: Our products are manufactured strictly according to national and international standard, and we will take a test on every grinder before delivery.
●How about the Guaranteed?
Answer: All of our products are guaranteed for one year. If products quality is not consistent with the description as we
described or the promise before you place order, we promise 100% refund.
●How about price?
Answer: For the complete same machine, we can promise our quality is the best when the price same as other competitors, and our price can be lowest when the quality at standard level.
●How about the service and payment terms?
Answer: We can accept T/T or other payment ways you request; 30% deposit, 70% balance before delivery, which is international trade practice; Finished product pictures will provide to customers before delivery.
●Sales service: Send technicians to the site to guide the installation and commissioning, train the operators, and complete the acceptance with you.
●After-sales service: To establish long term friendship, we will regularly pay return visit to customers. Supplying technique,
building design, instruction, installation and debugging for free.
●Lifelong service: One year warranty to make sure your machine runs constantly.Always offer lifelong service and provide spare parts for a long term.
●How is the quality of your products?
Answer: Our products are manufactured strictly according to national and international standard, and we will take a test on every grinder before delivery.
●How about the Guaranteed?
Answer: All of our products are guaranteed for one year. If products quality is not consistent with the description as we
described or the promise before you place order, we promise 100% refund.
●How about price?
Answer: For the complete same machine, we can promise our quality is the best when the price same as other competitors, and our price can be lowest when the quality at standard level.
●How about the service and payment terms?
Answer: We can accept T/T or other payment ways you request; 30% deposit, 70% balance before delivery, which is international trade practice; Finished product pictures will provide to customers before delivery.
