Product Overview
Description
Main Features

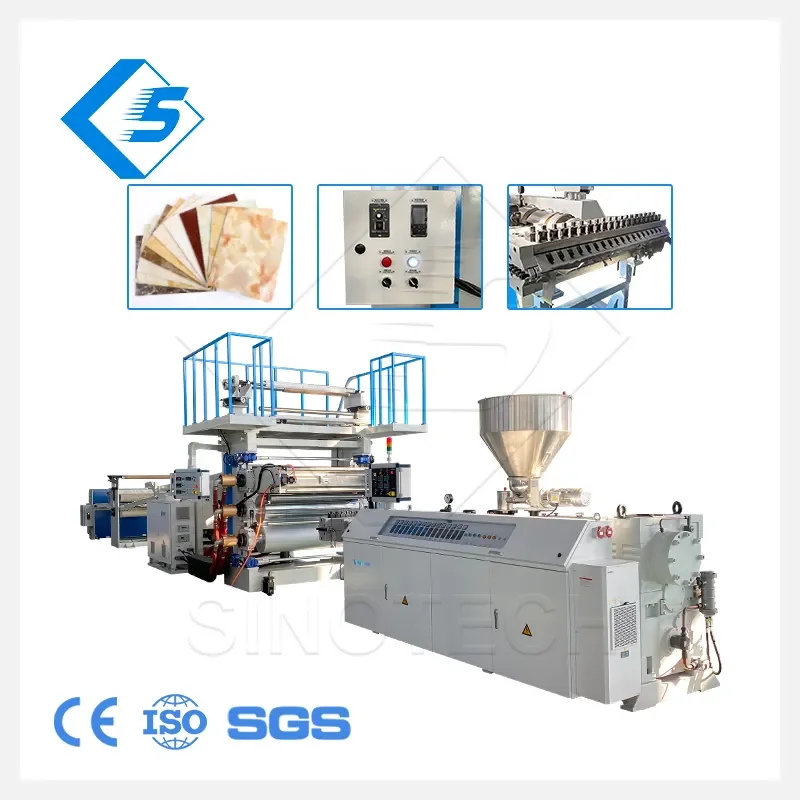

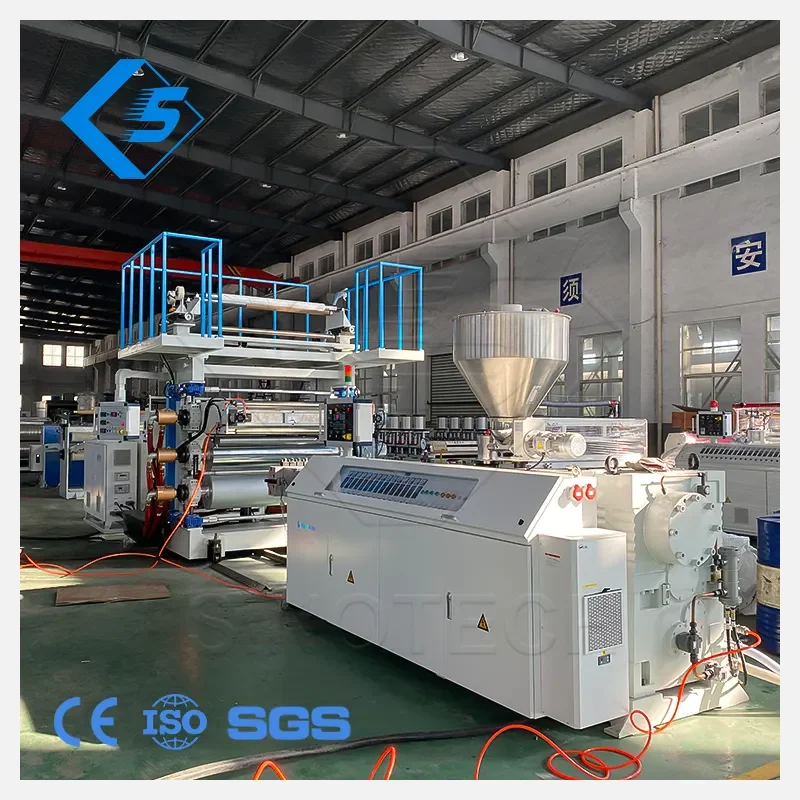

High Quality PVC Artificial Marble Sheet Production Line
Main introduction of PVC Artificial marble sheet
PVC Artificial Marble Sheet/Wall Panel/Interior Decoration Board Production Line is used to make PVC imitation marble sheet which have marble, carpet, stones, natural scenery, stereo design on the surface. And the board is popular in the hospital, school,office buildings, shopping malls,supermarkets, transportation and other public places.
Advantages of marbel sheet/board:
(1) Green environmental protection, does not contain formaldehyde,non-toxic harmless, non radioactive pollution, no pollution to the environment, belong to the green environmental protection products, can be recycled
(2) PVC super wear-resistant floor surface has a layer of special by high-tech processing transparent wear-resistant layer,withwear resistance strong, so PVC floor more and more popular in the hospital,in school, office buildings, shopping malls,supermarkets, transportation and other places
(3) Waterproof, moisture-proof, water is not deformation, non slip PVC material,strong anti slippery , can eliminate the elderly,children's anxiety.
(4) Strong elastic shock, comfortable.
(5) Safety, insulation, flame retardant, corrosion resistance, acid and alkali
(6) Novel color, a variety of colors available for selection, brilliant color,natural and vivid color, any spell group shape,
highlight the individuality color.
(7) Installation convenience,convenient construction sawing, planing, nail, glue free paint.
(8) Long service life can reach more than 20 years.
The difference between pvc artificial marble sheet and real marble sheet:
(2) PVC super wear-resistant floor surface has a layer of special by high-tech processing transparent wear-resistant layer,withwear resistance strong, so PVC floor more and more popular in the hospital,in school, office buildings, shopping malls,supermarkets, transportation and other places
(3) Waterproof, moisture-proof, water is not deformation, non slip PVC material,strong anti slippery , can eliminate the elderly,children's anxiety.
(4) Strong elastic shock, comfortable.
(5) Safety, insulation, flame retardant, corrosion resistance, acid and alkali
(6) Novel color, a variety of colors available for selection, brilliant color,natural and vivid color, any spell group shape,
highlight the individuality color.
(7) Installation convenience,convenient construction sawing, planing, nail, glue free paint.
(8) Long service life can reach more than 20 years.
The difference between pvc artificial marble sheet and real marble sheet:
Real marble sheet × | Artificial marble sheet √ |
Real marble will suffer sulfur dioxide and the price is higher | 1.The surface of artificial sheet could be changed according to customer's request freely. In addition,it is very important that the installation is very easier and save a lot of labor cost. 2. PVC is economic and environment friendly.It will take more market share gradually. 3. The lamination is achieved online and don't need any glue or other laminator. After producing this board,if you use UV machine,it would make the board much harder and brighter. |
Product Name | PVC panel , PVC ceiling , PVC wall panel , PVC board |
Surface Treatment | Normal Printing , Transfer Printing , Laminated , Common glossy , High glossy |
Thickness | 5mm, 6mm,7mm,7.5mm,8mm,9mm,10mm,11mm,12mm |
Width | 180mm, 200mm, 250mm, 300mm, 400mm, 550mm, 600mm |
Length | 2m, 2.7m, 3m, 4m, 5.8m or customized |
Weight | 1.8, 1.9, 2.0, 2.1, 2.2, 2.3, 2.4, 2.5, 2.6, 2.7, 2.8, 2.9, 3.0, 3.2, 3.3, 3.4, 3.5, 3.6 kg/sqm |
1 | Screw feeder | |
2 | YF series conical twin screw extruder | |
3 | Extrusion Mould | |
4 | vacuum forming table | |
5 | haul off | |
6 | auto cutting machine | |
7 | stacker | |
Supporting machine(optional) | ||
1 | High speed mixing machine | |
2 | Hot stamping machine(or Laminating machine) | |
3 | Crushing machine | |
4 | Milling machine | |

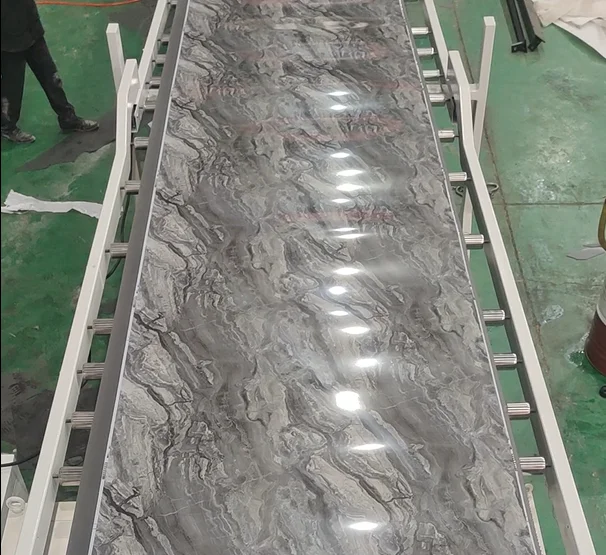

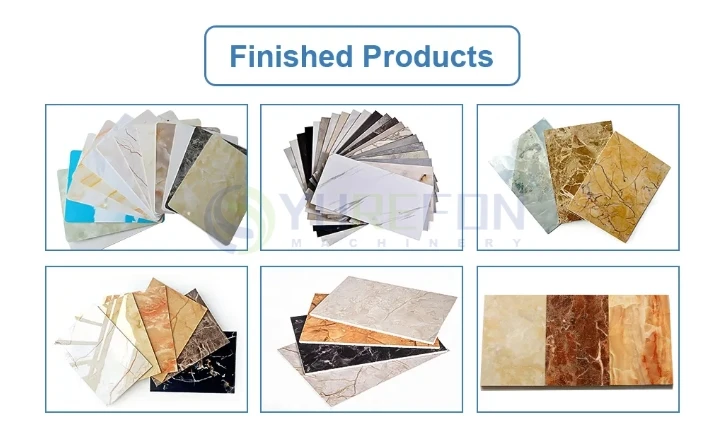

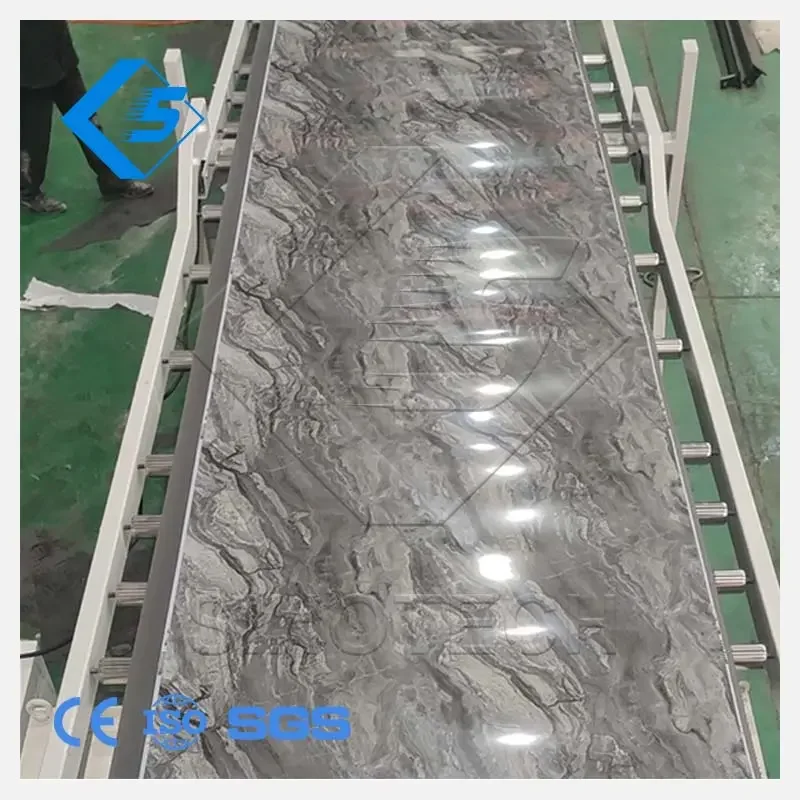

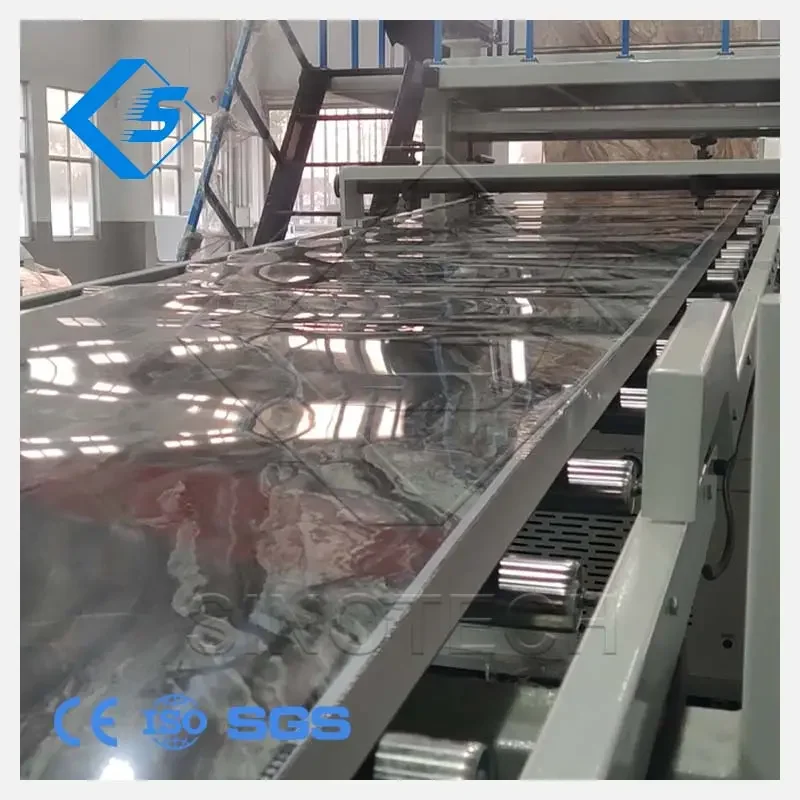

Final Products
PVC imitation marble sheet is 100% water proof, rigid-surfaced, nonflammable and nontoxic new material, which is widely used for interior decoration in house, hotel, resort facility, and offices.
Main Technical Parameter
Model | Unit | SNJZ-1220 |
Suitable material | PVC | |
Max .width of product | mm | 1220 |
Thickness of product | mm | 2--5 |
Extruder capacity | Kg/h | 380 |
Installed capacity(approx) | kw | 168 |
Dimension (L*W*H)(approx) | m | 21*4*3.5 |
Total weight(approx) | t | 17 |
Name | Quantity |
SRL-Z type of hot/cool mixer | 1set |
Crusher | 1set |
Miller | 1set |
Air compressor | 1set |
Details
01 Conical Double Screw Extruder
*Screw,barrel design and manufacturing absorb European advanced technology
*Screw material:38CrMoAlA,Nitriding treated
*Adopt original famous electric components with high steady running quality.
*Omron temperature controller,ABB frequency inverter,low-voltage breaker adopts Schneider
*Gearbox adopt high torque, low noise, hard gear tooth face gear box
*Screw material:38CrMoAlA,Nitriding treated
*Adopt original famous electric components with high steady running quality.
*Omron temperature controller,ABB frequency inverter,low-voltage breaker adopts Schneider
*Gearbox adopt high torque, low noise, hard gear tooth face gear box

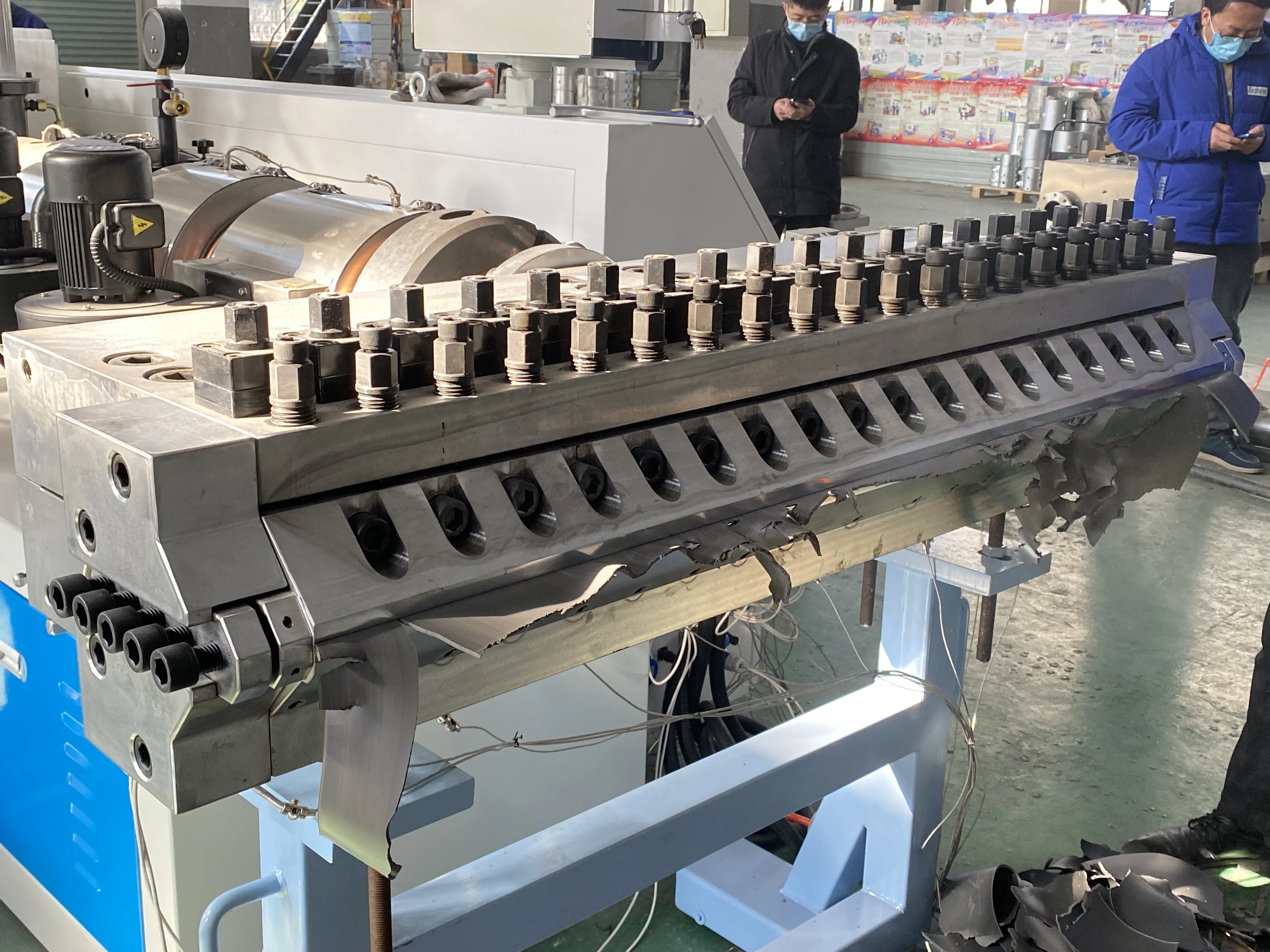

02 Extrusion Die
*Connection method of T-die and machine head: Flange type with bolt connection
*Die model: Cloth rack type
*Width of die layer: 1350mm
*Height of die lip open: 2mm-8 mm
*Die model: Cloth rack type
*Width of die layer: 1350mm
*Height of die lip open: 2mm-8 mm

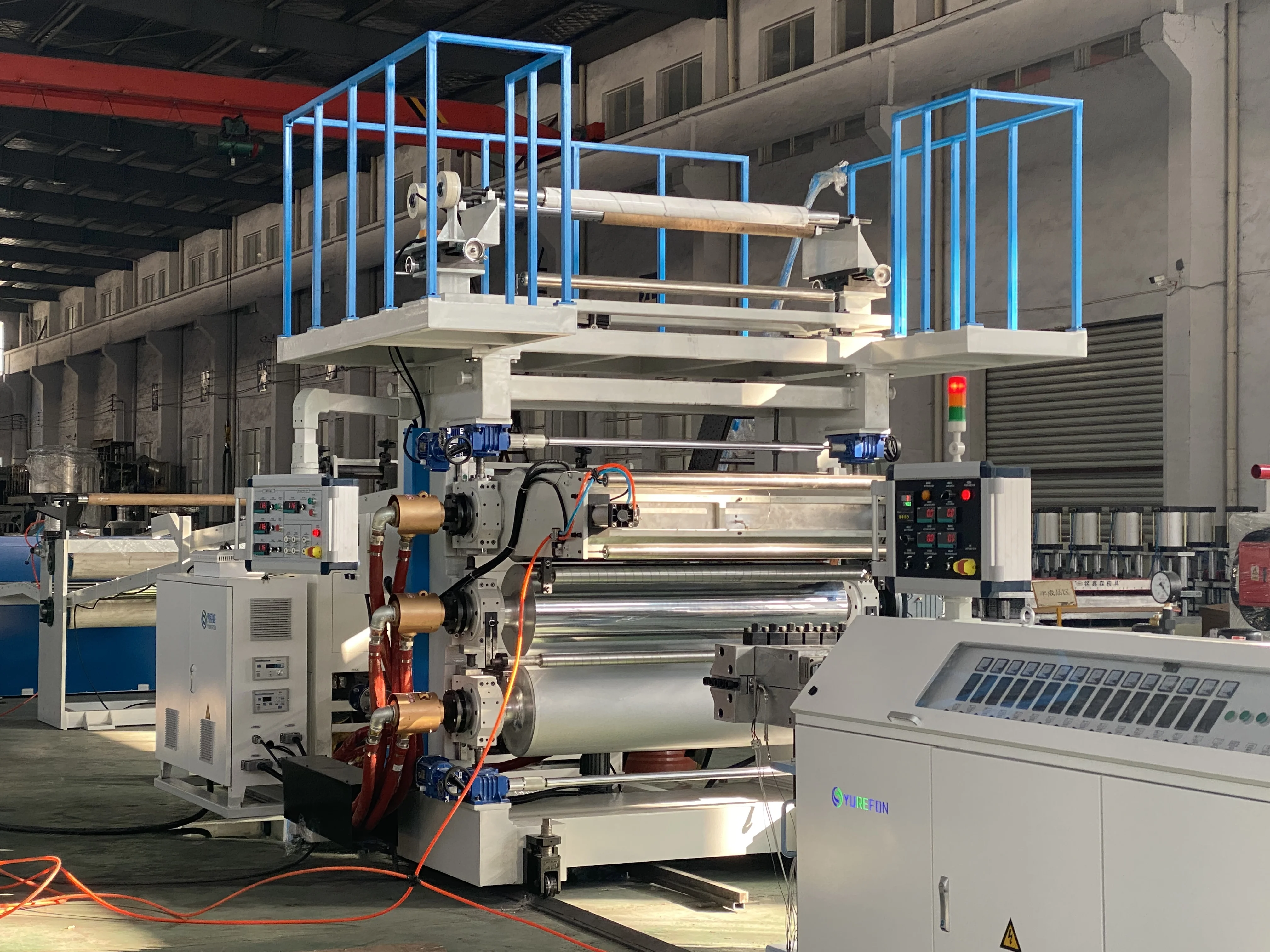

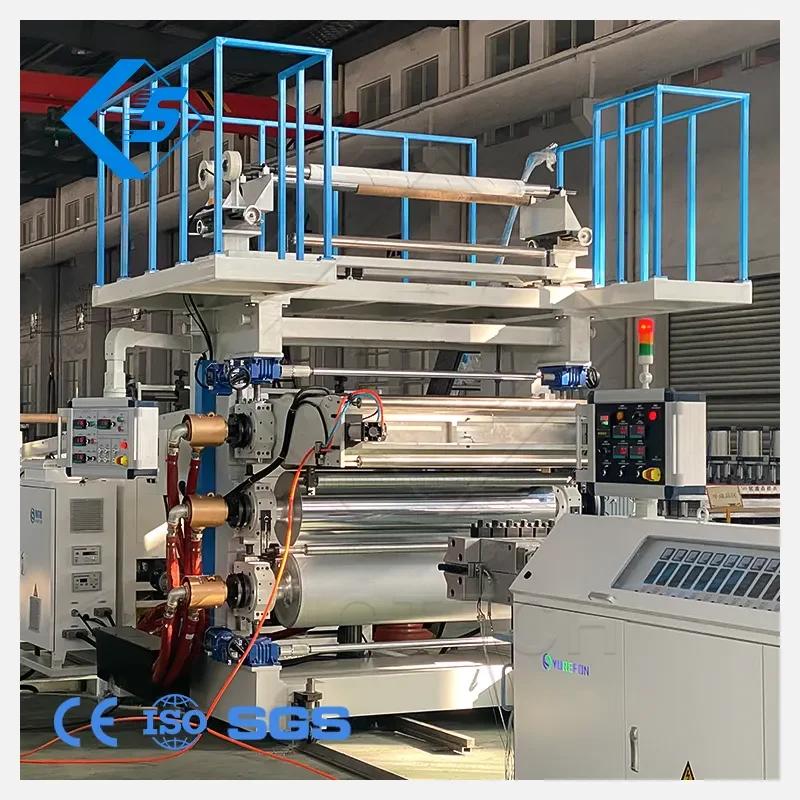

03 Three-roller calender
*High quality seamless steel tube
*The roller surface with quenching treatment, then chrome plated and polished
*The hardness of base material >HRC50
*The inner structure of roller : reinforced type
*The roller surface with quenching treatment, then chrome plated and polished
*The hardness of base material >HRC50
*The inner structure of roller : reinforced type
04 Oil temperature quadruple controlling system
*Model :Stand alone type
*Heat-conducting medium :High temperature heat conducting oil
*Cooling medium :Soft water
*Temperature control accuracy :±1 degree
*Heating unit :1,Stainless steel electric heating rod
*Heating power:16KW*3=48KW
*Heat-conducting medium :High temperature heat conducting oil
*Cooling medium :Soft water
*Temperature control accuracy :±1 degree
*Heating unit :1,Stainless steel electric heating rod
*Heating power:16KW*3=48KW

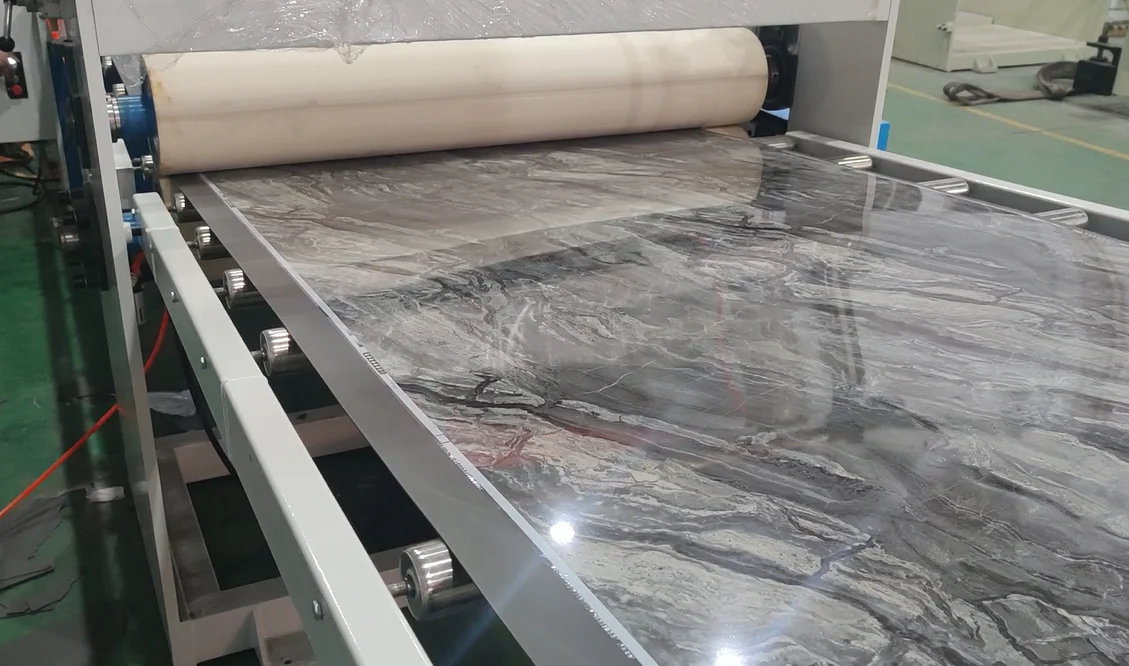

05 Cooling roller bed bracket
*Multi-group cooling rollers;
*Speed control by frequency inverter
*Compacting driving by pneumatic
*With adopts wear-resisting rubber roller
*Speed control by frequency inverter
*Compacting driving by pneumatic
*With adopts wear-resisting rubber roller
06 Rubber roller tractor
*Traction method : Active friction traction
*Roller size : Φ237mm*1500mm
*Material of roller : Rubber
*Clamping method : Pneumatic clamping
*Driving method Motor :2KW
*Traction speed : 0.4m-3.5m/min.
*Roller size : Φ237mm*1500mm
*Material of roller : Rubber
*Clamping method : Pneumatic clamping
*Driving method Motor :2KW
*Traction speed : 0.4m-3.5m/min.

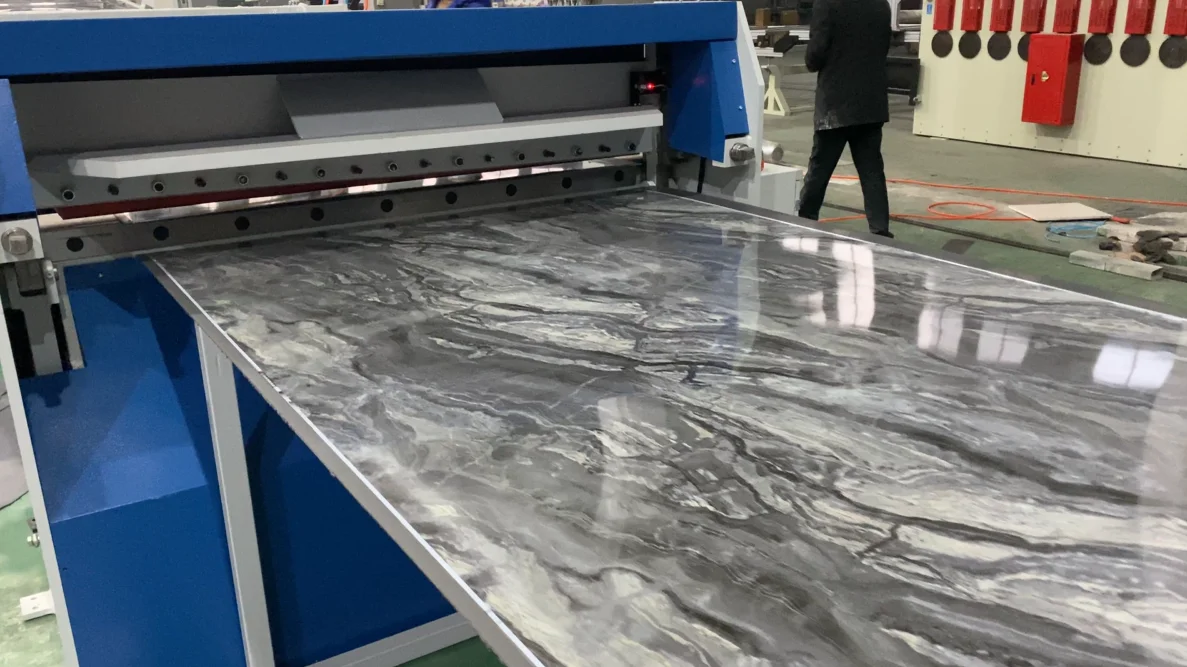

07 Cutting machine ( including bracket)
*Max cutting width : 1500mm
*Max. Cutting length : 2500mm
*Cutting thickness range : 2mm -8mm
*Motor power : 4KW
*Fixed length switch : Photoelectric sensor
*Max. Cutting length : 2500mm
*Cutting thickness range : 2mm -8mm
*Motor power : 4KW
*Fixed length switch : Photoelectric sensor

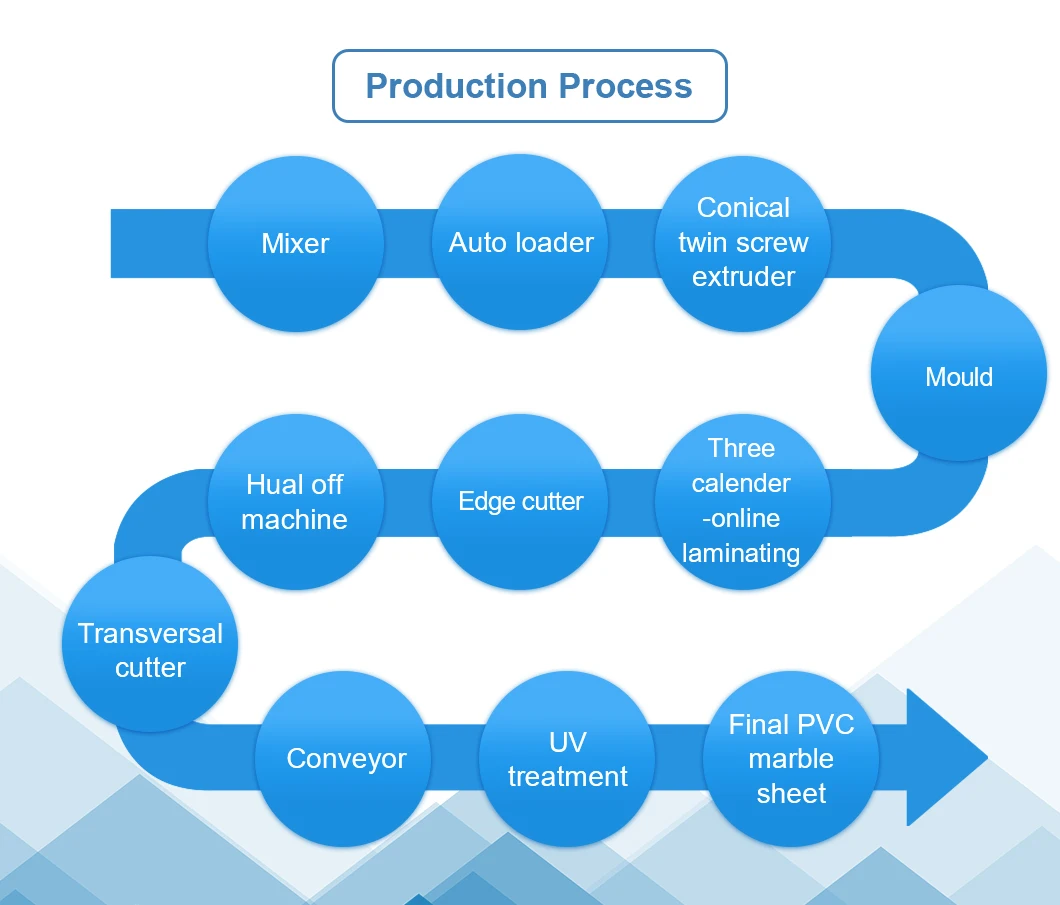

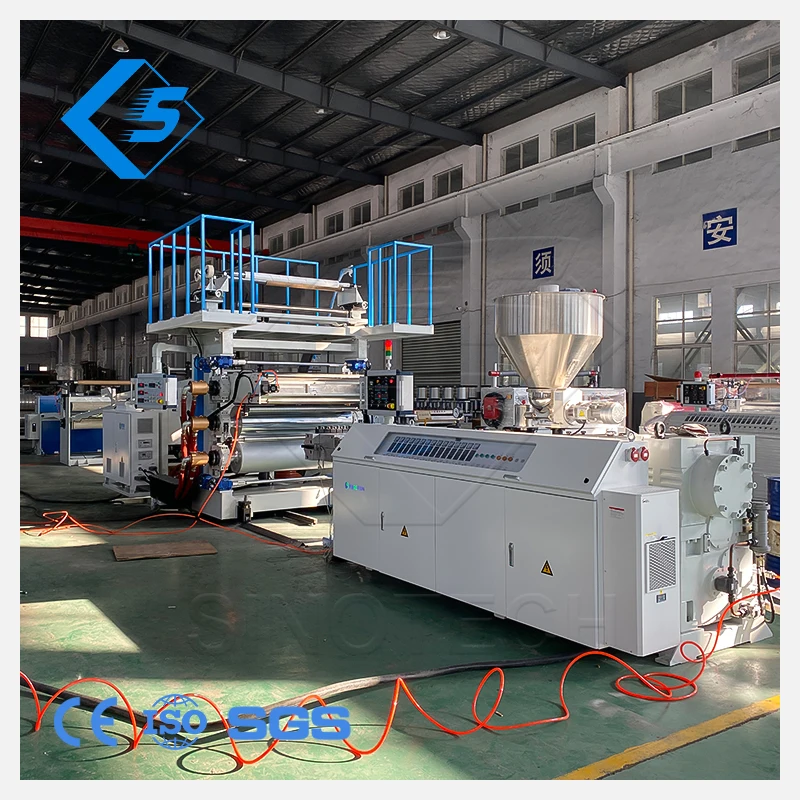

Processing Flow:
500/1000 Mixer→Auto loader→SJSZ80/156 conical twin screw extruder →Mould→ Three calender(online laminating) →Edge cutter→Hual off
machine→ Transversal cutter → Conveyor→UV treatment →Final PVC marble sheet
machine→ Transversal cutter → Conveyor→UV treatment →Final PVC marble sheet
Company Profile
Why Choose Us
Packaging & Shipping
FAQ
Q: Can we visit your factory?
Sure. We located in Zhangjiagang city which is very near Shanghai. For overseas customers, you can fly to Shanghai Pudong International Airport. We can pick you up in the Airport. (or Hongqiao International Airport. ) We also provide visit online by video.
Q: How can we get the exact price of plastic machine?
Contact us with the products size, shape, annual quantity and photo if possible. We can recommend our machine models with quotation.
Q: Do you provide any spare parts with machine?
Yes, we offer all necessary spare parts before shipment.(contact us for packing list )
Q: How about your after-sale service ?
We offer manual instruction and engineer training before loading,after shipment we provide 24 HRS online support, video technical support or field installation assist.
Q: What is the lead time?
For customized machine, it takes about 45-60 days after deposit. For stock machine, fast shipment. ( The actual production cycle will vary according to the degree of customization.)
Q: What is the warranty period for your machine ?
12 months warranty for components and technical support .
Q: Do you provide custom machines?
Most of our machines are customized. Our goal is efficiency and stable performance. We design the machines according to customers products to meet customer' needs.
Q: How can we install the machine when it arrives?
We can send experienced technicians to customer's country for guiding the installation and commission the machine, also train the customer's employees.
Q: What's the advantage of SINOTECH?
We provide customers with turnkey projects. Including plant design, plastic machine and mold installation, debugging, also we can source the auxiliary equipments for customers. We can ship the full set of machines after testing in our factory. It will save a lot of cost and time.
