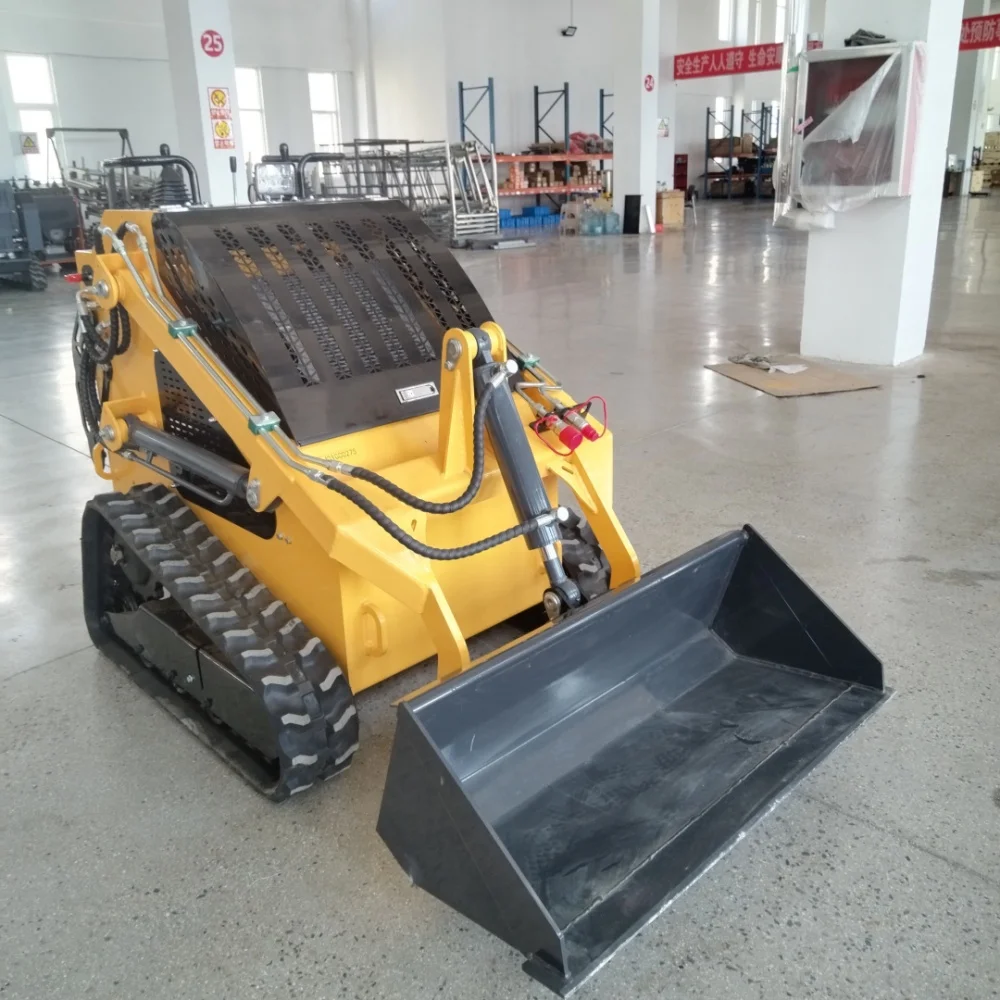

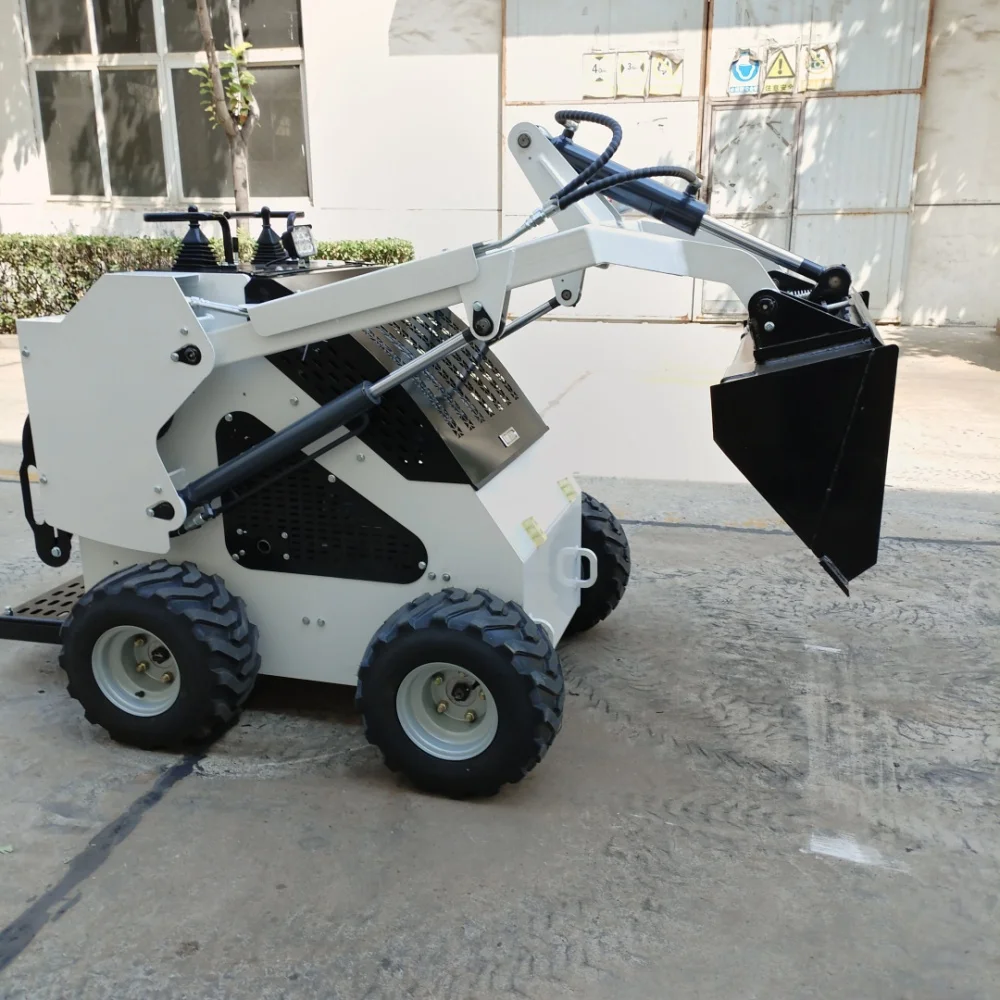

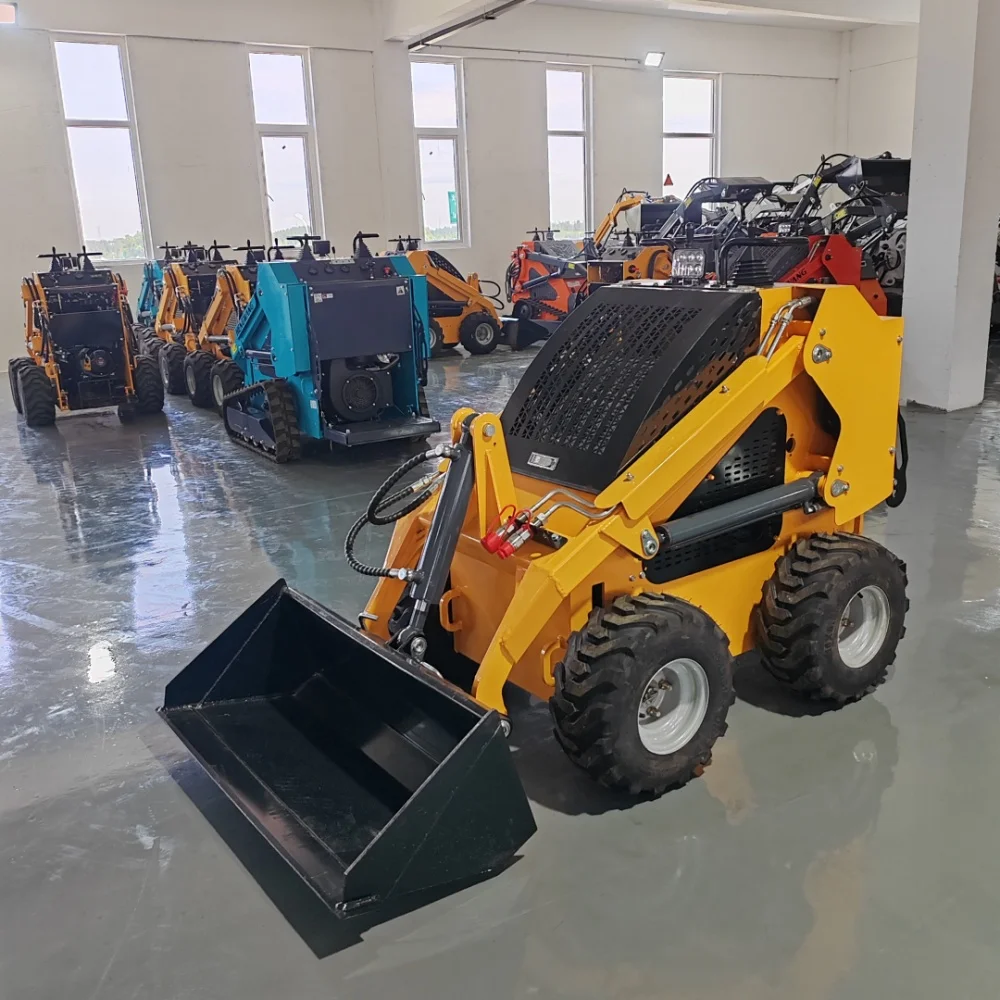

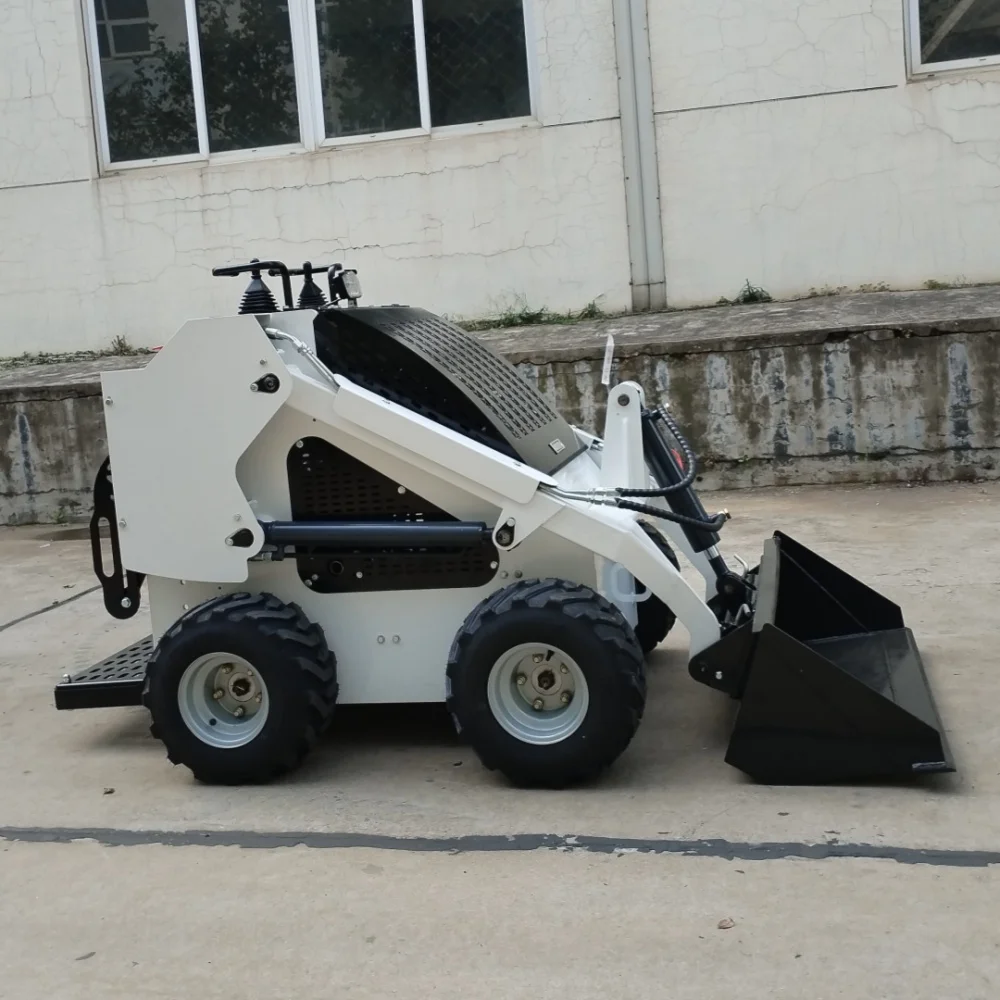

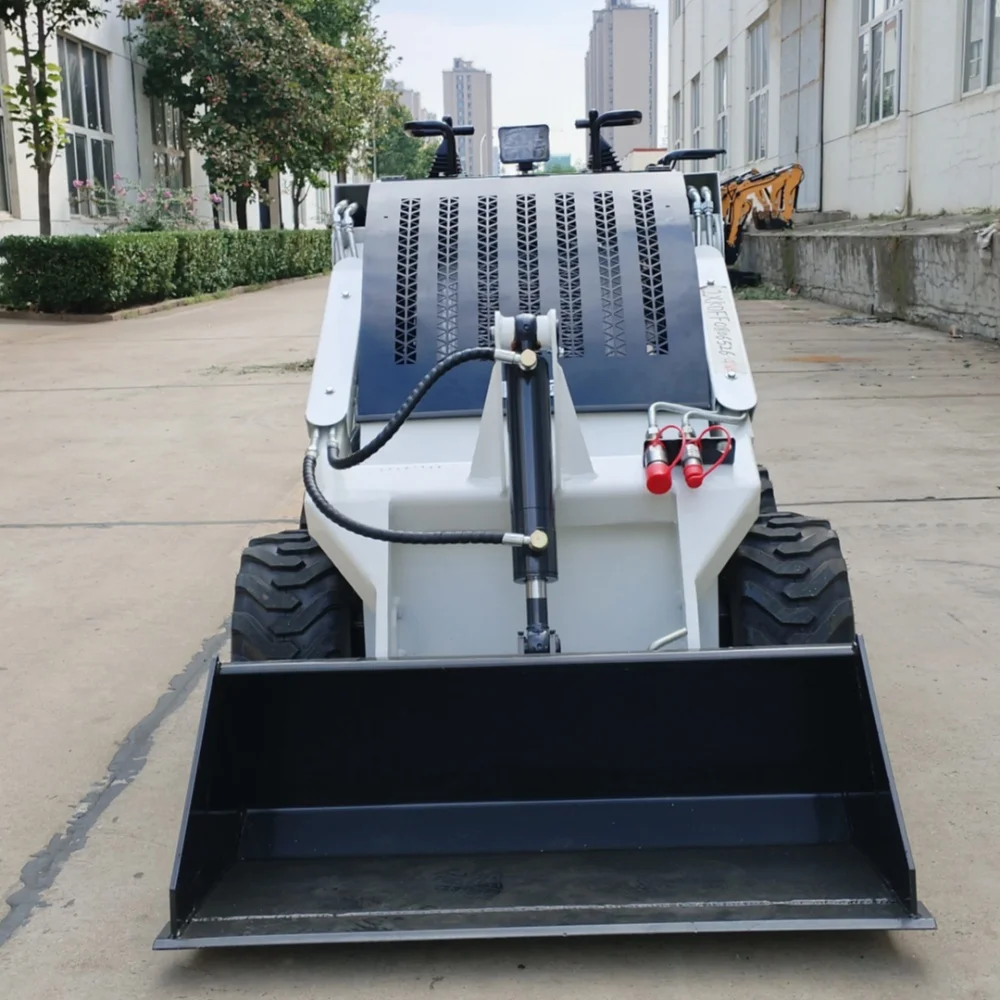

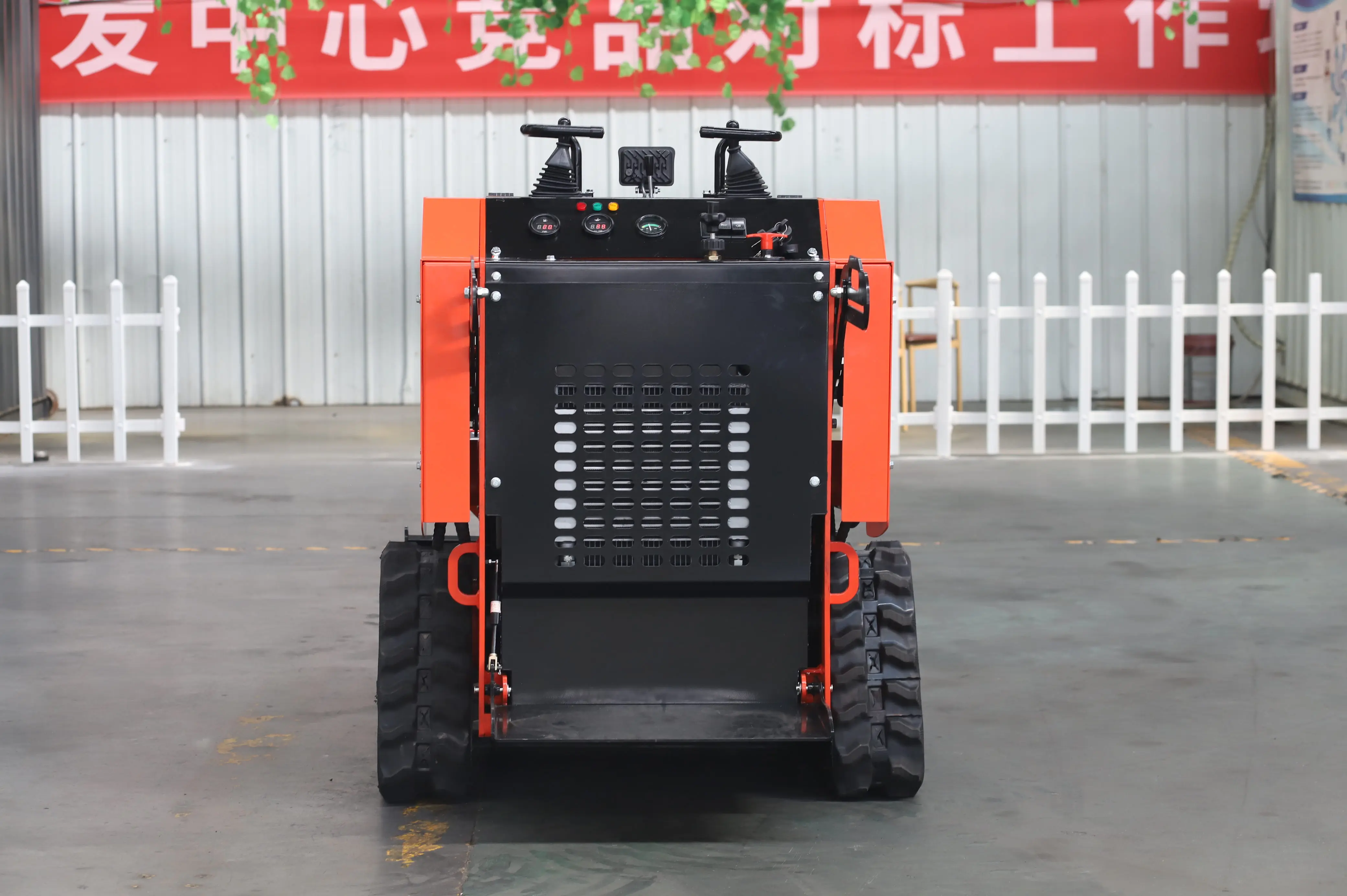

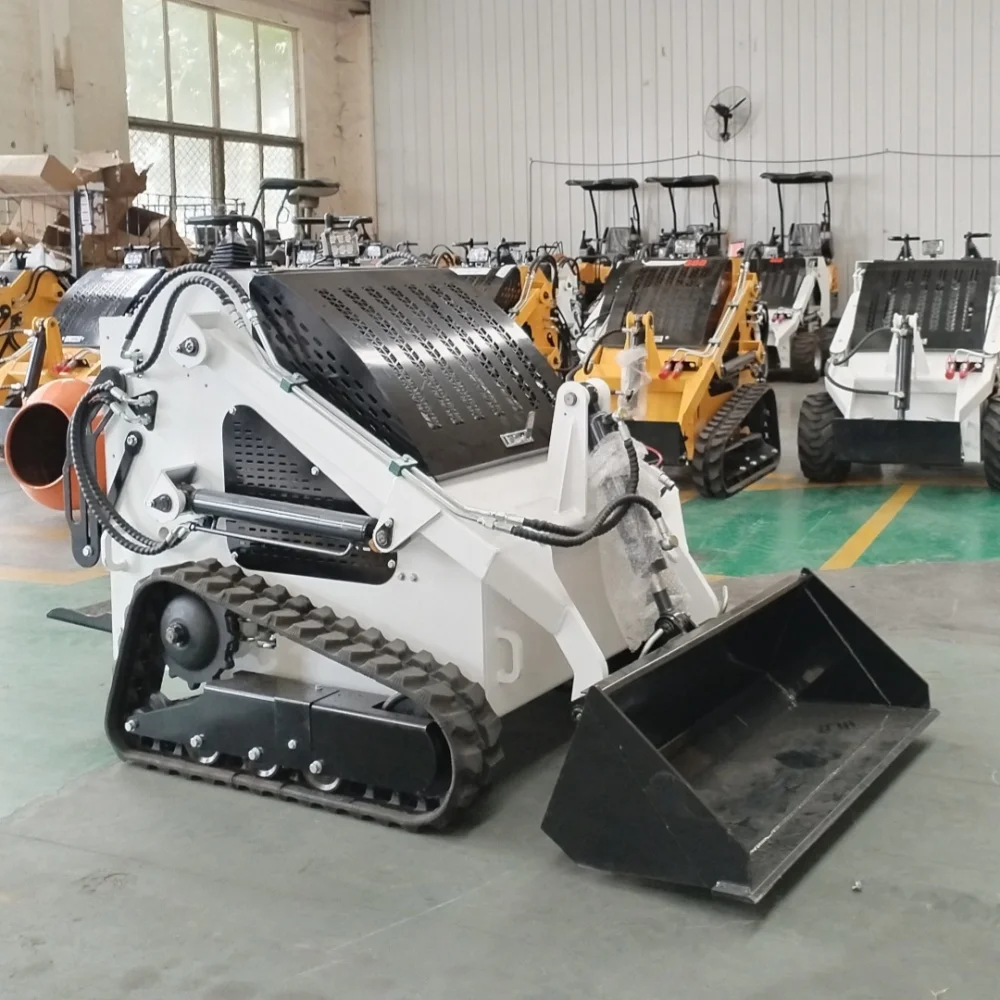

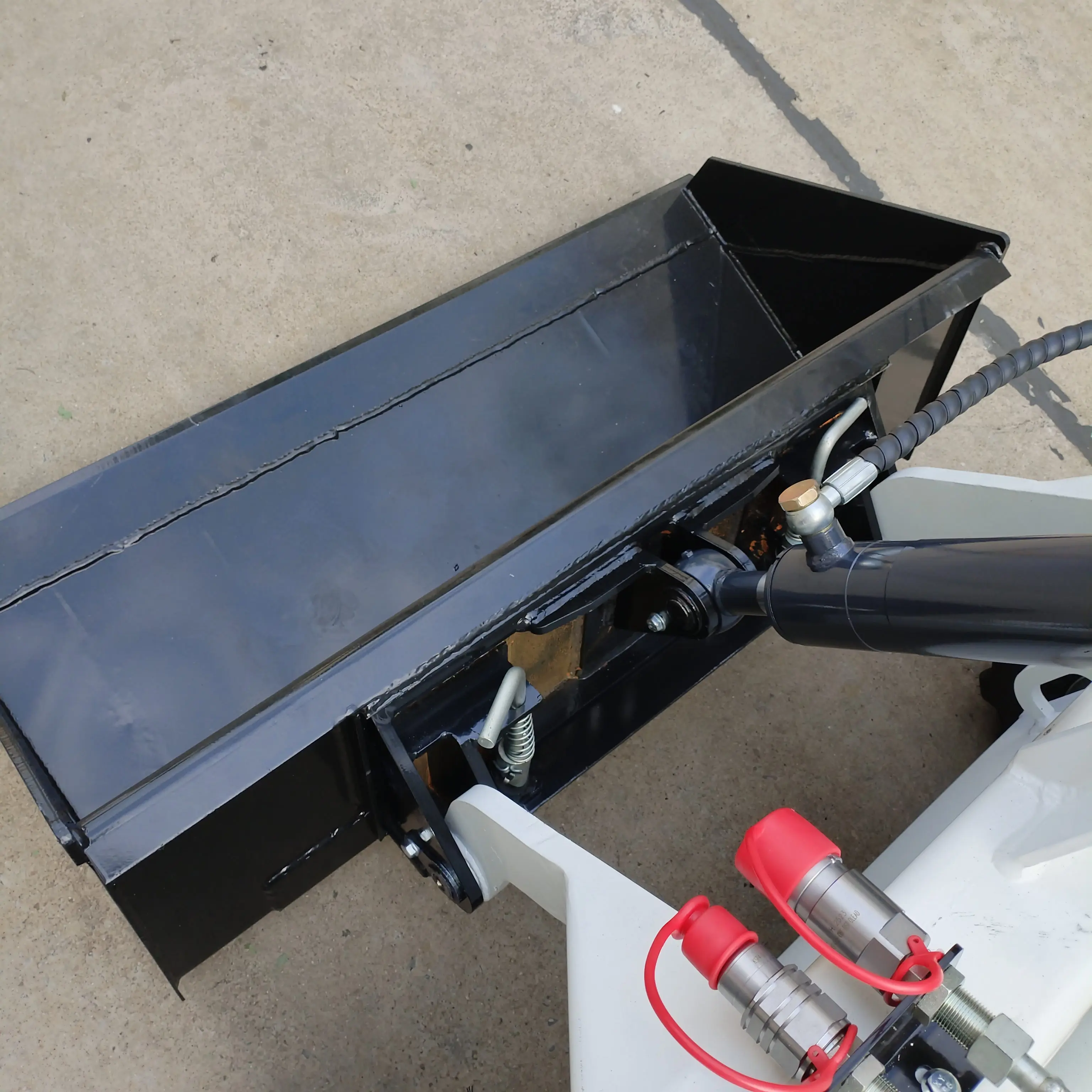

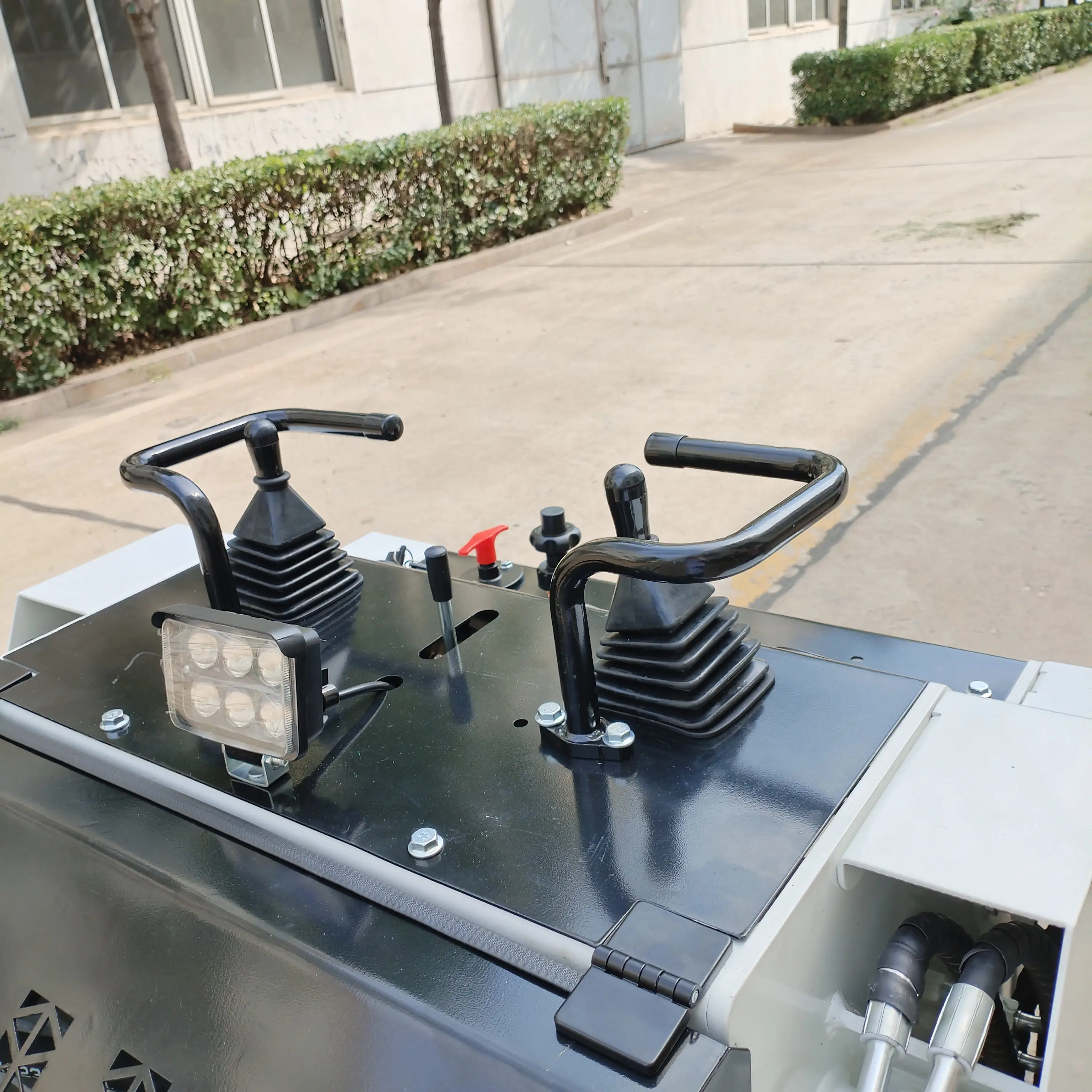

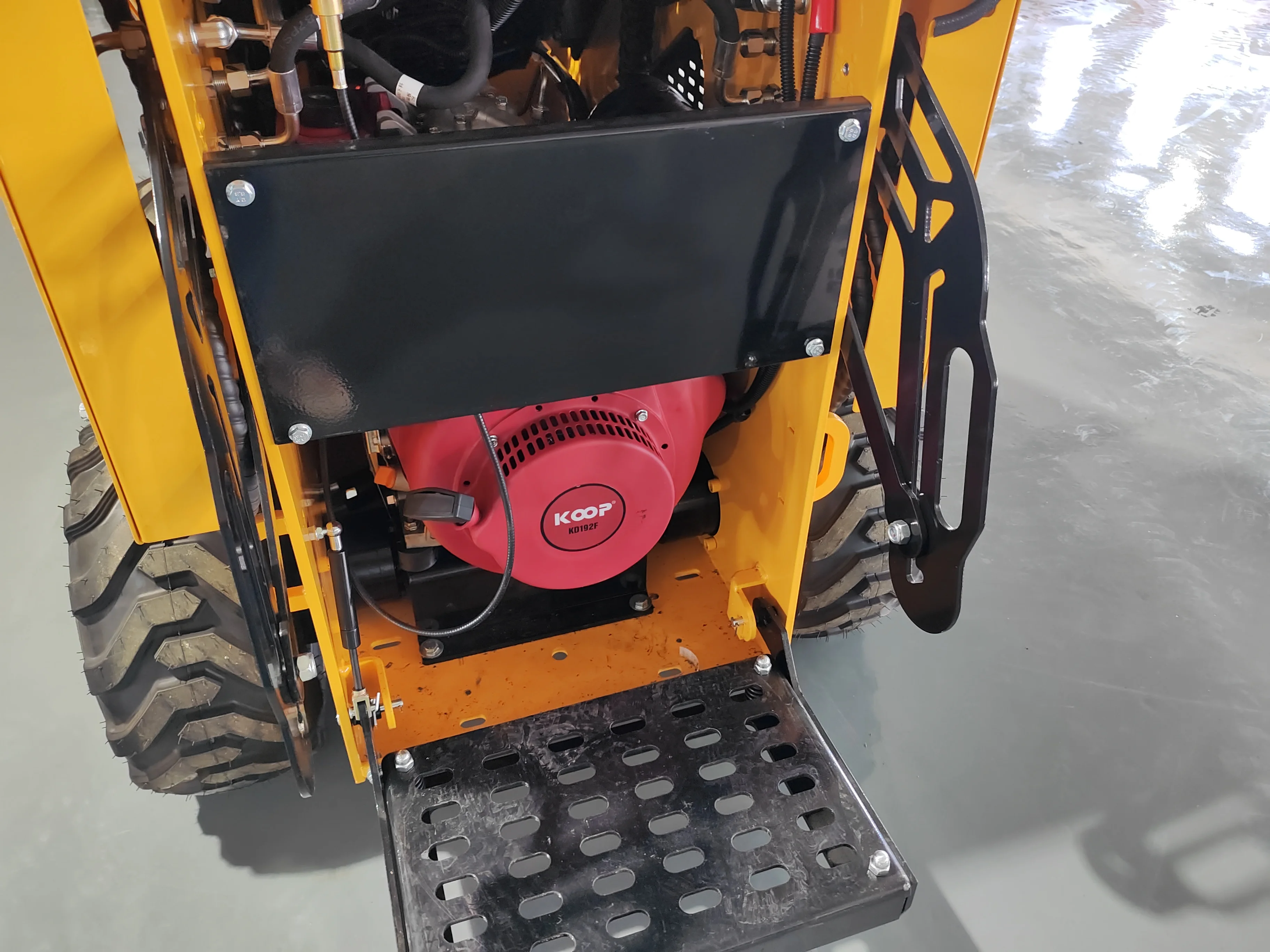

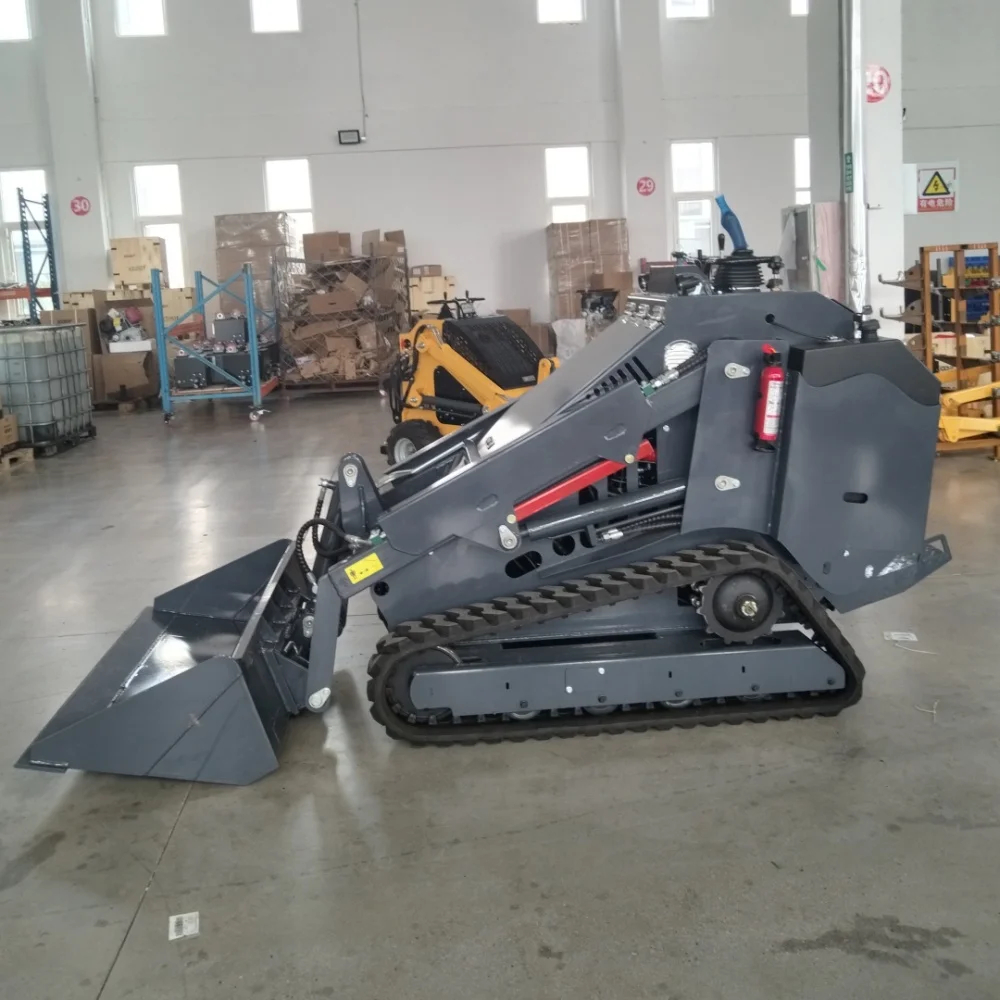

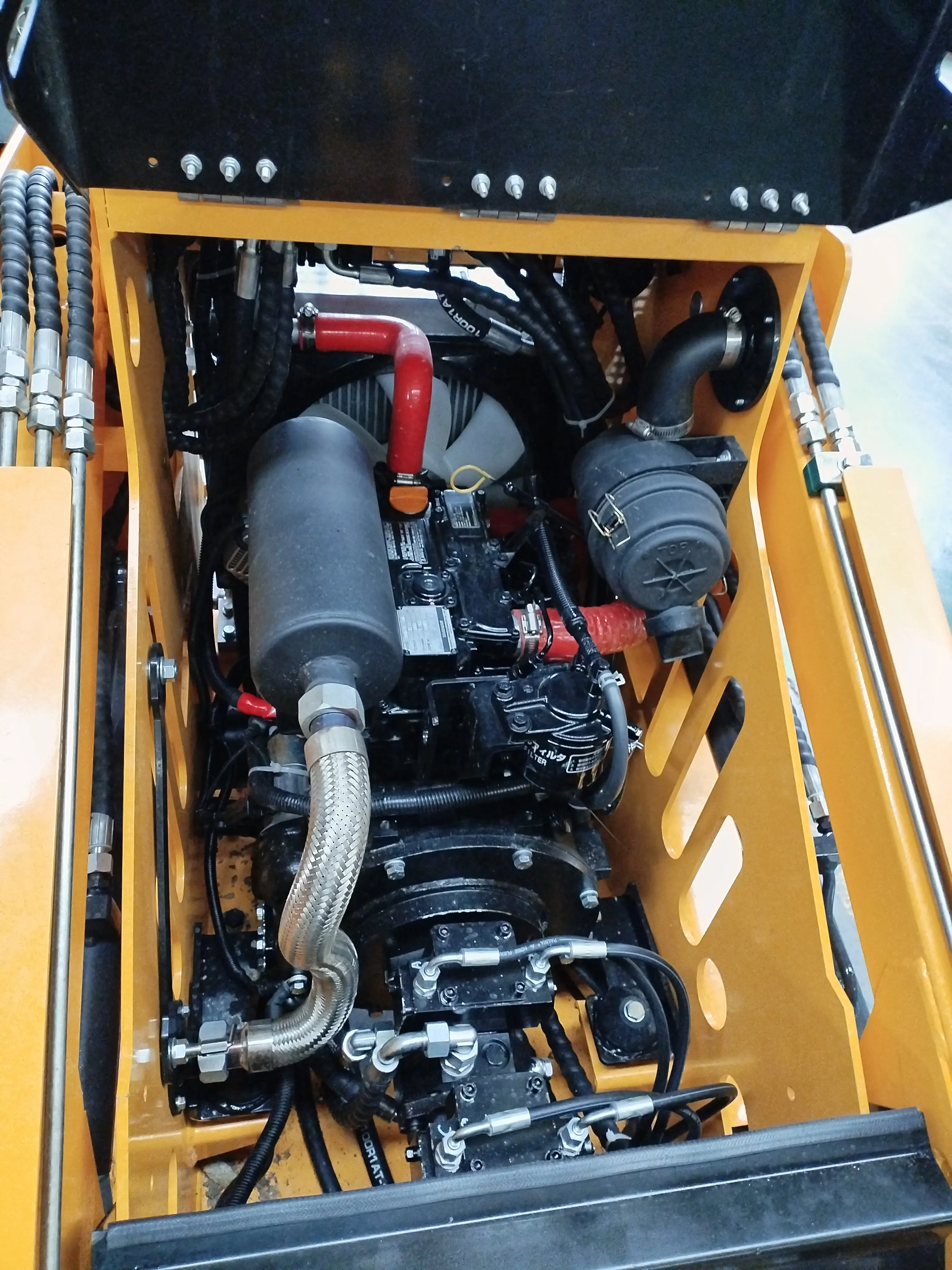

EPA approved cheap mini stand on skid steer diesel 500 kg attachments bucket mini wheel loader
- Category: >>>
- Supplier: Shandong Shanye Heavy Industry Co. Ltd.Shandong Ltd.
Share on (1601296173654):
Product Overview
Description
Various loader models, Consult for more details
We have different types of loaders, because there are many types of products, the order is prepaid, and only a quantitative fee is charged. Please confirm the actual price with the staff according to the product model/load/configuration.
Product Description
SY-T360
Host performance parameter | Overall dimension parameter | ||||
project name | parameter | project name | parameter | ||
Engine brand | optional | Maximum operating height mm | 2450 | ||
HP | 10(15/13.5) | To bucket pin height mm | 1870 | ||
cylinder number | 1 | Vehicle height mm | 1360 | ||
intake type | nature | Maximum horizontal height of the bucket mm | 1810 | ||
emission standard | The option is Euro 5-EPA | Total length mm without bucket | 1550 | ||
Rated load Kg | 200 | With standard bucket length mm | 2100 | ||
Maximum load Kg | 300 | Unloading height mm | 1510 | ||
Maximum lifting force KN | 3.5 | Unloading distance mm | 450 | ||
Bucket volume m3 | 0.12 | The tilt Angle of the bucket on the ground | 34° | ||
Travel speed km/h | 0-6 | Bucket turning Angle at highest | 114° | ||
Work three and s | 9 | Wheelbase mm | 850 | ||
Working system pressure bar | 17-21 | Ground clearance mm | 150 | ||
Fuel tank volume L | 5 | Tail length mm | 280 | ||
Operating mass Kg | 900 | Car width mm | 930 | ||
Track width mm | 180 | Bucket width mm | 1000 | ||
SY-T360
Host performance parameter | Overall dimension parameter | ||||
project name | parameter | project name | parameter | ||
Engine brand | optional | Maximum operating height mm | 2450 | ||
HP | 10(15/13.5) | To bucket pin height mm | 1870 | ||
cylinder number | 1 | Vehicle height mm | 1300 | ||
intake type | nature | Maximum horizontal height of the bucket mm | 1810 | ||
emission standard | The option is Euro 5-EPA | Total length mm without bucket | 1550 | ||
Rated load Kg | 200 | With standard bucket length mm | 2100 | ||
Maximum load Kg | 300 | Unloading height mm | 1510 | ||
Maximum lifting force KN | 3.5 | Unloading distance mm | 450 | ||
Bucket volume m3 | 0.12 | The tilt Angle of the bucket on the ground | 27° | ||
Travel speed km/h | 0-6 | Bucket turning Angle at highest | 114° | ||
Work three and s | 9 | Wheelbase mm | 850 | ||
Working system pressure bar | 17-21 | Ground clearance mm | 150 | ||
Fuel tank volume L | 5 | Tail length mm | 280 | ||
Operating mass Kg | 900 | Car width mm | 1050 | ||
tire model | 18*8.5-8 | Bucket width mm | 1000 | ||
SY-T460
Host performance parameter | Overall dimension parameter | ||||
project name | parameter | project name | parameter | ||
Engine brand | optional | Maximum operating height mm | 2450 | ||
HP | 17 | To bucket pin height mm | 1870 | ||
cylinder number | 2 | Vehicle height mm | 1360 | ||
intake type | nature | Maximum horizontal height of the bucket mm | 1810 | ||
emission standard | The option is Euro 5-EPA | Total length mm without bucket | 1550 | ||
Rated load Kg | 300 | With standard bucket length mm | 1680 | ||
Maximum load Kg | 400 | Unloading height mm | 1510 | ||
Maximum lifting force KN | 4.5 | Unloading distance mm | 450 | ||
Bucket volume m3 | 0.12 | The tilt Angle of the bucket on the ground | 34° | ||
Travel speed km/h | 0-6 | Bucket turning Angle at highest | 114° | ||
Work three and s | 9 | Wheelbase mm | 850 | ||
Working system pressure bar | 17-21 | Ground clearance mm | 150 | ||
Fuel tank volume L | 5 | Tail length mm | 280 | ||
Operating mass Kg | 900 | Car width mm | 1030 | ||
Track width mm | 180 | Bucket width mm | 1000 | ||
SY-S460
Host performance parameter | Overall dimension parameter | ||||
project name | parameter | project name | parameter | ||
Engine brand | optional | Maximum operating height mm | 2450 | ||
HP | 19 | To bucket pin height mm | 1870 | ||
cylinder number | 2 | Vehicle height mm | 1300 | ||
intake type | nature | Maximum horizontal height of the bucket mm | 1810 | ||
emission standard | The option is Euro 5-EPA | Total length mm without bucket | 1680 | ||
Rated load Kg | 300 | With standard bucket length mm | 2206 | ||
Maximum load Kg | 450 | Unloading height mm | 1510 | ||
Maximum lifting force KN | 4.5 | Unloading distance mm | 450 | ||
Bucket volume m3 | 0.12 | The tilt Angle of the bucket on the ground | 27° | ||
Travel speed km/h | 0-6 | Bucket turning Angle at highest | 114° | ||
Work three and s | 9 | Wheelbase mm | 850 | ||
Working system pressure bar | 17-21 | Ground clearance mm | 130 | ||
Fuel tank volume L | 10 | Tail length mm | 280 | ||
Operating mass Kg | 1000 | Car width mm | 1150 | ||
tire model | 18*8.5-8 | Bucket width mm | 1000 | ||
SY-T480
Host performance parameter | Overall dimension parameter | ||||
project name | parameter | project name | parameter | ||
Engine brand | optional | Maximum operating height mm | 2450 | ||
HP | 17.8kw | To bucket pin height mm | 1870 | ||
cylinder number | 3 | Vehicle height mm | 1360 | ||
intake type | nature | Maximum horizontal height of the bucket mm | 1810 | ||
emission standard | The option is Euro 5-EPA | Total length mm without bucket | 1680 | ||
Rated load Kg | 350 | With standard bucket length mm | 2206 | ||
Maximum load Kg | 480 | Unloading height mm | 1510 | ||
Maximum lifting force KN | 4.5 | Unloading distance mm | 450 | ||
Bucket volume m3 | 0.12 | The tilt Angle of the bucket on the ground | 34° | ||
Travel speed km/h | 0-6 | Bucket turning Angle at highest | 114° | ||
Work three and s | 9 | Wheelbase mm | 850 | ||
Working system pressure bar | 17-21 | Ground clearance mm | 150 | ||
Fuel tank volume L | 13 | Tail length mm | 280 | ||
Operating mass Kg | 1200 | Car width mm | 1030 | ||
Track width mm | 180 | Bucket width mm | 1000 | ||
SY-T750
Host performance parameter | Overall dimension parameter | ||||
project name | parameter | project name | parameter | ||
Engine brand | optional | Maximum operating height mm | 2900 | ||
HP | 17.8kw | To bucket pin height mm | 2160 | ||
cylinder number | 3 | Vehicle height mm | 1540 | ||
emission standard | The option is Euro 5-EPA | Total length mm without bucket | 2100 | ||
Rated load Kg | 400 | With standard bucket length mm | 2700 | ||
Maximum load Kg | 450 | Unloading height mm | 1600 | ||
Maximum lifting force KN | 4.5 | Unloading distance mm | 450 | ||
Bucket volume m3 | 0.12 | The tilt Angle of the bucket on the ground | 34° | ||
Travel speed km/h | 0-6 | Bucket turning Angle at highest | 114° | ||
Work three and s | 9 | Wheelbase mm | 1180 | ||
Working system pressure bar | 25 | Ground clearance mm | 180 | ||
Fuel tank volume L | 30 | Tail length mm | 280 | ||
Operating mass Kg | 1200 | Car width mm | 1030 | ||
Track width mm | 180 | Bucket width mm | 1270 | ||
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

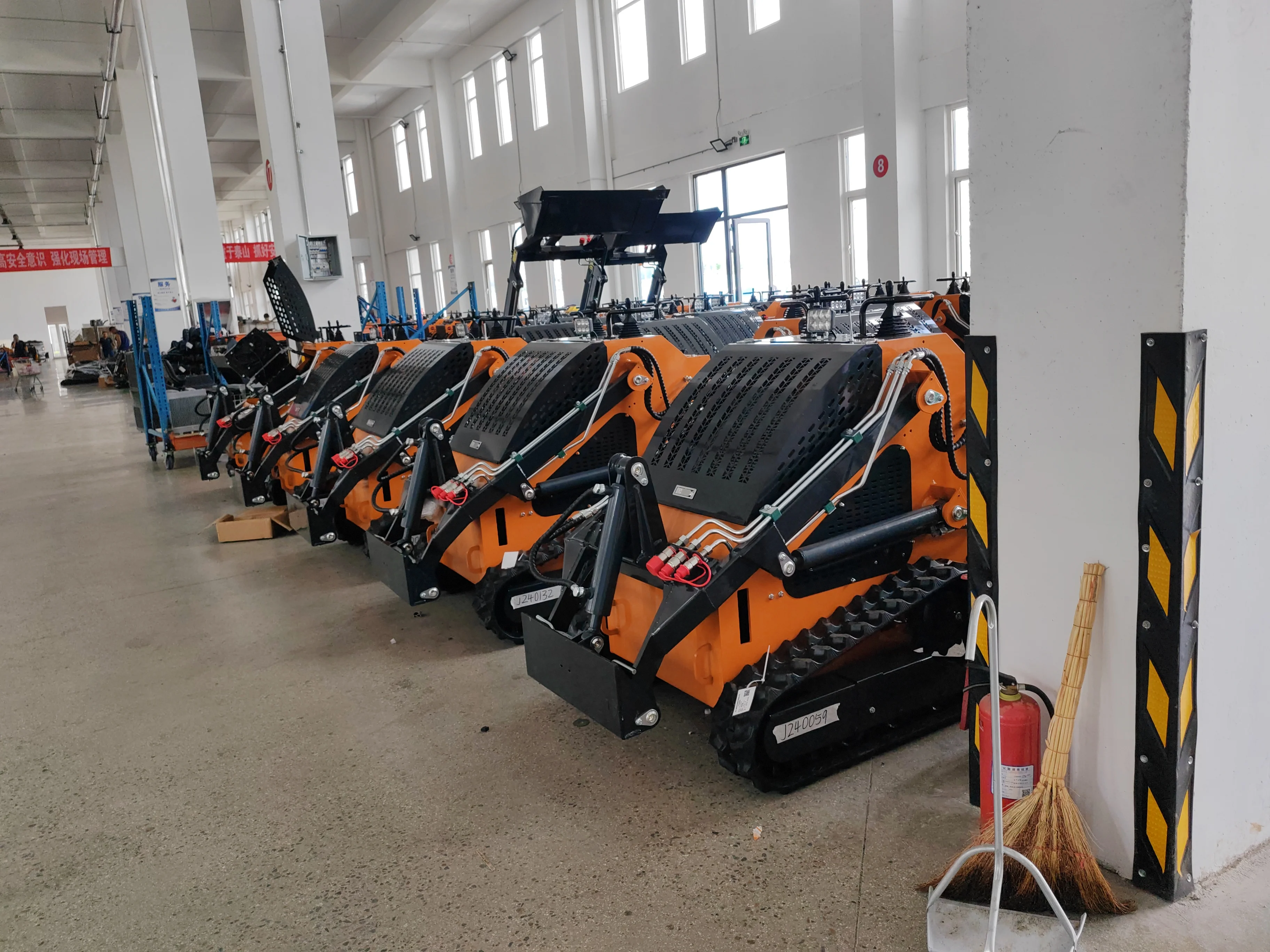

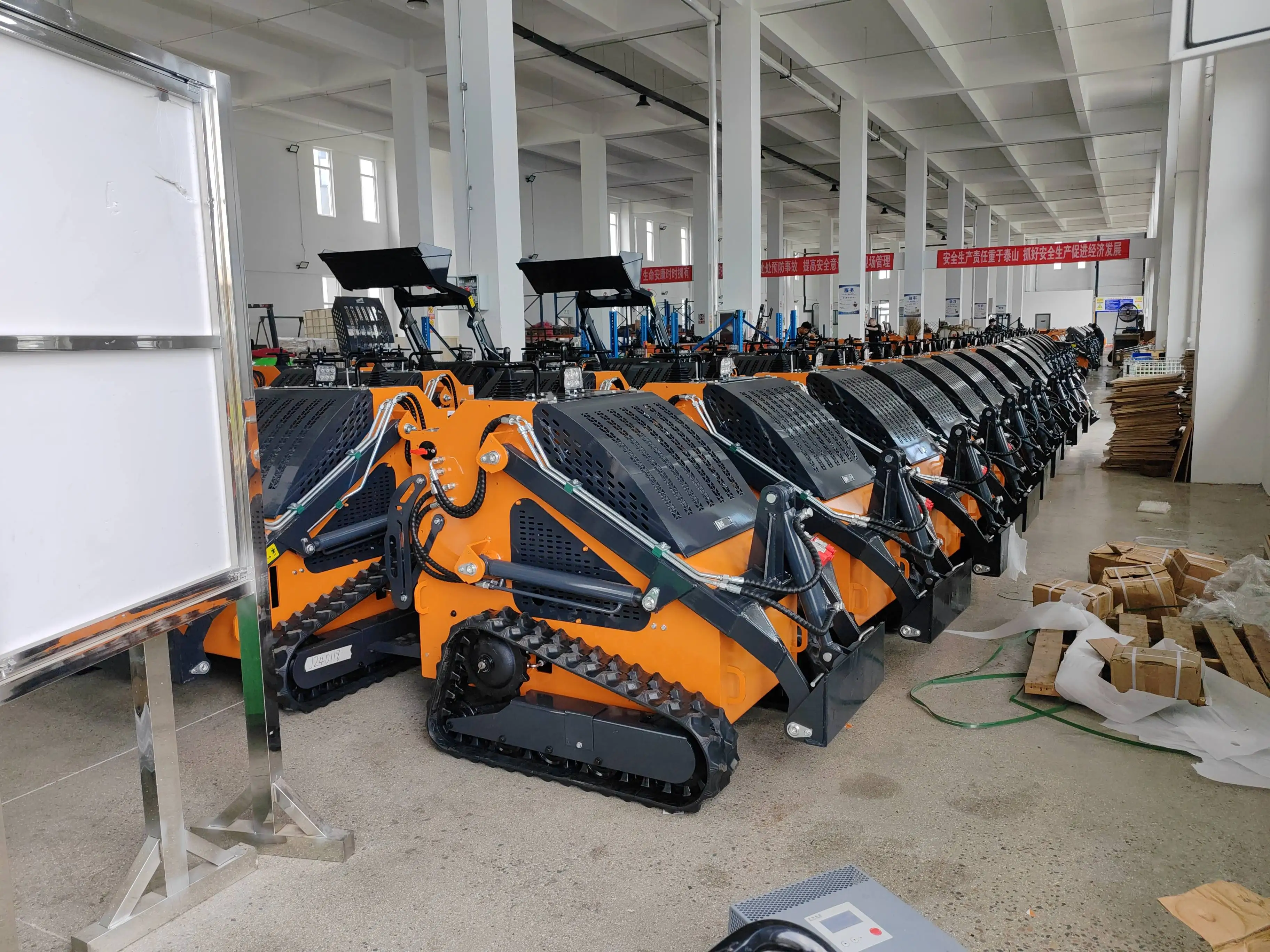

Company Profile
Shandong Shanye Heavy Industry Co., LTD is located in Jining, Shandong, a city of prosperity and weloming to all.
Our company goal is to create high quality machineries at a reasonable price for our customers, reduce the chance of machinery malfunction.
Our main products range from excavators, mini skid steer loader, loader,lawn mower, forklift, electric loader,concrete mixer,,utv,mini dumper and also all kinds of attachments, spare parts that is needed by our products.
Our machinery is all made by imported machine tools and manufacturing equipment, most notable tool is the robot welding machine. Our annual production amount is around 18,000-26,000 units and more than 80 percent of our products are purchased by international customers from all over the world.
Our sales team works 24/7, supported by more than 50 sales representatives in China, Canada and Australia.
Our agents are located in all areas of the world, it would be our greatest pleasure to conduct business with you and we welcome you to reach out to us by all means for any future business relationships.
Our company goal is to create high quality machineries at a reasonable price for our customers, reduce the chance of machinery malfunction.
Our main products range from excavators, mini skid steer loader, loader,lawn mower, forklift, electric loader,concrete mixer,,utv,mini dumper and also all kinds of attachments, spare parts that is needed by our products.
Our machinery is all made by imported machine tools and manufacturing equipment, most notable tool is the robot welding machine. Our annual production amount is around 18,000-26,000 units and more than 80 percent of our products are purchased by international customers from all over the world.
Our sales team works 24/7, supported by more than 50 sales representatives in China, Canada and Australia.
Our agents are located in all areas of the world, it would be our greatest pleasure to conduct business with you and we welcome you to reach out to us by all means for any future business relationships.
FAQ
1. who are we?
We are based in Shandong, China, start from 2020,sell to Central America(10.00%),Western Europe(10.00%),Mid East(10.00%),Oceania(10.00%),Southeast Asia(10.00%),Eastern Europe(10.00%),South America(10.00%),North America(10.00%),Southern Europe(10.00%),Northern Europe(5.00%),Domestic Market(5.00%). There are total about 201-300 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
mini excavator,Skid Steer Loader,electric loader,dumper,lawn mower
4. why should you buy from us not from other suppliers?
We have more than 10 years of production experience, supporting OEM/ODM customization,
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese
We are based in Shandong, China, start from 2020,sell to Central America(10.00%),Western Europe(10.00%),Mid East(10.00%),Oceania(10.00%),Southeast Asia(10.00%),Eastern Europe(10.00%),South America(10.00%),North America(10.00%),Southern Europe(10.00%),Northern Europe(5.00%),Domestic Market(5.00%). There are total about 201-300 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
mini excavator,Skid Steer Loader,electric loader,dumper,lawn mower
4. why should you buy from us not from other suppliers?
We have more than 10 years of production experience, supporting OEM/ODM customization,
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese
