Automark Thermoplastic Paint: High Quality Paint for Road Markings

Automark Thermoplastic Paint: High Quality Paint for Road Markings

Category: >>>
Supplier: Zhengzhou Yugong Construction Machinery Co. Ltd.Zhengzhou Ltd.

Price:$1,267.00-1,479.00

Quantity:

Product Overview

Description

Technical Parameters

Type	YG380

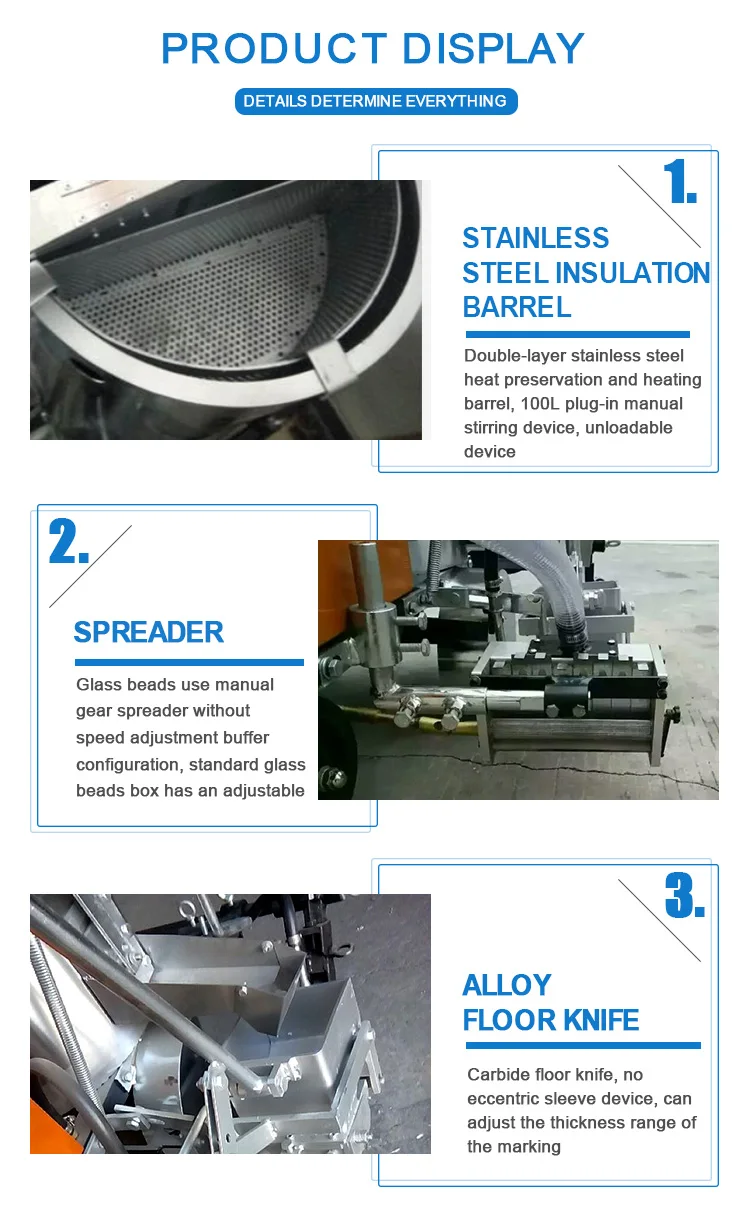

Thermoplastic Tank	double stainless steel heating insulation barrels
Glass Bead Container	10kg/box
Adjustable Glass Beads Dispenser	The dispense width of this dispenser is adjustable: from 50mm to 200mm
The thickness of the scope marking	adjust the 1-2.5 mm
Tire	Alloy Wheel, a special heat -resistant rubber
Rear Wheel Directional Device	Ensure the machine moving in straight line in curved road
Heating method	Liquefied petrol gas
Marking width	100mm,150mm,200mm,250mm,300mm,400mm, 450mm (at customers' option)
Dimensions	1200mm X 900mm x 950mm

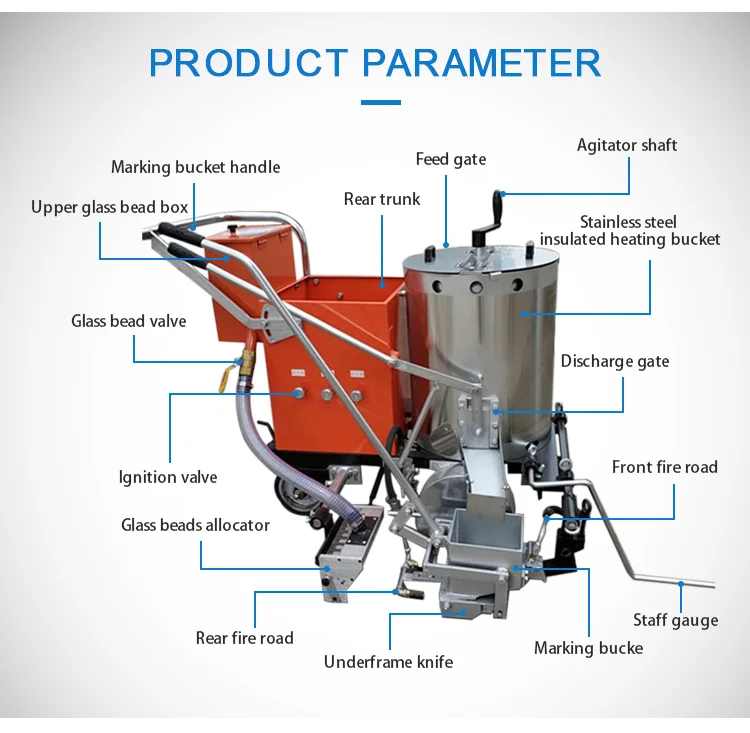

The structure of the marking machine is diverse, and there will be some differences in structure due to different production design conditions or application to different construction objects and different raw materials. The marking machine generally has an engine, air compressor, paint (melt) barrel, marking bucket (spray gun), guide rod, controller and other devices, and various power-assisted drive carriers can be configured as needed.

Product Description

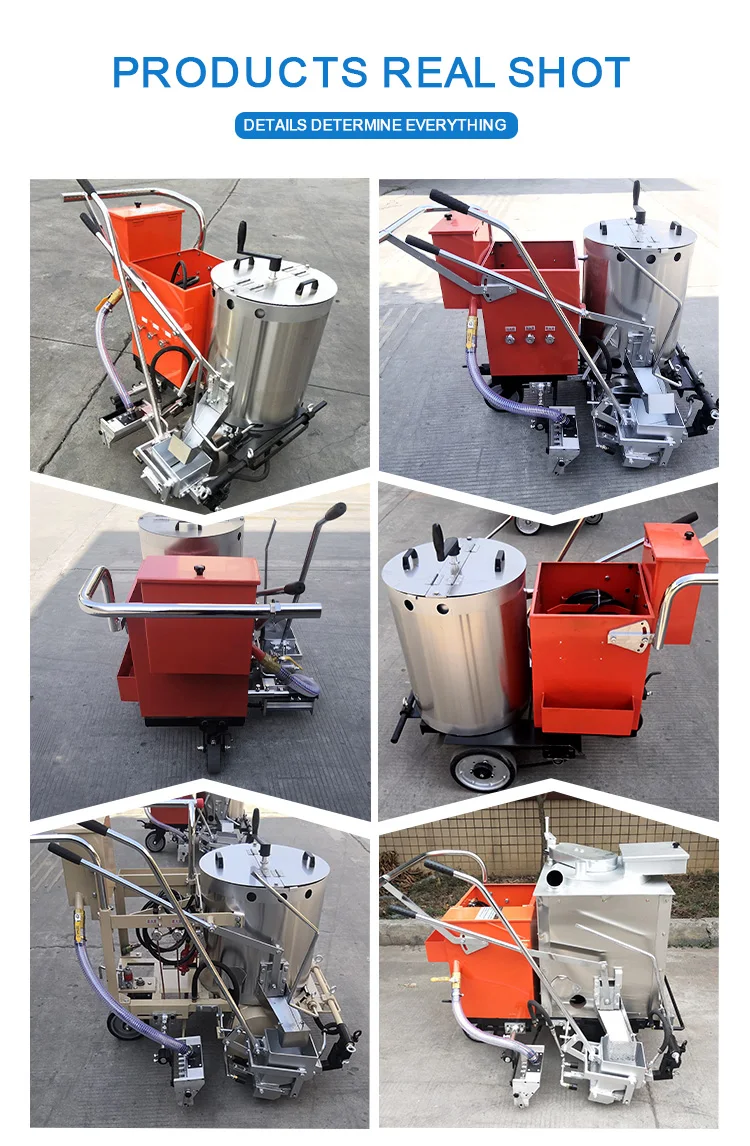

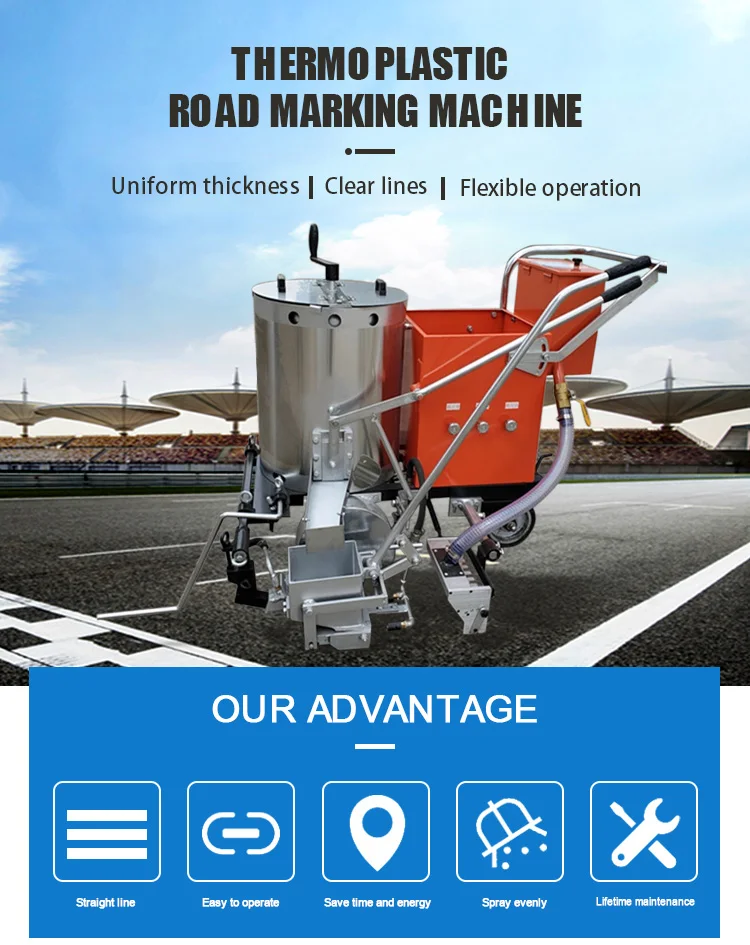

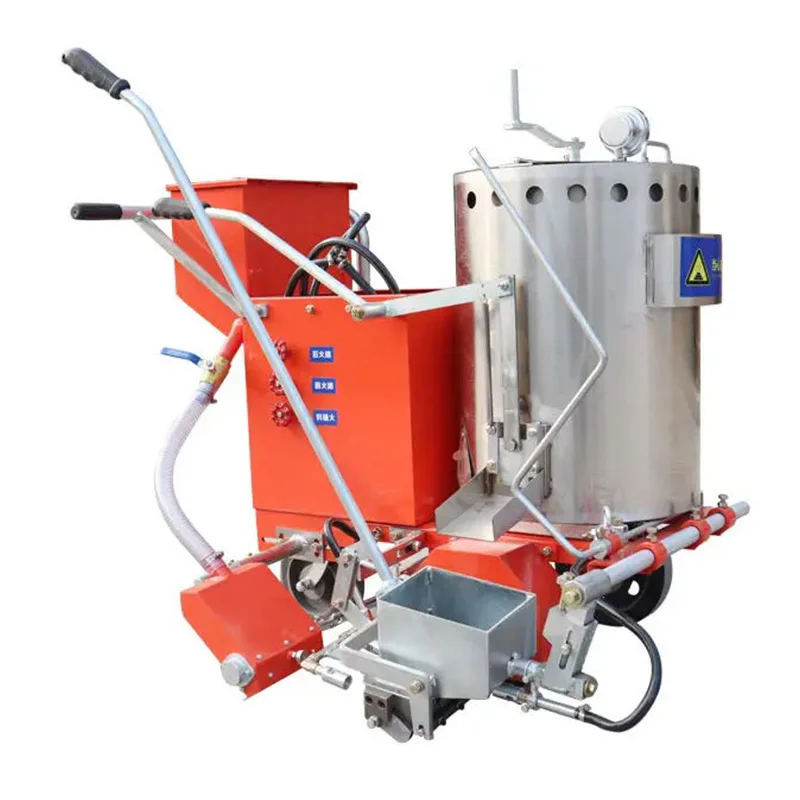

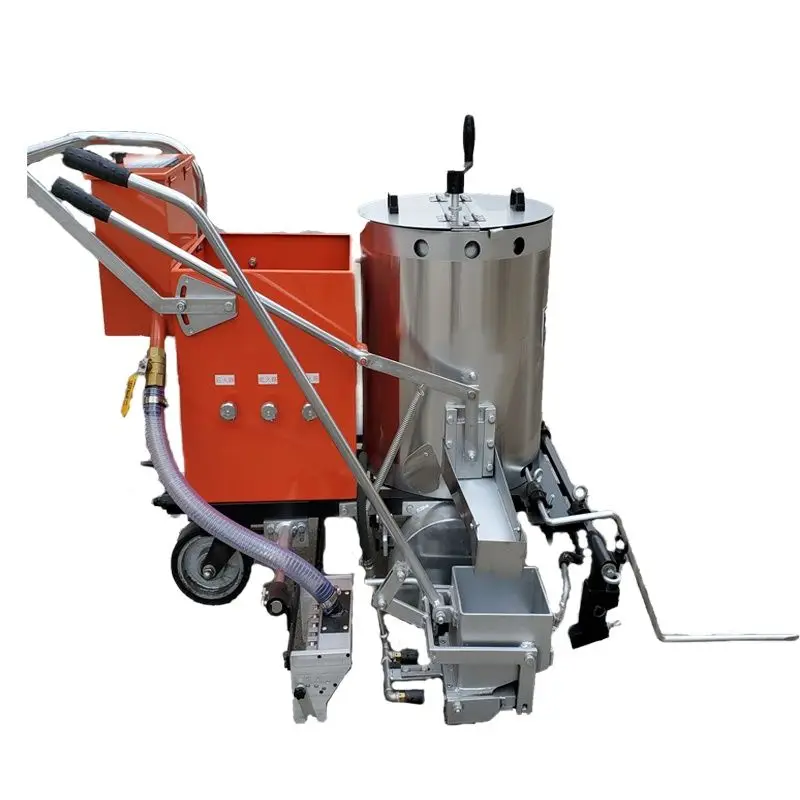

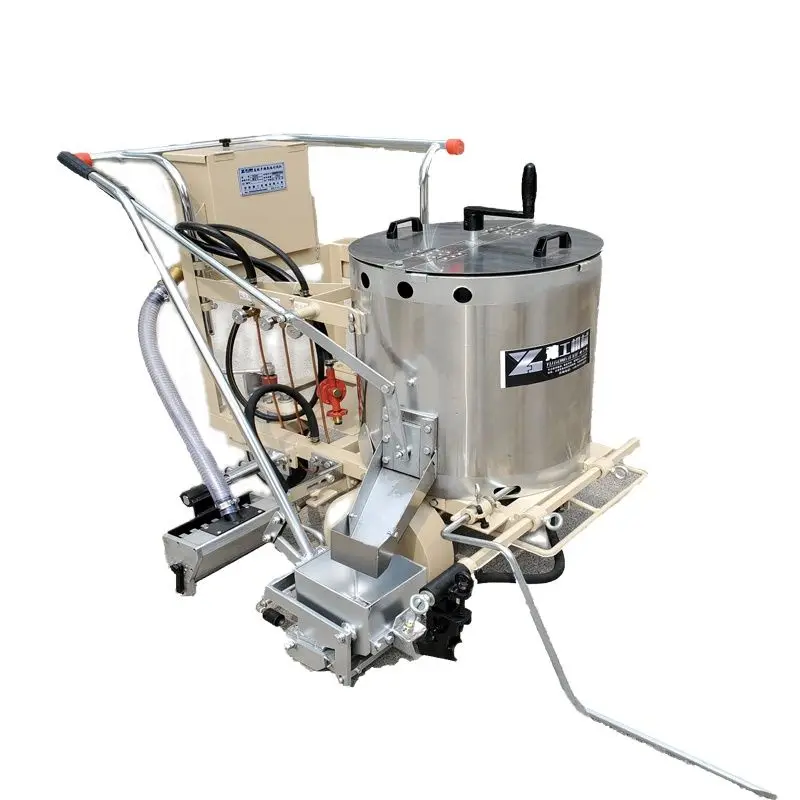

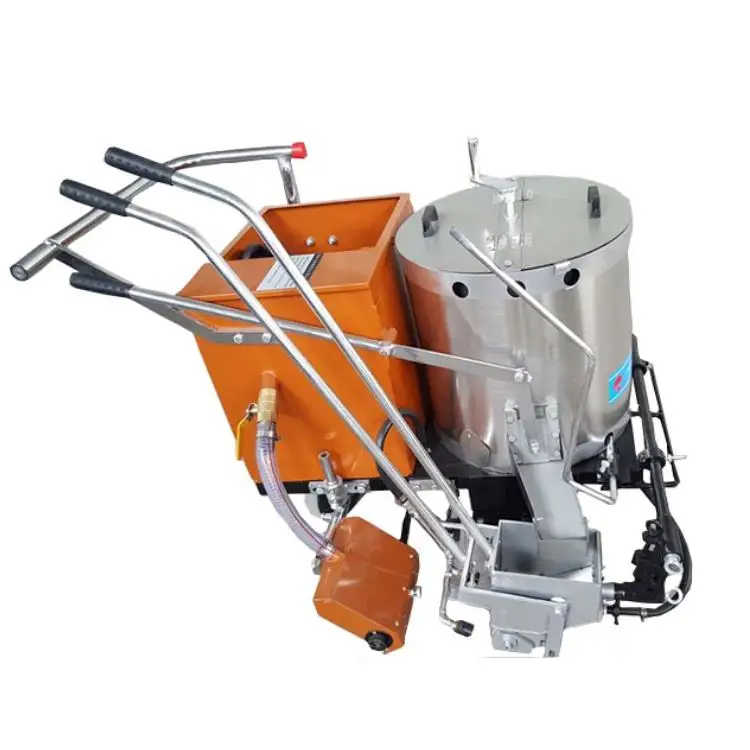

YG380 Hand-push thermoplastic road marking machine Hand-pushthermoplastic road marking machine will be poured into paint afterburning through a pre-heater,t using special high-precision cast ironmarking shoe to ensure that the marking come to uniform sideand thickness,Linear appearance,The glass beads spread completewith automatic speed control buffer devices,'The positioner uponback wheel make sure the machine go straight,This machine has theadvantage of high-quality construction ,fast,flexible operation,convenient maintenance and so on.It can be suitable for highway,municipal roads,vllage or town road,guiding

arrows,words,parking lines,factories etc.
