Home Energy Solution Top Tier Lithium Battery Ensuring Constant Power for Your Household Integrated Smart System Safe & Reliable
- Category: >>>
- Supplier: Zhimai (shenzhen) New Energy Co. Ltd.Zhimai Ltd.
Share on (1601296330847):
Product Overview
Description
Product Description
Specification

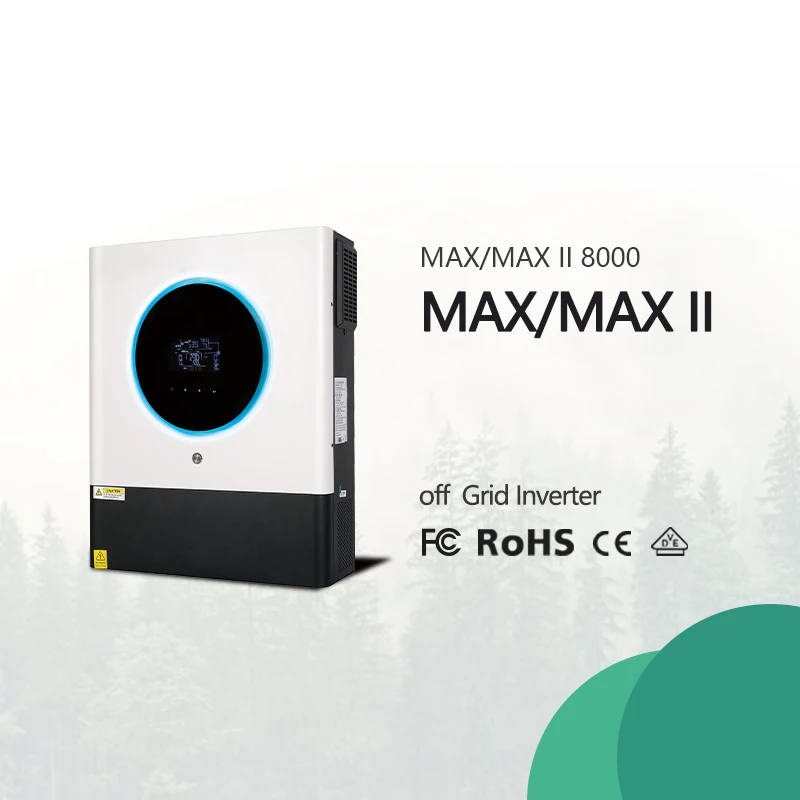

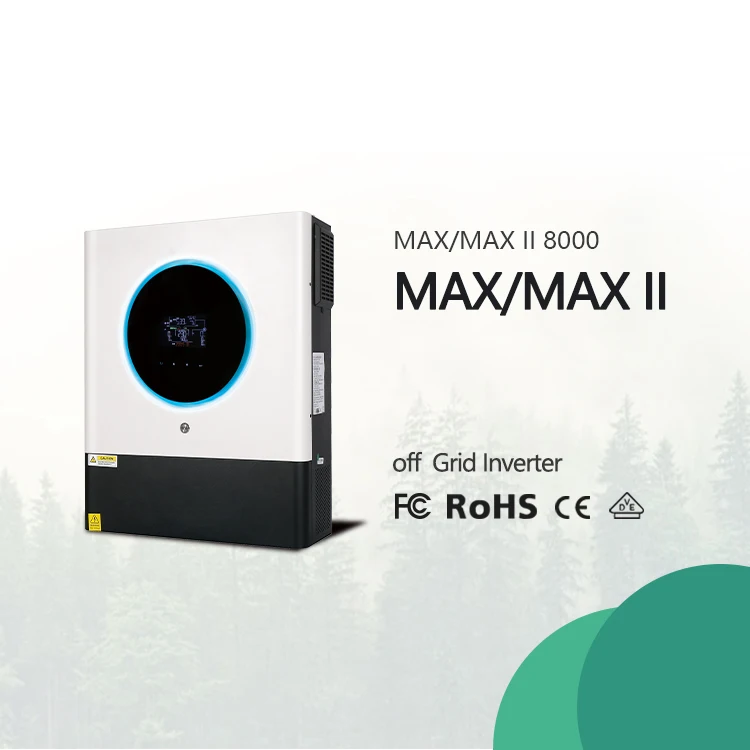

Miodel | MAX/MAX II 8000 | MAXMAXI1 11000 | ||
Rated Power | 8000VAV800OVY | 11000VAV11000W | ||
Parallel Capability | Yes,6 units | |||
INPUT | ||||
Voltage | 230 VAC | 230VAC | ||
Select-able Voltage Range | 170-280VAC (For Personal computers) | 90-280VAC (For Home Appliances) | ||
Frequency Range | 50 Hz/60 Hz (Auto sensing) | 50 Hz/60 Hz (Auto sensing) | ||
OUTPUT | ||||
AC Voltage Regulation (Batt. Mode) | 230 VAC ± 5% | |||
Surge Power | 16000VA | 22000VA | ||
Efficiency (Peak) | 93% | |||
Transfer Time | 15ms(For Personal Computers), 20ms(For Home Appliances) | |||
Waveform | Pure sine wave | |||
No Load Power Consumption | ＜70W | |||

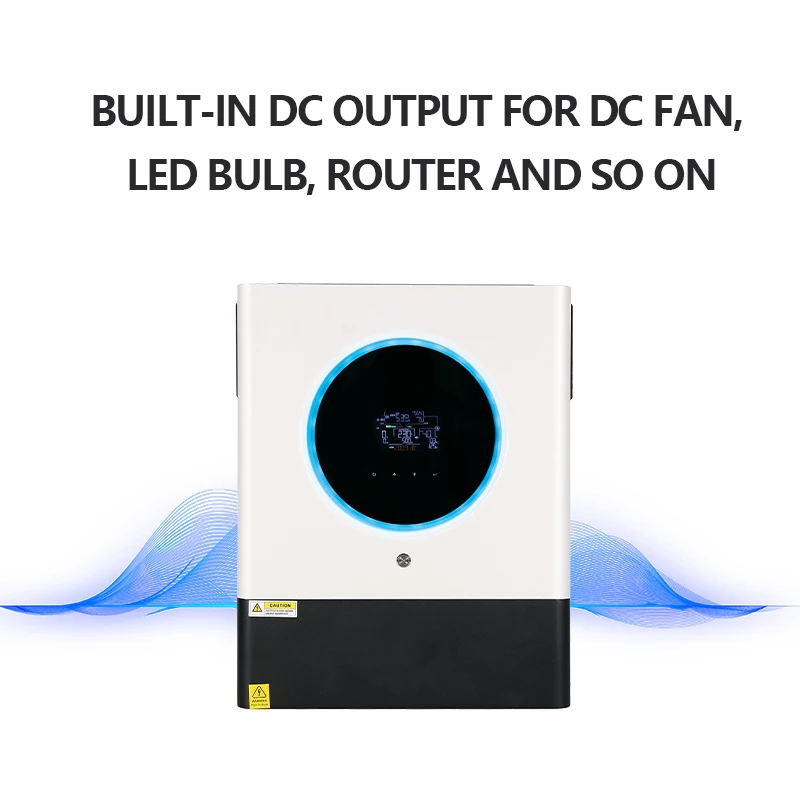

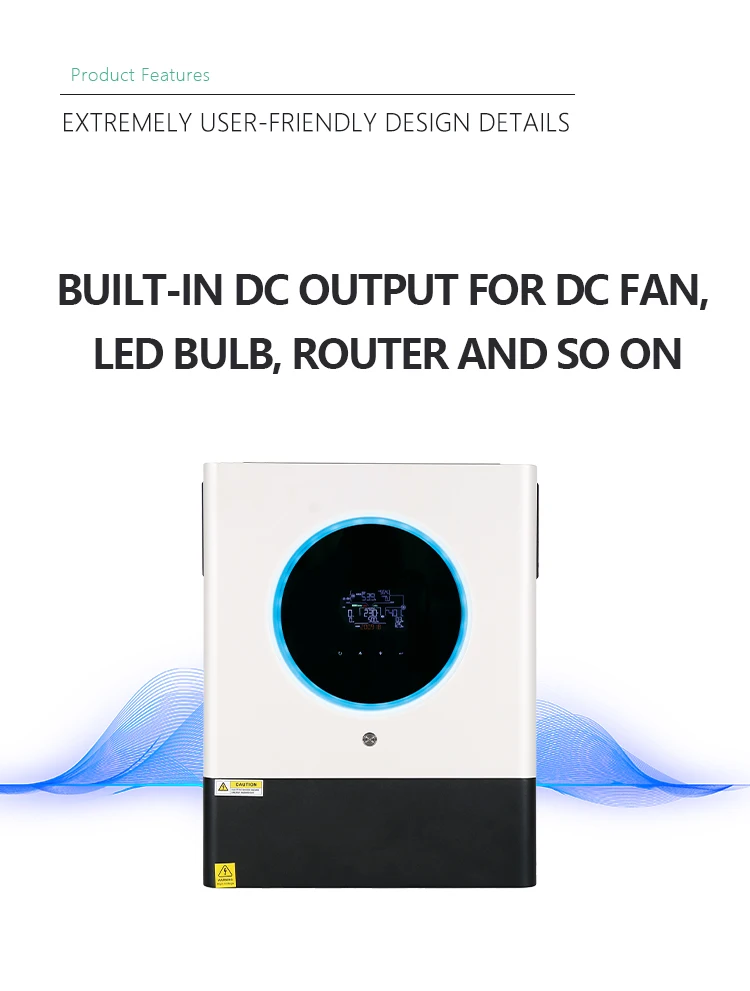

DC Voltage (Optional) | 12VDC ± 5%, 100W | |||
BATTERY | ||||
Battery Voltage | 48 VDC | |||
Floating Charge Voltage | 54 VDC | |||
Overcharge Protection | 66 VDC | |||
SOLAR CHARGER & AC CHARGER | ||||
Solar charger type | MPPT | |||
Max P Array Powei | 8000W(4000Wx2) | 11000W(5500Wx2) | ||
MPP Range @operating Woltage | 90-450VDC | 90-450VDC | ||
Max Py Array Open Circuit Voltage | 500VDC | 500VDC | ||
Max Solar Charge Current | 150A | 150A | ||
Max AC Charge Current | 120A | 150A | ||
Max Charge Current | 150A | 150A | ||
PHYSICAL | ||||

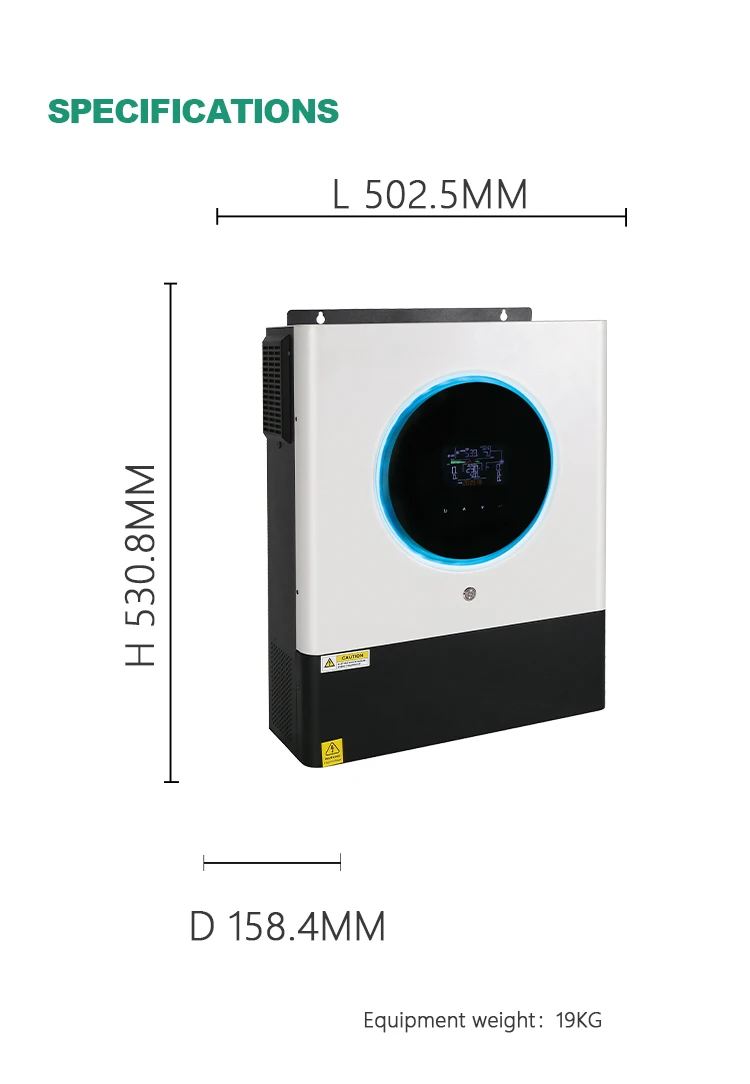

Dimension, D x W x H(mm) | 158.4x502.5x 530.8 | 158.4 x502.5x 530.8 | ||
Net Weight (kgs) | 19 | 21 | ||
Communication Interface | USB/RS232/RS485/IFlDry-contact | |||
OPERATING ENVIRONMENT | ||||
Humidity | 5% to 95% Relative Humidity (Non-condensing) | |||
Operating Temperature | -10%℃ to 50C | |||
Storage Temperature | -15°℃ to 60C | |||
STANDARD | ||||
Compliance Safety | CE | |||

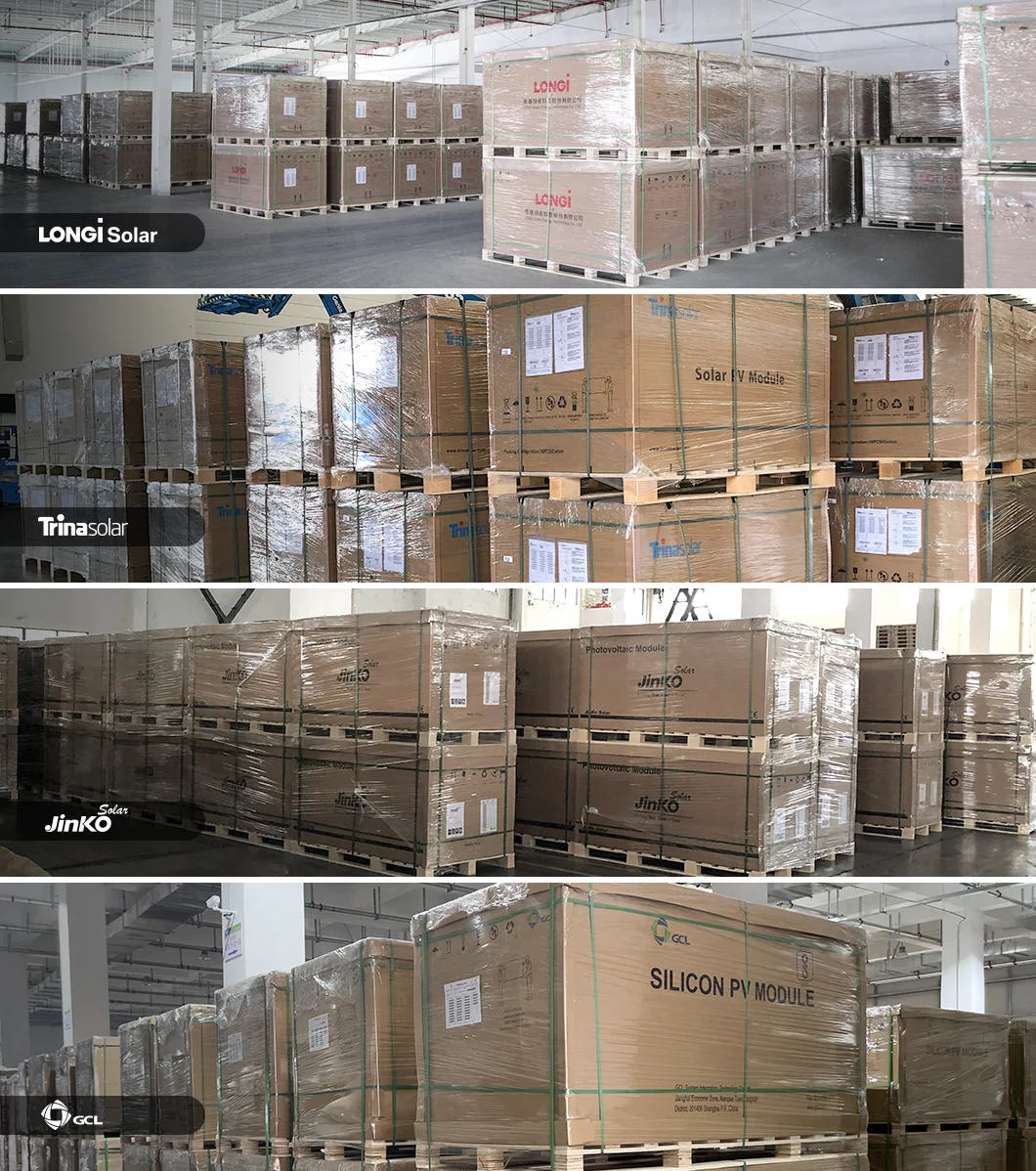

World famous cooperative brand
Company Profile
FAQ
✿Are you manufacturer or trading company?
We are manufacturer with more than 10 years experience and can control the production of goods quality and delivery time.
✿Do you accept small orders?
Yes. If you are a small retailer or starting up business, we are definitely willing to grow up with you. And we are looking forward to co-work with you for a long term relationship.
✿How about the price? Can you make it cheaper?
We always take the customer’s benefit as the top priority. Price is negotiable under different conditions, we are assuring you to get the most competitive price.
✿What can we provide?
We provide solar panel,solar inverter,solar battery,solar energy system.
We provide after-sales guarantee service, pre-sale free customized solar system solutions.
We provide OEM/ODM service.You can customize the product color and package with your own brand.
✿How about your delivery time?
Generally,our stock products would be shipped in 1-3 days after payment re-ceived. finally depends on order quantities.
✿What's your warranty?
All our products will be 100% test before shipment. Minimum 2 years warranty.
✿What kind of certificates your products have?
CE,FCC,ROHS,PSE,MSDS.
✿What is the payment method?
We accept payment by T/T, Credit card, Alibaba platform, Western Union and etc.
