Stainless steel Lab equipment special powder test sieve shaker machine
- Category: >>>
- Supplier: Xinxiang Tianfeng Vibration Machinery Co. Ltd.Xinxiang Ltd.
Share on (1601296344732):
Product Overview
Description
Product Description

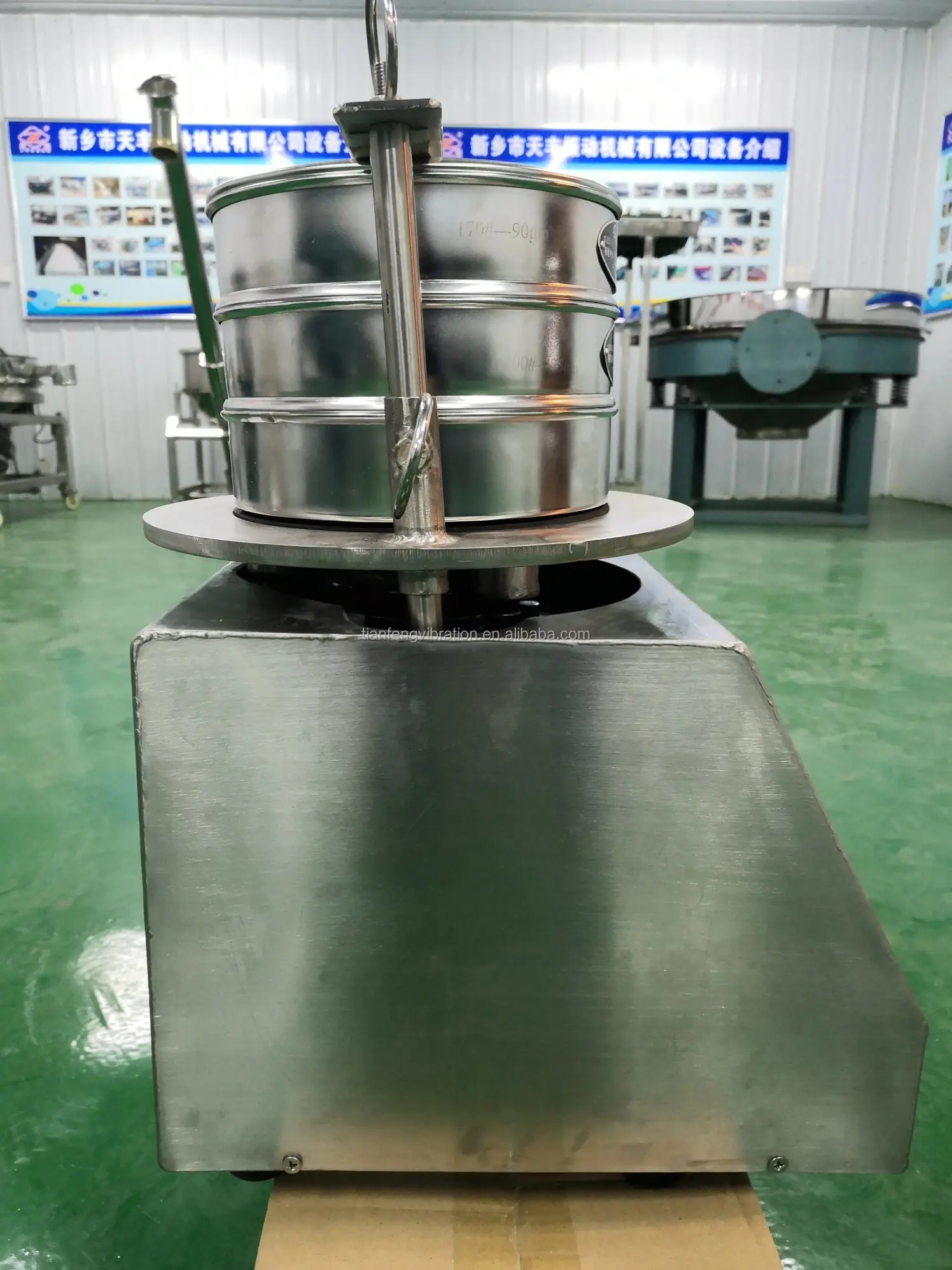

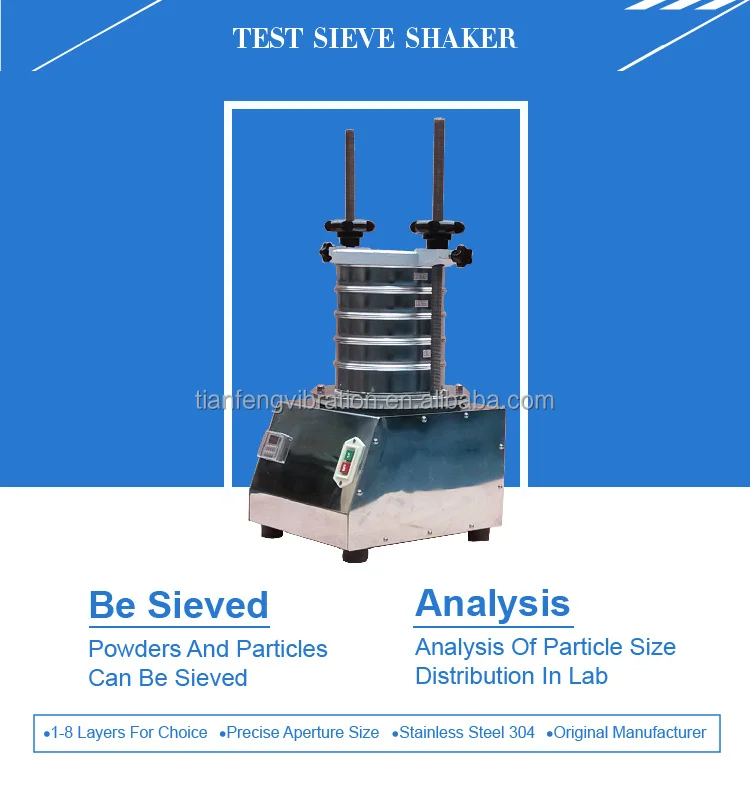

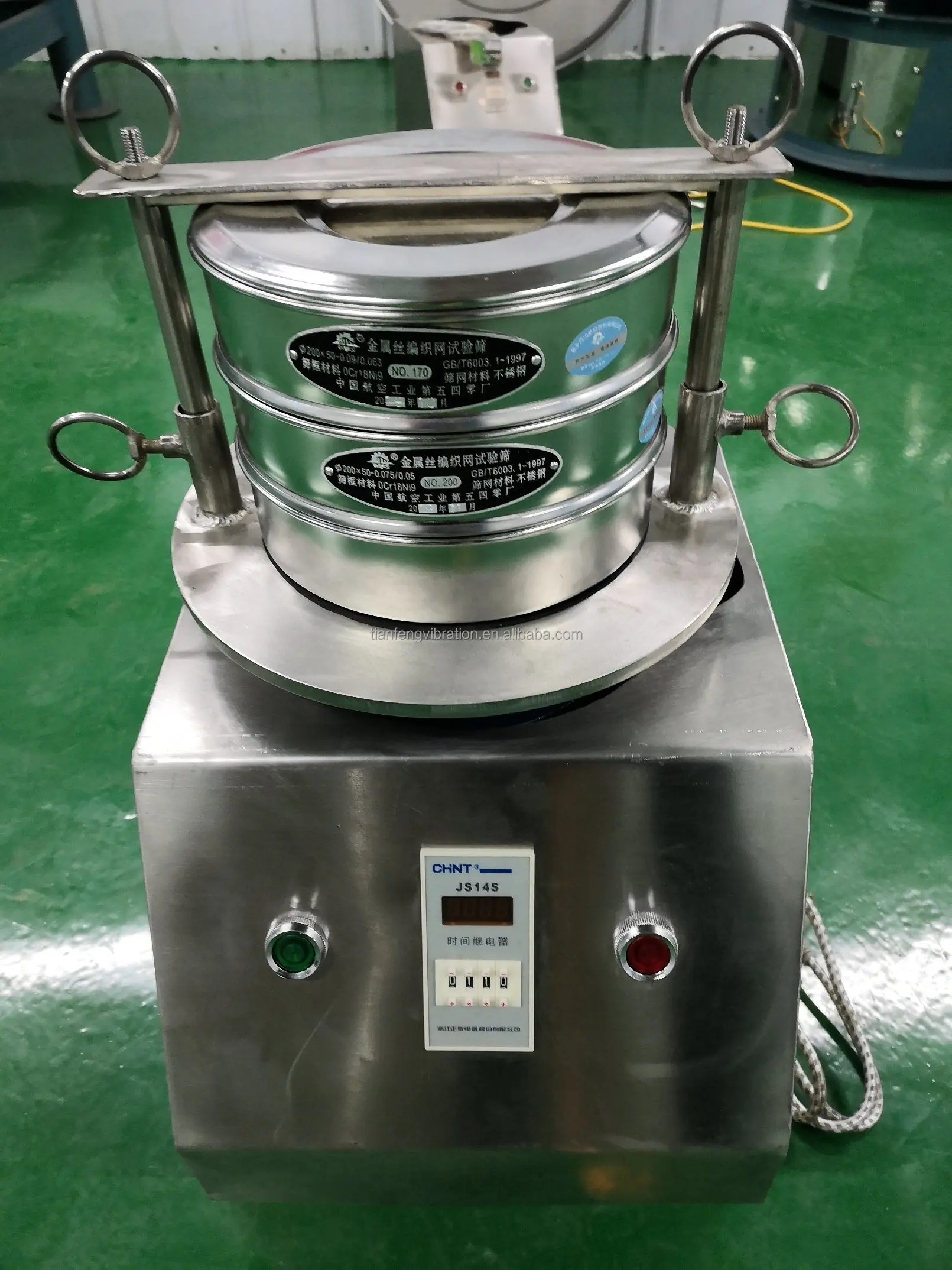

Standard Lab Machine Electric Vibrator Test Sieve Shaker Experimental Sieve
Product Introduction
Tianfeng TS series standard test screen is a kind standard analysis screen which integrated many functions such as screening particles, screening powder, filtering liquid, filtering mucus and removing impurities. Tianfeng TS series test screen can be used for the accurate particle size analysis for particles, powder, liquid, mucus and other materials in laboratory and quality control room. Tianfeng series test screen has many advantages such as low noise, high efficiency, high precision and so on. Tianfeng TS series standard test screen can produce multivariate high-frequency vibration and screen materials more efficiently. Tianfeng TS series standard test screen adopts standard screen body, and it can effectively ensure the high precision of sample analysis. Tianfeng TS series standard test screen adopts electronic delay device. The use of electronic delay device can effectively ensure the data consistency of sample analysis and reduce the error to lowest degree, so that the tester can make accurate judgement for product quality.
Working Principle

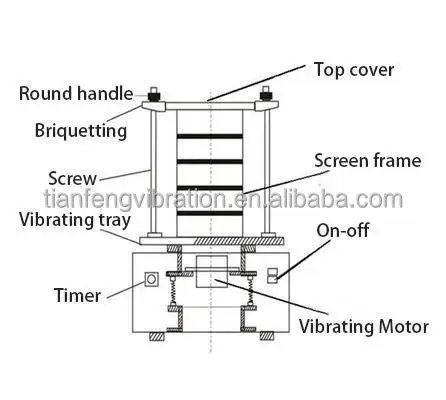

Tianfeng TS series standard test screen adopts vibrating motor as vibration source. The vibration of vibrating motor forces the base of screen to vibrate. Then, the vibration of screen base will be conveyed to the screen frame of standard test screen located on the base. The materials smaller than the screen hole will pass screen hole and enter into next layer, and the material bigger than screen hole will stay on the screen layer. The material size on the same layer is same. Tianfeng TS series standard test screen can achieve the separating of materials with different size and ensure the particle size composition of materials. By Tianfeng TS series standard test screen, the materials in test screen can be effectively screened, classified and filtered.
Technical Parameters
No. | Name | Unit | Parameters |
1 | Screen Diameter | mm | 300/200/100 |
2 | Particle Size | mm | 0.025~3 |
3 | Motor Power | kw | 0.12 (The motor with 0.15kw is general motor.) |
4 | Noise | dB | less than 50 |
5 | Amplitude | mm | 0~3 |
6 | Vibration Frequency | Times/Minute | 1400 |
7 | Overall Dimension | length, width, height | 350:380:300+N*50 |
8 | Power Supply | V, Hz | 220, 50 |
9 | Weight Of Whole Machine | kg | 35 |
Applicable Industries
The use of Tianfeng TS series standard test screen is very extensive, and it can be used for the scientific research institution, laboratory, inspection room, production control of food industry, medicine industry, chemical industry, abrasive, mine industry, metallurgical industry, geology, ceramic industry, national defense and other industries. Tianfeng TS series standard test screen can be used for testing, screening, grading, analysis of particle size, analysis of impurity content of solid material, powder material, liquid material, mucus material and so on.
Processing Procedure
Packaging&Shipping
After you place the order and pay the deposit in our company, we will start to arrange the production and contact the ocean freight transportation agency to reserve the position. Two days before the end of production, you need to complete the final payment. Then, we will inform the ocean cargo transportation agent company that it is ready to come to the factory to pull the goods to the port. On the day of delivery, we will send you the factory video and pictures, and mark the corresponding English name of each product and product parts with a marker to prevent you from not knowing what each part is after receiving the goods. At the same time, we will put the English version of the product instructions in the cargo box. We generally select freight forwarders with preferential prices for customers to deliver goods for you. The shipping method can be FOB or CIF. You can also choose EXW, and then contact the goods agent company yourself. About the packaging method and the shipping method, if you have any different idea, welcome to contact us.
Company Profile
Company Information

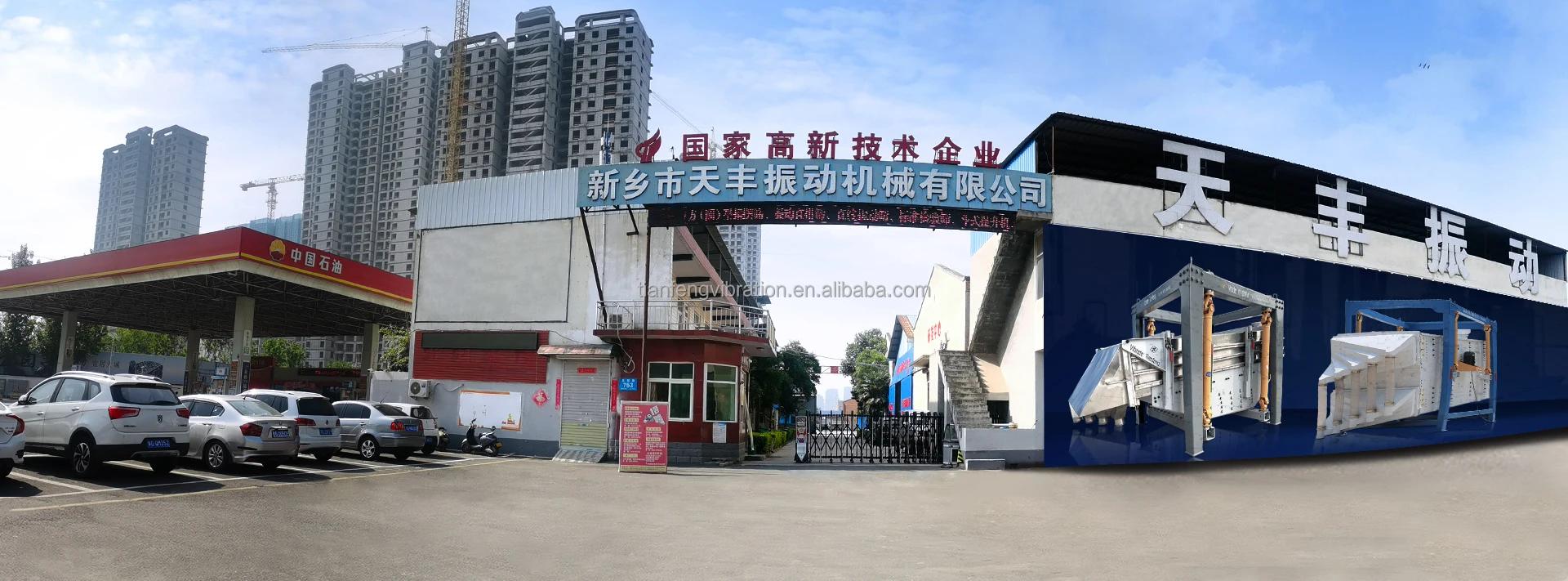

Xinxiang Tianfeng Vibrating Machinery Co., Ltd.(formerly Xinxiang Tianfeng Vibrating Machinery Co., Ltd.) is located in Xinxiang City, Henan Province of China. The transportation condition of the company is very convenient. Tianfeng has engaged in vibrating for many years, and we mainly produce vibrating machinery, vibrating screen, conveying equipment, feeding machine and so on. At present, the equipment from Tianfeng can be used for screening, filtering, grading, conveying and feeding in various industries such as grain processing, food industry, agriculture, chemical industry, pharmaceutical industry, metallurgical industry, papermaking industry, ceremic industry, waste material processing and so on. With professional and reliable product and considerate and thoughtful service, Tianfeng gained the praise of customers from all around the world.
Show of working environment

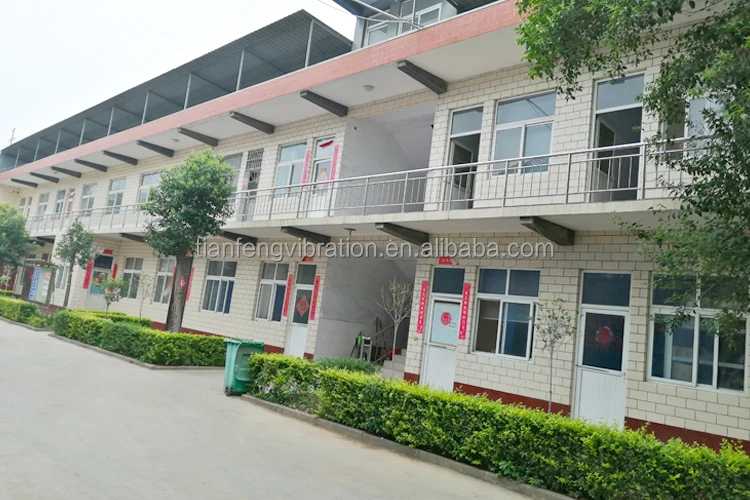

Office for receiving customers
Exhibition for showing finished product
Inner workshop for processing small equipment and accessories
Outdoor operation platform for processing and assembling large equipment
Customers Visits
Certifications
FAQ
FAQ
1. Who are we?
Our headquarters is located in Henan, China, and our factory was established in 2002. At present, there are more than 100 workers, technical engineers, foreign trade sales personnel, and administrative personnel. The factory covers an area of more than 2000 square and is mainly engaged in vibrating screening and conveying and feeding equipment.2. How do we guarantee quality?
Always provide pre-production samples before mass production; Always carry out a final inspection before shipment.
3. What can you buy from us?
You can purchase a vibrating screen, roller screens, rotary screens, vacuum conveyors, mixer, and customized vibrating machinery and conveying equipment in our factory.
4. What are our strengths?
As one of the old enterprises in the screening industry, Tianfeng has provided a large number of screening equipment and systems at home and abroad. Mass production, rapid delivery, stable quality, affordable price, and excellent after-sales service have become the symbols of Tianfeng.
5. What services can we provide?
Accepted delivery conditions: FOB, CFR, CIF, EXW, CIP, FCA, CPT, DDP, express;
Accepted payment currency: USD, EUR, RMB;
Type of payment accepted: telegraphic transfer, letter of credit, express remittance, credit card, PayPal, Western Union
remittance, cash, custody;
Oral: English, Chinese, French.
6. What information do we need to help you choose a perfect machine?
-Name and characteristics of raw materials.
-Purpose of use: remove impurities, filter, and grade.
-Processing capacity: kg/h, L/h.
-Raw material size: (mesh or mm).
-How many floors do you need?
-Voltage, frequency, phase (single-phase or three-phase) Note: You'd better send us the relevant pictures or materials you want to filter, which can ensure that we recommend the appropriate machine for you.
