Product Overview
Description
Product Description
1. This series grinder can apply to aquatic feed and special feed plants fine powder grinding, and also the fine powder processing of the medicine, menstruum, and so on.
2. The motor is set on the same base with the rotor, direct drive.
3. Compact structure, quick and easy to changing the blade.
4. It have the safety device on the operating door, the rotor is calibrated by strict dynamic balance.
5. Fine grinding, the seive mesh size Ф0.5mm-Ф3.0mm.
3. Compact structure, quick and easy to changing the blade.
4. It have the safety device on the operating door, the rotor is calibrated by strict dynamic balance.
5. Fine grinding, the seive mesh size Ф0.5mm-Ф3.0mm.
Specification
Model | SFSP56*36 | SFSP56*40 | SFSP66*60 | SFSP66*80 | SFSP66*100 |
Capacity(t/h) | 3-5 | 5-8 | 9-16 | 12-22 | 18-28 |
Motor power(kw) | 22 | 37 | 55/75 | 90/110 | 132/160 |
Hammer no.(pcs) | 36 | 50 | 64 | 88 | 128 |
Rotor dia. | 560 | 560 | 660 | 660 | 660 |
Speed(r/min) | 2970 | 2970 | 2970 | 2970 | 2970 |
Chamber width | 360mm | 400mm | 600mm | 800mm | 1000mm |
Size(cm) | 150*75*98 | 165*75*105 | 215*135*145 | 260*135*145 | 300*135*145 |
Weight(kg) | 1150 | 1350 | 1780 | 1990 | 2040 |

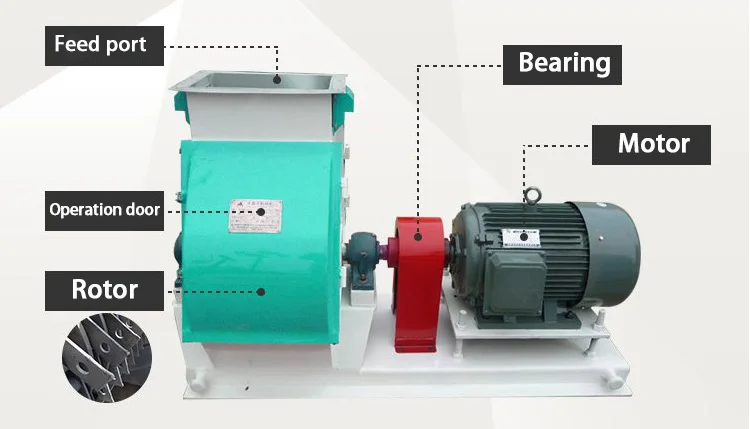

Details Images

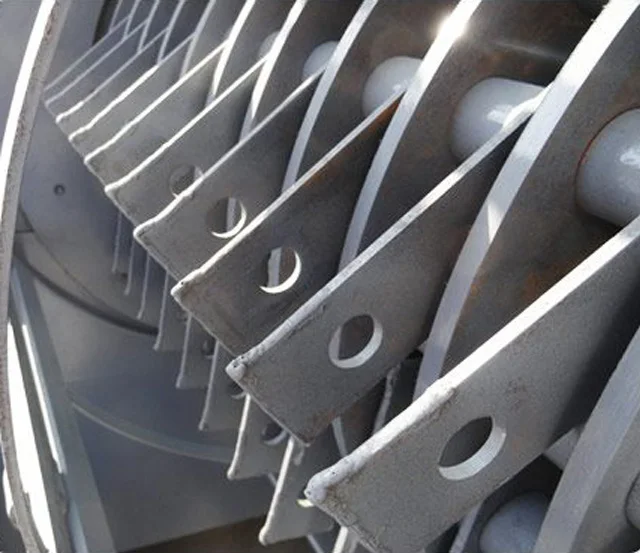

Rotor
Balancer calibration, smooth operation, capable of working in both forward and reverse directions

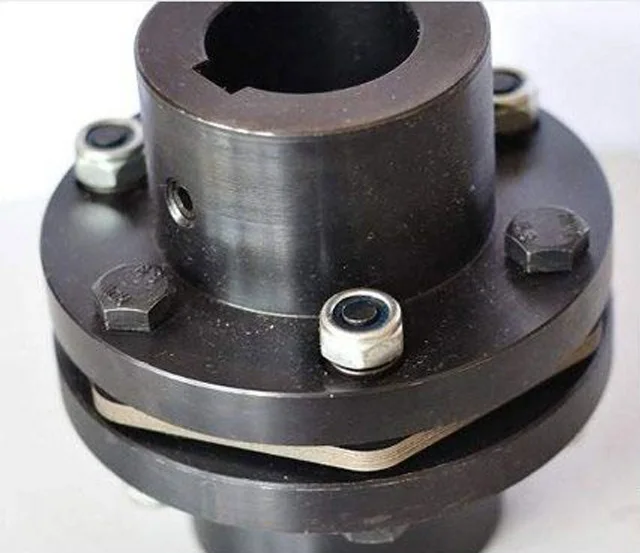

Coupling
Column pin coupling direct transmission with high transmission efficiency

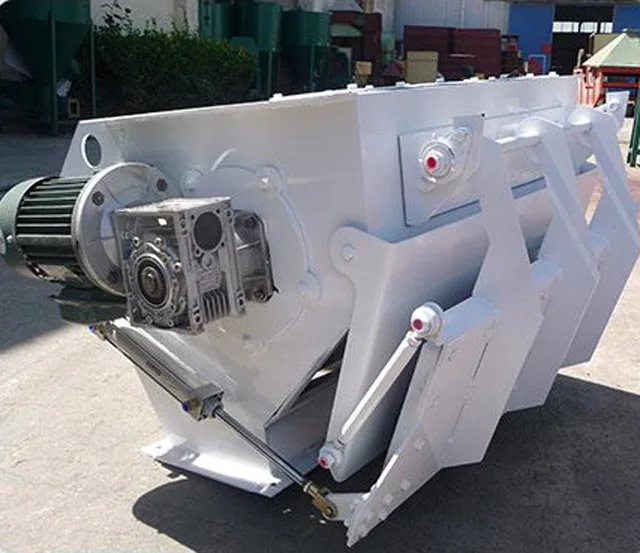

Impeller feeder
Installed at the feeding port of the crusher, flexibly equipped with various forms of feeding equipment

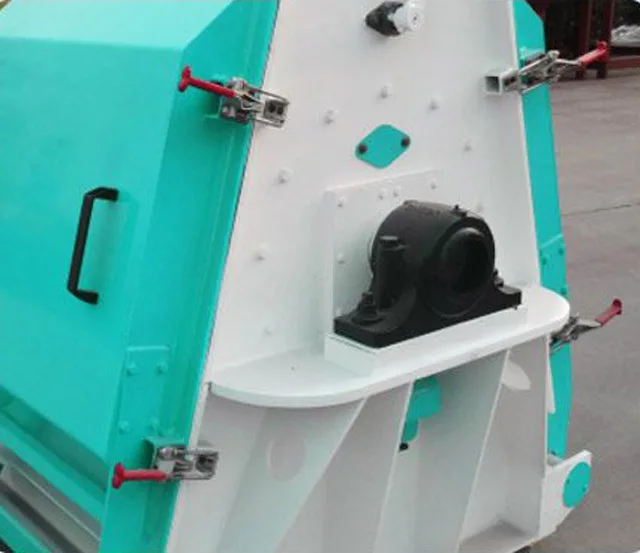

Compression mechanism
Easy to inspect and maintain, ensuring safe operation
Application

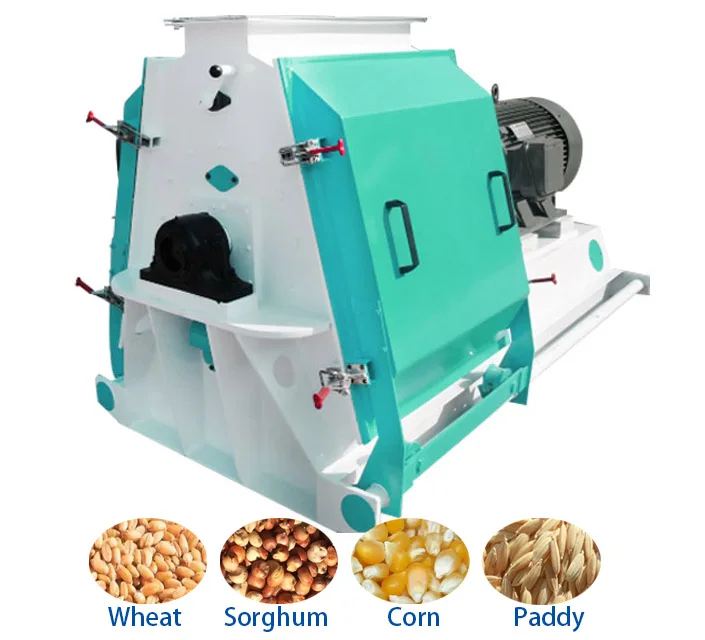

This series grinder can grind kinds of granules feed materials, like: corn, sorghum, wheats, beans, canola, etc. It can do coarse grinding and fine grinding processes.
Turn-key Project
1-2T/H Chicken Feed Line
1-2T/H Cattle Feed Line
1-2T/H Poultry Feed Line

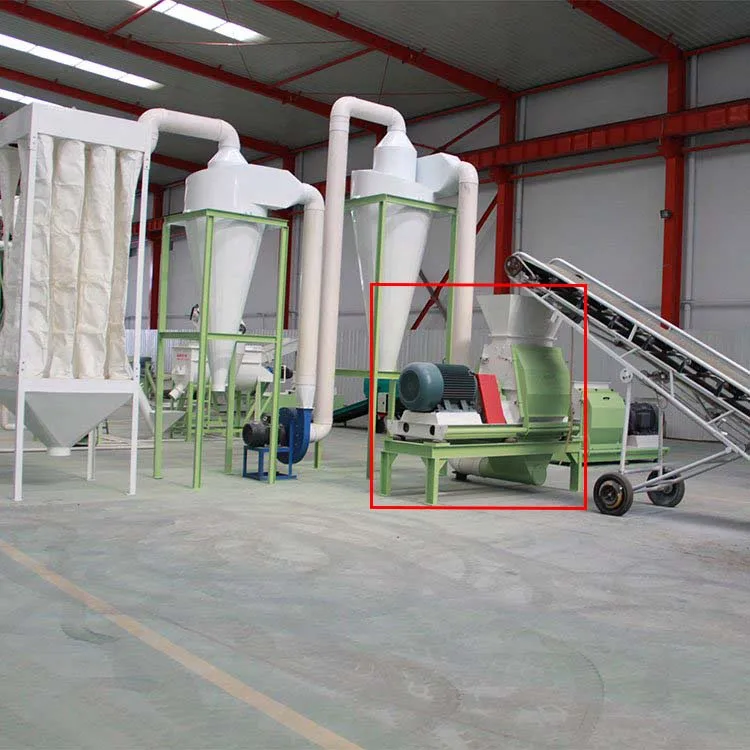

3T/H Powder Feed Production Line
5t/h powder feed line with feed silo
5t/h Chicken Powder Feed Production Line
Powder feed line with steel structure building

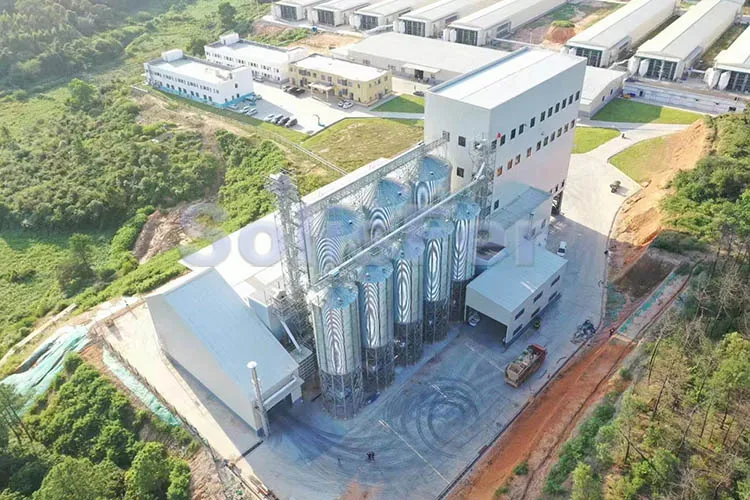

Commercial Poultry Feed Plant
Capacity：20 Tons/hour
Project Content: Steel structure factory building, soybean meal silo and cattle feed production line
Project Content: Steel structure factory building, soybean meal silo and cattle feed production line
Why Choose SolisFer
1.Free project design service.
2.On site equipment installation services
Packing & Delivery

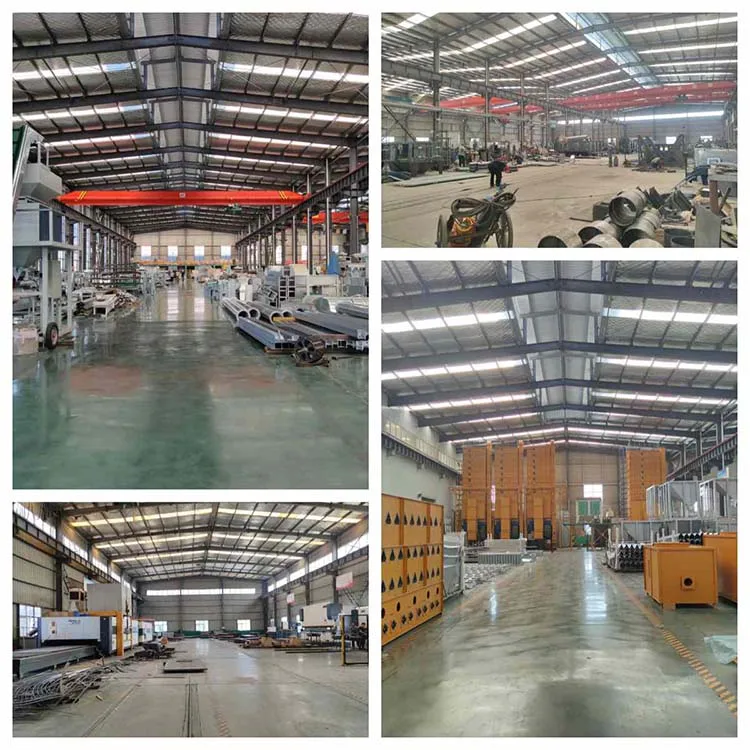

Company Profile
SolisFer Machinery Co., Ltd is a leading provider of agriculture equipment in China, we specialize in manufacturing grain crusher, corn thresher sheller, chaff cutter, silage baler, feed pellet machine, etc. Our products have always been very popular in Africa, South East Asia, and the North American market and have won wide praise from customers.
FAQ
1. Q: Are you a trading company or a manufacturer?
A: We are a manufacturer, which has almost 16 years of experience in this industry.
2. Q: How long is your warranty time?
A: One year. After this period we will definitely support you when needed.
3. Q: Will you send engineers to install the plant?
A: yes, or you can get local contractors to do the commissioning and we send one supervising engineer.
4. Q: Do you have some foreign customers using your equipment?
A: yes, we have.our company has established business relationships with customers in Benin, Kenya, Uganda, Rwanda,Vietnam, the Philippines, Indonesia, Thailand, etc.
