75 inch indoor LCD full HD 1080P 4k digital signage player, advertising screen display monitor, touch screen interactive board

Share on (1601296348746):


Price:

Quantity:


Product Overview

Description

















































































































type



Parameters / instructions



configure



CPU



RK3288 Quad-core of 1.8 HZ



GPU



Mali-764



RAM



DDR-3  2GB



ROM



16GB NAND Flash



operating system



Based on Android 7.1 / 9.1,11.0



decoding



resolution ratio



MAX 2160P



Video packaging



RM / RMVB, MKV, MP4, TS, FLV, AVI, VOB, MOV, WMV, etc



video coding



MPEG-1/2/4,H.263,H.264, WMV 9, RV8 / 9 / 10, Divx-3 / 4 / 5, etc



Audio coding



MP3, WMA, WAV, EAAC +, APE, FLAC, BSAC, OGG, etc



Picture coding



JPG, PNG, BMP, etc



sound



built-in



Built-in high-fidelity 8 Ω 5W speaker * 2



network



Ethernet



100 / 1000Mbps are adaptive



WIFI



Wireless protocol 802.11b/g/n



4G (optional)



Support mobile, Unicom, telecom three network system



joggle



TF block



1 * Standard TF card interface, up to 32GB support



USB



2*USB2.0



HDMI



1*HDMI  OUT



network



1*RJ45



source



working voltage



AC110V/220V  50/60Hz



maximum power dissipation



300W



Standby power consumption



1W



service environment



working temperature



0~50°



Storage temperature



-10~60°



relative humidity



10 to 80 RH without condensation








Product features
Adopting an ultra clear 3840 * 2160 resolution LCD panel, with a 178 ° omnidirectional perspective and high color gamut, it has special features such as 3D digital noise reduction, dynamic contrast adjustment, intelligent elimination of residual images, and more perfect restoration.
Industrial grade power supply system, self temperature controlled heat dissipation, meeting 24-hour uninterrupted use, LED dual crystal backlight, higher brightness, and lower power consumption.
High performance quad core processor, with a main frequency of 1.8GHz, has strong 3D acceleration graphics processing ability and 2160P video decoding ability, efficient processing speed, and provides extremely smooth video playback performance.

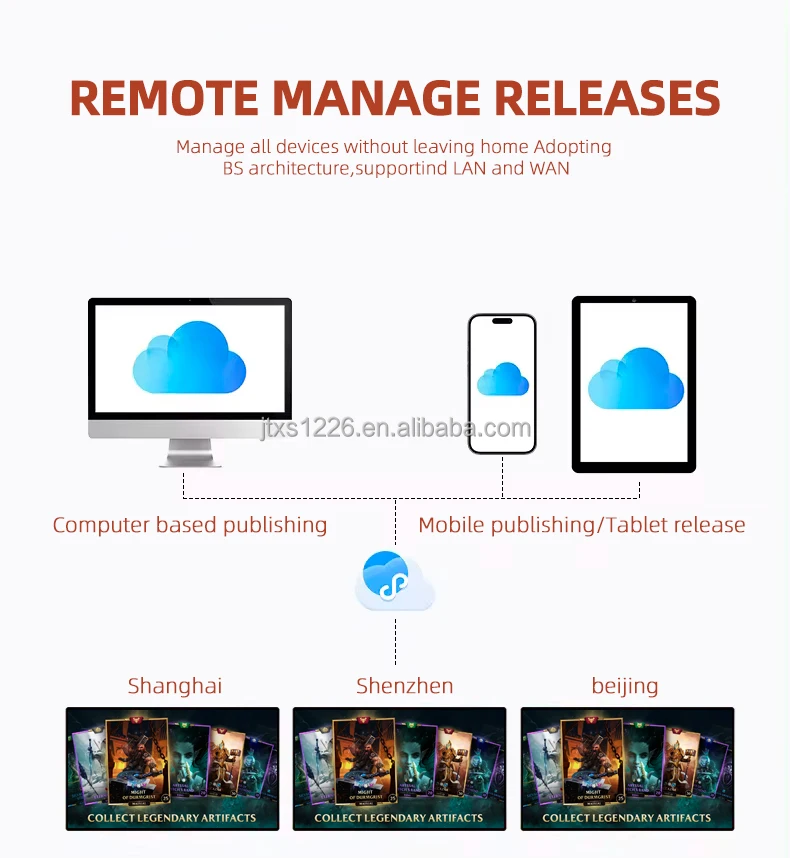

Real time video and audio decoding; Real time video and audio playback; Compatible with various image, animation, and audio encoding, supporting centralized control through TCP/IP network, and can be distributed throughout the country based on the Internet, achieving super information dissemination through wide area network and more efficient operational efficiency.

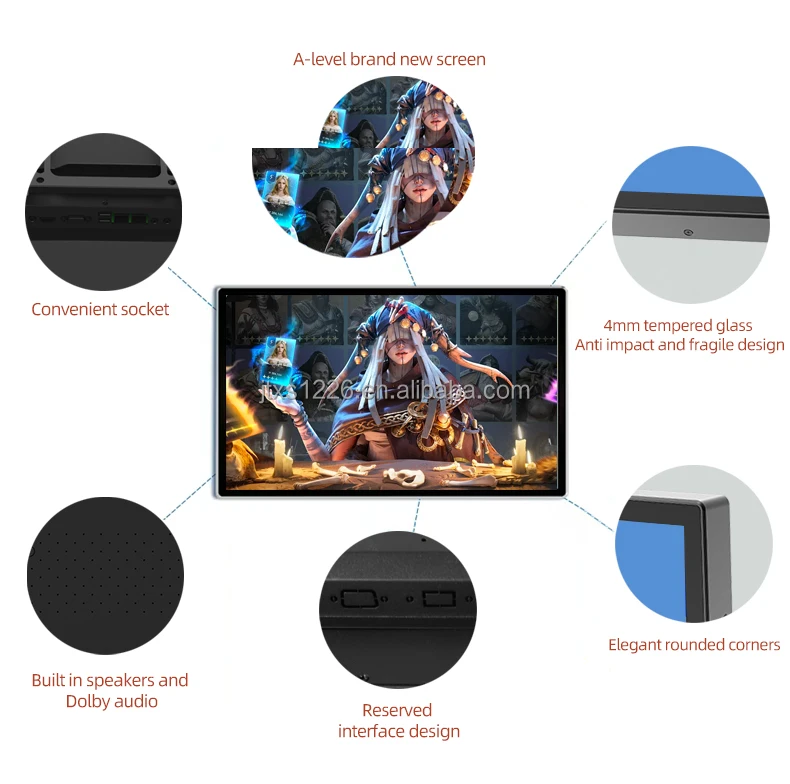

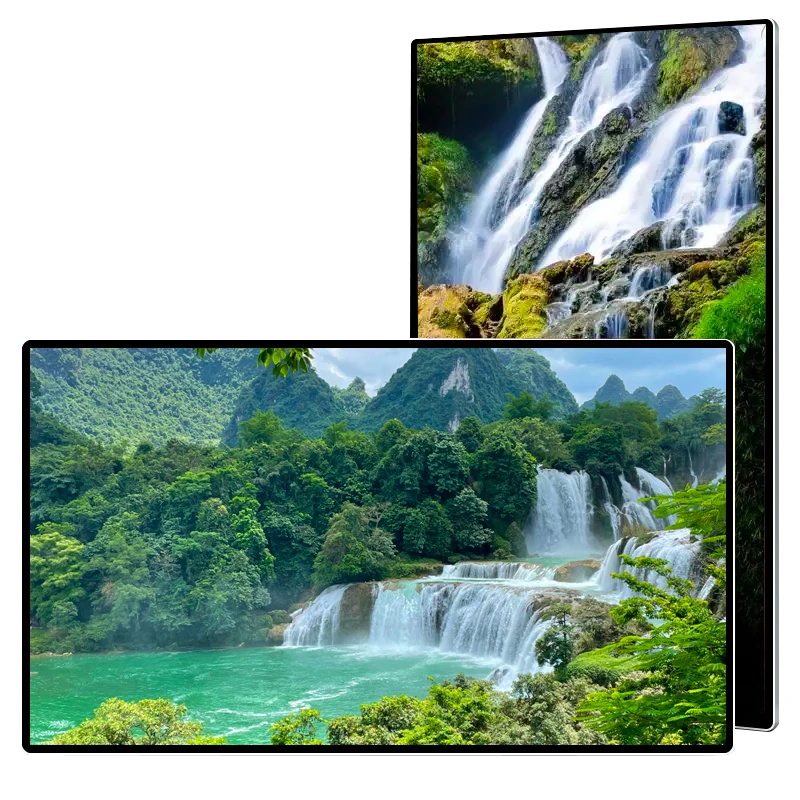

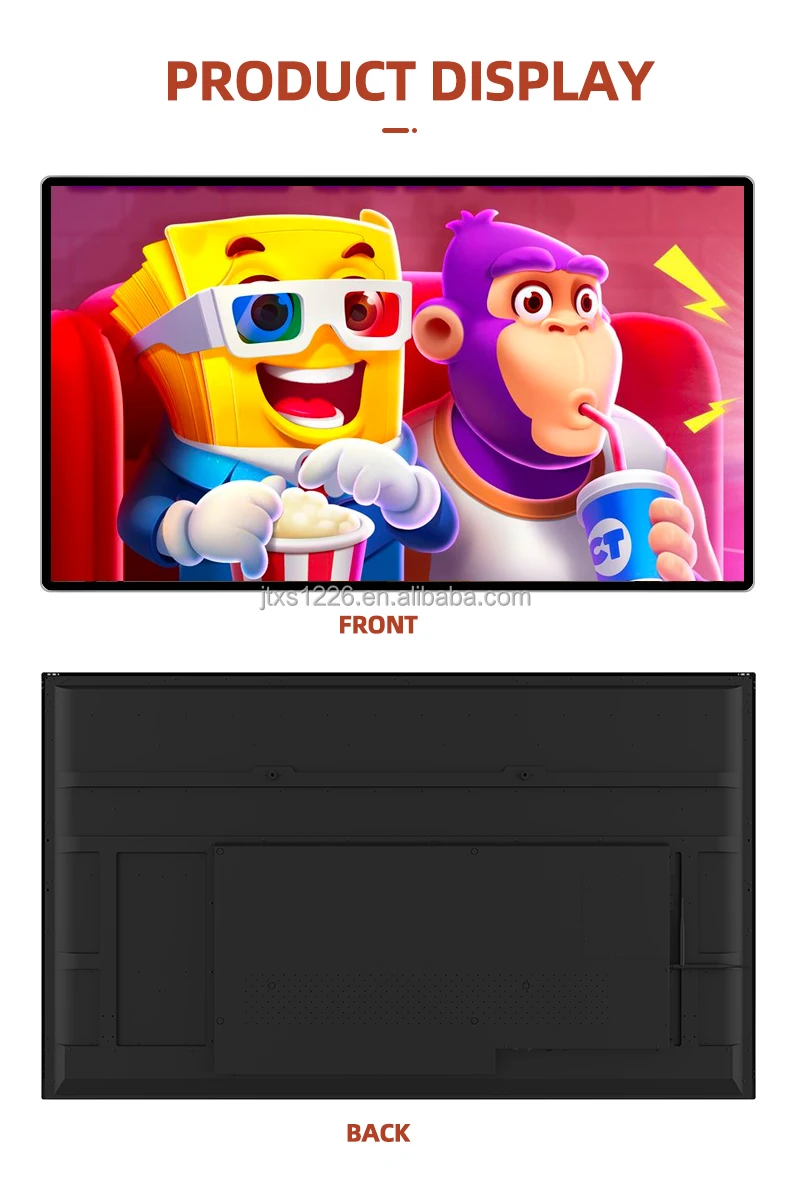

Integrated design: The product design is simple and atmospheric, more aesthetically pleasing, and has a high cost performance ratio. It supports wall mounted and horizontal installation, making installation and maintenance easy. It is also convenient for industrial grade components, with better heat dissipation and lower power consumption. The metal front frame design features exquisite workmanship and humanized detail design.
The workshop adopts advanced solution management comprehensively, and can customize the shell shape, body color, and add logos according to customer requirements.
