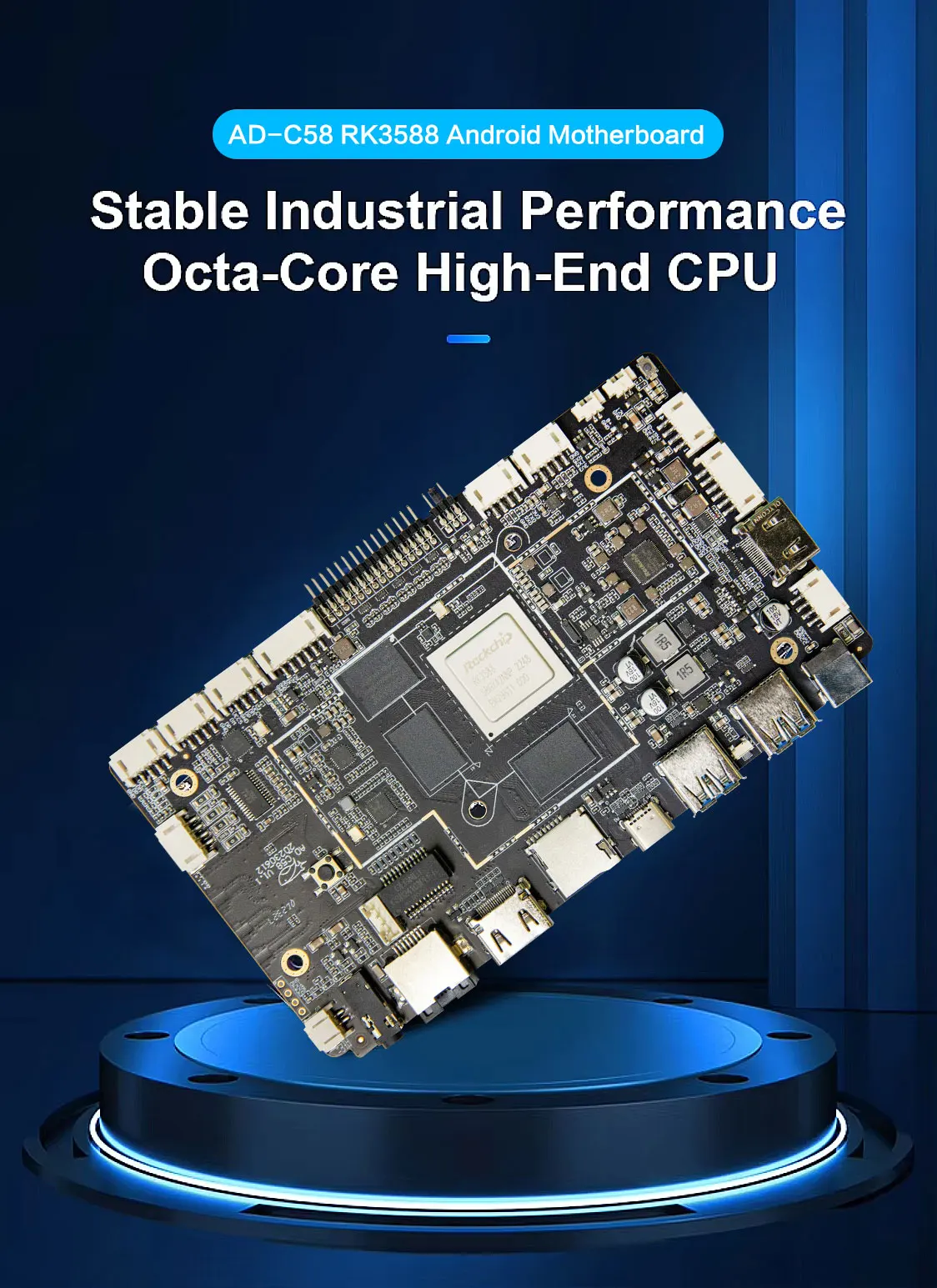

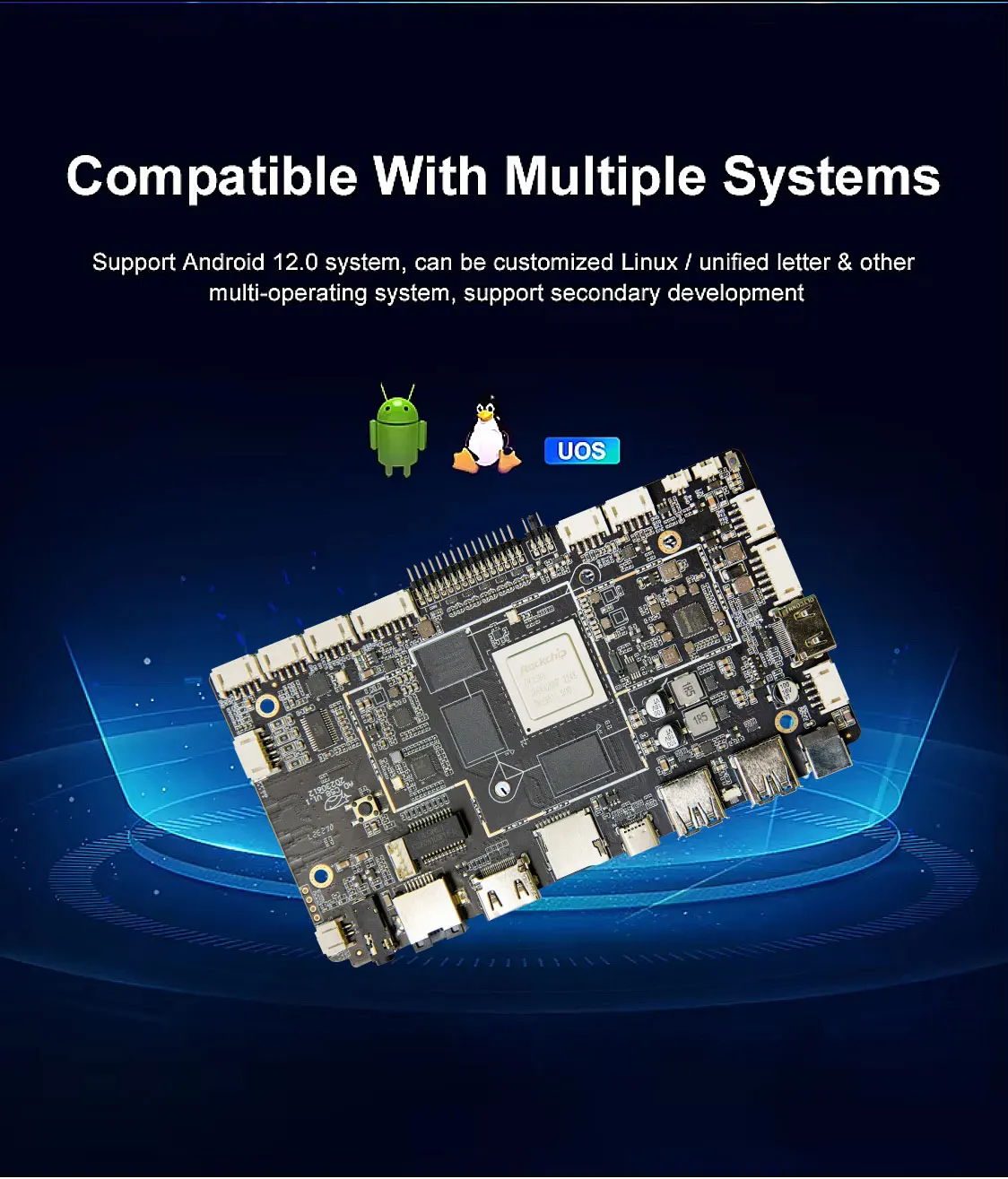

High temperature Environment RK3588 8K Embedded System Board 8K Video AI 8G RAM Android 12 For Subway Turnstile
- Category: >>>
- Supplier: Shenzhen Sunchip Technology Co. Ltd.Shenzhen Ltd.
Share on (1601296407735):
Product Overview
Description
Related products
Products Description
Product Parameter

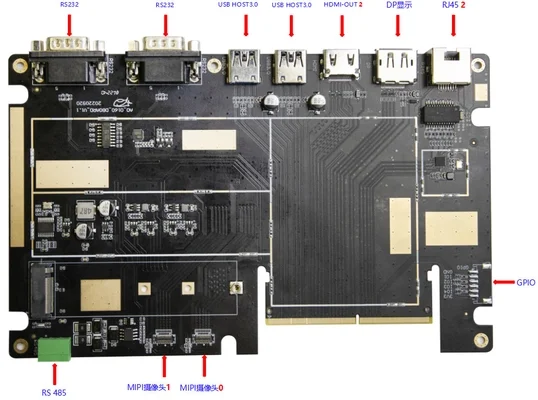

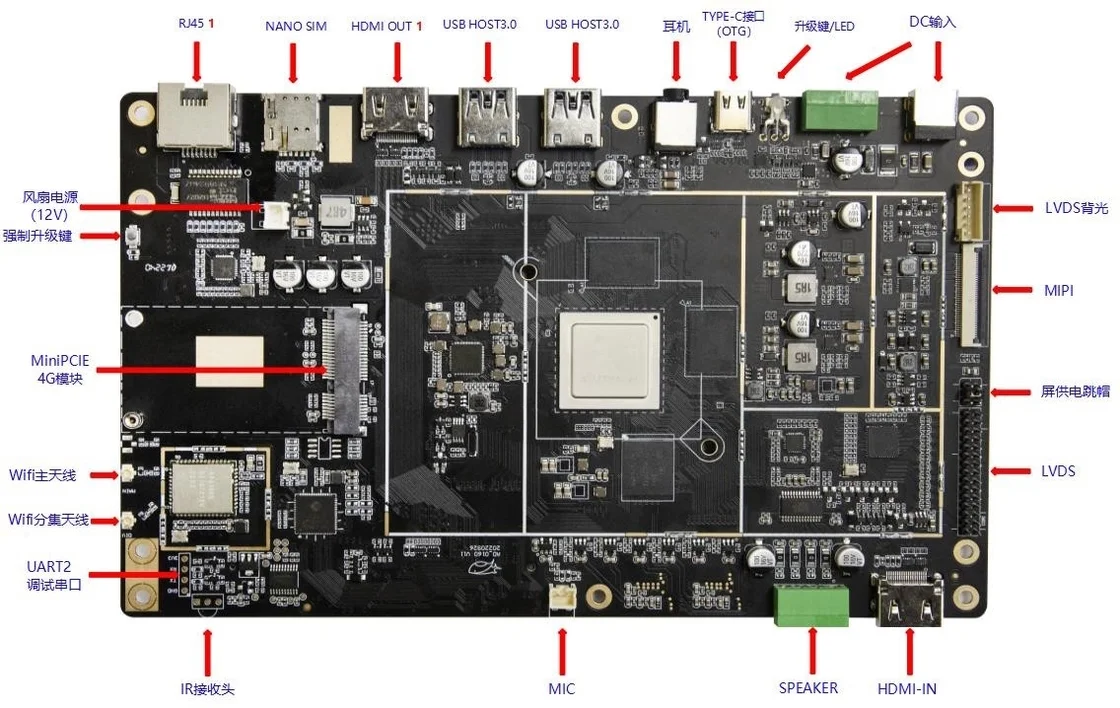

CPU | Rockchip RK3588 octa-core 64-bit size core architecture，4*Cortex-A76 + 4*Cortex-A55 | ||
Main frequency | The main frequency of the large core is 2.1GHz, and the main frequency of the small core is 1.7GHz | ||
GPU | ARM Mali-G610 MC4 | ||
OpenGL ES 1.1/2.0/3.1/3.2 | |||
Vulkan 1.1，1.2 | |||
OpenCL 1.1,1.2,2.0 | |||
Embedded high-performance 2D image acceleration module | |||
NPU | 6TOPS AI computing power, triple-core architecture, support int4/int8/int16/FP16/BF16/TF32, enabling various AI scenarios | ||
Memory | 4GB/8GB/16GB（Up to 32GB）64bit LPDDR4/LPDDR4x | ||
Built-in storage capacity | EMMC 32G/64G/128G/256G（optional） | ||

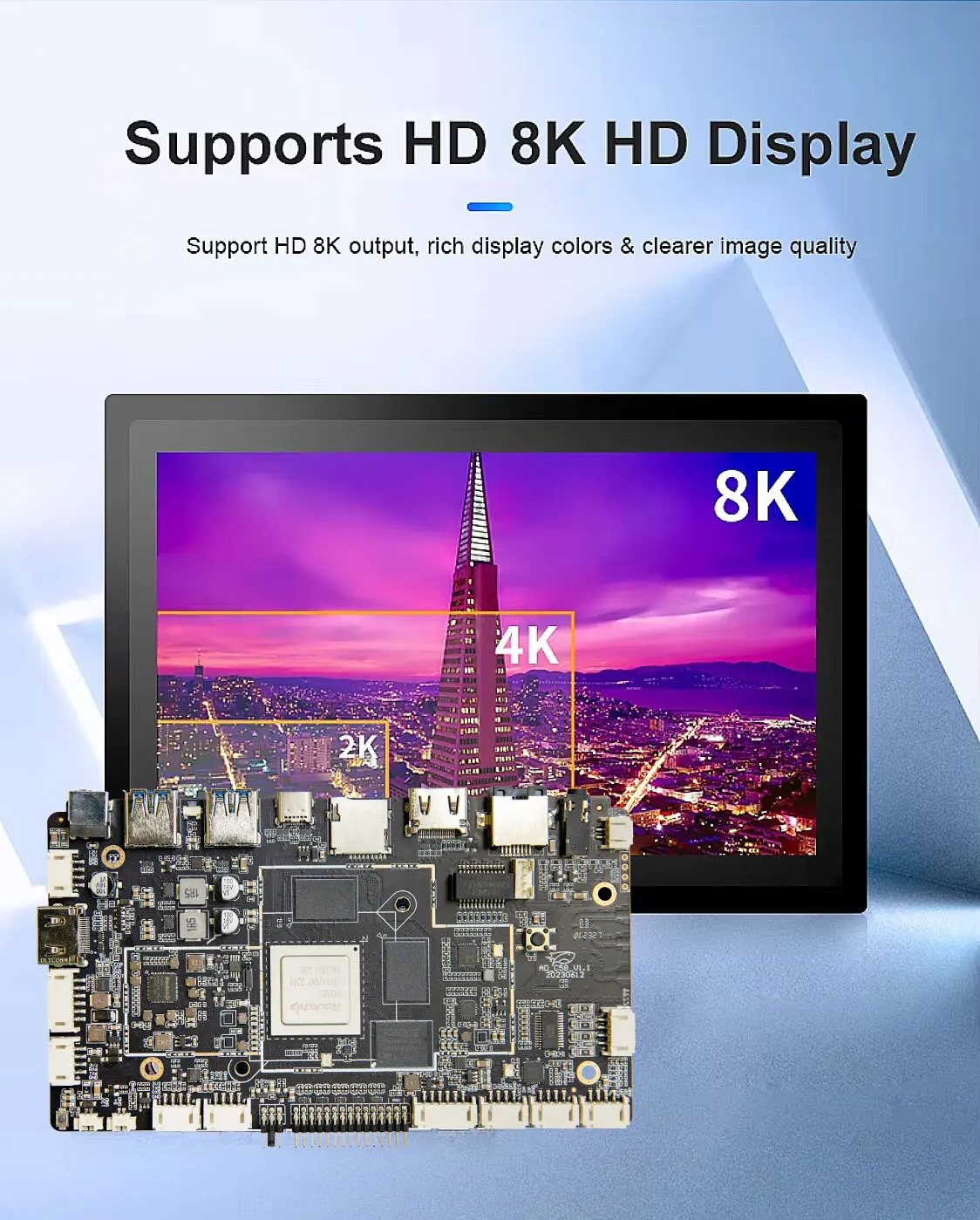

Display interface | HDMI OUT（Up to 8K@60FPS） | ||
HDMI IN（Up to 8K@60FPS） | |||
LVDS display interface | |||
EDP display interface | |||
MIPI display interface | |||
Screen voltage | Support 3.3V/5V/12V optional | ||
Touch screen | Provide I2C interface (can support multi-point resistive touch, multi-point capacitive touch).Support USB multi-point infrared touch, multi-point acoustic wave touch, multi-point optical touch. | ||
Network | With RJ45 interface, support 10/100/1000M Ethernet. | ||
Equipped with AP6275S industrial WiFi-6 module SIDO/PCIE dual-channel Bluetooth WiFi module 2T2R 802.11 ax/ac/a/b/g/n Wi-Fi + BT 5.0 Module | |||
Image rotation | Support 0 degree, 90 degree, 180 degree, 270 degree manual/automatic rotation, support gravity sensing function | ||
Real Time Clock | Built-in real-time clock powered by battery | ||

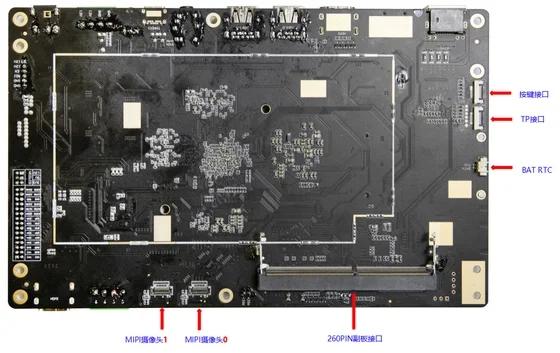

Interface device | Support MIPI interface camera, support 500W pixels | ||
3 USB HOST 2.0 (4PIN2.0 spacing connectors) | All support usb camera@500W usb printer, U disk, mouse, keyboard, standard usb peripherals | ||
All support usb camera@500W usb printer, U disk, mouse, keyboard, standard usb peripherals | |||
All support usb camera@500W usb printer, U disk, mouse, keyboard, standard usb peripherals | |||
3 sets of serial ports, support external serial device modules (NFC module, printer, card reader, etc.) | |||
TF card, maximum support 128GB | |||
Class D power amplifier: default 3W*2 8 ohms, support microphone | |||
Audio | MP3,WMA,WAV, APE, FLAC, AAC, OGG,M4A,3GPP Format | ||
Video | Support H.265/H.264/AV1/VP9/AVS2 video decoding, up to 8K60FPS Support H.264/H.265 video encoding, up to 8K30FPS | ||
Picture | Support JPG, BMP, PNG and other image formats to browse and support rotation/slide show/image enlargement functions | ||
Power Adapter | Input: AC100-240V.50-60HZ, Output: DC12V 3A (positive inside and negative outside) | ||
Customization
Company Profile
Payment and Delivery
1.Packing: carton box or wood case
2.Payment methods: accept T/T,Western Union,Paypal and Cash.
3.RMA Policy: customer bear all the freight and duty charge to factory,and the factory afford return freight charge.
4.Warranty: 12 months warranty. Paid maintenance over 12 months.
5.Remark: ROHS, CE & FCC certificates in e-file format are available.
6.MOQ: 1pc, sample order are welcome for your evaluation.
FAQ
1) Q: Is SUNCHIP a factory or simply a trading company?
A: We are a TRUE OEM/ODM factory. Please read our COMPANY PROFILE, for more information on this issue.
2) Q: What payment methods are available to me?
A: We accept most of the payment methods: accept VISA, Pay Later,T/T,Western Union,Paypal and Cash.
3) Q: How long is the warranty time?
A: 1 Year.
4) Q: What are the shipment terms and delivery times of your company?
A: Delivery / production time is directly affected by the size of the order. Also depending in which season you are shipping.
5) Q: Do you give any discounts ? A: Prices are directly affected by the quantity. We have many ways to help our partners when starting the sample processes. Make sure to ask our sales on how we can make you save some charges.
6) Q: I would like to add my company logo on your products, is this possible?
A: SURE.We customize on a regular basis products for many large retaillers and brands. If your order is at the below 10 units, we can consider this as a SAMPLE order, some fees might apply for the logo prints.Different methodes are used for logos, please ask our sales for more information on this issue, we will surely find the right solution for you!
