High Performance Stainless Steel Flanged Butterfly Valve for Industrial Applications
- Category: >>>
- Supplier: Zhangguo Industry Co. Ltd.Zhangguo Ltd.
Share on (1601296474397):
Product Overview
Description
Products Description

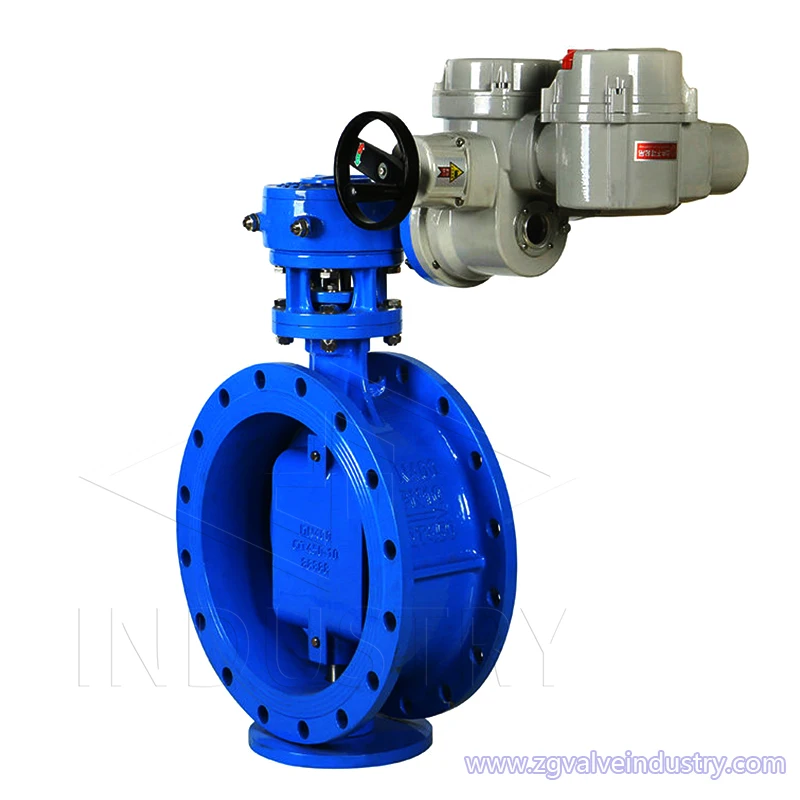

Stainless Steel Flanged Butterfly Valve
ZG flange butterfly valve (DN32-DN3200), pressure: PN6~PN25, class125/150,15 years of production experience, 100% pressure test, 10 inspection procedures,all ZG valves have passed CE pressure equipment certification.
Size Range: DN40-DN3200
Pressure: 10K/150LB/PN10/PN16
Body Materials: SS304, SS316, SS304L, SS316L
Seat Materials: EPDM, NBR, PTFE, VITON, Rubber
Disc Materials: SS304, SS316, SS304L, SS316L, Bronze, Aluminum Alloy
Stem/Shaft Materials: 45#, 410, 420, 431, 304, 304L, 316, 316L, Bronze, Monel, Hard alloy
Pin: Stainless Steel
Bushing: PTFE, Bronze
O-Ring: EPDM/NBR//Viton
Payment: T/T, D/P or L/C
Lead Time: 5-30 days
Size Range: DN40-DN3200
Pressure: 10K/150LB/PN10/PN16
Body Materials: SS304, SS316, SS304L, SS316L
Seat Materials: EPDM, NBR, PTFE, VITON, Rubber
Disc Materials: SS304, SS316, SS304L, SS316L, Bronze, Aluminum Alloy
Stem/Shaft Materials: 45#, 410, 420, 431, 304, 304L, 316, 316L, Bronze, Monel, Hard alloy
Pin: Stainless Steel
Bushing: PTFE, Bronze
O-Ring: EPDM/NBR//Viton
Payment: T/T, D/P or L/C
Lead Time: 5-30 days
Description
1. Novel design structure, small overall size and light weight.
2. Usually the torque is small, the opening and closing is quick, and the operation is light and labor-saving.
3. The butterfly plate and the sealing ring are tightly combined, which can achieve zero leakage.
4. Flange butterfly valve connection requires shorter bolts than wafer butterfly valve, which is more reliable in the application of large-diameter pipelines. Generally, flange butterfly valve or U-shaped butterfly valve is recommended for large-diameter working conditions.
Field of Application：
Operating Temperature：
NBR: 0℃~+90℃
EPDM: - 20℃~+120℃
PTFE: -10℃~+150℃
Operate:
DN32-DN250: Lever

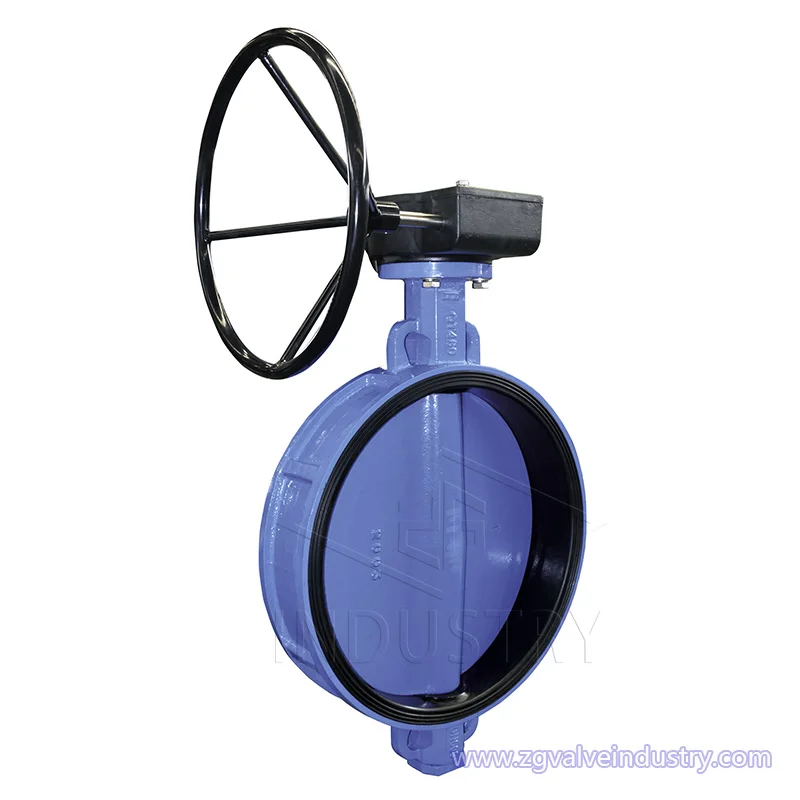

DN300-3200: Worm gear

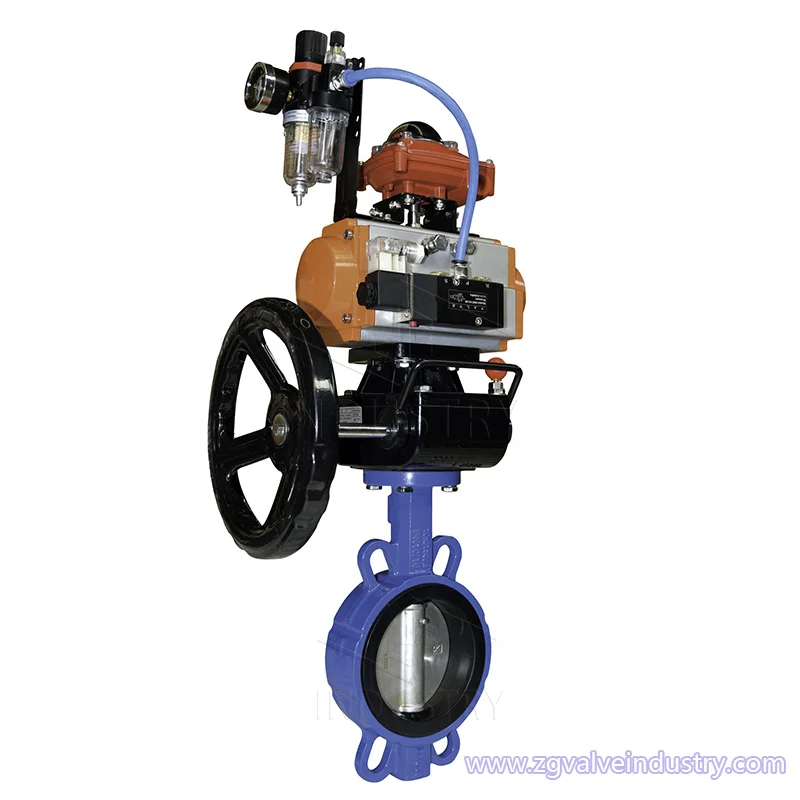

Optional operation: Lever, Worm gear, Pneumatic, Electric-Motorized
Application: Chemical processing, Desalination plants, Drinking water, Dry powder, Food and beverage, Gas plants, HAVC Mining industry, Paper industry, Sand handling, Seawater, Sugar industry, Thermo technical water treatment, Waste water, Cooling Water Circulation, Compressed Air
Technical Specification：
Design Standard:
EN 593, MSS SP67, API 609, BS5155
Face to Face dimension:
ISO 5752, EN 558, MSS SP67, API 609, DIN3202
End Standard:
ANSI B16.1 Class125LB & B16.5 Class150LB
AS 2129 Table D & E BS 10 Table D & E
DIN 2501 PN6, PN10 & PN16
EN 1092 PN6, PN10 & PN16
ISO 2531 PN6, PN10 & PN16
ISO 7005 PN6, PN10 & PN16
KS B 1511 / JIS B 2210 5K & 10K
MSS SP44 CL. 150LB AWWA C207
SABS 1123 Table 1000/3 & Table 1600/3
Top Flange: ISO5211
Test standard: API 598, ISO 5208, EN 12266
Design Features:
1. Novel design structure, small overall size and light weight.
2. Usually the torque is small, the opening and closing is quick, and the operation is light and labor-saving.
3. The butterfly plate and the sealing ring are tightly combined, which can achieve zero leakage.
4. Flange butterfly valve connection requires shorter bolts than wafer butterfly valve, which is more reliable in the application of large-diameter pipelines. Generally, flange butterfly valve or U-shaped butterfly valve is recommended for large-diameter working conditions.
Field of Application：
Operating Temperature：
NBR: 0℃~+90℃
EPDM: - 20℃~+120℃
PTFE: -10℃~+150℃
Operate:
DN32-DN250: Lever
DN300-3200: Worm gear
Optional operation: Lever, Worm gear, Pneumatic, Electric-Motorized
Application: Chemical processing, Desalination plants, Drinking water, Dry powder, Food and beverage, Gas plants, HAVC Mining industry, Paper industry, Sand handling, Seawater, Sugar industry, Thermo technical water treatment, Waste water, Cooling Water Circulation, Compressed Air
Technical Specification：
Design Standard:
EN 593, MSS SP67, API 609, BS5155
Face to Face dimension:
ISO 5752, EN 558, MSS SP67, API 609, DIN3202
End Standard:
ANSI B16.1 Class125LB & B16.5 Class150LB
AS 2129 Table D & E BS 10 Table D & E
DIN 2501 PN6, PN10 & PN16
EN 1092 PN6, PN10 & PN16
ISO 2531 PN6, PN10 & PN16
ISO 7005 PN6, PN10 & PN16
KS B 1511 / JIS B 2210 5K & 10K
MSS SP44 CL. 150LB AWWA C207
SABS 1123 Table 1000/3 & Table 1600/3
Top Flange: ISO5211
Test standard: API 598, ISO 5208, EN 12266
Material Specification | ||
Part Name | Material | |
Body | SS304, SS304L, SS316, SS316L | |
Seat | EPDM, NBR, PTFE, VITON, Rubber | |
Dsic | CF8, CF8M, CF3, CF3M, Bronze, Hard Alloy | |
Stem | 45#, 410, 420, 431, 304, 304L, 316, 316L, Bronze, Monel, Hard alloy | |

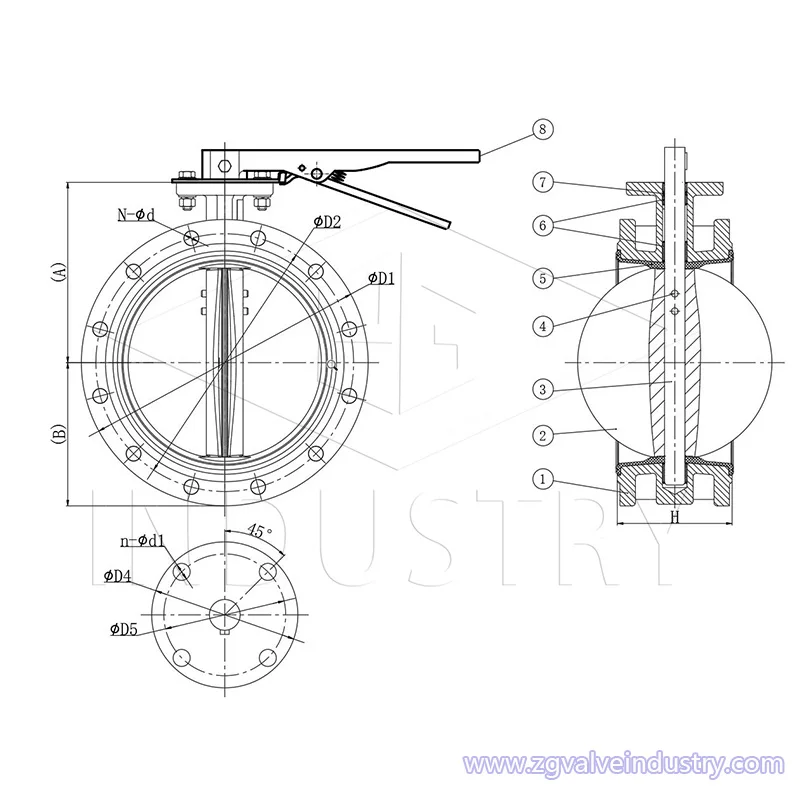

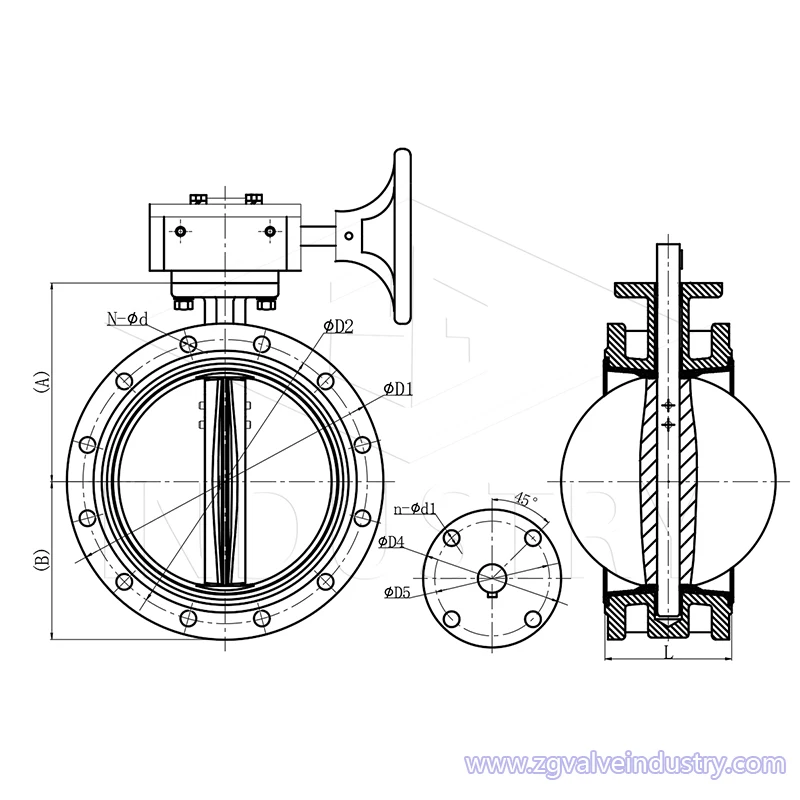

Size | L mm | C | ANSI CL150 | DIN PN10 | ||||||
DN mm | Inch | PCD | n-φd | PCD | n-φd | |||||
50 | 2" | 108 | 32 | 120.5 | 4-19 | 125 | 4-18 | |||
65 | 22/1" | 112 | 32 | 139.5 | 4-19 | 145 | 4-18 | |||
80 | 3" | 114 | 32 | 152.5 | 4-19 | 160 | 8-18 | |||
100 | 4" | 127 | 32 | 190.5 | 8-19 | 180 | 8-18 | |||
125 | 5" | 140 | 32 | 215.9 | 8-22.4 | 210 | 8-18 | |||
150 | 6" | 140 | 32 | 241.5 | 8-22.4 | 240 | 8-22 | |||
200 | 8" | 152 | 45 | 298.4 | 8-22.4 | 295 | 8-22 | |||
250 | 10" | 165 | 45 | 361.9 | 12-25.4 | 350 | 12-22 | |||
300 | 12" | 178 | 45 | 431.8 | 12-25.4 | 400 | 12-22 | |||
350 | 14" | 190 | 45 | 476.2 | 12-28.4 | 460 | 16-22 | |||
400 | 16" | 216 | 51 | 539.7 | 16-28.4 | 515 | 16-26 | |||
450 | 18" | 222 | 51 | 577.8 | 16-31.8 | 565 | 20-26 | |||
500 | 20" | 229 | 57 | 635 | 20-31.8 | 620 | 20-26 | |||
600 | 24" | 267 | 70 | 749.5 | 20-35.1 | 725 | 20-30 | |||
700 | 28" | 292 | 66 | 863.6 | 28-35.1 | 840 | 24-30 | |||
800 | 32" | 318 | 66 | 977.9 | 28-41.1 | 950 | 24-33 | |||
900 | 36" | 330 | 118 | 1085.8 | 32-41.1 | 1050 | 28-33 | |||
1000 | 40" | 410 | 142 | 1200.2 | 38-41.1 | 1160 | 28-36 | |||
1200 | 48" | 470 | 150 | 1422.5 | 44-41.1 | 1380 | 32-39 | |||
