Automatic Plastic Tube Extrusion Production Line Corrugated Pipe Making Machine PE Corrugated Pipe Single Wall Forming Machine
- Category: >>>
- Supplier: Zhengzhou Allraise Company Ltd.Zhengzhou Ltd.
Share on (1601296502878):
Product Overview
Description
Products Description
Automatic Plastic Tube Extrusion Production Line Corrugated Pipe Making Machine PE Corrugated Pipe Single Wall Forming Machine

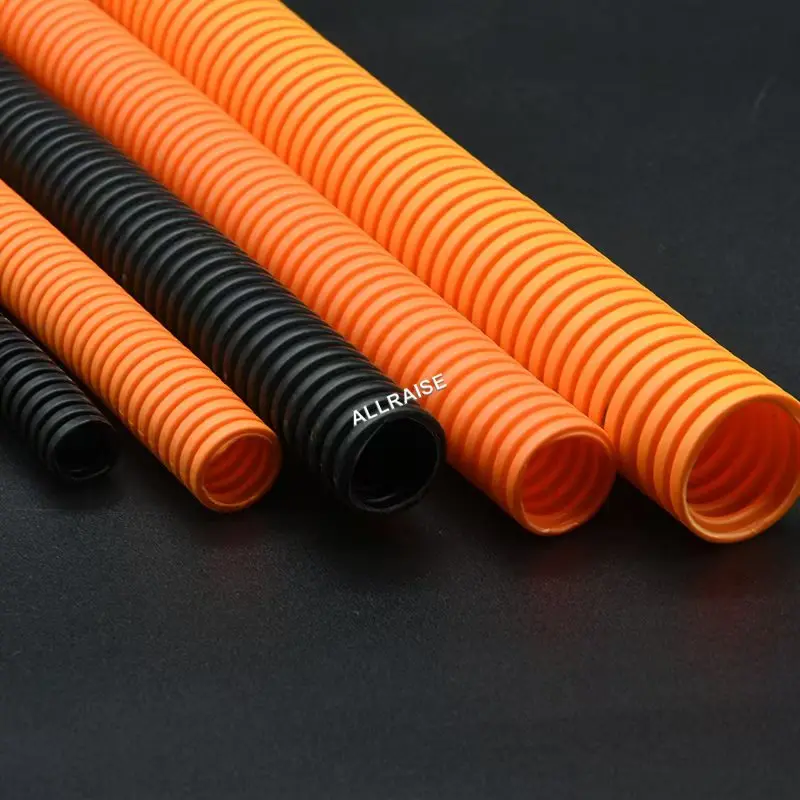

PE Corrugated Pipe Single Wall Forming Machine is suitable for the production of various plastic corrugated pipes, such as wire insulation layers, insulation materials, hoses, sealing strips, etc. It has a wide range of applications in fields such as architecture, electronics, automotive, aerospace, home appliances, agriculture, etc.The corrugated pipe extruder adopts extrusion molding technology, which melts plastic particles at high temperature, extrudes the plastic melt through the extruder, and then forms a pipe body with periodic corrugated structure through the corrugated pipe molding mold. Under the action of the reducer of the corrugated tube extruder, the traction device gradually pulls the corrugated tube out of the mold, and after cooling and shaping by the cooling device, it finally reaches the winding device.

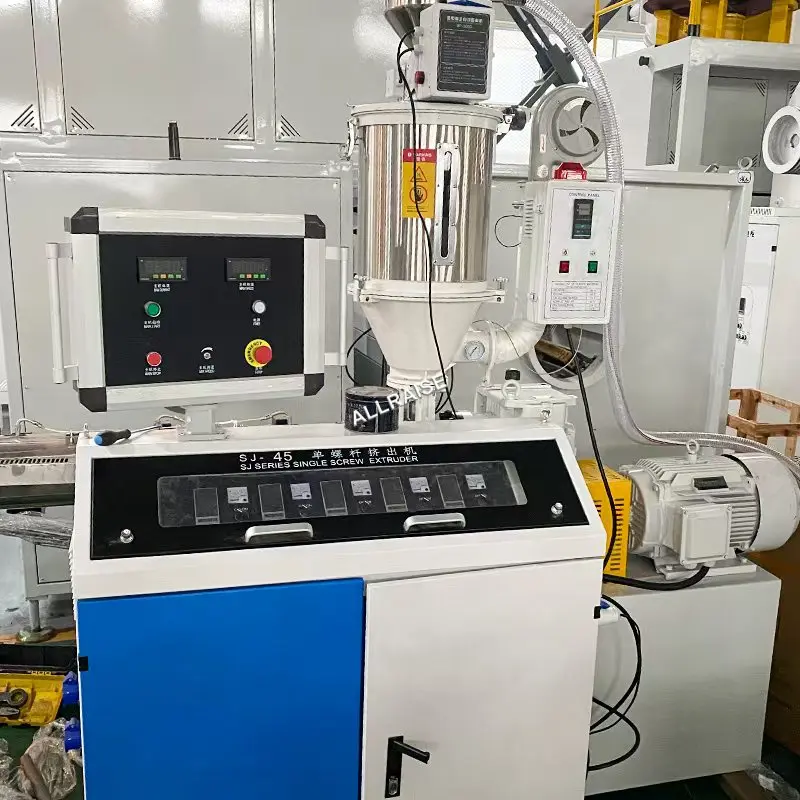

Machine Name | Single-screw extruder |
Extruder speed | 10-19r/min |
Screw diameter | Φ4.5cm |
Number of heating coils | 2.8*3KW |
Spiral cooling method | Air cooling |

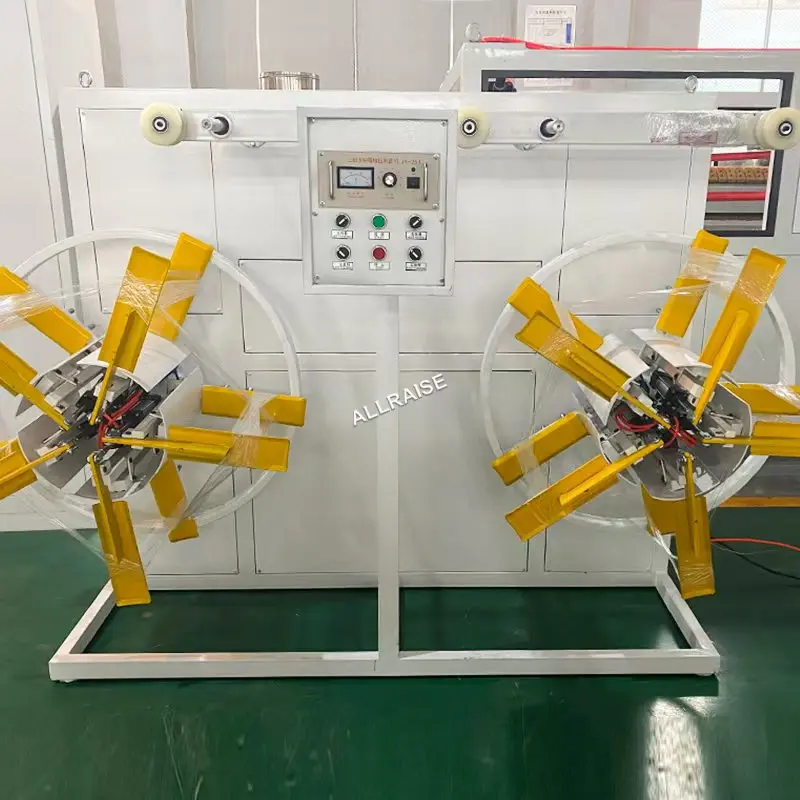

Machine Name | Double disk winding machine |
Inner diameter of winding | 25cm |
Outer diameter of winding | 65cm |
Width | 25cm (adjustable) |
Roll up PE pipe | 250m-350m per roll |
Roll up speed | 0.5-30m/min |
Air pressure | 0.6mpa |
Product Features
PE Corrugated Pipe Single Wall Forming Machine

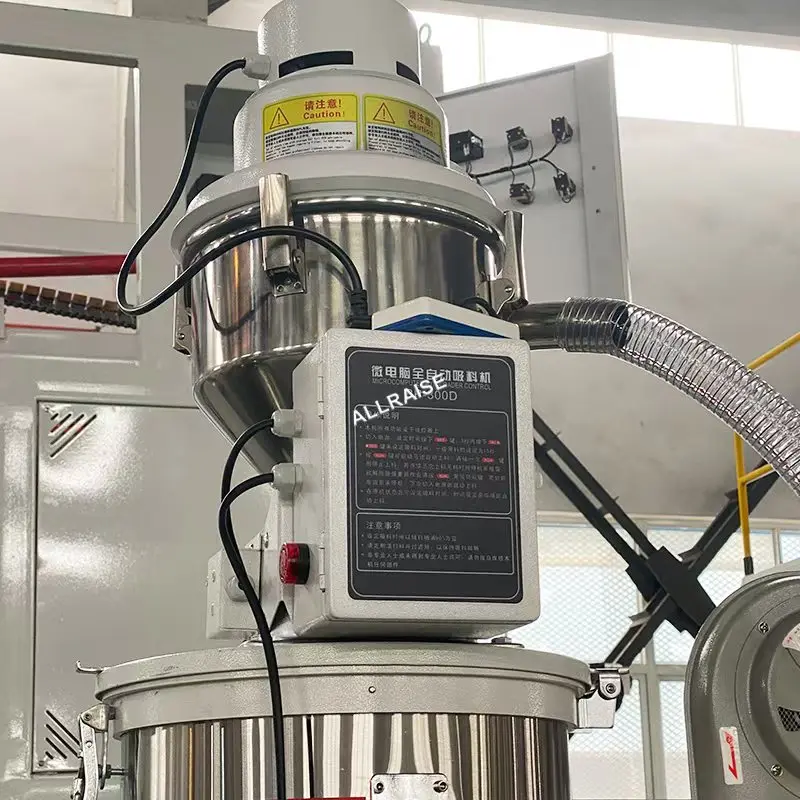

1.Equipped with a vacuum feeder, it can automatically load materials with high efficiency and save labor.The storage hopper is made of stainless steel, and the feeding amount can be adjusted as needed. The conveying capacity can reach up to 300Kg/h.
2.Mold head stainless steel heating ring, one heating zone, uniform heating.

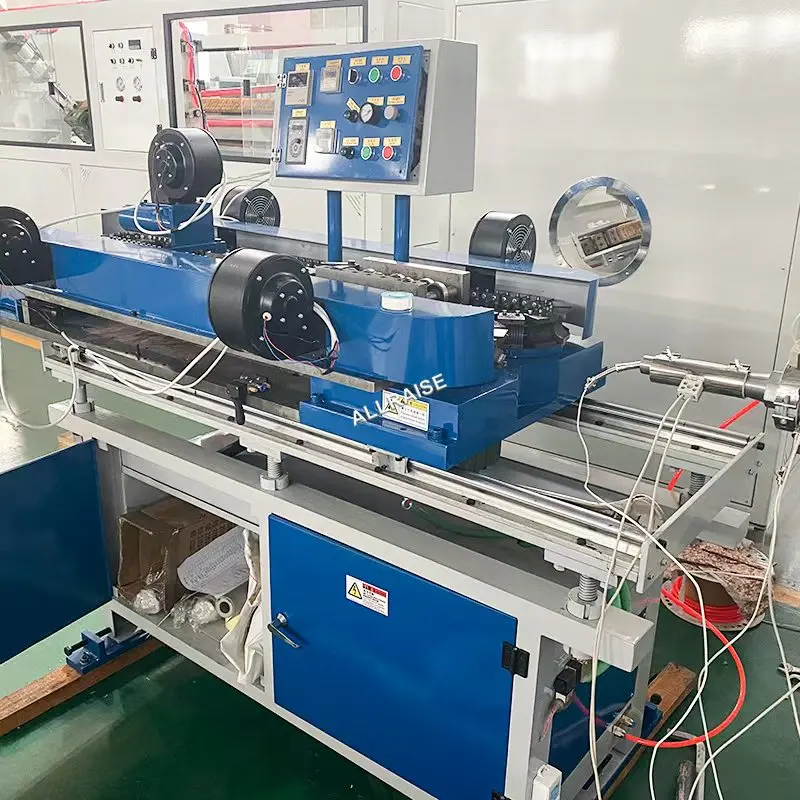

3.Water cooled molding, environmentally friendly, and highly efficient.
4.Sensor counting, sound and light alarm, accurate counting.
5.Pneumatic winding, easy to control, avoiding loose reels.
1.Equipped with a vacuum feeder, it can automatically load materials with high efficiency and save labor.The storage hopper is made of stainless steel, and the feeding amount can be adjusted as needed. The conveying capacity can reach up to 300Kg/h.
2.Mold head stainless steel heating ring, one heating zone, uniform heating.
3.Water cooled molding, environmentally friendly, and highly efficient.
4.Sensor counting, sound and light alarm, accurate counting.
5.Pneumatic winding, easy to control, avoiding loose reels.
6.Adopting a turbine reducer, it has high efficiency and low noise.

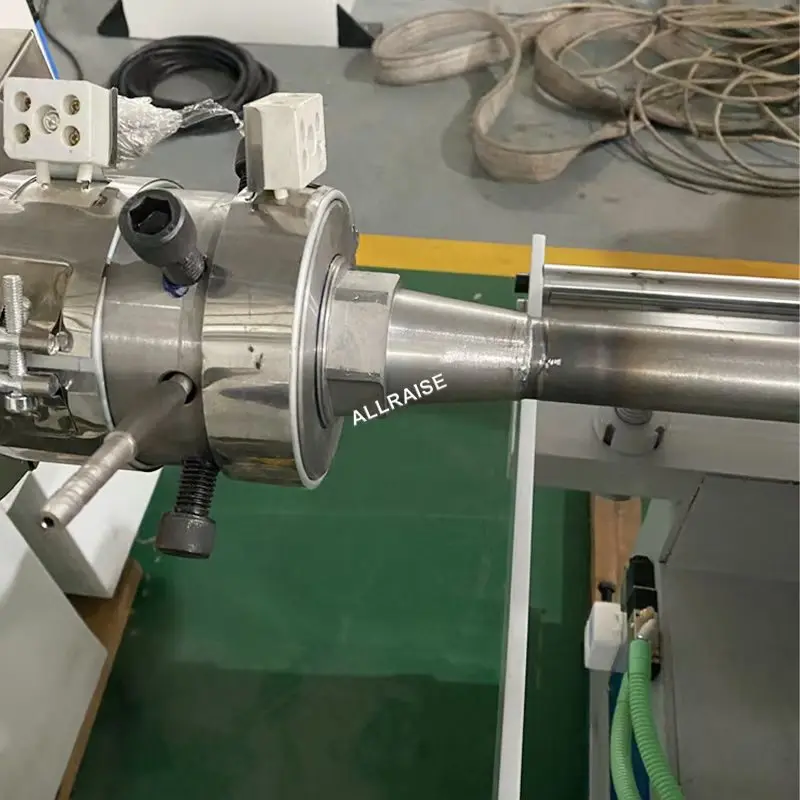

Mold head
Mold head stainless steel heating ring, one heating zone, made of 40Cr (alloy structural steel), high hardness, wear-resistant and corrosion-resistant. 42 pairs of modules in the mold, high work efficiency.
