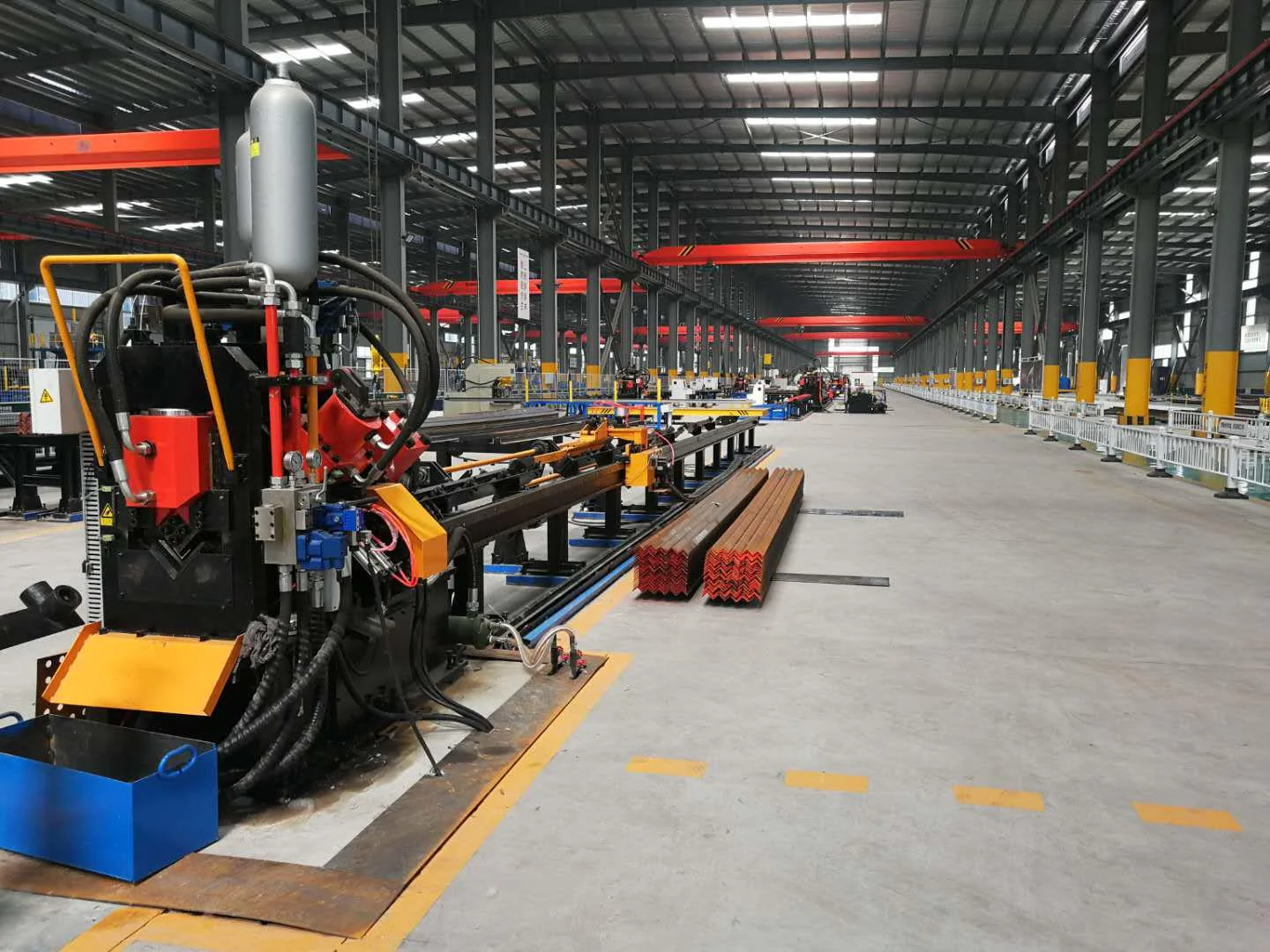

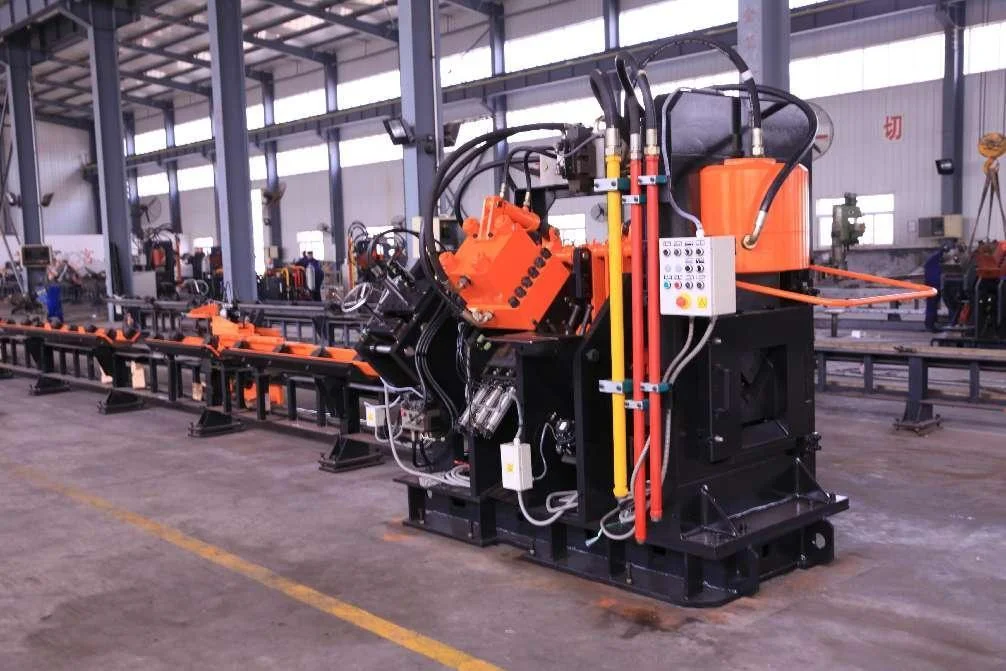

CNC Angle Steel Punching Marking & Shearing Production Line
Product Description
The Angle Steel CNC Production Line is mainly used for the Marking, Punching and Shearing
of Angle Steel in the production of iron towers in the power transmission and transformation and
communication industries and the production of metal components in the construction industry. It has
the advantages of high processing efficiency, high processing accuracy, low failure rate, wide range
of applicable products, small area, multiple functions, and easy operation. It is the first choice for
angle steel processing enterprises.
No. |
Item | Commodity |
|
| PFP-JX1616-3M |
1 |
Angle Beam Range(Mm) |
40*40*4-160*160*16 Mm |
2 |
Max Punching Diameter | Φ26x16Mm(Q235) Oblong hole Φ22*50mm(Q235), Punching of special-shaped holes and oblong holes can be achieved by changing the mold |
3 | Max Punching force(KN) | 1000KN |
4 | Punching Side | 2 Sides |
5 | Number of die per side | 3 Pcs |
6 | Marking ability(KN) | 700KN |
7 | Qty of typing groups | 4 Groups |
8 | Digit number of each group | 12 Pcs |
9 | Character size | (L*W*H)14*10*19mm |
10 | Shearing force(KN) | 2800KN (Single Blade Shearing) |
11 | Shearing method | Single Blade Cutting |
12 | CNC Axis | 3 Axis |
13 | Length of Blank Workpiece(M) | 12000mm |
14 | Max Length of Workpiece(M) | 12000mm |
| Length of finished workpiece(M) | 9000mm |
15 | Angle Beam feeding speed | Max 60m/min |
16 |
Programming Mode | Input by keyboard,RS232,CAD floppy disk input &USB interface |
17 |
Fabrication Precision | Hole diameter tolerance: 0-0.8mm |
|
| Dmax-Dmin:≤1.2mm Aperture roundness tolerance range: Dmax-Dmin: ≤1.2mm |
|
| Hole perpendicularity error: ≤0.36mm |
|
| Distance tolerance of two adjacent holes in the same group: ±0.5mm |

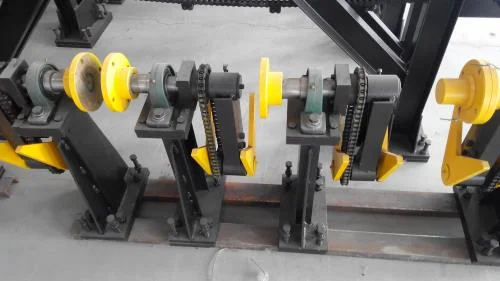

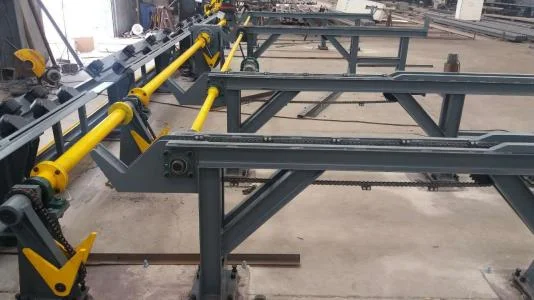

the main parts:
Packaging & Shipping
steel trary, playwood case, frame
