Controller Ruida RDC 6445G Ruida Controller For laser cutting machine laser engraving machine

Product Overview

Description

Controller Ruida  RDC 6445G Ruida Controller For laser cutting machine laser engraving machine





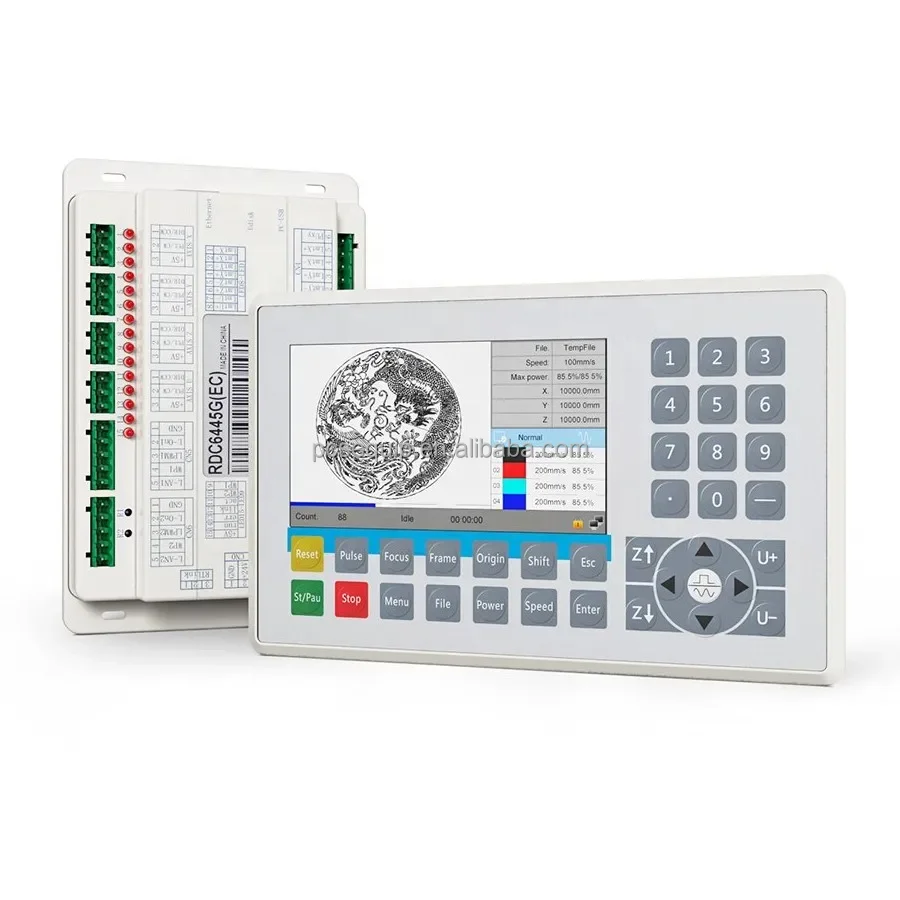

Ruida RDC6445G system is a 2019 generation system for 4-Axis control of laser engraving and cutting.

Ruida RDC6445S is New Version upgrade from RDC6445G,has combined the RDC6442G and RDC6442S function.

RDC6445 system is a new generation system for control of laser engraving and cutting, which with high hardware stability, high voltage or static electricity rejection, and friendly

5“TFT man-machine display.

This system is provided with stronger software function including perfect 4-axis motion control function, large-capacity file storage, two-channel adjustable digits laser power control interface, USB driver of stronger compatibility, multi-channel general/special IO control, and, this system can communicate with PC by USB2.0 or Ethernet, and the communication mode is automatically checked by the system.large-capacity file storage, two adjustable digital laser power control interface, stronger compatibility USB driver, multiple universal / dedicated IO control, as well as, this system can communicate with PC via USB2.0 or Ethernet, the communication method is automatically detected by the system



Feature



1.Digital laser control signals:

(1) TTL level output, 50 mA, drive capability (can set enable signal polarity in software)
(2) PWM frequency 2K-50K for adjustable
(3) PWM duty ratio is 1% ~ 99%, adjustable
(4) PWM value is up to 5.0 V

2.One-Way 24V Power Supply, >2A

3.Motor control signal: common-anode output, drive capability 20 mA. Motor control pulse frequency: Max.500KHZ

4.USB: Max. transmission rate 12M bps; The longest distance is 5 meters

5.Network: Max. transmission rate is100M; Max. transmission distance is 200M.

6.Interpolation: Linear/circular arc/B spline, accuracy + / - 0.5 pulse

7.Output: 4-channel, photoelectric isolated OC gate output, the max. drive capability 500mA drive capability (with follow-current protection)

8.Supported large format vision, mark point vision cutting and projection cutting

9. Supported double-head asynchronous processing, support cell phone APP

10. Supported Languages: English, Italian, French, Russia, Portuguese, Turkish, German, Spanish, Vietnamese, Korean, Japanese, Chinese

11.Input:4-channel, photoelectric isolated input, compatible with 5V/ 12V / 24V logic level

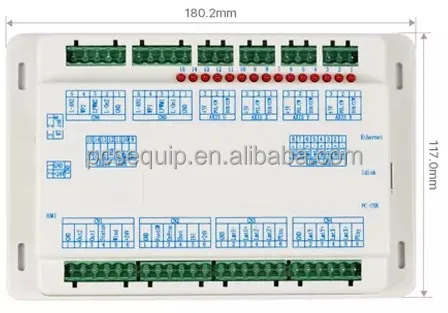

Model	RUIDA6445G
Power	DC24V,2A
Drive Capability	20 mA
Motor control pulse frequency	Max.500KHZ
Control Axes	X Y Z U axis
Input	6 roads
Output	6 roads
Laser Quantity	Double Heads which could be separated adjusted.
Laser Sources	continuous, RF, Co2 and solid laser sources
Laser Power Control	0-100%   0.1% continuously adjustable
TTL level output	50 mA, Drive Capability
PWM frequency	2K-50K for adjustable
PWM duty ratio	1% ~ 99%, adjustable
PWM value	Up to 5.0 V
Precision	±0.01mm
Support Format	DST PLT BMP DXF DWG HGP SPL AI, ETC.
Support Software	LaserCut6.1/RDWorksV8/AutoCAD/CorelDraw and Al plug-in
Support Language	English, Italiano, French, Russia, Portuguese, Turkrish, German, Spanish, Vietnamese, Korean, Japanese, Chinese
Packing Size	250x150x150mm (9.84in x 5.91in x 5.91in)
Weight	1.81Kg(3.97lb.)

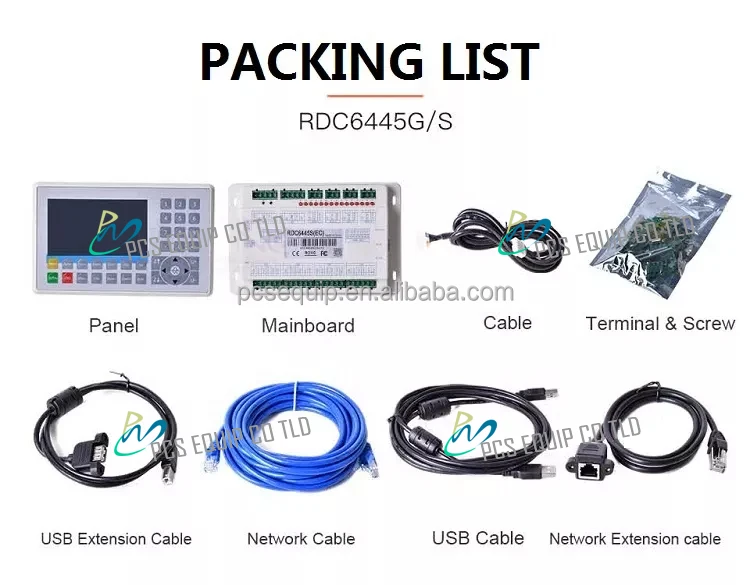

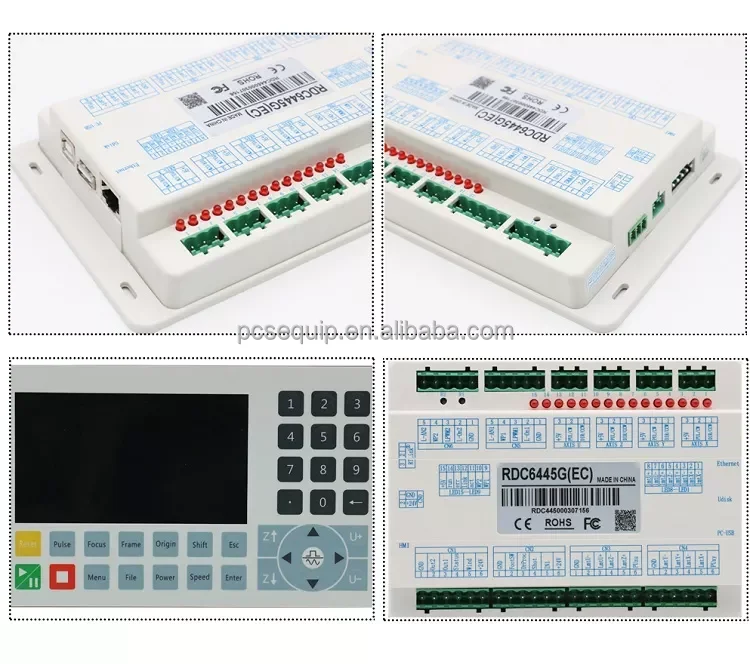

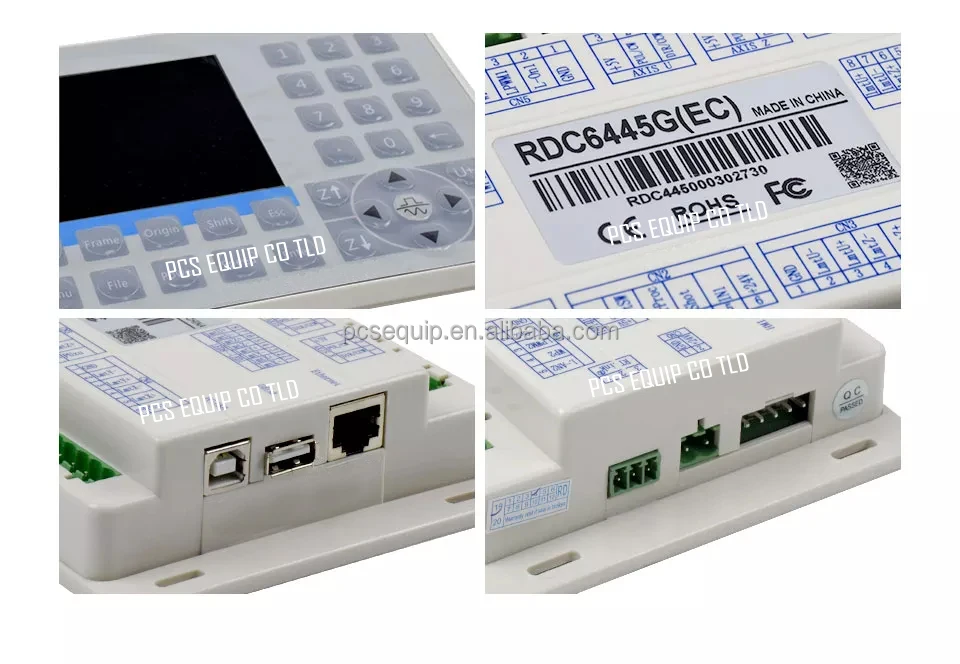

Package list	1pcs 6445G/S Mainboard, 1pcs 6445G/S Panel, 1pcs HMI Cable, 1pcs U-Disc Cable I, 1pcs U-Disc Cable II, Adapter & Screws, 1pcs Network Cable II, 1pcs Network Cable I ,1pcs USB Cable

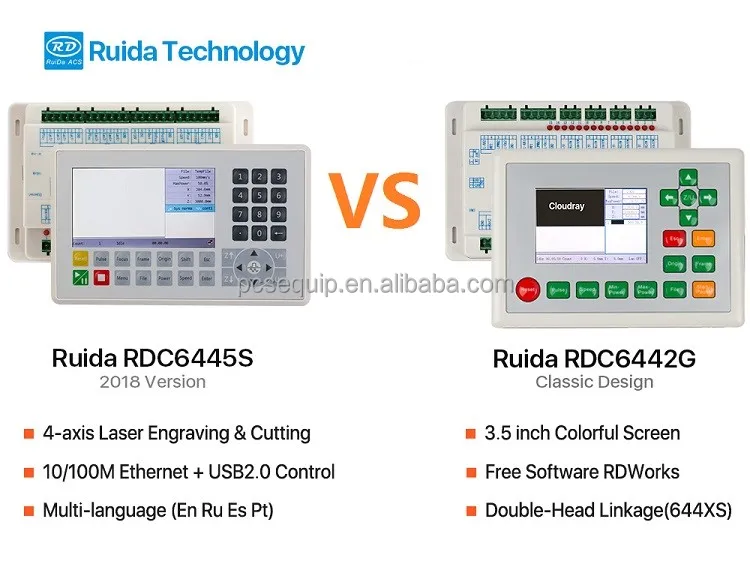

Ruida RDC6445S Controller vs RDC6442G Controller

The 6442 is a drop in replacement for the Top Wisdom. The 6445 has a larger display. You will at least have to widen the mount hole by around 50mm.

Ruida RDC6445S

5inch Screen

4-axis Laser Engraving & Cutting

10/100M Ethernet USB2.0 Control

Multi-language (support extra Japanese language)

Ruida RDC6442G

* 3.5inch Colorful Screen
* Double-Head Linkage(644XS)

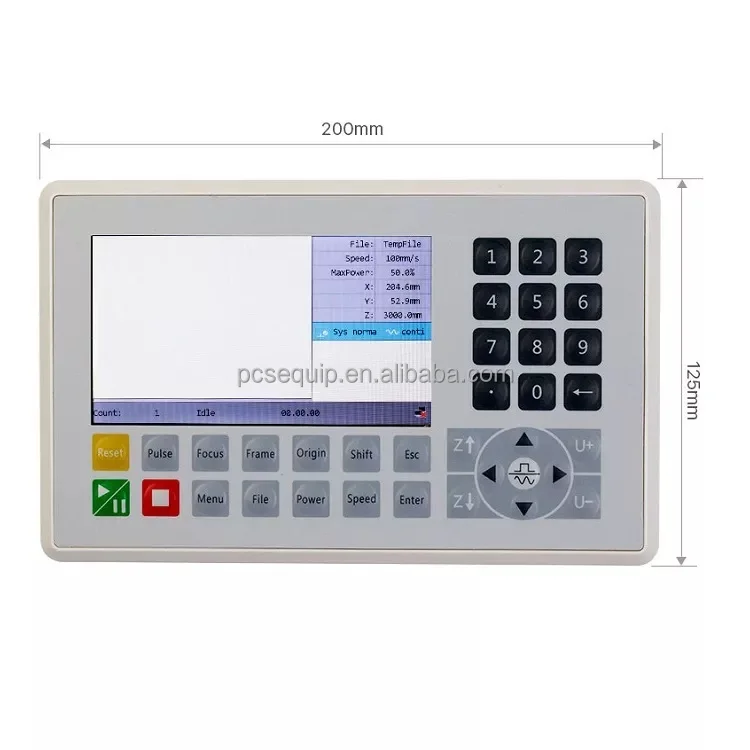

Advantage:

1, With 0-9 full number keys, users can set parameters and vendor parameters from the panel.
2, Add “Z+”/”Z-” and “U+” “U-” key, users can easy press keys to up down the lift worktable and auto feed front back material.
3, Add “Focus” key, users can easy auto focus when change different thickness material, no need use ruler to find focus length.
5, Add manual and continuous switch keys to make it easy for users to precise position.
6, It can stop when framing and feeding.
7, Te motion algorithm has been optimized, the processing efficiency is higher and the processing effect is better.
8, It can diagnose IO ports to make it easy for users debug machines, and check IO accessories.



-

- This controller adopts enhanced motion control algorithm, the machining speed and efficiency of which are unmatched at rivals.

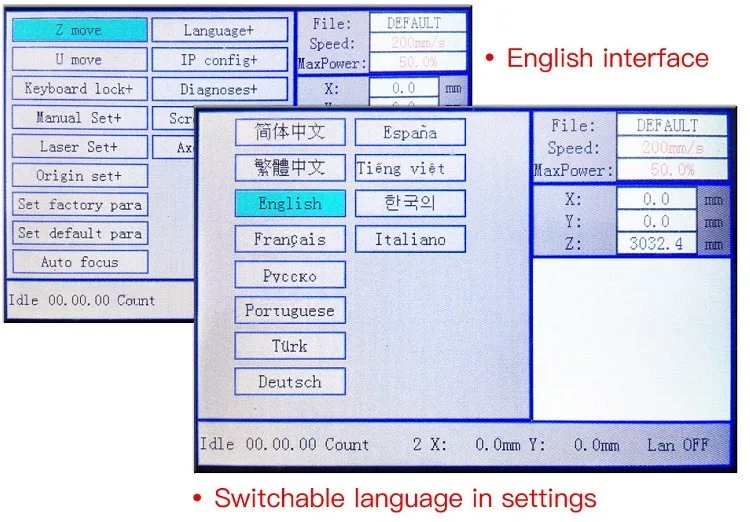

Multiple Languages Setting

- Languages options: Chinese, Traditional Chinese, English, French, Russian, Portuguese, Turkish, German, Spain,Vietnamese,Korean, Italian.

- By default, the controller only has Chinese and English languages.





Digital Laser Control Signals:

Input:4-channel, photoelectric isolated input, compatible with 5V/ 12V / 24V logic level - Input:4-channel, photoelectric isolated input, compatible with 5V/ 12V / 24V logic level
