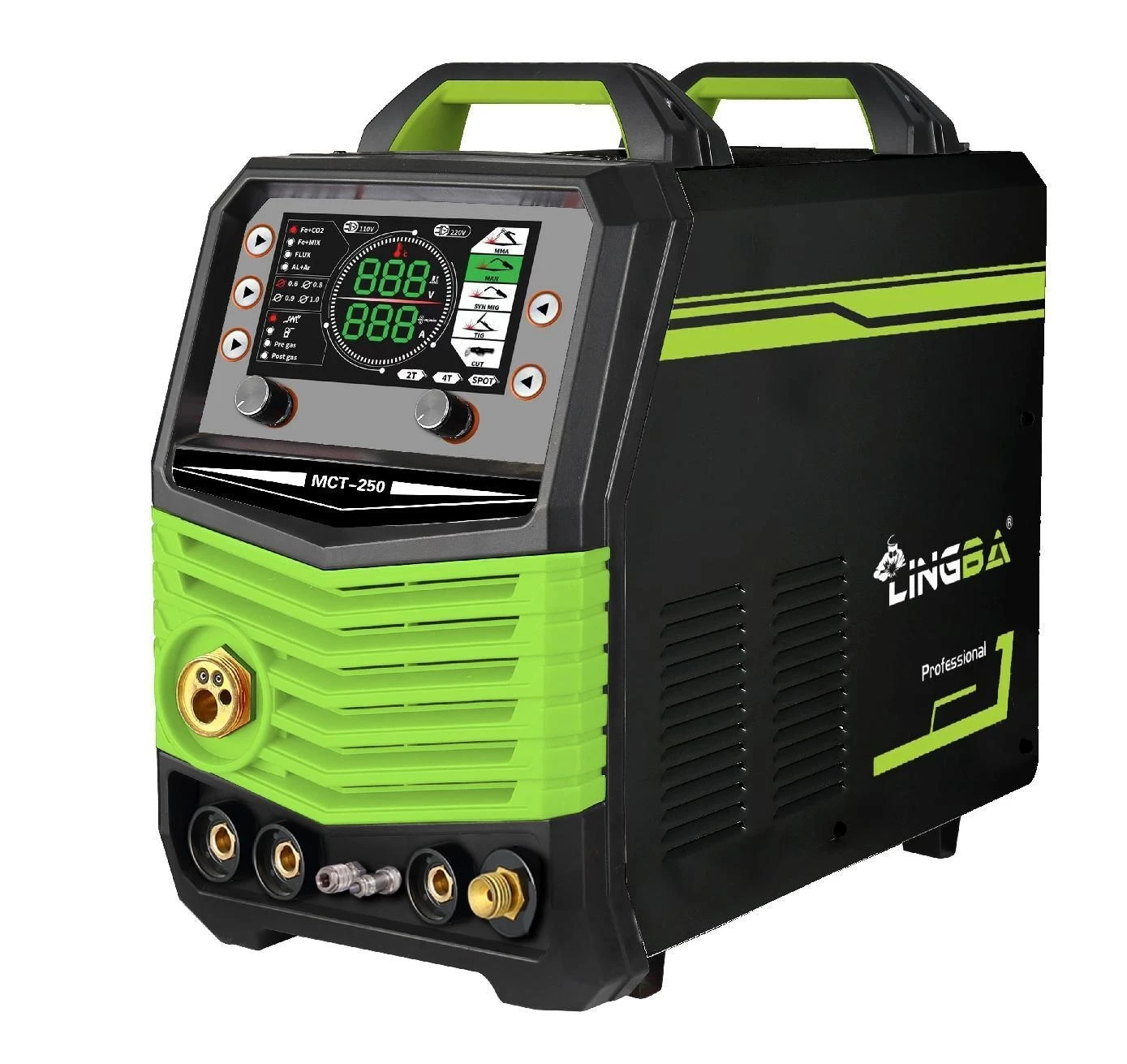

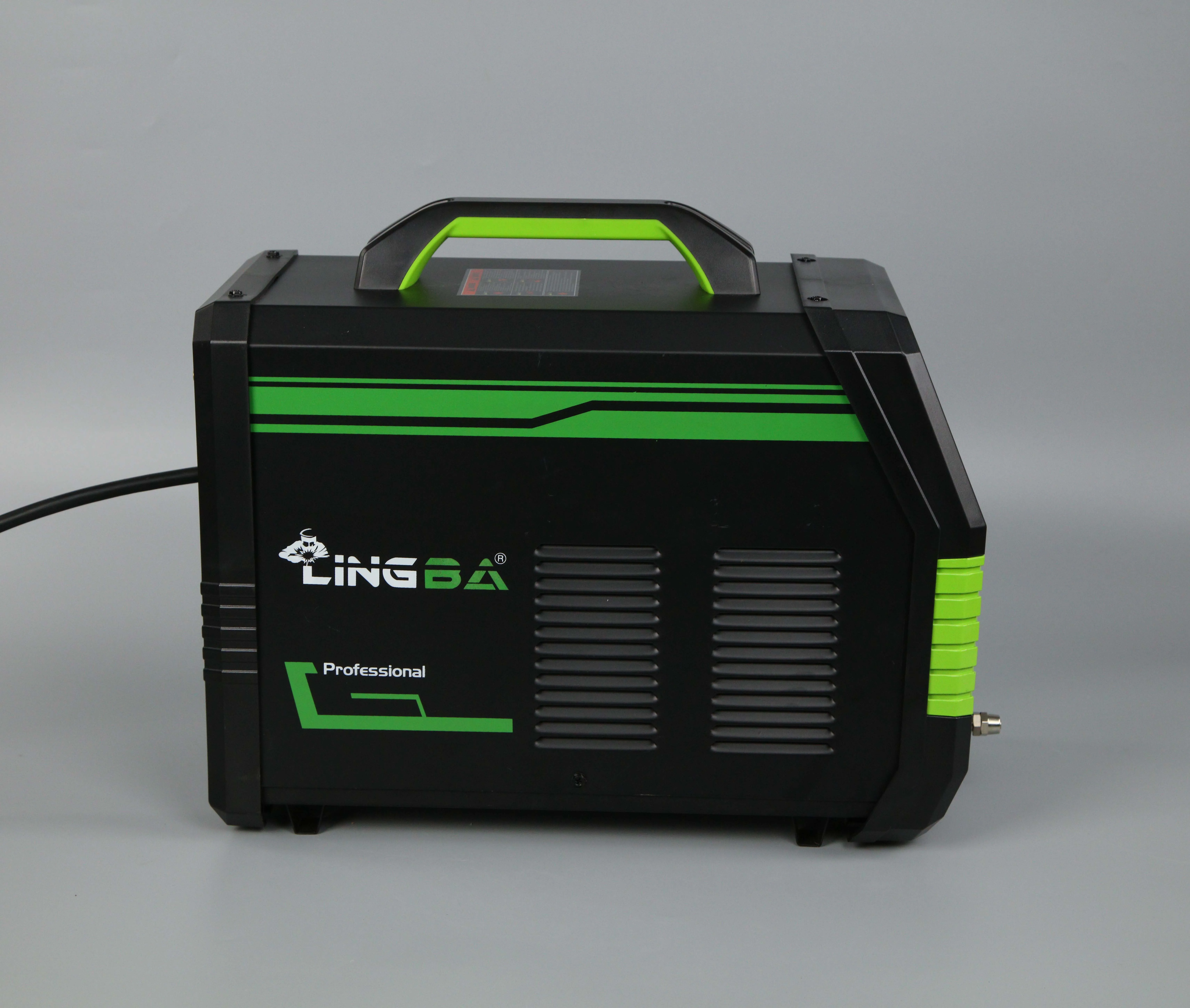

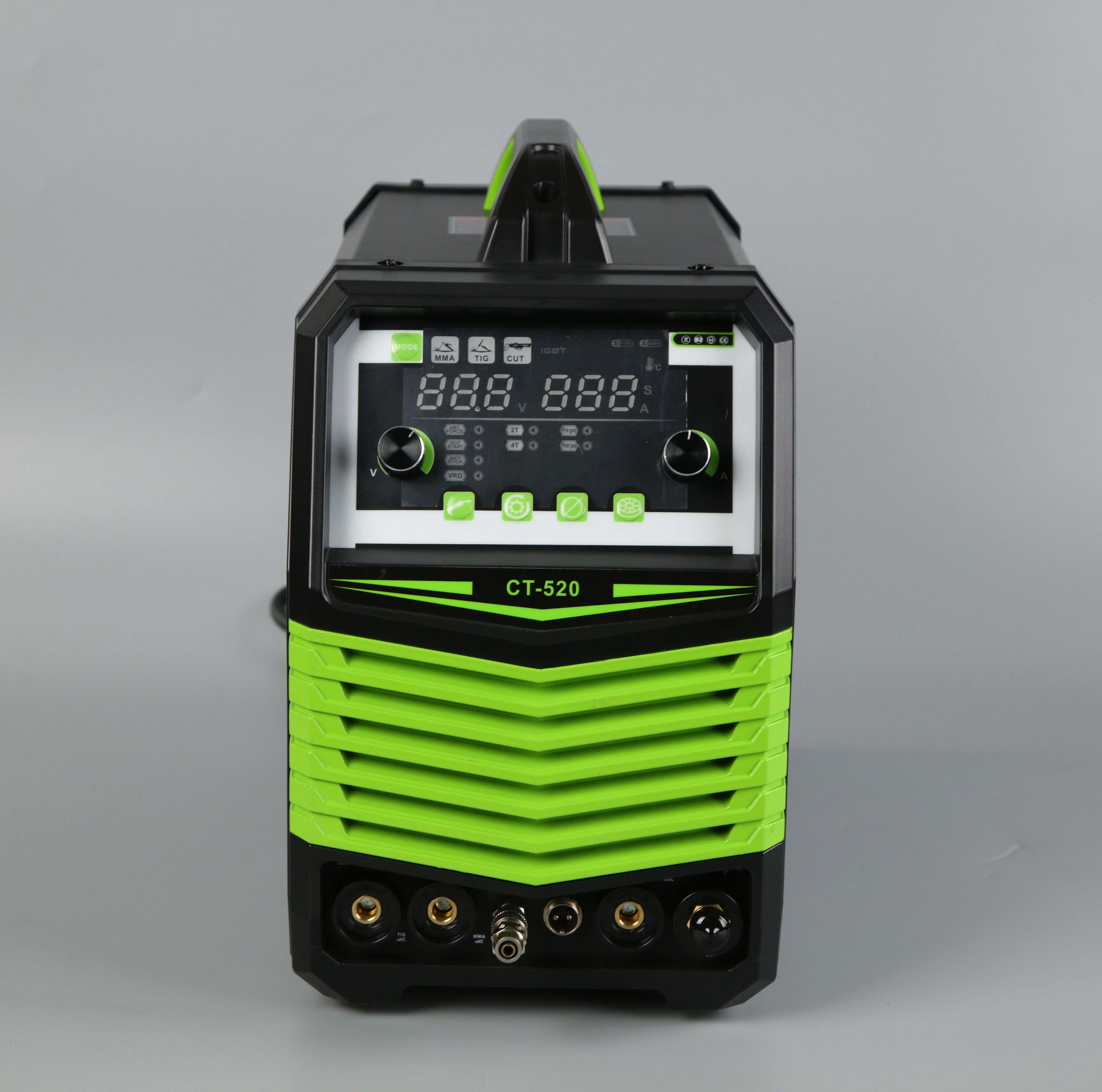

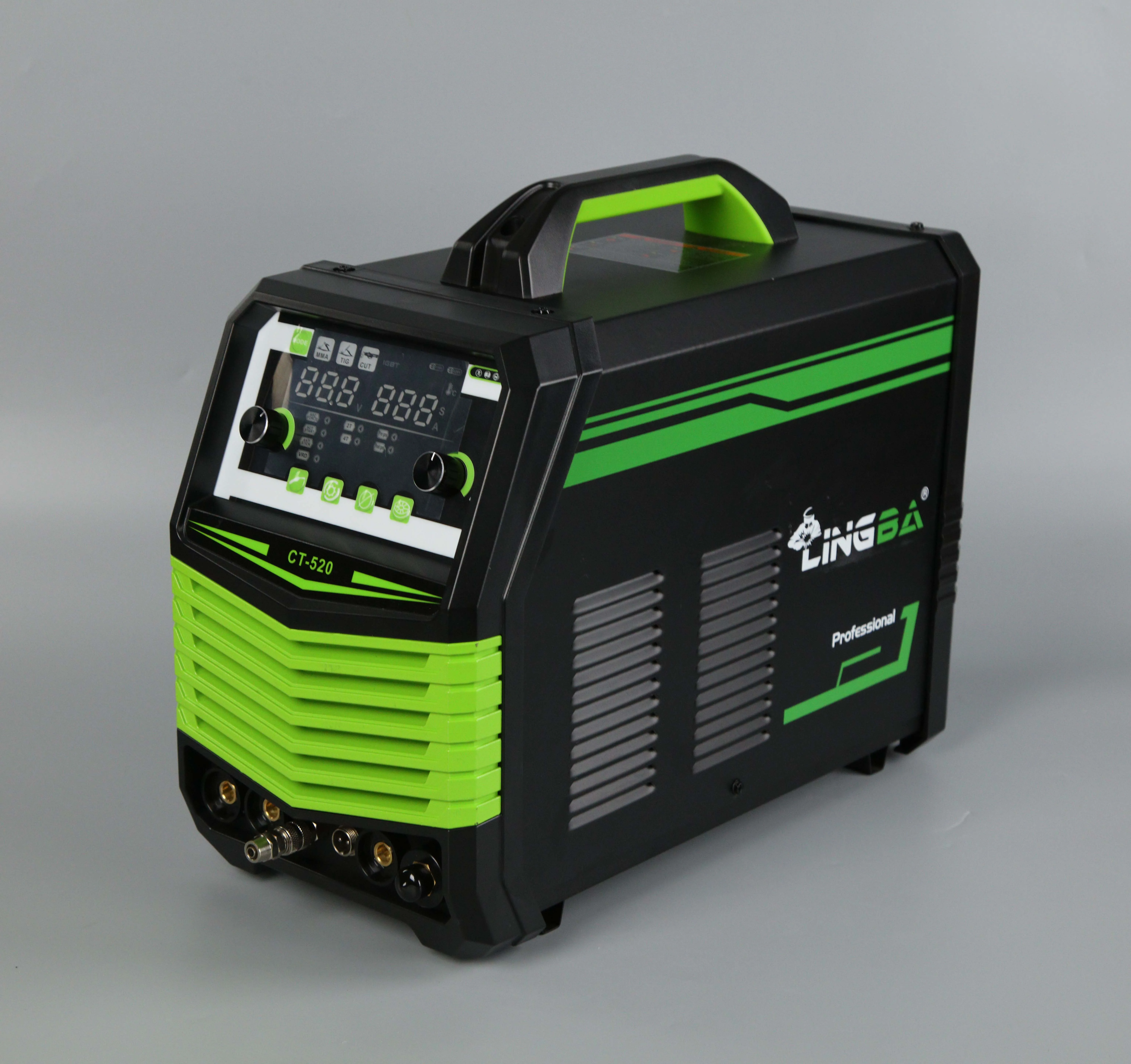

High Quality Multi Arc Welders 5 In 1 Welding Machine MIG TIG MAG MMA CUT Plasma Cutter No Gas Flux Welder
- Category: >>>
- Supplier: Zhejiang Lingba Welding Equipment Co LtdZhejiang Ltd
Share on (1601296797365):
Product Overview
Description
6 in 1 Function IGBT, 5kg
| Model | MIG/MMA/HFTIG/CUT-200 | MIG/MMA/HFTIG/CUT-250 | MIG/MMA/HFTIG/CUT-300 |
| Type | 6 in 1 Function IGBT , 5KG | 6 in 1 Function IGBT, 5kg | 6 in 1 Function IGBT 5kg |
| Voltage | Single phase: 110/220V | Single phase: 110/220V | Single phase: 110/220V |
| Rated Input Power Capacity(KVA) | 6.5kw | 7.5KW | 8.5kw |
| Input Frequency(Hz) | 50/60hz | 50/60hz | 50/60hz |
| Non-load Voltage(V) | 68V | 68v | 68v |
| Output current range(A) | 50-200A | 50-250A | 50-300 |
| Rated Duty Cycle(%) | 60% | 60% | 60% |
| Efficiency(%) | 85% | 85% | 85% |
| Class of Insulation | F | F | F |
| Protection class of case | IP21 | IP21 | IP21 |
| MIG Flux Wire diameter(mm) | 0.8~1.2mm | 0.8-1.2mm | 0.8-1.2mm |
| MIG Solid wire diameter(mm) | 0.8~0.9mm | 0.8-1.2mm | 0.8-1.2mm |
| MMA Electrode | 1.6~4.0mm | 1.6-4.0mm | 1.6-5.0mm |
| Wire weight per Roll(kg) | 5kg or less 5kg | 5kg or less 5kg | 5kg or less 5kg |
| Quick joint Size(mm) | 35-50mm | 35-50mm | 35-50 |
| Input power cable(m) | 1.8m | 1.8m | 1.8m |
| N.W./G.W.(kg) | 11kg/13kg | 11.5/15kg | 12/17kg |
| Machine Size(LxWxH mm) | 475*220*390mm | 475*220*390mm | 475*220*390mm |
| Accessories | 1.8M 20mm2 300A holder | 1.8M 20mm2 300A holder | 1.8M 25mm2 300A holder |
| 1.2M 20mm2 300A clamp | 1.2M 20mm2 300A clamp | 1.2M 25mm2 300A clamp | |
| 3m 15AK Torch | 3m 15AK Torch | 3m 24AK Torch | |
| Brush, Mask, Manual | Brush, Mask, Manual | Brush, Mask, Manual | |
| 4m PT31 CUT GUN | 4m PT31 CUT GUN | 4m PT31 CUT GUN | |
| 4m WP17V Torch | 4m WP17V Torch | 4m WP26V Torch |
