Best Price X Ray Machine Use Flat Panel Detector Hospitable Use DR Machine With Human Software
- Category: >>>
- Supplier: Sunny Medical Equipment LimitedSunny Limited
Share on (1601296829670):
Product Overview
Description
SunnyMed-Top Professional Medical Equipment Supplier
Best Price X Ray Machine Use Flat Panel Detector Hospitable Use DR Machine With Human Software
Electricals and Interface:
* A/D Conversion: 16 bits
* Data Interface: Gigabit Ethernet/802.11ac (only 5G)
Acquisition Time:
* Wired: 1 second
* Wireless: 3 seconds
Exposure Control:
* Software/Sync/AED
Memory:
* 4 GB DDR4
* 8 GB SD card
Wireless Transmission Distance:
* Standard: 50 meters
* Optional: 500 meters
Mechanical:
* Dimensions: 384 × 456 × 15 mm
* Weight: 3.4 kg (without battery)
* Material: Aluminum and magnesium alloys
* Front Panel: Carbon fiber
Environmental:
* Operating Temperature: 10-35°C
* Storage Temperature: -10 to 50°C
* Humidity: 30-70% RH (non-condensing)
* Ingress Protection: IP51 (Customizable to IP67)
General Features:

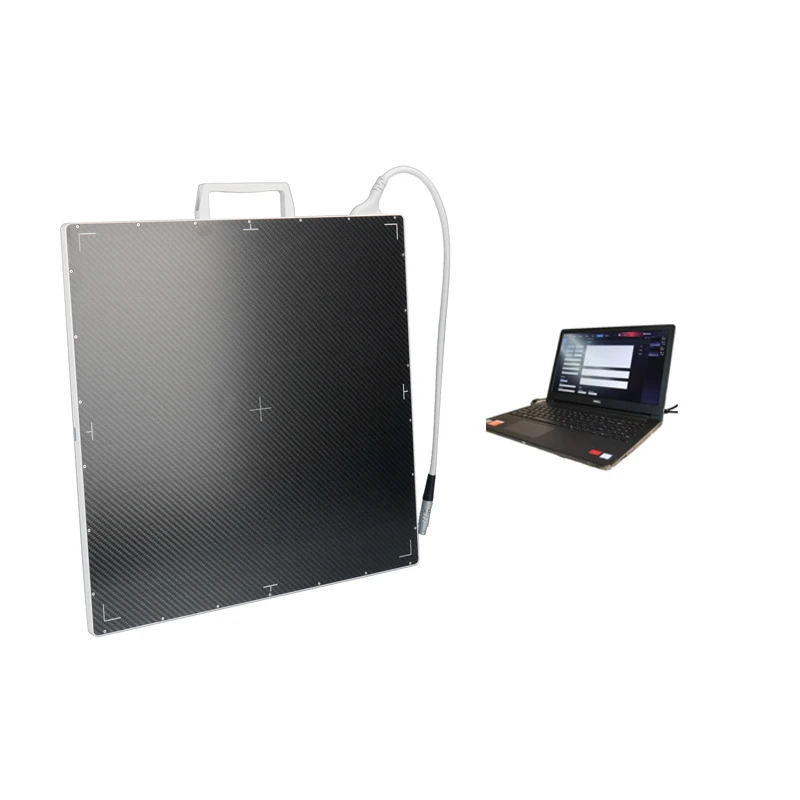

* The 3543WA-AG is a lightweight wireless detector based on amorphous silicon (a-Si), suitable for DR and Non-destructive
testing.
Sensor:
* Receptor Type: a-Si
* Scintillator: Gd2O2S:Tb (Gos) / CsI:Tl (CsI:TI)
* Active Area: 350 x 430 mm
* Resolution: 2560 x 3072
* Pixel Pitch: 139 μm
Power Supply & Battery:
* Adapter Input: AC 100-240V, 50-60Hz
* Adapter Output: DC 24V, 2.7A
* Power Dissipation: <20 W
* Standby Time: 6.5 hours
* Recharge Time: 4.5 hours
Image Quality:
* Limiting Resolution: 3.5 LP/mm
* Energy Range: 40-160 KV
* Dynamic Range: ≥84 dB
* Sensitivity: ≥0.54 LSB/nGy
* Ghosting: <1% 1st frame
* Detective Quantum Efficiency (DQE): 42% @(1 LP/mm), 28% @(2 LP/mm)
* Modulation Transfer Function (MTF): 68% @(1 LP/mm), 38% @(2 LP/mm), 20% @(3 LP/mm)
* A/D Conversion: 16 bits
* Data Interface: Gigabit Ethernet/802.11ac (only 5G)
Acquisition Time:
* Wired: 1 second
* Wireless: 3 seconds
Exposure Control:
* Software/Sync/AED
Memory:
* 4 GB DDR4
* 8 GB SD card
Wireless Transmission Distance:
* Standard: 50 meters
* Optional: 500 meters
Mechanical:
* Dimensions: 384 × 456 × 15 mm
* Weight: 3.4 kg (without battery)
* Material: Aluminum and magnesium alloys
* Front Panel: Carbon fiber
Environmental:
* Operating Temperature: 10-35°C
* Storage Temperature: -10 to 50°C
* Humidity: 30-70% RH (non-condensing)
* Ingress Protection: IP51 (Customizable to IP67)
General Features:
* The 3543WA-AG is a lightweight wireless detector based on amorphous silicon (a-Si), suitable for DR and Non-destructive
testing.
Sensor:
* Receptor Type: a-Si
* Scintillator: Gd2O2S:Tb (Gos) / CsI:Tl (CsI:TI)
* Active Area: 350 x 430 mm
* Resolution: 2560 x 3072
* Pixel Pitch: 139 μm
Power Supply & Battery:
* Adapter Input: AC 100-240V, 50-60Hz
* Adapter Output: DC 24V, 2.7A
* Power Dissipation: <20 W
* Standby Time: 6.5 hours
* Recharge Time: 4.5 hours
Image Quality:
* Limiting Resolution: 3.5 LP/mm
* Energy Range: 40-160 KV
* Dynamic Range: ≥84 dB
* Sensitivity: ≥0.54 LSB/nGy
* Ghosting: <1% 1st frame
* Detective Quantum Efficiency (DQE): 42% @(1 LP/mm), 28% @(2 LP/mm)
* Modulation Transfer Function (MTF): 68% @(1 LP/mm), 38% @(2 LP/mm), 20% @(3 LP/mm)

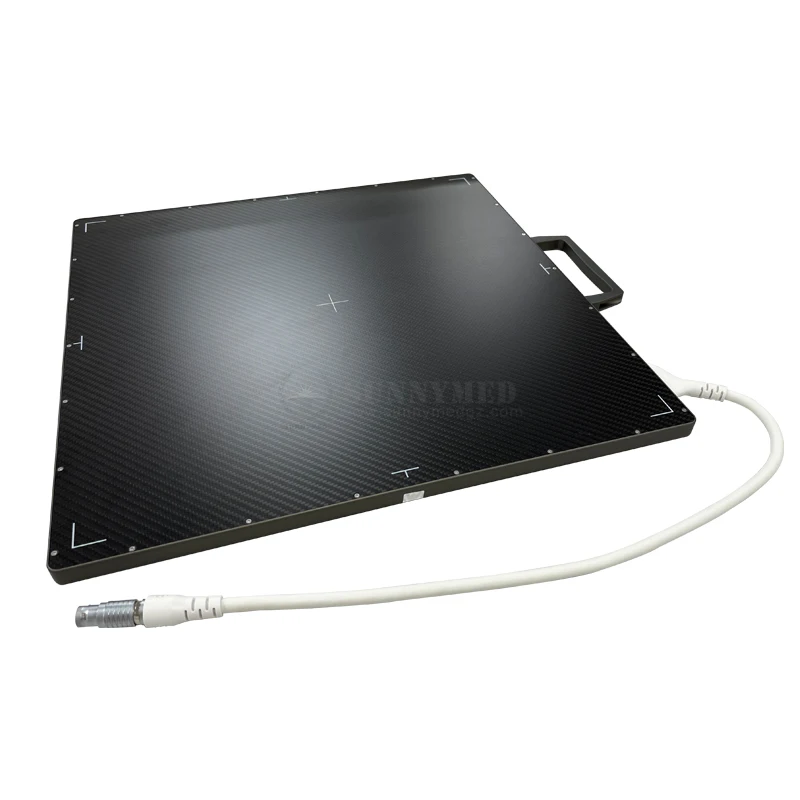

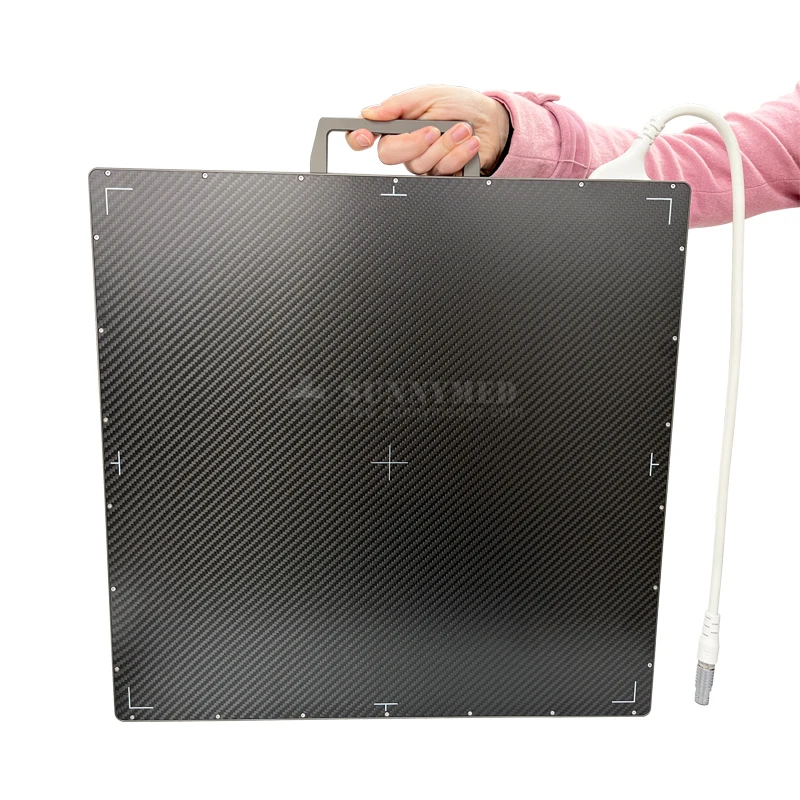

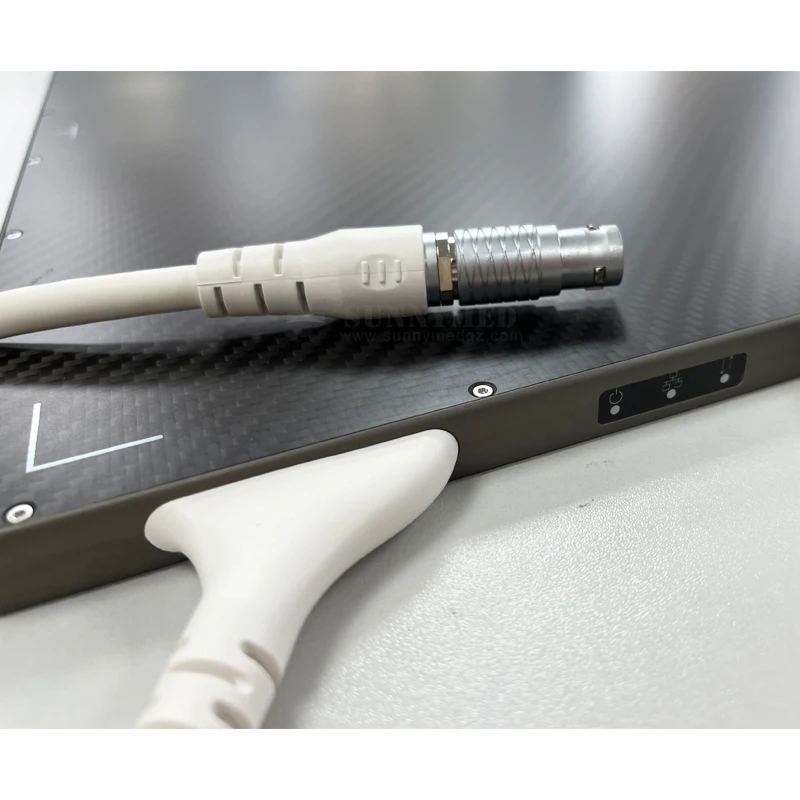

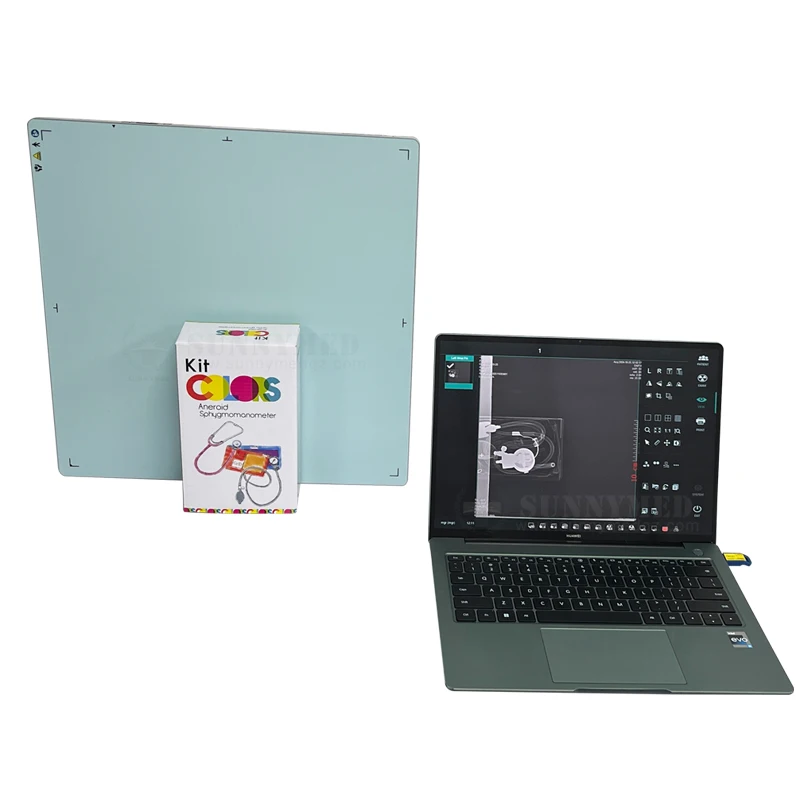

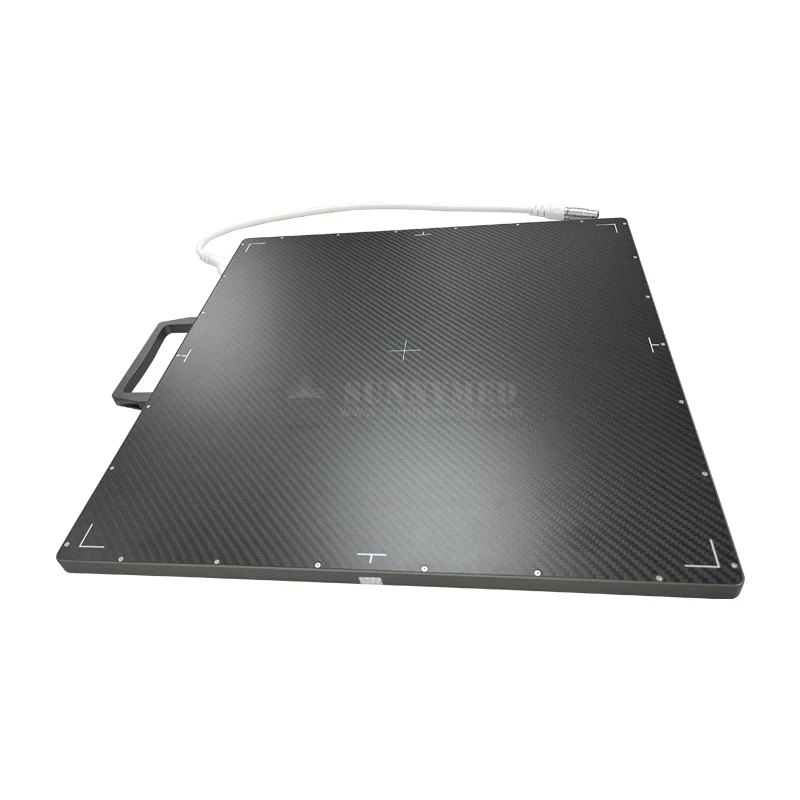

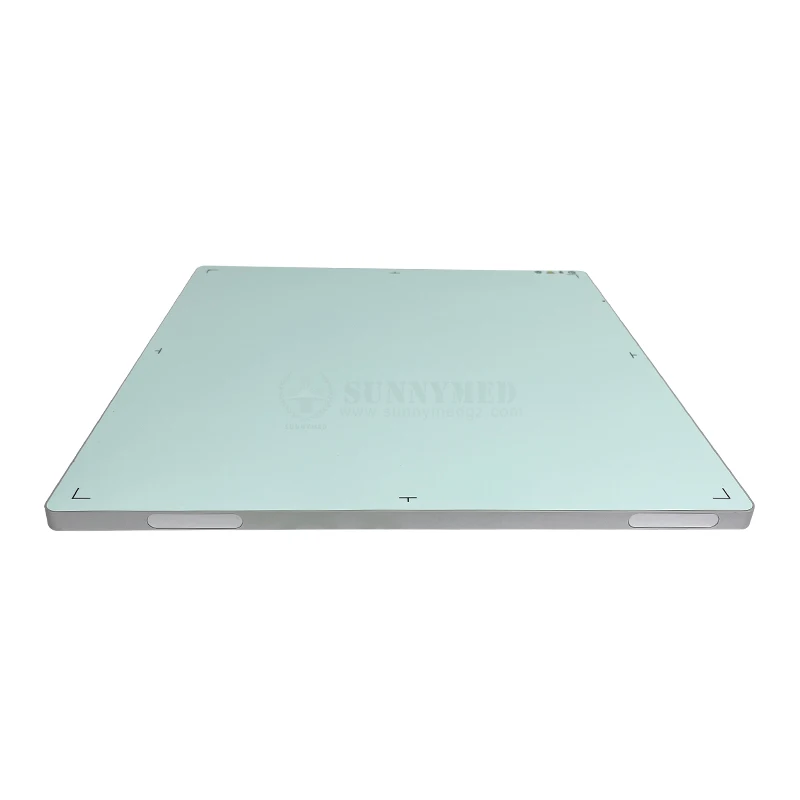

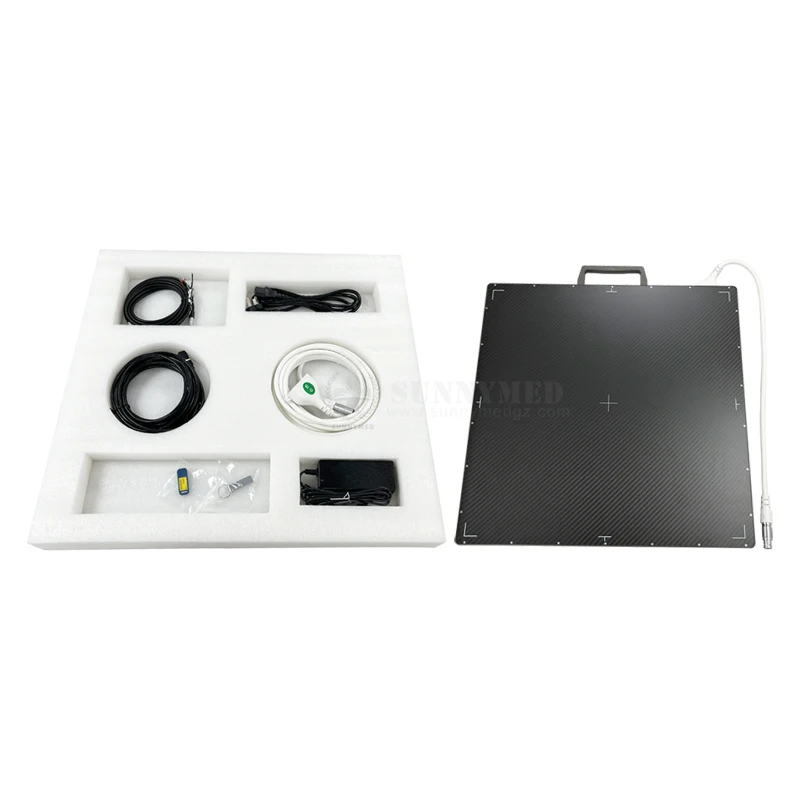

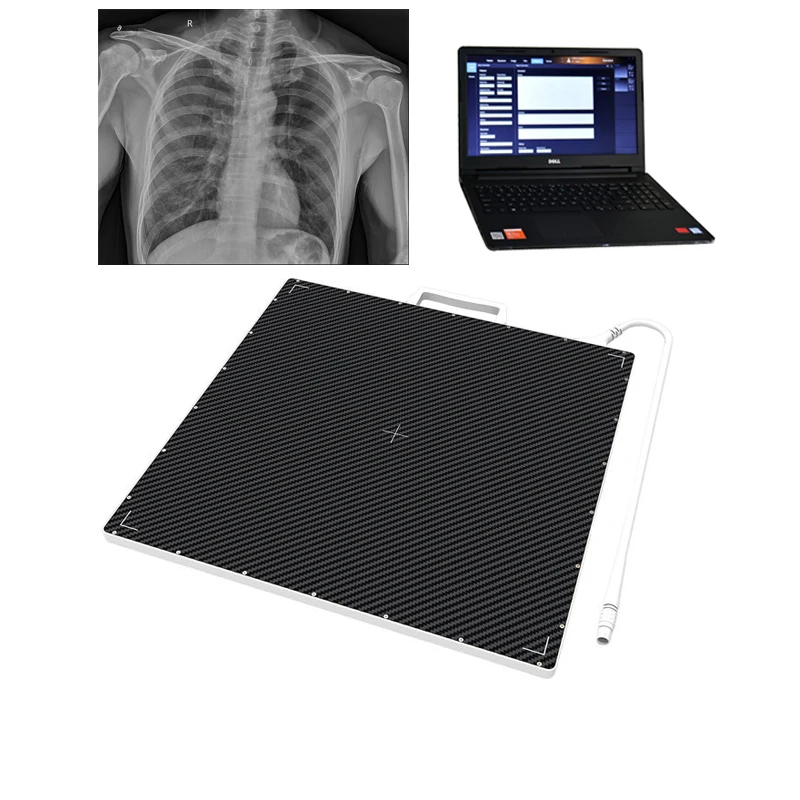

Detail Photos
Product Parameters
Specification Category | Details |
Electricals and Interface | 16 bits A/D Conversion, Gigabit Ethernet/802.11ac (only 5G) |
Acquisition Time | Wired: 1s, Wireless: 3s |
Exposure Control | Software/Sync/AED |
Memory | 4 GB DDR4, 8 GB SD card |
Wireless Transmission Distance | Standard: 50m, Optional: 500m |
Mechanical | Dimensions: 384 × 456 × 15 mm, Weight: 3.4 kg (without battery), Material: Aluminum and magnesium alloys, Front Panel: Carbon fiber |
Environmental | Operating Temperature: 10-35°C, Storage Temperature: -10 to 50°C, Humidity: 30-70% RH (non-condensing), Ingress Protection: IP51 (Customizable to IP67) |
General Features | Lightweight wireless detector based on amorphous silicon (a-Si), suitable for DR and Non-destructive testing |
Sensor | Receptor Type: a-Si, Scintillator: Gd2O2S:Tb (Gos) / CsI:Tl (CsI:TI), Active Area: 350 x 430 mm, Resolution: 2560 x 3072, Pixel Pitch: 139 μm |
Power Supply & Battery | Adapter Input: AC 100-240V, 50-60Hz, Adapter Output: DC 24V, 2.7A, Power Dissipation: <20 W, Standby Time: 6.5 hours, Recharge Time: 4.5 hours |
Image Quality | Limiting Resolution: 3.5 LP/mm, Energy Range: 40-160 KV, Dynamic Range: ≥84 dB, Sensitivity: ≥0.54 LSB/nGy, Ghosting: <1% 1st frame, Detective Quantum Efficiency (DQE): 42% @(1 LP/mm), 28% @(2 LP/mm), Modulation Transfer Function (MTF): 68% @(1 LP/mm), 38% @(2 LP/mm), 20% @(3 LP/mm) |
