Product Overview
Description
Products Description

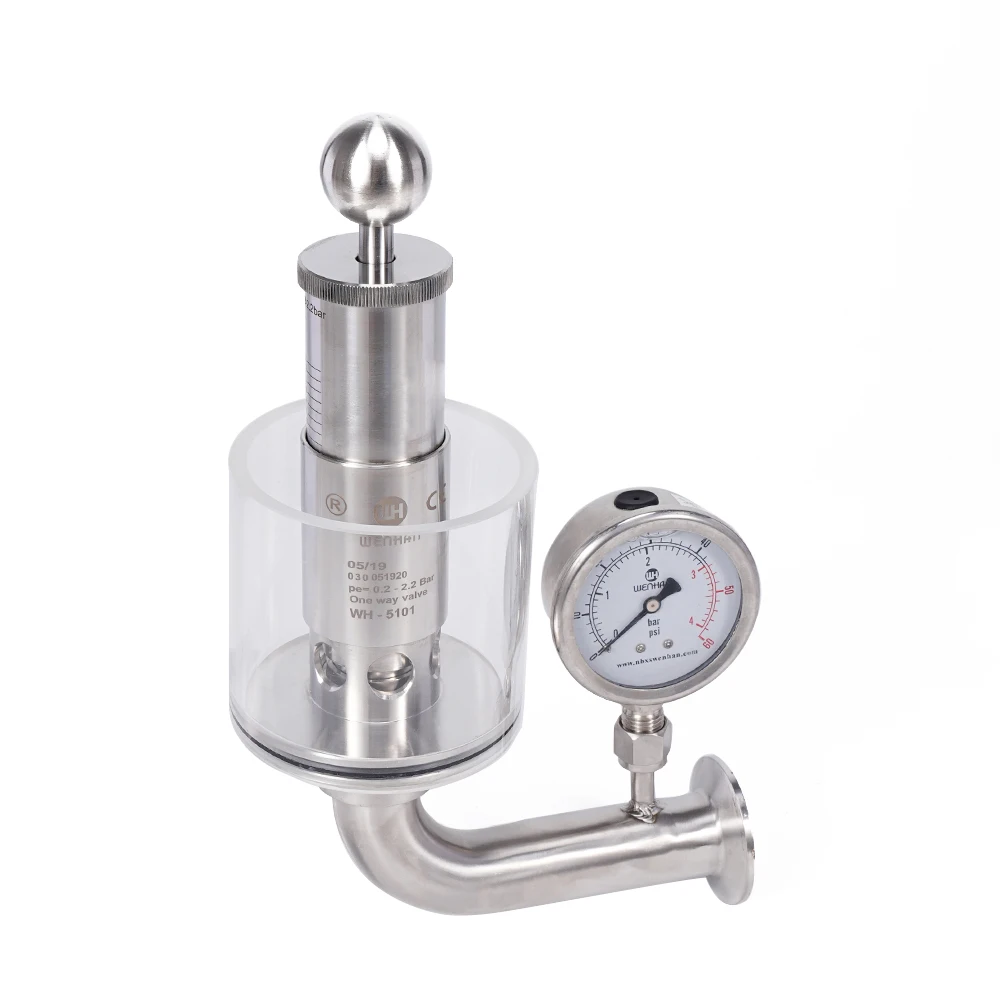

The valve is used in pressure vessel piping systems.
Regulating one-way exhaust valve protect the container from excessive pressure and
Regulating one-way exhaust valve protect the container from excessive pressure and

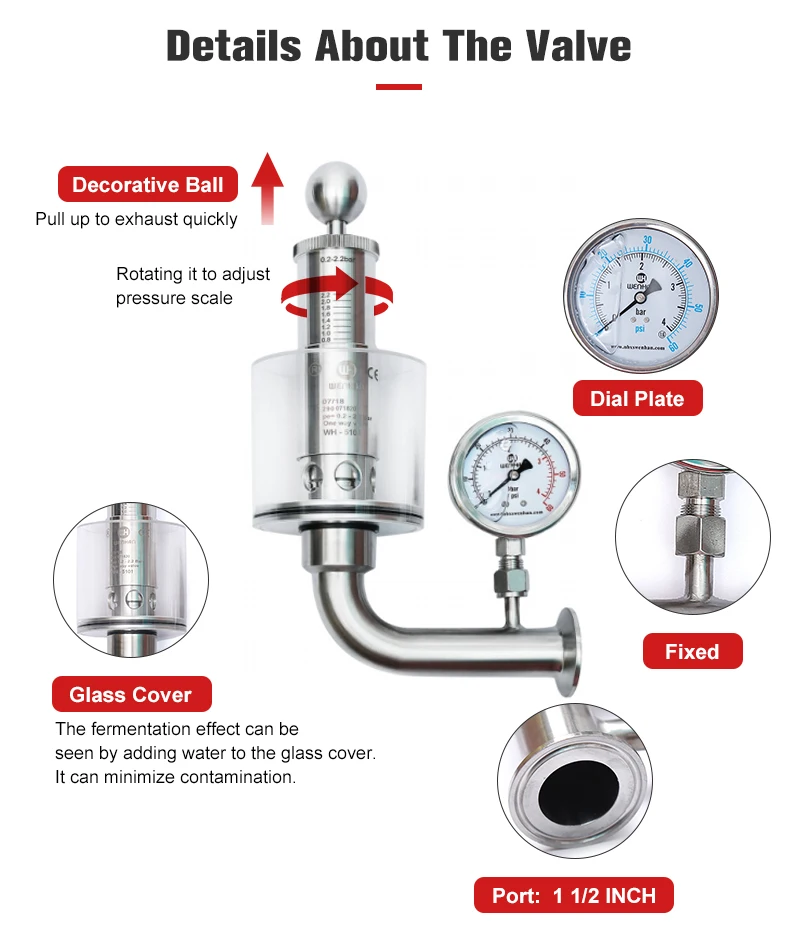

explosion-proof effect. When the pressure is higher than the set pressure (standard 1BAR),

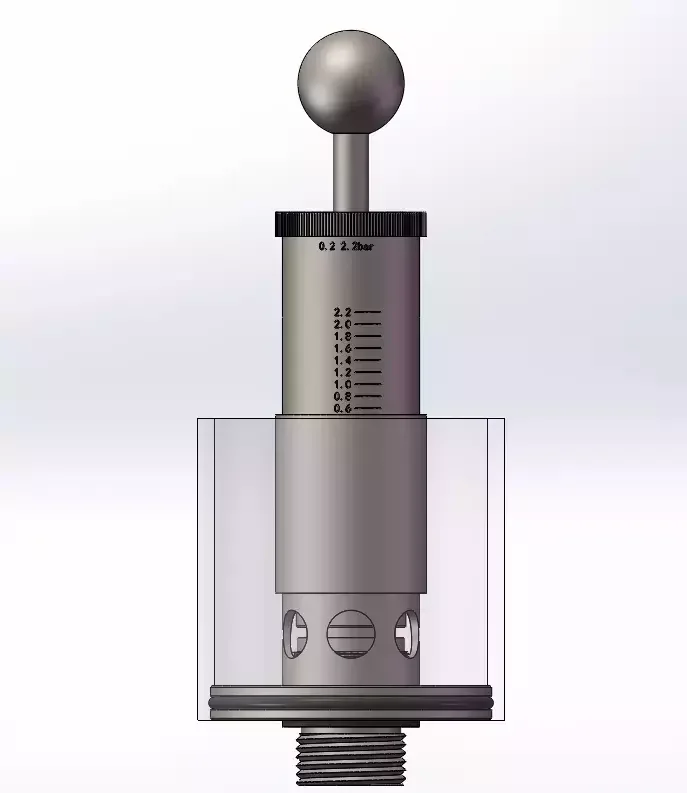

it can be exhausted, otherwise it is closed.The regu Jating rod is marked with pressure scale,
and the required pressure is adjusted according to the scale. The valve is easy to use with
accurate scale, and the fermentation effect can be seen by adding water to the glass cover,
It can minimize contamination. Meantime, it car meet all kinds of production process needs,
suitable for all kinds of food processing, beer, beverage and pharmaceutical industries.
Product Name | Regulating Valve |
Model No. | WH-5101F |
Power | Manual |
Media | Gas |
Standard | DIN/SMS/ISO |
Material | SS304 / SS316L |
O-Ring Material | EPDM |
Pressure Adjustment Range | 0.2-2.2bar |
Size | 1.5"TC |
Pipe Size | Dia.28 |
Chuck Size | Dia.50.5 |
Connection Mode | Clamp (Available: weld, thread) |
Customized Support | OEM, ODM |
Application | Food & Beer &Beverage & Pharmaceutical |

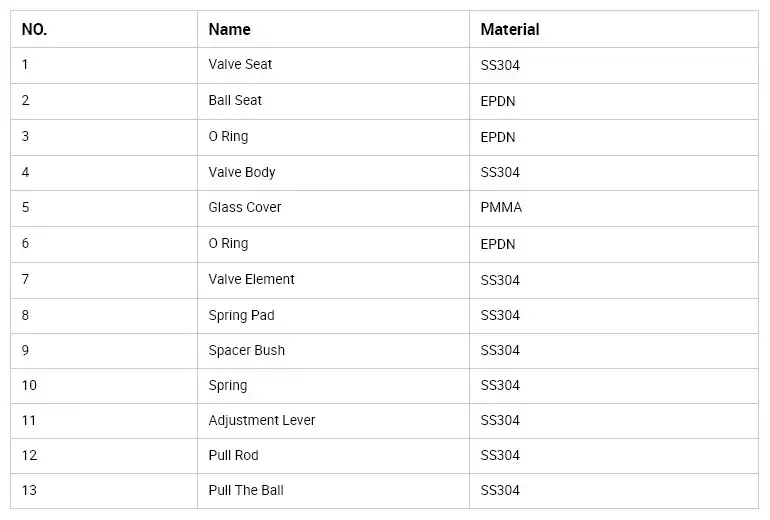

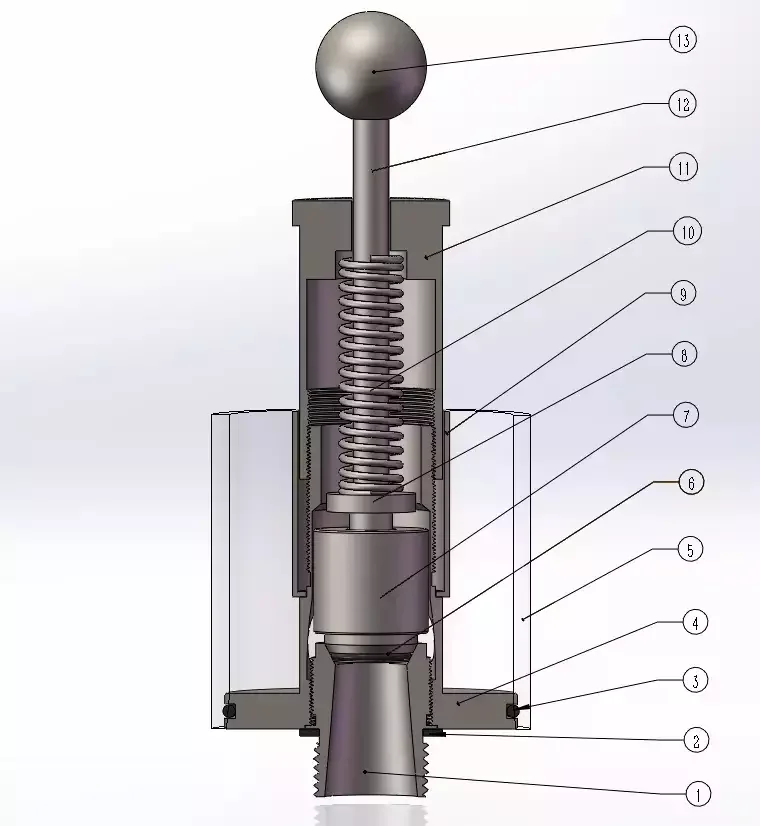

Product Details

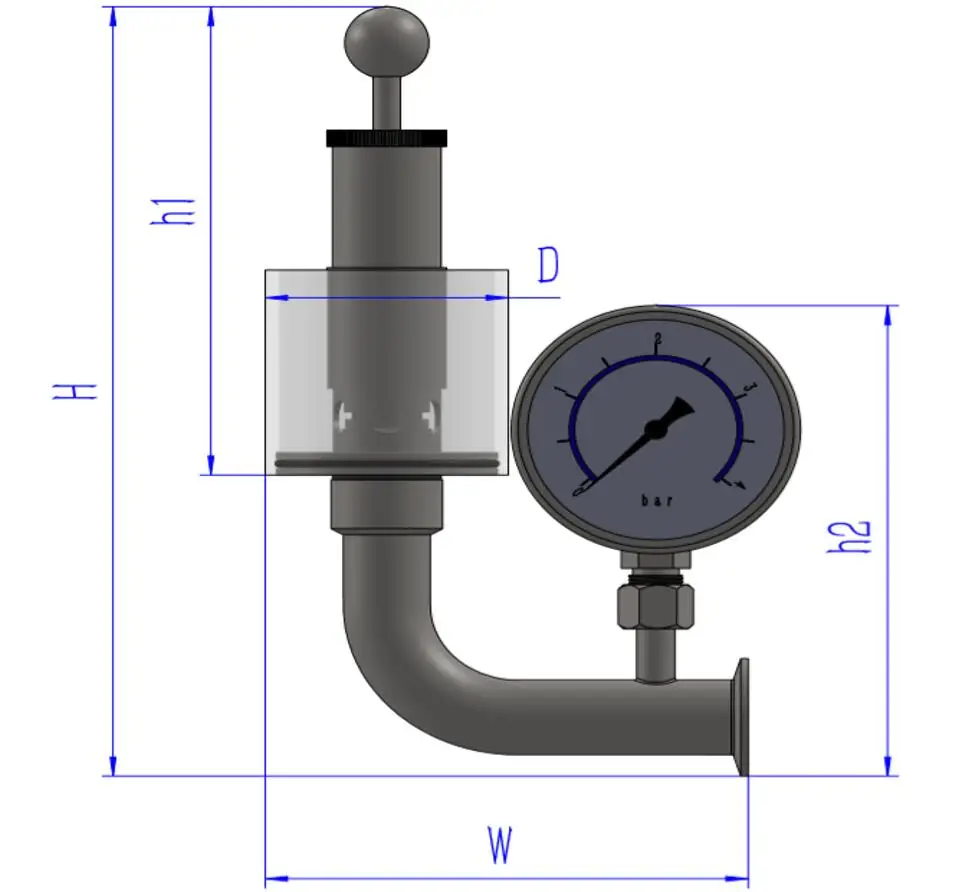

Size | H | h1 | W | D | h2 |
1.5”TC | 255 | 200 | 166 | Φ90 | 146 |

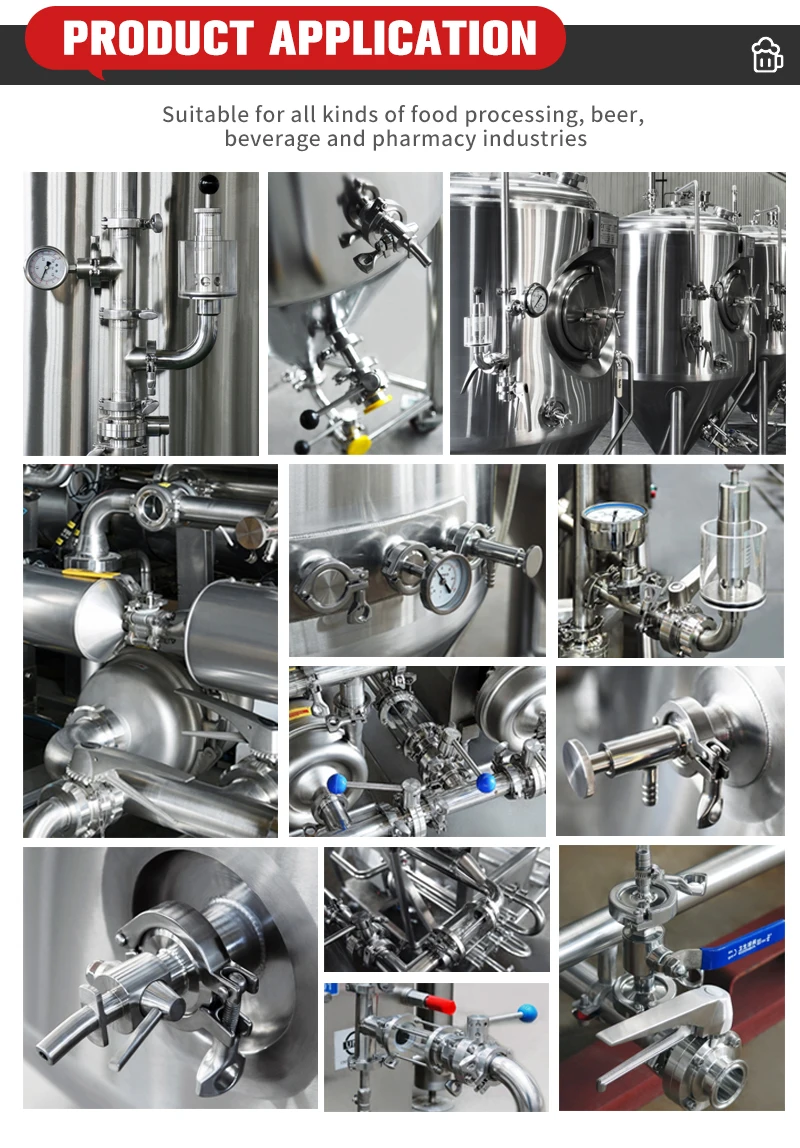

Application

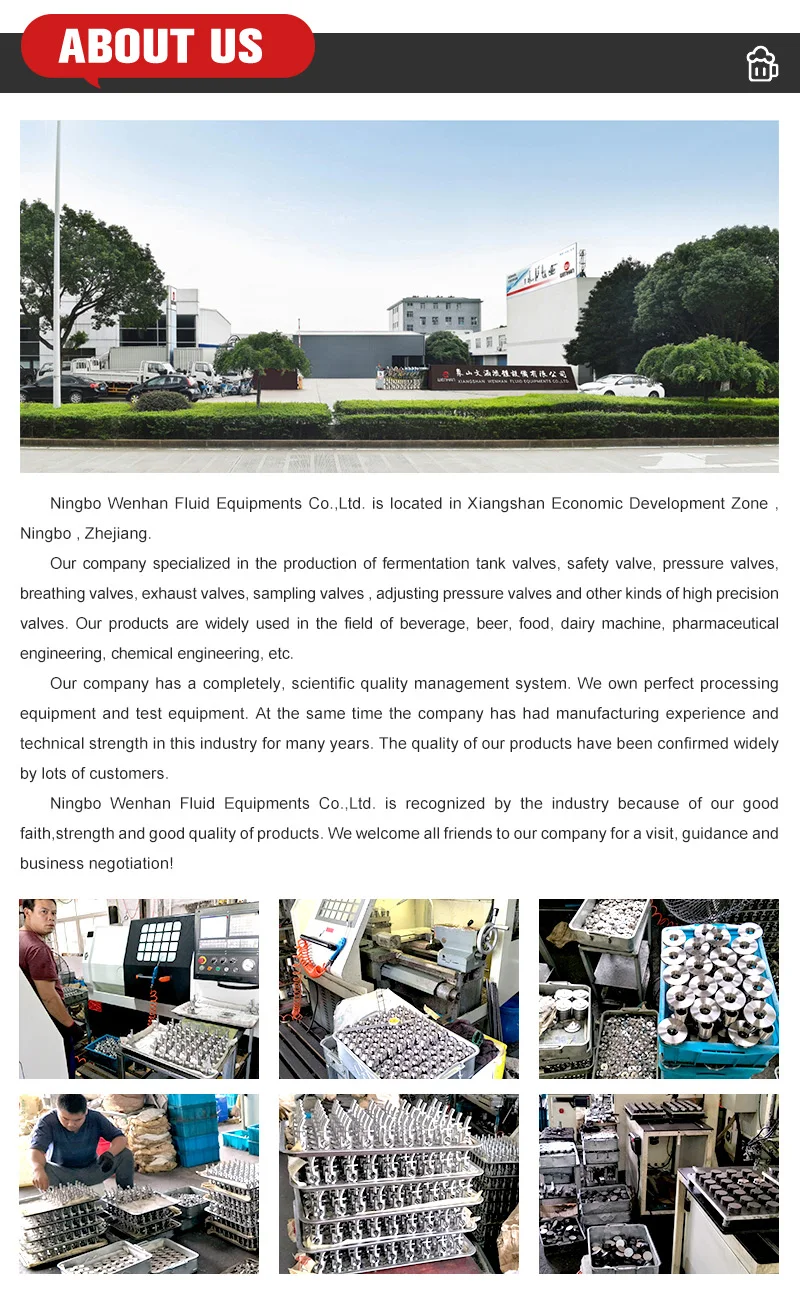

Why Choose Us
Packing&Delivery
FAQ
1、How about the delivery time?
Generally it is 15 days.
2、Could provide the warranty service?
Normally is 3 years warranty.
3、Which shipping methods do you use?
Support sea transportation, land transportation, express delivery and air transportation.
4、Can I get a sample?
Yes,of course.
5、Do you support customization products?
Of course,we support design drawing customization, logo and packaging customization.
