Speedybee F405 V4 Stack BLS 55A 4 in 1 ESC&FC Compatible 30x30 RC iNAV Betaflight Bluetooth 3 6S FPV 5 8 Inch Frame Drone RC
- Category: >>>
- Supplier: PREMIERPRO DIGITAL TECHNOLOGY SDN BHDPREMIERPRO BHD
Share on (1601297103617):
Product Overview
Description
Product Description

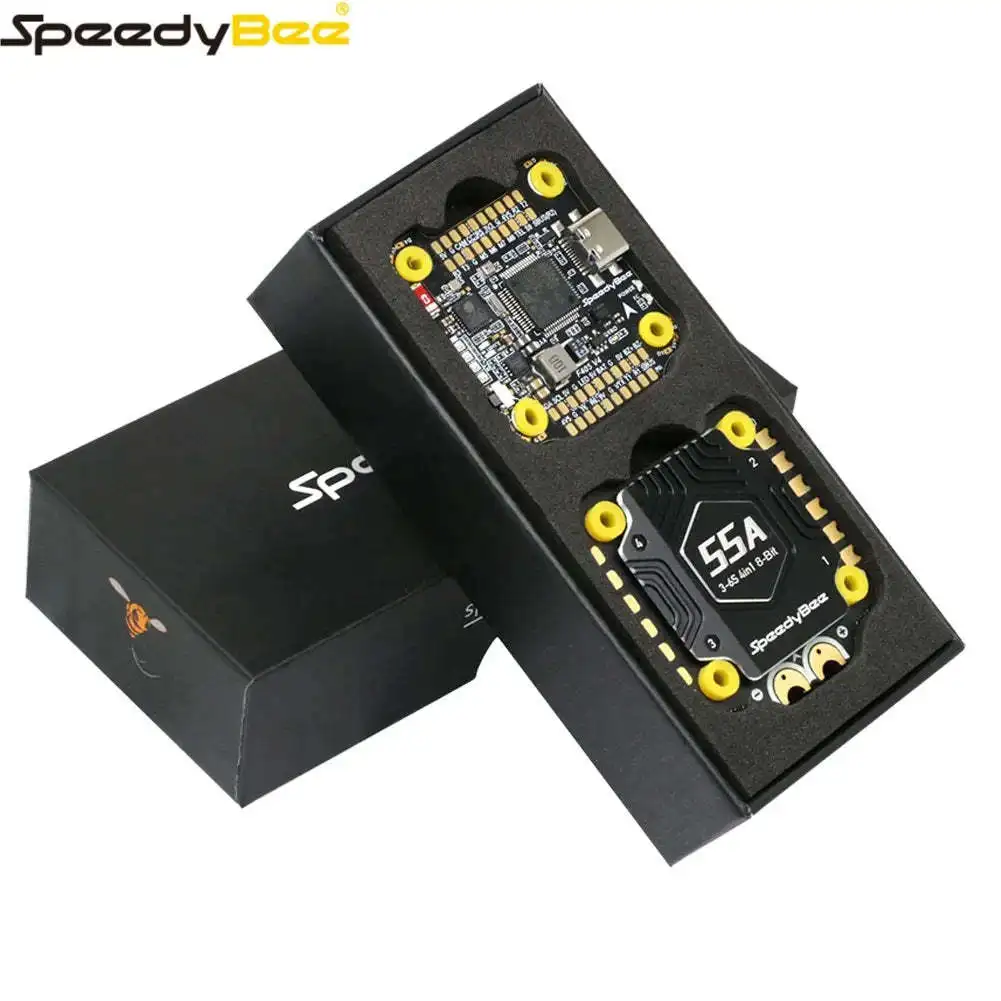

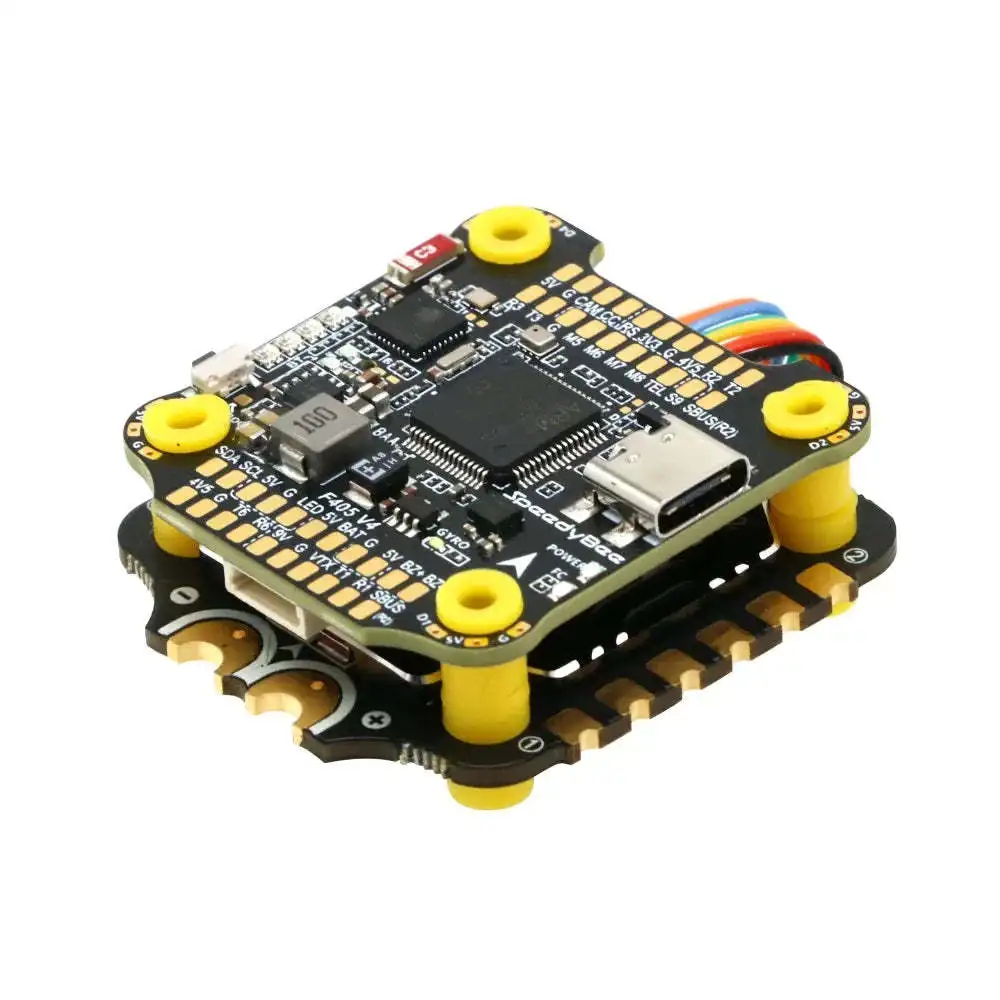

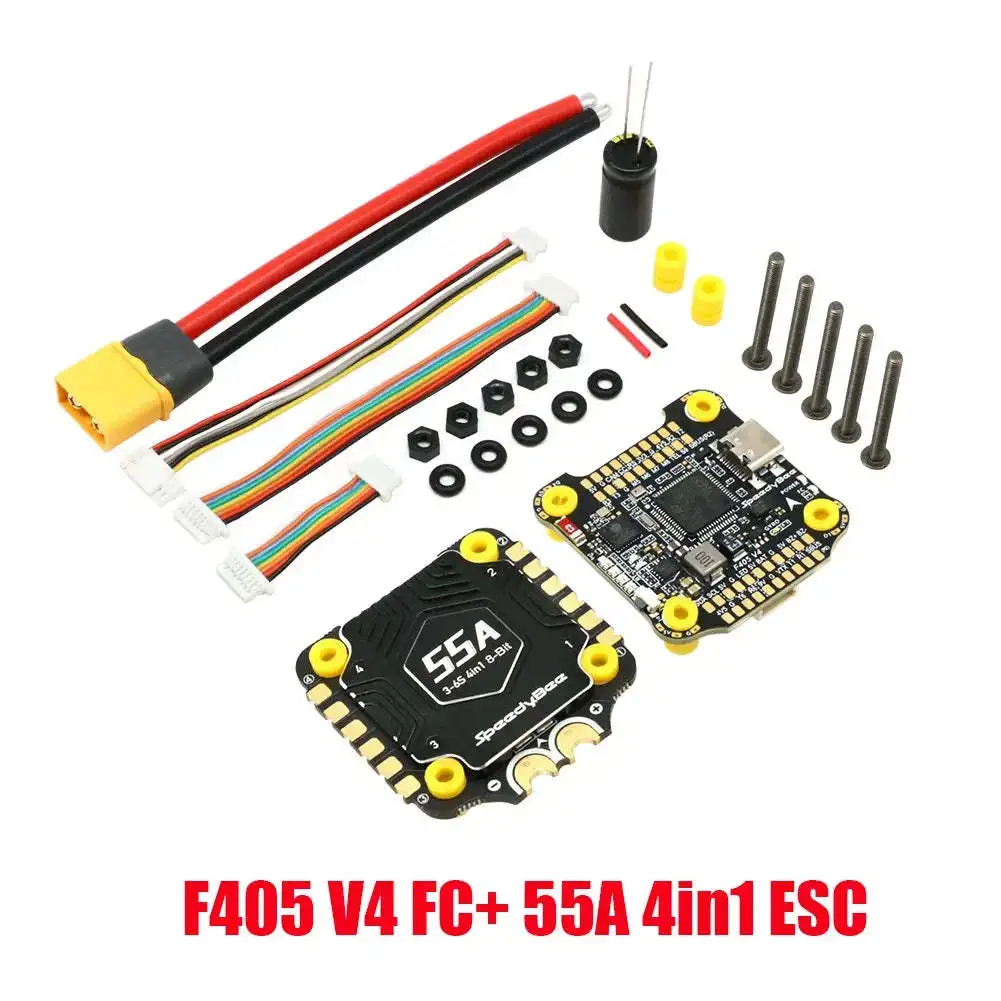

Speedybee F405 V4 Stack BLS 55A 4-in-1 ESC&FC 30x30 RC iNAV Betaflight Configure Bluetooth 3-6S FPV 5-8 inch frame Drone parts
Product Name

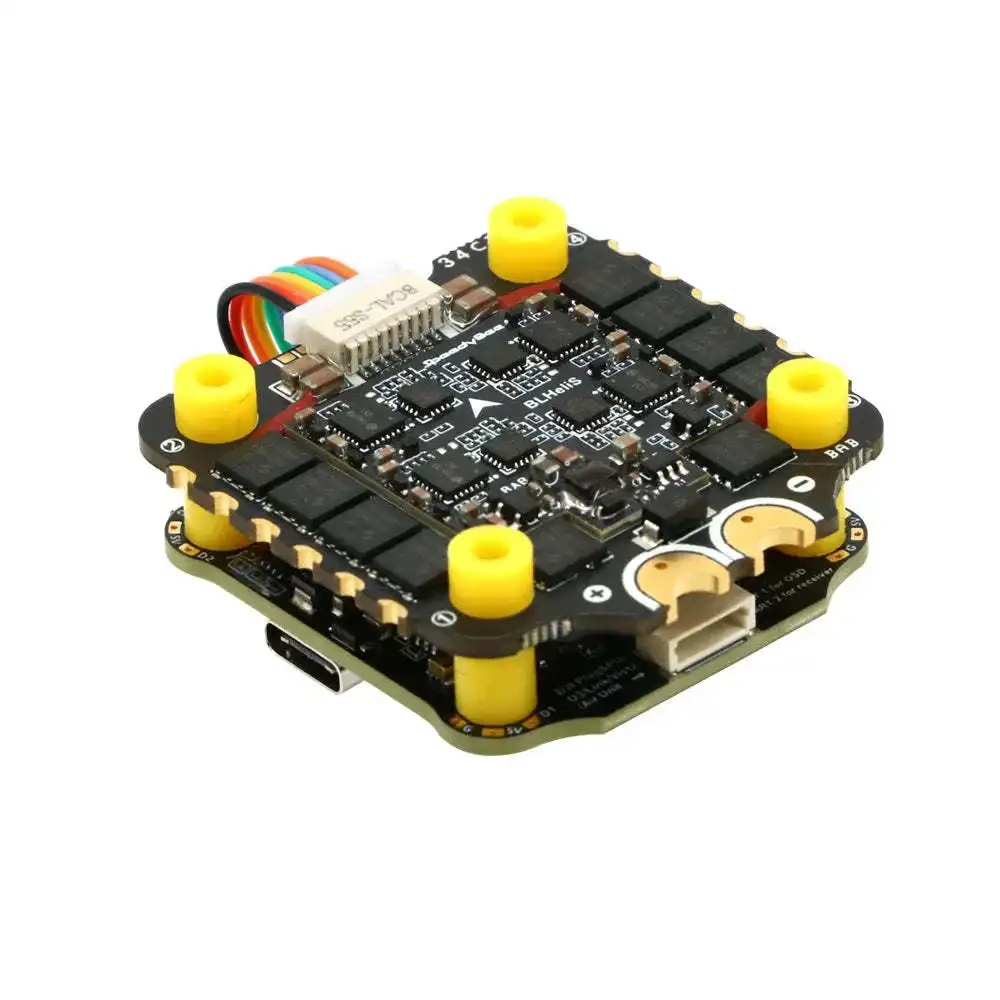

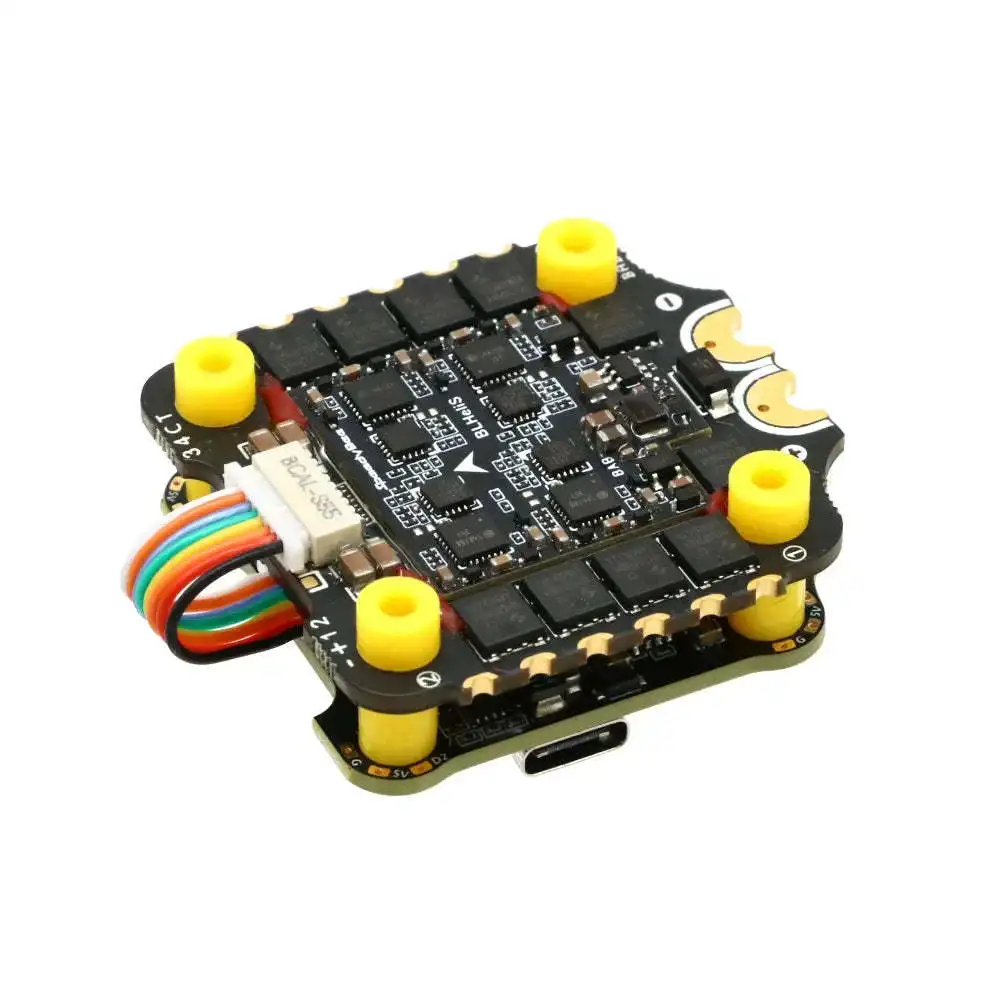

SpeedyBee BLS 55A 30x30 4-in-1 ESC
Firmware
BLHeli_S J-H-40
PC Configurator Download Link
https://esc-configurator.com/
Continuous Current
55A * 4
Burst Current
70(10 seconds)
TVS Protective diode
Yes
External Capacitor

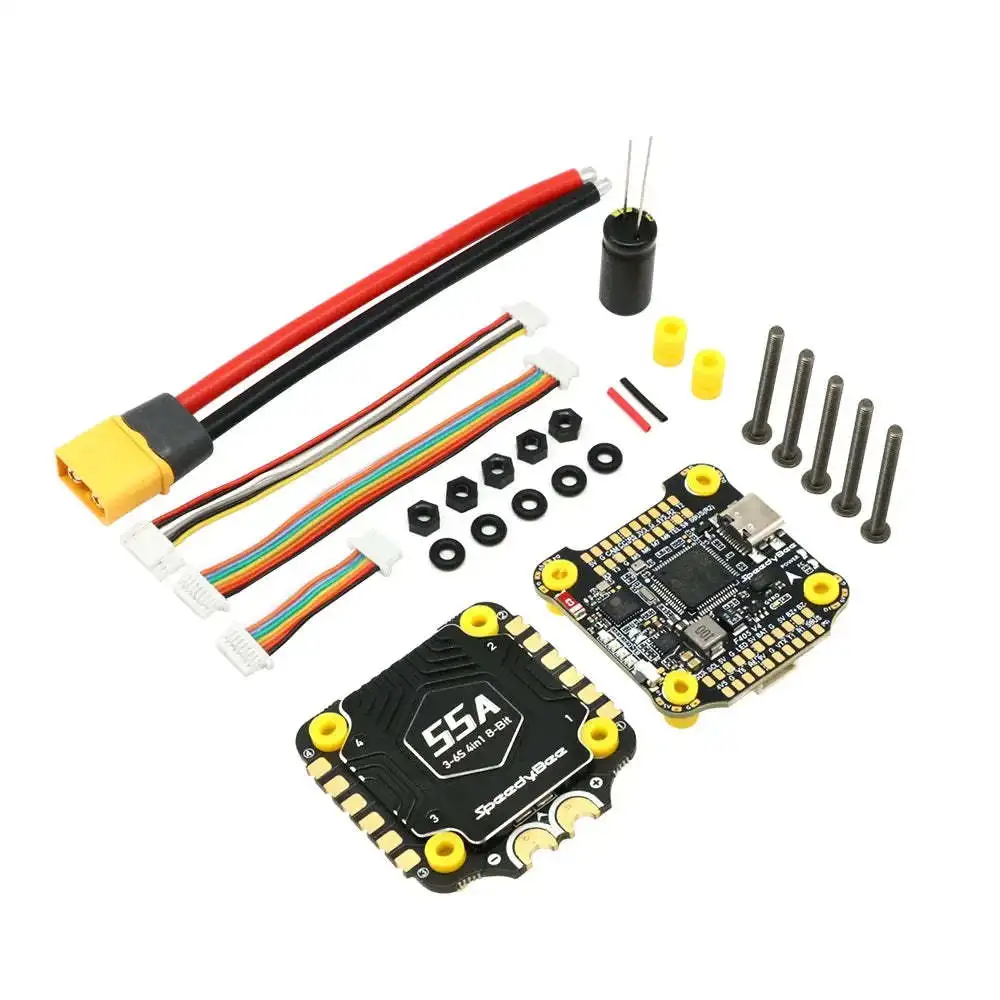

1000uF Low ESR Capacitor(In the package)
ESC Protocol
DSHOT300/600
Power Input
3-6S LiPo
Power Output
VBAT
Current Sensor
Support (Scale=400 Offset=0)
ESC Telemetry
Not supported
Mounting
30.5 x 30.5mm( 4mm hole diameter)
Dimension
45.6(L) * 44(W) *8mm(H)
Weight
23.5g
Product Name

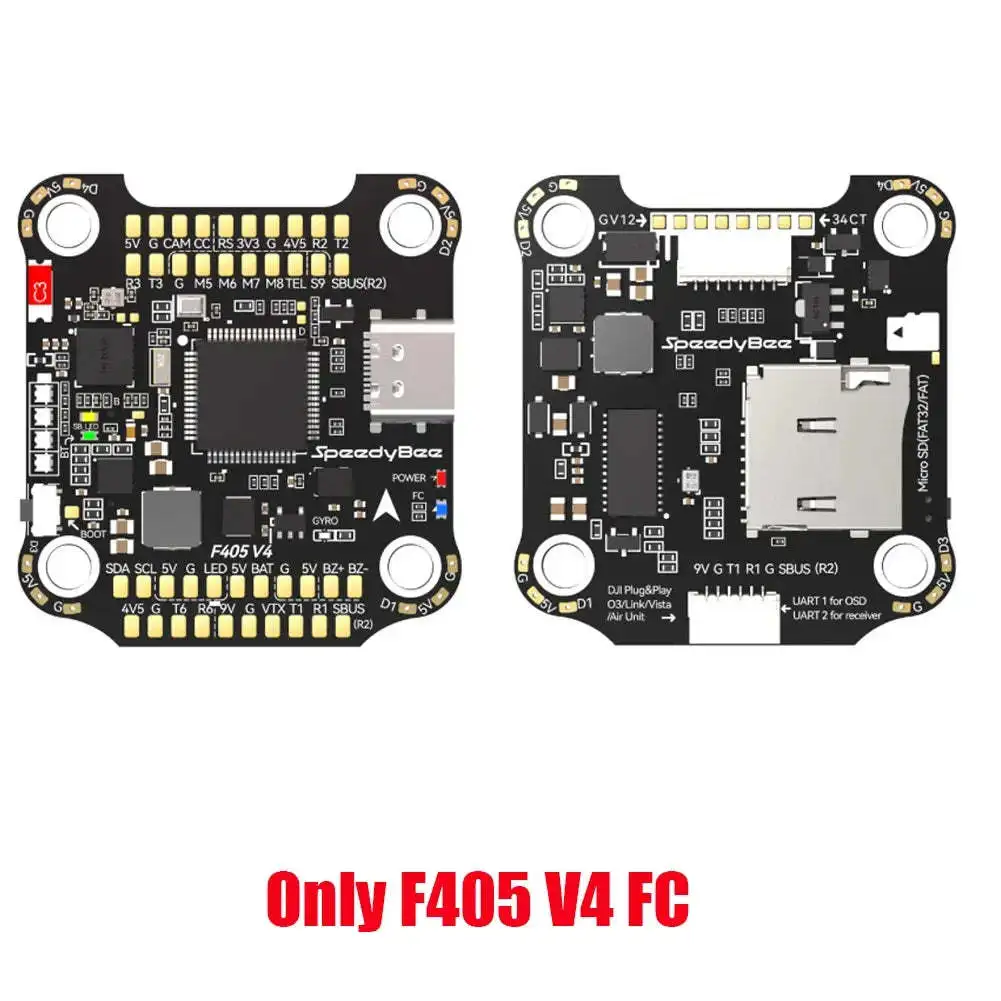

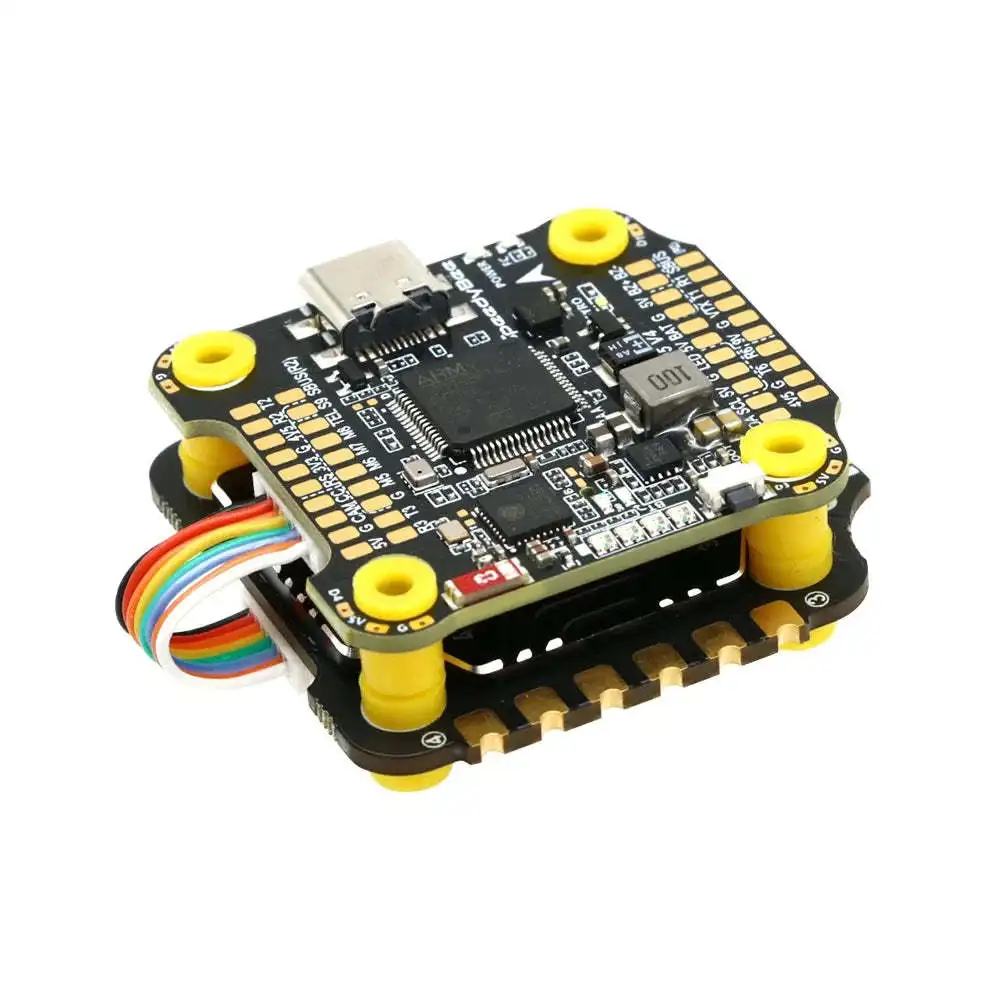

SpeedyBee F405 V4 30x30 Flight Controller
MCU
STM32F405
IMU(Gyro)
ICM42688P
USB Port Type
Type-C
Barometer
Built-in
OSD Chip
AT7456E chip
BLE Bluetooth
Supported. Used for Flight Controller configuration (MSP should be enabled with Baud rate 115200 on UART4)
WIFI
Not supported
DJI Air Unit Connection Way
Two ways supported: 6-pin connector or direct soldering.
6-pin DJI Air Unit Plug
Supported. Completely compatible with DJI O3/RunCam Link/Caddx Vista/DJI Air Unit V1, no wire is needed to be changed.
Blackbox MicroSD Card Slot
*Betaflight firmware requires the type of the microSD card to be either Standard (SDSC) or High capacity (SDHC) under 32GB, so
extended capacity cards (SDXC) are not supported(Many high-speed U3 cards are SDXC). Also the microSD card MUST be formatted with
the FAT16 or FAT32 (recommended) format, you could use any SD card less than 32GB, but the Betaflight can only recognize 4GB
maximum. We suggest you use this 3rd party formatting tool and choose 'Overwrite format' then format your card. Also check out
here for the recommended SD cards or buy the tested cards from our store.
Current Sensor Input
Supported. For SpeedyBee BLS 55A ESC, please set scale = 400 and Offset = 0.
Power Input
3S - 6S Lipo(Through G, BAT pins/pads from the 8-pin connector or 8-pads on the bottom side)
5V Output
9 groups of 5V output, four +5V pads and 1 BZ+ pad( used for Buzzer) on front side, and 4x LED 5V pads. The total current load is
3A.
9V Output
2 groups of 9V output, one +9V pad on front side and other included in a connector on bottom side. The total current load is 3A.
3.3V Output
Supported. Designed for 3.3V-input receivers. Up to 500mA current load.
4.5V Output
Supported. Designed for receiver and GPS module even when the FC is powered through the USB port. Up to 1A current load.
ESC Signal
M1 - M4 on bottom side and M5-M8 on front side.
UART
6 sets(UART1, UART2, UART3, UART4(Dedicated for Bluetooth connection)), UART5(Dedicated for ESC telemetry),UART6
ESC Telemetry
UART R5(UART5)
I2C
Supported. SDA & SCL pads on front side. Used for magnetometer, sonar, etc.
Traditional Betaflight LED Pad
Supported. 5V, G and LED pads on bottom of the front side. Used for WS2812 LED controlled by Betaflight firmware.
Buzzer
BZ+ and BZ- pad used for 5V Buzzer
BOOT Button
Supported.
A . Press and hold BOOT button and power the FC on at the same time will force the FC to enter DFU mode, this is for firmware
flashing when the FC gets bricked.
B . When the FC is powered on and in standby mode, the BOOT button can be used to controller the LED strips connected to
LED1-LED4 connectors on the bottom side. By default, short-press the BOOT button to cycle the LED displaying mode. Long-press the
BOOT button to switch between SpeedyBee-LED mode and BF-LED mode. Under BF-LED mode, all the LED1-LED4 strips will be controlled
by Betaflight firmware.
RSSI Input
Supported. Named as RS on the front side.
Smart Port / F.Port
Not supported
Supported Flight Controller Firmware
BetaFlight(Default), INAV
Firmware Target Name
SPEEDYBEEF405V4
Mounting
30.5 x 30.5mm( 4mm hole diameter)
Dimension
41.6(L) x 39.4(W) x 7.8(H)mm
Weight
10.5g
