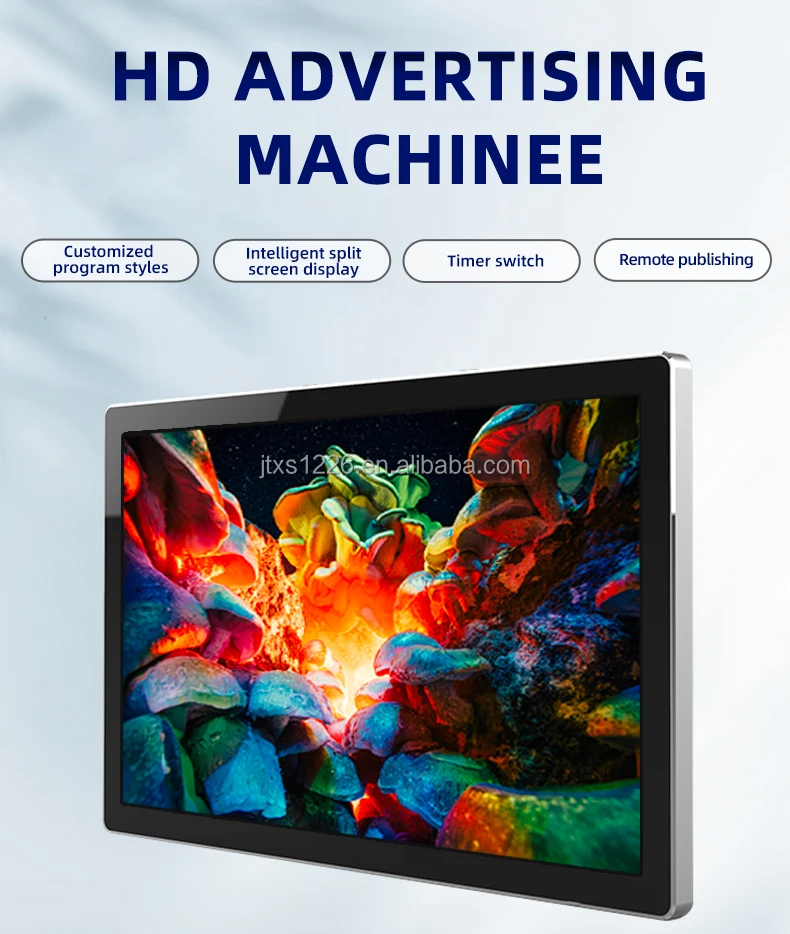

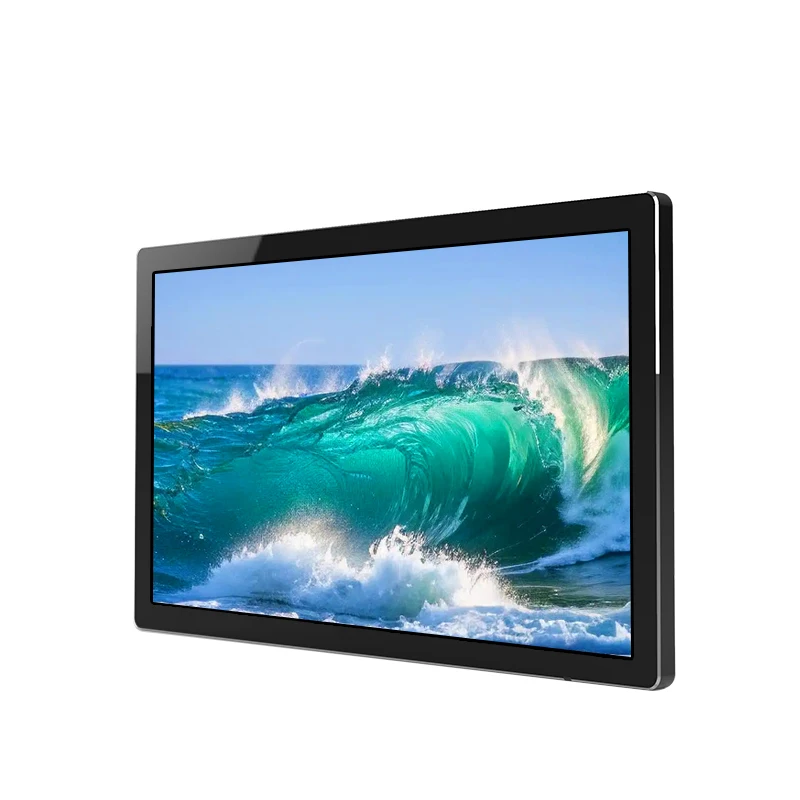

Touch screen 18.5 inch digital signage LCD interactive board 4K display Android touch advertising screen HD monitoring screen

Product Overview

Description

type	Parameters/Description
allocation	CPU	RK3288/3566 quad core 1.8HZ
	GPU	Mali-764
	RAM	DDR-3 2/4/8GB
	ROM	16/32/64GB NAND Flash
	operating system	Based on Android 7.1 /9.0/11.0
decoding	resolving power	MAX 2160P
	Video packaging	RM/RMVB, MKV, MP4, TS, FLV, AVI, VOB, MOV, WMV, etc
	video coding	MPEG-1/2/4,H.263,H.264,WMV9,RV8/9/10,Divx-3/4/5, etc
	Audio encoding	MP3,WMA,WAV,EAAC+,APE,FLAC,BSAC,OGG, etc
	Image encoding	JPG,PNG,BMP, etc
Touch	Touch Scheme	G+G
	Touch points	teno'clock
	response speed	<6MS
	Minimum touch object	> 2MM
	Touch accuracy	± 2MM
	Gravity free touch	support
	Anti blocking touch control	support
	Touch count	Over 50000000 times
	Touch objects	Electromagnetic pens, fingers, and other conductive objects
voice	built-in	Built in high fidelity8 Ω 5Wspeaker* 2
network	Ethernet	100/1000Mbps adaptive
	WIFI	Wireless protocol 802.11b/g/n
	4G (optional)	Supporting the three network standards of China Mobile, China Unicom, and China Telecom
interface	TF card	1*TF,Supports32GB
	USB	2 * USB 2.0
	HDMI	1*HDMI  OUT
	network	1*RJ45
source	working voltage	AC110V/220V  50/60Hz
	Maximum power consumption	50W
	standby power	0.5W
Usage environment	working temperature	0~50°
	Storage temperature	-10~60°
	relative humidity	10~80RHwithout condensation

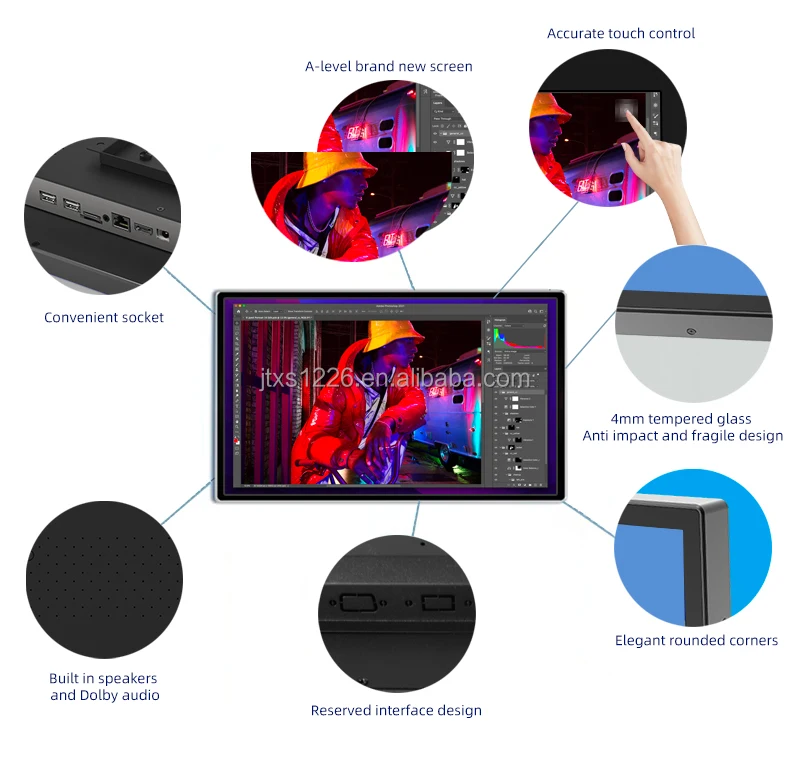

Product features

l  Adopting a high-definition1920 * 1080resolution LCD panel, with a 178 °omnidirectional perspective and high color gamut, it hasspecial properties such as 3Ddigital noise reduction, dynamic contrast adjustment, intelligent elimination of residual images, and more perfect restoration.

l  Industrial grade power supply system, self temperature controlled heat dissipation, meeting 24-hour uninterrupted use, LED dual crystal backlight, higher brightness, and lower power consumption.

l  High performance quad core processor, with a main frequency of 1.8GHz, has strong3Dacceleration graphics processing ability and1080Pvideo decoding ability, efficient processing speed, and provides extremely smooth video playback performance.

l  Adopting a G+G projection capacitive touch scheme, with high stability, no drift caused by time and environmental changes, high transparency, sensitive response, and no delay.

l  Real time video and audio decoding; Real time video and audio playback; Compatible with various image, animation, and audio encoding, supportingcentralized controlthroughTCP/IPnetwork, and can be distributed throughout the countrybased on the Internet, achieving super information dissemination through wide area network and more efficient operational efficiency.

l  Integrated design: The product design is simple and atmospheric, more aesthetically pleasing, and has a high cost performance ratio. It supports wall mounted and horizontal installation, making installation and maintenance simple and convenient. Industrial grade components have better heat dissipation, lower power consumption, and a metal front frame design with fine workmanship and humanized detail design.



Random attachments and others



type	Description/Explanation
enclosure	Power cord 1.5M * 1
	Remote control* 1
	Warranty card* 1
	Certificate of conformity* 1
	WIFIantenna* 1
	Wall mounted bracket* 1
	K-shaped base* 1(optional)

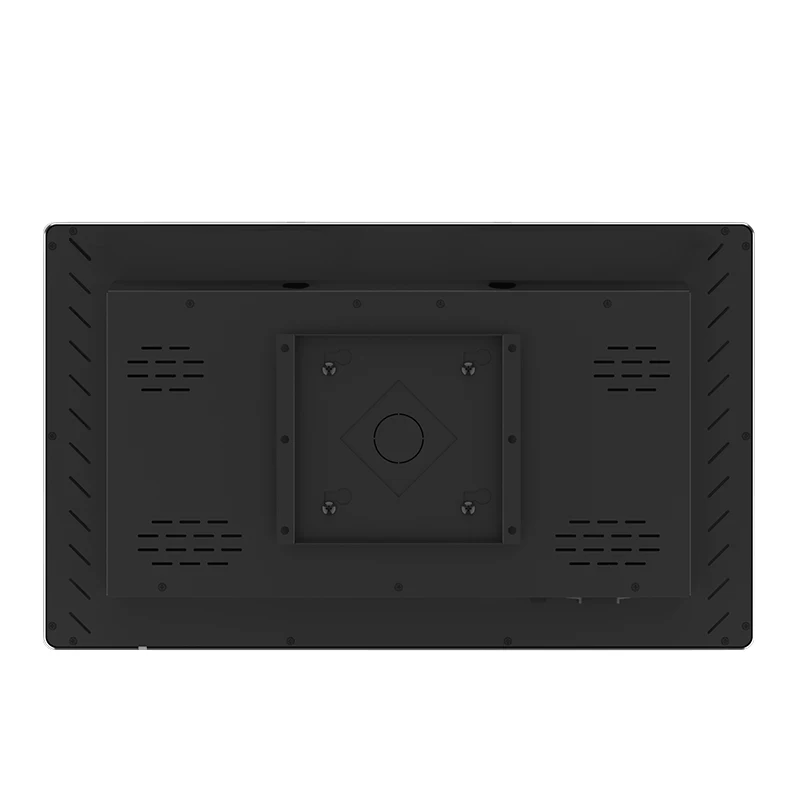

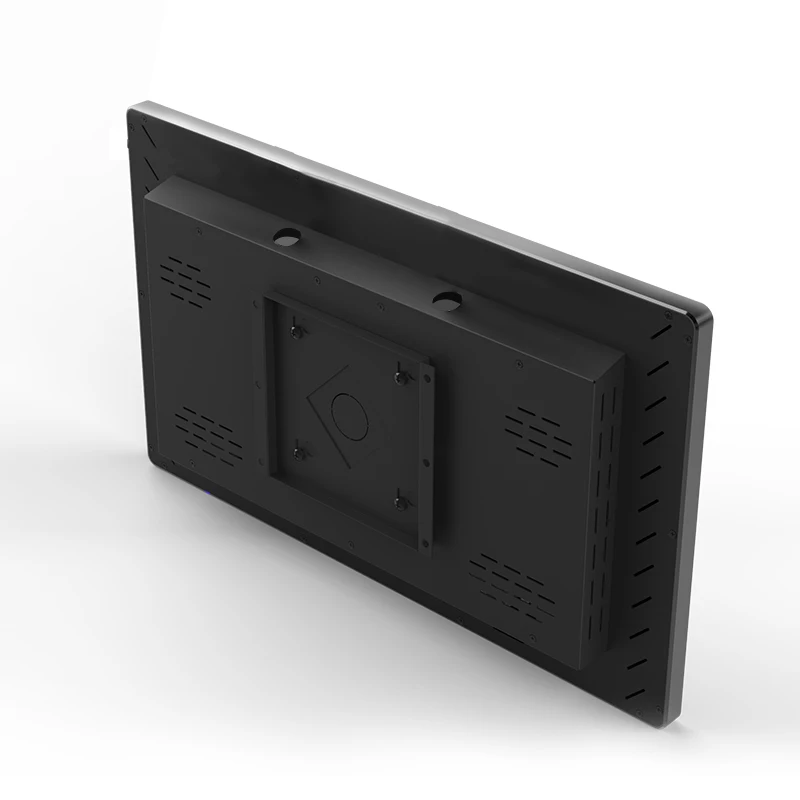

Installation method	Wall mounted horizontal fixation (landscape)
	Wall mounted vertical fixation (vertical screen)
	K-shaped base fixation (optional)
