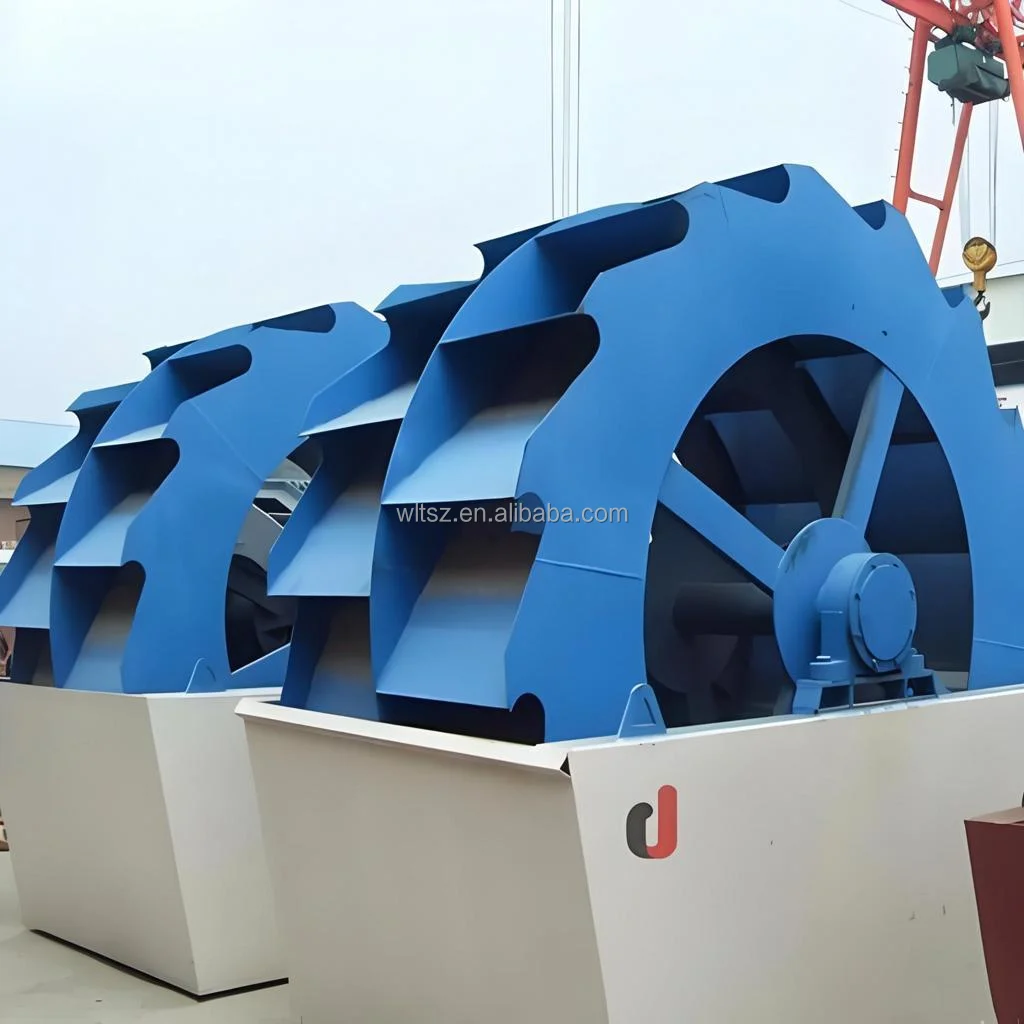

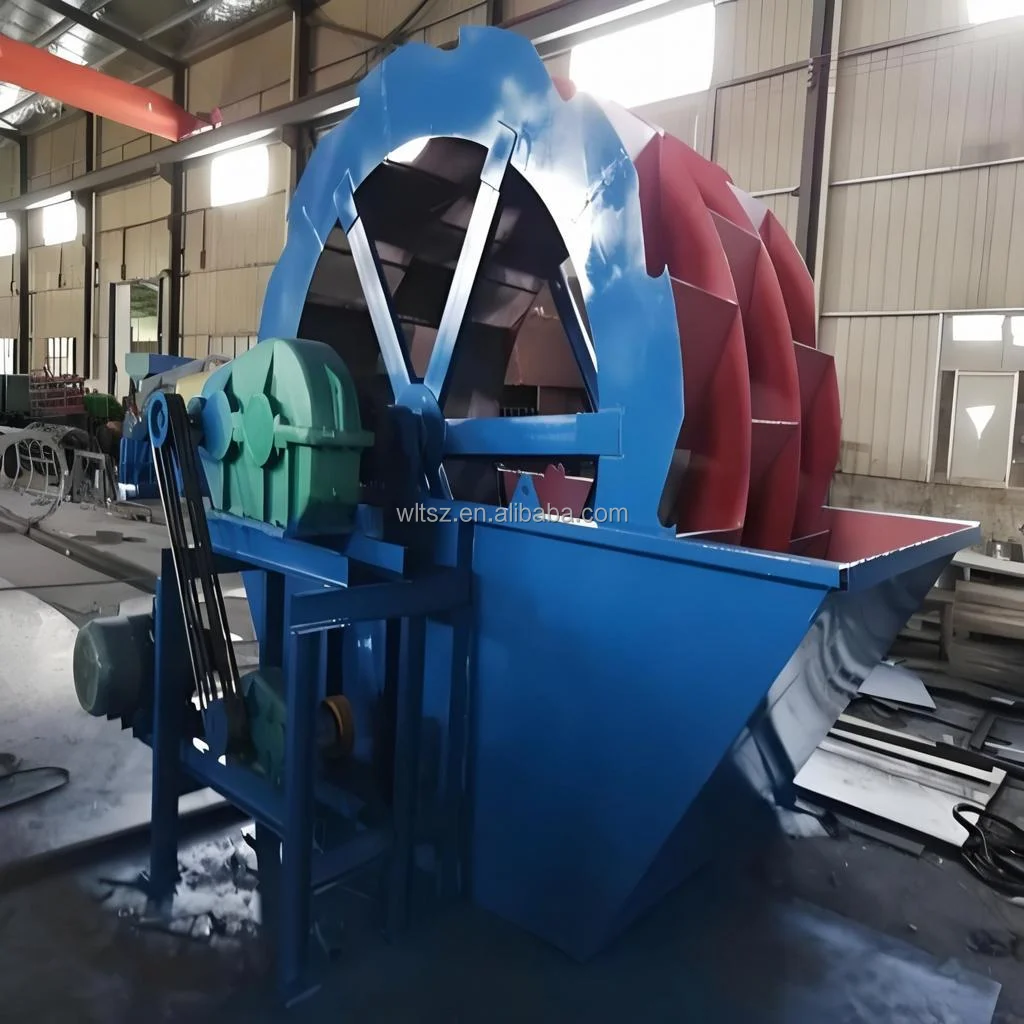

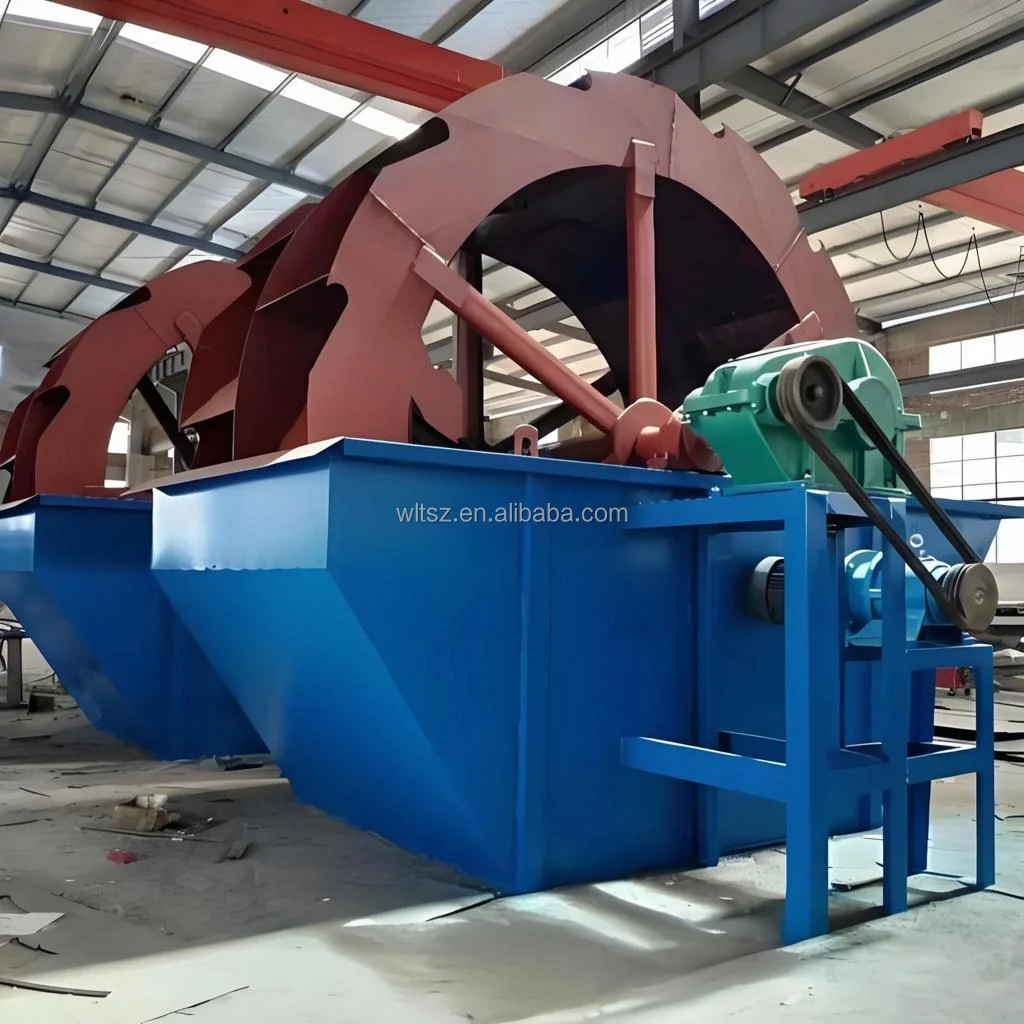

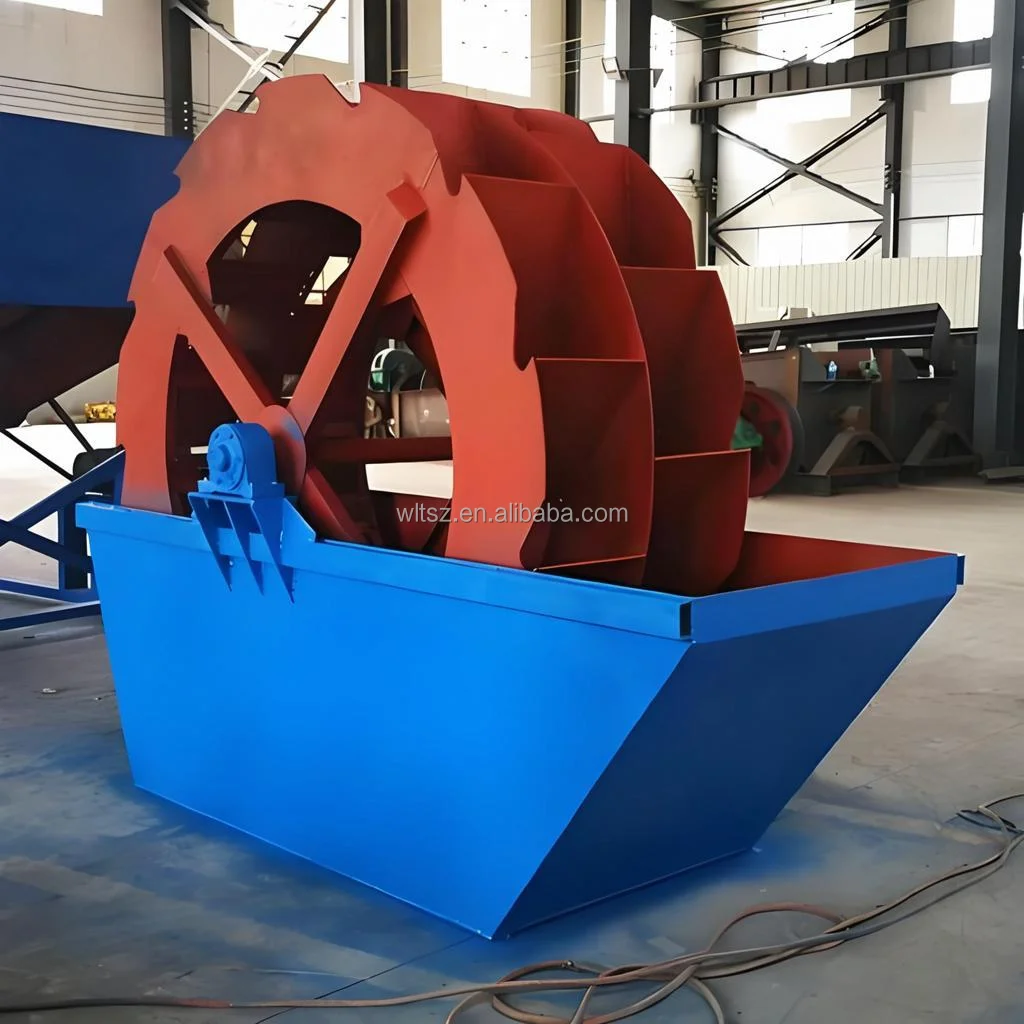

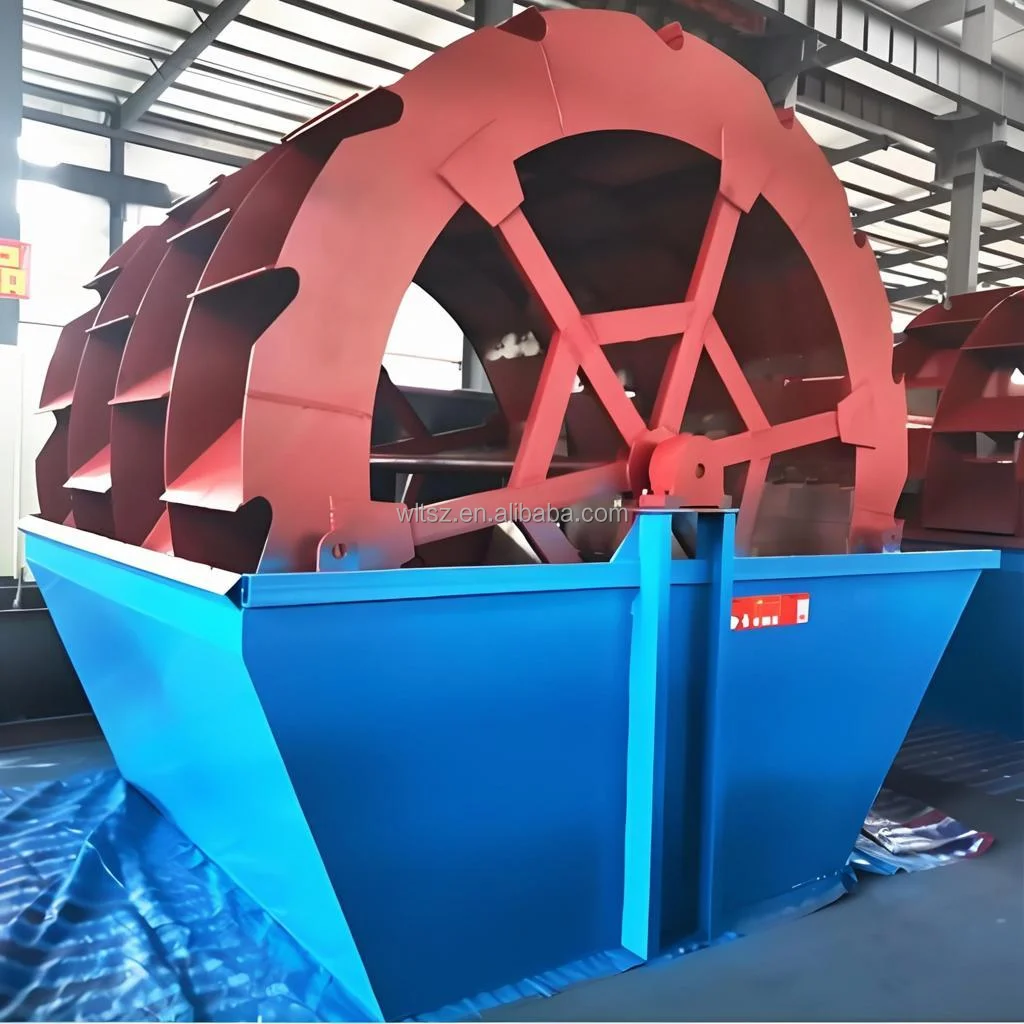

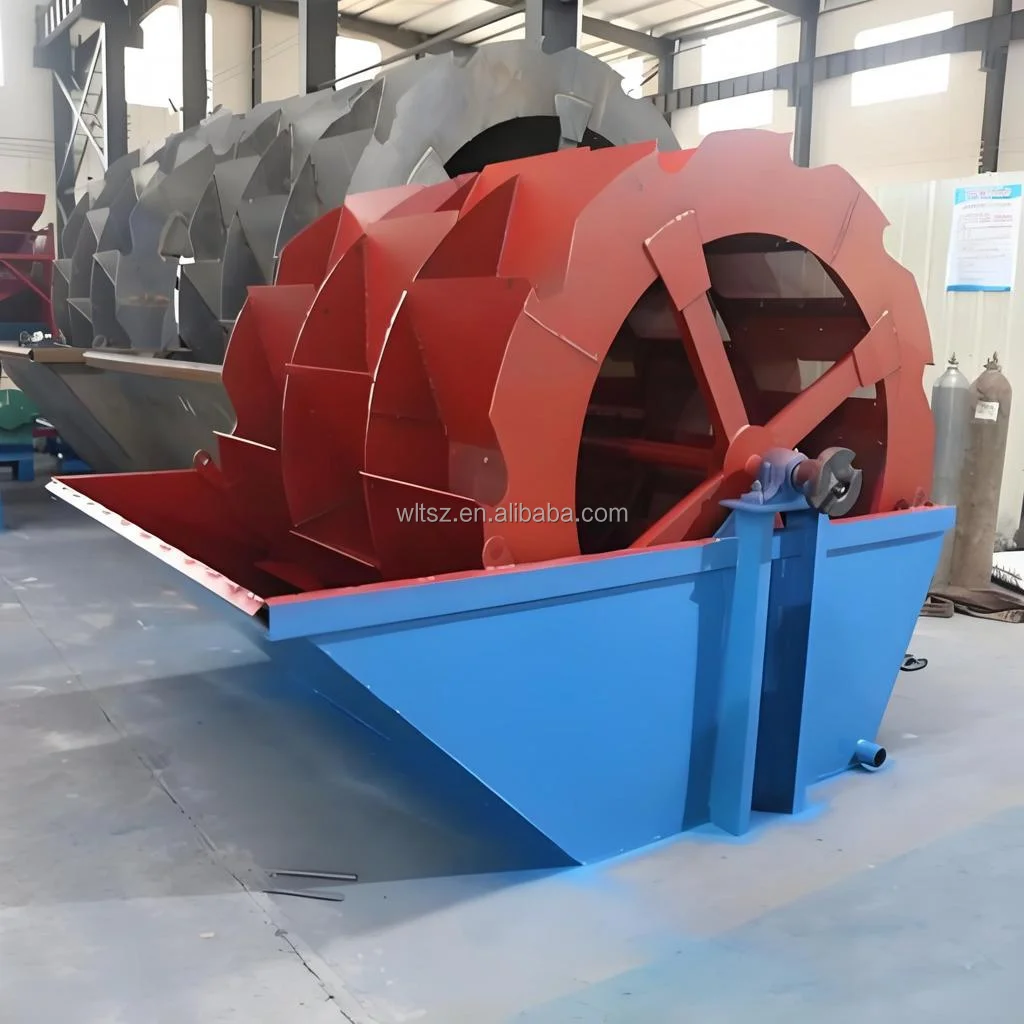

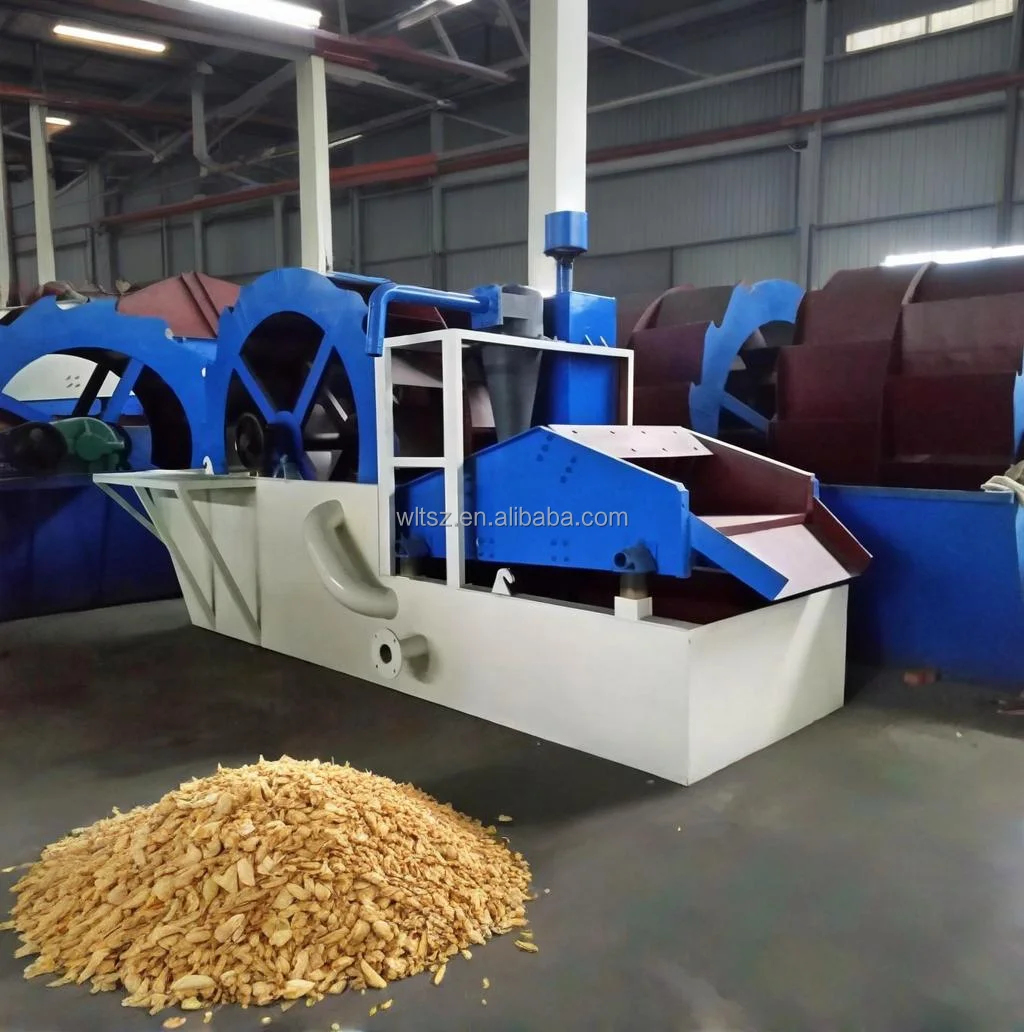

FETECH XS series Professional manufacturer Low Cost Low Power Consumptiom bucket Wheel Sand Washer Washing Machine
- Category: >>>
- Supplier: Future Explorer Technical Equipment (shenzhen) Co. Ltd.Future Ltd.
Share on (1601297359596):
Product Overview
Description
Product Description
Specification
Model | XS2600 | XS2600II | XS2800 | XS3200 | XS3600 |
Diameter of The Wheel Bucket (mm) | 2600 | 2600II | 2800 | 3200 | 3600 |
Rotation Rater (r/min) | 2.5 | 2.5 | 1.2 | 1 | 1 |
Maximum Feeding Size (mm) | 10 | 10 | 10 | 10 | 10 |
Processing Capacity (t/h) | 20~50 | 30~70 | 50~100 | 80~120 | 120~180 |
Motor Power (kw) | 5.5 | 5.5 | 7.5 | 11 | 15 |
Overall Dimensions (mm) | 3515*2070* 2672 | 3515*2070* 2672 | 3900*3300* 2990 | 3965*4440* 3410 | 4355*4505* 3810 |
Weight (kg) | 2500 | 2900 | 3980 | 7270 | 9430 |

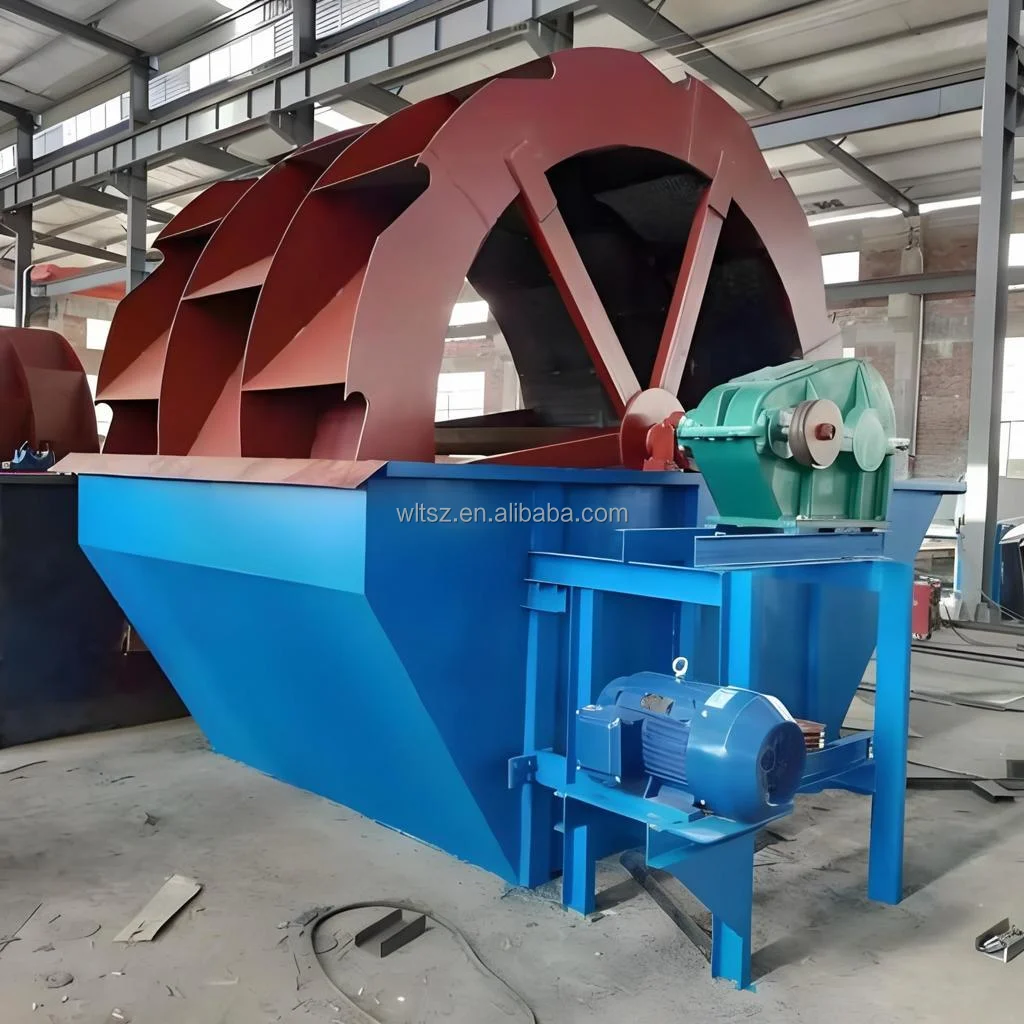

The working principle of wheel bucket sand washing machine:
After the motor is decelerated by the triangle belt, reducer and gear, it drives the impeller to rotate slowly, the sand and stone enter the washing tank by the feeding tank, roll under the drive of the impeller, and grind each other, the mechanical agitation and the material roll, the impeller makes a circular rotation in the tank, so that the sand and stone or slag particles in the tank are fully stirred, turned over and washed in the water. In this process, the sand and stone rub and collide with each other, which can remove the impurities covering the surface of the sand and destroy the water vapor layer covering the sand, so as to facilitate the subsequent dehydration work.
Advantages of wheel washing machine:
High degree of cleaning: through the impeller mixing and the washing effect of water flow, the impurities on the surface of the sand can be fully removed, so that the cleanliness of the finished sand and stone is high, the quality is good, and the requirements of high-grade materials can be fully met.
Less loss of medium fine sand: In the sand washing process, the retention effect of medium fine sand and stone powder is good, and the loss is very little, and the gradation and fineness modulus of the washed construction sand can meet the relevant national standards, which is conducive to improving the utilization rate and economic benefits of sand and stone.
Less loss of medium fine sand: In the sand washing process, the retention effect of medium fine sand and stone powder is good, and the loss is very little, and the gradation and fineness modulus of the washed construction sand can meet the relevant national standards, which is conducive to improving the utilization rate and economic benefits of sand and stone.
Wheel bucket yarn washing machine application scenarios:
Transportation industry: Suitable for the cleaning of sand and aggregate in road construction, providing clean and high-quality sand and gravel materials for the construction of infrastructure such as roads and railways to ensure the quality and durability of road projects.
Chemical industry: Clean and separate the sand and stone impurities in some chemical raw materials, improve the purity and quality of chemical products, and meet the strict requirements of chemical production.
Chemical industry: Clean and separate the sand and stone impurities in some chemical raw materials, improve the purity and quality of chemical products, and meet the strict requirements of chemical production.

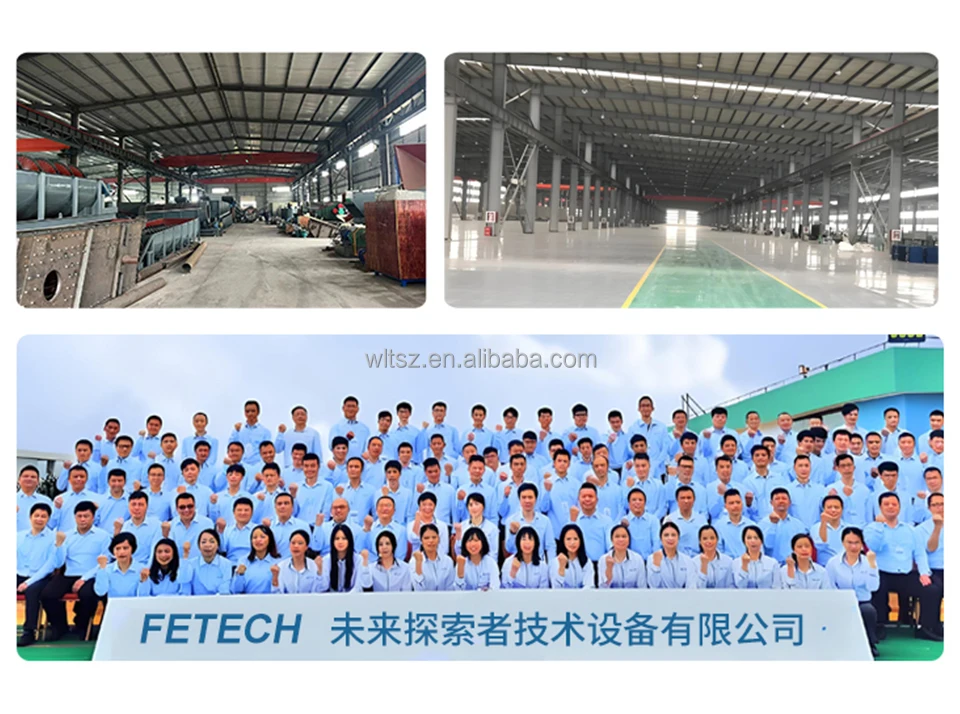

Company Profile
Why Choose FETECH ? (Future Explorer Technical Eqiupment Co.,Ltd )
20+Years experience in mining production line customization
50+engineers R&D Technical Team Support
40000+ m² Production Base
100+Countries Mining Plant Owners' Final Choice
1000+ International & Chinese Project Cooperation Cases
70+ Mineral material Beneficiation
We support EPC+M+O Mode (Engineer，Procure，Construct + Operation + Maintenance )
