Product Overview
Description
Product Description

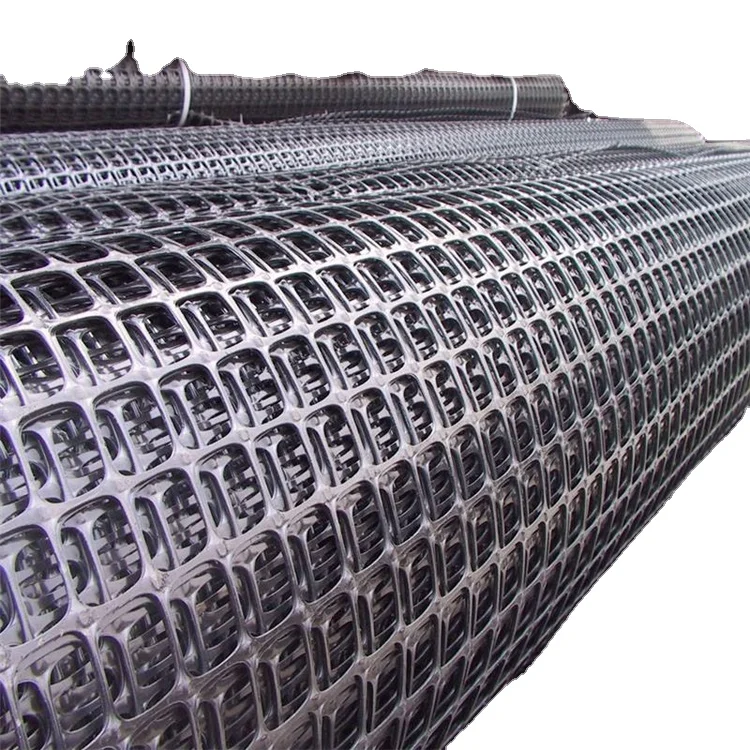

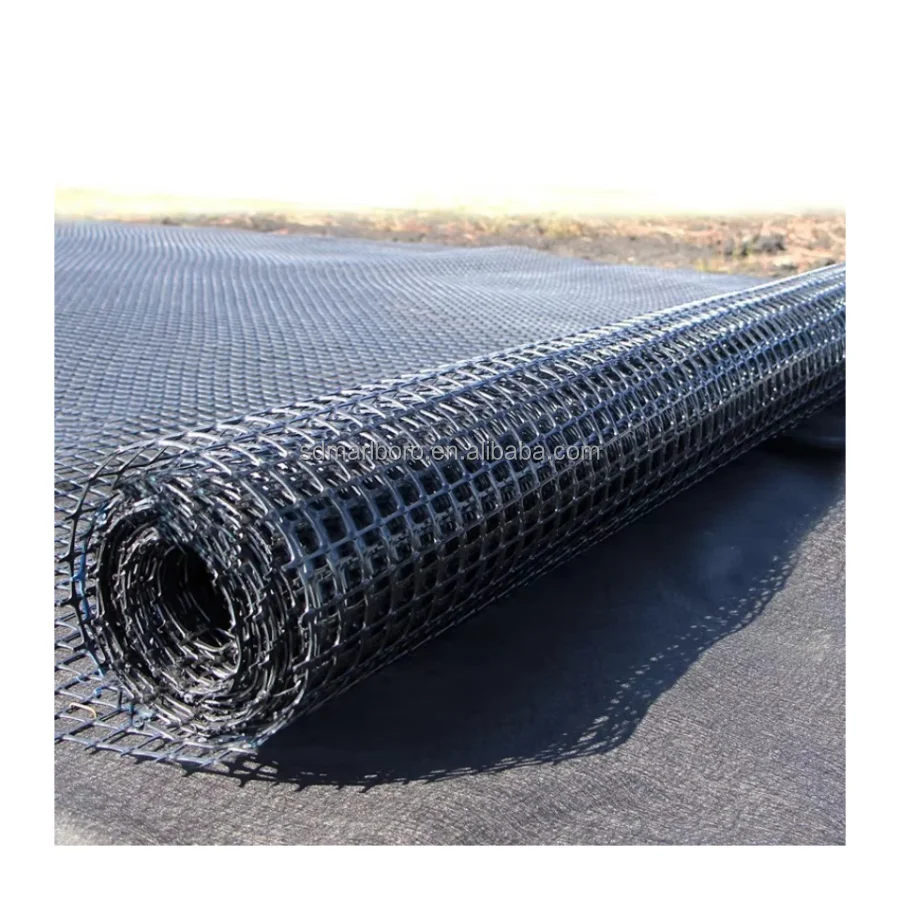

Biaxial geogrid is made of high molecular polymer through extrusion, forming and punching before longitudinal and lateral stretching. This material has considerable tensile strength in longitudinal and lateral directions.
Polyester Geogrid Slope Stabilization Plastic Geogrid for Road Construction Civil Engineering Construction Biaxial Geogrid
This chain structure can effectively bear and diffuse forces on soil and is applicable to large area permanent load bearing foundation as a reinforcement material.
Sdmarlboro geogrid is made of modified polypropylene and other high molecular polymers. After melt extrusion and stretching, it has great tensile strength in both longitudinal and transverse directions. This structure can provide a The ideal interlocking system for more effective force bearing and diffusion is suitable for the reinforcement of large-area long-term load-bearing.
Item | Specification | ||||||||||||||
Type (TGSG) | 15 | 20 | 25 | 30 | 35 | 40 | 45 | 50 | |||||||
Vertical and horizontal tensile strength≥ ( KN/M ) | 15 | 20 | 25 | 30 | 35 | 40 | 45 | 50 | |||||||
Tensile strength at 2% elongation≥( KN/M ) | 5 | 7 | 9 | 10.5 | 12 | 14 | 16 | 17.5 | |||||||
Tensile strength at 5% elongation≥( KN/M ) | 7 | 14 | 17 | 21 | 24 | 28 | 32 | 35 | |||||||
Maximum elongation≤(%) | 15 | ||||||||||||||
Applications
1. Airport runways, taxiways, aprons.
2. Highways and toll plazas
3. City roads and traffic signal junctions
4. Industrial roads, SEZ
5. Parking lots, bridges, asphalting on distressed PCC surface
6. MiningBiaxial Polypropylene Plastic Geogrid for Soft Soil Road Base Retaining Wall Slope Protection HDPE Geogrid
7. Landfill
8. Golf and sport fields
2. Highways and toll plazas
3. City roads and traffic signal junctions
4. Industrial roads, SEZ
5. Parking lots, bridges, asphalting on distressed PCC surface
6. MiningBiaxial Polypropylene Plastic Geogrid for Soft Soil Road Base Retaining Wall Slope Protection HDPE Geogrid
7. Landfill
8. Golf and sport fields
High Quality Pp Biaxial Reinforcement Earthwork Geogrid

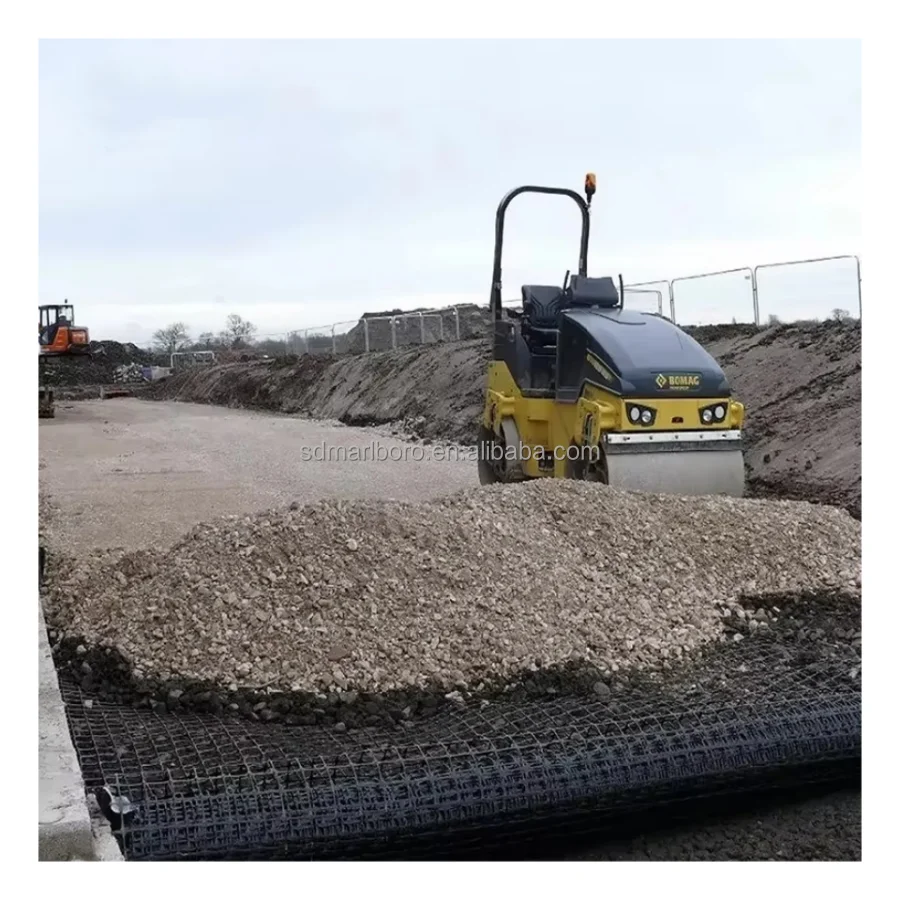

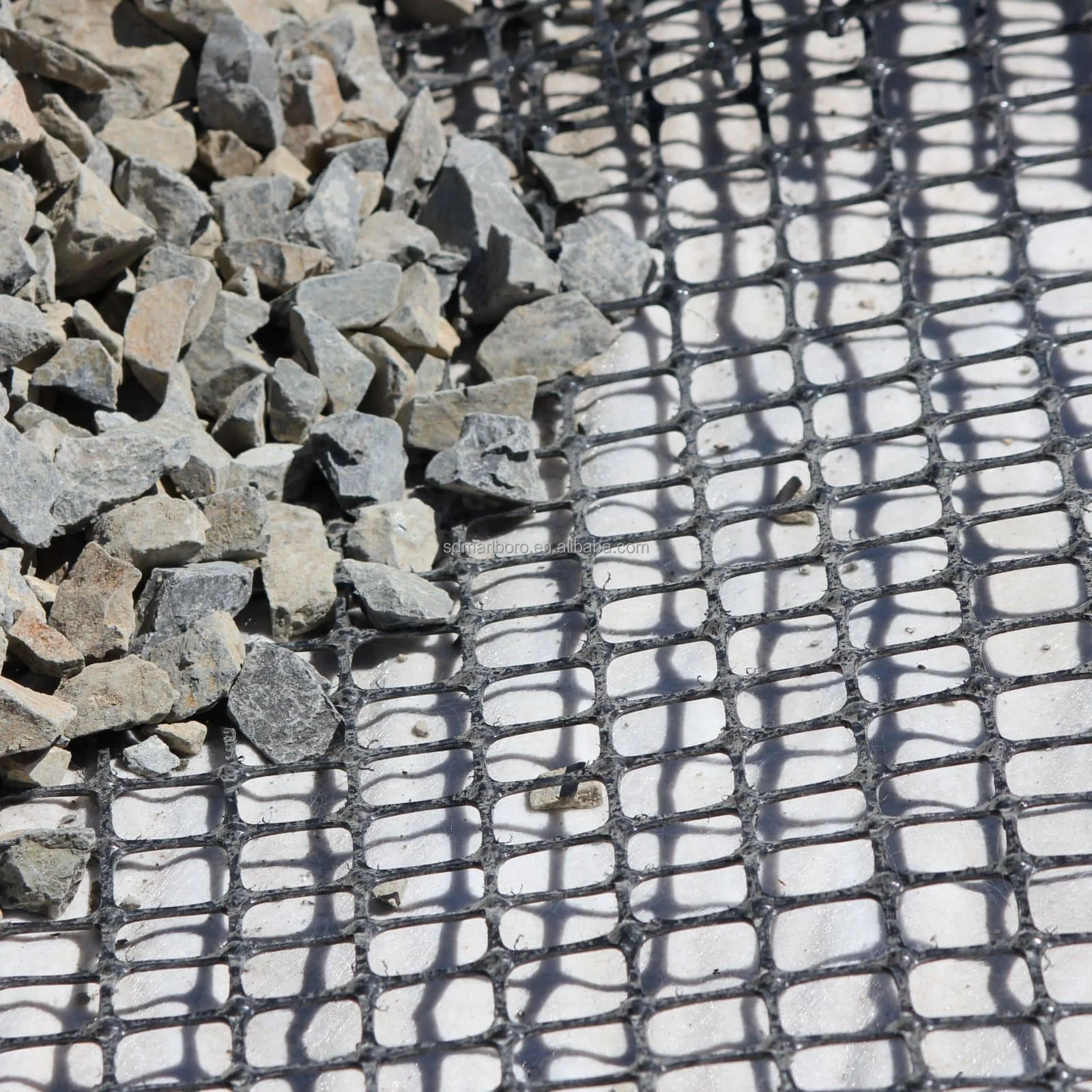

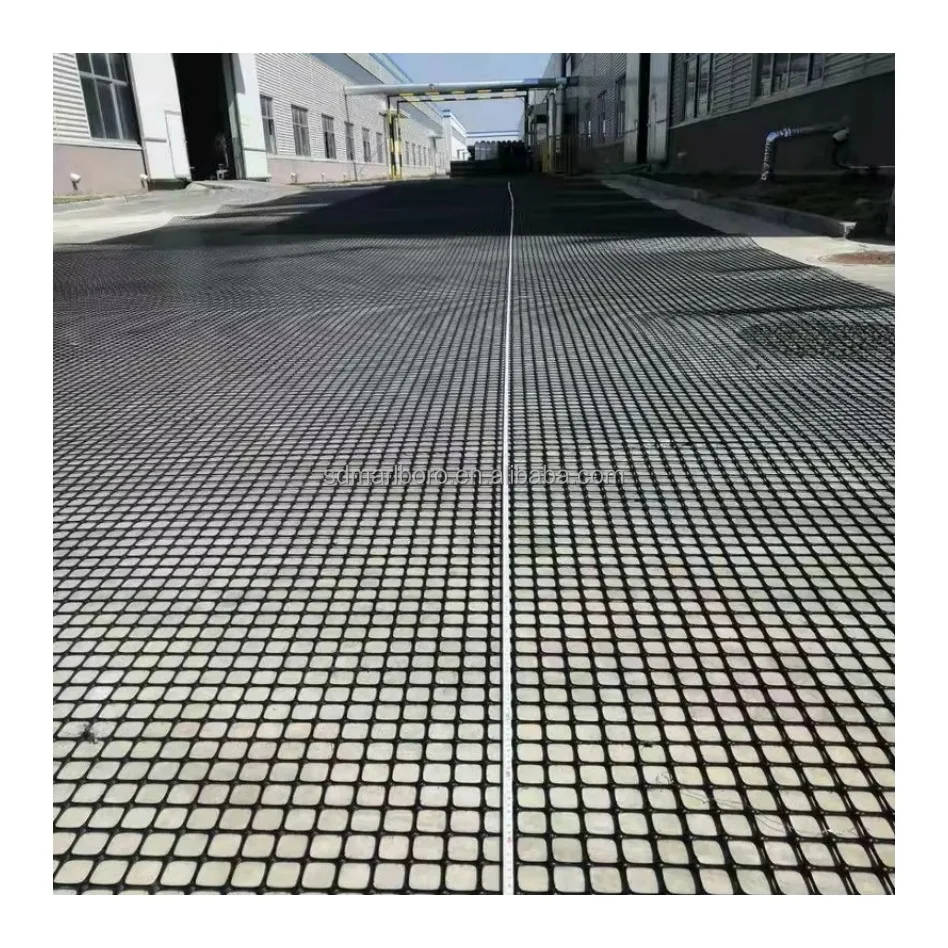

The basic process of two-way plastic grid construction: inspection, cleaning the underlying layer → manual laying of the geogrid → lap, binding, fixing → paving the upper subgrade soil → rolling → inspection
Sdmarlboro other geogrid products
Flame retardant geogrid, antistatic geogrid, one-way geogrid, three-way geogrid, four-way geogrid, reinforced composite biaxial geogrid, plastic steel geogrid, polyester fiber geogrid For different types of geogrids, there is always one suitable for you.
Sdmarlboro has multiple production bases, a sales department dedicated to you, and a construction team with many years of construction experience. We take customer satisfaction as our goal, and based on the principle of win-win cooperation, we welcome friends from all over the world to visit our company in Tai'an, Shandong. We are willing to work with you to create a better future.
