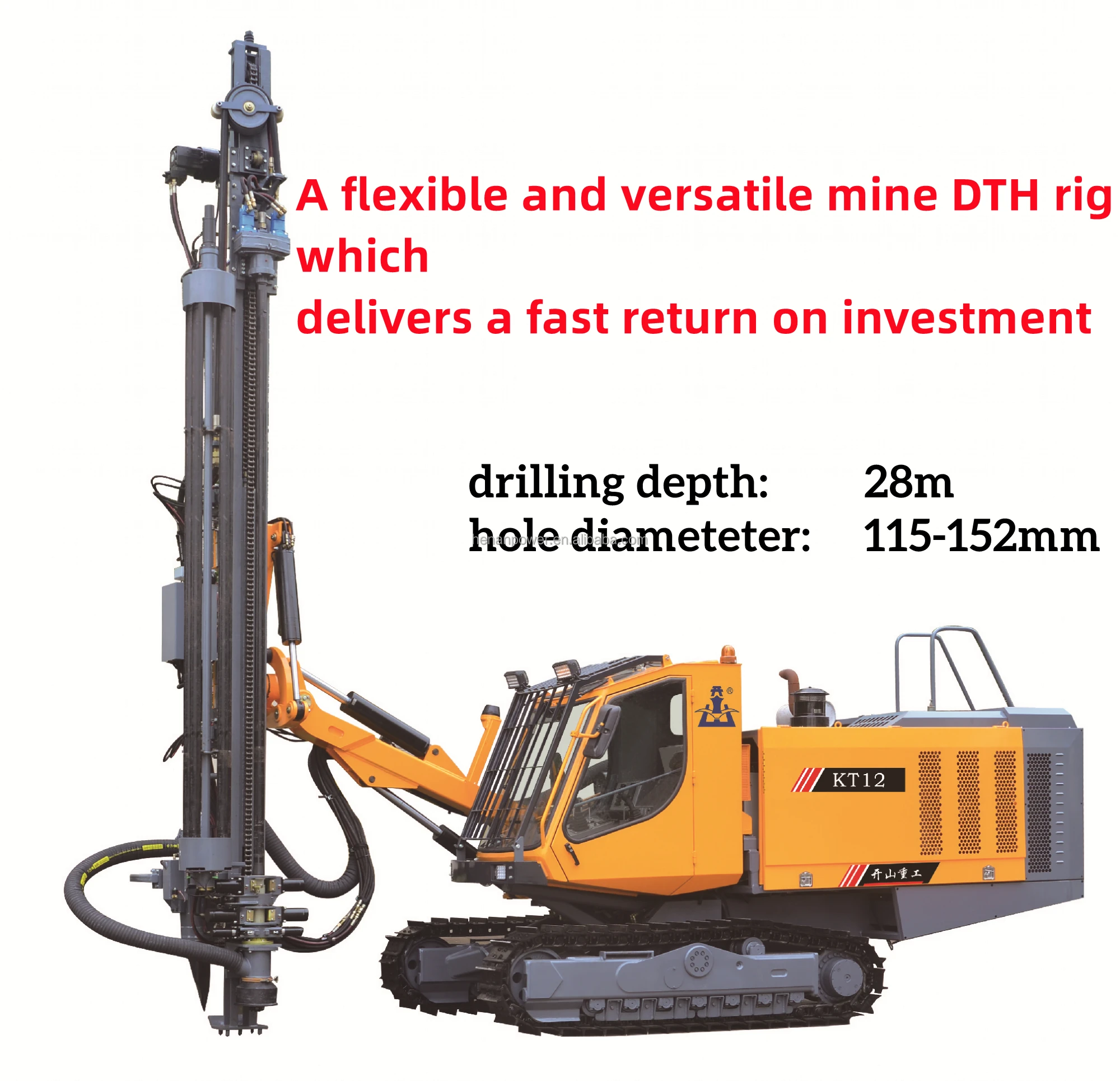

KT12 Drill rig for blasting granite drilling machine hot selling all in one mine drill wagon in Russia/Uzbekistan
- Category: >>>
- Supplier: Henan Power Machinery Equipment Co. Ltd.Henan Ltd.
Share on (1601297489716):
Product Overview
Description
Product Description
Model | KT12 |
Transport dimensions (L×W×H) | 9830*2580*3320 mm |
Weight | 17500Kg |
Rock hardness | f=6-20 |
Drilling diameter | 115-152mm |
Ground clearance | 420mm |
Leveling angle of track | 10°up, 10°down |
Travelling speed | 0-3Km/h |
Climbing capacity | 25° |
Traction | 120KN |
Torque | 3450Nm |
Rotation speed | 0-100rpm |
Lifting angle of drill boom | Up 47°, down 20° |
Swing angle of drill boom | Right 50°, left 21° |
Swing angle of carriage | Right 95°, left 35° |
Tilt angle of beam | 114° |
Compensation stroke | 1353mm |
Feed stroke | 4490mm |
Maximum propelling force | 25KN |
Method of propulsion | Roller chain |
Depth of economical drilling | 28m |
Number of rods | 6+1 |
Specifications of drilling rod | Φ89x4000 mm |
DTH hammer | K4、K5 |
Engine | QSL8.9-C360-30 /Cummins QSL8.9-C360-30 |
Number of cylinders | 6 |
Output power | 265KW/2200rpm |
Hydraulic pump | 5× gear pump |
Air Compressor | zhejiang Kaishan |
Air capacity | 20m³/min |
Air pressure | 22Bar |

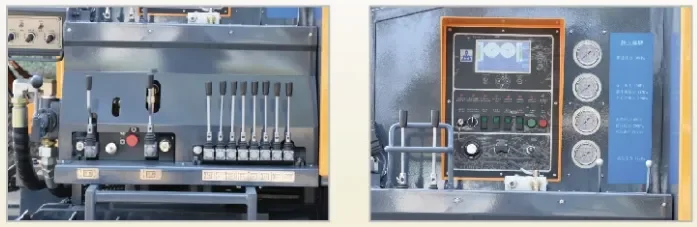

Traveling control system | Hydraulic pilot |
Drilling control system | Hydraulic pilot |
Anti-Jamming | Automatic electro-hydraulic anti-Jamming |
Voltage | 24V, DC |
Safe cab | Meet the requirements of FOPS & ROPS |
Indoor noise | Below 85dB（A） |
Seat | Adjustable |
Air-conditioning | Standard temperature |
Entertainment | Radio +Mp3 |

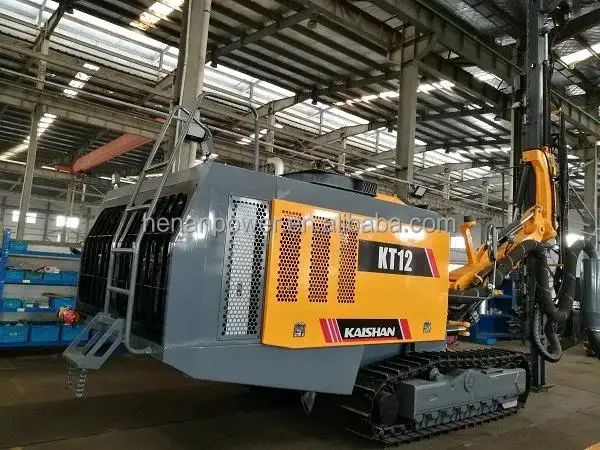

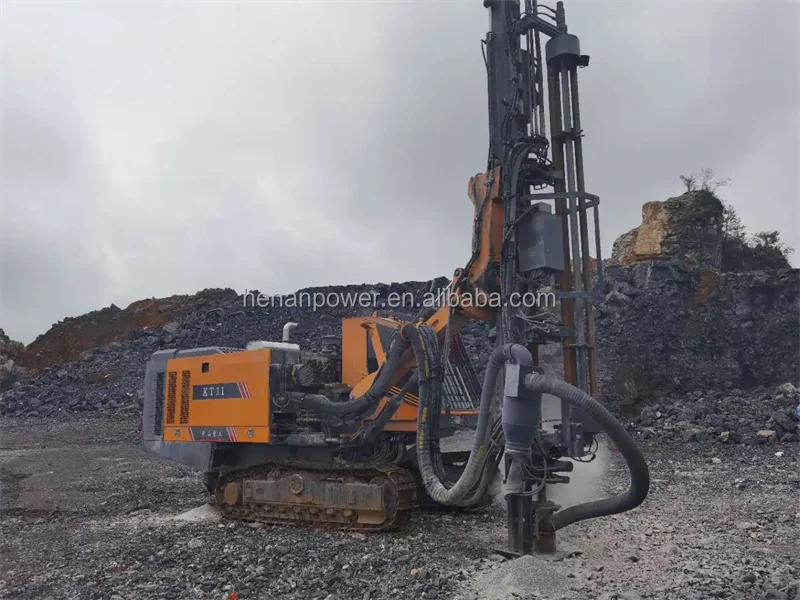

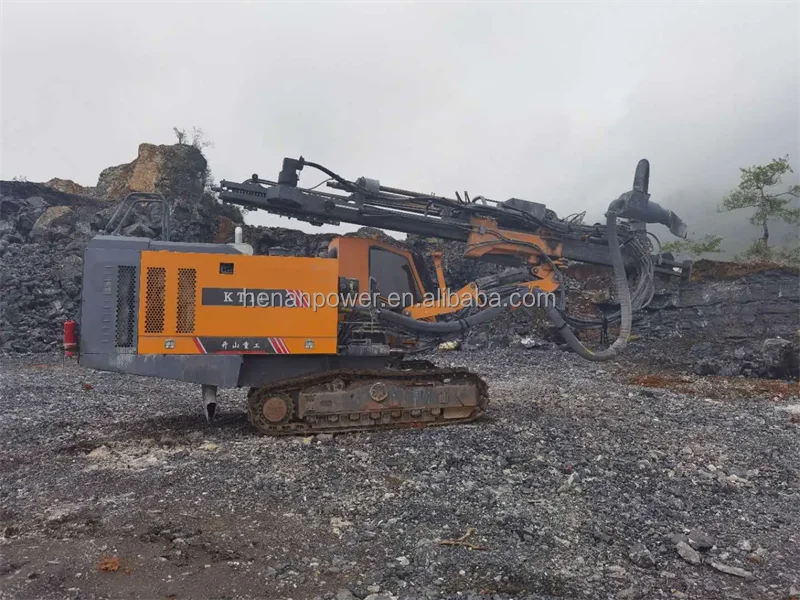

Kaishan Brand KT12 integrated DTH drilling rig use Cummins diesel engine as a single power, through the output at both ends of the way to drive the screw compression system and hydraulic drive system, drilling vertical, inclined and horizontal holes, mainly for the open air mining, rock drilling and drilling holes and pre-cracking hole and so on.
The drilling rig is equipped with automatic unloading rod system and drill rod lubrication module, which can realize single person operation and reduce mine operation person.
1.Low gravity, ground clearance achieved great, can easily go through bumpy road.
2.Advanced automatic balance system, walk stable, and greatly reduced drill car wallop, guarantee the safe driving.
3.High-power motor drive, and their climbing ability, with large traction.
4.Brakes and walk manipulated mechanism choi linkage mode, thus with stability and security.
5.Unique resistance from chain device, which greatly improves the reliability of the drill rig.
6.Drill car design has the advanced hydraulic system and a complete function pneumatic system, convenient operated.
7.Use mobile drilling of arm, expanded the scope of drilling, improve the product adaptability.
8.Rotary gear reducer, using the planet round transmission, speed, low torque force.
9.By adjusting the rotary valve pressure makes speed and torque, ensure the best DTH drilling efficiency.
2.Advanced automatic balance system, walk stable, and greatly reduced drill car wallop, guarantee the safe driving.
3.High-power motor drive, and their climbing ability, with large traction.
4.Brakes and walk manipulated mechanism choi linkage mode, thus with stability and security.
5.Unique resistance from chain device, which greatly improves the reliability of the drill rig.
6.Drill car design has the advanced hydraulic system and a complete function pneumatic system, convenient operated.
7.Use mobile drilling of arm, expanded the scope of drilling, improve the product adaptability.
8.Rotary gear reducer, using the planet round transmission, speed, low torque force.
9.By adjusting the rotary valve pressure makes speed and torque, ensure the best DTH drilling efficiency.

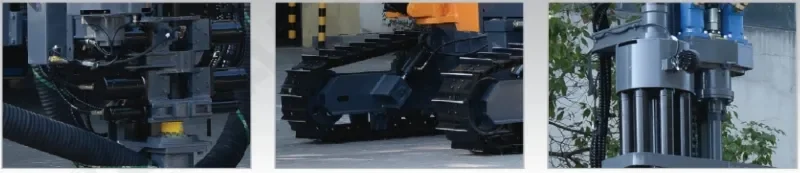

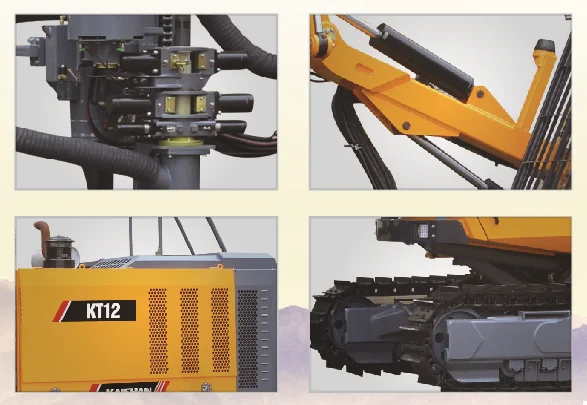

Product Details
Powerful Rotary Head
Big and strong designed rotation head for smooth high torque output and less drill tool jamming with seamless speed regulation.
Strong Heavy Duty Feed Beam
New design positioning system,easier for operation in the worst situation.Cylinder and wire rope feed for precise feed control and precision drilling.Suitable for various angle and horizontal bottom hole drilling.
Flexible Beam
Multi-directional Drilling Design.For complex drilling conditions.Heavy duty box type beam for better resistance to pulling,pressing,cutting,bending,and twisting force.Simple design for convenient maintenance and precision positioning.
Auto Drill Rod Changer
Rod storage rack and auto changer.High efficient,fast and reliable mechanical rod changer.Clamp type hydraulic handling platform for difference sizes of rod to handle easily.
Enlarged Dry Type Dust Collector
Two stage dry dust collection system with larger filtration area for auto continuous self cleaning dust collection.Convenient removal of filter elements for high efficiency maintenance. Movable dust hood for clear view of hole collaring to control collaring operation.
Screw Air compressor
All-in-one surface drilling rig,build in Kaishan screw air compressor 20 m³/min,22 bar.
Diesel Engine
Equipped with Cummins engine (China III), Reduce emissions and protect the environment.
Cab
Air Conditioning cab,Rock falling protect FOPS and Rollover proof ROPS, all view AC cab with noise and shock proof. Optional:Realm time display of drilling angle and depth.
Chassis
Track type heavy duty chassis, ±10° hydraulic oscillation on heavy duty track frame. Powerful traction force and high ground clearance for strong off road capabilities.
Big and strong designed rotation head for smooth high torque output and less drill tool jamming with seamless speed regulation.
Strong Heavy Duty Feed Beam
New design positioning system,easier for operation in the worst situation.Cylinder and wire rope feed for precise feed control and precision drilling.Suitable for various angle and horizontal bottom hole drilling.
Flexible Beam
Multi-directional Drilling Design.For complex drilling conditions.Heavy duty box type beam for better resistance to pulling,pressing,cutting,bending,and twisting force.Simple design for convenient maintenance and precision positioning.
Auto Drill Rod Changer
Rod storage rack and auto changer.High efficient,fast and reliable mechanical rod changer.Clamp type hydraulic handling platform for difference sizes of rod to handle easily.
Enlarged Dry Type Dust Collector
Two stage dry dust collection system with larger filtration area for auto continuous self cleaning dust collection.Convenient removal of filter elements for high efficiency maintenance. Movable dust hood for clear view of hole collaring to control collaring operation.
Screw Air compressor
All-in-one surface drilling rig,build in Kaishan screw air compressor 20 m³/min,22 bar.
Diesel Engine
Equipped with Cummins engine (China III), Reduce emissions and protect the environment.
Cab
Air Conditioning cab,Rock falling protect FOPS and Rollover proof ROPS, all view AC cab with noise and shock proof. Optional:Realm time display of drilling angle and depth.
Chassis
Track type heavy duty chassis, ±10° hydraulic oscillation on heavy duty track frame. Powerful traction force and high ground clearance for strong off road capabilities.
Product Packaging

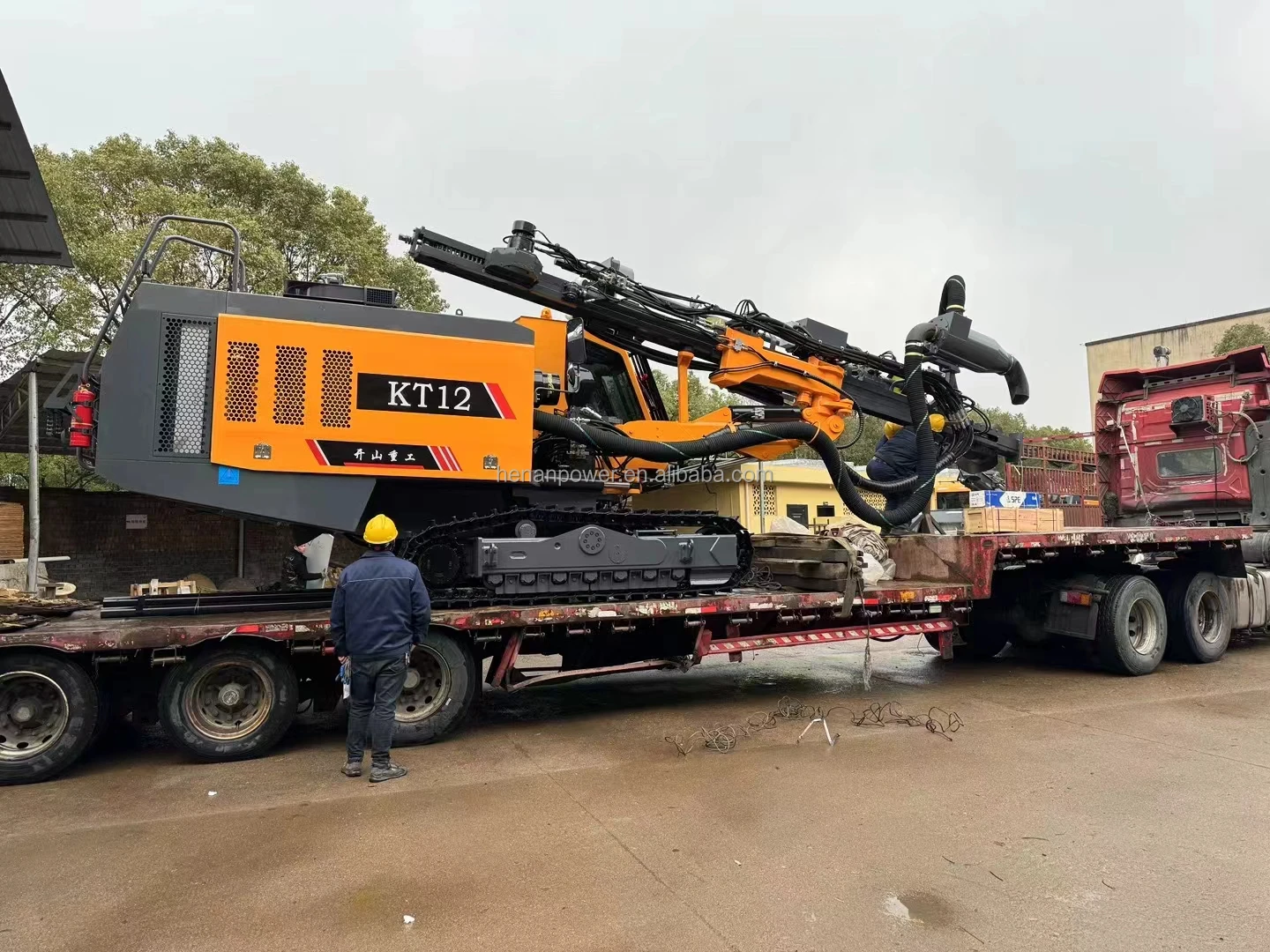

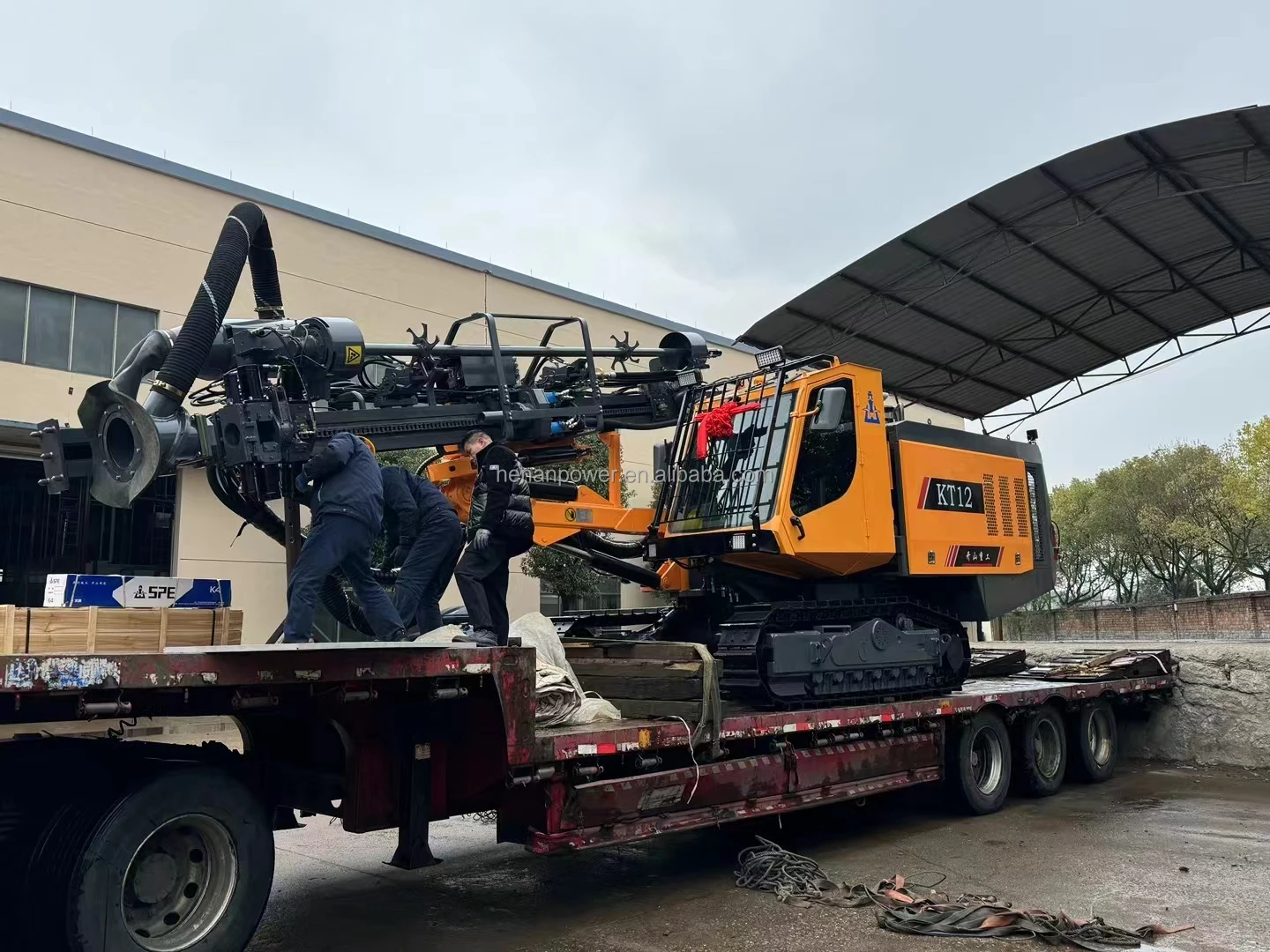

KT12 drill rig and drilling rods are nude packing,other drilling tolls are packed by carton or wooden boxes.

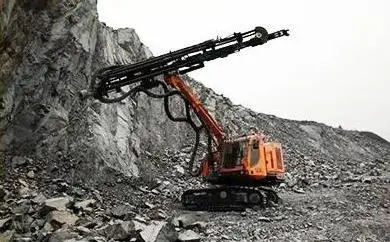

Product Application

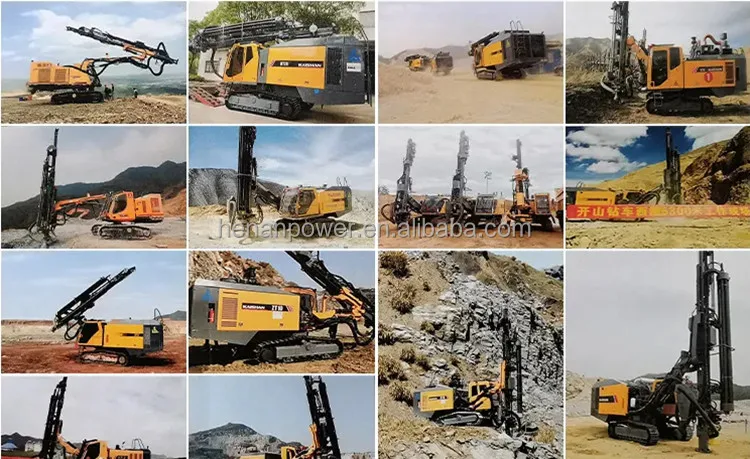

Kaishan Brand KT12 Integrated drilling rig has the characteristics of good entirety, environmental protection and energy saving,high automation,favorable effect of rock drilling,easy and flexible operation and safe walking which is widely used in open-pit mine, the quarry, highway, railway, water conservancy, electric power, building and engineering project, deep hole drilling operations and etc.

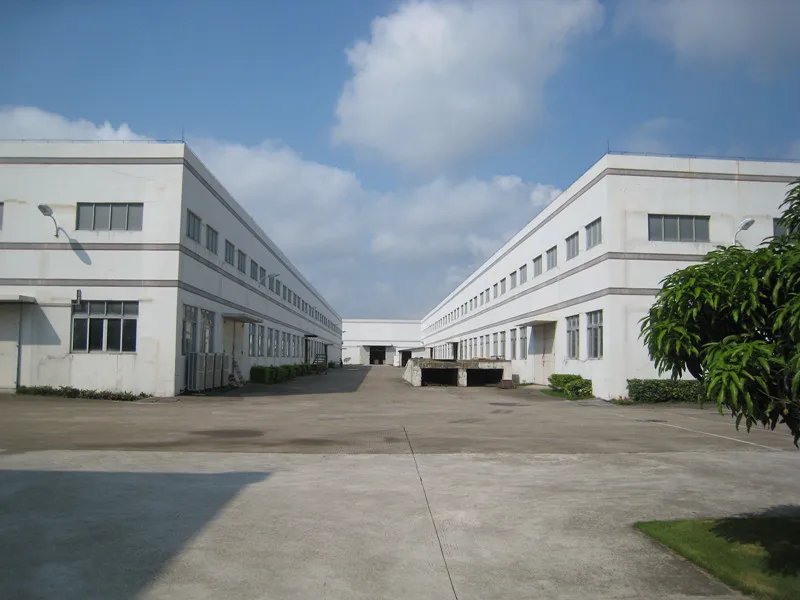

About Us
