Plastic Drainage Cover Grating Board Used for Car Parking Interlocking Grass Grid
- Category: >>>
- Supplier: Taian Best Building Material Technology Co. Ltd.Taian Ltd.
Share on (1601297523908):
Product Overview
Description
Product Description
Plastic Drainage Cover Grating Board Used for Car Parking Interlocking Grass Grid

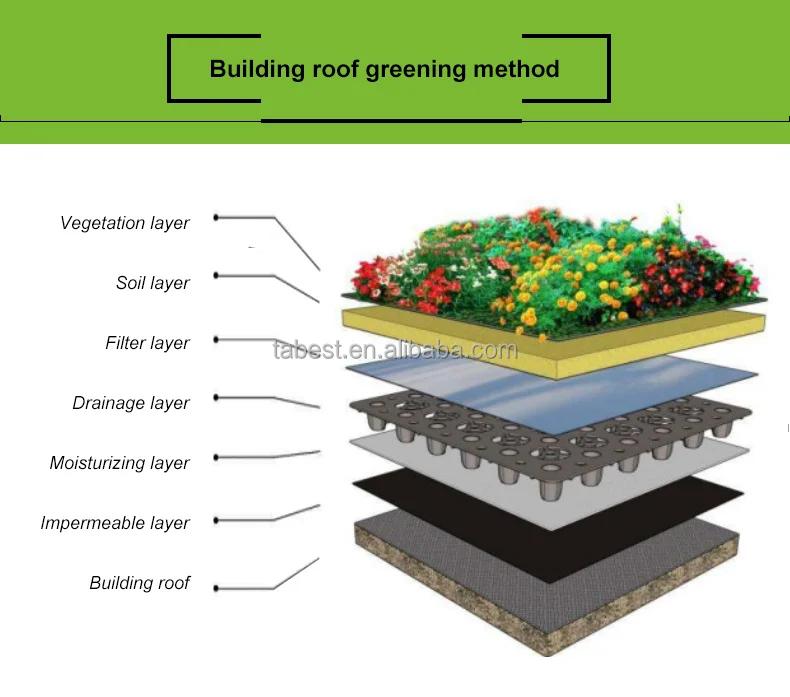

The drain board is made of high density polyethylene (HDPE). The surface is equipped with a layer of grid and a layer of non-woven fabric to form a combined drainage board. It has the functions of drainage, waterproof, breathable, moisturizing and root blocking. It is suitable for large square greening and garage roof greening projects with deep soil layer and no water storage function. It can resist long-term high pressure without deformation. This long-term compression resistance can not only withstand the weight and load of the concrete floor, but also withstand the inevitable external pressure and impact during construction, such as the trampling of vehicles, workers and the impact of concrete pouring. Keep the bottom plate from deformation for a long time, so the original drainage can be maintained. The drainage board has only drainage function and is widely used in retaining wall, basement, tunnel, slope protection, platform and expressway subgrade.
Feature
2. Height: 8,10,12,16,20,25,30mm
3. Color: white, green, black, blue
4. Width: 1m or 2m or 3m
5. Length: 10-15m
6. High compressive strength
7. Weight: 650g /m2----1800g/m2
8.Tensile loading:>150kpa --- >300kpa
9.Drain capacity:5.6—24.8cm3/s
10. Resistance to chemicals, root penetration, microorganism
1. Material: HDPE
2. Height: 8,10,12,16,20,25,30mm
3. Color: white, green, black, blue
4. Width: 1m or 2m or 3m
5. Length: 10-15m
6. High compressive strength
7. Weight: 650g /m2----1800g/m2
8.Tensile loading:>150kpa --- >300kpa
9.Drain capacity:5.6—24.8cm3/s
10. Resistance to chemicals, root penetration, microorganism

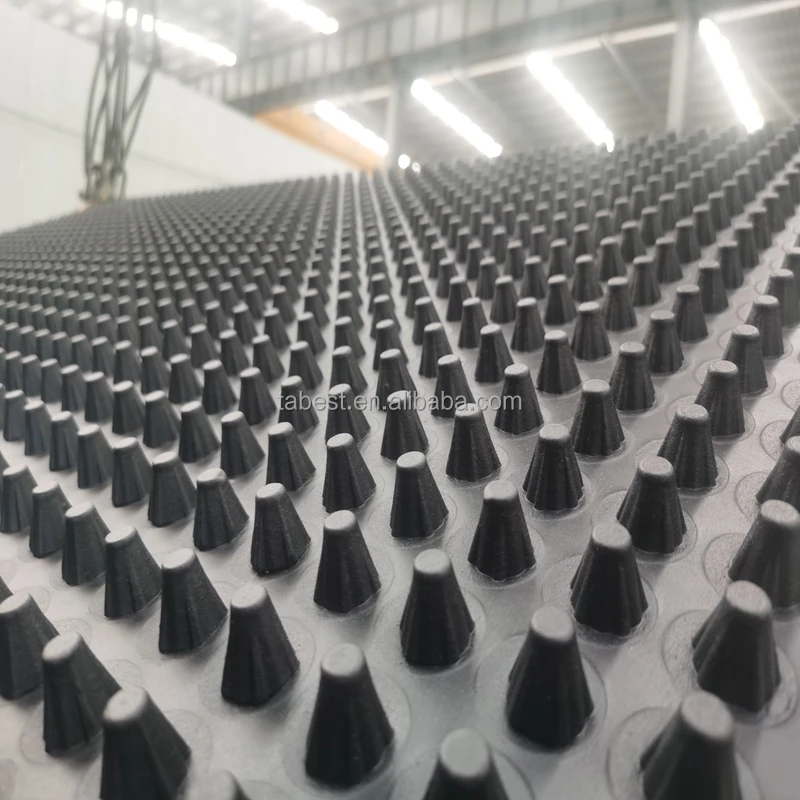

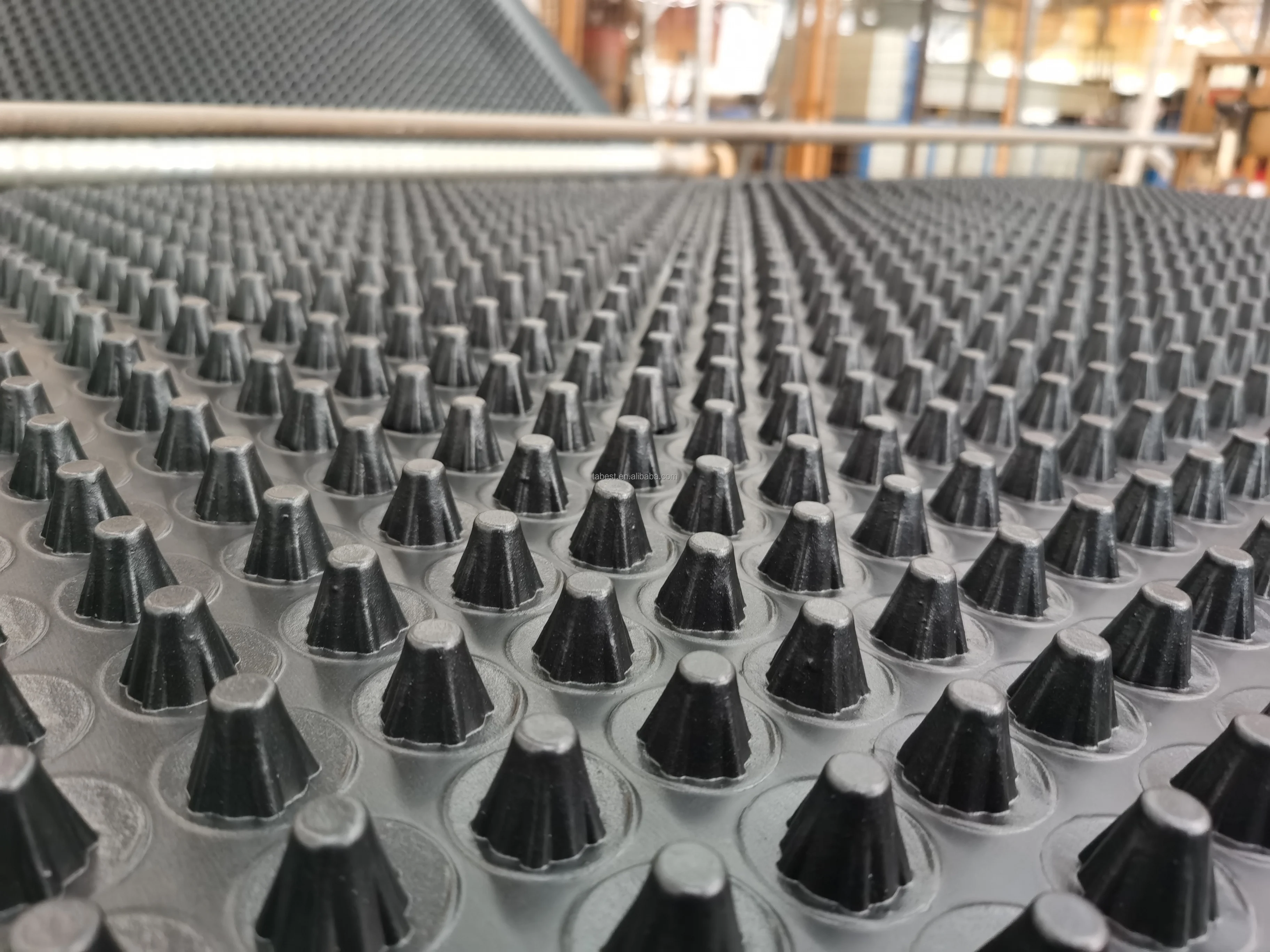

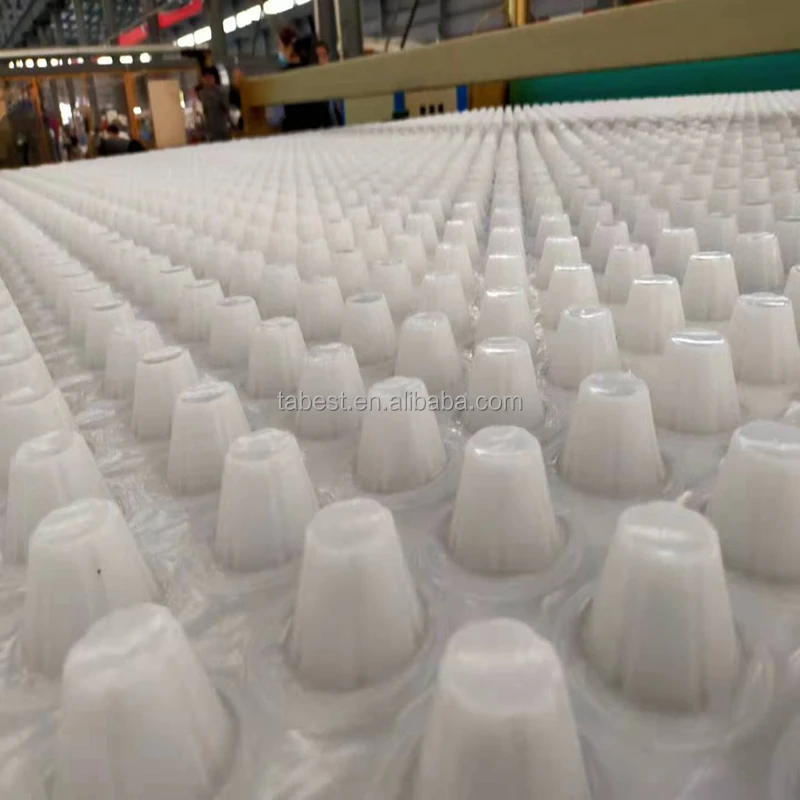

Detailed Images

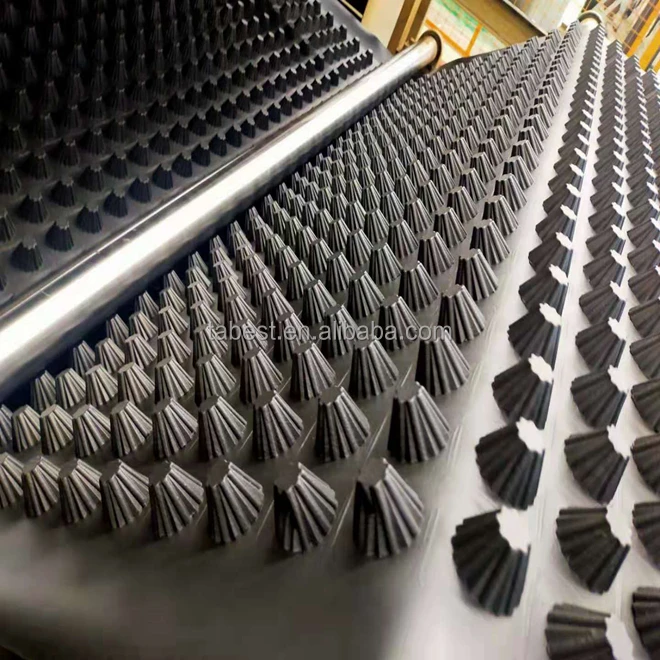

Dimple Drain Board Waterproofing With Nonwoven Geotextile Fabric with a special plastic sheet extrusion process will be closed to the protruding cylinder shell to form a bump-like membrane, shell continuous, with a high degree of three-dimensional space and some supports, can resist the long-term high-pressure, no deformation. Shell top cover geotextile filter layer, to ensure that the drainage channel will not be blocked by foreign objects and, as particles or concrete backfill.
Size Information
Model | 08 | 10 | 12 | 16 | 20 | 25 | 30 | ||||||
Material | HDPE | ||||||||||||
Dimple Height(mm) | 8 | 10 | 12 | 16 | 20 | 25 | 30 | ||||||
Unit Weight(g/㎡) | 1000 | 1100 | 1200 | 1400 | 1500 | 1600 | 1800 | ||||||
Thickness(mm) | 0.7 | 0.8 | 0.9 | 1.0 | 1.1 | 1.1 | 1.2 | ||||||
Tensile Strength(KN/m) | 3.5 | ||||||||||||
Puncture strength(KN) | 0.35 | ||||||||||||
Application
Landscape Engineering
Construction Engineering
Municipal Engineering

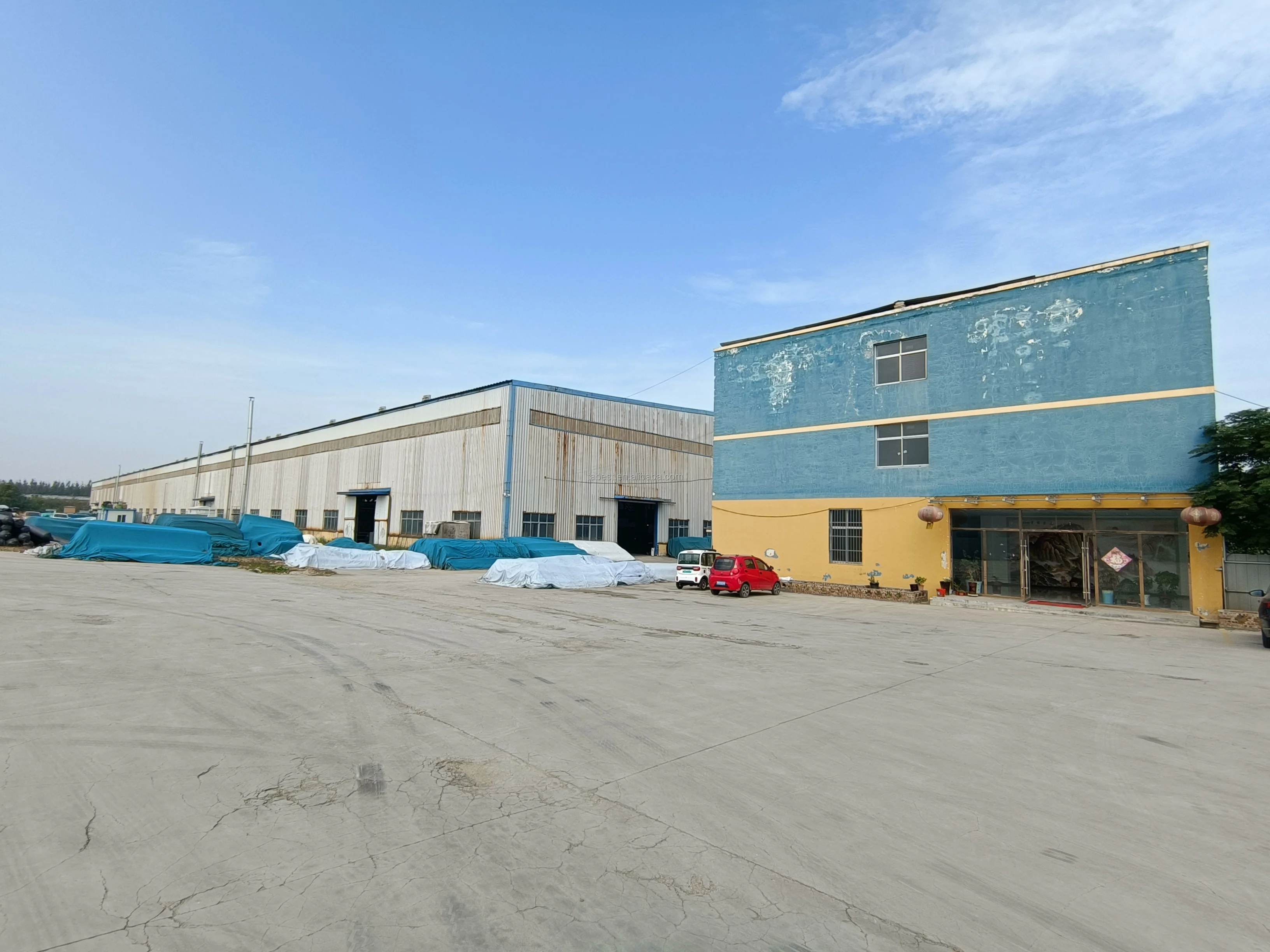

Company Introduction

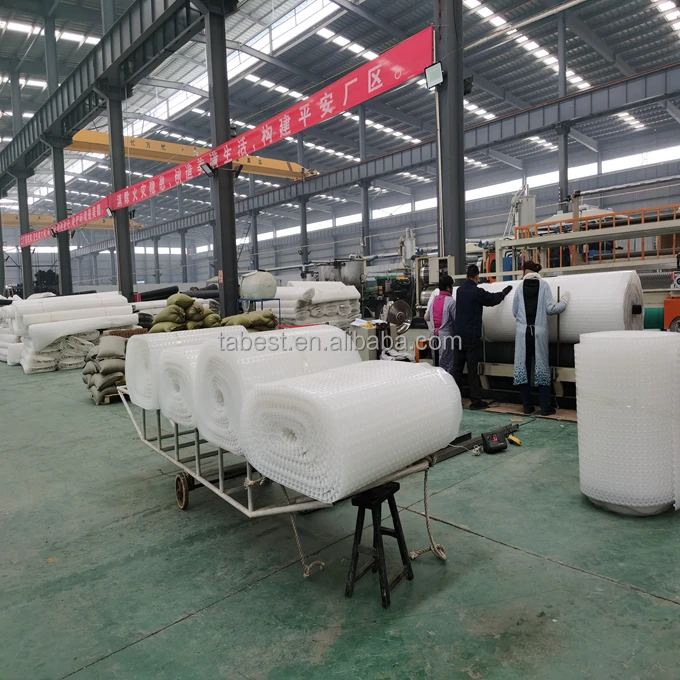

Our company is an engineering material company specializing in the production, processing and sales of HDPE geomembrane,waterproof board, drainage board, geotextile, geogrid, composite geomembrane and other products, with a complete and scientific quality management system.
The company always adheres to independent innovation, continuously improves product quality and construction technology. The company will always provide customers with the most professional construction scheme design and on-site welding construction and installation technical services. The company always adheres to the business philosophy of "science and technology first,integrity-based, win-win coexistence", and sincerely cooperates with friends at home and abroad to draw a grand blueprint!
The company always adheres to independent innovation, continuously improves product quality and construction technology. The company will always provide customers with the most professional construction scheme design and on-site welding construction and installation technical services. The company always adheres to the business philosophy of "science and technology first,integrity-based, win-win coexistence", and sincerely cooperates with friends at home and abroad to draw a grand blueprint!

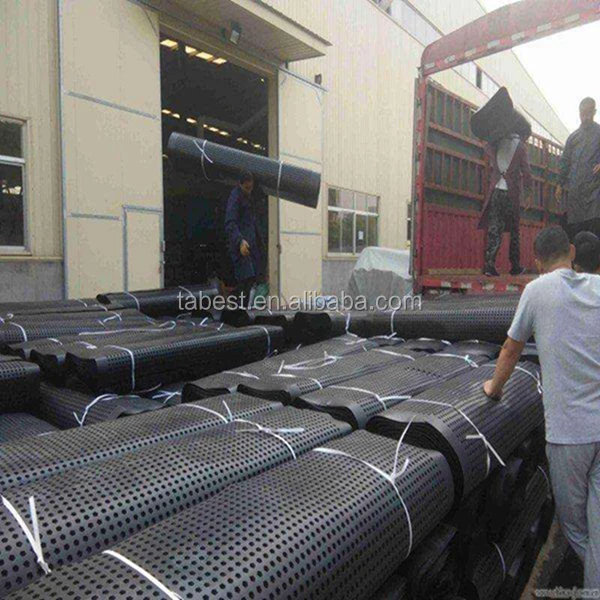

Delivery
