Floor Insulation Fiberglass VIP Panels Energy Saving Fumed Silica Vacuum Insulation Board For Building Roof Construction
- Category: >>>
- Supplier: Chongqing Yangkai Import & Export Trade Co. Ltd.Chongqing Ltd.
Share on (1601297677729):
Product Overview
Description
Vacuum Insulation VIP panels
Vacuum Insulation panels (VIP) in English Vacuum Insulation Panel for short, is one of the Vacuum thermal Insulation material, by filling the composite core material and Vacuum protection surface layer, and it effectively avoid caused air convection heat transfer, thus can greatly reduce the thermal conductivity, is less than 0.005 w/m.k, and does not contain any ODS material, has the characteristics of environmental protection and high efficiency and energy saving, is currently the world's most advanced and efficient heat preservation material.Application
VIP is mainly used for thermal insulation, such as household refrigerator, yacht refrigerator, mini refrigerator, car refrigerator, cryogenic freezer, electric water heater, vending machines, freezers, cold storage container, building wall thermal insulation and LNG storage and transportation, etc.
Advantage
Compared with other materials, VIP, with its extremely low coefficient of thermal conductivity of insulation layer thickness in the same thermal insulation technology requirements are thin, the advantages of small volume, light weight, suitable for energy saving products, high demand has great technical and economic significance.
Parameter
Thermal Conductivity | ≤0.0028W/(m.K) | ||
Puncture strength | ≥18N | ||
Tensile strength | ≥80kPa | ||
Compression strength | ≥100kPa | ||
Surface water absorption | ≤100g/m2 | ||
Length | ≤0.5% | ||
Width | ≤0.5% | ||
Thickness | ≤3.0% | ||
Test item | Test value | Technical index | Test result | ||
Appearance | Flat surface, Barrier membrane is in good condition | Flat surface, Barrier membrane is in good ondition | PASS | ||
Size deviation (mm) | Thickness | -0.7 | ±1.0 | PASS | |
Length | -2.4 | ±3.0 | PASS | ||
Width | -0.3 | ±2.0 | PASS | ||
Diagonal deviation | 1 | ±3.0 | PASS | ||
Right Angle deviation | 0.5 | ≤2.0(mm/m) | PASS | ||
Flat deviation | 0.9 | ≤1.0 | PASS | ||
Areal density(kg/m2) Thickness 10mm | 6.3 | ≤10.5 | PASS | ||
Tensile strength | 0.1 | ≥0.1 | PASS | ||
Size stability(%) 70±2℃,48h | Length variation:-0.2 Width variation:-0.6 Thickness variation:-0.7 | ≤1.5 | PASS | ||
Thermal conductivity(w/m.k ) average temperature 25℃ | 0.0026 | ≤0.0050 | PASS | ||
Heat resistance . m2 .k /w Thickness 15mm , average temperature 25℃ | 5.2 | ≥1.5 | PASS | ||
Compression performance(Mpa) Compressive deformation 10% | 0.29 | ≥0.15 | PASS | ||
Two types of VIP panels

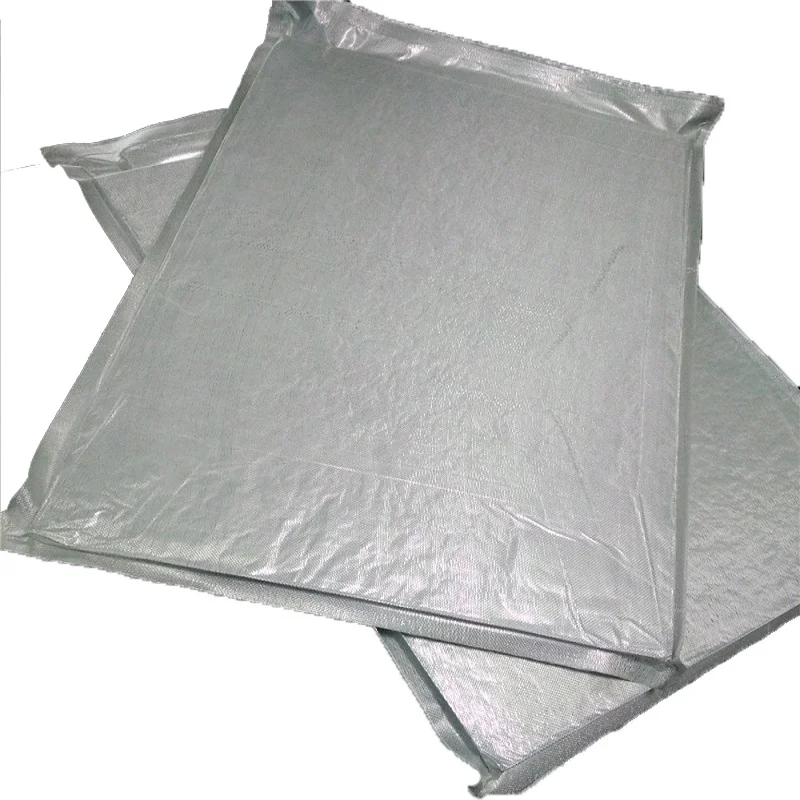

VIP panel with glass fiber cloth for construction application
Unfolded edges
Folded edges
VIP panel without glass fiber cloth for refrigerator application
Flat
Curved
Details Images
Product packaging
1. who are we?
We are a specialized supplier of heat insulation and filtration materials ,based in Chongqing, China, start from 2010. We have our own plants to serve our customers both in China and overseas' market. We have established the strategic cooperation with some of customers and quikly grows in these years. Besides it, we work closely with our partner manufacturers of glass fiber, basalt fiber and carbon fiber products etc to serve well on our customers.
2. how can we guarantee quality?
We always adhere to the principle of "to provide the best quality as we can". We have the strict quality control policy on our products and on our partner's companies before the goods delivery. If there is some quliaty issue, we will closely check with our customers and always take our responsibilities if it happen even though the possiblility is very low.
The heat insulation materials include vacuum insulation panel(or board), Vacuum glass ,Aerogel mat and others for construction and industrial applications. The filtration material and product include various kinds of glass fiber filtrate paper (F and Hepa grade, laminated ones), wood pulp filter paper (tea and coffee filter paper), various kinds of non-woven tissue (used for face mask and others) and PP, PET filter paper. The new material of fiber products include glass fiber, basalt fiber and carbon fiber materials such as roving, chop strand,fabric and mat.etc.
4. why should you buy from us not from other suppliers?
We are specialized in the heat insulation and filtration fields morn than 10 years and can provide the best solutions to our customers. We always respect our reputation and treat our customers sincerely.
5. what services can we provide?
Accepted Delivery Terms:EXW, FOB,CFR,CIF,Express Delivery；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T, L/C, D/P,Western union,Paypal;
