Z Lock Joint Expanded Polystyrene Foam/EPS Insulated Sandwich Wall Panel
- Category: >>>
- Supplier: Tianjin Brilliant Steel Imp&Exp. Corp.Tianjin Corp.
Share on (1601297710591):
Product Overview
Description
Product Description
Z Lock Joint Expanded Polystyrene Foam/EPS Insulated Sandwich Wall Panel
Proformance Parameters of Rock Wool Sandwich Panles | |
Length | ≤14m |
Thickness of Core material | 40/50/75/80/100/120/150/200mm |
Thickness of steel sheets | 0.25-0.7mm |
Color | Offwhite, White-grey, Silver gray, Sea-blue, red, and so on |
Reommended Coating | Polyester coating PE, SMP coating, HDP coating, PVDF coating, etc. |
Effective Width | 960mm for roof; 950/1000/1150mm for wall |
Coefficient of the heat conductivity | ≤0.036W/mk |
Average density | 40-200kg/m3 |
Compressive strength | ≥100kg/m3, 85Mpa; ≥120kg/m3,105Mpa |
Application | steel structure warehouse, factories, exhibition hall, container houses, cold storage, etc. |
Production Introduction:
The Rock wool Sandwich Panel production process adopts the colored steel plate as surface board and the core materials is the self-extinguishing closed cell rock wool, it is kind of high –strength composited building materials, and it was formed in the automated continuous molding machine, by combining the pressed colored steel with high strength adhesives. Rock wool sandwich panels have the excellent fire performance because the color steel plate and rock wool materials are fireproof best.

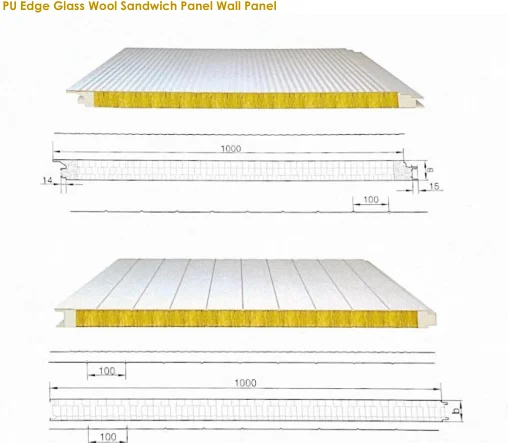

| PU Edge Glass Wool Sandwich Panel The Specific And Characters | |||||||||||||
| The Surface: Waved, Flat, Embossed | |||||||||||||
| Effective Width: 1000mm (Connected by Concealed Screw OR Non-Concealed Screw | |||||||||||||
| Thickenss:50mm 75mm 80mm 100mm 120mm 150mm | |||||||||||||
| The two sides of the panel are sealed with Polyurethane, which improved the Air-Tightness and Water-tigheness of the connection, as meanwhile,it effectively prevent the occrrence of the Cold Bridge | |||||||||||||
| The two sides of the panel are sealed with Polyurethane, which avoiding the steel sheets peel off from the core materials | |||||||||||||

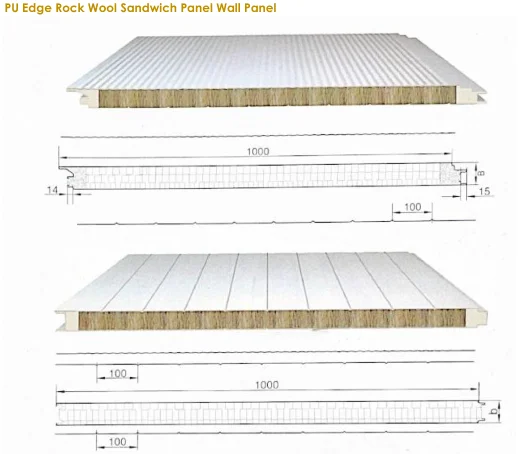

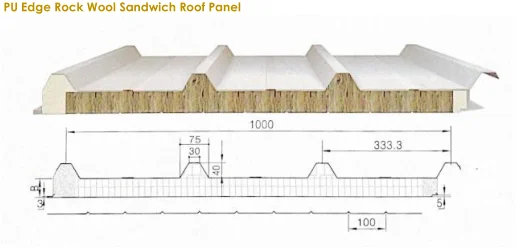

| PU Edge Rock Wool Sandwich Panel The Specific And Characters | |||||||||||||
| The Surface: Waved, Flat, Embossed | |||||||||||||
| Effective Width: 1000mm (Connected by Concealed Screw OR Non-Concealed Screw | |||||||||||||
| Thickenss:50mm 75mm 80mm 100mm 120mm 150mm | |||||||||||||
| The two sides of the panel are sealed with Polyurethane, which improved the Air-Tightness and Water-tigheness of the connection, as meanwhile,it effectively prevent the occrrence of the Cold Bridge | |||||||||||||
| The two sides of the panel are sealed with Polyurethane, which avoiding the steel sheets peel off from the core materials | |||||||||||||

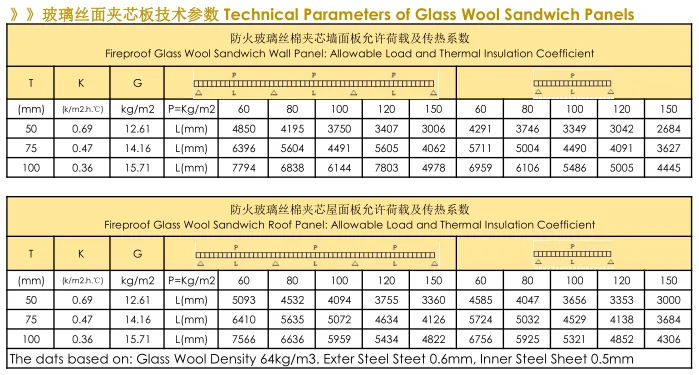

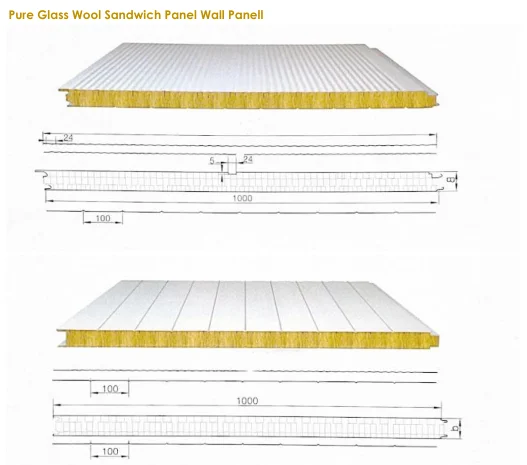

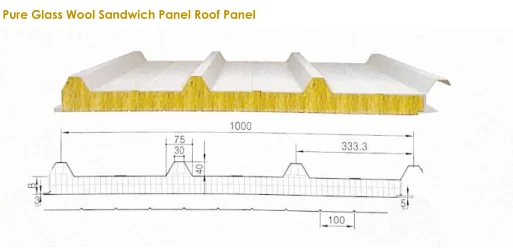

| Glass Wool Sandwich Panel The Specific And Characters | |||||||||||||
| The Surface: Waved, Flat, Embossed | |||||||||||||
| Effective Width: 1000mm (Connected by Concealed Screw OR Non-Concealed Screw | |||||||||||||
| Thickenss:50mm 75mm 80mm 100mm 120mm 150mm | |||||||||||||
| The two sides of the panel are sealed with Polyurethane, which improved the Air-Tightness and Water-tigheness of the connection, as meanwhile,it effectively prevent the occrrence of the Cold Bridge | |||||||||||||
| The two sides of the panel are sealed with Polyurethane, which avoiding the steel sheets peel off from the core materials | |||||||||||||

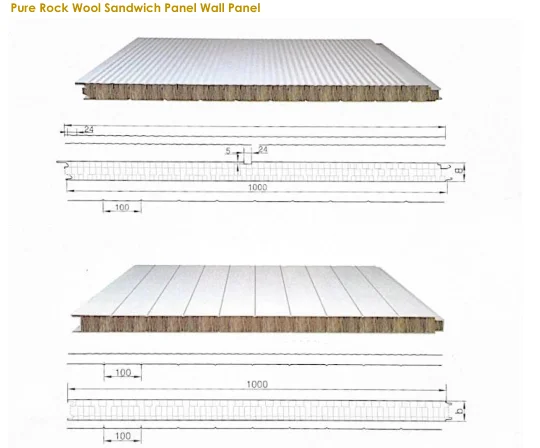

| Rocl Wool Sandwich Panel The Specific And Characters | |||||||||||||
| The Surface: Waved, Flat, Embossed | |||||||||||||
| Effective Width: 1000mm (Connected by Concealed Screw OR Non-Concealed Screw | |||||||||||||
| Thickenss:50mm 75mm 80mm 100mm 120mm 150mm | |||||||||||||
| The two sides of the panel are sealed with Polyurethane, which improved the Air-Tightness and Water-tigheness of the connection, as meanwhile,it effectively prevent the occrrence of the Cold Bridge | |||||||||||||
| The two sides of the panel are sealed with Polyurethane, which avoiding the steel sheets peel off from the core materials | |||||||||||||

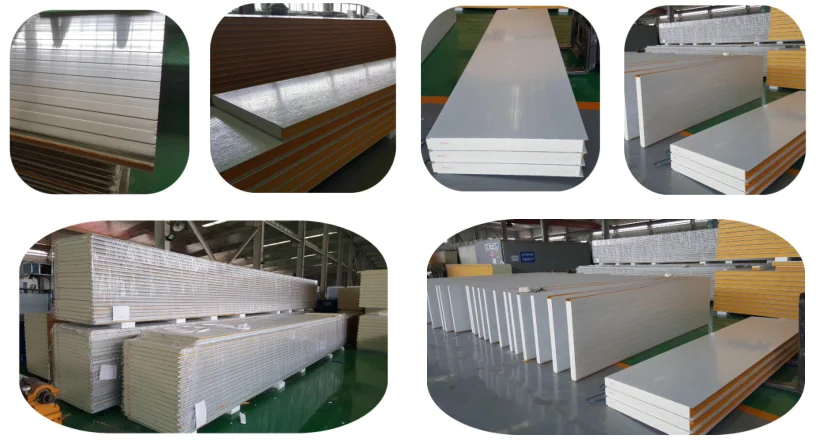

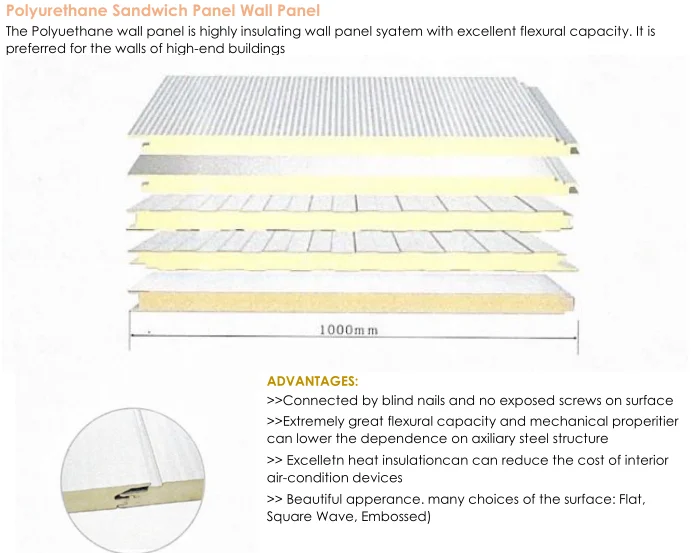

| Polyurethane Sandwich Wall Panel Specific | |||||||||||||
| Surface Appearrance | Flat; Square Wave; Embossed | ||||||||||||
| Steel Sheet Thickness | 0.4-0.8mm | ||||||||||||
| Density of Core Material | 40-45kg/m3 | ||||||||||||
| Covering Width | 50mm 75mm 80mm 100mm 120mm 150mm 200mm | ||||||||||||
| Color Choice | Offwhite; Sea Blue; Red. OR All Ral Chart Colors | ||||||||||||
| Insulation Choice | PU( Polyurethane) PIR | ||||||||||||
| Steel Coating | Polyster (PE); SMP Coating; HDP Coating; PVDF Coating | ||||||||||||
| Baseplate | Hot-dip Galvanzied Steel Sheet; Alu-Galvanized Steel Sheet | ||||||||||||

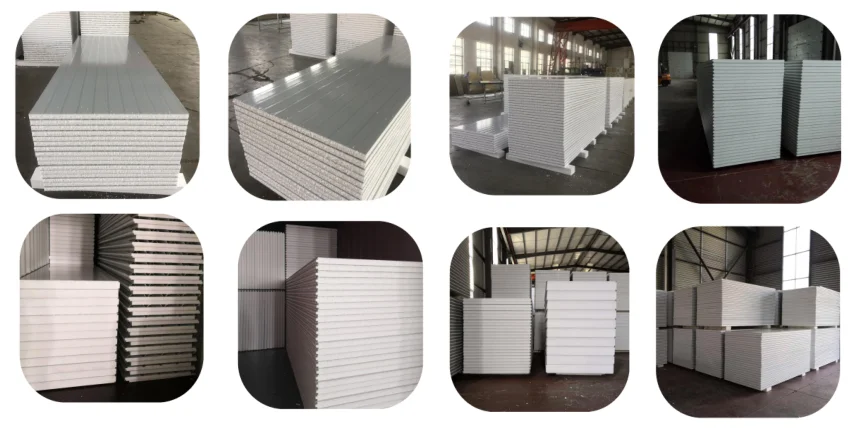

EPS SANDWICH PAENL SERIES

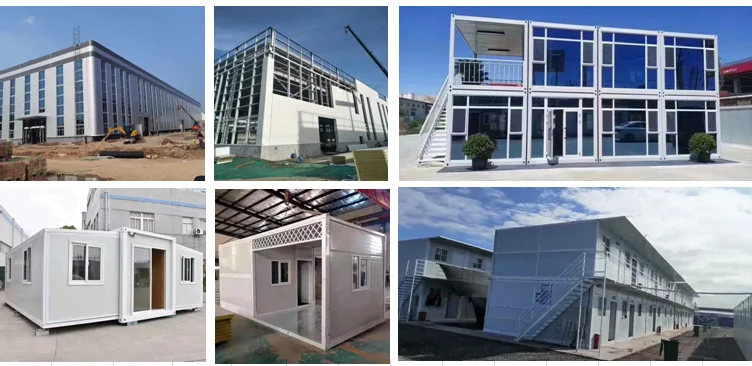

Application

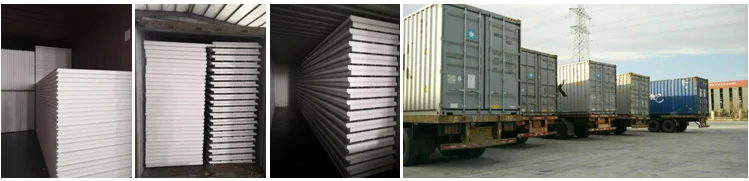

Packaging & Shipping
Packaging Details | wrapped by PE film. Or naked |
Delivery Detail | Shipped in 10 days after payment |
