SUN-5/6/8/10/12K-SG04LP3 | 5-12KW | Three Phase | 2 MPPT | Hybrid Inverter | Low Voltage Battery
SUN-5/6/8/10/12K-SG04LP3-EU is brand new three phase hybrid inverter with low battery voltage 48V, ensuring system safe and reliable. With compact design and high-power density, this series supports 1.3 DC/AC ratio, saving device investment. It supports three phase unbalanced output, extending the application scenarios. Equipped with CAN port (x2) BMS and parallel, x1 RS485 port for BMS,x1 RS232 port for remotely control, x1 DRM port, which makes the system smart and flexible.
Detailed Parameters
Detailed Parameters
Model | SUN-5K-SG04LP3-EU | SUN-6K-SG04LP3-EU | SUN-8K-SG04LP3-EU | SUN-10K-SG04LP3-EU | SUN-12K-SG04LP3-EU | |||||
Battery Input Data | ||||||||||
Battery Type | Lead-acid or Lithium-ion | |||||||||
Battery Voltage Range (V) | 40-60V | |||||||||
Max. Charging Current (A) | 120A | 150A | 190A | 210A | 240A | |||||
Max. Discharging Current (A) | 120A | 150A | 190A | 210A | 240A | |||||
Charging Curve | 3 Stages / Equalization | |||||||||
External Temperature Sensor | Yes | |||||||||
Charging Strategy | Self-adaption to BMS | |||||||||
PV String Input Data | ||||||||||
Max. DC Input Power (W) | 6500W | 7800W | 10400W | 13000W | 15600W | |||||
Rated PV Input Voltage (V) | 550V(160V~800V) | |||||||||
Start-up Voltage (V) | 160V | |||||||||
MPPT Range (V) | 200V-650V | |||||||||
Full Load DC Voltage Range (V) | 350V-650V | |||||||||
PV Input Current (A) | 13A+13A | 6000W | 26A+13A | 10000W | 12000W | |||||
Max. PV ISC (A) | 17A+17A | 6,600VA | 34A+17A | 11,000VA | 12,000VA | |||||
Number of MPPT | 2/1+1 | 2/2+1 | ||||||||
AC Output Data | ||||||||||
Rated AC Output and UPS Power (W) | 5000W | 6000W | 8000W | 10000W | 12000W | |||||
Max. AC Output Power (W) | 5500W | 6600W | 8800W | 11000W | 13200W | |||||
Peak Power (off grid) | 2 times of rated power, 10 S | |||||||||
AC Output Rated Current (A) | 7.6 | 9.1 | 12.1 | 15.2 | 18.2 | |||||
Max. AC Current (A) | 11.4 | 13.6 | 18.2 | 22.7 | 27.3 | |||||
Max. Continuous AC Passthrough (A) | 45A | |||||||||
Output Frequency and Voltage | 50/60Hz;3L/N/PE 220/380Vac,230/400Vac | |||||||||
Grid Type | Three Phase | |||||||||
Current Harmonic Distortion | THD<3% (Linear load<1.5%) | |||||||||
Efficiency | ||||||||||
Max. Efficiency | 97.6% | |||||||||
Euro Efficiency | 97.00% | |||||||||
MPPT Efficiency | 99.90% | IP66 | ||||||||
General Data | ||||||||||
Operating Temperature (℃) | -45~60℃, >45℃ Derating | |||||||||
Cooling | Smart cooling | |||||||||
Noise (dB) | 45dB | |||||||||
Communication with BMS | RS485; CAN | |||||||||
Weight (kg) | 33.6 | |||||||||
Size (mm) | 422W×699.3H×279D | |||||||||
Protection Degree | IP65 | |||||||||
Installation Style | Wall-mounted | |||||||||
Warranty | 5 years | |||||||||

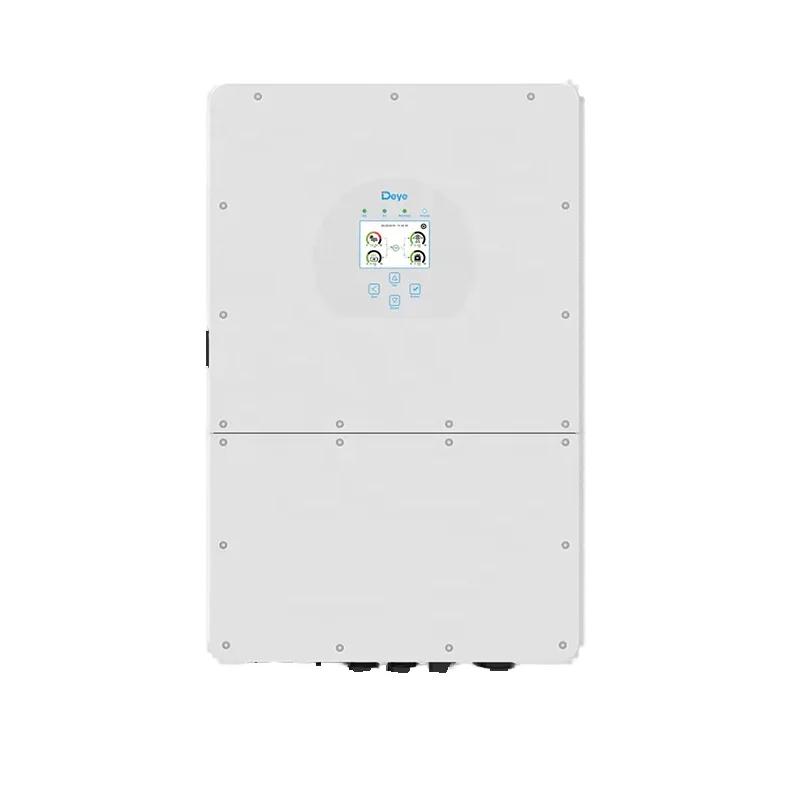

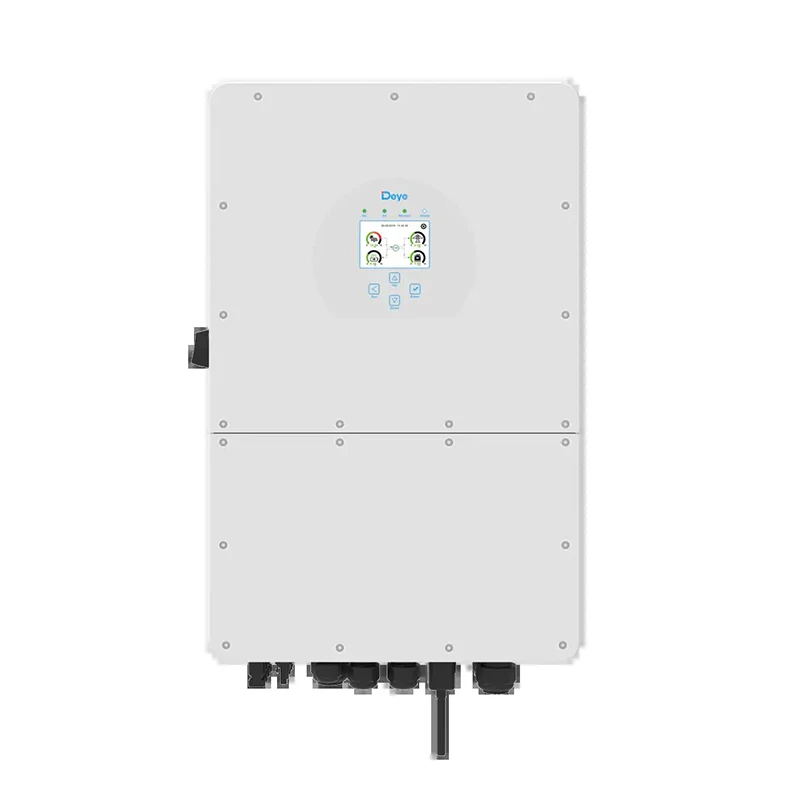

Detailed Images
Detailed Images
Product Applications
Product Applications
Product packaging
Product packaging
FAQ
FAQ
Q : What is the warranty of this solar inverter ?
A : The warranty of off-grid inverter is 2 years , on-grid and hybrid inverters are 5 years .
Q : Can you use customer brand ?
A : Yes , OEM is supported .
Q : How do you resolve the trust crisis between buyers and sellers ?
A : We already join the alibaba L/C assurance , which can help to resolve business concerns when new customers trade to us .
Q : What advantages do we have ?
A : Our price is competitive . We have a certain price in bulk purchase and factory purchase . The goods can be delivered to you within a week , a variety of brands is available here , you only need to tell us your needs , then we can help you find it.
