Stringing Equipment Hydraulic Tensioner Max Continuous Tension 30kN

Product Overview

Description

Stringing Equipment Hydraulic Tensioner Max Continuous Tension 30kN



TY1x30A Hydraulic Tensioner

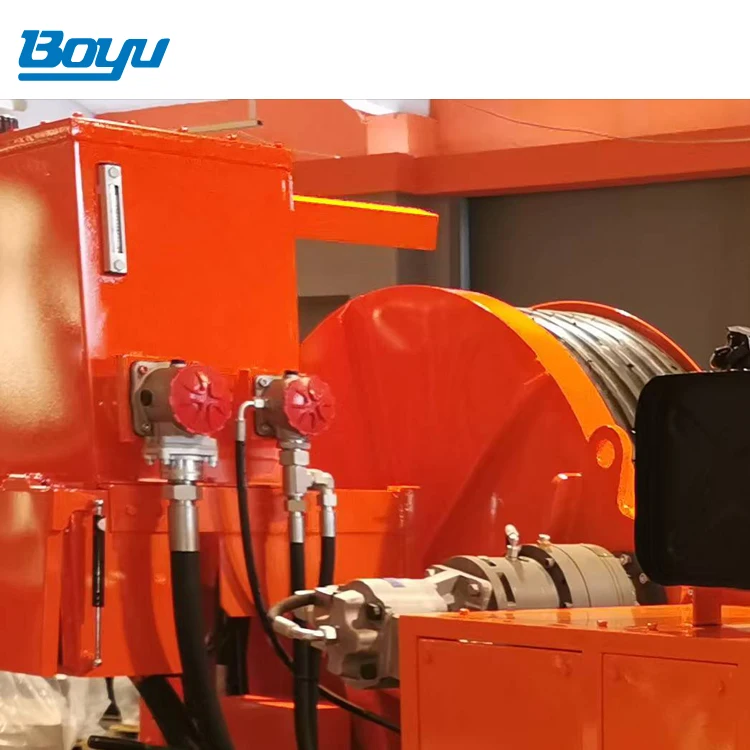

The machine is hydraulically controlled for the tensile force and complete with quality parts and components such as hydraulic break, high-performance finned radiator, hydraulic power unit, precision filtering unit to support the safe, high-quality and efficient performance. The hydraulic power unit provides the traction of conductors at both positive and negative directions. The single-beam trailer chassis is also adopted, where lifting points are pre-set for anchoring and temporary anchoring, to achieve a portable compact integrity easy to be loaded, transported and transferred.



Characteristics

Bull-wheel diameter: 1300mm

Max conductor diameter: 35mm

Groove width: 60mm

Groove number: 5

Total weight: 2450kg

Overall dimension (length*width*height): 4000*1900*2200mm



Performance

Max intermittent tension: 35kN

Max continuous tension: 30kN

Speed at max tension: 2.5km/h

Max speed: 5km/h

Pull at max speed: 15kN

Max reverse pulling force: 20kN



Main configuration

Engine: Lifan 2V90F

Hydraulic pump: German Hanks

Main motor: French Leduc

Speed reducer: German Rexroth / Italy Bonfiglioli / Italy Brevini

Hydraulic valve:  German Rexroth / USA Sun / Italy Atos

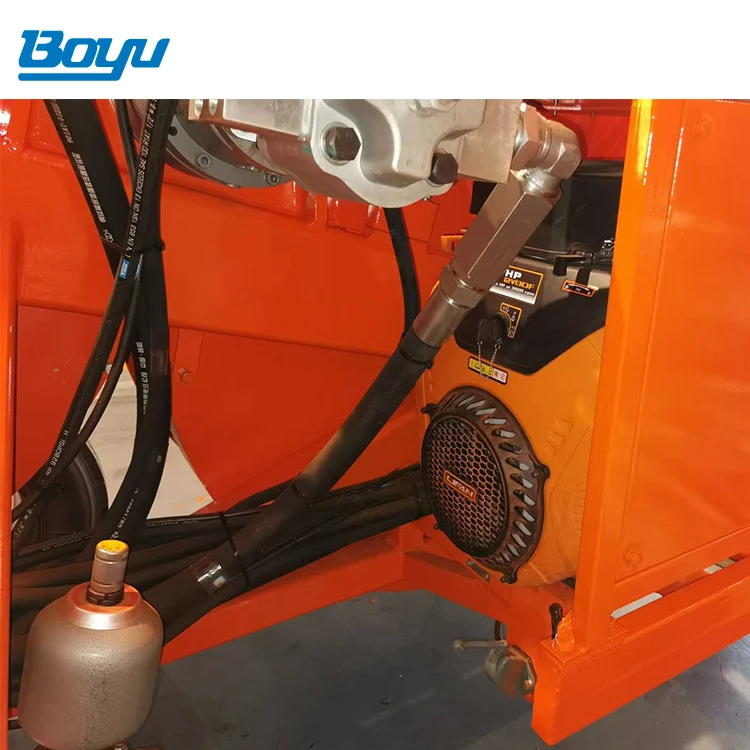

Engine

Gasoline 26kw(35hp)

Electrical system  24V



Hydraulic Transmission

The machine can realize step less speed

The machine is provided with tension presetting system



Configuration

Hydraulic dynamometers

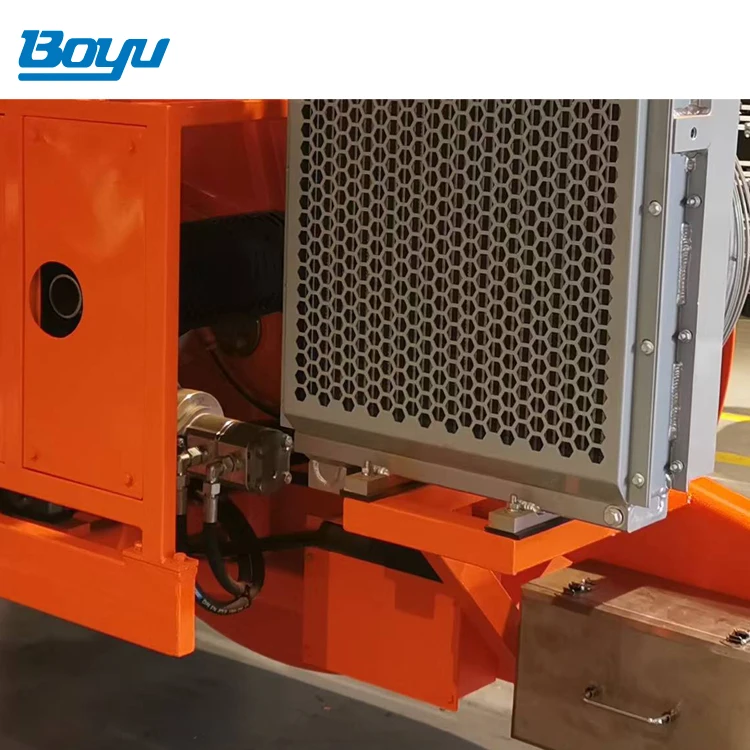

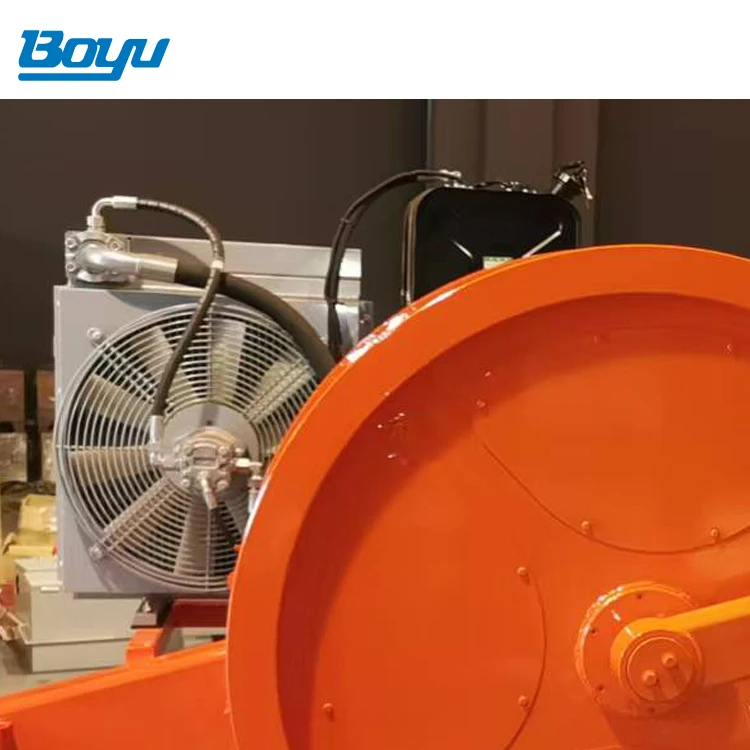

Hydraulic oil cooling system

Grounding connection point





Additional Devices

Air brake system for the trailer (extra charge)

Hydraulic conductor clamps for drum change operations (extra charge)

Swivel guide rope roller

Trailer for towing at max speed of 15 km/h
