China sale 30Nm 50Nm 10Nm 200Nm AC12 AC24V 220v electric actuator for valve
- Category: >>>
- Supplier: Guangzhou Fols Valve Technology Co. Ltd.Guangzhou Ltd.
Share on (1601297906740):
Product Overview
Description
China sale 800nm 220v electric valve actuator 30Nm-6000Nm flange electric valve actuator
Product Description
Product Specification
Electric actuator
On-off type: feedback signal: Passive contact signal/4-20mA/ resistance signals.
Regulation type: Input signal 4-20mA/0-10V/1-5V;
Feedback signal: 4-20mA/0-10V/1-5V
Voltage: AC220V\\380V\\110V\\24V,DC12V\\24V etc; Special voltage can be customized.
Explosion-proof class: Can be choose explosion-proof type EX d IIBT4

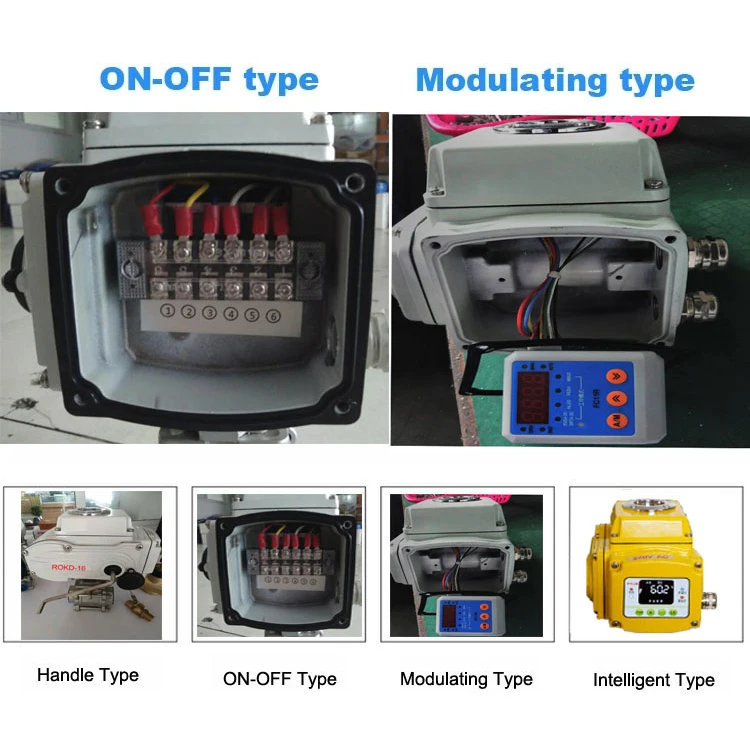

Type | Control type | Function |
Electric actuator | ON-OFF type | Feedback: the active signal, passive contact signal, resistance, 4-20mA |
Regulation type | Input and output signal: 4-20mA, 0-10v, 1-5v, switch, MODBUS, PROFIBUS field bus | |
Filed operation | The field, remote control switch regulation and MODBUS, PROFIBUS field bus |

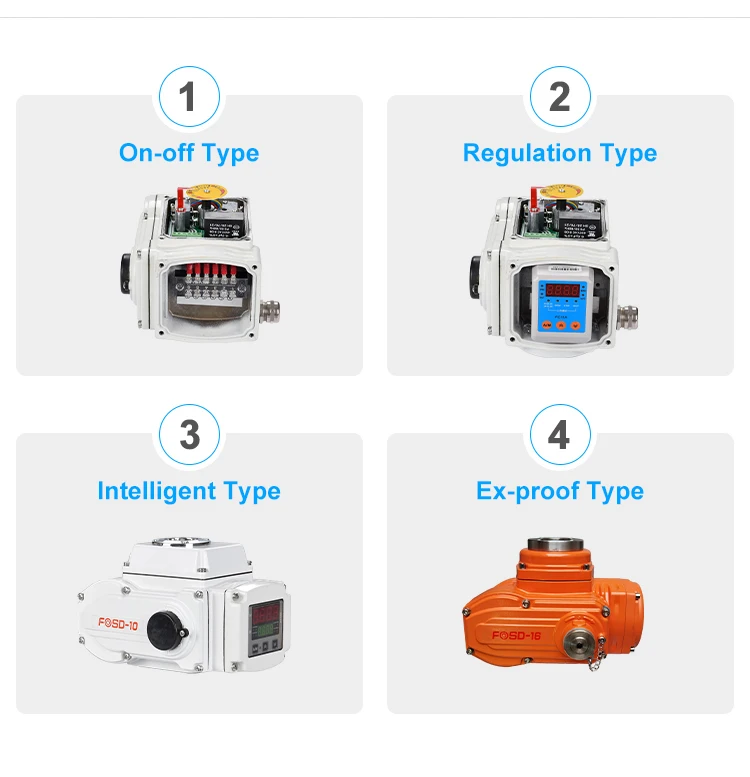

Electric actuator control way
Specification of Electric Actuator
| Items Parameter | FOSD-05 | FOSD-10 | FOSD-16 | FOSD-30 | FOSD-60 | FOSD-125 | FOSD-250 | FOSD-400 |
| Output torque | 50Nm | 100Nm | 160Nm | 300Nm | 600Nm | 1250Nm | 2500Nm | 4000Nm |
| Rated travel time | 20S | 15S/30S | 30S/60S | 100S | 100S | 100S | ||
| Rotation angle | 0°-90° | 0°-90° | 0°-90° | 0°-90° | 0°-90° | 0°-90° | 0°-90° | 0°-90° |
| Working current | 0.25A | 0.48A | 0.68A | 0.8A | 1.2A | 2A | 2A | 2.7A |
| Starting power | 0.25A | 0.48A | 0.72A | 0.86A | 1.38A | 2.3A | 2.3A | 3A |
| Motor power | 10W/F | 25W/F | 30W/F | 40W/F | 90W/F | 100W/F | 120W/F | 140W/F |
| Weight | 3kg | 5kg | 5.5kg | 8kg | 8.5kg | 15kg | 15.5kg | 16kg |
| Power | AC220V, AC24V, AC110V , AC220 , AC380, DC24V (choose options) | |||||||
| Input signal | 4-20mA (Modulating type) | |||||||
| Output signal | 4-20mA (Modulating type) | |||||||
| Insulation resistance | 100M/500VDC | |||||||
| Pressure withstanding | 1500 VAC , one minutes | |||||||
| Inbreaking protection | IP65/IP67 | |||||||
| Installation angle | 360° any angle | |||||||
| Electrical Interperation | one G1/2 CNCO,one Power cord connection port,one signal wire connection port | |||||||
| Ambient humidity | -30°C to +60°C | |||||||
| Pilot circuit options | A:with limit position switch style (standard) B: with neutral position switch style ( passive contact) C:with potentiometer style D: both potentiometer and neutral position switch style E: with control module style ( Modulating Applications) F: DC motor control circuit style G:Three-phase current 380V control circuits style H:Three-phase current 380V, both neutral position switch and potentiometer style | |||||||

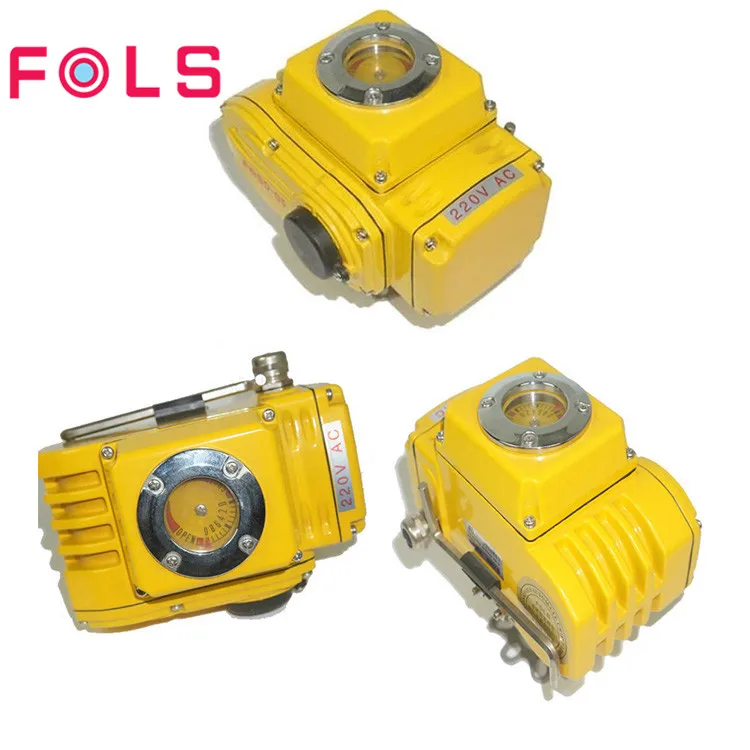

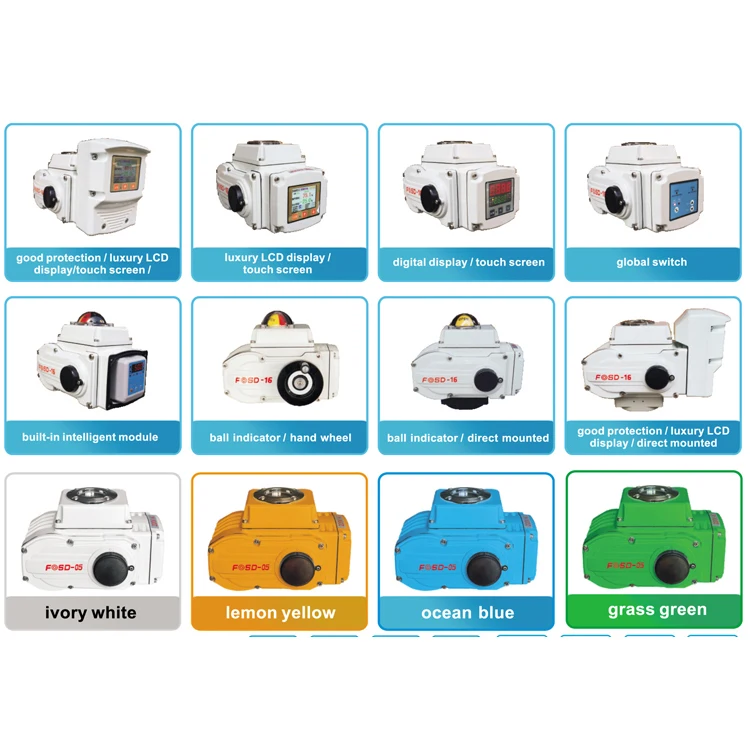

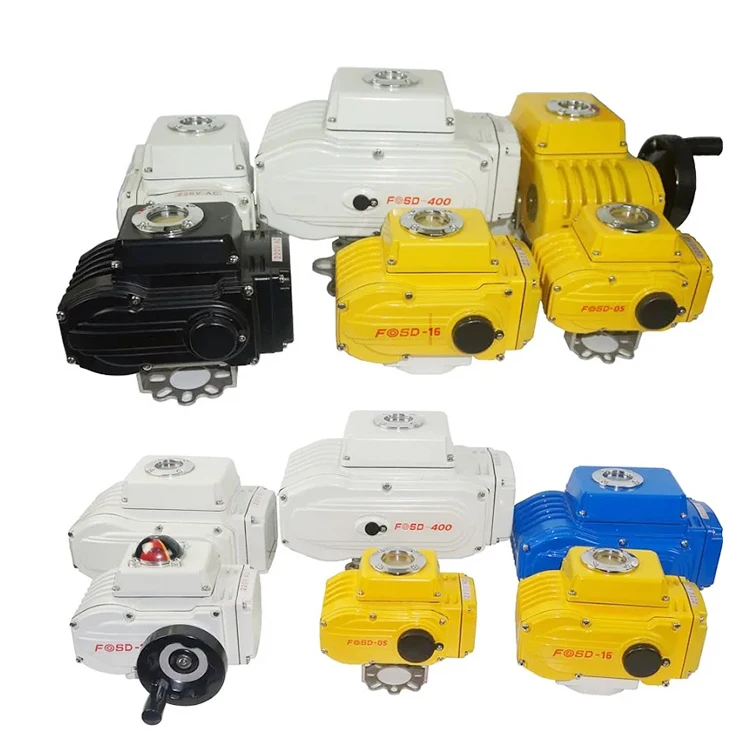

Picture of electric actuator
High quality 24v dc multi-turn electric actuator valve

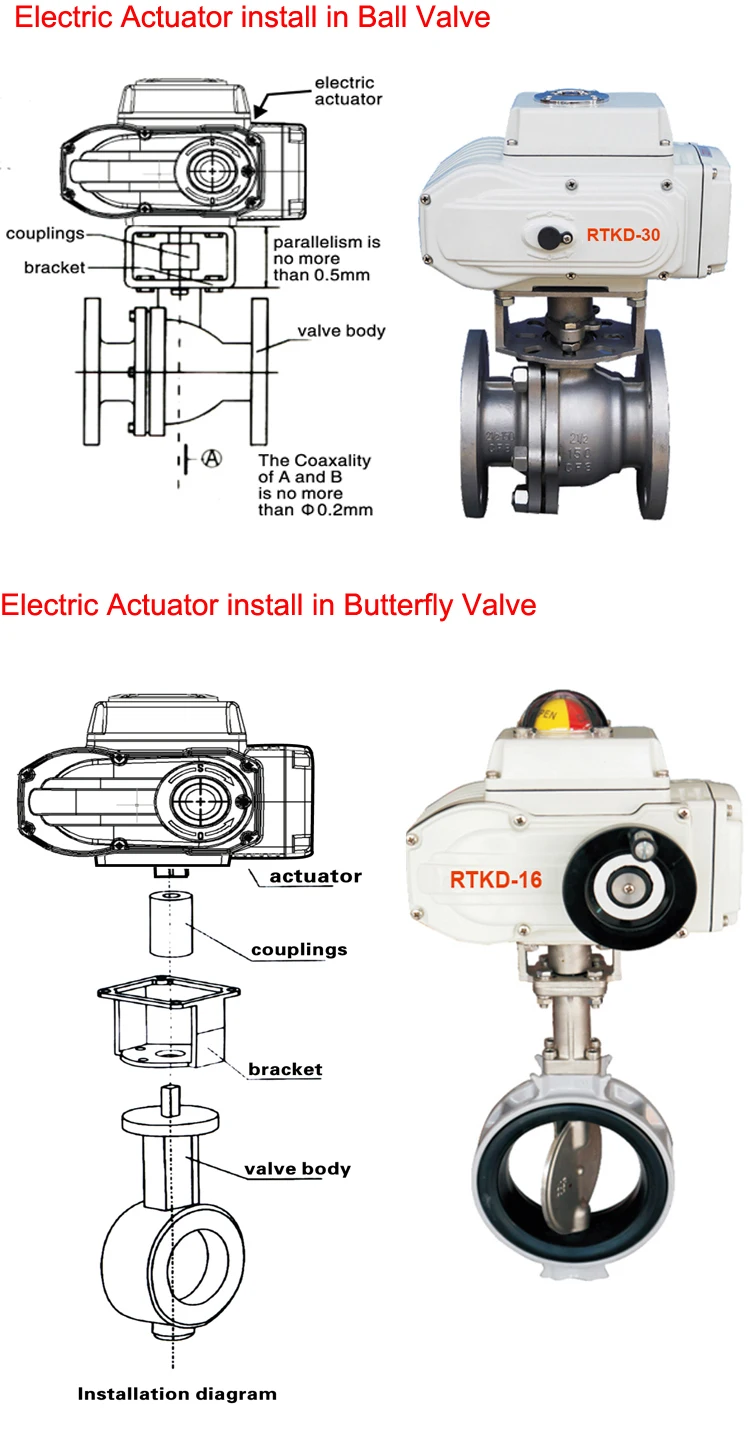

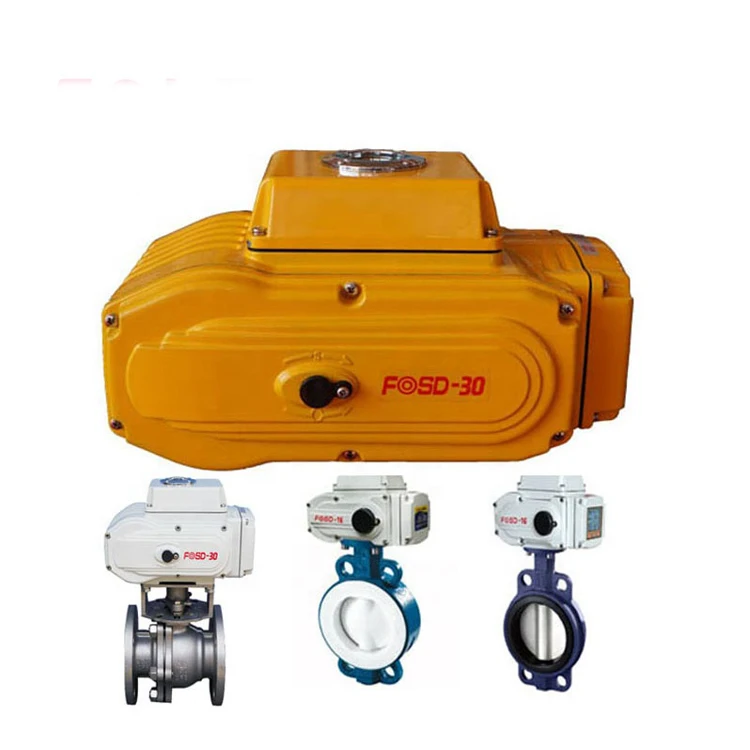

Products Application
Application
Why Choose Us
Company Information

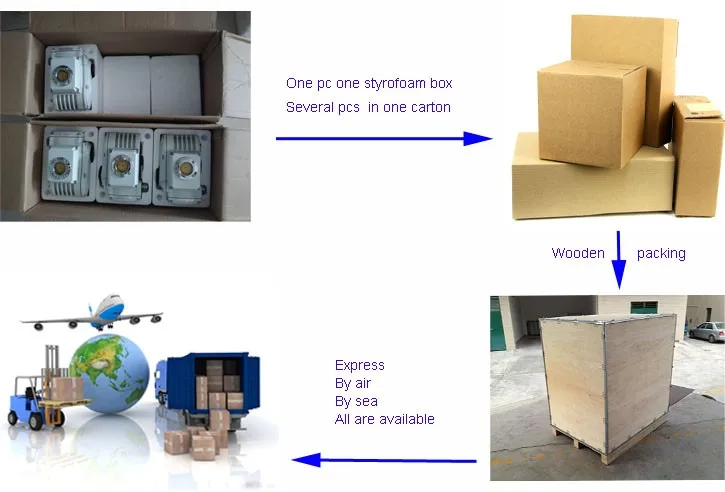

Packaging & Shipping
FAQ
Q: Are you trading company or manufacturer ?
A: We are a manufacturer and have our own factory.
Q: How long is your delivery time?
A: Generally it is 3-5 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Can I have a sample order?
A: Yes,we welcome sample order to test and check quality.Mixed samples are acceptable.
Q: Do you test all your goods before delivery?
A: Yes, all products are fully inspected before delivery.
Q: What are your payment term and delivery time?
A: We accept TT, Paypal, Western Union, Credit card. The delivery time about 3 to 7 working days.
Q. What is the warranty?
A: Our warranty is one year. After you receive the goods, if you find defect products, just take pics or videos to send us. We will re-make it for re-fund them to customers once we confirm it is our responsibilities.
