Brand new SHANTUI 130HP Small Crawler Bulldozer SD13 SD13S SD13C With Straight/Angle/U shape/Semi U blade
- Category: >>>
- Supplier: Cruking Engineering Equipment (Xiamen) Co. Ltd.Cruking Ltd.
Share on (1601297910519):
Product Overview
Description
130HP Brand Crawler Bulldozer SD13 SD13S SD13C with Good Performance
Contact Way
Product Overview
Configuration Selling Point
Core components such as the torque converter, transmission, central drive, and final drive are all self-manufactured by Shantui,ensuring reliable quality. These components are perfectly matched with the W***ai WP12 engine, contributing to its robust power;
Ease Of Maintenance And Operation Comfort
Fuel filters and filter elements are centrally positioned, while working valves are externally positioned, enabling one-stop maintenance. The lubrication signage is clear and easy to understand, facilitating convenient maintenance. The cab provides an ultra-wide field of view;
Adaptability To Diverse Working Conditions
With an extended ground contact length, enhanced cab sealing, and improved heat dissipation, the machine is well-suited for desert working conditions. Additionally, it has a greater capacity brought by the semi-U blade, allowing the machine to adapt to diverse harsh working conditions.
Core components such as the torque converter, transmission, central drive, and final drive are all self-manufactured by Shantui,ensuring reliable quality. These components are perfectly matched with the W***ai WP12 engine, contributing to its robust power;
Ease Of Maintenance And Operation Comfort
Fuel filters and filter elements are centrally positioned, while working valves are externally positioned, enabling one-stop maintenance. The lubrication signage is clear and easy to understand, facilitating convenient maintenance. The cab provides an ultra-wide field of view;
Adaptability To Diverse Working Conditions
With an extended ground contact length, enhanced cab sealing, and improved heat dissipation, the machine is well-suited for desert working conditions. Additionally, it has a greater capacity brought by the semi-U blade, allowing the machine to adapt to diverse harsh working conditions.
Contact me
Candice Li
Mobile/WhatsApp/Wechat : +86-13599640301
Email : candice@cruking.com
Candice Li
Mobile/WhatsApp/Wechat : +86-13599640301
Email : candice@cruking.com
Product Paramenters
Name | SD13(Standard) | SD13S(wetlands) | SD13R(Sanitation Edition) | SD13C(Coal Edition) |
Performance parameter | ||||
Operating weight(kg) | 13700 | 14900 | 15200 | 13900 |
Ground pressure (kPa) | 53.8 | 38.4 | 39.2 | 44.8 |
Engine | ||||
Engine mode | SC8DK | SC8DK | SC8DK | SC8DK |
Power/Rated speed(kW/rpm) | 105/1900 | 105/1900 | 105/1900 | 105/1900 |
Dimensions | ||||
Machine Dimensions(mm) | 4492*3185*2950 | 4492*3510*3000 | 4492*3510*3000 | 4492*3700*2950 |
Walking performance | ||||
Forward speed(km/h) | F1:0-3.2 F2:0-5.9 F3:0-9.8 | F1:0-3.2 F2:0-5.9 F3:0-9.8 | F1:0-3.2 F2:0-5.9 F3:0-9.8 | F1:0-3.2 F2:0-5.9 F3:0-9.8 |
Backward speed(km/h) | R1:0-3.9 R2:0-7.1 R3:0-11.9 | R1:0-3.9 R2:0-7.1 R3:0-11.9 | R1:0-3.9 R2:0-7.1 R3:0-11.9 | R1:0-3.9 R2:0-7.1 R3:0-11.9 |
Undercarriage | ||||
Track center distance(mm) | 1880 | 1880 | 1880 | 1880 |
Track crawler width(mm) | 460 | 700 | 700 | 560 |
track length on ground(mm) | 2365 | 2365 | 2365 | 2365 |
Fuel tank capacity | ||||
Fuel tank(L) | 280 | 280 | 280 | 280 |
Working equipment | ||||
Blade type | Straight | Straight | Sanitation shovel | Push coal shovel |
Shovel depth(mm) | 590 | 590 | 590 | 590 |
Ripper type | Three-teeth | —— | —— | —— |
Soil loosening depth(mm) | 567 | —— | —— | —— |

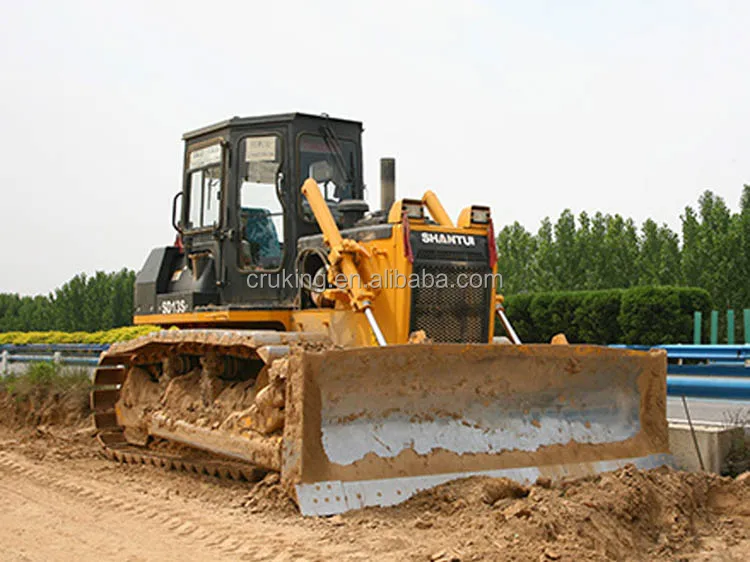

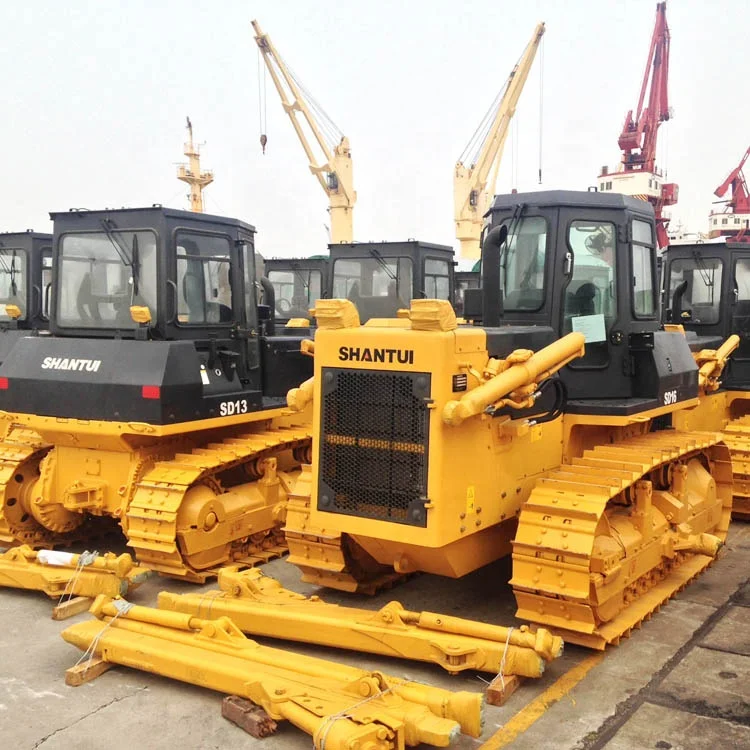

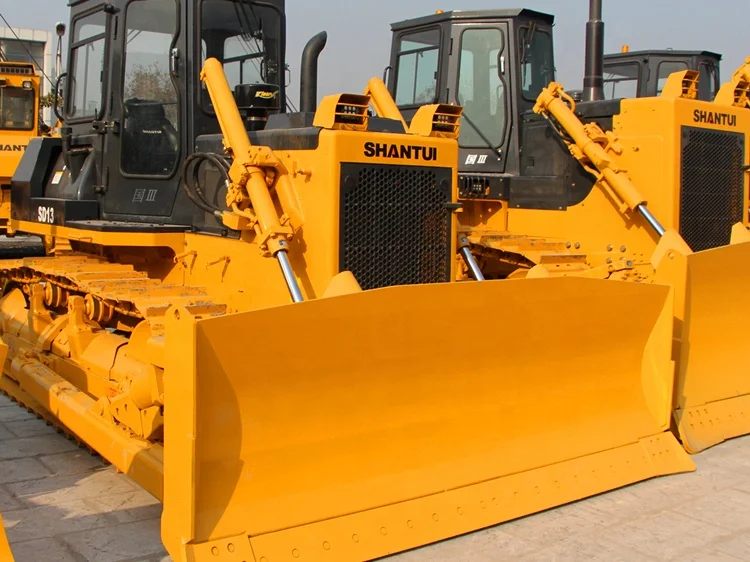

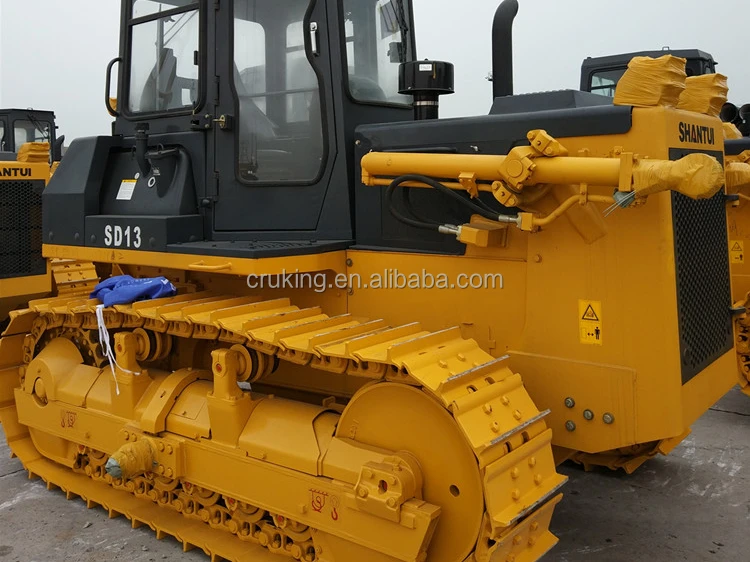

Details Images
