kt9c kt9d mine drilling rig 115 165mm hole diameter 24m depth integrated mine open pit drill rig for blasthole
kt9c kt9d mine drilling rig 115-165mm hole diameter 24m depth integrated mine open-pit drill rig for blasthole
kt9c kt9d mine drilling rig 115-165mm hole diameter 24m depth integrated mine open-pit drill rig for blasthole
kt9c kt9d mine drilling rig 115-165mm hole diameter 24m depth integrated mine open-pit drill rig for blasthole
kt9c kt9d mine drilling rig 115-165mm hole diameter 24m depth integrated mine open-pit drill rig for blasthole
kt9c kt9d mine drilling rig 115-165mm hole diameter 24m depth integrated mine open-pit drill rig for blasthole
kt9c kt9d mine drilling rig 115-165mm hole diameter 24m depth integrated mine open-pit drill rig for blasthole

kt9c kt9d mine drilling rig 115 165mm hole diameter 24m depth integrated mine open pit drill rig for blasthole

Share on (1601297912587):


Price:$25,000.00-29,000.00

Quantity:


Product Overview

Description



Products Description

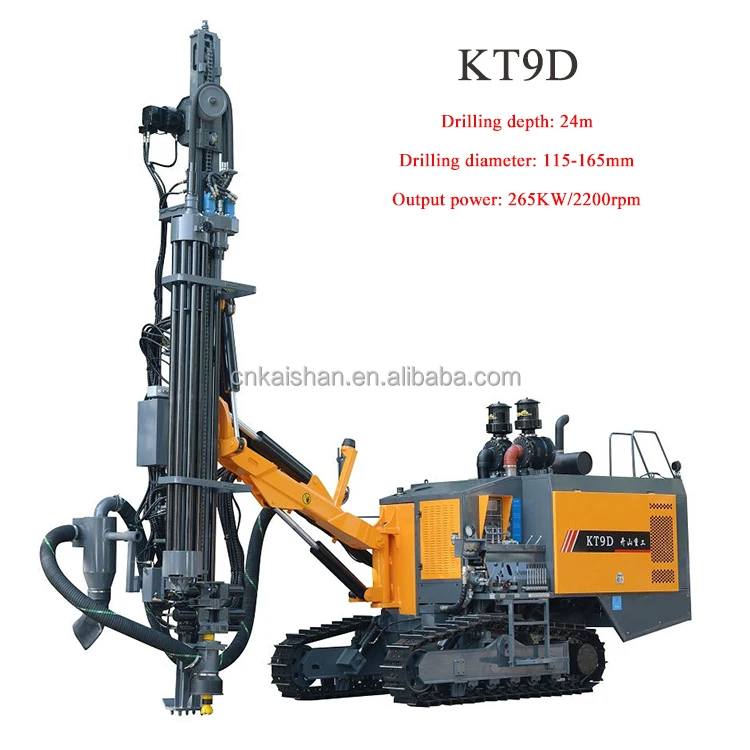

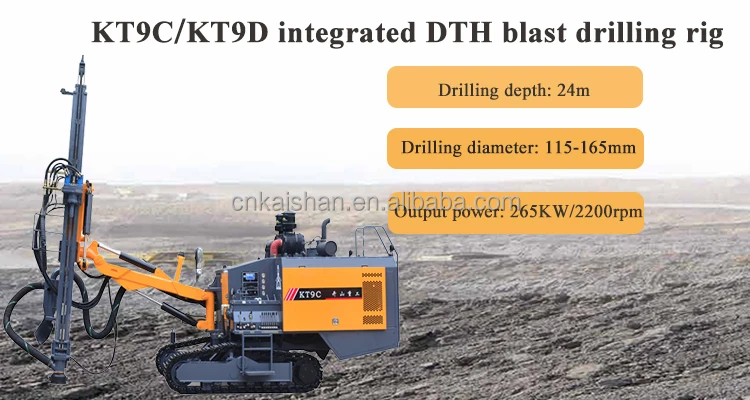

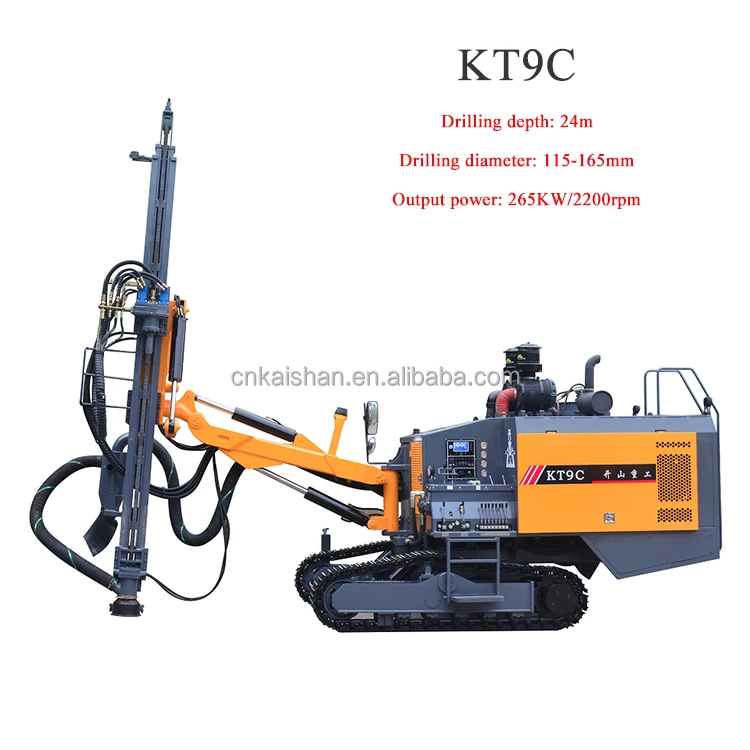

KT9C/KT9D integrated open hole drilling machine is a drilling equipment that integrates the drilling system and the screw air compression system. It can drill vertical, tilting and horizontal holes, and is used for drilling blasting holes and pre-cracks in open pit mines and stone works. It is equipped with Cummins non-road country III diesel engine and efficient dust collection system to meet the national requirements for emission and environmental protection. It has the characteristics of energy saving, high efficiency, safety and environmental protection, flexibility, easy operation and stable performance.


Product Parameters




Model
KT9C
KT9D
Drilling hardness
f=6~20
f=6~20
Borehole range
Φ115~165mm
Φ115~165mm
Economic borehole depth
24m
24m
Travel speed
0~3Km/h
0~3Km/h
Climbing ability
≤25°
≤25°
Ground clearance
430mm
430mm
Auxiliary diesel engine
YCK09360-T400
YCK09360-T400
Overall power
265KW/2200r/min
265KW/2200r/min
Screw machine parameters
20m3/min/22bar
20m3/min/22bar
Overall dimension
8000×2500×2900mm
8000×2500×2900mm
Vehicle weight
12500Kg
12500Kg
Gyrator speed
120Rpm
120Rpm
Maximum turning torque
3500N•m
3500N•m
Maximum pushing force
25KN
25KN
Lifting Angle of drill arm
down20°up47°
down20°up47°
Slide elevation Angle
120°
120°
Swing Angle of slide frame
left95°right35°
left95°right35°
Drill arm swing Angle
left50°right20°
left50°right20°
Frame leveling Angle
±10 °
±10 °
Single advance length
3590mm
3590mm
Frame compensation length
900mm
900mm
impactor
5inches
5inches
Drill pipe
Φ76×3m
Φ76×3m
Propulsion mode
Motor + roller chain
Motor + roller chain
Connecting rod system
Connecting Rod Mode
Automatic receiving and unloading drill pipe
Dust collector
16 filter elements
16 filter elements


Mexico work site
Philippine work site
Vietnam work site










Related Products






Company Profile


Zhengzhou Kaishan Mechanical & Electrical Equipment Co., Ltd.Our company are specialized in this filed for over 25 years with high quality and competitive price. We provide various kinds of high-end rock drilling equipment and air compressors, including borehole drilling rig, screw air compressor, industrial piston air compressor, and construction tools and parts. These products have been widely used in many industries like open pit mines, quarry and construction projects of railway, road, hydroelectric power station, and buildings.We aims at producing and selling high-quality product and providing high quality pre-sale and after-sale service.
Welcome to contact us if you are interested in our products. In addition to our standard products listed on this website, we can also provide OEM and ODM services. Besides, you are also welcome to become one of our agents around the world.






Exhibition




Certifications




FAQ


Q1: Are you a manufacturer?
A: Yes, we are a professional down the hole drill rig and top hammer drill rig manufacturer.
Q2: What does your company produce?
A: The main products of our company include blasting drilling rig,water well drilling rig and all kinds of air compressors.
Q3: How about your delivery time?
A: Normally the delivery time is about 7-15 days. For some special case, we can make it within 2 weeks, it depends on different products.
Q4: What methods of payment do you accept?
A: We accept T/T, L/C.
Q5: Do you offer any deals or discounts?
A: Yes, price depends on different quantity, different quantity will give you different price.
