Construction machine Shantui SD16 Standard version Bulldozer shantui Bulldozer shantui bulldozer sd16 hot sale
- Category: >>>
- Supplier: Cruking Engineering Equipment (Xiamen) Co. Ltd.Cruking Ltd.
Share on (1601298192715):
Product Overview
Description
Cheap Shantui Bulldozer Price SD16 with Single Shank Ripper
Contact Way
Product Overview
The machine is equipped with a straight tilt blade for enhanced cutting force. With its broad track contact area, it excels in challenging conditions such as wetlands and marshes without getting stuck, demonstrating excellent passability;
The serialization design is applied for the frame based on the skid-steer tonnage to realize high structural reliability. All critical structural parts are optimized by finite element analysis to realize reasonable stress distribution.
2. The power shift transmission not only ensures smooth power shift, but also reaches target speeds and carries out directional transfers with a single control lever;
3. The wet steering clutch and brake can extend service life. They work interactively, ensuring quick and flexible steering operations;
4. The single control lever can control all blade actions;
5. The drift sealing in the drive wheel, track roller and carrier roller can prevent dust fro entering the track system, as well as lubricant leakage, thereby ensuring a long service life;
6. The hexahedron cab features wide visibility, and the insulation materials in the cab can reduce noise and vibrations;
7. The spin type fuel filter and dust separator, the air filters and the other filtration devices can prolong work time and reduce service time;
8. The comfortable cab seat can adjust upward and downward, forward and backward, meeting any positional needs the operator may have;
9. Side engine operation and the combination of a drive/brake operation system and foot brake makes overall operation of the bulldozer more rapid and convenient.
Contact me
Candice Li
Mobile/WhatsApp/Wechat : +86-13599640301
Email : candice@cruking.com
Candice Li
Mobile/WhatsApp/Wechat : +86-13599640301
Email : candice@cruking.com
Product Paramenters
ITEM | UNIT | SD16 |
L×W×H (Ripper not included) | mm | 5140×3388×3032 |
Operating weight (Ripper not included) | t | 17 |
Engine | - | Shangchai SC11CB184G2B1/ Weichai WD10G178E25 |
Rated power | kW/rpm | 120/1850 |
Gradeability | ° | 30 |
Blade type | - | Straight tilt blade U blade Angle blade |
Blade width | mm | Straight tilt blade 3388×1149 U blade 3556×1120 Angle blade 3970×1040 |
Dozing capacity | m 3 | Straight tilt blade 4.5 U blade 5 Angle blade 4.3 |
Ma× drop below ground of blade | mm | 540 |
Lift height of blade | mm | 1095 |
Ripper type | - | Three-shank ripper |
Ripping depth of ripper | mm | 572 |
Lifting height of ripper | mm | 592 |
Number of carriers (each side) | - | 2 |
Number of track rollers (each side) | - | 6 |
Number of track shoes (each side) | - | 37 |
Width of track shoe | mm | 510 |
Track gauge | mm | 1880 |
Ground length and ground pressure | mm/MPa | 2430-0.067 |
Pitch | mm | 203.2 |
Forward speed | km/h | 0-3.29 |
0-5.82 | ||
0-9.63 | ||
Reverse speed | km/h | 0-4.28 |
0-7.59 | ||
0-12.53 |

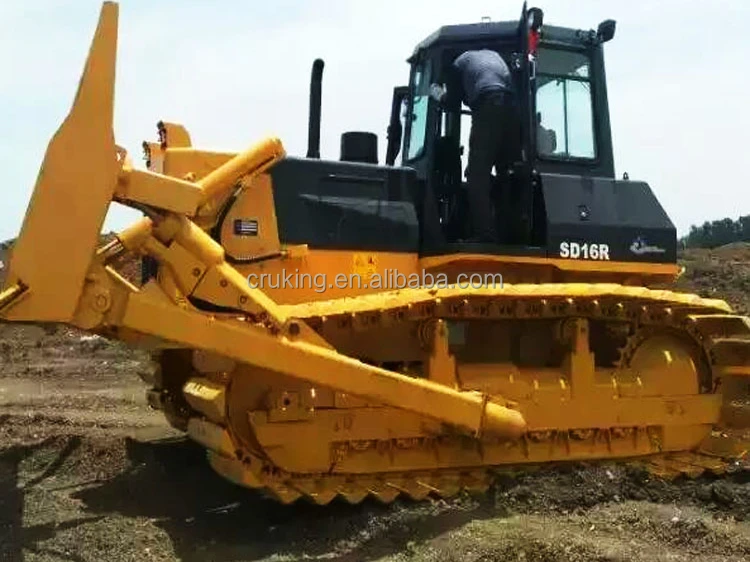

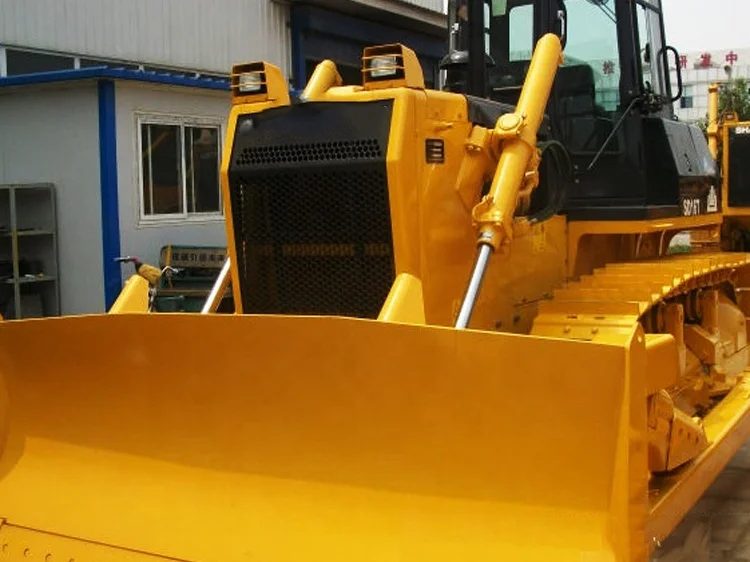

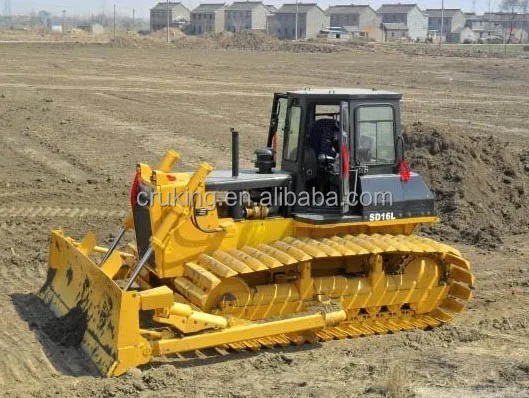

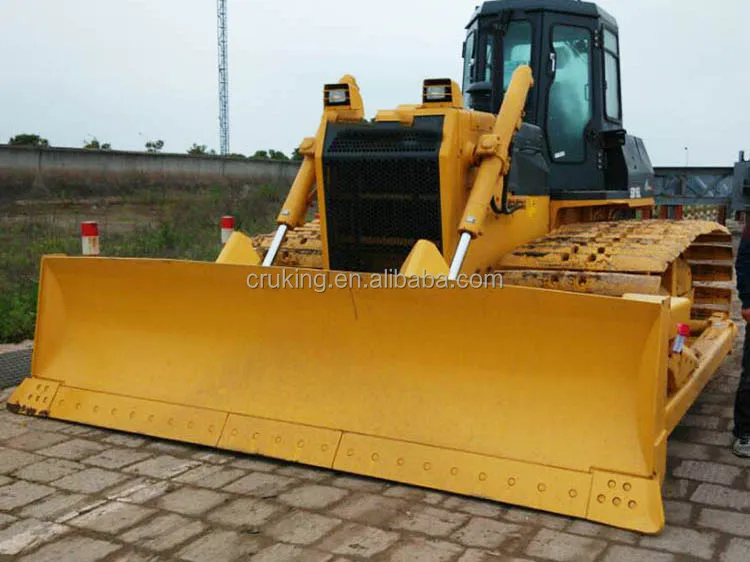

Details Images
