Cold Pressing Equipment Avocado Okra Rape Seed Peanut Semi auto Hydraulic Oil Press Machine

Share on (1601298265964):


Price:$4,000.00-4,500.00

Quantity:


Product Overview

Description

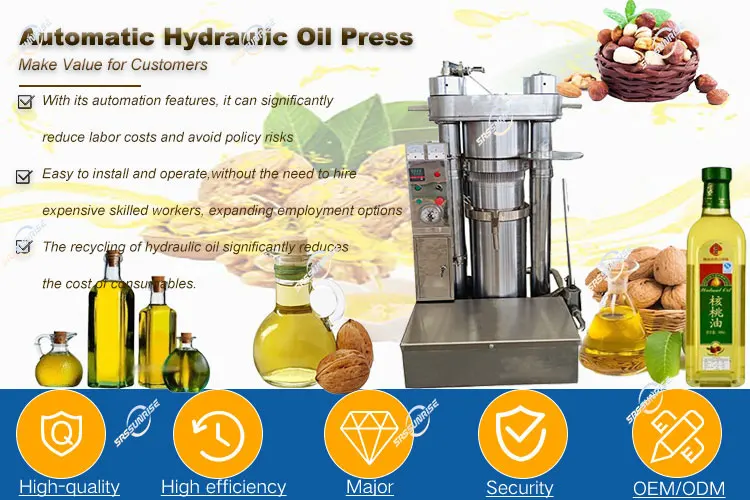

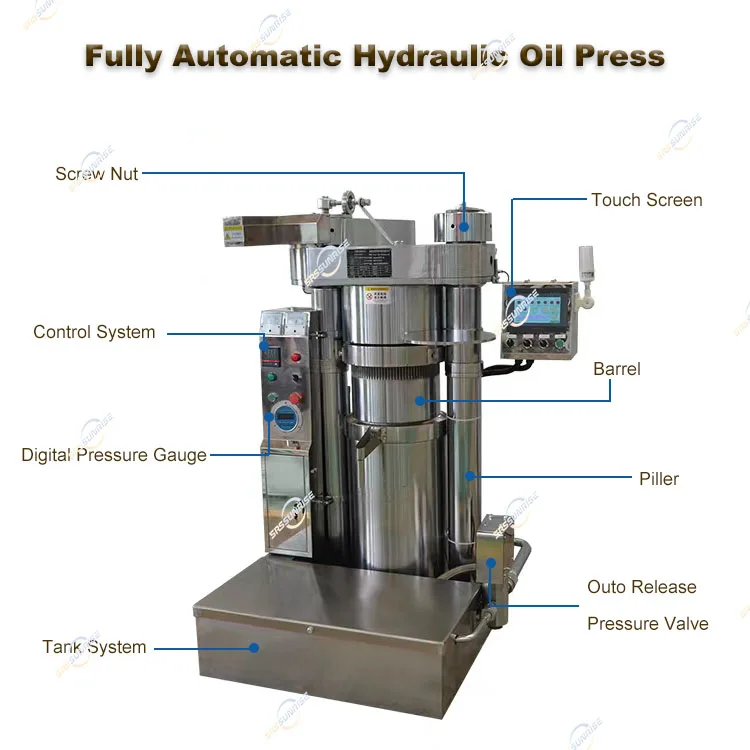

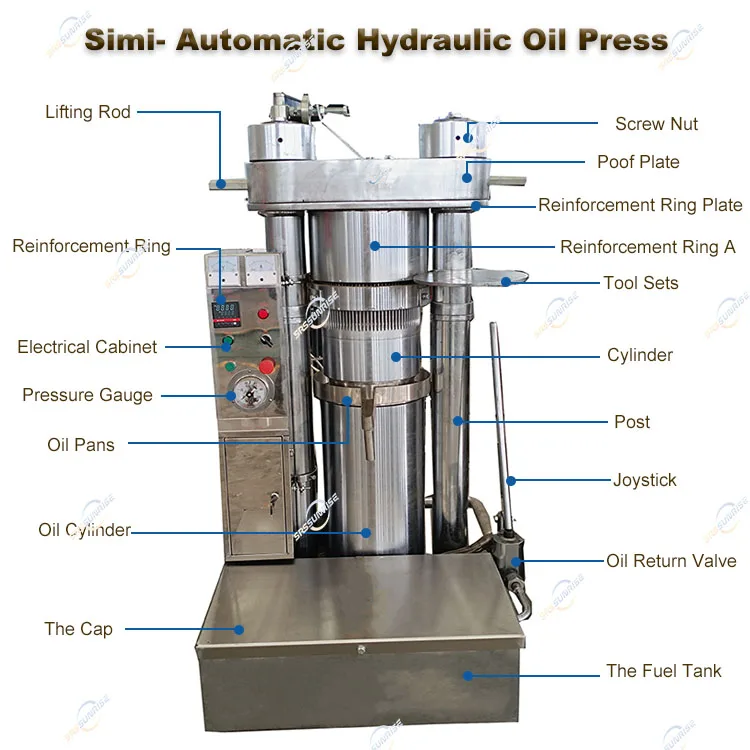

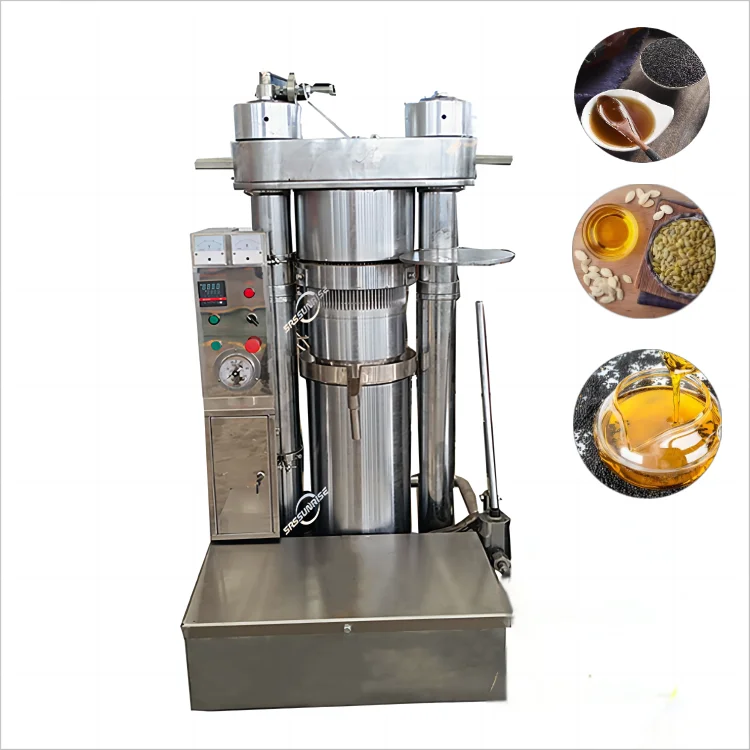

Automatic Hydraulic Oil Press
Automatic hydraulic oil press is a kind of small oil press with simple operation, high oil yield and less replacement of vulnerable parts in mechanical oil press. oil press pressing expeller is a high-quality equipment to replace the manual operation of small mill sesame oil. This hydraulic oil press has a wide range of applications. The structure is stable and has a long operating life. Simple to operate and convenient for daily maintenance.There are different capacities can be chosen.




Applicable Objects:
Peanut, corn, soybean, sunflower seed, rice bran, sesames,walnuts,avocados,flax seeds,cocoa beans,almonds,macadamia nuts,pepper seeds ,hemp seeds,safflower seeds,tea seed, prickly ash seed,
rapeseed, oil palm fruit and others.






Main features pasteurizer:
1.The whole machine is made of carbon steel and stainless steel,Chrome plated exterior. It looks beautiful and classy,also
easy to clean up.
2.Using a sunken thickened base plate, the height of the whole machine is reduced. safer and easier to operate.
3. The barrel is equipped with double heating,double temperature control. so faster heating and smoother oil discharge.
4.The core components use advanced CNC machining centers,so that the parts have higher precision.

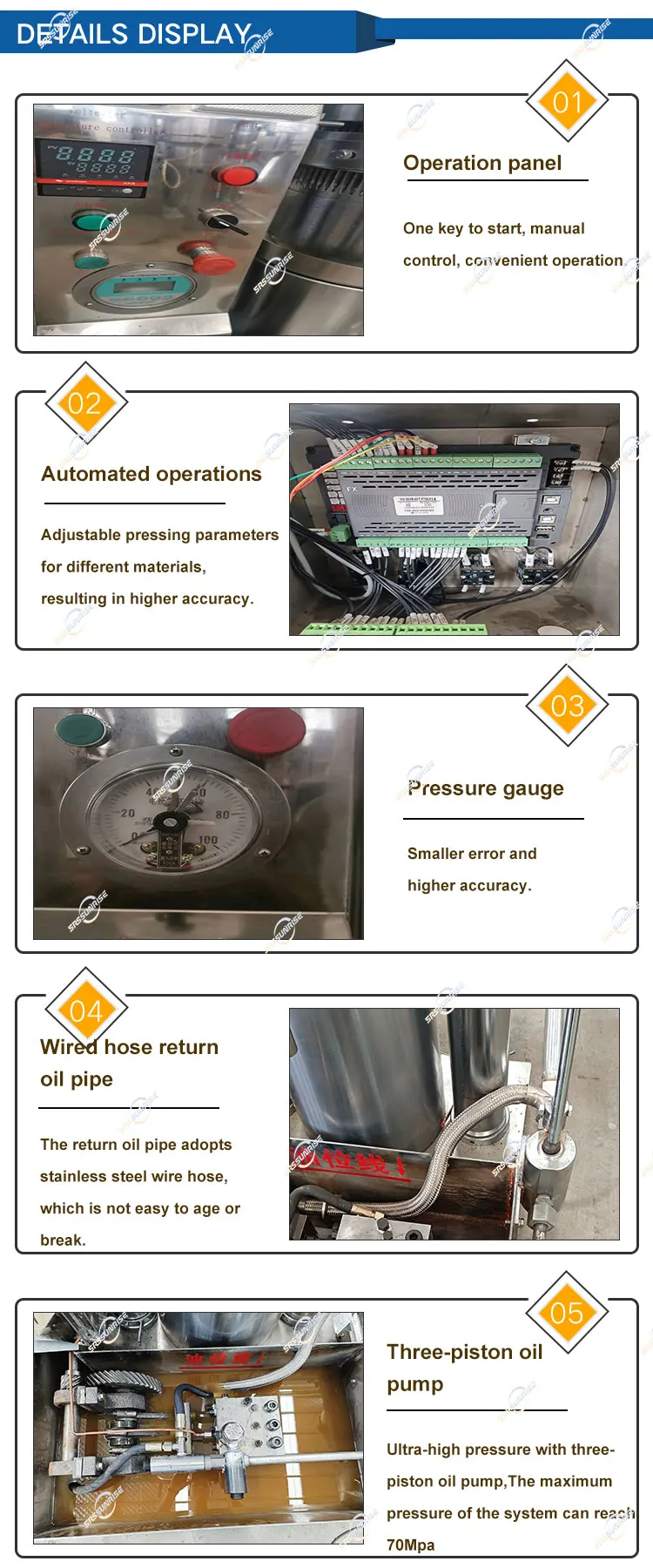

5.Ultra-high pressure with three-piston oil pump,the maximum pressure of the system can reach 70Mpa. At the same time,we have enlarged the fuel tank, which can continue to work 24 hours day.




Type
QYZ-235
QYZ-270
QYZ-300
QYZ-325
Barrel Size Diameter*Height(mm)
235*510
270*510
300*505
325*505
Hydraulic Pressure(Mpa)
60
60
60
60
Pressure On The Material(Mpa)
40.9
40.0
48.6
41.4
Boundary Dimension(mm)
1000*970*1420
1180*1000*1600
1210*1089*1620
1210*1100*1620
Total Weight(Kg)
1050
1400
1650
1680
Motor Power(Kw)
2.2
2.2
2.2
2.2
Hourly Capacity(Kg/h)
50
65
85
120


Because of the different properties of materials, the following parameters are for reference only.
Please consult our sales for specific models Of Our continuous roasting machine,
and they will recommend the best model for you.
























Q1: What power do you use in your factory?-V,-Hz, 3 phase or single phase?
(Like 220 V , 50 Hz , single or 380 V, 50 Hz ,3 phase...etc)
Q2: Can I Put my Logo on the machine?
Yes, Sure .
Q3. How can I trust you for the first-time business?
We can supply the business license and certificates. if you still worry about our company,
we suggest using Alibaba trade assurance service for all transactions to protect your money
and ensure our service for you.
Q4. How can you ensure the machine's quality after we purchase the order?
Before delivery, we will produce the equipment according to the agreed requirements, and
after production, we will provide detailed operating instructions, testing videos, certification
documents, etc. Alternatively, you can arrange a third-party inspector to do inspection and
give you report.
Q5: How about the after-sale service and guarantee period?
1. 18-month warranty period for whole machine except for human factors etc. and 18 months’
after-sale service starts from the date when you receive machine .
2. Consultation services for whole machine life, and 24 hours technical support by email or video on line.
3.English software, user manual and the installation & debugging by our experienced technicians.
