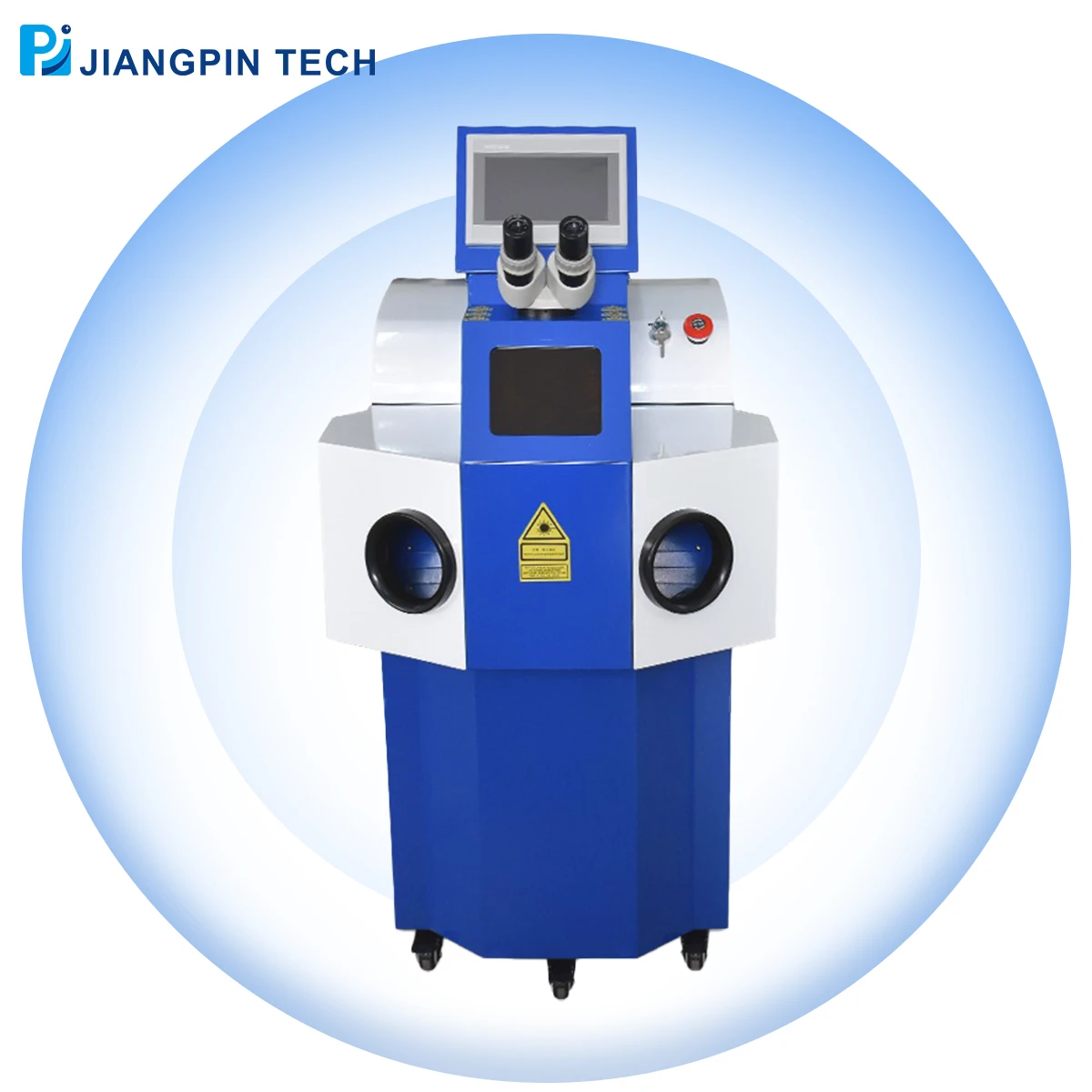

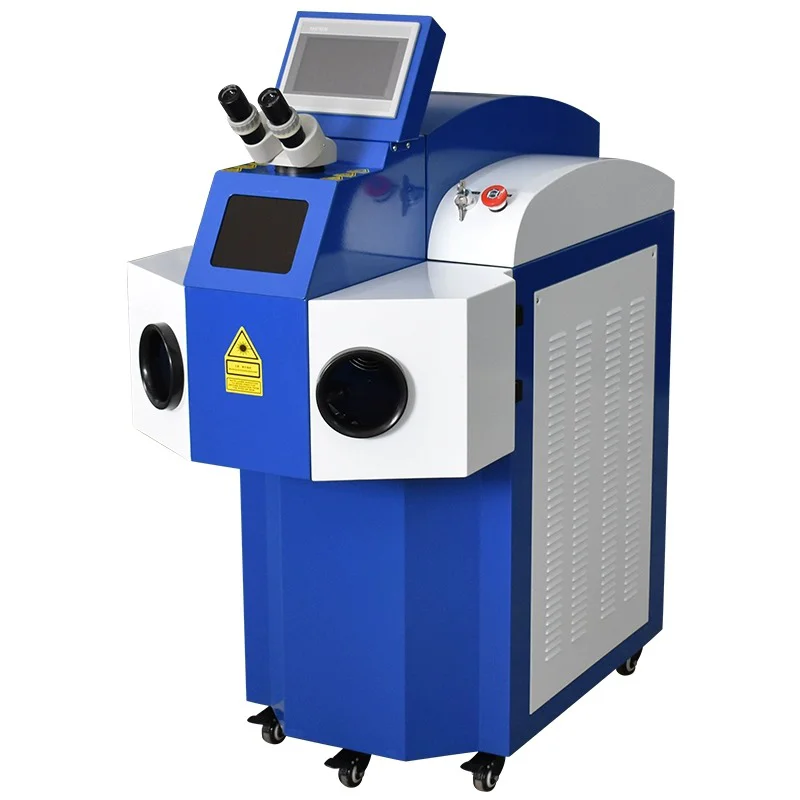

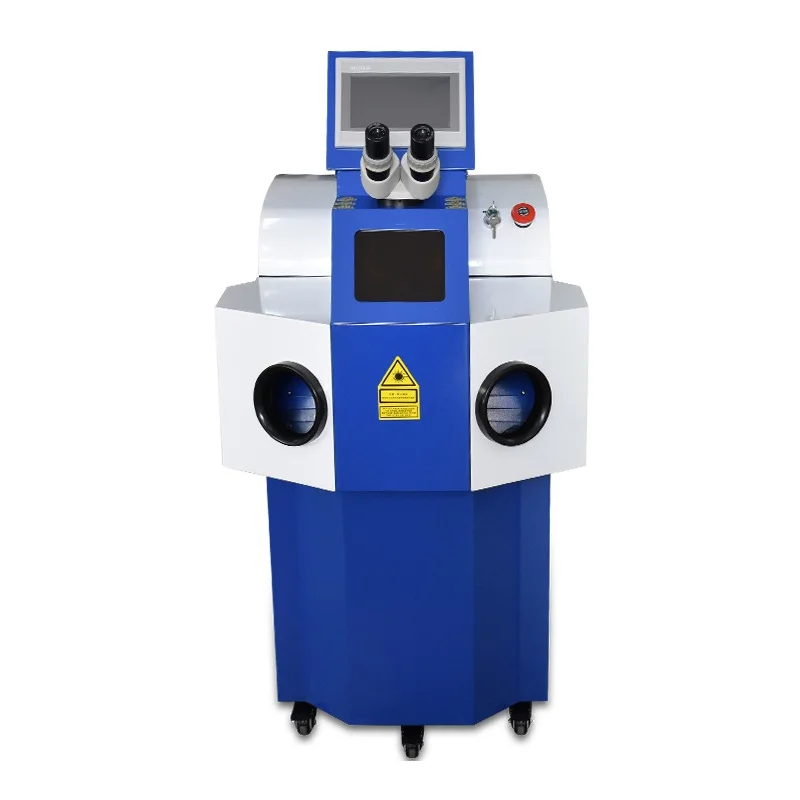

200w 300w Gold and Silver ring Optical Fiber jewelry laser welding machine custom spot welding metal repair factory price
- Category: >>>
- Supplier: Jiangpin Technology (wuhan) Co. Ltd.Jiangpin Ltd.
Share on (1601298278541):
Product Overview
Description
200w 300w Gold and Silver ring Optical Fiber jewelry laser welding machine custom spot welding metal repair factory price
Product Description
Major advantage

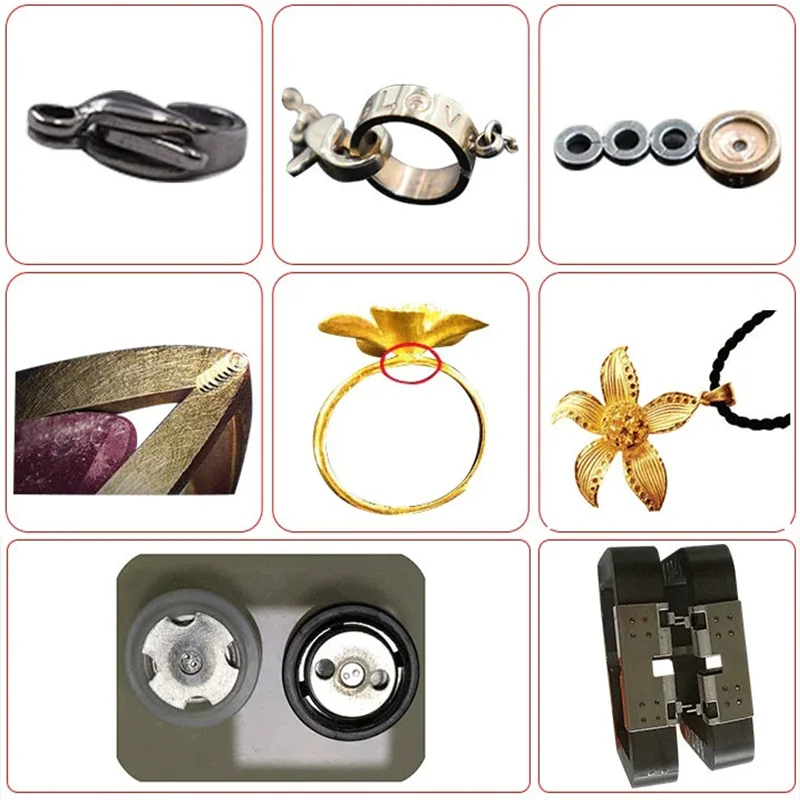

Specially tailored for the jewelry industry, the introduction of German technology, the use of unique structural design, suitable for a variety of large, medium and small mold repair.
Specially tailored for the jewelry industry, the introduction of German technology, the use of unique structural design, suitable for a variety of large, medium and small mold repair.
1. Adopt ceramic concentrating cavity imported from the UK, corrosion resistance, high temperature resistance, cavity life (8-10) years, xenon lamp life of more than 8 million times.
2. Adopt the world's most advanced automatic shading system to eliminate the stimulation of the eyes during work time.

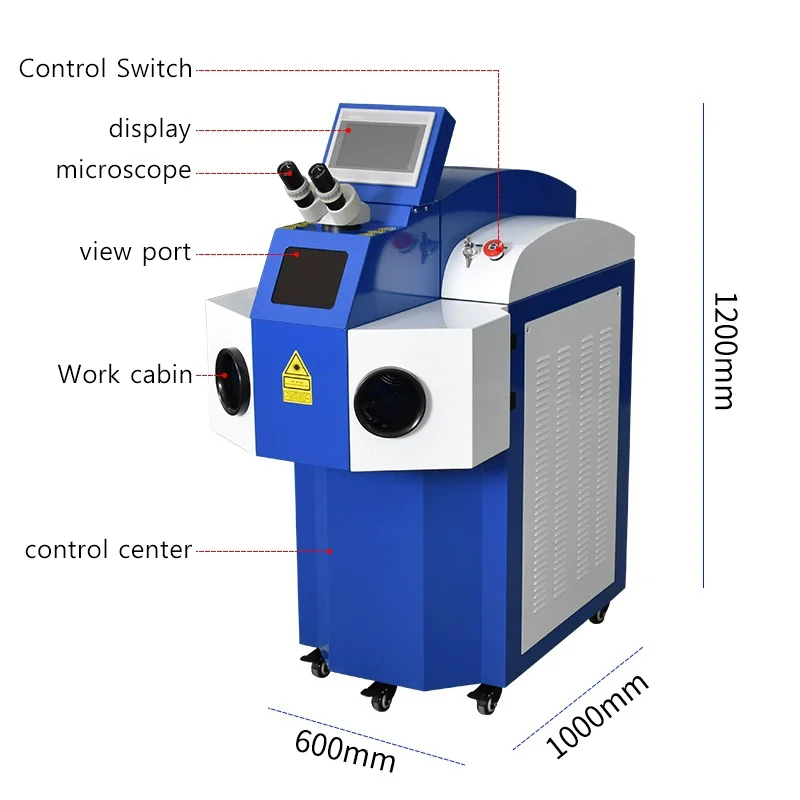

3. The laser head can rotate 360 degrees, the overall light road part can rotate 360 degrees, as well as the up and down electric lift, front and forth, especially suitable for all kinds of large, medium and small mold repair.
4. Parameter adjustment is controlled by intelligent remote control, which is simple and fast.
5. The working table is made of cast iron, which can be electrically lifted and moved in three dimensions.
Product name | New 3d 200w 300w Small Silver Rings Fiber Jewelry Spot Customized Micro Laser Welding Machine For Gold |
Laser type | YAG impulse |
laser power | 200W |
impulse frequency | 1-100Hz 1-300Hz 1-500Hz (continuously adjustable) |
pulse length | 0.1-20ms (continuously tunable) |
Focused spot diameter | 0.2-2.0mm |
Focus lens focal length | 80mm / 100mm / 120mm / 200mm is optional |
Maximum single-pulse energy | 110J |
observing system | CCD visual images / microscopy |
Electricity demand | 220V±10%/50HZ |
