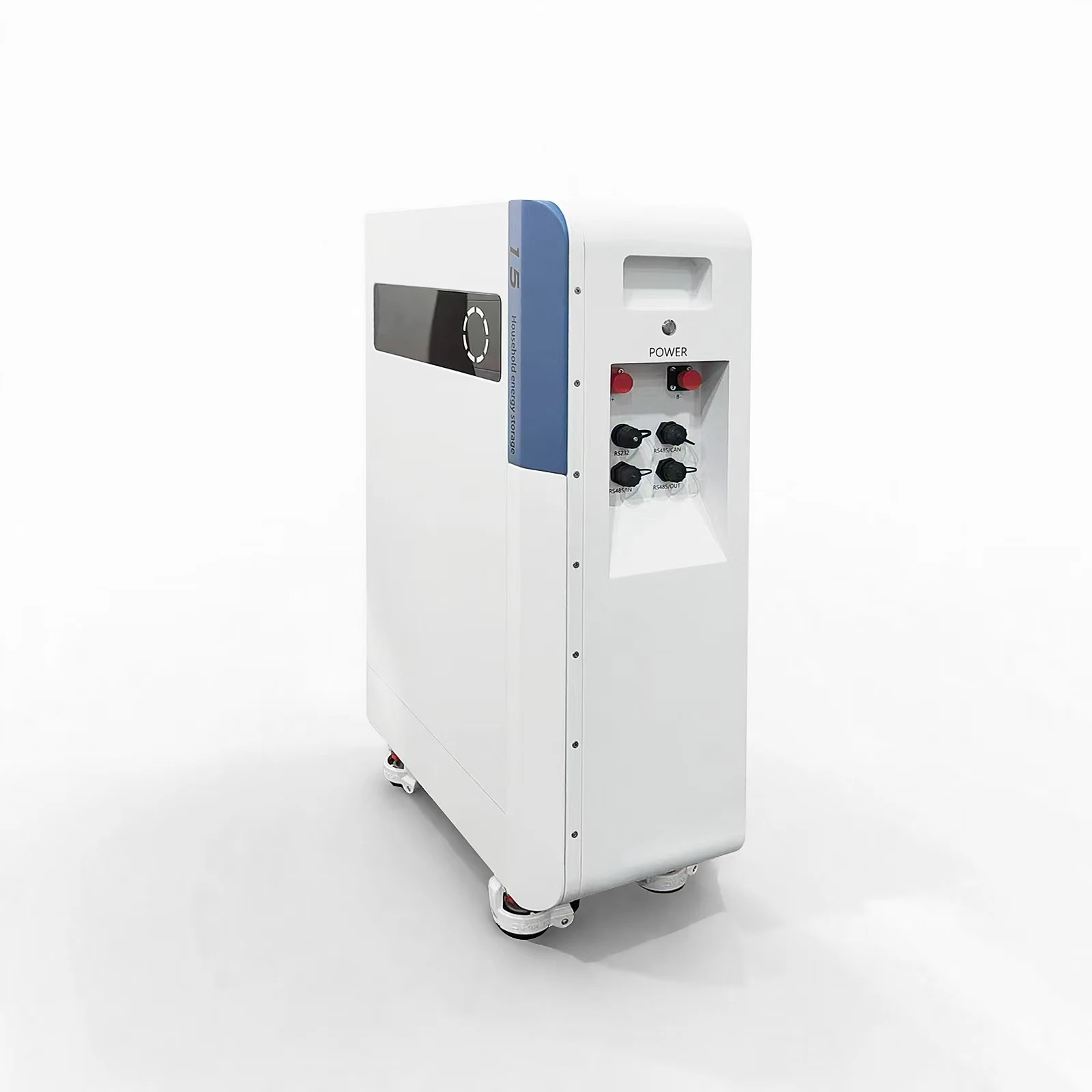

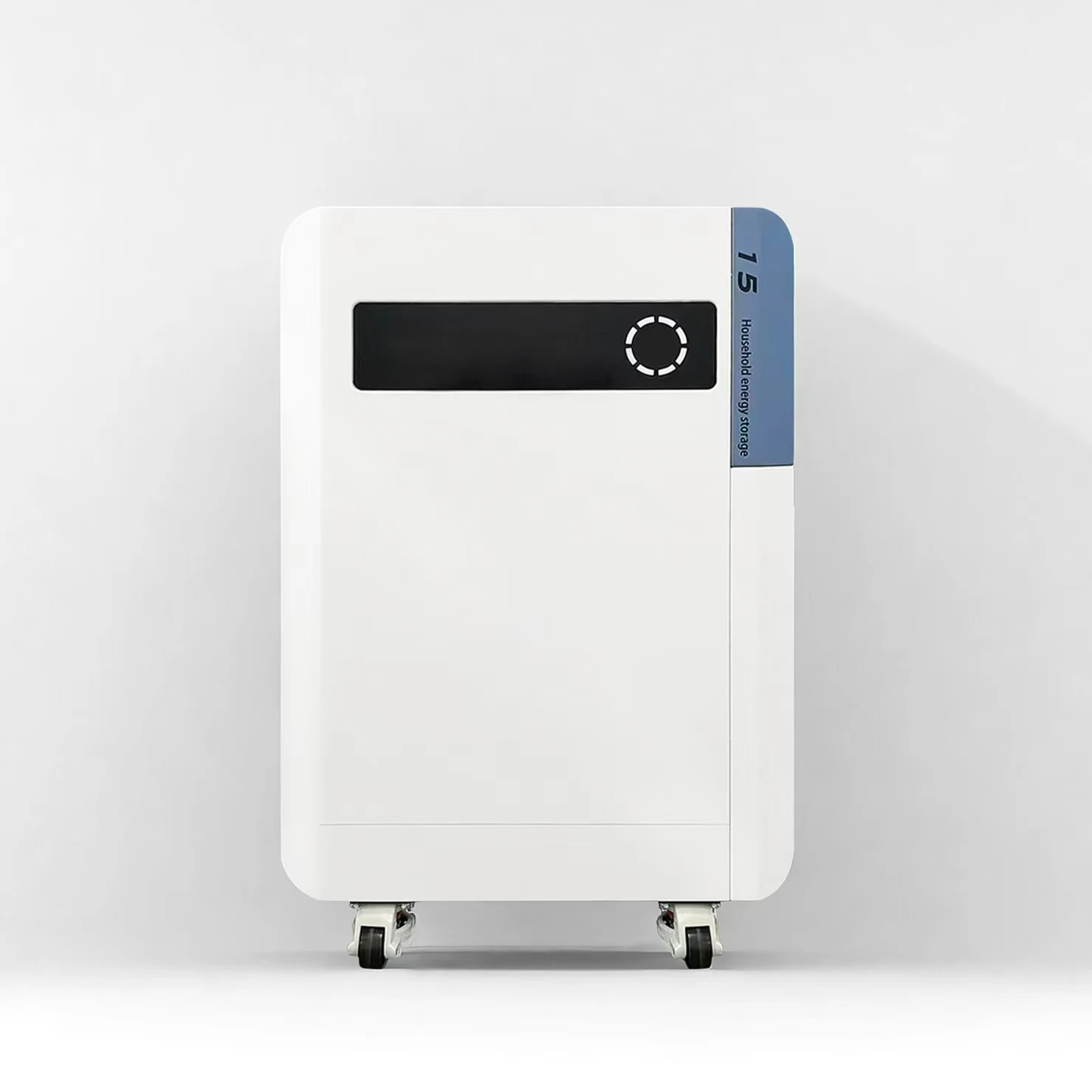

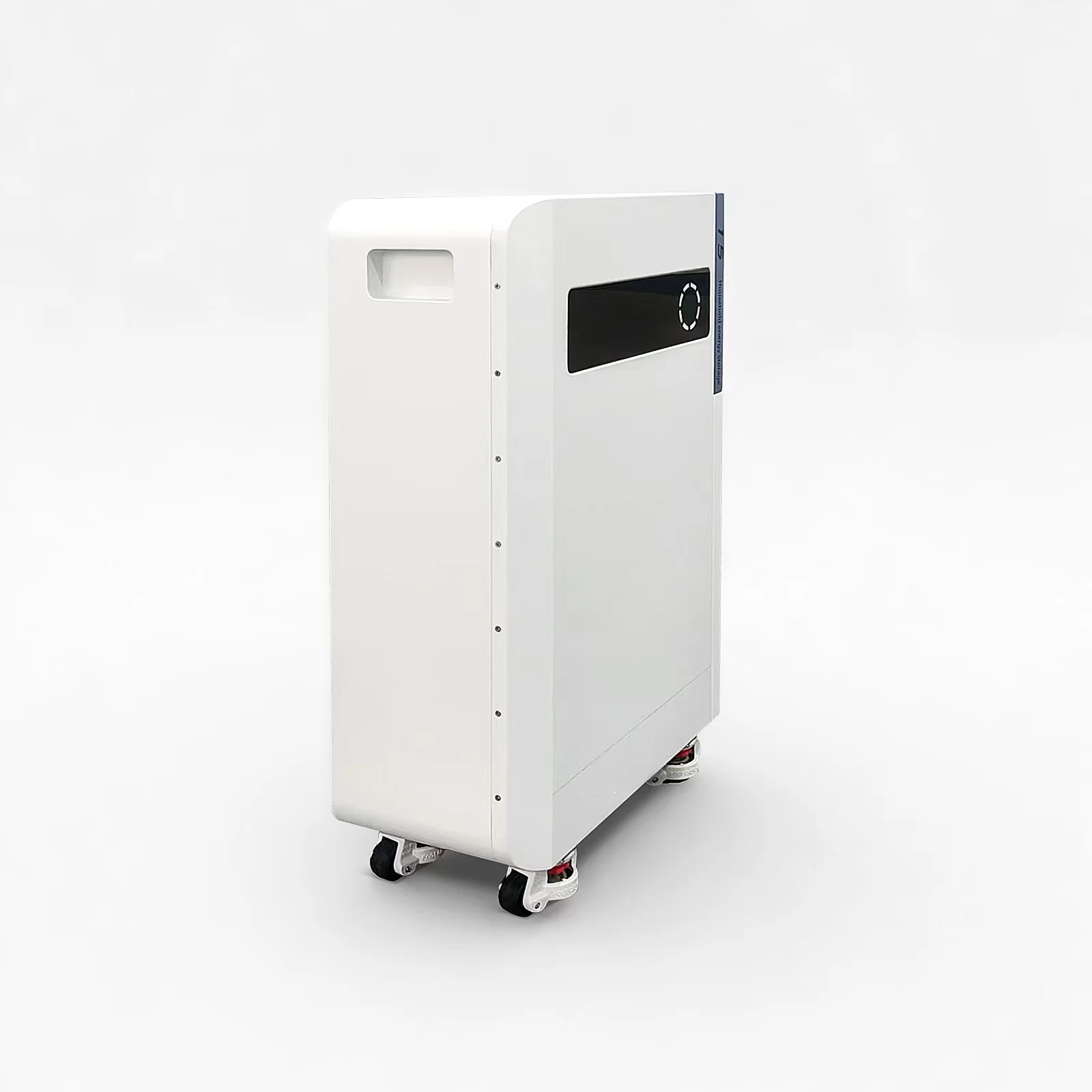

Floor Type Energy 15kwh Storage Battery solar battery storage solar energy battery storage companies
Floor Type Energy 15kwh Storage Battery solar battery storage solar energy battery storage companies
Floor Type Energy 15kwh Storage Battery solar battery storage solar energy battery storage companies
Floor Type Energy 15kwh Storage Battery solar battery storage solar energy battery storage companies
Floor Type Energy 15kwh Storage Battery solar battery storage solar energy battery storage companies
Floor Type Energy 15kwh Storage Battery solar battery storage solar energy battery storage companies
Floor Type Energy 15kwh Storage Battery solar battery storage solar energy battery storage companies

Floor Type Energy 15kwh Storage Battery solar battery storage solar energy battery storage companies

Share on (1601298413698):


Price:$1,130.00-1,220.00

Quantity:


Product Overview

Description





Technical Specifications


Model
KNY 51300
Nominal Voltage
51.2V DC
Voltage Range
44V-58.4V
Nominal Capacity
300Ah
Rated Capacity
15.36kWh
Communication Protocol
CAN / RS485 / RS232
Max. Number of Parallel Connections
15
Cycle Life
6000 cycles (@80% DoD)
Protection Mechanism
Temperature Protection/Over-current Protection/Short-circuit Protection Over-charge Protection/Over-discharge
Protection/Low-voltage Protection
Charging Parameters
Recommended Charging Current
100A
Max. Charging Current
200A
Recommended Charging Voltage
58V
Max. Charging Voltage
58.4V
Discharging Parameters
Recommended Discharging Current
100A
Max. Discharging Current
200A
Recommended Battery Discharge Cut-off Voltage
44V
Battery Cut-off Voltage
43.2V
Battery Recovery Voltage
48V
General Parameters
Dimension
800*580*255mm
Gross/Net Weight
150kg/131kg
Shell Material
Sheet Metal
Protection Rating
IP65
Installation Method
Floor type
Cell Type
LiFePO4
Certification & Safety Standard
Safety Certification
CE
Transportation Safety Certification
UN38.3,Class9
Temperature Parameters
Discharging Temperature
-20 ∽60℃
Charging Temperature
0 ∽55℃
Storage Temperature
-20 ∽45℃


Detailed Images
