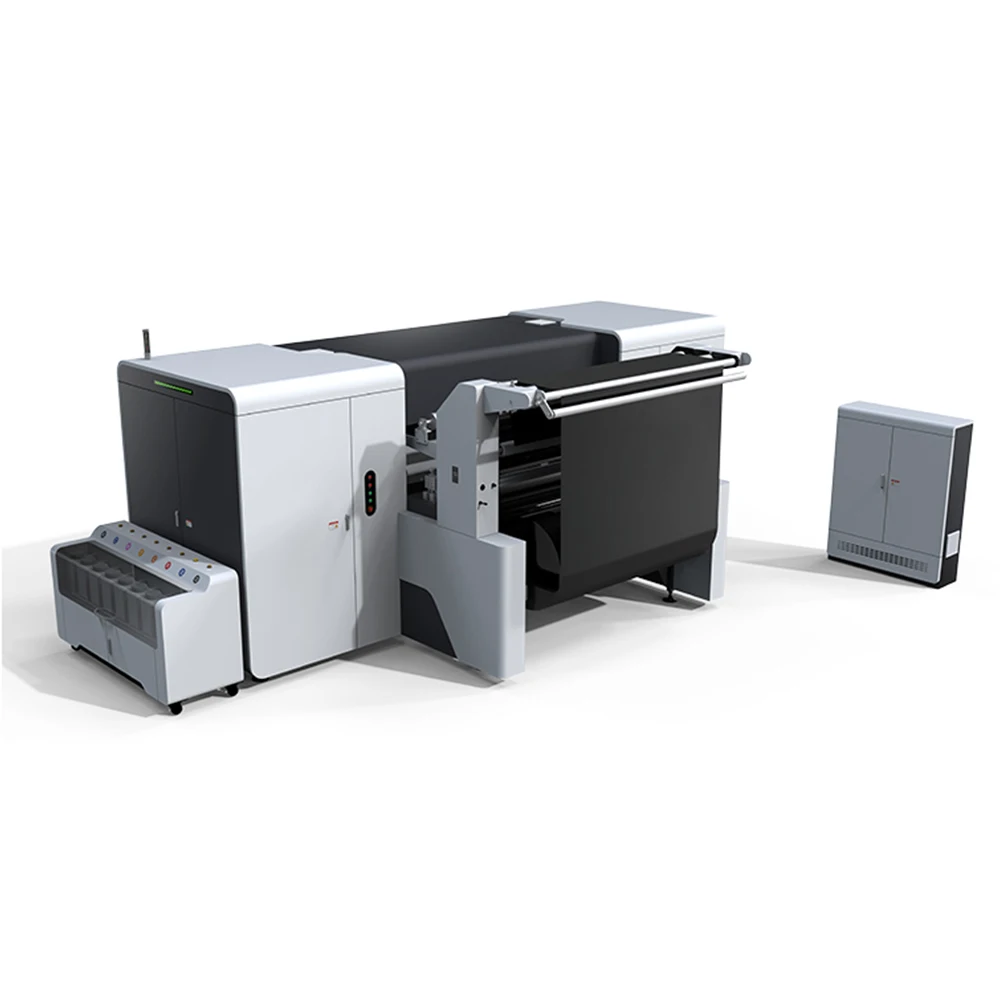

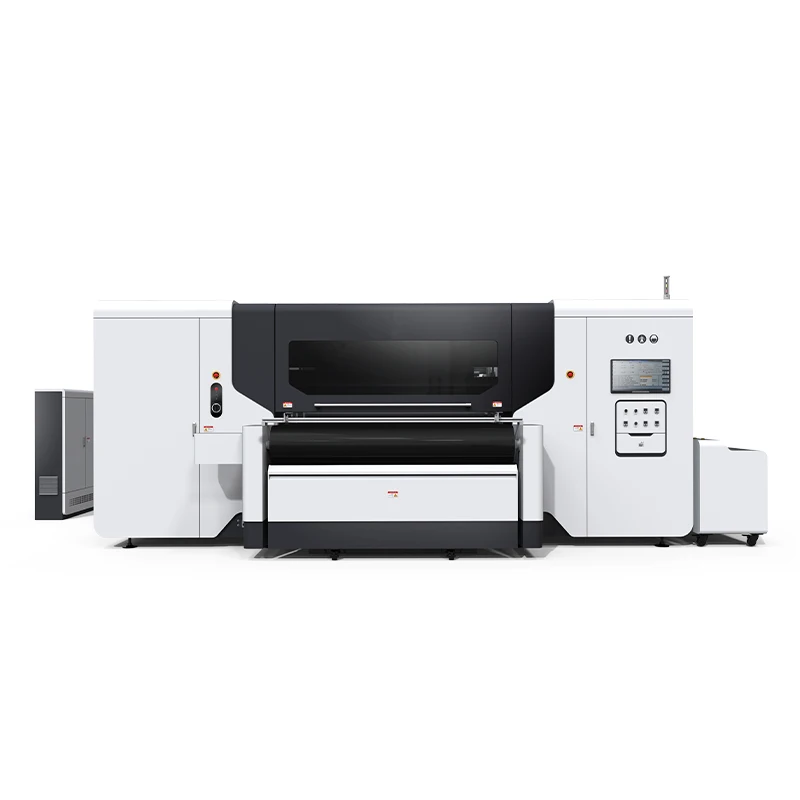

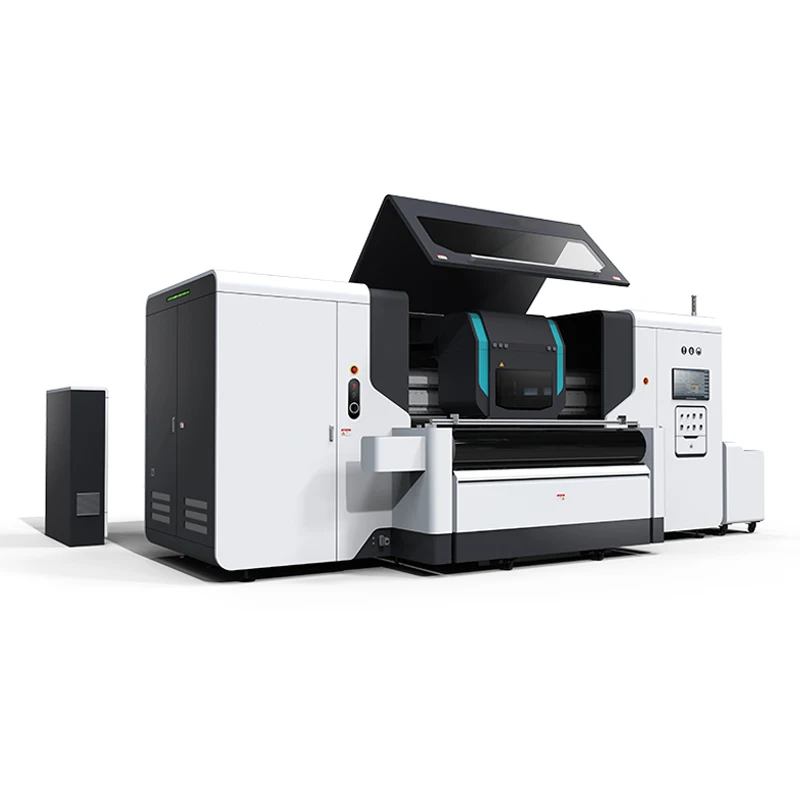

Factory sale textile digital printer with Ricoh head for fabric cotton polyester printing using pigment ink
- Category: >>>
- Supplier: Shenzhen Johope Technology Co. Ltd.Shenzhen Ltd.
Share on (1601298426628):
Product Overview
Description
Products Description
Model | H1832 | ||
Print head | 32 pcs Ricoh Gen5E and Gen6 print head | ||
Fabric Conveyance Mode | Adhesive belt with cleaning and heating system | ||
Maximum Medium Width | 1900mm | ||
Maximum Printing Resolution | 2400DPI | ||
Production Speed | Gen6 | 2pass 700m²/h | 3pass 450m²/h | ||
Print Software | Neostampa / Texprint | ||
Printing Parts Introduction | Auto negative pressure ink supply, auto up & down of carriage, auto print head clean,auto print head capping with collision avoidance system | ||

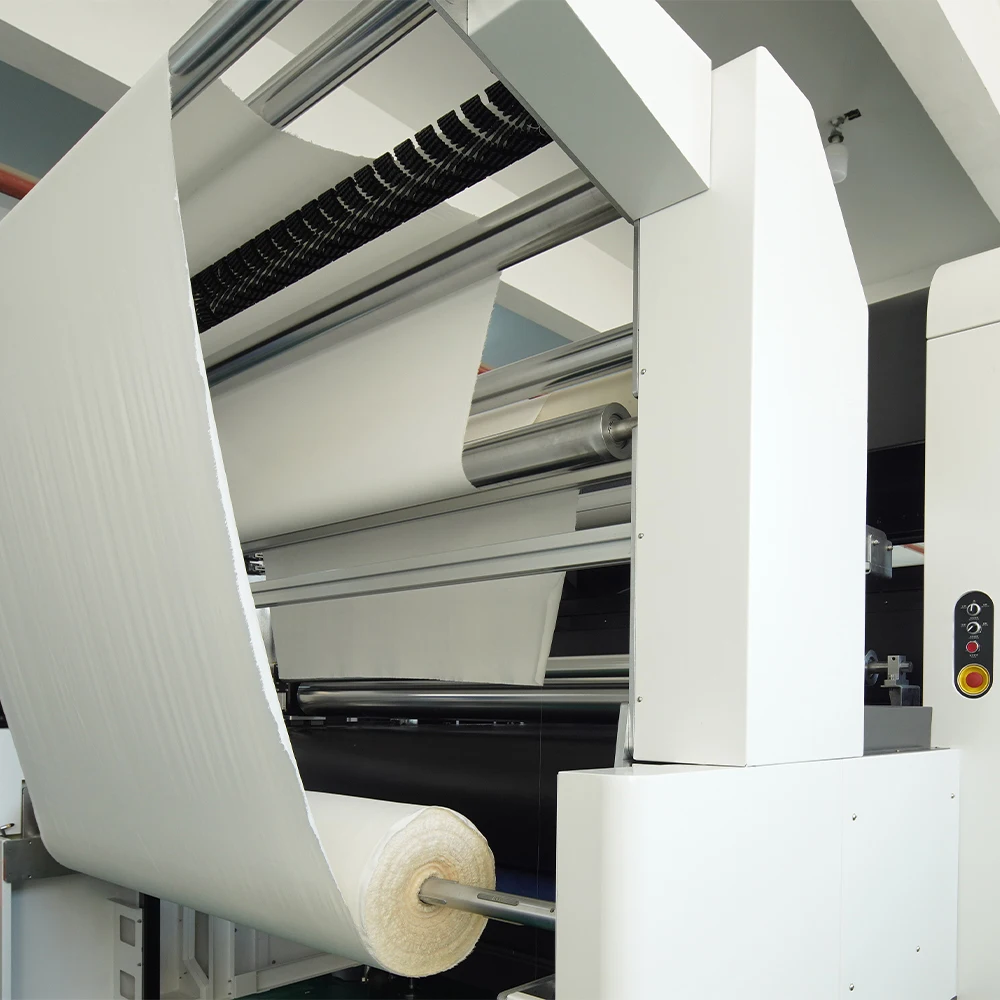

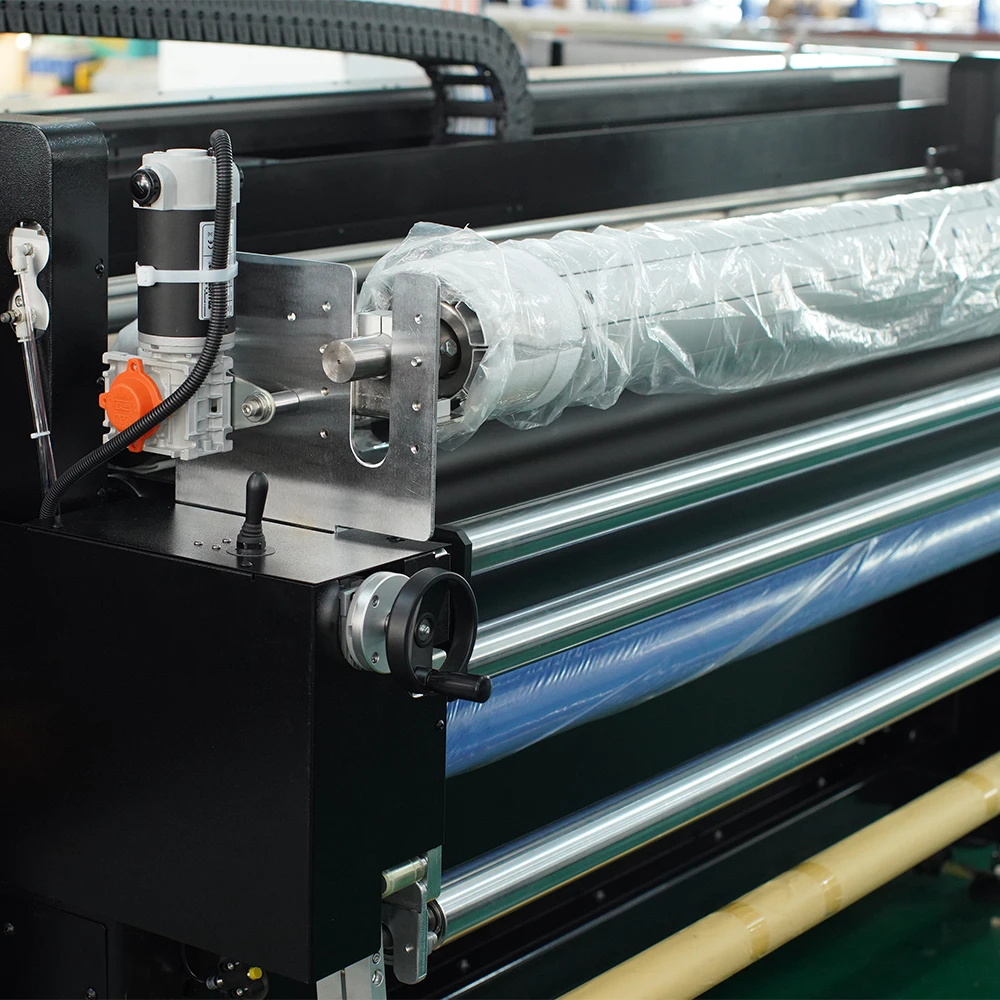

Belt System Introduction | Auto belt cleaning system, anti-pressure roller printing, synchronous press roller, belt drying system, constant tension unwinding system | ||
Dryer Unit | 3 tiers industry dryer with off plane | ||
Ink Type | Reactive , disperse , acid , pigment ink (Max 12 colors) | ||
Interface | Optical fiber | ||
Print Head Height | Height adjustable 1.5~30mm, to adapt medium of different thickness. | ||
Power Voltage | 380V , 3L+N+G ( with independent reliable effective earth wire ) | ||
Power Frequency | 50HZ/60HZ ±1HZ | ||
Power Consumption | Printer 50 kw, 2set dryer 11 kw, 1st dryer 6.2 kw | ||
Workshop Condition | Temperature: 20-30℃, Humidity: 50-65% | ||
Measurement (with Wooden Case) | Printer:3450*5300*2220mm ( W*L*H ) Dryer:2sets in 3 tiers with folders 3800*8500*2700mm (W* L*H )Ink Cabinet:625*1910*910mm ( W*L*H ) Fabric Feeder (Optional):2350*1050*1300mm (W*L*H) | ||
Weight | Printer: 7500 kg 2 set dryer: 6500 kg 1 set dryer: 4500kg | ||
