Wholesale Wind Inverter 150 Kw on Grid Tiein
$265.00-515.00
48V To 220V Dc Ac Wind Turbine Inverter Converter Pure Sine Wave 1KW 2KW 10Kw
- Category: >>>
- Supplier: Wuxi Roywell Motortech CorporationWuxi Corporation
Share on (1601298433929):
Product Overview
Description
Products Description
1. Low cost and easy installation

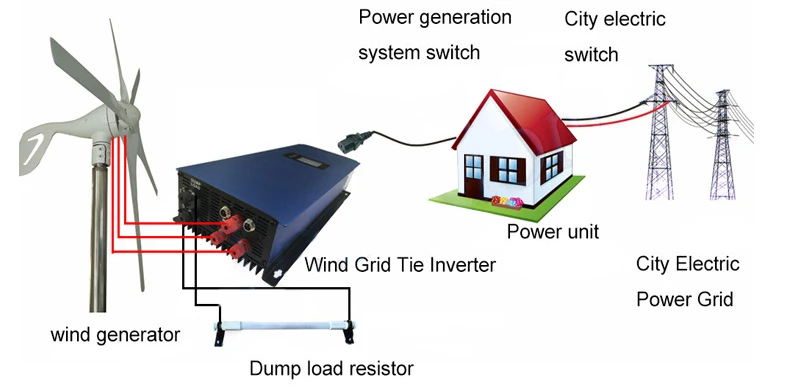

2. Directly connect to three phase wind turbine
3. Much better output waveform compare with similiar GTI
4. Improving the efficiency of the entire solar power system
Overload protection ,Anti-island protection
Short-circuit protection/Reverse polarity protection
5. AC output voltage and current THD<5%,PF>99%
2. Directly connect to three phase wind turbine
3. Much better output waveform compare with similiar GTI
4. Improving the efficiency of the entire solar power system
Overload protection ,Anti-island protection
Short-circuit protection/Reverse polarity protection
5. AC output voltage and current THD<5%,PF>99%

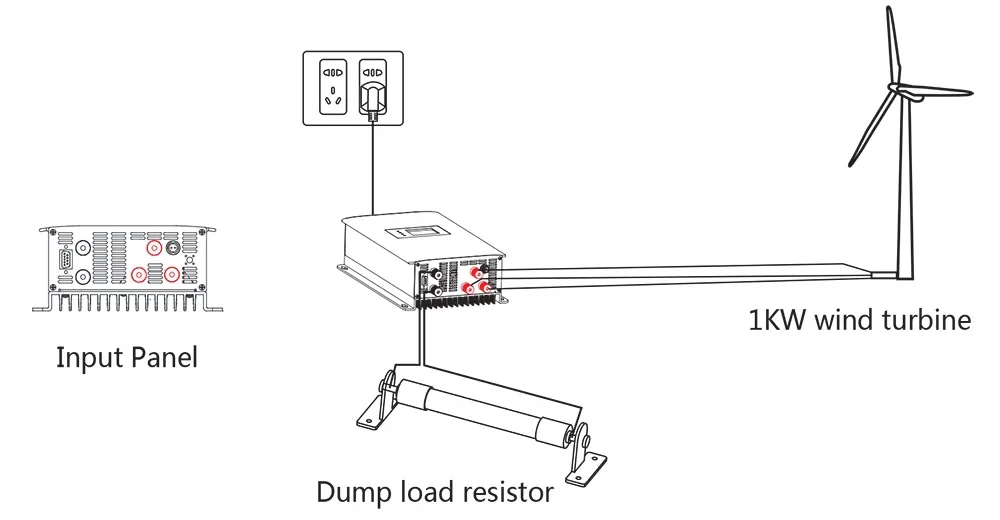

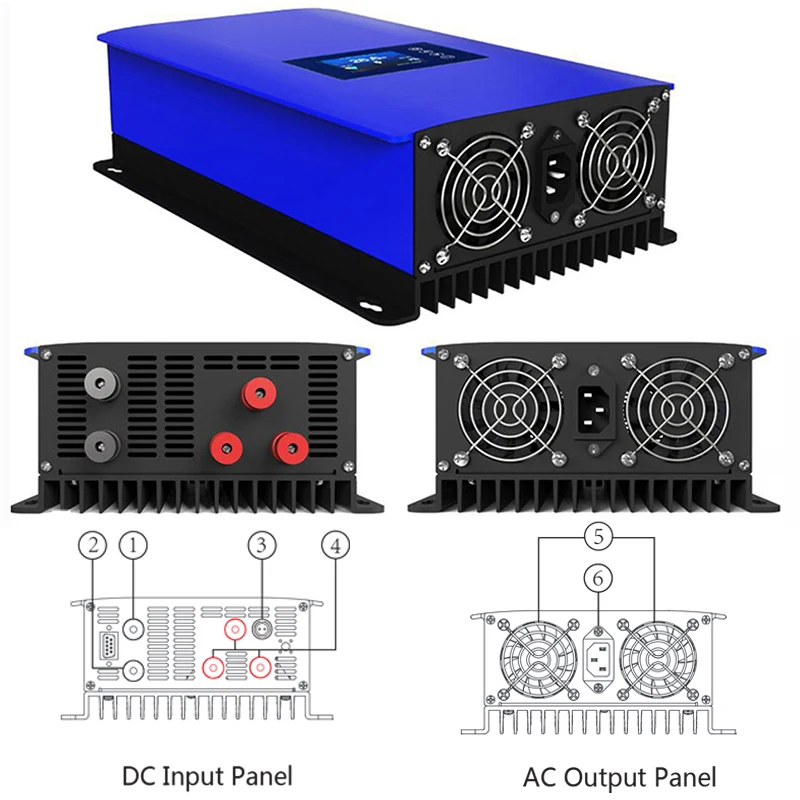

①.②.Dump load resistor connection Terminal. This terminals will connect to the dump load resistor.
③.AC socket,This socket will connect the inverter to the public grid via the AC cable.
④.Cooling fans.

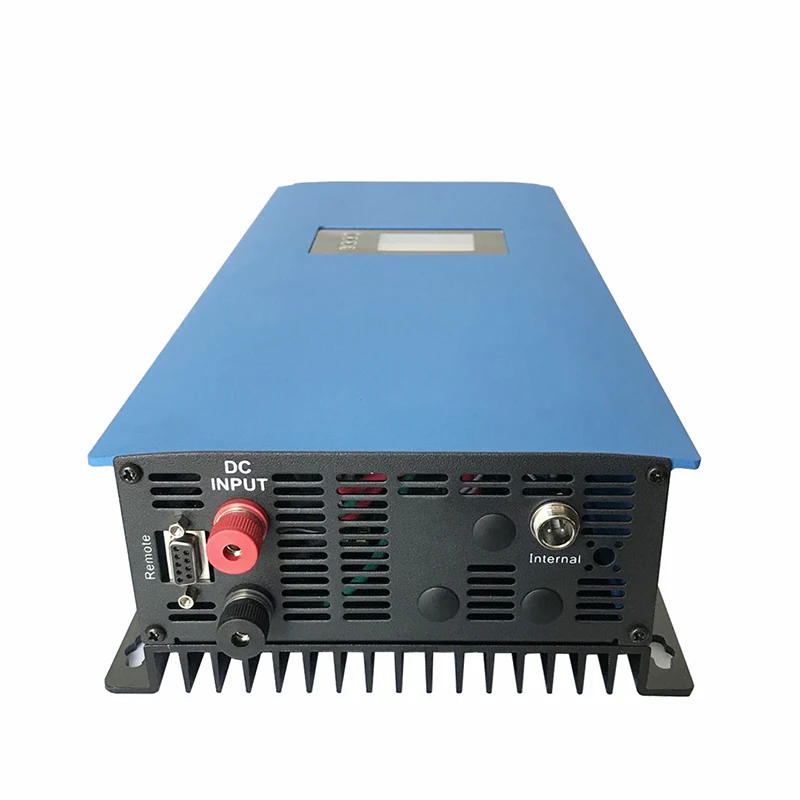

⑤.Input Terminals. This terminals will connect to the wind turbine.
③.AC socket,This socket will connect the inverter to the public grid via the AC cable.
④.Cooling fans.
⑤.Input Terminals. This terminals will connect to the wind turbine.
INPUT DATA (DC) | Wind1000W-LCD | Wind2000W-LCD | ||
Input Voltage Range | 22-65VDC/45-90VDC | 45-90VDC | ||
Maximum Input DC Voltage | 65V/90V | 90V | ||
Peak power Tracking Voltage | 25V-60V/50V-90V | 50V-90V | ||
Operating DC Voltage Range | 22V-65V | 45V-90V | ||
Start-up Voltage | 25V/49V | 49V | ||
OUTPUT DATA (AC) | ||||
Maximum Output Power | 1000W | 2000W | ||
Nominal Voltage | 110VAC/230VAC | 230VAC | ||
Nominal Voltage Range | 95-140V/185-265V 185-265V | |||
FrequencyRange | 47.5-51.5 for50hz.59.3-60.5 for 60hz | |||
Power Factor | >0.95 | |||
OutputWaveform | Pure Sine Wave | |||
CHARACTERISTIC DATA | ||||
MPPTEffeciency Over Current Protection | 99% Yes | |||
Over Temperature Protection | Yes | |||
Reverse Polarity Protection | Yes | |||
Anit-Island Protection | Yes | |||
Stackable | Just for AC Output | |||
Operating Temperature Range | -20℃-45℃ | |||
Storage Tmeperature Range | -40℃-85℃ | |||
Current THD | <5% | |||
Voltage THD | <5% | |||
Standard | CE,EN50438 | |||
Eficiency | 92% | |||

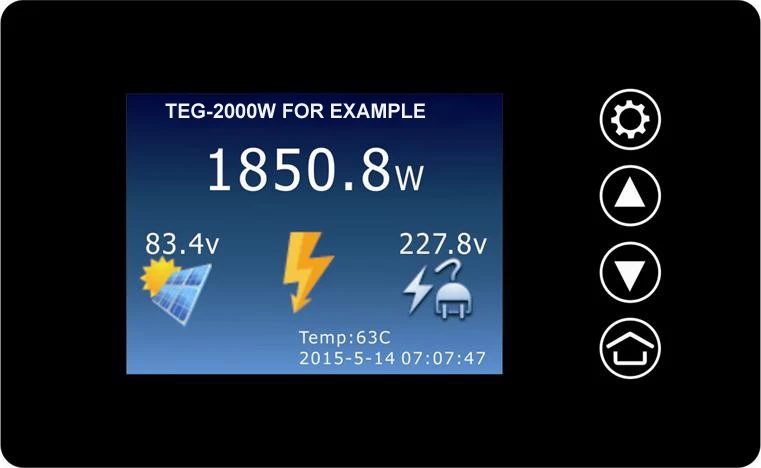

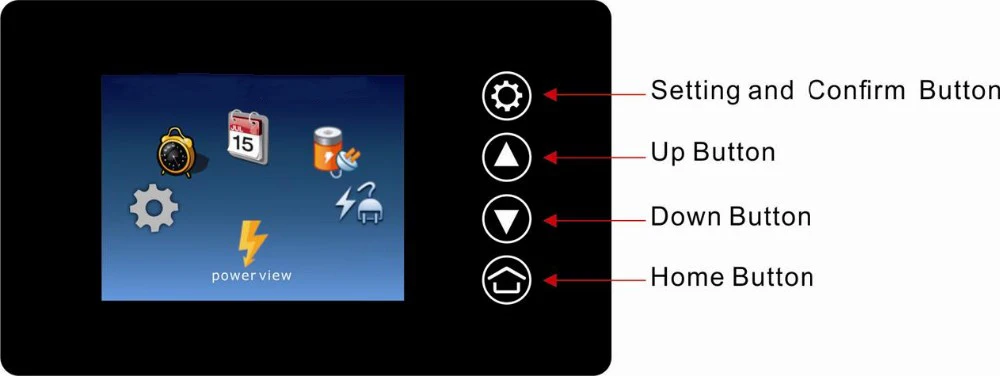

Inverter Display Instruction
Power View:
In this interface,the display shows real time power,PV input voltage, inside temperature,date and time.
Company Profile

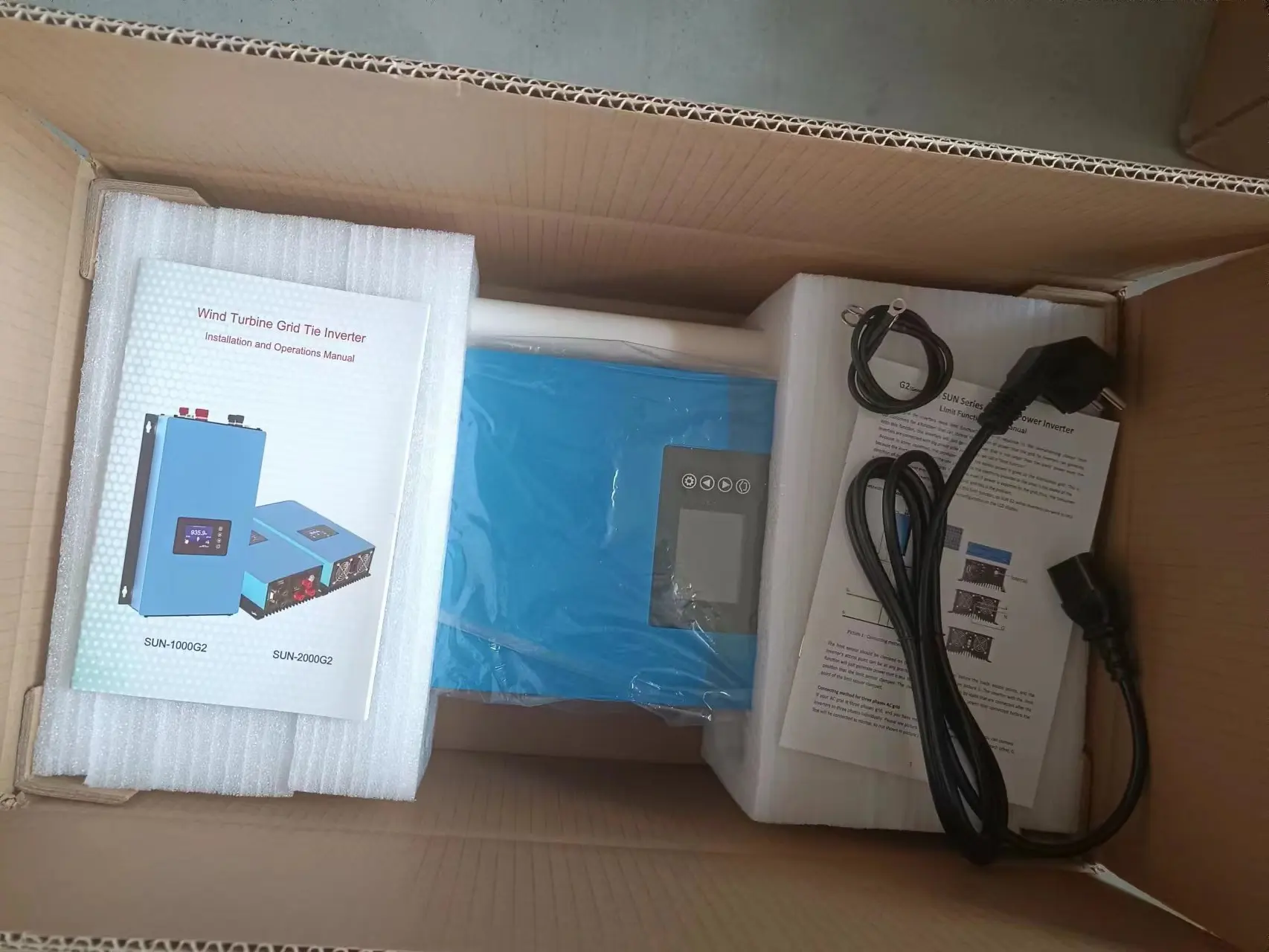

Packing & Delivery
