Spherical 29317 E Roller 29330 E 29430 E Thrust Bearings Cylindrical Roller Bearings Thrust

Spherical 29317 E Roller 29330 E 29430 E Thrust Bearings Cylindrical Roller Bearings Thrust

Category: >>>
Supplier: Jinan Furuiyuan Bearing Co. Ltd.Jinan Ltd.

Price:$1.50-2.50

Quantity:

Product Overview

Description

Model	d(mm)	D(mm)	B(mm)	Basic dynamic load rating	Basic static load rating	Fatigue load	Speed	Limit speed
29412 E	60	130	42	390	915	114	2800	5000
29413 E	65	140	45	455	1080	137	2600	4800
29414 E	70	150	48	520	1250	153	2400	4300
29415 E	75	160	51	600	1430	173	2400	4000
29416 E	80	170	54	670	1630	193	2200	3800
29417 E	85	180	58	735	1800	212	2000	3600
29317 E	85	150	39	380	1060	129	2400	4000
29418 E	90	190	60	815	2000	232	1900	3400
29318 E	90	155	39	400	1080	132	2400	4000
29420 E	100	210	67	980	2500	275	1700	3000
29320 E	100	170	42	465	1290	156	2200	3600
29422 E	110	230	73	1180	3000	325	1600	2800
29322 E	110	190	48	610	1730	204	1900	3200
29424 E	120	250	78	1370	3450	375	1500	2600
29324 E	120	210	54	765	2120	245	1700	2800
29326 E	130	225	58	865	2500	280	1600	2600
29426 E	130	270	85	1560	4050	430	1300	2400
29428 E	140	280	85	1630	4300	455	1300	2400
29328 E	140	240	60	980	2850	315	1500	2600
29230 E	150	215	39	408	1600	180	1800	2800
29330 E	150	250	60	1000	2850	315	1500	2400
29430 E	150	300	90	1860	5100	520	1200	2200
29432 E	160	320	95	2080	5600	570	1100	2000
29332 E	160	270	67	1180	3450	375	1300	2200
29434 E	170	340	103	2360	6550	640	1100	1900
29334 E	170	280	67	1200	3550	365	1300	2200
29436 E	180	360	109	2600	7350	710	1000	1800
29236 E	180	250	42	495	2040	212	1600	2600
29336 E	180	300	73	1430	4300	440	1200	2000
29438 E	190	380	115	2850	8000	765	950	1700
29338 E	190	320	78	1630	4750	490	1100	1900
29240 E	200	280	48	656	2650	285	1400	2200

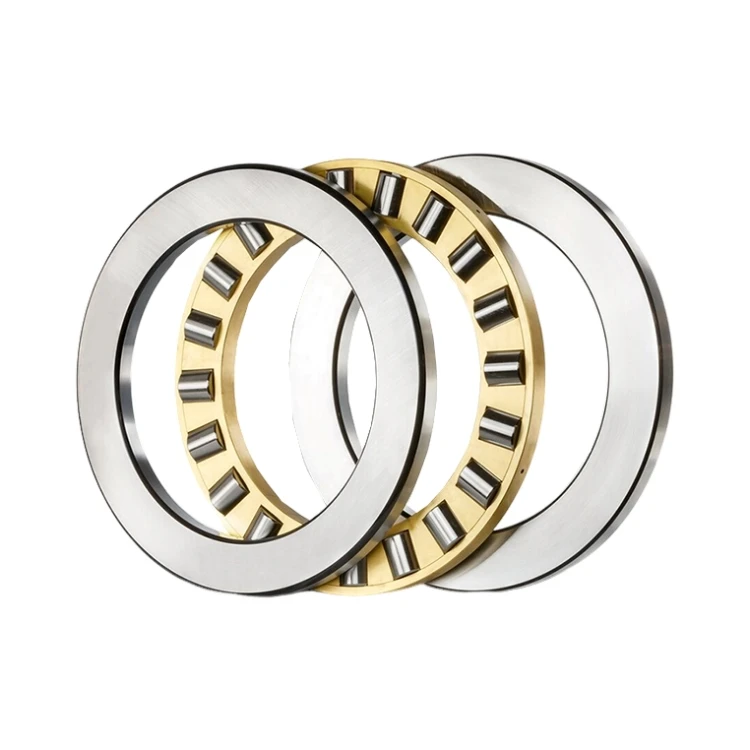

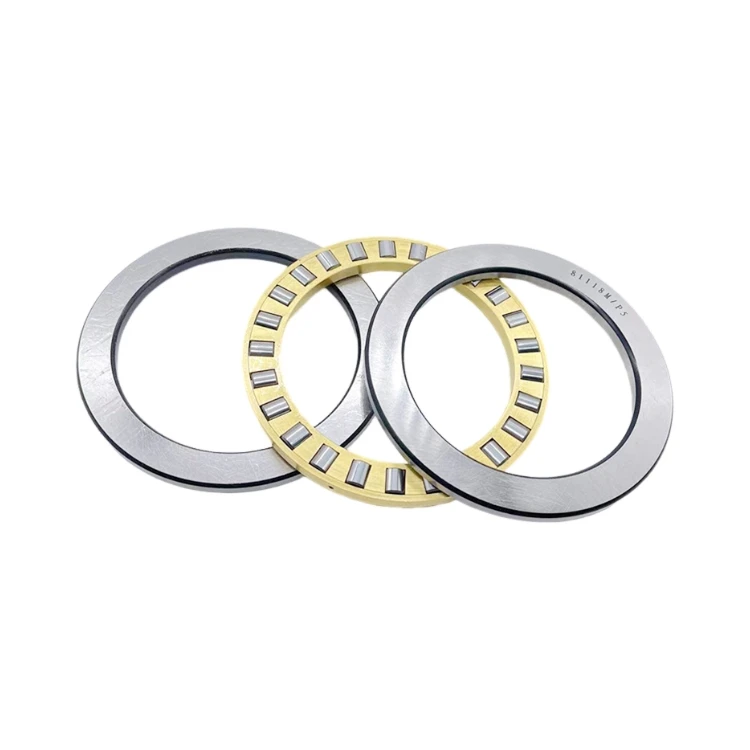

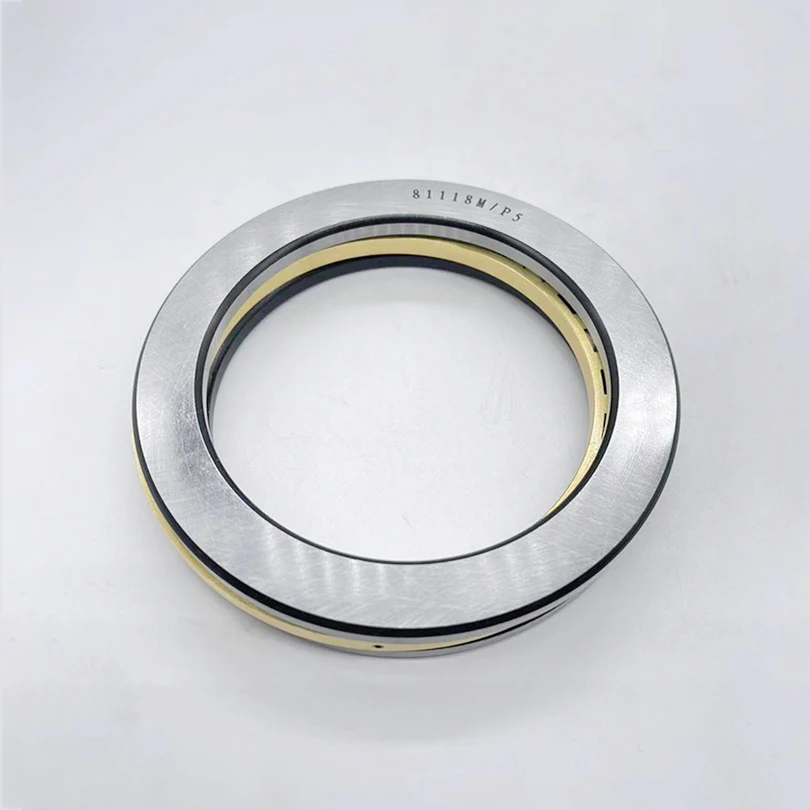

Available with cylindrical, tapered, and spherical rollers, thrust roller bearings sustain only axial loads. Thrust roller bearings are suitable for heavy loads and offer high axial rigidity. Machined brass cages are used as standard.
Thrust tapered roller bearings come in two types: the TT type, which has a flange on the housing washer (outer ring), and the TTF type, which does not. The TT type is suitable when it can be securely fixed in the radial direction, while the TTF type tolerates slight misalignment that occurs between the shaft and housing during operation.

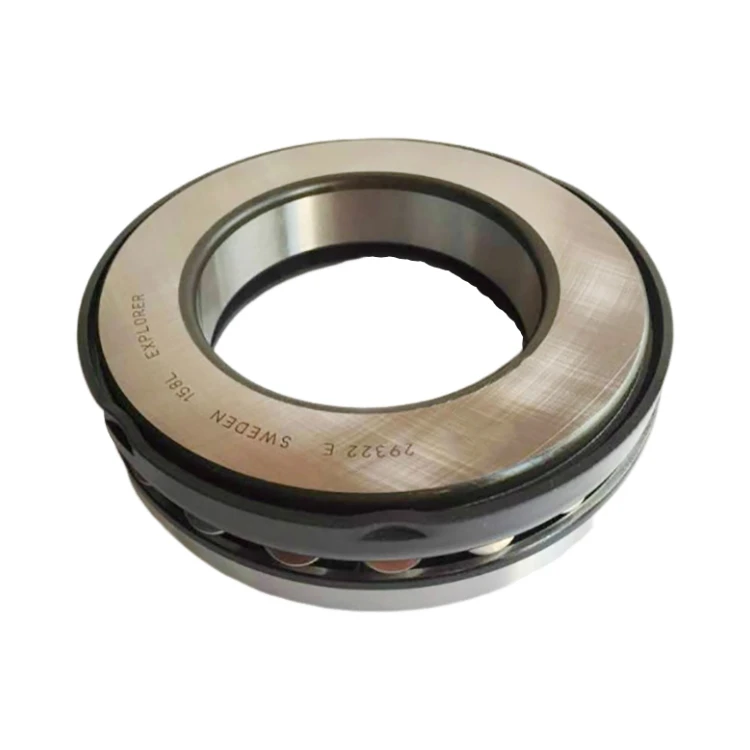

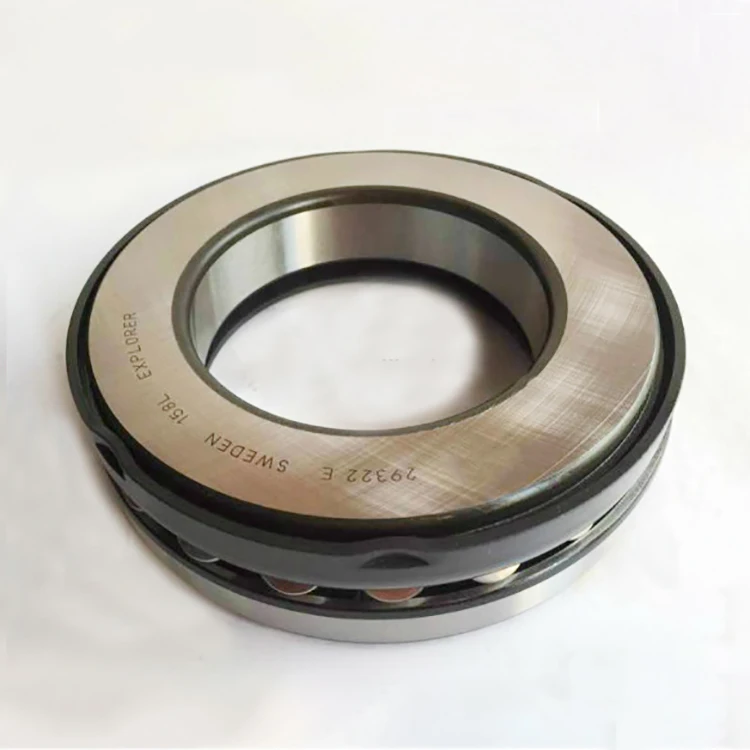

Thrust spherical roller bearings contain convex rollers that make them self-aligning and unaffected by mounting error and shaft deflection. The E-type offers a high load capacity design with a pressed steel cage.

Features
1. High load capacity/high rigidity
Designed with a simple structure that provides high axial load capacity and rigidity.
2. Ideal for low speeds

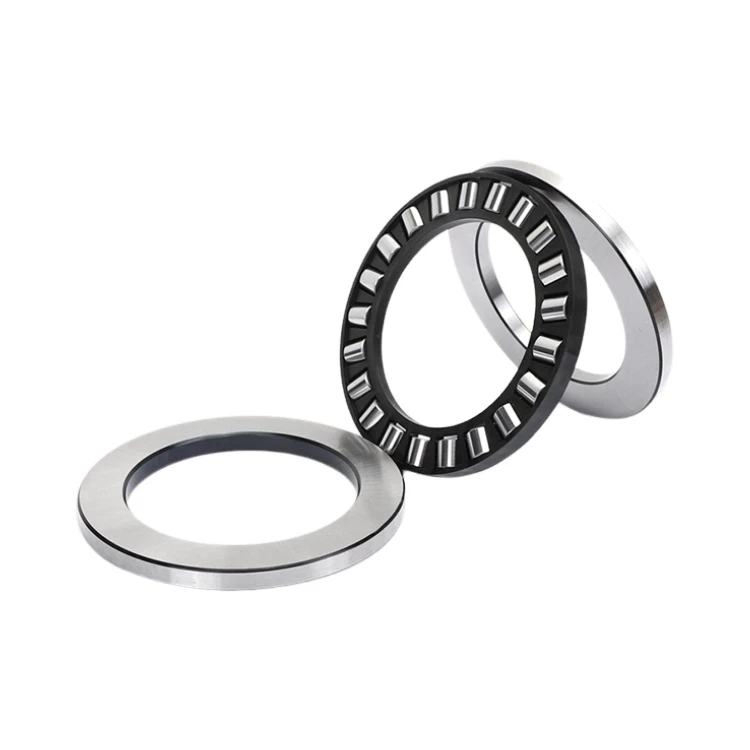

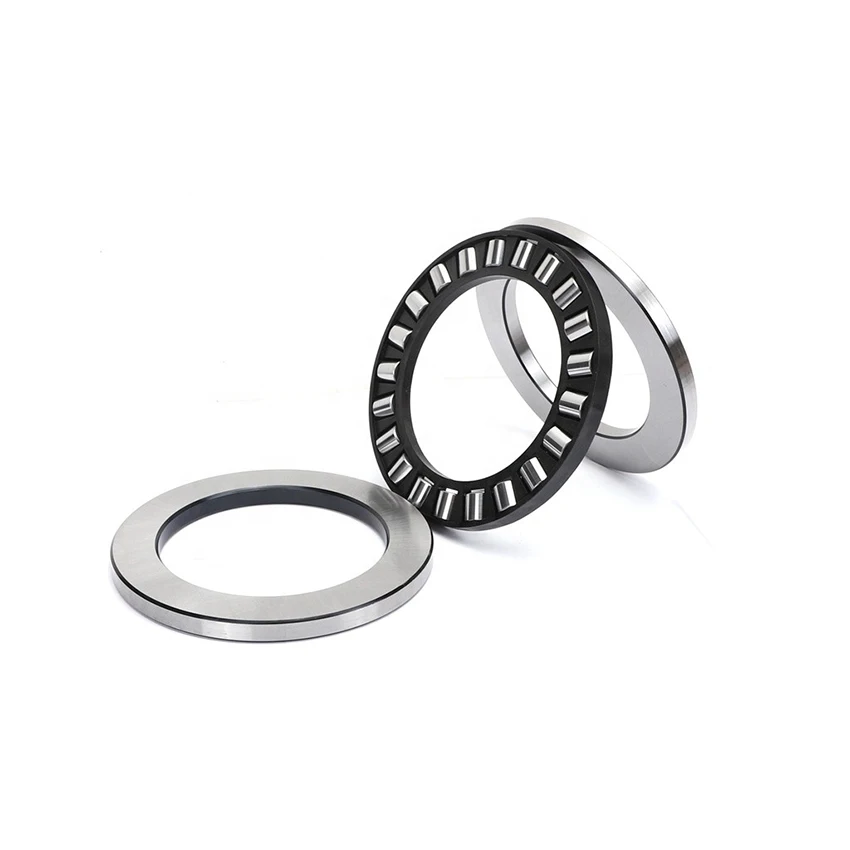

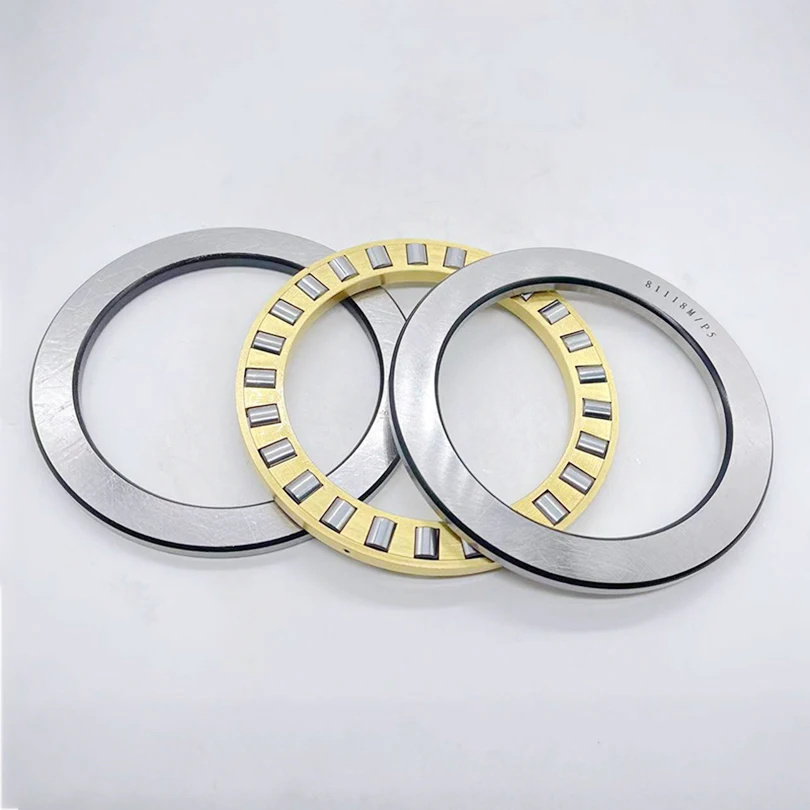

Though they are not suited for high speeds due to differential sliding of the rollers, cylindrical roller thrust bearings have a
compact, cage-guided design.
Applications
Rotary work tables for machine tools, powdering machine rotary tables, extruders
