wholesale variable speed 150W aluminum outdoor waterproof spotlight searchlight
- Category: >>>
- Supplier: Guangxi Sinso Lighting Co. Ltd.Guangxi Ltd.
Share on (1601298571427):
Product Overview
Description
new design LED lighting warehouse rotating 150W outdoor 220v search light
Product Paramenters
Features:
1)Radio remote control, control distance up to 100 meters
2)Speed adjustment arbitrary switching speed, there are three speed adjustment
High speed:pan: 15°/sec, tilt:3°/s\t\t\t
Medium speed: pan:5°/sec, tilt:1°/s\t\t\t
Low speed: pan:2.5°/sec, tilt:0.5°/s\t
3)Auto cruise function:searchlight reciprocating motion during limits,there are horizontal mode, vertical mode and horizontal+vertical mode
4)Preset function:One-click Move to main area, quick response,there are 6 preset positions.
5)Self-check:searchlight self-check after power on,searchlight auto stop rotating until searchlight come to starting point.
6)Memory function:memory the cruise mode and speed settings before turn off,No need to repeat settings.
7)Unattended function:work with timer,can achieve unattended function.
1)Radio remote control, control distance up to 100 meters
2)Speed adjustment arbitrary switching speed, there are three speed adjustment
High speed:pan: 15°/sec, tilt:3°/s\t\t\t
Medium speed: pan:5°/sec, tilt:1°/s\t\t\t
Low speed: pan:2.5°/sec, tilt:0.5°/s\t
3)Auto cruise function:searchlight reciprocating motion during limits,there are horizontal mode, vertical mode and horizontal+vertical mode
4)Preset function:One-click Move to main area, quick response,there are 6 preset positions.
5)Self-check:searchlight self-check after power on,searchlight auto stop rotating until searchlight come to starting point.
6)Memory function:memory the cruise mode and speed settings before turn off,No need to repeat settings.
7)Unattended function:work with timer,can achieve unattended function.
Item NO. | PD-022LE | Control mode | radiro remote(315Hz) |
Power | 100W,150W | Input voltage | 220VAC |
Material | Cast Aluminum+ABS | Light source | LED |
Beam Angle | Efficacy | 110lm/w | |
Tempreature(CCT) | 6000K | Visibility distance | 500 meters |

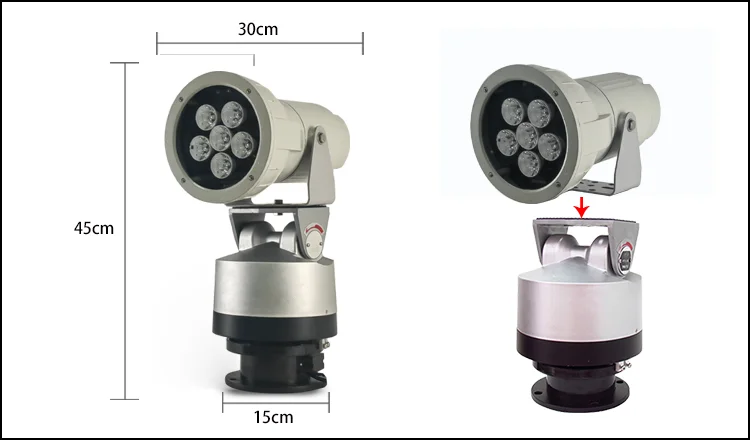

Dimension | 15*30*46.5cm | Weight | 8Kg |

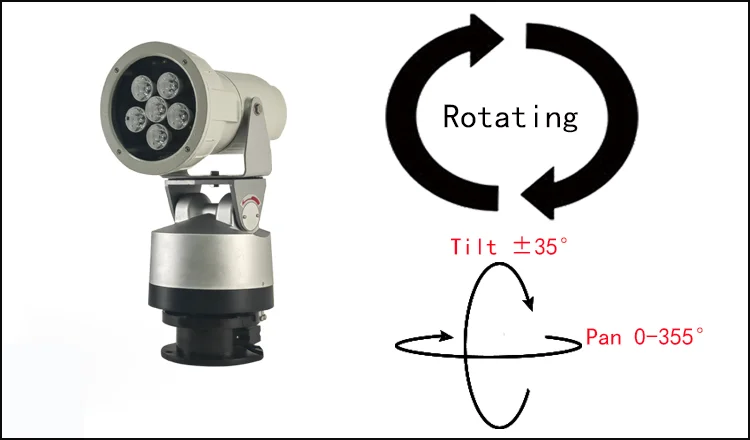

Rotation angle | pan:0~350°；tilt:±35° | Rotation speed | pan:0~15°/s;tilt:0~3°/s |
Working temperature | -40~50℃ | IP grade | IP65 |
Products Description

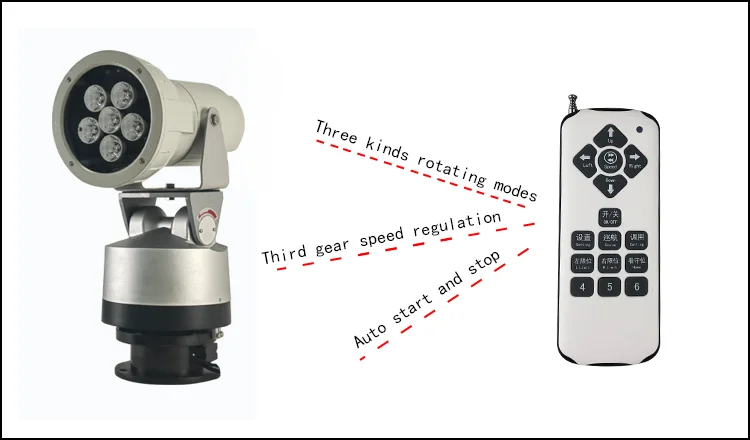

wireless remote control
wireless remote,without wiring,compact and lightweight portable,control range up to 50~100M
adjustment in 4 directions and to be
able to adjust the direction of freedom
adjustment in 4 directions and to be
able to adjust the direction of freedom

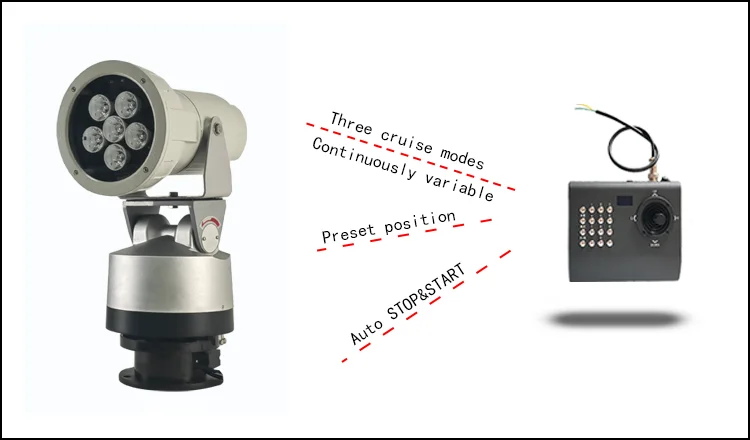

Wired Keyboard control
wired keyboard control,control range up to 1200 Meters,keyboard,with battery inside,can be used without external power supply
8 direction adjustment:right,lift,up,down,top right,top left,bottom right,bottom left,to be able to adjust the direction of freedom
One keyboard control up to 10 searchlights
8 direction adjustment:right,lift,up,down,top right,top left,bottom right,bottom left,to be able to adjust the direction of freedom
One keyboard control up to 10 searchlights

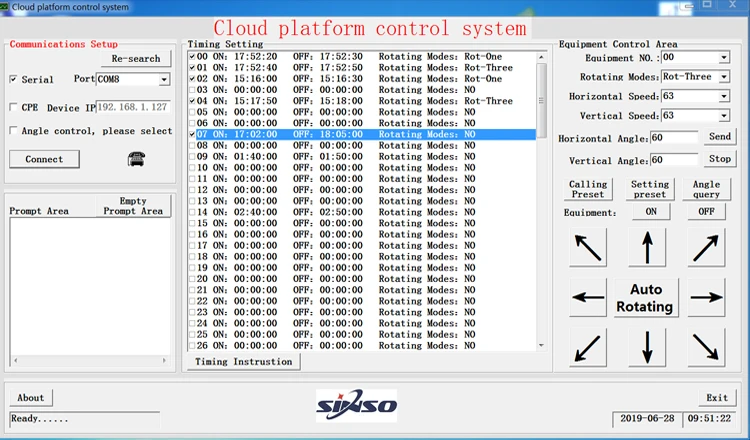

Software control
Software control:RS485 signal,can be control multiple searchlights,can control any device individually(address code),with 99
grouds timing,turn-on / turn-off time and working mode for searchlight can be setting
also with 8 directions adjustment,to be
able to adjust the direction of freedom,also with auto cruise function and speed adjustment
grouds timing,turn-on / turn-off time and working mode for searchlight can be setting
also with 8 directions adjustment,to be
able to adjust the direction of freedom,also with auto cruise function and speed adjustment
Auto Cruise/Variable Speed Function
Autocruise Function:there are three cruise modes for auto cruise function :horizontal mode,vertical mode,horizontal vertical mode.
Three speed adjustment(remote):Arbitrary switching High speed, Medium speed,low speed.
H:pan:15°/sec, tilt:3°/s,
M:pan:5°/sec,tilt:2.5°/s,
L:pan:1°/sec, tilt: 0.5°/s
Three speed adjustment(remote):Arbitrary switching High speed, Medium speed,low speed.
H:pan:15°/sec, tilt:3°/s,
M:pan:5°/sec,tilt:2.5°/s,
L:pan:1°/sec, tilt: 0.5°/s

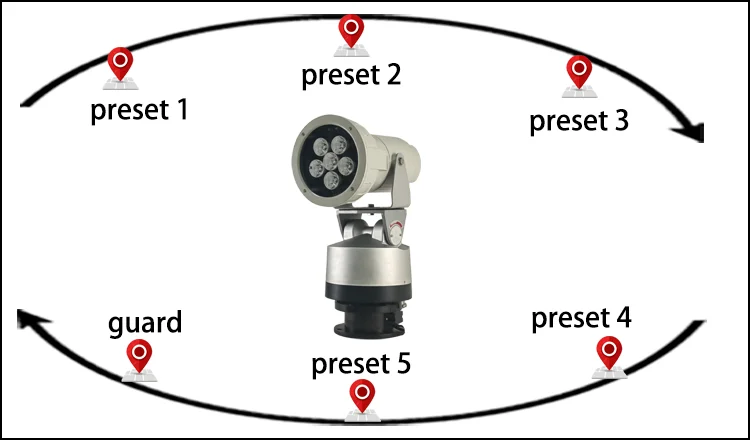

Preset/Auto Scan/Guard Function
Guard Function:searchlight will move to guard position automatically when searchlight without operated for some time.
Preset function:One-click Move to main area, quick response,there are 5 preset positions by remote and 8 preset positions by keyboard control
Auto Scan:stop and cruise between the presets ,residence time can be set
Preset function:One-click Move to main area, quick response,there are 5 preset positions by remote and 8 preset positions by keyboard control
Auto Scan:stop and cruise between the presets ,residence time can be set

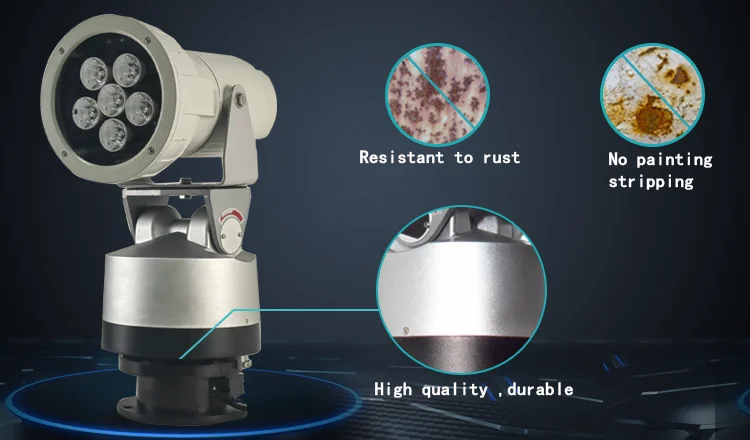

Title goes here.
Shell adopts imported engineering cast aluminum,metal reinforcement stress structure and IP65 waterproof level , with high
resistance to strong collision,windproof , shock and impact resistant ability,hollowed-out design increase area of heat
dissipation,overall stainless steel,High temperature baking, never aging rust,no paint stripping,timeless as new.
resistance to strong collision,windproof , shock and impact resistant ability,hollowed-out design increase area of heat
dissipation,overall stainless steel,High temperature baking, never aging rust,no paint stripping,timeless as new.

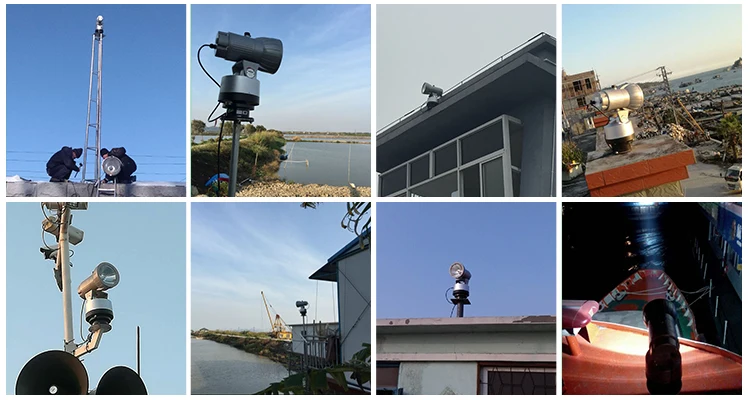

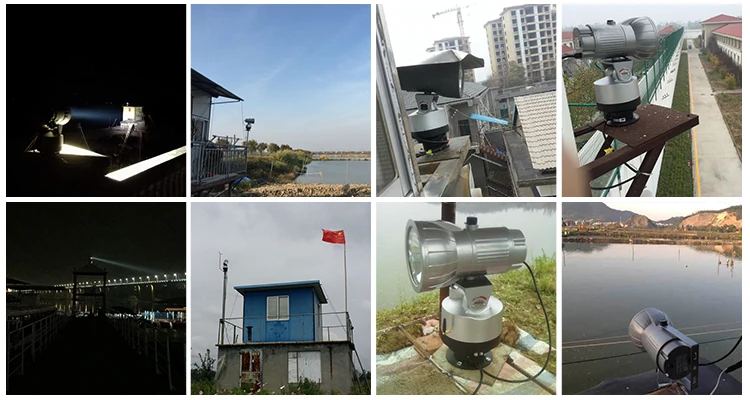

Application
searchlight used for Homeland&Border Security,Prison Facilities&Prison Security,Maritime Water &Electric
Power,Aquaculture,Orchard,Farming,Terminal,Bridge ,Ship/Wharf/Oil platform
Power,Aquaculture,Orchard,Farming,Terminal,Bridge ,Ship/Wharf/Oil platform
Recommend Products
SN-220U searchlight
Power:150W
Visibility:2000M Voltage:24VDC,220VAC
Control modes:manual control
SN-221U series searchlight
Power:150W
Visibility:2000M Voltage:24VDC,220VAC Control modes:RS485,wireless remote,wireless keyboard,wired
keyboard,network and so on
keyboard,network and so on
SN-2305U searchlight
Power:150W
Visibility:2000M Voltage:24VDC,220VAC
Control modes:RS485,wireless remote,wireless keyboard,wired
keyboard,network and so on
keyboard,network and so on

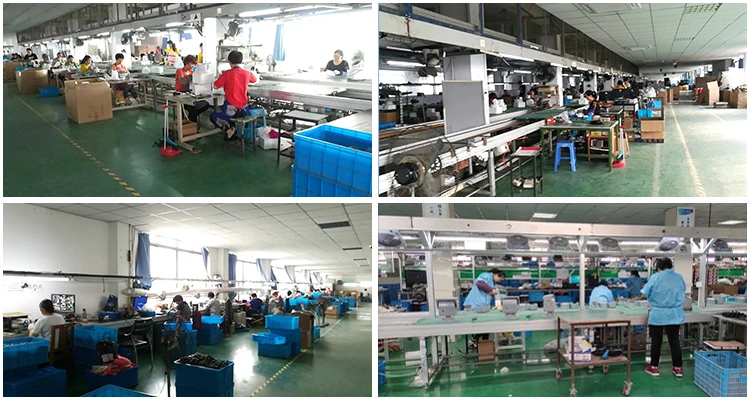

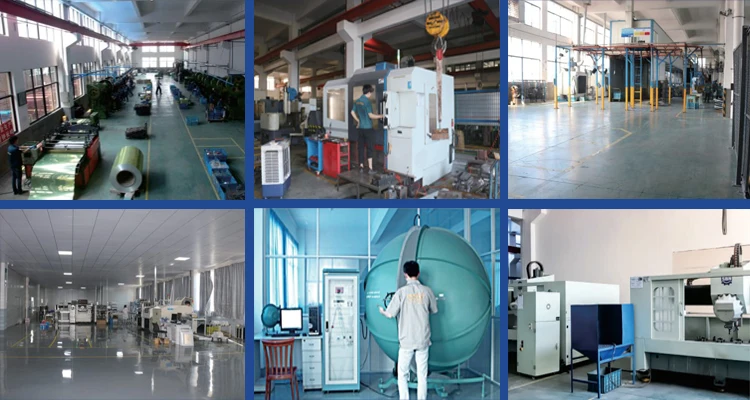

Our Company
