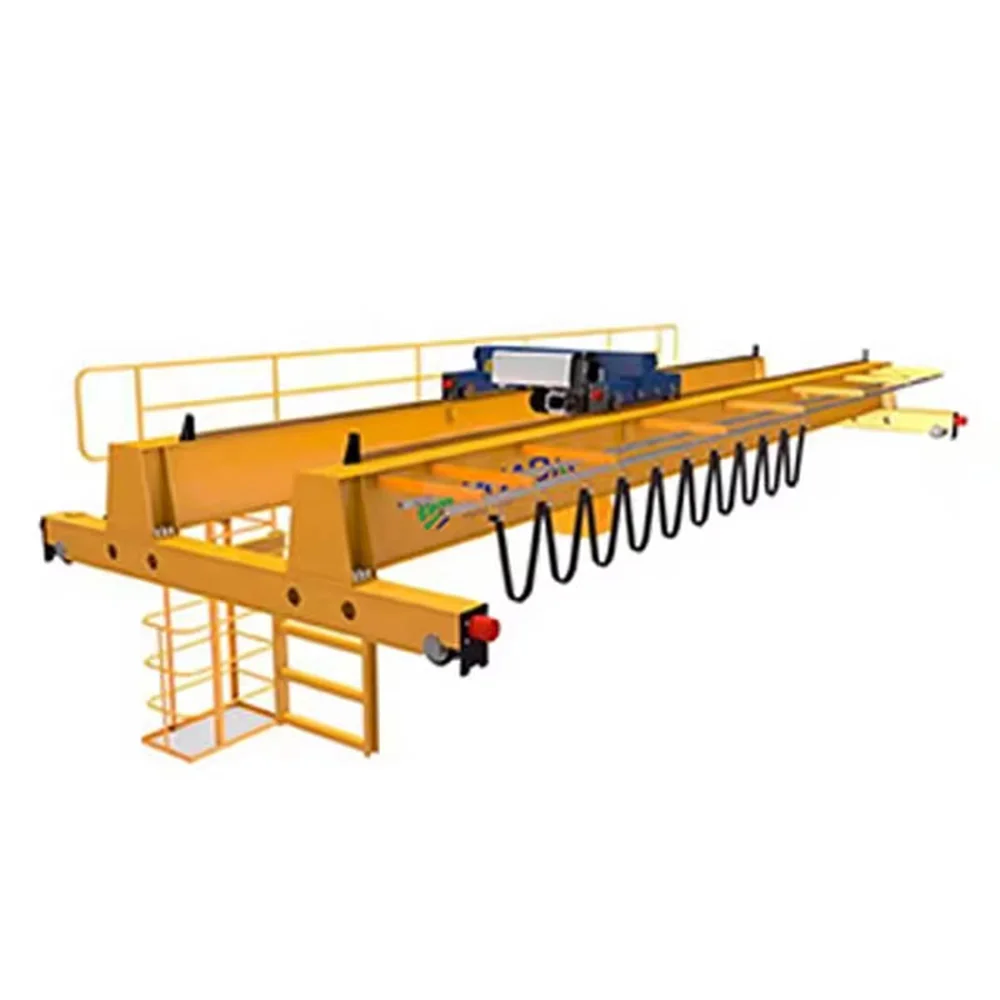

LH Type Electric Hoist Double Girder Bridge Overhead Cranes
$1,800.00-2,000.00
20ton Double Beam Durable and Reliable Bridge Crane for Industrial Lifting Solutions
- Category: >>>
- Supplier: Henan Huasui Heavy Industry Machinery Equipment Co. Ltd.Henan Ltd.
Share on (1601298600070):
Product Overview
Description
Products Description
20ton Double Beam Durable and Reliable Bridge Crane for Industrial Lifting Solutions is an advanced lifting solution designed for industrial environments where heavy-duty material handling is essential. Known for the robustness, reliability, and efficiency of Huasui's double girder series, it is engineered to handle large loads with precision and safety. It is ideal for various applications, including manufacturing, warehousing, maintenance, and assembly operations.
By incorporating advanced designs from the industry, Huasui's double girder overhead crane fully meets FEM standards. Its advanced design and customizable features make it an indispensable tool for industries that require reliable and powerful material handling capabilities. Investing in a double girder overhead crane of Huasui to enhanced operational efficiency, safety, and productivity in any industrial setting.
By incorporating advanced designs from the industry, Huasui's double girder overhead crane fully meets FEM standards. Its advanced design and customizable features make it an indispensable tool for industries that require reliable and powerful material handling capabilities. Investing in a double girder overhead crane of Huasui to enhanced operational efficiency, safety, and productivity in any industrial setting.
Features
Dual Girder Design: The crane features two parallel girders, enhancing its load-bearing capacity and stability. This design allows for better distribution of the load and reduces stress on the structural components.
High Load Capacity: Capable of lifting loads ranging from several tons to over a hundred tons, the double girder design significantly increases the maximum load capacity compared to single girder cranes.
Increased Span and Height: Double girder overhead cranes can cover larger spans and greater heights, making them suitable for large-scale operations and expansive facilities.
Enhanced Safety Features: Equipped with advanced safety mechanisms, including overload protection, emergency stop functions, and anti-collision systems. These features ensure safe operation even in demanding environments.
High Load Capacity: Capable of lifting loads ranging from several tons to over a hundred tons, the double girder design significantly increases the maximum load capacity compared to single girder cranes.
Increased Span and Height: Double girder overhead cranes can cover larger spans and greater heights, making them suitable for large-scale operations and expansive facilities.
Enhanced Safety Features: Equipped with advanced safety mechanisms, including overload protection, emergency stop functions, and anti-collision systems. These features ensure safe operation even in demanding environments.
High Efficiency: The dual girder design allows for faster and more efficient lifting operations, reducing downtime and increasing productivity.
Versatility: Suitable for a wide range of industrial applications, from heavy manufacturing to precise assembly tasks.
Durability: Built to withstand harsh industrial environments, ensuring long-term operation with minimal maintenance requirements.
Enhanced Load Distribution: The load is evenly distributed across the two girders, minimizing structural stress and enhancing the longevity of the crane and the facility’s infrastructure.
Versatility: Suitable for a wide range of industrial applications, from heavy manufacturing to precise assembly tasks.
Durability: Built to withstand harsh industrial environments, ensuring long-term operation with minimal maintenance requirements.
Enhanced Load Distribution: The load is evenly distributed across the two girders, minimizing structural stress and enhancing the longevity of the crane and the facility’s infrastructure.
Detailed Images

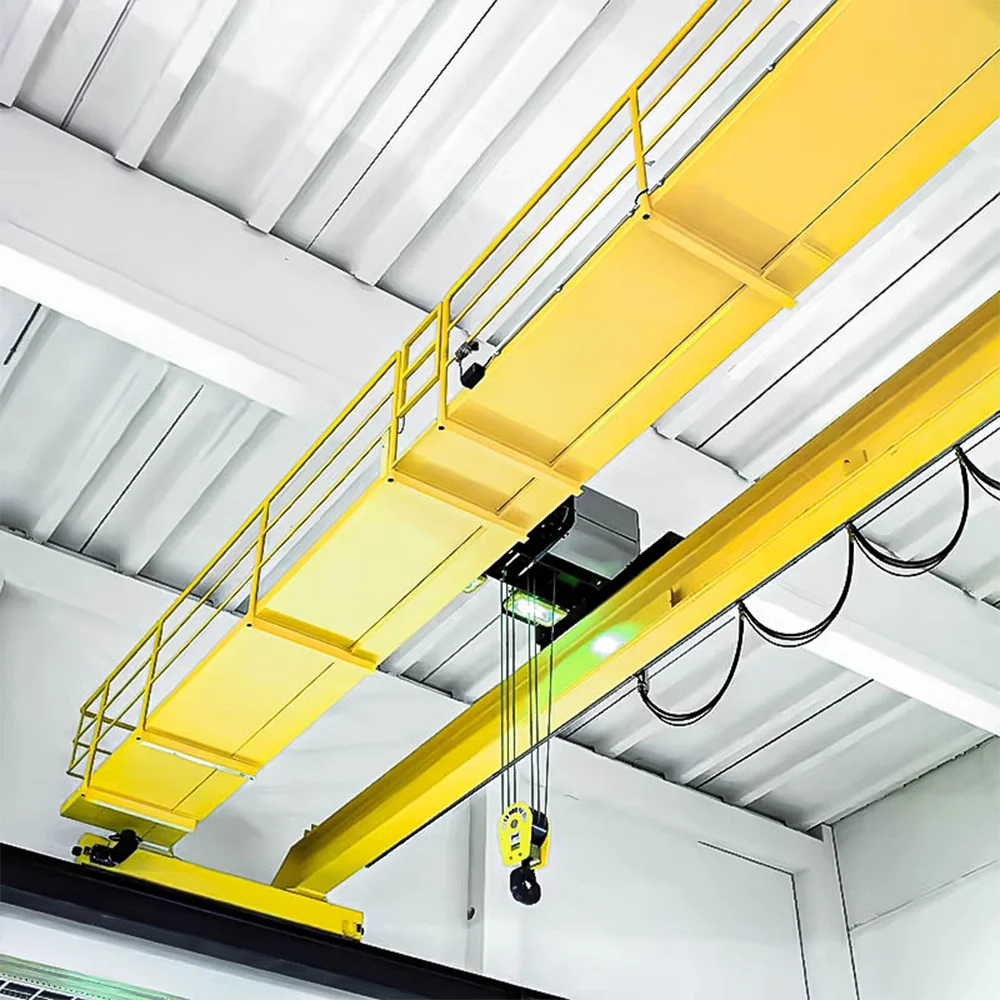

Hoist and Trolley
The hoist, mounted on a trolley, moves along the bridge girders. It is responsible for lifting and lowering the load. The trolley's movement along the girders allows for precise positioning of the load.

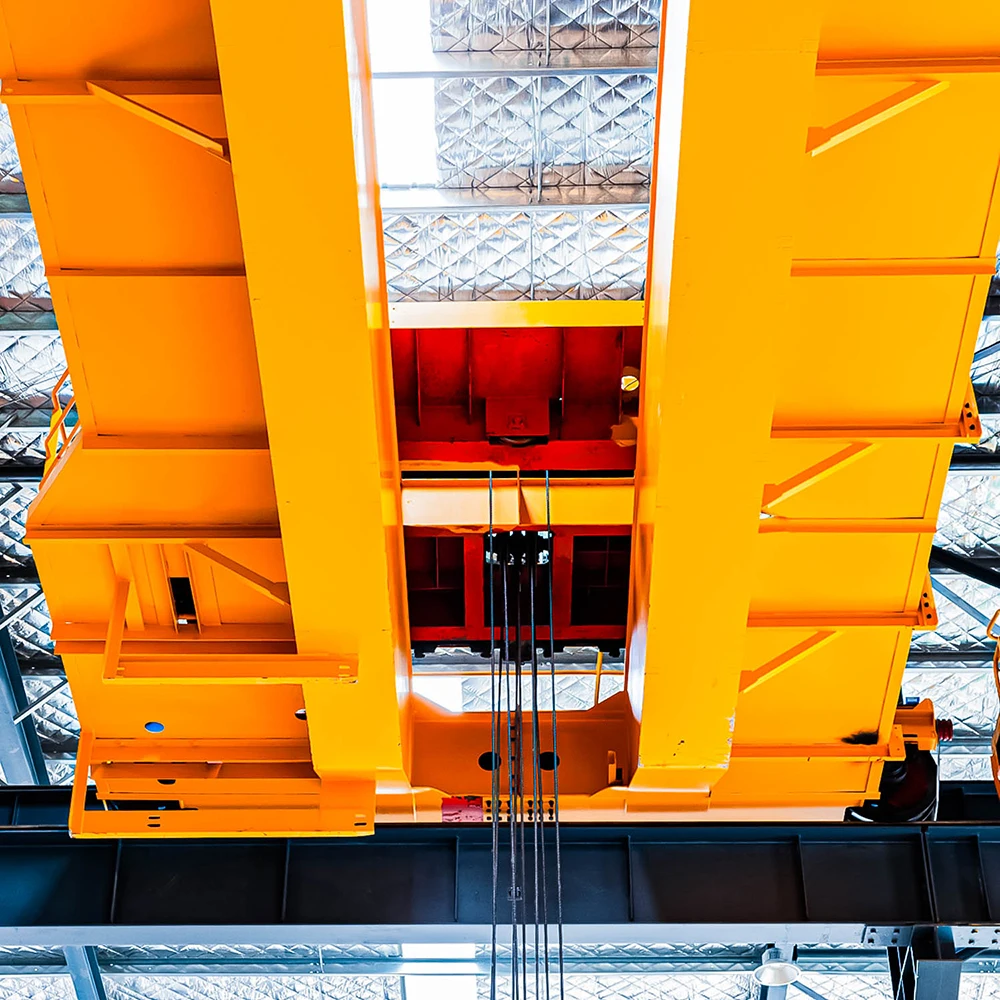

Bridge Girders
Two robust girders form the main structure, providing superior strength and stability. These are constructed from high-quality steel to ensure durability and longevity.
End Carriage
End Carriages mounted on both ends of the girders, these components house the wheels that run on the runway rails. The end trucks ensure smooth and stable movement along the length of the crane's path.
Control System
Includes both manual and automated control options. Operators can control the crane via a pendant control, radio remote control, or an advanced cabin control system with ergonomic design for enhanced operator comfort and efficiency.
Technical Parameter
Capacity | Main | T | 63 | 75 | 100 | 125 | 160 | 400 | ||||
Aux | 16 | 20 | 20 | 32 | 32 | 50 | ||||||
Span | M | 13~32 | 13~32 | 16~32 | 16~32 | 24 | 34 | |||||
Lifting Height | 18 | 18 | 18 | 16 | 26 | 40 | ||||||
Working Grade | A5 | A5 | A5 | A5 | A5 | A5 | ||||||
Speed | Main | M/min | 0.35~3.5 | 0.35~3.5 | 0.3~3 | 0.22~2.2 | 0.25~2.5 | 0.2~2 | ||||
Aux | 0.76~7.6 | 0.6~6 | 0.6~6 | 0.5~5 | 0.5~5 | 0.4~4 | ||||||
Trolley Travelling | 3~30 | 2.7~27 | 2.7~27 | 2.7~27 | 2.65~26.5 | 2.5~25 | ||||||
Crane Travelling | 4.8~48 | 4.8~48 | 4.7~47 | 4.7~47 | 4.67~46.7 | 3~30 | ||||||

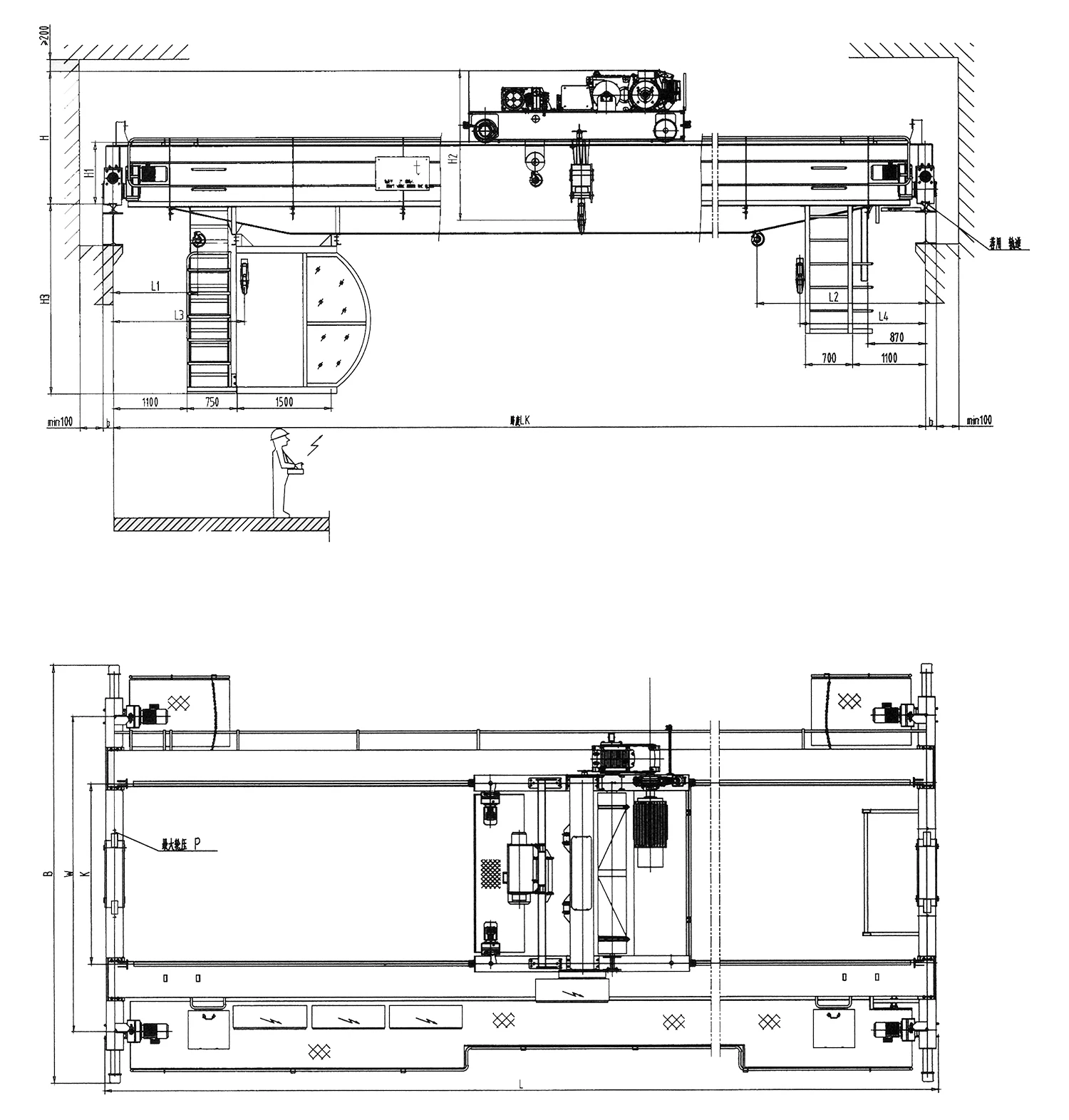

Limit Dime. | L1 | MM | 672 | 672 | 672 | 715 | 825 | 1400 | ||||
L2 | 1804 | 1907 | 2122 | 2182 | 2490 | 3200 | ||||||
L | 1458 | 1505 | 1560 | 1657 | 1315 | 2800 | ||||||
h | 348~194 | 509~355 | 478~376 | 340~186 | 195.5/95.5 | 600 | ||||||
h1 | 141 | 707 | 562 | 588 | 342 | 1028 | ||||||
Main Dime. | H0 | MM | 376 | 250 | 376 | 460 | 460 | 500 | 4893 | |||
H1 | 2414~2568 | 1730~1782 | 2547~2701 | 2954~3056 | 3030~3184 | 3061/3161 | 3285 | |||||
H2 | 2511~3015 | 2524~2674 | 2661~3115 | 2663~3165 | 2807~3261 | 2690~3290 | - | |||||
H3 | 348~590 | 99~249 | 236~690 | 238~740 | 382~836 | - | - | |||||
B | 7702/7902 | 5422 | 7702/7902 | 8152/8252 | 8152/8252 | 9120 | 13970 | |||||
W | 5800/6000 | 3550 | 5800/6000 | 5850/5950 | 5850/5950 | - | - | |||||
K | 3200 | 3200 | 3200 | 3200 | 4400 | 0 | ||||||
B1 | 250 | 250 | 280 | 280 | 264 | 480 | ||||||
B2 | 250 | 250 | 280 | 280 | 340~940 | - | ||||||
Max. Wheel Loading | kN | 222~260 | 64~80 | 259~302 | 343~383 | 408~455 | 531.9~574.9 | 627 | ||||
Power | kW | 89 | 12.64 | 105 | 107 | 126 | 153/161 | 279 | ||||
Rec. Rail | QU80 | QU80 | QU100 | QU100 | QU120 | QU120 | ||||||
About Our Factory
Certifications
Packing & Delivery
FAQ
1. What types of cranes do you offer?
As a manufacturer with over 20 years’ experience, Huasui provide a range of cranes, including gantry cranes, overhead cranes, RTG cranes, jib cranes, and customized lifting solutions tailored to specific industry needs, such as for steel, precast concrete, and container handling.
2. How do I know which crane is suitable for my project?
Our team of experts is here to help! By understanding your lifting capacity requirements, operational environment, and usage frequency, we can recommend the ideal crane solution for your project. Contact us for a free consultation.
3. How to choose the right crane?
The following factors need to be considered when choosing a crane: Load capacity, Lifting height, Working environment, Frequency of operation.
4. What maintenance services do you offer?
We offer comprehensive maintenance plans, including preventive maintenance, inspection, repair, and spare parts replacement, to keep your crane running efficiently and safely. Our service team is available for scheduled and emergency support.
5. Are your cranes compliant with international safety standards?
Absolutely. Our cranes are manufactured in compliance with major international standards such as ISO, EN, and GB/T. Additionally, we ensure that each crane undergoes rigorous testing and inspection before delivery.
6. What are your delivery and installation timelines?
Delivery and installation timelines vary based on the type and customization of the crane. Generally, standard cranes can be delivered within 6–8 weeks, while customized solutions may require additional time. We aim to provide accurate timelines upfront to ensure smooth project planning.
7. Do you offer installation services?
Yes, we provide comprehensive training programs for crane operators, including safety training, maintenance guidelines, and operational best practices to ensure your team is fully prepared to operate the crane safely and efficiently.
