3m*6m 7d Uv Wall Painting Machine Robot Automatic Wall Panel 3d Vertical Mural Printer Printing Machine Wall Printer
- Category: >>>
- Supplier: Wuhan Hongmeng Laser Technology Co. Ltd.Wuhan Ltd.
Share on (1601298607172):
Product Overview
Description
Product Parameter
| Parameters of 3D Wall Printing Machine | |
| Machine Name | Portable Wall Printer Machine |
| Print Size | Standard 3m, can be extended to 3.5m * any width |
| Print Head Manufacturer | EPSON |
| Print Head Type | DX10/DX7 Optional |
| Printhead Quantity | 1~3pcs |
| Machine Power | 350W |
| Voltage | 110V-220V(mobile power can be used) |
| Print Resolution | 360*720dpi / 720*1440dpi / 1080*1440dpi / 1440*2880dpi |
| Ink Color | C-M-Y-K-W |
| Print Speed | 6~16 sqm/h |
| Main Board | 8-core high-speed CPU,4GB Memory,120G SSD |
| Image Format | PSD,JPG,JPEG,PNG,TIF,AI and PDF etc. |
| Machine Weight | Main machine 15kg, guide rail 4 * 8kg, base shaft 15kg |
| Output Mode | Wired transmission, printing controlled by computer |

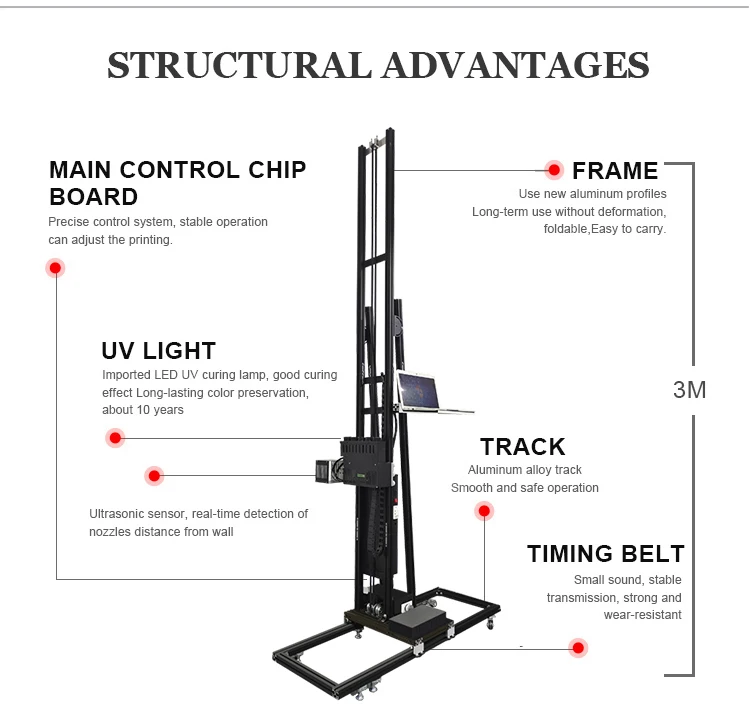

| Key Components | 1.5m guide rail with four sections,1 laser locator,2 ultrasonic probes,3 Imported servo motor,1 reducer |
| Apply | Wall Surface:Putty wall surface, Latex paint wall, Big white wall, Imitation porcelain wall. Other Media:Glass, tile, board, Acrylic, PVC and metal plates etc. |
| 3D/5D Print Function | Yes (can simulate printing) |
| Wall Detection Function | Wall detection function automatic hyperboloid sensor, up and down bidirectional Wall detection function detection of ground concave and convex, accuracy up to 1 mm |
| Data Recovery After Power Failure | Yes (the software stores data in real time and will not scrap the previous print due to power failure) |
| Nozzle Inspection Function | Yes (software check head condition) |
| Color Calibration Function | Yes (Software adjust color) |
| Print Distance Adjustment Function | Yes (print size and distance can be adjusted by software) |
| UPS Battery Function | Yes (Customer can prepare one) |
| Print Location Function | Yes (laser red cross positioner to print the picture to the certain position) |
| Horizontal Regulation Function | Yes (the track has the function of horizontal adjustment) |
| Folding and Disassembly | Yes (1.5 meters after folding, a SUV car can fit; Machine can be disassembled into three parts for easy move) |
| Image Mosaic Function | Yes (can achieve seamless picture stitching) |
Note: the above parameters are design parameters. In case of any difference, the actual use effect of the equipment shall prevail. | |
FAQ
Q:The reasons for choosing us?
A:1. Safe trading with Alibaba golden member.
2.Extremely particular about products quality.
3.1 year warranty, with lifetime online support.
4.Availability of a wide range of products to suit almost every need about UV flatbed printer.
Q:How to buy?
A:Simply contact our sales expert and request for a proforma invoice.The order will be shipped after the invoice get paid.
Q:Do you ship internationally?
A:Yes.We ship internationally. With powerful backup of our regular forwarder, we ship to almost every places in the world by sea, air, train, truck and multimodal transport.Destination can be a port or a specific address.Contact us to get quote for shipping.
Q:How to pay?
A:Recommended payment method is bank transfer which usually has not much limitation in most countries.For small amount, there are some other options: Western Union.
Q:How is your warranty?
A:12 months trouble-free warranty.During warranty period, electric parts are covered with warranty.Users send back defective parts and we send the new one for replacement.
Q:How is your technical support?
A:Our English-speaking technician is available online via email and whatsapp.Also, we can remote control your PC via TeamViewer to solve some software issue.
