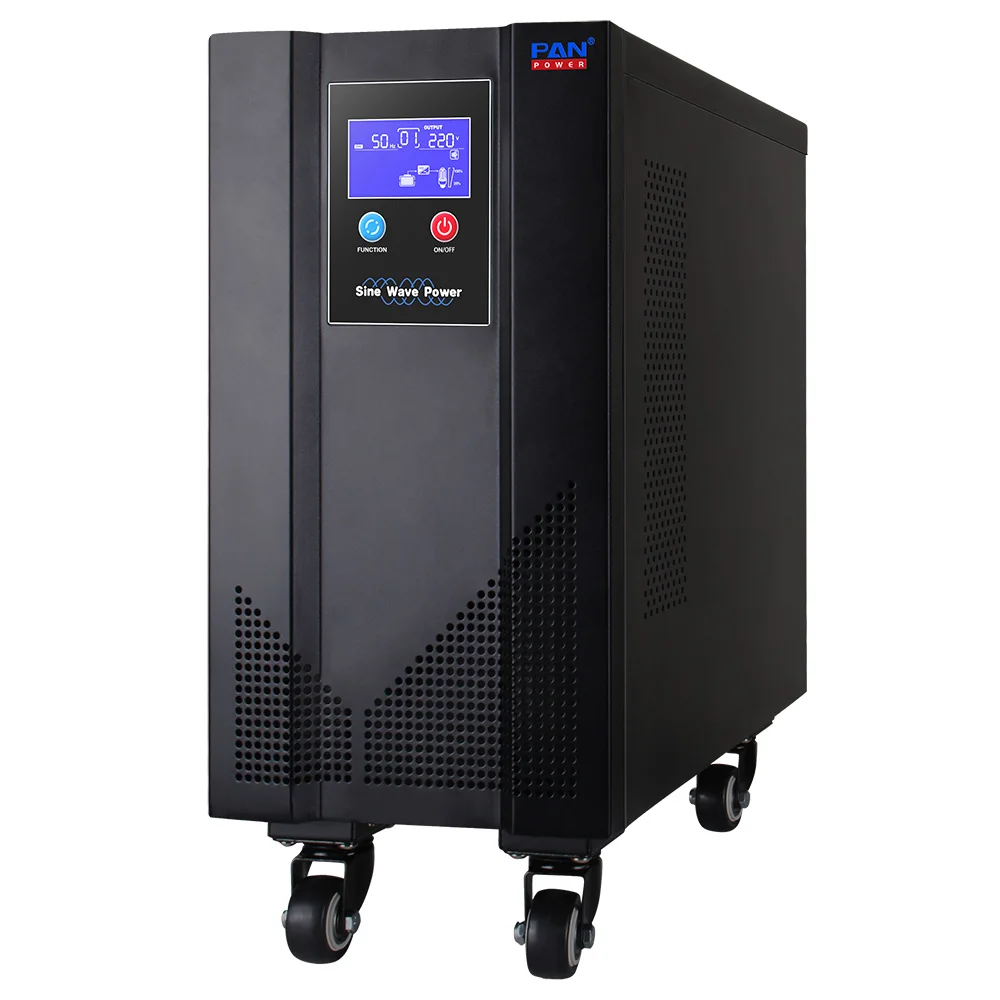

3KVA battery long backup online UPS
- Category: >>>
- Supplier: Guangdong Panpower Power Supply Co. Ltd.Guangdong Ltd.
Share on (1601298626162):
Product Overview
Description
Main Features
* Pure sine wave UPS
* Capacity 3KVA
* With wide input range;
* With isolated and AVR output;
* Suitable for various types of applications;
* Compatible to mains voltage or generator power;
* Smart battery charger design to optimize battery performance;
* Communication interface: RS232/USB/SNMP;
* Stable performance, safe and reliable, long service life.
* Capacity 3KVA
* With wide input range;
* With isolated and AVR output;
* Suitable for various types of applications;
* Compatible to mains voltage or generator power;
* Smart battery charger design to optimize battery performance;
* Communication interface: RS232/USB/SNMP;
* Stable performance, safe and reliable, long service life.
Product Paramenters
Model | HT3KS417 | ||||||
Capacity | 3KVA | ||||||
Input | Phase | Single Phase | |||||
Frequency | 50Hz/60Hz±10%Hz | ||||||
AC input | 100/110/120/127/220/230VAC (+20%,-25%) | ||||||
Power Factor | ≧0.92@ Nominal voltage (100% load) | ||||||
Output | Voltage Range | Main power model:100/110/120/127/220/230VAC(1±10%) Battery power model：100/110/120/127/220/230VAC(1±2%） | |||||
Frequency | Main power moldel:50Hz/60Hz±10%Hz Battery power model：50Hz/60Hz±0.5Hz | ||||||
Crest Factor | 3:1 | ||||||
Wave Form | Pure sine wave | ||||||
Battery | Battery number | 4pcs*12V/17Ah | |||||
Battery type | Maintenance-free lead-acid battery | ||||||
Recharge Time | 4 hours recover to 90% capacity | ||||||
Charging Current | 2A(standard) | ||||||
Indicators | LCD | ||||||
Protection function | Ac overvoltage, under voltage, DC overvoltage, under voltage, Overload, Output short circuit | ||||||
Overload capacity | 120% 30s; 125% 10s; 150% 0s | ||||||
Communication interface | USB/RS232/SNMP（option） | ||||||
Protection class | IP20 | ||||||
Surge handling capability | 10/700US,5KVA;8/20US,20KA | ||||||
Noise dB | Less than 40dBA@ 1 Meter | ||||||
Cooling mode | Forced ventilation | ||||||
Humidity | 20-90% RH@ 0-40℃(Non-condensing) | ||||||
Product Details

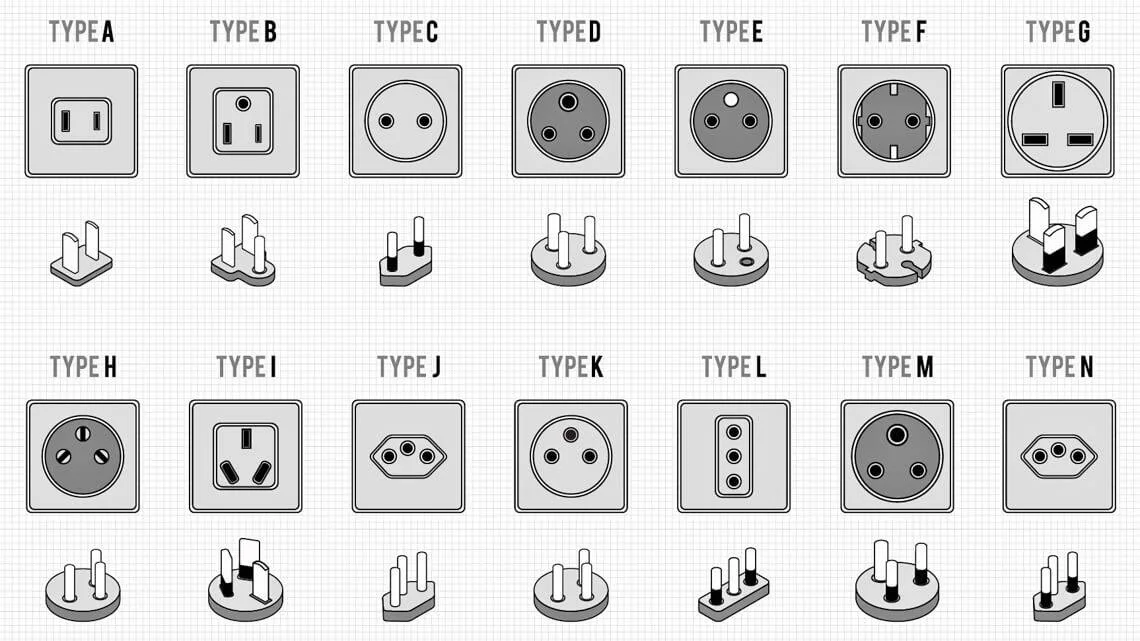

About plug and sockets
We accept customization of different types of plugs and sockets, and can also customize the number of sockets,
Company Profile

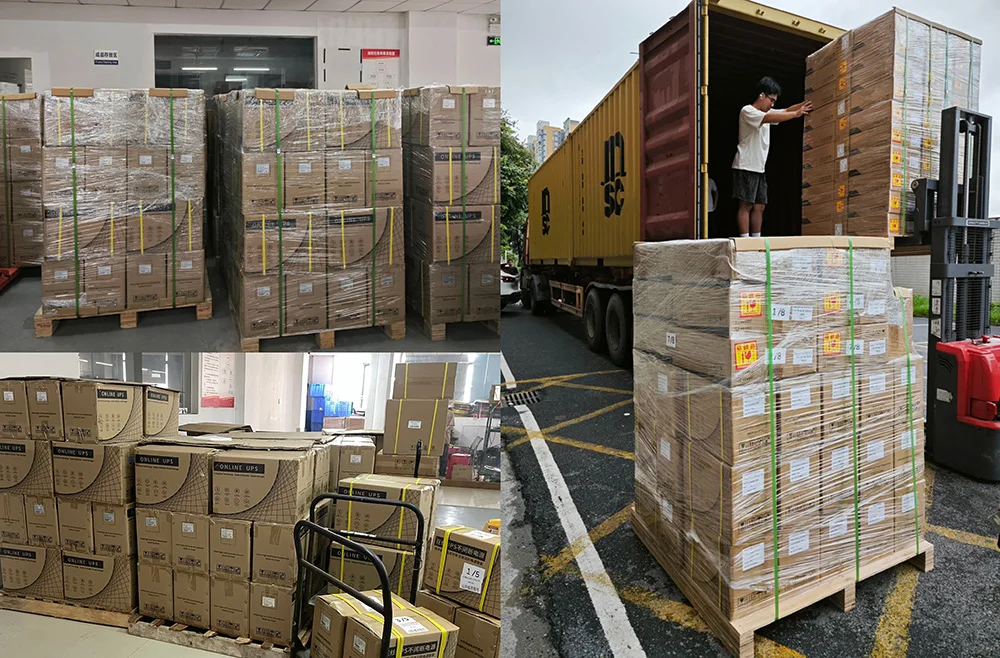

Packing&Shipping
FAQ
Q1: Are you a factory?
A1: Yes, we are a factory specialized in UPS field over 20 years.
Q2: Are you UPS pure sine wave output?
A2: Yes, This series UPS are pure sine wave output.
Q3: What kind of output you can do?
A3: Normally, we produce inverter with 110V/120V/220V/230V/240V/380V/400V/415V, 50Hz/60Hz.
If you have special requirements, pls tell us for engineer consulting.
Q4: What appliances your UPS can load?
A4: Can load household appliances other inductive load such as refrigerator, air condition, water pump, etc.
A1: Yes, we are a factory specialized in UPS field over 20 years.
Q2: Are you UPS pure sine wave output?
A2: Yes, This series UPS are pure sine wave output.
Q3: What kind of output you can do?
A3: Normally, we produce inverter with 110V/120V/220V/230V/240V/380V/400V/415V, 50Hz/60Hz.
If you have special requirements, pls tell us for engineer consulting.
Q4: What appliances your UPS can load?
A4: Can load household appliances other inductive load such as refrigerator, air condition, water pump, etc.
