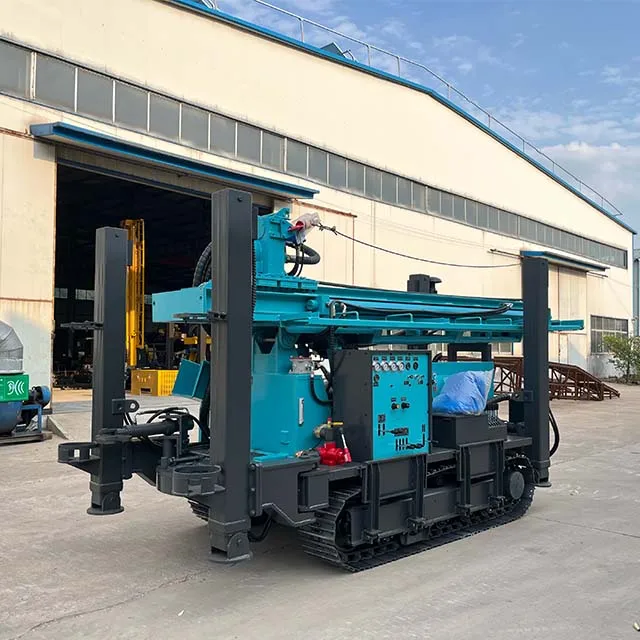

Factory price 200m 300m 400m 600m crawler mounted hydraulic water well drilling rigs for sale borehole drilling machine
Factory price 200m 300m 400m 600m crawler-mounted hydraulic water well drilling rigs for sale borehole drilling machine
Factory price 200m 300m 400m 600m crawler-mounted hydraulic water well drilling rigs for sale borehole drilling machine
Factory price 200m 300m 400m 600m crawler-mounted hydraulic water well drilling rigs for sale borehole drilling machine
Factory price 200m 300m 400m 600m crawler-mounted hydraulic water well drilling rigs for sale borehole drilling machine
Factory price 200m 300m 400m 600m crawler-mounted hydraulic water well drilling rigs for sale borehole drilling machine
Factory price 200m 300m 400m 600m crawler-mounted hydraulic water well drilling rigs for sale borehole drilling machine

Factory price 200m 300m 400m 600m crawler mounted hydraulic water well drilling rigs for sale borehole drilling machine

Share on (1601298733625):


Price:$9,500.00-10,500.00

Quantity:


Product Overview

Description







Products Description




KW Series multi-function type geothermal well drilling machine is a lightweight, high efficiency, multifunctional drilling rig. KW drilling machines have the advanced structure, easy to use, high efficiency, reliable, durable and other characteristics, widely used in drilling wells, agricultural irrigation, air hole and other use of geothermal well hole, is particularly applicable to mountain area and rock formation water engineering. The drill rig adopts the new type of hydraulic technology, supporting the rotary hydraulic motor with high torque and big diameter hydraulic cylinder propulsion, greatly reduce the labor intensity, shorten the auxiliary time, improve the efficiency of construction and engineering quality.


Product Paramenters




Model
KW180
KW200
KW280
KW300
Drilling depth
180m
200m
280m
300m
Diameter of hole
φ140-254mm
φ140-204 mm
φ140-305mm
φ140-325mm
Advance Length
3m
3.3m
6.6m
3.3 m
Working pressure
1.7-2.5MPa
1.7-3.0MPa
1.7-3.0MPa
1.7-3.3MPa
Air consumption
15-27m³/min
17-30m³/min
17-30m³/min
17-35mm³/min
Length of rod
1.5m,2m,3m
1.5m,2m,3m
1.5m,2m,3m, 6m
1.5m,2m,3m
Dia. Of rod
φ76, φ89,φ102
φ76, φ89,φ102
φ76, φ89
φ76, φ89,φ102
Lifting power
12 T
13T
17T
18T
Rotation torque
3200-4600N.m
3300-4700N.m
3700-5000N.m
5700-75000N.m
Rotation Speed
45-65r/min
45-70r/min
55-70-130r/min
40-70 rpm
Diesel Engine
Quanchai
Quanchai
Yuchai
Yuchai
Engine Power
55Kw/2200rpm
65Kw/2200rpm
70Kw / 2200 rpm
85Kw/2200rpm
Travelling speed
0-2.5 Km/h
0-2.5 Km/h
0-2.5 Km/h
0-2.5 Km/h
Climb capacity
30°
30°
30°
30°
Weight
4500kgs
5000kgs
7500kgs
7000kgs
Dimension
3800x1500x2200mm
3950x1700x2300mm
5900x1750x2450mm
4100x1950x2600mm
Application
Complicated geological conditions: Rock, Mud, Sand etc.
Drilling Way
Top drive hydraulic rotary and propulsion, Dth Drilling or Mud Pump Drilling
Dth Hammer
4",5",6",8" Drill hammer or CIR110, 130, 150,170


Model
KW350
KW400
KW600
Drilling depth
350m
400m
600m
Diameter of hole
φ140-325mm
φ140-350mm
φ140-350mm
Advance Length
6.6m
6.6m
6.6m
Working pressure
1.7-3.3MPa
1.7-3.5MPa
1.7-3.5MPa
Air consumption
17-35m³/min
17-35m³/min
17-42m³/min
Length of rod
1.5m,2m,3m, 6m
1.5m,2m,3m, (6m can be choosed)
1.5m,2m,3m,6m
Dia. Of rod
φ89,φ102,φ114
φ89,φ102,φ114
φ76, φ89,φ102,φ114
Lifting power
24T
25T
30T
Rotation torque
6200-85000N.m
6500-9000N.m
8500-11000N.m
Rotation Speed
55-115r/min
45-115r/min
45-115r/min
Diesel Engine
Yuchai
Yuchai
Cummins Brand
Engine Power
92Kw/2200rpm
92Kw/2200rpm
6BTA5.9-C180-II, 132Kw/2200rpm
Travelling speed
0-2.5 Km/h
0-2.5 Km/h
0-2.5 Km/h
Climb capacity
30°
30°
30°
Weight
9000kgs
10000kgs
12000kgs
Dimension
5900x2000x2850mm
5900x2100x2850mm
6000x2200x2950mm
Application
Complicated geological conditions: Rock, Mud, Sand etc.
Drilling Way
Top drive hydraulic rotary and propulsion, Dth Drilling or Mud Pump Drilling
Dth Hammer
4",5",6",8" Drill hammer or CIR110, 130, 150,170

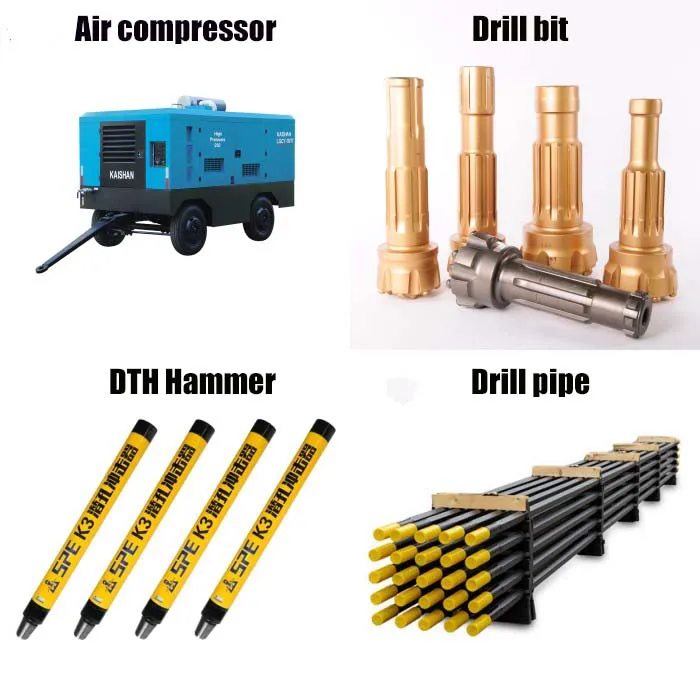

Application






Works with mud pump
Works with air compressor


DTH hammer
Drill pipe
Drill bit


Related Products






Company Profile


Zhengzhou Kaishan Mechanical & Electrical Equipment Co., Ltd.Our company are specialized in this filed for over 25 years with high quality and competitive price. We provide various kinds of high-end rock drilling equipment and air compressors, including borehole drilling rig, screw air compressor, industrial piston air compressor, and construction tools and parts. These products have been widely used in many industries like open pit mines, quarry and construction projects of railway, road, hydroelectric power station, and buildings.We aims at producing and selling high-quality product and providing high quality pre-sale and after-sale service.
Welcome to contact us if you are interested in our products. In addition to our standard products listed on this website, we can also provide OEM and ODM services. Besides, you are also welcome to become one of our agents around the world.








Certifications




FAQ


Q1: Are you a manufacturer?
A: Yes, we are a professional down the hole drill rig and top hammer drill rig manufacturer.
Q2: What does your company produce?
A: The main products of our company include blasting drilling rig,water well drilling rig and all kinds of air compressors.
Q3: How about your delivery time?
A: Normally the delivery time is about 7-15 days. For some special case, we can make it within 2 weeks, it depends on different products.
Q4: What methods of payment do you accept?
A: We accept T/T, L/C.
Q5: Do you offer any deals or discounts?
A: Yes, price depends on different quantity, different quantity will give you different price.
