Wood Pellet Mill Peanut Shell Rice Hull Pellets Press Machine 80Kg 2000Kg Per Hour Flat Die Pellet Making Machine
- Category: >>>
- Supplier: Zhengzhou Runxiang Machinery Equipment Co. Ltd.Zhengzhou Ltd.
Share on (1601298753007):
Product Overview
Description
Product Description
Raw material of Flat die pellet making machine:

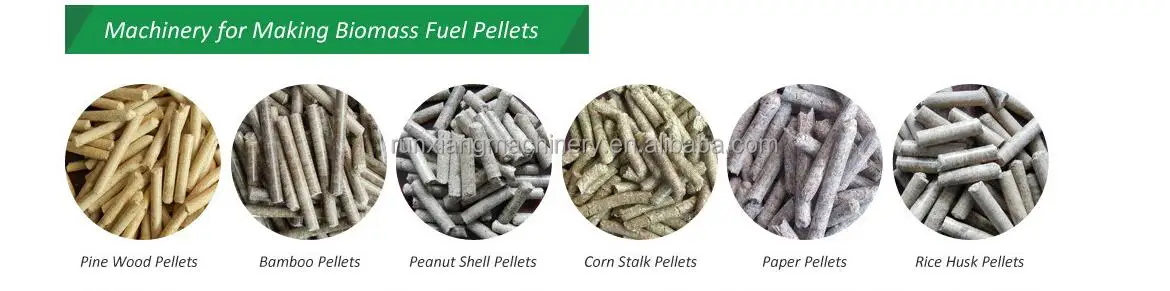

Final product of Flat die pellet making machine:
Brief introduction
Zhengzhou Runxiang Machinery Equipment CO.,LTD & Flat die pellet machine:

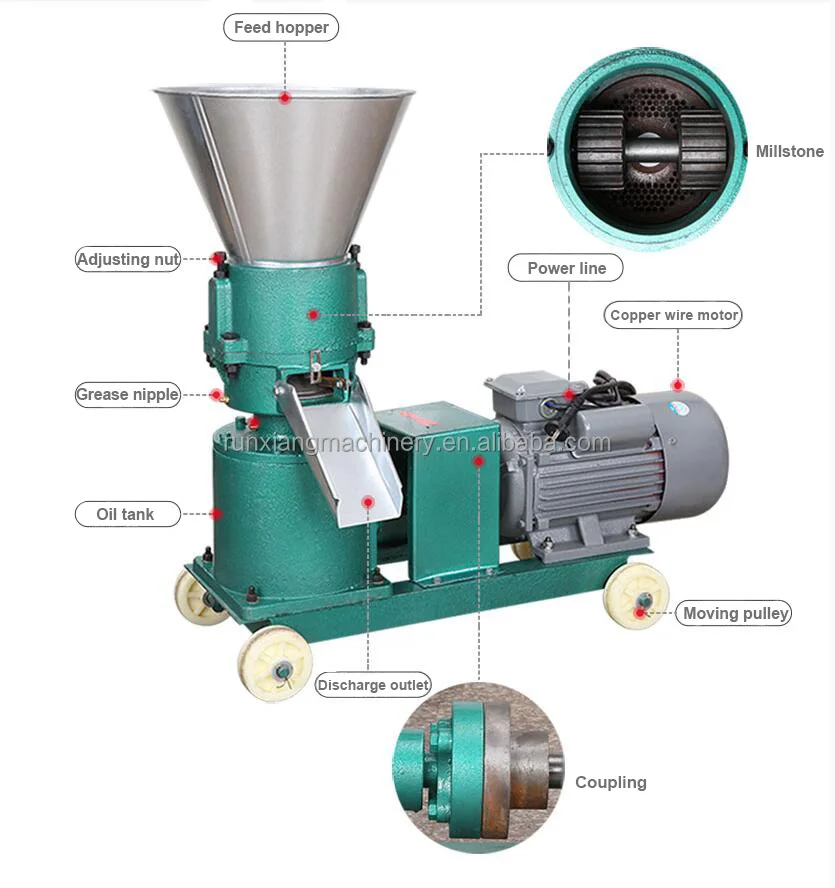

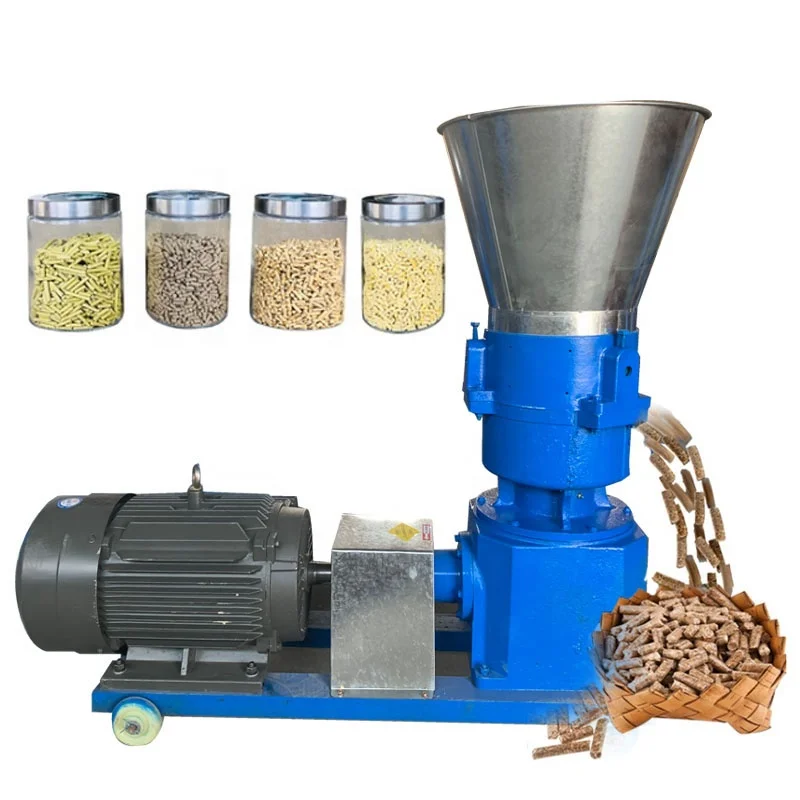

The flat die pellet making machine is currently the main feed machinery product produced by our factory. The pellet machine, manufactured by domestic and foreign technicians based on advanced flat patterns, is a feed machine that has been researched, improved, and refined with years of production experience. The selection of gear transmission is to avoid the slipping and excessive wear of traditional belt transmission, and different models and multiple molds have been designed.
Flat mold pellet machine can be used to make feed pellets for different animals, as well as wood chips. The raw materials can be different grains and grasses, as well as straw, branches, sawdust, rice husks, and crop waste. It is an ideal processing machine for farmers' feed processing.
The flat die pellet making machine is currently the main feed machinery product produced by our factory. The pellet machine, manufactured by domestic and foreign technicians based on advanced flat patterns, is a feed machine that has been researched, improved, and refined with years of production experience. The selection of gear transmission is to avoid the slipping and excessive wear of traditional belt transmission, and different models and multiple molds have been designed.
Flat mold pellet machine can be used to make feed pellets for different animals, as well as wood chips. The raw materials can be different grains and grasses, as well as straw, branches, sawdust, rice husks, and crop waste. It is an ideal processing machine for farmers' feed processing.
Uses and features of pellet machine:
1. This machine is mainly suitable for the processing of rabbits, fish, ducks, chickens, shrimps, pigs, deer, cattle, sheep and industrial pellets. It is widely used in industry, plastic pellets, organic fertilizer pellets, wood pellets, etc.
2. Corn does not need to be crushed and can be added directly. The granular feed processed by this machine has a smooth surface and moderate hardness. The temperature rises during the processing and can better maintain the nutrients in the raw materials. (Note: Corn is added without crushing, and the granular composition is not uniform as much as possible.)
3. The particles are uniform in composition and neat in shape. The pore size of the particles can be divided into: ∮3, ∮4, ∮5, ∮6, ∮7, ∮8, etc. When ordering, users can choose according to the needs of different growth periods of the farmed animals.
4. Through squeezing, it can kill common pathogenic microorganisms and parasites, and can prevent the occurrence of some diseases. Due to the low moisture content of the pellet feed, it is easy to store, and can be kept in the original state for a long time in the water, which greatly improves the utilization rate of the feed.
2. Corn does not need to be crushed and can be added directly. The granular feed processed by this machine has a smooth surface and moderate hardness. The temperature rises during the processing and can better maintain the nutrients in the raw materials. (Note: Corn is added without crushing, and the granular composition is not uniform as much as possible.)
3. The particles are uniform in composition and neat in shape. The pore size of the particles can be divided into: ∮3, ∮4, ∮5, ∮6, ∮7, ∮8, etc. When ordering, users can choose according to the needs of different growth periods of the farmed animals.
4. Through squeezing, it can kill common pathogenic microorganisms and parasites, and can prevent the occurrence of some diseases. Due to the low moisture content of the pellet feed, it is easy to store, and can be kept in the original state for a long time in the water, which greatly improves the utilization rate of the feed.
Precautions of pellet machine:
1. When using, pay attention to the fact that there should be no foreign matter such as stones and iron blocks in the raw materials. After more than ten shifts of work, the rollers need to be disassembled, and high temperature and grease resistance should be added to the bearings to make the rollers work well and prolong the service life of the bearings.
2. During granulation, it is strictly forbidden for the pressure roller to contact with the template to run idly, and at the same time lock the pressure plate nut to avoid loosening and damaging the spindle keyway.
3. If the pellets are broken or not compacted, the crude fiber feed formula should be reduced to less than 50%.
4. There is no granulation and no discharge during granulation. The template should be removed, and after opening the hole one by one, some fiber feed should be added appropriately to restart the pelletizing.
2. During granulation, it is strictly forbidden for the pressure roller to contact with the template to run idly, and at the same time lock the pressure plate nut to avoid loosening and damaging the spindle keyway.
3. If the pellets are broken or not compacted, the crude fiber feed formula should be reduced to less than 50%.
4. There is no granulation and no discharge during granulation. The template should be removed, and after opening the hole one by one, some fiber feed should be added appropriately to restart the pelletizing.
5. The tightness of the belt should be checked frequently, the oil seal of the gearbox should be replaced in time if there is oil leakage, and the bearing in the machine head should be checked for oil shortage.

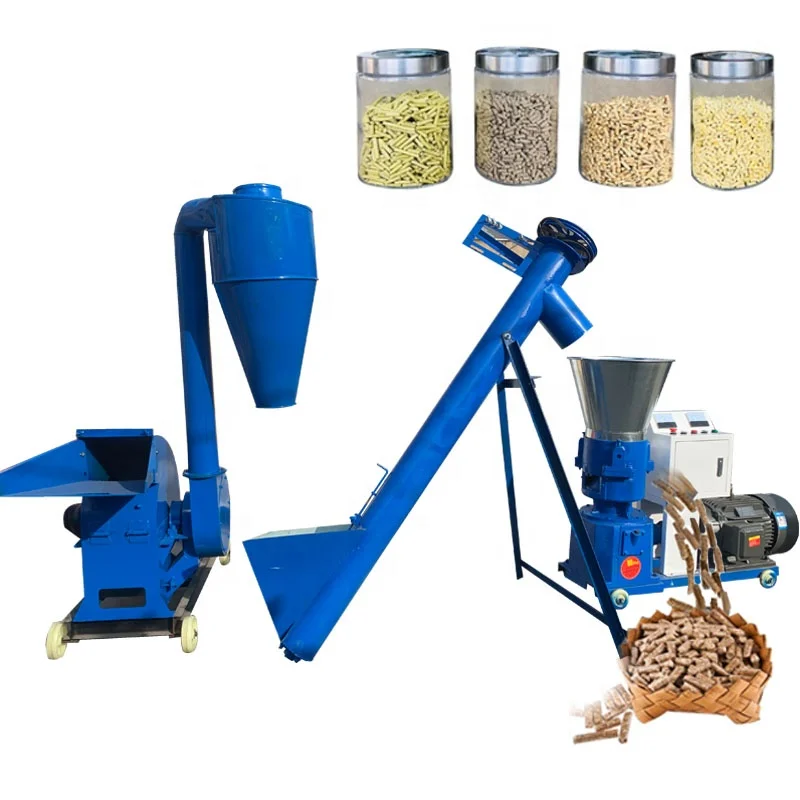

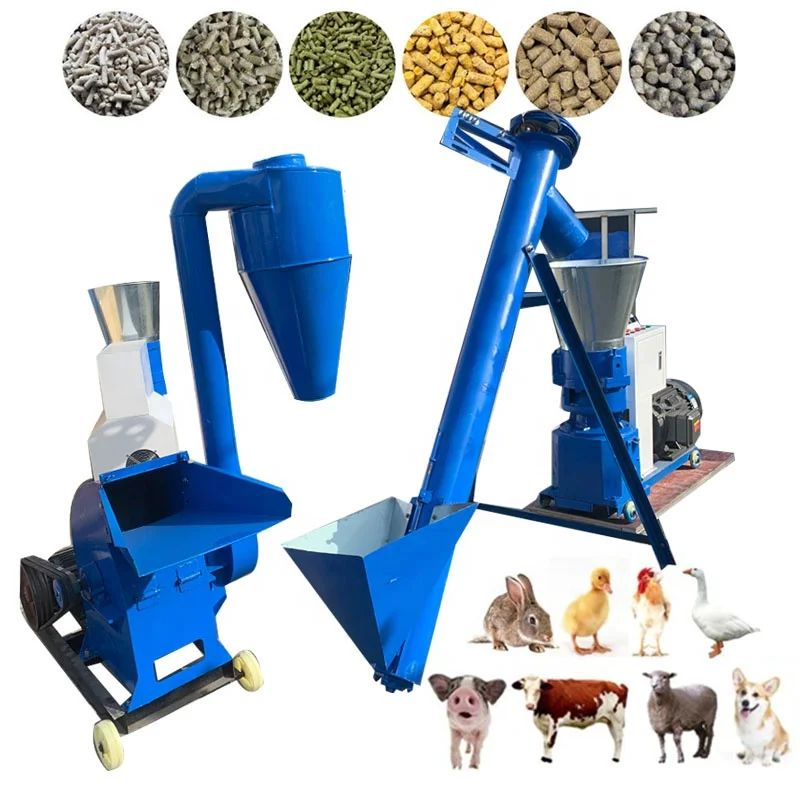

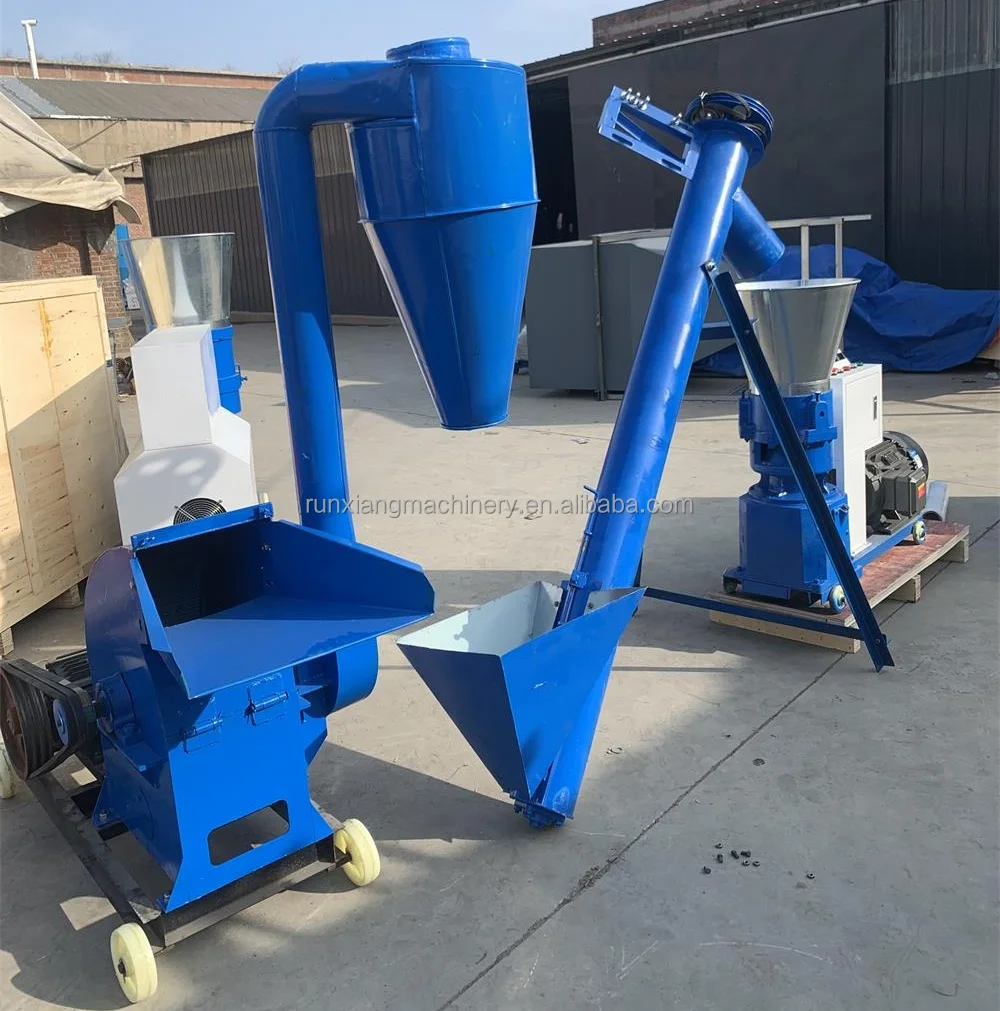

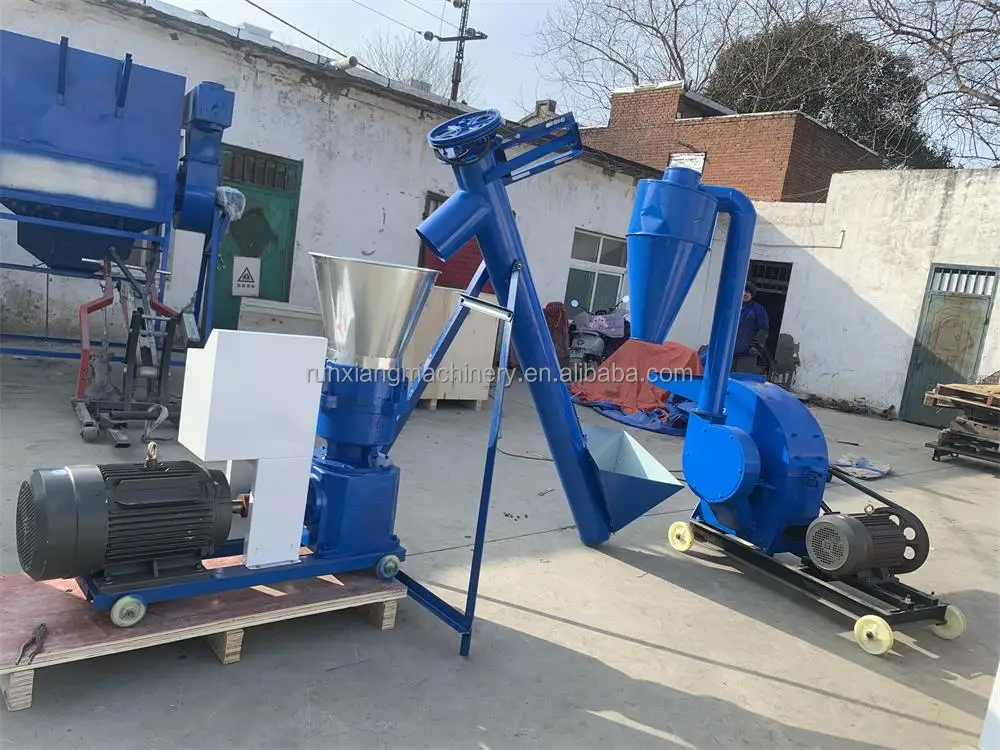

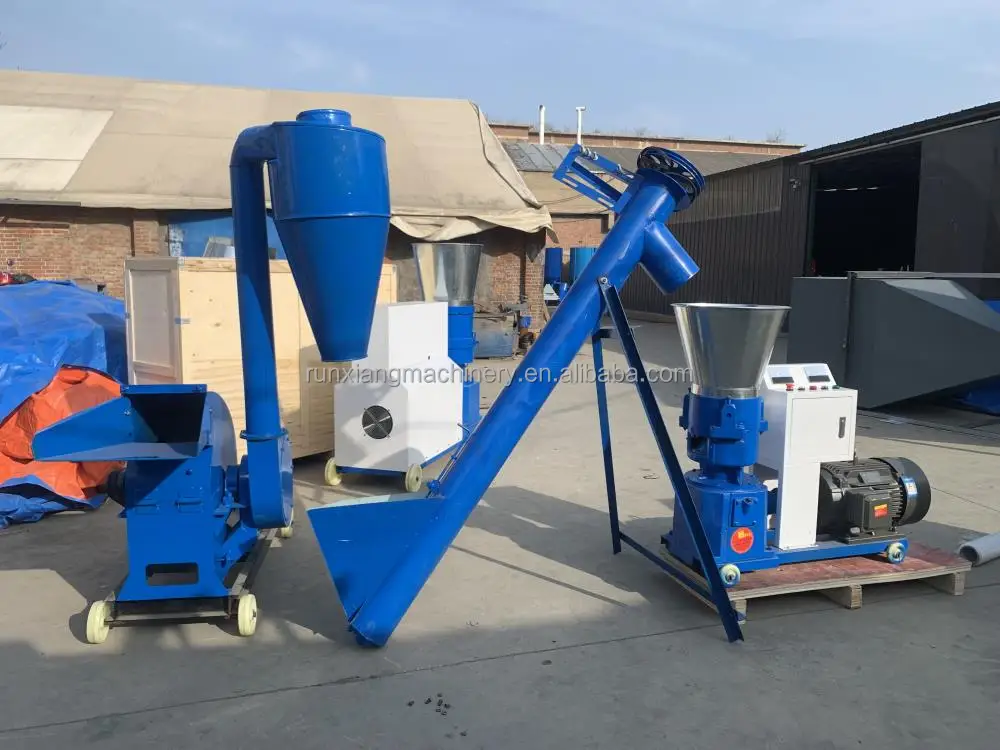

The picture shows a small pellet making production line with a capacity of 100 kilograms per hour, consisting of a crusher, a screw conveyor, and a pellet machine. Customers can choose to use electric motors or diesel engines, and we provide customized voltage services such as 240V, 380V, 420V, 550V, etc.
Crushers are used to crush grains, straw, sawdust, peanut shells etc. The crushed materials can be better processed into flat die pellet machine.
The screw elevator connects the crusher and pellet making machine, upgrading it to a small pellet production line that can save one labor.
The pellet machine can produce different pellets by different molds, and if customers have specific requirements, we can also add a mixer machine and packaging machine.
Crushers are used to crush grains, straw, sawdust, peanut shells etc. The crushed materials can be better processed into flat die pellet machine.
The screw elevator connects the crusher and pellet making machine, upgrading it to a small pellet production line that can save one labor.
The pellet machine can produce different pellets by different molds, and if customers have specific requirements, we can also add a mixer machine and packaging machine.
Specification
Name | Specification |
01. Pulverizer WS9FQ-350 | Power：18.5kw Capacity：600-700kg/h Size：1600*1050*1300mm Weight：320kg |
02. Screw Elevator WSTS-500 | Power：2.2kw Capacity：700-800kg/h Size：3200*820*630mm Weight：95kg |
03. Flat die pellet machine WSKL-260 | Power: 15KW Output: 400-600kg/h Shape size: 108*42*104mm Weight: 190kg |
Runxiang Feed Pellet Machine Suggestions :

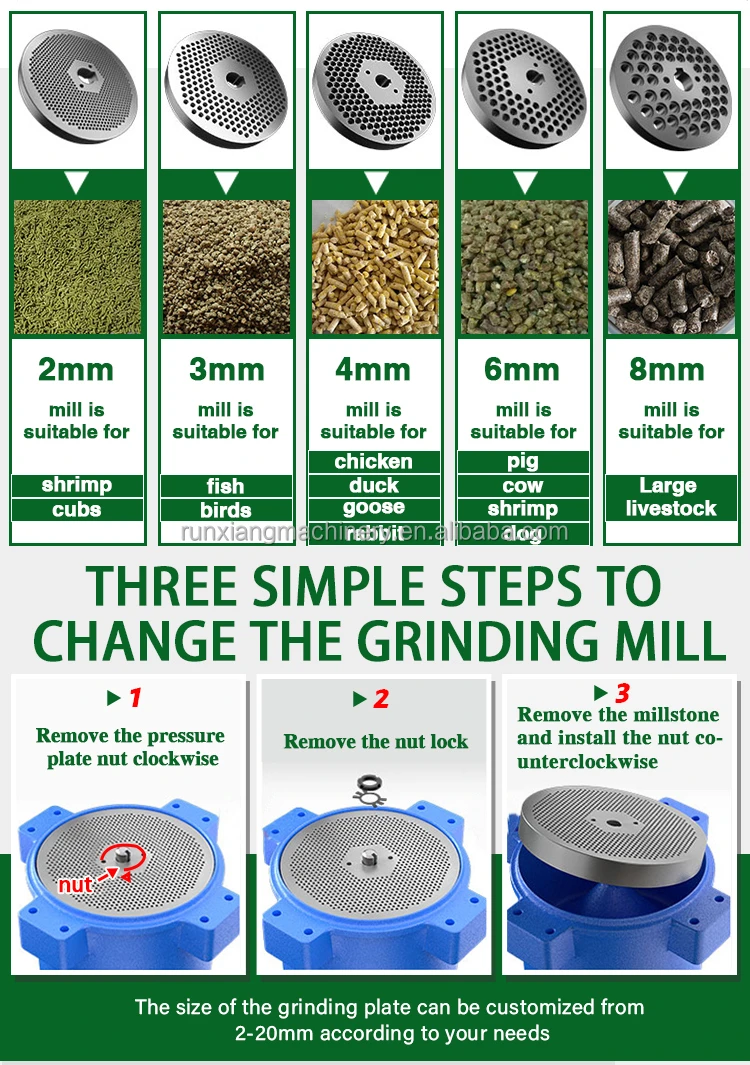

Our pellet die have many diameters, and different diameters suit different animals
-- 2mm mold is suitable for aquaculture animals, such as shrimp, small fish, crabs, young birds
-- 3mm mold is suitable for aquaculture, young chickens, young ducks, young rabbits, young peacocks, aquatic products,
-- 4mm mold is suitable for breeding, chickens, ducks, fish, rabbits, pigeons, peacock birds, etc.
-- 5mm mold is suitable for breeding pigs, horses, cattle, sheep, and other domestic animals
-- 2mm mold is suitable for aquaculture animals, such as shrimp, small fish, crabs, young birds
-- 3mm mold is suitable for aquaculture, young chickens, young ducks, young rabbits, young peacocks, aquatic products,
-- 4mm mold is suitable for breeding, chickens, ducks, fish, rabbits, pigeons, peacock birds, etc.
-- 5mm mold is suitable for breeding pigs, horses, cattle, sheep, and other domestic animals
-- 6mm and 8mm mold is suiatble for big pigs, cow and big dogs and other large livestock.
-- If you want make wood pellets, suggest model WSKL- 300 or bigger machines .
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

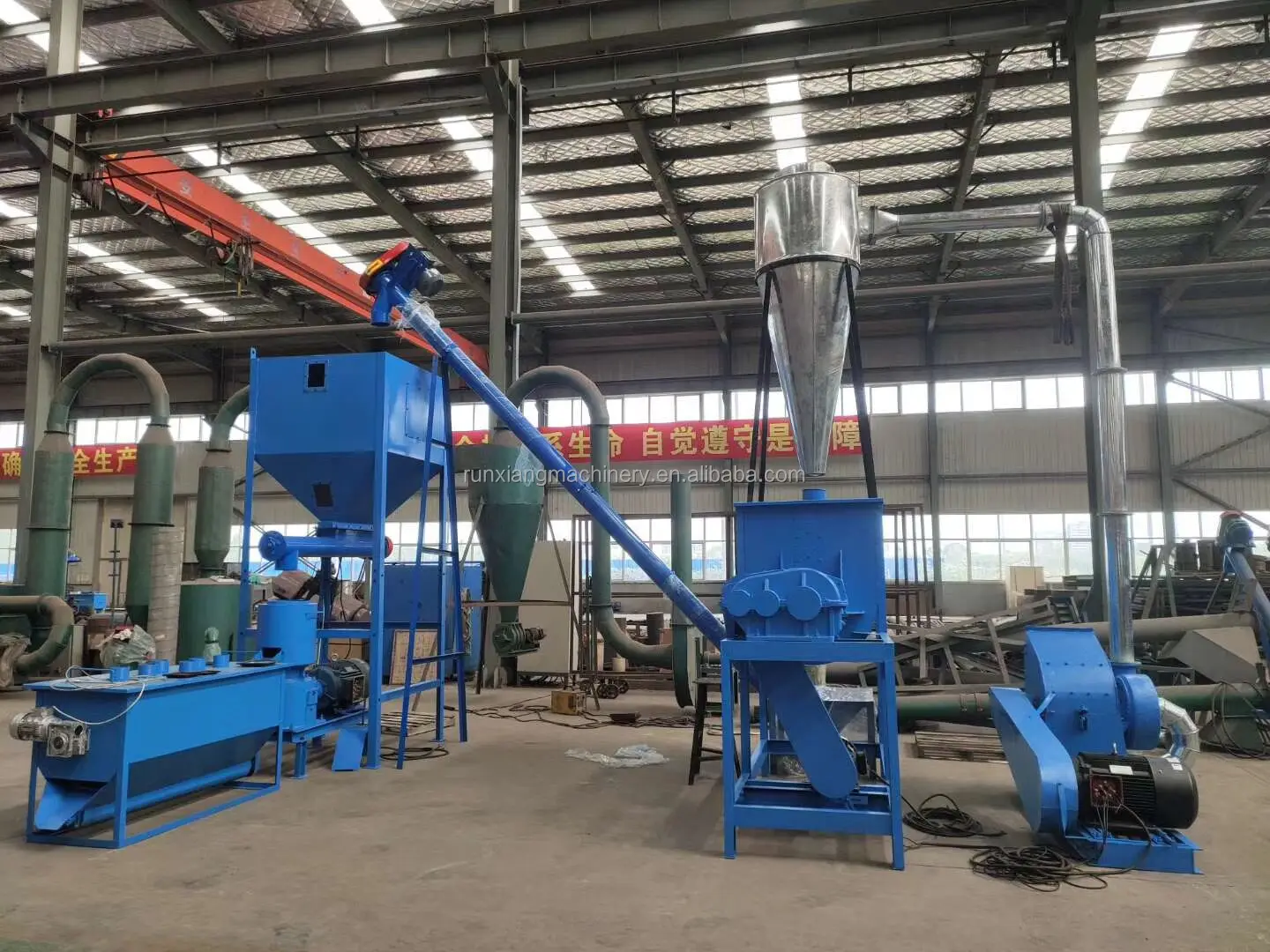

Factory show

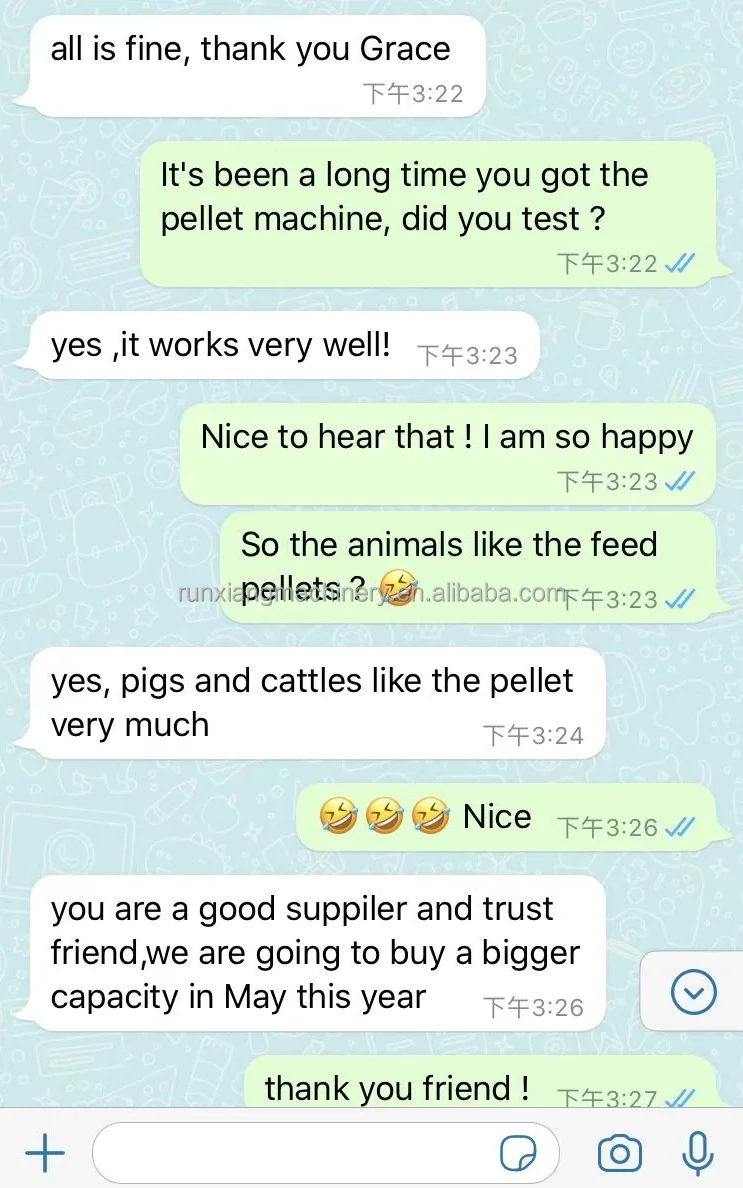

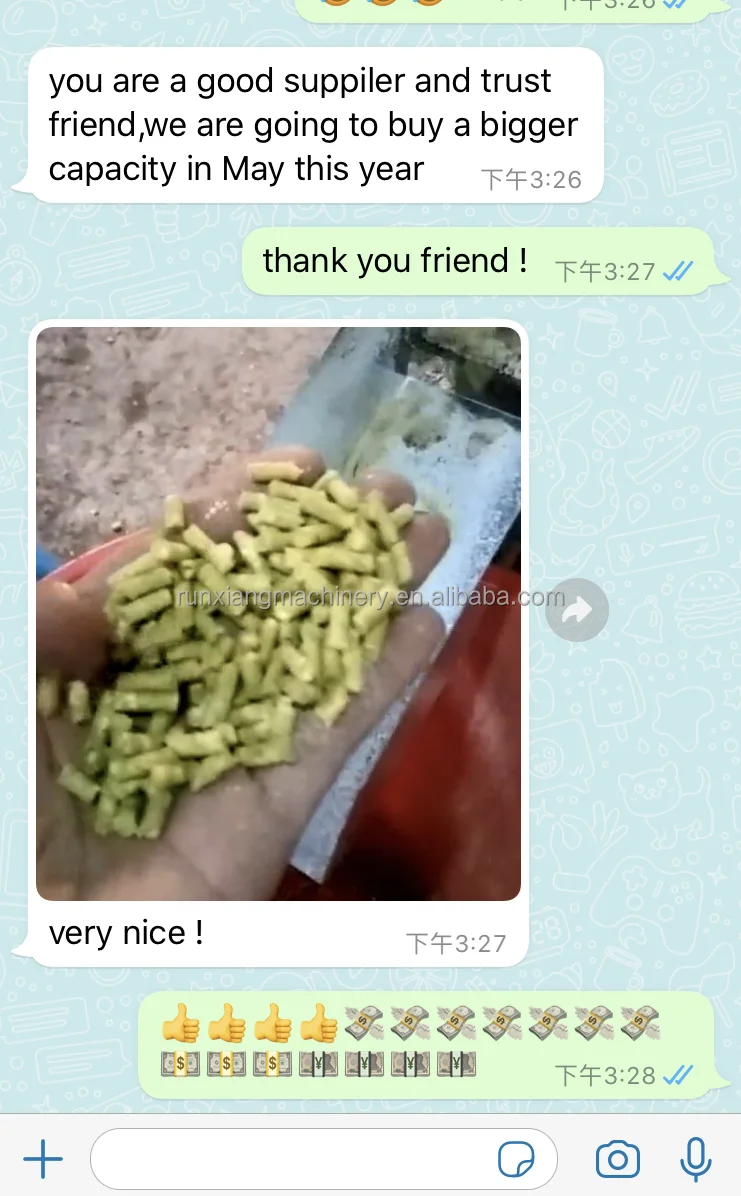

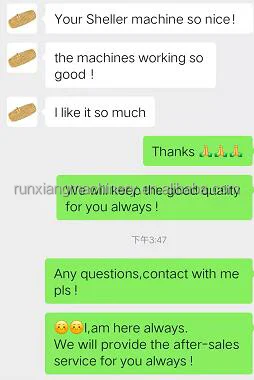

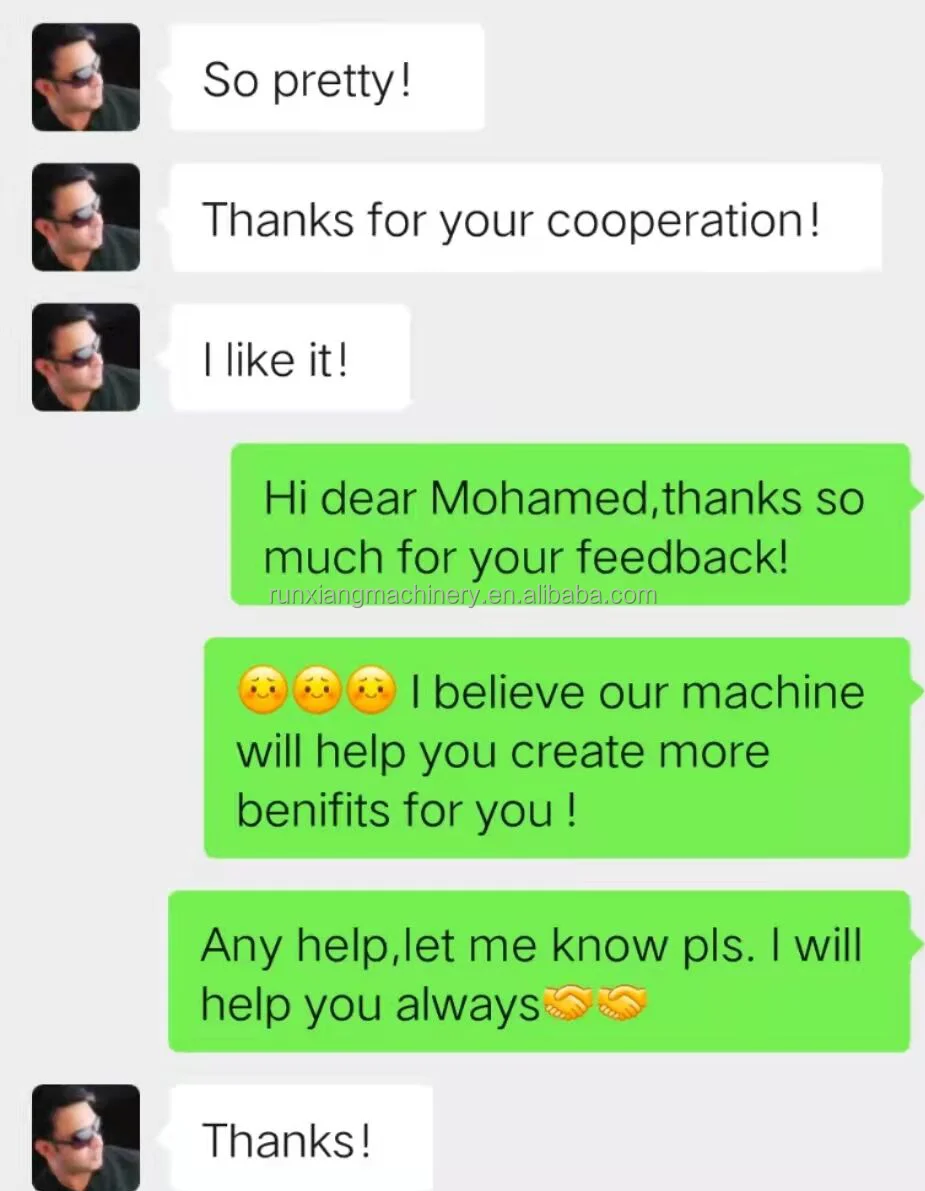

Real feedback from clients:
